Adam P11A User manual

P11A Nearfield Monitor
Operation manual / Bedienungsanleitung
English / deutsch

2
Introduction
Dear customer,
Congratulations on choosing an ADAM Audio P11A nearfield monitor!
ADAM loudspeakers are built for maximum quality reproduction and audio
perfection. With the P11A you have selected a precise, high resolution speak-
er system that allows you to professionally evaluate audio recordings. This
monitor meets highest expectations in sound quality and craftmansship.
This manual is intended to provide you with information about your new
ADAM. It contains important information regarding safety, setting up,
handling, and warranty. We request that you read these sections carefully
to ensure an easy set up and to prevent potential problems.
The P11A is a compact nearfield monitor. It is perfectly suited for small con-
trol rooms, recording vehicles and post-production suites—an ideal tool for
situations where a combination of no-compromise sound reproduction and a
small footprint is required.
The P11A is a two-way ported active system that uses a single ART tweeter,
ensuring full compatibility with the latest expanded high frequency resolution
media formats, and a conventional bass/midrange driver below the crossover
frequency of 1.8 kHz. Each section uses an individual amp with continuous
output of up to 100 Watts (RMS).
If you have any questions about this or any of our products, please don’t hesi-
tate to contact us–we will be happy to assist you in any possible way.
For detailed information concerning the ADAM technologies and products,
complete reviews, and a list of worldwide ADAM users and studios, please
visit our website:
www.adam-audio.com
We hope very much that you really enjoy your new loudspeakers, and wish
you many delightful hours with them.
The ADAM Audio Team

3
English
Table of contents
1. Safety Instructions.........................4
2. Quick Start.....................................5
2.1 Important Information....................5
2.2 Quick Start P11A............................6
2.3 LED ................................................6
3. Speaker Placement........................7
3.1 Vertical Setup ................................7
3.2 Horizontal Setup ............................7
3.3 Stereo Setup..................................8
3.4 Surround Setup..............................8
3.5 Tweeter Height...............................9
3.6 General Recommendations............9
4. Controls/Speaker Adjustement .....10
4.1 Control Panel .................................10
4.2 Input Gain ......................................10
4.3 High Gain .......................................11
4.4 High/Low Shelving ........................11
5. Troubleshooting .............................12
6. Maintenance ..................................13
7. Transportation / Package ..............13
8. Environmental Information.............13
9. EU Declaration of Conformity ........14
10. Limited Warranty............................15
10.1 Terms and Conditions ....................15
10.2 How to claim..................................15
11. Technical Data ...............................16

4
1. Safety Instructions
In case of a problem, please contact either your ADAM dealer or us. We are
happy to help. Always refer servicing to qualified personnel and never at-
tempt to repair this product yourself.
Please read the following safety instructions before setting up your
system. Keep the instructions for subsequent reference. Please heed
the warnings and follow the instructions.
Do not open the loudspeaker. There are no user-serviceable parts inside.
This product, as well as all attached extension cords, must be terminated
with an earth ground three-conductor AC mains power cord like the one sup-
plied with the product. To prevent shock hazard, all three components must
always be used.
Protect the cord from being walked on or pinched.
Never replace any fuse with a value or type other than those specified. Never
bypass any fuse.
Always switch off your entire system before connecting or disconnecting any
cables, or when cleaning any components.
Please note that the diaphragms build up a magnetic field. Do not ply with
magnetic items at close range to the diaphragms.
Do not expose this product to rain or moisture, never wet the inside with any
liquid and never pour or spill liquids directly onto this unit. Please do not ut
any objects filled with liquids (e.g. vases, etc.) onto the speaker.
Always use fully checked cables. Defective cables can harm your speakers.
They are a common source for any kind of noise, hum, crackling etc.
Never expose this product to extremely high or low temperatures. Never op-
erate this product in an explosive atmosphere.
High SPL’s may damage your hearing! Please do not get close to the loud-
speakers when using them at high volumes.

5
English
1.Safety Instructions
Always keep electrical equipment out of the reach of children.
Always unplug sensitive electronic equipment during lightning storms.
The monitor should be installed near the socket outlet and disconnection of
the device should be easily accessible.
To completely disconnect from AC mains, disonnect the power supply from
the AC receptacle.
Never use flammable or combustible chemicals for cleaning audio compo-
nents.
Avoid touching the speaker membranes and do not block the woofer’s ven-
tilation ports.
Assure free airflow behind the speakers to maintain sufficient cooling.
2. Quick Start
Important Information for set up
After having unpacked your loudspeaker, please allow the system to accli-
mate to the temperature of the room. Please do not connect the speaker for
approximately an hour.
We recommend using high quality cables to guarantee optimal performance.
It is important to ensure the speakers stand firmly on a solid ground!
We recommend not to damage the package and to retain it. The original pack-
aging is the best guarantee for safe transportation (see 7.).
Please note that the loudspeakers will need a few days to achieve optimum
sonic performance.
2.1

6
2. Quick Start
Quick Start
Before connecting the loudspeakers to your audio components and the
power source make sure that both the loudspeakers and your audio system
is switched off!
Set all level controls fully counterclockwise.
Connect the loudspeakers with your audio units: Use a XLR cable. The male
plug goes into the loudspeaker, the female plug into your audio component.
Check if the specified voltage matches the voltage of the power supply
you use. If this is not the case do not connect the loudspeakers to a power
source! Please contact your local dealer or national distributor.
If the voltages match, connect the loudspeaker via the included power
cables to two AC sockets.
Switch on your audio system. Then, switch on the main on/off switches on
the rear panel of the loudspeakers.
Turn on your source of music and adjust the volume carefully.
LED
There is a diode at the front, above the tweeter. When the loudspeaker is
being switched on, it will flash red a few times. This does not indicate an
overload! It signalizes the control function of the protective circuit. After-
wards, it will start to glow green, indicating power on. If the LED flashes red
during operation, this indicates an overload. The protective circuit will be
activated.
2.2
d)
a)
b)
c)
e)
Figure 1: LED
LED
Flashes a few times red when loud-
speaker is being switched on. Glows
green during operation

7
English
3. Speaker Placement
Vertical set up
The P11A has been designed for a vertical set up. The speakers must be
positioned on a firm ground or a stand.
Hoizontal set up
If you choose to use your speakers in horizontal position as indicated below,
please make sure that the set up is mirror symmetrical, i.e. that the
tweeters both face either the outsides or the insides. This is crucial for a
precise stereo signal.
Figure 3: horizontal / mirror symmetrical set up
3.1
so:
or so:
3.2
Figure 2: vertical set up

8
3. Speaker Placement

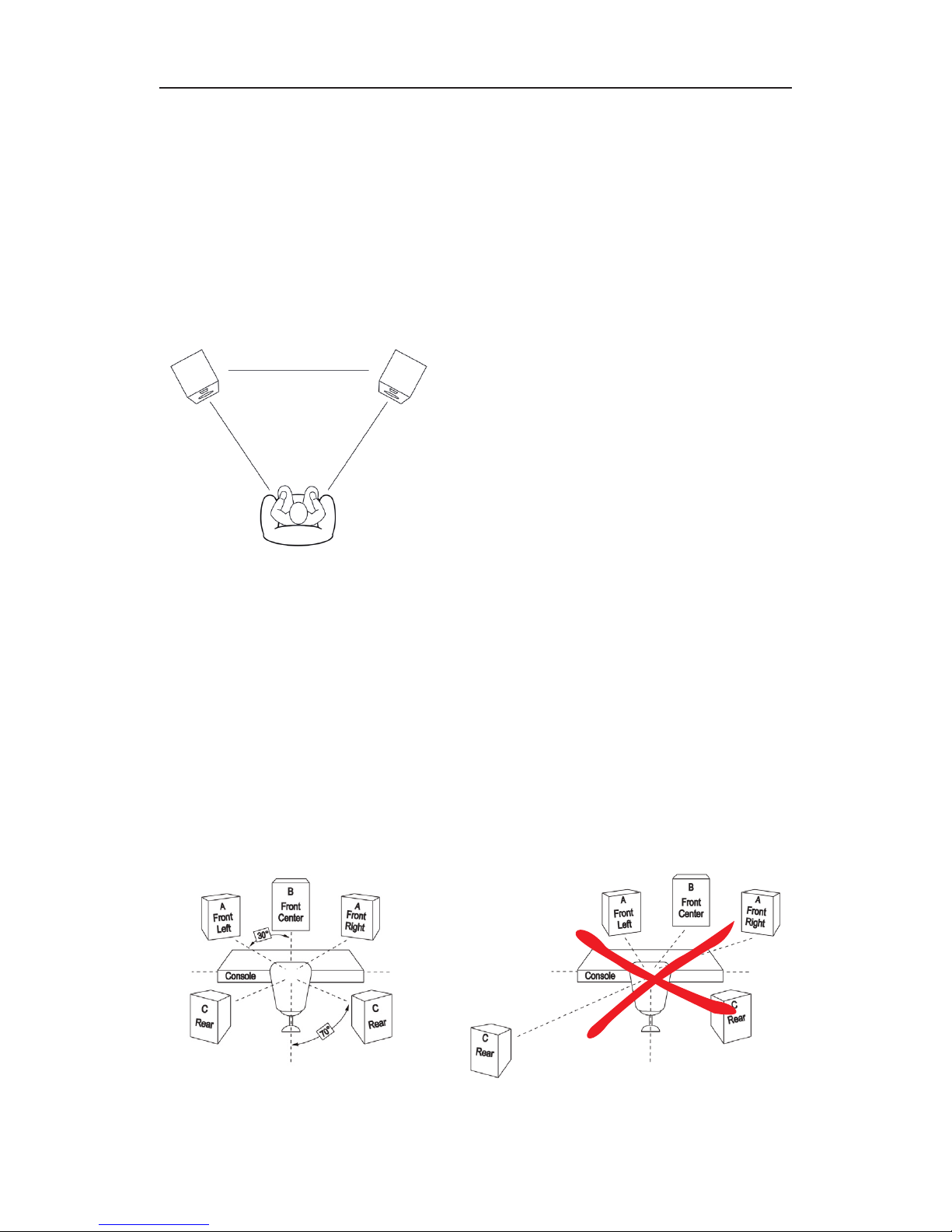

The Stereo Triangle
If the loudspeaker is going to be used for stereo applications, the optimum
listening position should be located in the middle of a stereo triangle. This
means that your listening position will be located at the top of an imaginary
equilateral triangle and the two loudspeakers should be placed at the other
two points of this triangle.
Surround Placement
Speaker positioning for multi-channel stereo purposes is ideally based on
a circle with speakers placed at 0° (Center), 30° (Front Right), 110° (Rear
Right), 250° (Rear Left), 330° (Front Left), with the listener being the circle’s
center (Radius between 0.7-2.0 m). This ITU recommended configuration may
vary depending on the purpose of the control room (music or film). However,
it is recommended to create a symmetrical listening position with the front
side and surround speaker pointing to the listener’s ear.
Figure 5: Surround set up
3.3
3.4
Figure 4: Stereo Triangle
• both loudspeaker and the listening
spot should be a equilateral triangle
• approx. the same distances
between loudspeakers and the lou-
dspeakers / the listening spot
• alignment towards listening spot

9
English
3. Speaker Placement
Tweeter at the height of ears
The Tweeter should be positioned approximately at the height of your ears. In
case you need to position the speaker in a significant lower or higher position,
the monitor should be angled accordingly.
Figure 6: Tweeter at height of ears / speaker angling
General Recommendations/Advises
Direct sound ways: There should be no obstacles in the way from the monitor
to your ears. You should be able to see the speakers completely.
Distance to walls: The distance to the surrounding walls should be at least 40
cm to avoid early reflections, which will degrade the sound.
Alignement: The loudspeakers should be aligned with the listener’s position.
Nearby objects: Please note that vibrating parts of nearby objects can mask
the sound.
Mechanical adjustements: If you plan to modify the speaker cabinet (e.g.
drilling holes), please contact us before doing so. Usually, we will handle your
warranty obliging.
3.6
3.5

10
4.Controls/Speaker Adjustment
The Control Panel
On the rear side you will find a control panel that allows detailed fine-tuning
of your loudspeakers to your particular room acoustics and personal listen-
ing preferences. The following tips are intended to assist you at using the
controls in the best manner.
Please note that using the controls may have a great impact on the overall
sound characteristics of your loudspeakers. We recommend using the con-
trols with utmost care and only after several audio tests with familiar record-
ings.
Input Gain
‘Input Gain’ regulates the overall input sensitivity of your loudspeaker within
a range of -10 to +10 dB, and controls the volume of your loudspeaker equally
in all frequency ranges.

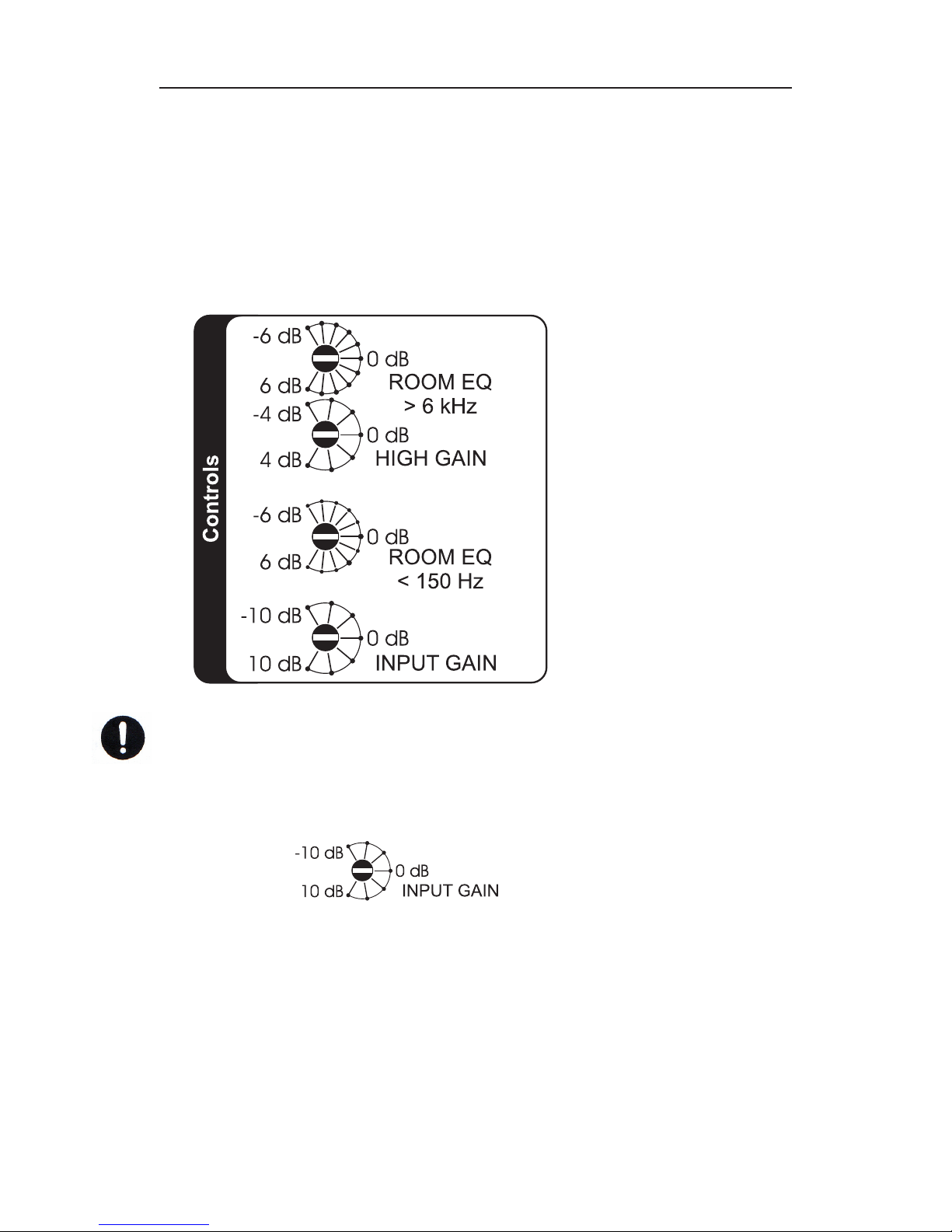

Figure 7:
Control panel
Room EQ > 6 kHz
High Gain
Room EQ < 150 Hz
Input Gain
4.1
4.2

11
English
4.Controls/Speaker Adjustment
High Gain
Whereas the ‘Input Gain’ raises or lowers the overall input sensitivity up to
+/-10 dB, the ‘High Gain’ works only within the frequency range of the tweet-
er (>1.800 Hz) only, raising or lowering up to +/-4 dB.
High / Low Shelving
The other two controls operate in a different manner. The ‘High Shelve’ is
a shelving filter that progressively raises or lowers above 6 kHz up to 6 dB.
Whereas the gains raise or lower a specific frequency range as a whole, the
shelve filters work differently. They do not alter a whole frequency band but
alter in this band, from a certain point (6 kHz respectively 150 Hz in this case)
the frequencies are gradually being changed (see figure 8 & 9).
Figure 8
ROOM EQ >6 kHz for the high
frequencies above 6 kHz
Figure 9
ROOM EQ <150 Hz for the low
frequencies below 150 Hz
4.3
4.4

12
5.Troubleshooting
All ADAM products are designed and manufactured to the highest quality
standards. However, if any problems with your speaker occur, we recommend
to proceed as follows:
Problem: The LED shows normal operation (green) but there is either no or
only a distorted audio signal.
If both (all) speakers are affected, the reason can probably be found within
the signal path. If only one speaker is affected, the problem will probably be
within this speaker.
Check the wiring
Is the cable defective? Are all cables connected correctly?
Check the signal path
Interchange the cables of both loudspeakers. Does the problem change with
one of the cables?
Connect the monitor as directly to the signal source as possible (please mind
the volume!). Is another part of the signal path (e.g. mixer, subwoofer) defec-
tive?
If the answer to all these question is ‘no’, the problem is being caused by the
loudspeaker with the utmost probability.
If the answer to at least one of these questions is ‘yes’, there will probably be
another defective device within the signal path.
Problem: You hear parasitic noises (like humming, buzzing, soughing, crack-
ing).
Please disconnect the signal cables.
If the noises disappear, check the signal path.
If the noises can still be heard, check for other electrical devices close to
the speakers (mobile phones, switching power supplies, etc.). If there is no
interfering device the speaker will probably cause the problem.
5.1
5.2
a)
b)

13
English
6.Maintenance
Please switch the loudspeaker off before cleaning!
Please note that the diaphragms build up a magnetic field. Do not play with
magnetic items at close range to the diaphragms.
Please make sure that no liquids get inside the cabinet. Do not spray any
fluids on the speaker. Do not use a wet cloth for cleaning.
Do not use flammable or acidly chemicals for cleaning.
Do not touch the membranes of the loudspeakers.
We recommend using a lint-free, damp cloth for cleaning.
The loudspeaker membranes may be dusted using a very soft brush.
7. Transport / Package
In case you have to send your speakers to any other location, it is of vital
importance that you use the original packaging materials. Experience has
shown that it is very difficult to avoid damage if you have to send them with-
out these. ADAM Audio can not be held responsible for damages due to im-
proper packaging.
If a transport is necessary and the original package is no more available, a
new one can be purchased from ADAM Audio.
8. Environmental Information
All ADAM products comply with international directives on the Restriction of
Hazardous Substances (RoHS) in electrical / electronical equipment and the
disposal of Waste Electrical / Electronic Equipment (WEEE).
For disposal, please consult your local authorities for further information.

14
9. EU Declaration of Conformity
We,
ADAM Audio GmbH
whose registered office is situated at
Ederstr.16, 12059 Berlin, Germany
declare under our sole responsibility that the product:
P11A
complies with the EU Electro-Magnetic Compatibility (EMC) Directive
89/336/EEC, in pursuance of which the following standards have been ap-
plied:
EN 61000-6-1
EN 61000-6-3
EN 55020
EN 55013
and complies with the EU General Product Safety 2001/95/EC, in pursuance
of which the following standard has been applied:
EN 60065
This declaration attests that the manufacturing process quality control and
product documentation accord with the need to assure continued compli-
ance.
The attention of the user is drawn to any spezial measures regarding the use
of this equipment that may be detailed in the owner’s manual.
Signed:
Klaus Heinz
Director
ADAM Audio

15
English
10.1
d)
a)
b)
c)
e)
10.2
10. Warranty
ADAM Audio GmbH provides a five year limited warranty for this product.
Terms and Conditions
This warranty is limited to the repair of the equipment or, if necessary, the
replacement of parts or the product and return shipping within the country
of purchase.
This warranty complements any national/regional law obligations of deal-
ers or national distributors and does not affect your statutory rights as a
customer.
Neither other transportation, nor any other costs, nor any risk for removal,
transportation and installation of products is covered by this warranty.
Products whose serial number have been altered, deleted, removed or made
illegible are excluded from this warranty.
The warranty will not be applicable in cases other than defects in materials
and/or workmanship at the time of purchase and will not be applicable:
for damages caused by incorrect installation, connection or packing,
for damages caused by any use other than correct use described in the user
manual,
for damages caused by faulty or unsuitable ancillary equipment,
if repairs or modifications have been executed by an unauthorized person,
for damages caused by accidents, lightning, water, fire heat, public distur-
bances or any other cause beyond the reasonable control of ADAM Audio.
How to claim repairs under warranty
Should service be required, please contact the ADAM Audio dealer where
the product has been purchased.
If the equipment is being used outside the country of purchase, the interna-
tional shipping costs have to be paid for by the owner of the product.
Service may be supplied by your ADAM Audio national distributor in the coun-
try of residence. In this case, the service costs have to be paid for by the
owner of the product whereas the costs for parts to be repaired or replaced
are free of charge. Please visit our website to get the contact details of your
local distributor.
To validate your warranty, you will need a copy of your original sales invoice
with the date of purchase.

16
Active 2-ways bass reflex loudspeaker
Woofer 1
Basket ø 7“ / Paper
ART Tweeter 1
Diaphragm area 2830 mm2 / 4.5 inch2
Equivalent diaphragm ø 60 mm / 2.5“
Speed transformation ratio 4:1
Diaphragm weight 0,17 g
Built-in amplifiers 2 (Class 1)
AC Voltage 100 - 120 V~, 50 / 60 Hz 3
220 - 240 V~, 50 / 60 Hz 3
Woofer channel 1/2 100 W / 150 W
Tweeter channel 1/2 100 W / 150 W
Control Panel
Input Sensitivity ±10 dB
Low shelve > 6 kHz ± 6 dB
High shelve < 150 Hz ± 6 dB
Tweeter gain ± 4 dB
General Data
Frequency response (± 3 dB) 42 Hz - 35 kHz
Crossover frequency 1800 Hz
THD >80 Hz at 90 dB in 1 m ≤ 1%
SPL with sine wave acoustic output in 1
m, 100 Hz - 3 kHz
≥ 107 dB
Max. peak acoustic output in 1 m per pair ≥ 117 dB
Impedance 10 kΩ
Height x Width x Depth 330 x 210 x 280 mm
Weight 10 kg (22 pounds)
Warranty 5 years
Input XLR
Operating temperature 0° C bis 40° C (32° F bis 104° F)
Storage temperature -30° C bis 70° C (-22° F bis 167° F)
Humidity Max. 90 % not condensing
11. Technical Data
1 = long term IEC 265-8-Wrms / 10 min
2 = nominal IEC 265-8 = Peak Power 5 µsec
3 = pay attention to the selected voltage on the rearside of the speaker

17
Deutsch
Einleitung
Sehr verehrte Kundin, sehr verehrter Kunde,
vielen Dank, dass Sie sich für einen Studiomonitor von ADAM Professional Au-
dio entschieden haben! Sie haben ein professionelles und hoch auflösendes
Aktivsystem zur zuverlässigen Beurteilung von Tonaufnahmen erworben, das
mit dem Ziel größtmöglicher Perfektion und bestmöglicher Wiedergabequali-
tät entworfen und gefertigt worden ist.
Bitte lesen Sie diese Bedienungsanleitung vor der Inbetriebnahme und
beachten Sie die folgenden Sicherheitshinweise und Garantiebestimmungen.
Die nachfolgenden Tipps und Überlegungen sollen Ihnen dabei helfen, die
Fähigkeiten ihrer Lautsprecher möglichst gut zu nutzen. Die Positionierung
im Raum sowie die Eigenschaften des Hörraums selbst sind von größerer
Bedeutung für das Gesamtergebnis als bisweilen vermutet.
Das Modell P11A ist ein kompakter Nahfeldmonitor für den Einsatz in kleinen
Regieräumen: im Tonstudio, im Übertragungswagen, bei der Postproduktion
- überall dort, wo klangliche Kompromisse auch bei geringen Abmessungen
unerwünscht sind. Das aktive Zweiwege-Bassreflexsystem arbeitet mit einem
ART Hochtöner sowie einem Konuslautsprecher für den Tief-/Mitteltonbereich
unterhalb 1,8 kHz. Für beide Wege steht ein eigener Verstärker mit 100 W
(RMS) zur Verfügung.
Die herausragenden Eigenschaften des ART Hochtöners gewährleisten
volle Kompatibilität zu aktuellen Medien mit ihrer erweiterten Auflösung im
Hochtonbereich, wie etwa die DVD Audio oder die SACD. Gleichzeitig erlaubt
der P11A, trotz kompakter Abmessungen, eine neutrale Beurteilung des
Bassbereichs hinunter bis 42 Hz.
Sollten Sie Fragen zu weiteren Einzelheiten haben oder Probleme auftauchen,
zögern Sie bitte nicht uns zu kontaktieren. Wir helfen gerne!
Für detaillierte Informationen zu den ADAM Technologien und Produkten,
ausführliche Testberichte, eine Liste und Hintergrundberichte von weltweiten
ADAM Usern und Studios können Sie auch unsere Website besuchen:
www.adam-audio.com
Wir wünschen Ihnen viele schöne Stunden mit Ihrem neu erworbenen ADAM
Lautsprecher!
Ihr ADAM Audio Team aus Berlin

18
Inhalt
1. Sicherheitshinweise.............................19
2. Quick Start zur Inbetriebnahme...........20
2.1 Allgemeine Hinweise............................20
2.2 Inbetriebnahme....................................21
Leuchtdioden.......................................21
3. Empfehlungen zur Aufstellung..............22
3.1 Vertikale Aufstellung ............................22
3.2 Horizontale Aufstellung........................22
3.3 Zweikanal Stereo .................................23
3.4 Mehrkanal (Surround) ..........................23
3.5 Hochtöner in Ohrenhöhe......................24
3.6 Allgemeine Empfehlungen....................24
4. Lautsprechereinstellungen...................25
4.1 Input Gain (Lautstärkereglung).............25
4.2 Tweeter Gain (Hochtonpegel)...............26
4.3 High / Low Shelve (Kuhschwanzfilter) .26
5. Fehlerbehebung ...................................27
6. Wartung und Pflege..............................28
7. Transport / Verpackung.......................28
8. Umweltinformation ..............................28
9. Konformitätsbescheinigung .................29
10. Garantie...............................................30
10.1 Garantiebedingungen...........................30
10.2 Inanspruchnahme ................................30
11. Technischen Daten...............................31

19
Deutsch
1. Sicherheitshinweise
Bitte versuchen Sie auf keinen Fall, dieses Produkt selbst zu reparieren und
wenden Sie sich bei einem Problemfall an Ihren ADAM Vertragshändler oder
direkt an uns. Wir helfen gerne!
Bitte beachten Sie die folgenden Sicherheitshinweise, bevor Sie Ihre
neuen Lautsprecher in Betrieb nehmen.
Öffnen Sie die Monitore nicht. Gefahr eines Stromschlages! Es befinden sich
keine wartungsbedürftigen Teile im Gehäuseinnern.
Die Lautsprecher müssen mit einer dreipoligen, geerdeten Stromversorgung
betrieben werden. Alle drei Pole müssen stets verwendet werden. Dies gilt
auch für davor geschaltete Verlängerungen oder Verteiler.
Verwenden Sie ausschließlich die spezifizierten Sicherungstypen. Überbrück-
en Sie niemals, auch nicht im Notfall, die Sicherung.
Schalten Sie stets alle Geräte aus, bevor Sie eine Kabelverbindung entfernen
oder neu hinzufügen.
Bitte beachten Sie, dass im Gehäuseinneren sich Magnete befinden, die ein
Magnetfeld aufbauen. Vermeiden Sie, mit magnetischen bzw. paramagnet-
ischen Gegenständen in unmittelbare Nähe der Lautsprecher zu hantieren.
Vermeiden Sie, dass Flüssigkeiten jeglicher Art ins Gehäuseinnere gelangen.
Sprühen Sie weder Flüssigkeiten direkt auf das Gerät, noch nutzen Sie nasse
Reinigungslappen.
Bitte verwenden Sie keine brennbaren und ätzenden Chemikalien zur Reini-
gung dieses Produkts (siehe 6.).
Vermeiden Sie jede Berührung mit den Membranen der Lautsprecher und
blockieren Sie nicht die Bassreflexöffnung.
Gewährleisten Sie eine rückwärtige Luftabfuhr für eine notwendige Kühlung
der Elektronik.

20
1. Sicherheitshinweise
Zum Trennen des Gerätes vom Stromnetz schalten Sie den Netzschalter aus.
Anschließend ziehen Sie den Netzstecker aus der Steckdose. Der Netzschal-
ter und -stecker müssen leicht erreichbar sein.
Verwenden Sie stets geprüfte Kabel. Defekte Kabel sind häufig die Ursache
für Störgeräusche verschiedener Art.
Setzen Sie dieses Produkt nicht bei extremen Temperaturen ein (siehe 11.),
ebenso wenig in feuer- oder explosionsgefährdeten Umgebungen.
Zu hohe Lautstärken können ihr Gehör schädigen! Vermeiden Sie direkte
Nähe zu Lautsprechern, die mit hohen Pegeln betrieben werden.
2. Quick Start zur Inbetriebnahme
Allgemeine Hinweise zur Inbetriebnahme
Nach dem Auspacken und der Aufstellung des Lautsprechers sollte dieser ca.
eine Stunde unangeschlossen ‚ruhen’, um sich der jeweiligen Raumtempera-
tur anpassen zu können.
Wir empfehlen, ausschließlich hochwertige Kabel zu benutzen.
Bitte beachten Sie, dass mit der Qualität der Monitore die Ansprüche an die
Einspielzeit steigen. Ein ADAM Monitor benötigt daher, abhängig von Pegel
und Nutzungsfrequenz, einige Tage, um seine optimale Klangqualität zu er-
reichen.
Wir empfehlen, beim Auspacken der Teile Ihres neuen Lautsprechers darauf
zu achten, die Verpackung nicht zu beschädigen und aufzubewahren, um den
Lautsprecher bei Bedarf sicher transportieren zu können (siehe 7.).
Die Lautsprecher müssen stets fest und ohne zu wackeln auf einer festen
Unterlage stehen!
2.1
