Adcraft CTS-1800W User manual

This manual contains important information regarding your Adcraft unit. Please read this manual
thoroughly prior to equipment set-up, operation and maintenance. Failure to comply with regular
maintenance guidelines outlined in this manual may void the warranty.
INSTRUCTION MANUAL
CTS-1800W
Fresh Shot Steamer

October 2015
WARNINGS
• Do not touch any hot surfaces
• Plug only into a 3-hole grounded electrical outlet of appropriate voltage
• Do not immerse unit, cord or plug in liquid at any time
• Unplug cord from outlet when not in use and before cleaning
• Do not operate unattended
• Do not use this unit for anything other than intended use
• Do not use outdoors
• Always use on a rm, dry and level surface
• Do not use if unit has a damaged cord or plug, in the event the appliance malfunctions, or has been damaged in
any manner
• Keep children and animals away from unit
• Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to property loss and
injury. All repairs should be done by authorized professionals only
• Ensure that the designated power supply is adequate for continual usage and the voltage is correct
SET UP
1. Remove all packing materials both inside and outside the unit and place on a at surface.
2. Clean machine thoroughly before rst use.
3. Position unit near a power outlet. It is not recommended to use an extension cord for this item.
4. Do not place in an area where gasoline, paint or ammable liquids are used or stored.
TO USE
1. Plug the unit into a grounded 3-prong, 120V outlet.
2. Open the tank cover and make sure that the lter inside the tank is properly installed.
3. Fill the unit up with approximately 3 quarts of cold tap water (Do not overll the tank). This unit is designed to be
used with cold tap water. Distilled water may be used to reduce calcium/mineral deposit build-up.
4. Turn the on/off switch to the on position and allow for the unit to preheat for 30 minutes.
5. Once heated, open the top cover and place food items into the basket and then close the top cover.
6. Press the steam button for 2 seconds and release and wait 20 seconds for the steam to penetrate the items
inside the unit. Repeat if product requires more steam. Please note that pressing and holding the steam button
for longer than 2 seconds at a time will often ood out and result in poor steaming.
7. Remove the hot, steamed product from the unit.
8. Turn unit power switch to off if nished using.
Warning: The exterior of the unit gets hot while in use!
CLEANING – NOTE: To maintain cleanliness and increase service life, the unit should be cleaned daily. Do not im-
merse the unit in water or any other liquid. If liquid enters the electrical compartment it may cause a short
circuit or electrical shock.
Daily Maintenance
• Turn the unit off and disconnect the power cord from the electrical outlet
• Allow for unit to cool for 45 minutes before cleaning
• Wipe down the unit with a damp cloth or sponge and hot soapy water
• Rinse by wiping with a clean damp cloth
• Wipe dry
• Do not immerse unit in water or other liquid Fig. 1

October 2015
Monthly Maintenance
• Turn the unit off and disconnect the power cord from the electrical outlet
• Allow for unit to cool for 45 minutes before cleaning
• Perform daily maintenance as listed above
• Remove the spray tube by lifting the loose end and pulling it out of the generator hole (Fig.1)
• Slide the metal cover off the spray tube, take a paper clip and poke out all of the tube’s holes
• Gently wash the tube under running water to clear the deposits out of the loose end. Re-attach the cover onto
the tube. Please do not bend the spray tube. Bending it will cause permanent damage.
• Use a scraper to remove the excessive calcium/mineral buildup from the generator surface
• Thoroughly wipe the generator with a damp cloth to remove any loose buildup and reassemble the unit
If deposits are still excessive and/or difcult to remove, please refer to the steps below:
1. Pour delimer solution onto the generator surface. Follow the delimer manufacturer’s instruction for proper
mixture and use. If using a chemical cleaner, please check to see it is safe to use on the metal. Please follow all
precautions and safety warnings on the product label.
2. Using a sponge or a dry towel, remove the delimer solution from the generator surface and then rinse the sur-
face with clean water. Please note, to ensure proper steaming, some calcium/mineral deposits must be present
on the generator surface. If during cleaning, the surface does become free of calcium/mineral deposits, add
plain tap water to the surface and allow it to boil off. If necessary, repeat this process to create a thin coating of
calcium/mineral deposits. Please note, in soft water areas, it may be necessary to add a small amount of lime
to the generator surface to season it. This will ensure proper steaming by producing a thin coating of calcium/
mineral deposits on the generator surface. Seasoning mixture consists of ¾ ounce baking soda, ¾ ounce lime
mixed with 1 quart of water. Stir mixture and pour ¼” deep onto the hot generator surface. After mixture is
converted to steam, the remaining loose powder can be removed.
3. Plug the power cord into the outlet
4. Turn the power on and allow the unit to warm up for approximately 30 minutes.
5. Push and release the steam button several times to purge the remaining delimer residue from the generator
surface.
6. Turn the unit’s power off; re-install all parts and accessories before using again.
Water Tank Filter Maintenance
The water tank lter is used to prevent particles or food products from entering and damaging the water pump. In-
spect and clean this lter monthly by following these steps:
1. Turn the power off, unplug the cord and allow unit to cool down before proceeding.
2. Open the slide door.
3. Remove the water tank lter located inside the tank by pulling it upwards and out of the bottom hole. (Fig.2)
4. Clean the lter by running it under tap water. Replace the water tank lter if the screen is torn or damaged.
5. Re-install the lter stem into the bottom hole of the tank.
6. Fill the water tank and test the unit
Fig. 2

October 2015

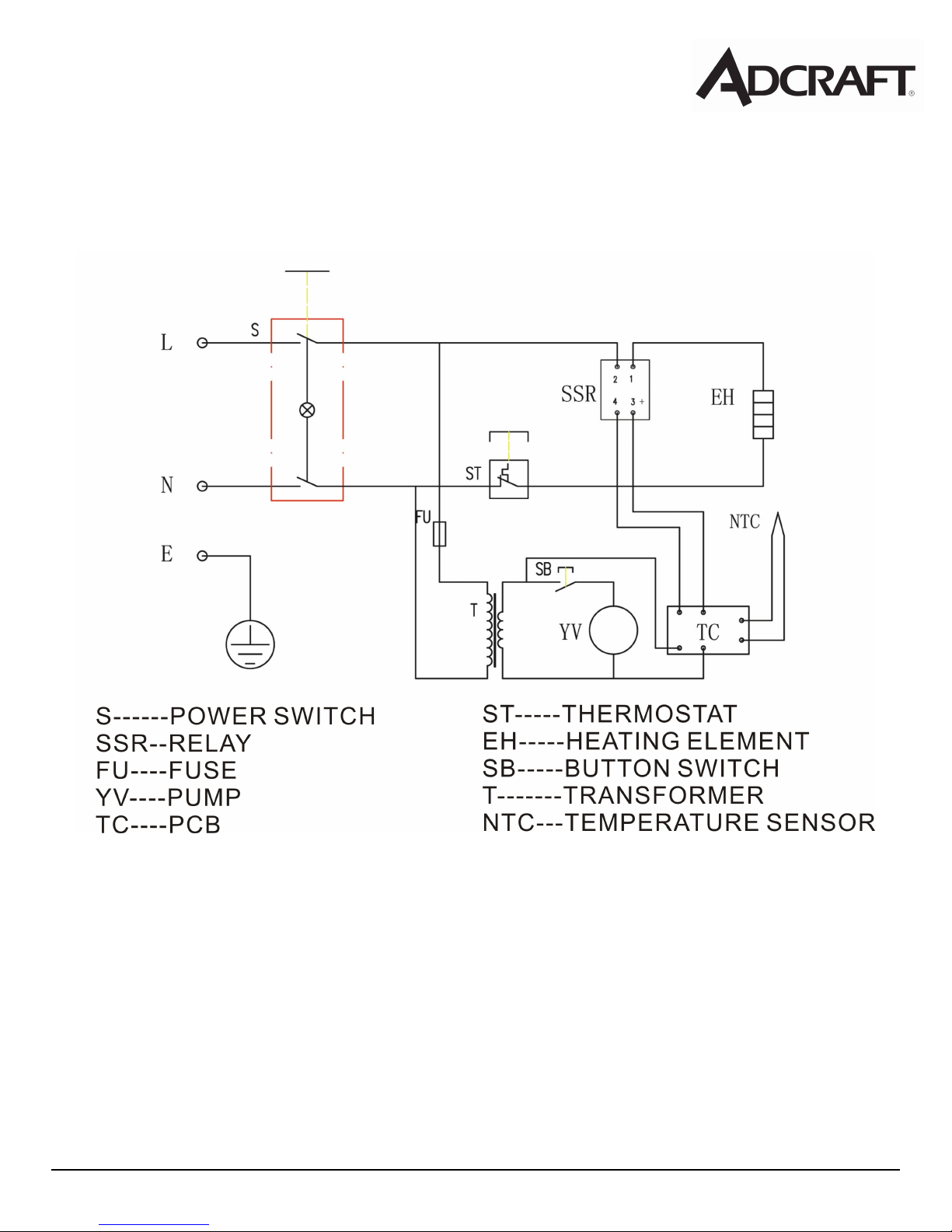

Wiring Diagram for the Fresh Shot Steamer

October 2015

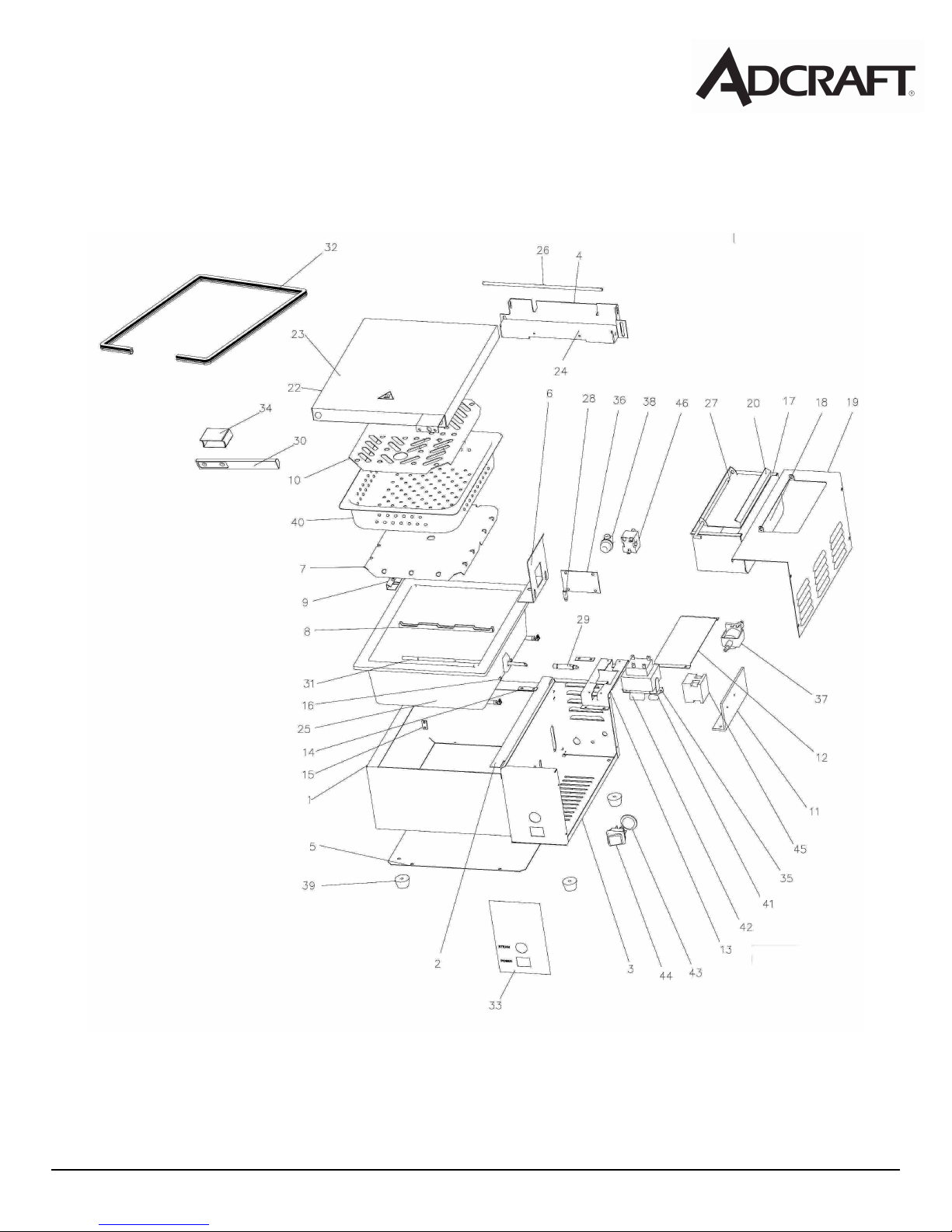

Parts Diagram and Replacement Parts for the Fresh Shot Steamer
