Addie Water Systems 6700 User manual

IMPORTANT: Fill in pertinent information on page 2 for future reference.

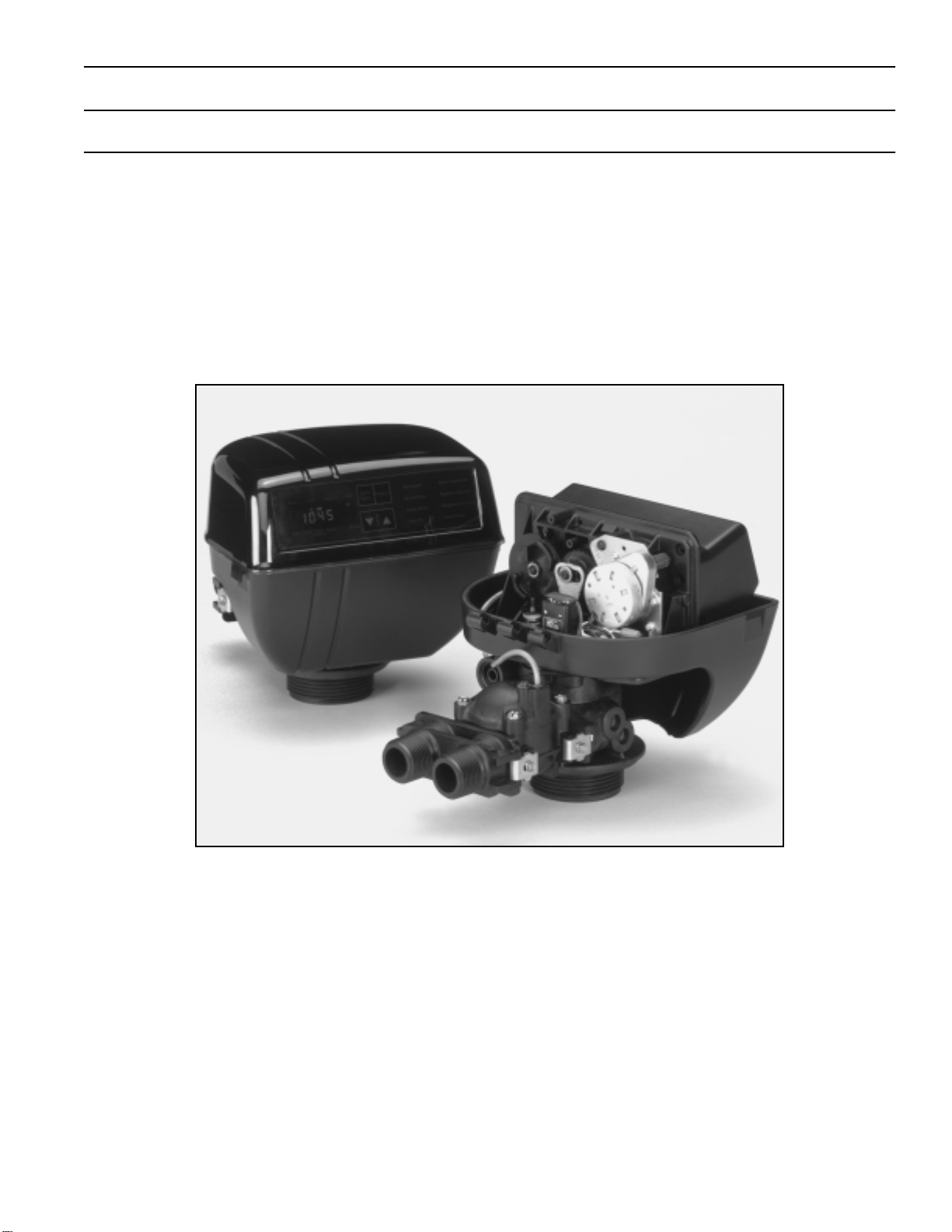

MODEL 6700
Downflow Brining
Service Manual

MODEL 6700 Downflow
Job Specification Sheet
Printed in U.S.A.
Job Number _________________________________________________________
Model Number _______________________________________________________
Water Test___________________________________________________________
Capacity Of Unit _________________________ Max.________________________ Per Regeneration
Mineral Tank Size: Diameter____________ Height__________________________
Under Bedding _______________________ Amount_________________________
Type of Media________________________ Cubic Feet_______________________
Brine Tank Size____________________________________
Salt Setting Per Regeneration ________________________
Page 2
Valve Programming
Water Hardness ___________________________________
System Capacity___________________________________
Regeneration Time_________________________________
Regeneration Cycle Step #1__________________________
Regeneration Cycle Step #2__________________________
Regeneration Cycle Step #3__________________________
Regeneration Cycle Step #4__________________________
Regeneration Cycle Step #5__________________________
Notes:
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________

Printed in U.S.A.
Page 3
MODEL 6700 Downflow
General Residential Installation Check List
WATER PRESSURE: A minimum of 25 pounds of water pressure is required for regeneration valve to operate
effectively.
ELECTRICAL FACILITIES: An uninterrupted alternating current (A/C) supply is required. Please make sure your
voltage supply is compatible with your unit before installation.
EXISTING PLUMBING: Condition of existing plumbing should be free from lime and iron buildup. Piping that is built up
heavily with line and/or iron should be replaced. If piping is clogged with iron, a separate iron filter unit should be
installed ahead of the water softener.
LOCATION OF SOFTENER AND DRAIN: The softener should be located close to a clean working drain and
connected according to local plumbing codes.
BY-PASS VALVES: Always provide for the installation of a by-pass valve if unit is not equipped with one.
CAUTION: Water pressure is not to exceed 120 p.s.i., water temperature is not to exceed 110˚F, and the unit cannot
be subjected to freezing conditions.
Installation and Start-up Procedures
1. Place the softener tank where you want to install the unit, making sure the tanks are level and on a firm base.
2. During cold weather it is recommended that the installer warm the valve up to room temperature before operating.
3. All plumbing should be done in accordance with local plumbing codes. The pipe size for the drain should be a
minimum of 1/2″. Backwash flow rates in excess of 7 gpm or length in excess of 20′require 3/4″drain line.
4. The 1″distributor tube (1.050 O.D.) should be cut flush with top of each tank. Note: Only use silicone lubricant.
5. Lubricate the distributor O-ring seal and tank O-ring seal. Place the main control valve on tank.
6. Solder joints near the drain must be done prior to connecting the Drain Line Flow Control fitting (DLFC). Leave at
least 6″between the DLFC and solder joints when soldering pipes that are connected on the DLFC. Failure to do
this could cause interior damage to DLFC.
7. Teflon tape is the only sealant to be used on the drain fitting.
8. Make sure that the floor is clean beneath the salt storage tank and that it is level.
9. Place approximately 1″of water above the grid plate. If a grid is not utilized, fill to the top of the air check in the salt
tank. Do not add salt to the brine tank at this time.
10. On units with a by-pass, place in by-pass position. Turn on the main water supply. Open a cold soft water tap
nearby and let run a few minutes or until the system is free from foreign material (usually solder) that may have
resulted from the installation. Once clean, close the water tap.
11. Place the by-pass in service position and let water flow into the mineral tank. When water flow stops, slowly open a
cold water tap nearby and let run until the air is purged from the unit.
12. Plug the valve into an approved power source. Once the valve is powered it will drive to the Service Position.

Printed in U.S.A.
Page 4
MODEL 6700 Downflow
Installation and Start-up Procedures (Cont’d.)
13. Once the valve has reached Service position normal operation is resumed. In normal operation the Time Of Day,
and if flow meter equipped, Volume Remaining Displays alternate being viewed. Set the Time Of Day Display by
depressing the Up or Down Set Button, to the correct time. (See Fig. 1) Note: Time Of Day must be set correctly to
either A.M. or P.M.
14. Flow Meter Equipped Valve Only: The Volume Remaining Display is the volume of water (in gallons) remaining
prior to regeneration, including any reserve capacity. Without any water usage the Meter Arrow should be either off
or on but not changing. Open a soft water tap. The Meter Arrow should begin flashing at a rate that varies with flow
rate. Close the tap after 3 - 5 gallons of water flow.
Figure #1
Volume Remaining Display Indicator
Time of Day Display Indicator
Service Indicator:
Valve In Service - Arrow On
Manual Regeneration Tonight - Flashing Arrow
Reserve Indicator:
Volume Remaining Above Reserve - Arrow Off
Volume Remaining At Or Below Reserve - Arrow Flashing
Regeneration Indicator
Valve In Regeneration - Arrow On
Flow Indicator:
Arrow Flashes With Water Flow
For Example:
12:59 A.M.
(Valve in Service)
For Example:
0 Gallons Of Water Remaining
(Valve in Service)
(Water flowing, Meter Arrow flashing)
(Volume is below reserve capacity)
(Reserve Arrow flashing)
For Example:
833 Gallons Of Water Remaining
(Valve in Service)
(No water flow)

Printed in U.S.A.
Page 5
MODEL 6700 Downflow
Installation and Start-up Procedures (Cont’d.)
15. Manually initiate a regeneration cycle and allow water to run to drain for 3 to 4 minutes. Next, manually step the
valve through a regeneration cycle checking valve operation in each step.
A. Initiating Regeneration (Depending on the timer regeneration type you have one or two (2) Options):
1. Press and Release the Extra Cycle Button. With Immediate Regeneration Timers the control will go into
regeneration immediately. With Delayed Regeneration Timers the Service Arrow will begin to flash
immediately and a regeneration will occur at the preset regeneration time (i.e. 2:00 a.m.)
2. Press and Hold for 5 seconds the Extra Cycle Button. The control will go into regeneration immediately.
B. Control Operation During Regeneration:
1. During regeneration the control will display the regeneration step number the valve is advancing to, or has
reached, and the time remaining in that step.
2. When the first cycle step is reached, a red LED will turn on to indicate the current regeneration cycle step.

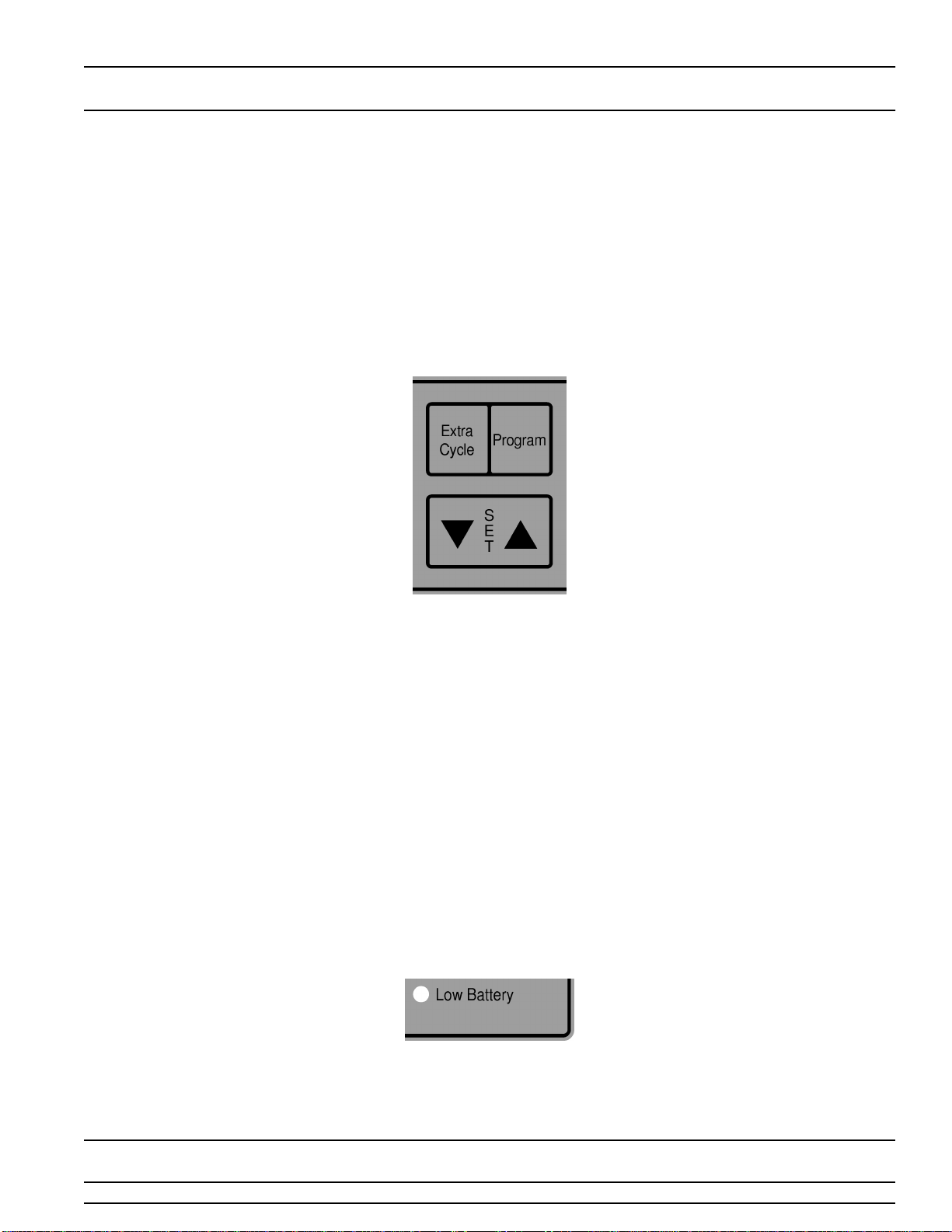

3. Pushing the Extra Cycle Button during a regeneration step will immediately advance the valve to the next
regeneration step position.
4. Pushing the Up or Down Set Button during a regeneration step will adjust the time remaining in that current
regeneration step. Programmed Regeneration Steps will not be changed.
5. Once all regeneration cycle steps have been completed the valve will return to service and resume normal
operation.
16. Add water to the brine tank to the top of the air check. Manually step the valve to the Brine Draw position (see Step
#14) and allow the valve to draw water from the brine tank until it stops. Note: The air check will check at
approximately the midpoint of the screened intake area.
17. Manually step the valve to the brine refill position and allow the valve to return to service automatically.
18. Make sure the brine refill time (salt dosage) is set as recommended by the manufacturer.
19. With the valve in service, check that there is about 1″of water above the grid in the brine tank, if used.
20. Fill the brine tank with salt.
21. A 9V Alkaline Battery is recommended to be installed at all times for proper valve operation. The control will
indicate when the battery needs to be replaced by turning on the Low Battery LED.
For Example:
(Valve is advancing to Regeneration
(#1 flashing)
(Regeneration arrow on)
Step #1)
Backwash
For Example:
(Regeneration Step #1 has
(10.0 minutes remain in Step #1)
been reached)
Backwash

Printed in U.S.A.
Page 6
MODEL 6700 Downflow
Control Operation
Normal Control Operation
Flow Meter Equipped Delayed Regeneration Valves
In Normal Operation the Time Of Day Display will alternate being viewed with the Volume Remaining Display. Water
flow through the unit is indicated by the Meter Arrow that will flash in a direct relationship to flow rate. As treated water
is used, the Volume Remaining Display will count down from a maximum value to the calculated reserve capacity. Once
this occurs, the Reserve Arrow will begin to flash as an indication that reserve capacity is being used. At the preset
Regeneration Time a regeneration cycle will then be initiated immediately.
Volume Remaining Display Indicator
Time of Day Display Indicator
Service Indicator:
Valve In Service - Arrow On
Manual Regeneration Tonight - Flashing Arrow
Reserve Indicator:
Volume Remaining Above Reserve - Arrow Off
Volume Remaining At Or Below Reserve - Arrow Flashing
Regeneration Indicator:
Valve In Regeneration - Arrow On
Flow Indicator:
Arrow Flashes With Water Flow
Lockout Indicator:
Lockout Signal - Arrow On
Sensor Indicator:
Sensor Input Signal - Flashing Arrow
Valid Regeneration Signal - Arrow On
For Example:
235 Gallons Of Water Remaining
(Valve in Service)
(No Water flow)
(Volume is below reserve capacity)
For Example:
0 Gallons Of Water Remaining
(Valve in Service)
(Water flowing, Meter Arrow flashing)
(Volume is below reserve capacity)

Printed in U.S.A.
Page 7
MODEL 6700 Downflow
Control Operation (Cont’d.)
Timeclock Regeneration Valves
In Normal Operation the Time Of Day Display will be viewed at all times. The control will operate normally until the days
since the last regeneration reaches the preset number of days. Once this occurs, a regeneration cycle will then be
initiated immediately at the preset Regeneration Time.
Flow Meter Equipped Immediate Regeneration Valves
In Normal Operation the Time Of Day Display will alternate being viewed with the Volume Remaining Display. Water
flow through the unit is indicated by the Meter Arrow that will flash in a direct relationship to flow rate. As treated water
is used, the Volume Remaining Display will count down from a maximum value to zero. Once this occurs a regeneration
cycle will then be initiated immediately.
Sensor Immediate Regeneration Valves
In Normal Operation the Time Of Day Display will be viewed at all times. The control will operate normally until a valid
sensor input signal is received. Once this occurs, a regeneration cycle will then be initiated immediately. The Sensor
Input Arrow will flash until the signal is determined to be valid.
Sensor Delayed Regeneration Valves
In Normal Operation the Time Of Day Display will be viewed at all times. The control will operate normally until a valid
sensor input signal is received. Once this occurs, a regeneration cycle will then be initiated immediately at the preset
Regeneration Time. The Sensor Input Arrow will flash until the signal is determined to be valid. Then the Reserve
Arrow will begin to flash as an indication that reserve capacity is being used.
Immediate Regeneration Valves With Days Between Regeneration Override Set
When the valve reaches its set Days Since Regeneration Override value a regeneration cycle will be initiated
immediately. This event occurs regardless of the Volume Remaining display having reached zero.
Delayed Regeneration Valves With Days Between Regeneration Override Set
When the valve reaches its set Days Since Regeneration Override value a regeneration cycle will be initiated at the
preset Regeneration Time. This event occurs regardless of the Volume Remaining display having reached the
calculated reserve capacity.

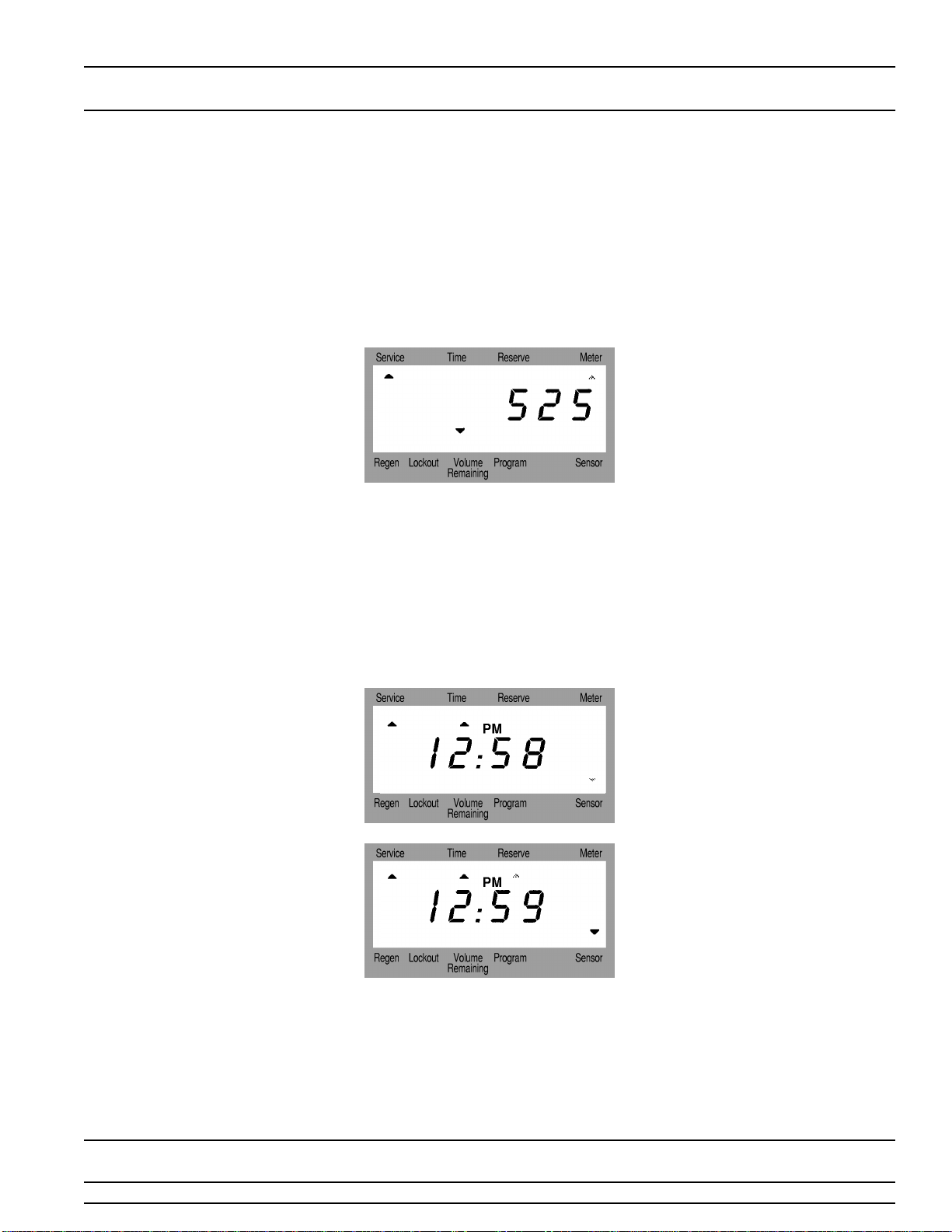

For Example:
525 Gallons Of Water Remaining
(Valve in Service)
(Water flowing, Meter Arrow flashing)
For Example:
12:58 P.M. With Invalid Sensor Signal
(Valve in Service)
(Sensor Arrow flashing)
For Example:
12:59 P.M. With Invalid Sensor Signal
(Valve in Service)
(Reserve Arrow flashing) (Delayed Regen.)
(Sensor Arrow On)

Printed in U.S.A.
Page 8
MODEL 6700 Downflow
Control Operation (Cont’d.)
Control Operation During A Power Failure
During a power failure all control displays will be turned off and regeneration cycles delayed. The control will otherwise
continue to operate normally until line power is restored or battery backup power is lost.
1. If battery backup power is never lost during a power outage, the control will continue to operate normally, without
the loss of data, until line power is restored.
2. If battery backup power is lost during a power outage, the control will store the current Time Of Day, Volume
Remaining, Regeneration Cycle Status, and various diagnostic displays. These stored displays will then be used
upon line power restoration until updated ones are created. To indicate this type of failure, the control will flash the
current Time Of Day Display to indicate that this display and the Volume Remaining Display may not be correct.
Control Operation During Regeneration
In regeneration the control will display what regeneration step number the valve is advancing to, or has reached, and
the time remaining in that step. Once all regeneration cycle steps have been completed the valve will return to service
and resume normal operation.
1. First the Regeneration Arrow turns on. Then the display below is viewed to indicate that the valve is advancing to
the first regeneration cycle step.
2. When the first cycle step is reached, the display becomes as shown below, A red LED will also turn on to indicate
the current regeneration cycle step.
3. Pushing the Extra Cycle Button during a regeneration cycle will immediately advance the valve to the next cycle
step position and resume normal step timing.
4. Pushing the Up or Down Set Button during a regeneration cycle will adjust the time remaining in a regeneration
cycle step. Actual Regeneration Cycle Step programming will not be changed.
For Example:
(Valve is advancing to
(#1 flashing)
Regeneration Step #1)
Backwash
For Example:
(Regeneration Step #1 has
(10.0 minutes remain in Step #1))
been reached)
Backwash

Printed in U.S.A.
Page 9
MODEL 6700 Downflow
Control Operation (Cont’d.)
Control Operation During Programming
The control will only enter the Program Mode with the valve in Service and operating on line power. While in the
Program Mode the control will continue to operate normally monitoring water usage and keeping all displays up to date.
Control programming is stored in memory permanently with or without line or battery backup power.
Lockout Input Operation
The Lockout Arrow will turn on whenever a Lockout Signal is being received by the control. Any requests for
regeneration will be delayed until this signal is removed. Regeneration will then proceed normally.
Keypad Operation
Extra Cycle Button
Pushing this button will initiate a regeneration cycle independently of actual valve conditions.
1. With immediate regeneration valves this extra regeneration would occur immediately.
2. With delayed regeneration valves this extra regeneration would occur at the set Regeneration Time. A regeneration
cycle can be forced to occur immediately by pushing and holding in this button for 5 seconds.
Program Button
This button is used by the installer to program those settings indicated on the front panel by red LEDs.
Up Set Button
This button is used to set the current time of day, adjust time remaining in a regeneration cycle step, and in valve
programming. The Up Arrow Button will increment a display setting.
Down Set Button
This button is used to set the current time of day, adjust time remaining in a regeneration cycle step, and in valve
programming. The Down Arrow Button will decrement a display setting.
Low Battery Indicator
When the control is operating on line power this red LED will turn on whenever the 9V Alkaline Battery (Not Included)
used for memory backup needs to be replaced. The battery is stored inside the top cover. In the event of a power
outage, the battery will maintain current operating data for approximately 24 hours at maximum battery capacity.

Printed in U.S.A.
Page 10
MODEL 6700 Downflow

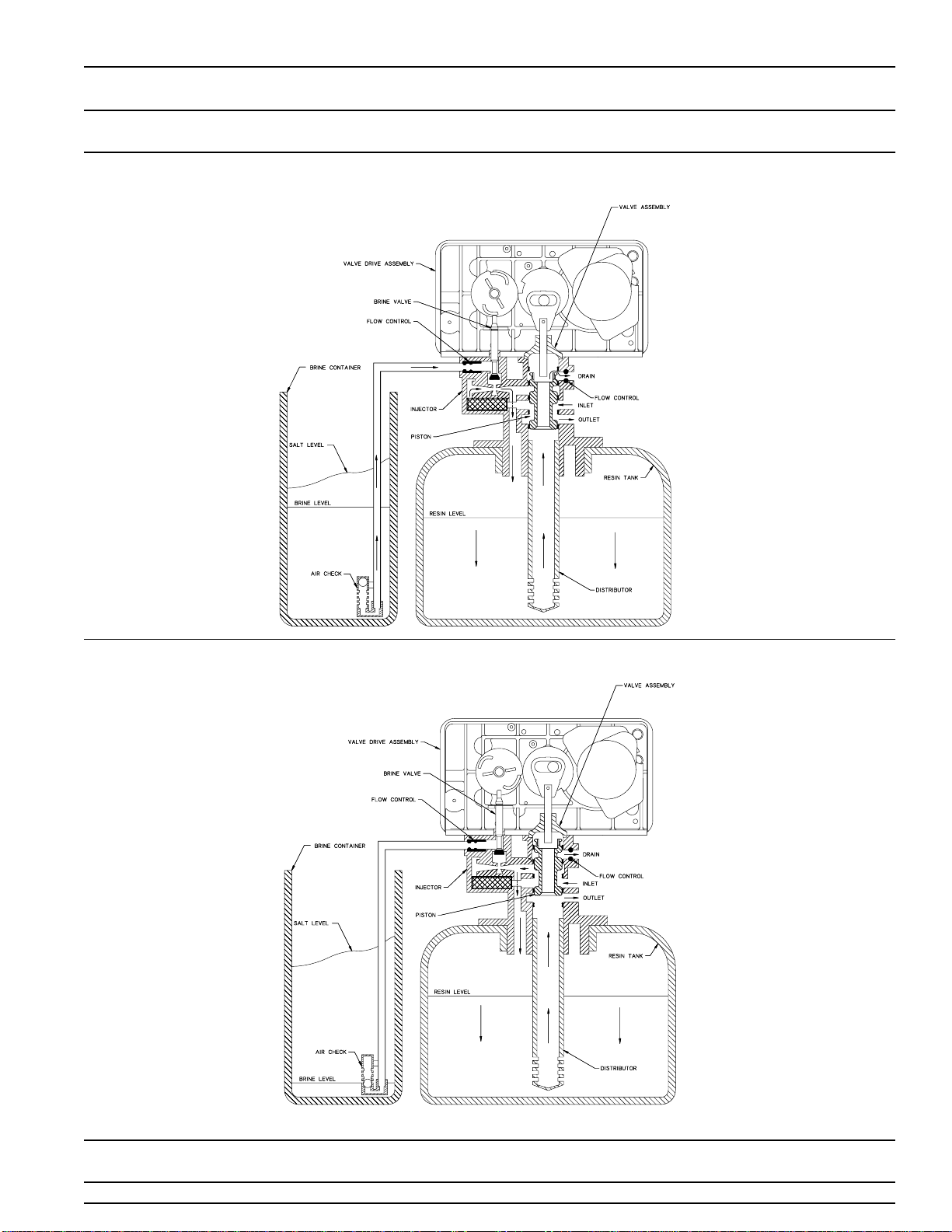

Water Conditioner Flow Diagrams (Downflow Brining)
Using Black Cycle Cam (Part No. 17438)
Service
Position
Backwash
Position
(Regeneration Cycle Step #1)

Printed in U.S.A.
Page 11
MODEL 6700 Downflow
Water Conditioner Flow Diagrams (Downflow Brining)
Using Black Cycle Cam (Part No. 17438) (Cont’d.)
Brine/Slow Rinse
Position
(Regeneration Cycle Step #2)
Rapid Rinse
Position
(Regeneration Cycle Step #3)

Printed in U.S.A.
Page 12
MODEL 6700 Downflow
Water Conditioner Flow Diagrams (Downflow Brining)
Using Black Cycle Cam (Part No. 17438) (Cont’d.)
Brine Tank
Fill Position
(Regeneration Cycle Step #4)
Service
Position

Printed in U.S.A.
Page 13
MODEL 6700 Downflow
Downflow Valve Wiring Diagram
Standard 6700 Wiring
6700 Wiring With Terminal Block Option

Printed in U.S.A.
Page 14
MODEL 6700 Downflow

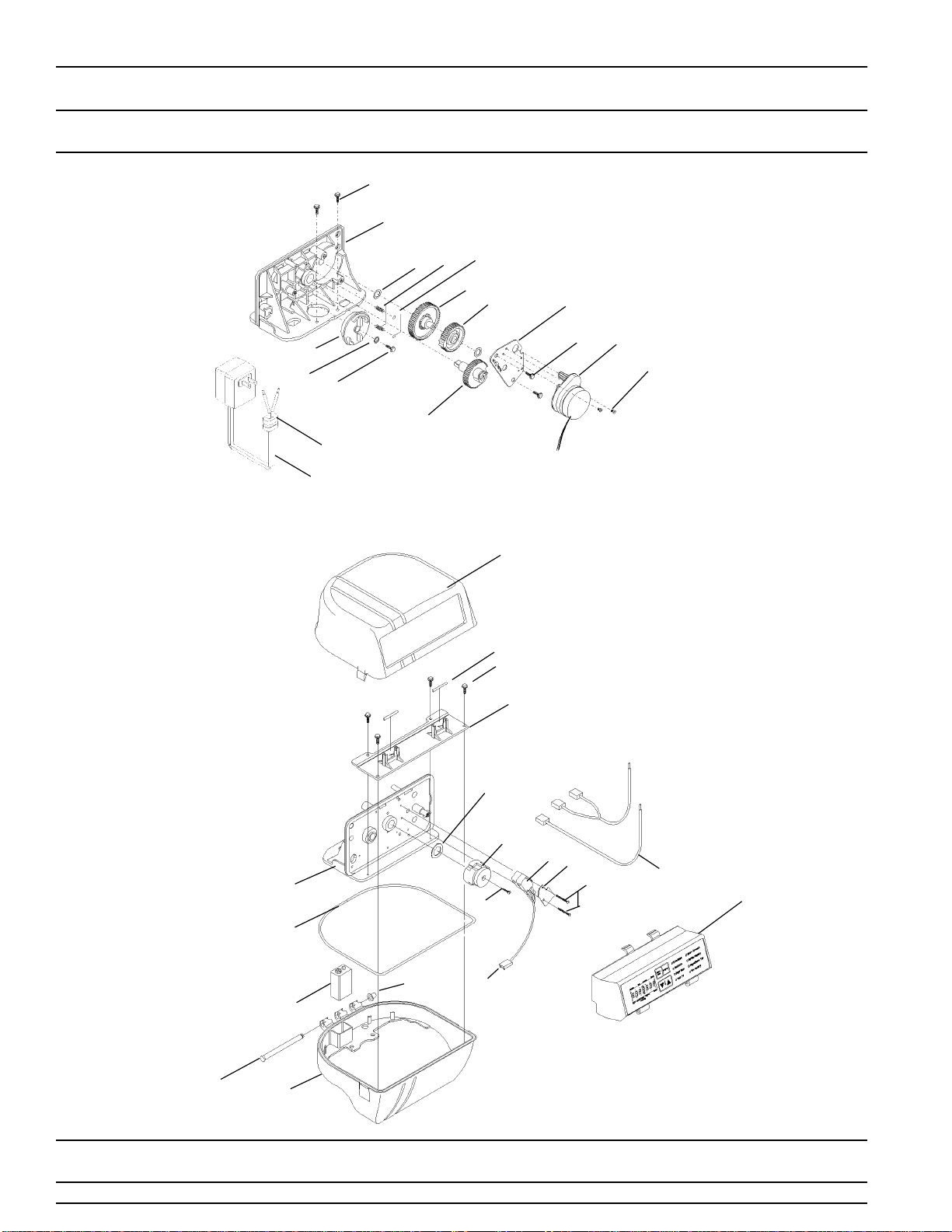

Valve Powerhead
(See opposite page for parts list)
1
2345
6
7
8
9
10
11
12
13
16
17
18
19
20
21
22
23 24 25 26
27
28
29
30
31
32 33
34
1
36
14
15

Printed in U.S.A.
Page 15
MODEL 6700 Downflow
Valve Powerhead
Parts List
Item No. Quantity Part No. Description
1 . . . . . . . . . . . 1 . . . . . . . . . . . 14193-03. . . . . . . . . . . . . Drive Panel
2 . . . . . . . . . . . 1 . . . . . . . . . . . 13299 . . . . . . . . . . . . . . . Spring Washer
3 . . . . . . . . . . . 1 . . . . . . . . . . . 13017 . . . . . . . . . . . . . . . Idler Gear
4 . . . . . . . . . . . 1 . . . . . . . . . . . 23045 . . . . . . . . . . . . . . . Drive Gear
5 . . . . . . . . . . . 1 . . . . . . . . . . . 13175 . . . . . . . . . . . . . . . Motor Mounting Plate
6 . . . . . . . . . . . 1 . . . . . . . . . . . 16944 . . . . . . . . . . . . . . . Drive Motor 2 RPM 24V 50/60 Hz
7 . . . . . . . . . . . 3 . . . . . . . . . . . 11384 . . . . . . . . . . . . . . . Screw, Motor Mount
8 . . . . . . . . . . . 2 . . . . . . . . . . . 19080 . . . . . . . . . . . . . . . Spring, Detent
9 . . . . . . . . . . . 2 . . . . . . . . . . . 13300 . . . . . . . . . . . . . . . Ball, Detent
10 . . . . . . . . . . . 1 . . . . . . . . . . . 25005-10. . . . . . . . . . . . . Main Drive Gear & Shaft
(Downflow Brining - Black)
11 . . . . . . . . . . . 1 . . . . . . . . . . . 18722 . . . . . . . . . . . . . . . B/V Cam (Downflow)
12 . . . . . . . . . . . 1 . . . . . . . . . . . 12037 . . . . . . . . . . . . . . . Washer
13 . . . . . . . . . . . 2 . . . . . . . . . . . 13296 . . . . . . . . . . . . . . . Screw, Component
14 . . . . . . . . . . . 1 . . . . . . . . . . . 13547 . . . . . . . . . . . . . . . Strain Relief
15 . . . . . . . . . . . 1 . . . . . . . . . . . 19674 . . . . . . . . . . . . . . . Transformer, U.S. 24V (120V)
25651 . . . . . . . . . . . . . . . Transformer, European 24V (230V)
16 . . . . . . . . . . . 2 . . . . . . . . . . . 12473 . . . . . . . . . . . . . . . Screw, Drive Mount
17 . . . . . . . . . . . 2 . . . . . . . . . . . 18754 . . . . . . . . . . . . . . . Pin
18 . . . . . . . . . . . 4 . . . . . . . . . . . 17798 . . . . . . . . . . . . . . . Screw, Mounting Plate
19 . . . . . . . . . . . 1 . . . . . . . . . . . 17844 . . . . . . . . . . . . . . . Mounting Plate
20 . . . . . . . . . . . 1 . . . . . . . . . . . 19079 . . . . . . . . . . . . . . . Friction Washer
21 . . . . . . . . . . . 1 . . . . . . . . . . . 17438 . . . . . . . . . . . . . . . Cycle Cam (Downflow - Black)
22 . . . . . . . . . . . 1 . . . . . . . . . . . 15151 . . . . . . . . . . . . . . . Screw, Cycle Cam
23 . . . . . . . . . . . 2 . . . . . . . . . . . 10218 . . . . . . . . . . . . . . . Microswitch (Downflow - Black)
24 . . . . . . . . . . . 1 . . . . . . . . . . . 10302 . . . . . . . . . . . . . . . Insulator
25 . . . . . . . . . . . 2 . . . . . . . . . . . 17876 . . . . . . . . . . . . . . . Screw, Microswitch
26 . . . . . . . . . . . 1 . . . . . . . . . . . 19313-112. . . . . . . . . . . . Circuit Board Housing Assembly
27 . . . . . . . . . . . 1 . . . . . . . . . . . 40042-01 & 40042-02 . . . Wire Harness, Power - Std / with Terminal
Block Option
28 . . . . . . . . . . . 1 . . . . . . . . . . . 19119-01 & 40041-02 . . . Wire Harness, Low Voltage - Std / with
Terminal Block Option
29 . . . . . . . . . . . 1 . . . . . . . . . . . 18615-01. . . . . . . . . . . . . Seal
30 . . . . . . . . . . . 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9V Alkaline Battery (Not Included)
31 . . . . . . . . . . . 1 . . . . . . . . . . . 18679 . . . . . . . . . . . . . . . Tapered Cap
32 . . . . . . . . . . . 1 . . . . . . . . . . . 17845 . . . . . . . . . . . . . . . Hinge Pin
33 . . . . . . . . . . . 1 . . . . . . . . . . . 17841-xx . . . . . . . . . . . . . Bottom Cover (Specify Color)
34 . . . . . . . . . . . 1 . . . . . . . . . . . 17842-xx . . . . . . . . . . . . . Top Cover (Specify Color)
35 . . . . . . . . . . . 4 . . . . . . . . . . . 12681 . . . . . . . . . . . . . . . Wire Nut, Beige (Not Shown)
36 . . . . . . . . . . . 1 . . . . . . . . . . . 40214 . . . . . . . . . . . . . . . Screw

Printed in U.S.A.
Page 16
MODEL 6700 Downflow

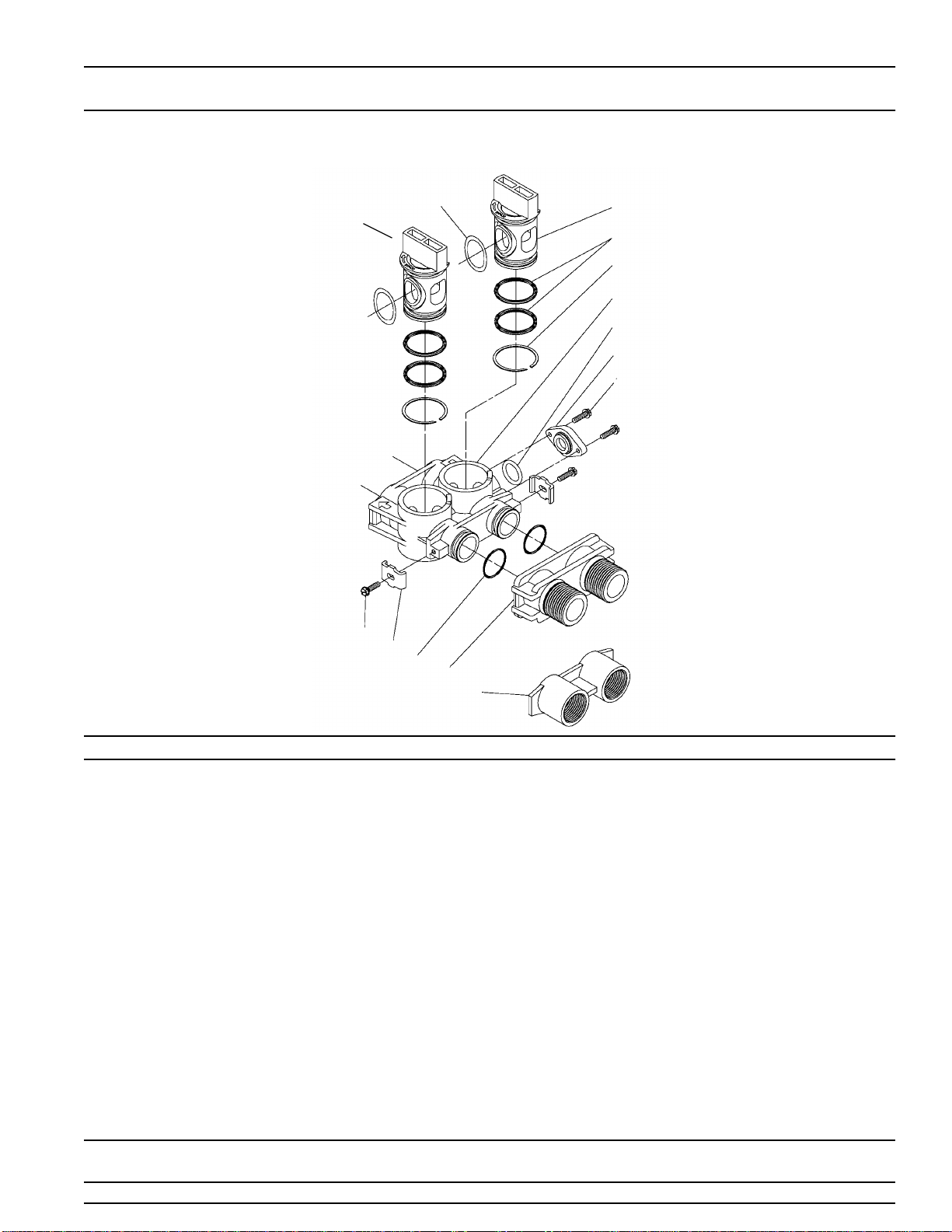

Control Valve Assembly - Downflow Brining
(See opposite page for parts list)
51B
51A

Printed in U.S.A.
Page 17
MODEL 6700 Downflow
Control Valve Assembly - Downflow Brining
Parts List
Item No. Quantity Part No. Description
*1 . . . . . . . . . . . . 2 . . . . . . . . . . . . .13255. . . . . . . . . . . . . . . . . . Adapter Clip
2 . . . . . . . . . . . . 5 . . . . . . . . . . . . .13242. . . . . . . . . . . . . . . . . . Seal
3 . . . . . . . . . . . . 1 . . . . . . . . . . . . .14449. . . . . . . . . . . . . . . . . . Valve Body Assembly - 1″dist.
1 . . . . . . . . . . . . .14450. . . . . . . . . . . . . . . . . . Valve Body Assembly - 13/16″Dist.
4 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13304. . . . . . . . . . . . . . . . . . O-Ring - Distributor Tube - 1”
1 . . . . . . . . . . . . .10244. . . . . . . . . . . . . . . . . . O-Ring - Distributor Tube - 13/16″
5 . . . . . . . . . . . . 1 . . . . . . . . . . . . .12281. . . . . . . . . . . . . . . . . . O-Ring - Top of Tank
6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Not Assigned
7 . . . . . . . . . . . . 4 . . . . . . . . . . . . .14241. . . . . . . . . . . . . . . . . . Spacer
8 . . . . . . . . . . . . 1 . . . . . . . . . . . . .17218. . . . . . . . . . . . . . . . . . Piston (Used with Black Cycle Cam)
9 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13306. . . . . . . . . . . . . . . . . . Piston Pin
10 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13001-04 . . . . . . . . . . . . . . . Piston Rod Assembly
11 . . . . . . . . . . . . 1 . . . . . . . . . . . . .14309. . . . . . . . . . . . . . . . . . Piston Retainer
12 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13446-40 . . . . . . . . . . . . . . . End Plug Assembly - Green
14 . . . . . . . . . . . . 2 . . . . . . . . . . . . .13315. . . . . . . . . . . . . . . . . . Screw - Injector Mounting
*15 . . . . . . . . . . . . 2 . . . . . . . . . . . . .19228. . . . . . . . . . . . . . . . . . Adapter Coupling
*16 . . . . . . . . . . . . 4 . . . . . . . . . . . . .13305. . . . . . . . . . . . . . . . . . O-Ring - Adapter Coupling
*17 . . . . . . . . . . . . 2 . . . . . . . . . . . . .13314. . . . . . . . . . . . . . . . . . Screw - Adapter Coupling
18 . . . . . . . . . . . . 1 . . . . . . . . . . . . .12638. . . . . . . . . . . . . . . . . . O-Ring - Drain
19 . . . . . . . . . . . . 2 . . . . . . . . . . . . .13301. . . . . . . . . . . . . . . . . . O-Ring - Injector
20 . . . . . . . . . . . . 2 . . . . . . . . . . . . .13302. . . . . . . . . . . . . . . . . . O-Ring - Brine Spacer
21 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13303. . . . . . . . . . . . . . . . . . O-Ring - Injector Cover
22 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13163. . . . . . . . . . . . . . . . . . Injector Body
23 . . . . . . . . . . . . 1 . . . . . . . . . . . . .10913. . . . . . . . . . . . . . . . . . Injector Nozzle - Specify Size
24 . . . . . . . . . . . . 1 . . . . . . . . . . . . .10914. . . . . . . . . . . . . . . . . . Injector Throat - Specify Size
25 . . . . . . . . . . . . 1 . . . . . . . . . . . . .10227. . . . . . . . . . . . . . . . . . Injector Screen
26 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13166. . . . . . . . . . . . . . . . . . Injector Cover
27 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13172. . . . . . . . . . . . . . . . . . Brine Valve Stem
28 . . . . . . . . . . . . 1 . . . . . . . . . . . . .12626. . . . . . . . . . . . . . . . . . Brine Valve Seat
29 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13165. . . . . . . . . . . . . . . . . . Brine Valve Cap
30 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13167. . . . . . . . . . . . . . . . . . Brine Valve Spacer
31 . . . . . . . . . . . . 1 . . . . . . . . . . . . .12550. . . . . . . . . . . . . . . . . . Quad Ring
32 . . . . . . . . . . . . 1 . . . . . . . . . . . . .11973. . . . . . . . . . . . . . . . . . Spring - Brine Valve
33 . . . . . . . . . . . . 1 . . . . . . . . . . . . .16098. . . . . . . . . . . . . . . . . . Washer - Brine Valve
34 . . . . . . . . . . . . 1 . . . . . . . . . . . . .11981-01 . . . . . . . . . . . . . . . Retaining Ring
35 . . . . . . . . . . . . 1 . . . . . . . . . . . . .10329. . . . . . . . . . . . . . . . . . B.L.F.C. Fitting Nut 3/8″
36 . . . . . . . . . . . . 1 . . . . . . . . . . . . .10330. . . . . . . . . . . . . . . . . . B.L.F.C. Ferrule 3/8″
37 . . . . . . . . . . . . 1 . . . . . . . . . . . . .10332. . . . . . . . . . . . . . . . . . B.L.F.C. Tube Insert 3/8″
38 . . . . . . . . . . . . 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B.L.F.C. Button - Specify Size
39 . . . . . . . . . . . . 1 . . . . . . . . . . . . .12977. . . . . . . . . . . . . . . . . . O-Ring - B.L.F.C.
40 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13245. . . . . . . . . . . . . . . . . . B.L.F.C. Button Retainer
41 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13244. . . . . . . . . . . . . . . . . . B.L.F.C. Fitting
42 . . . . . . . . . . . . 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D.L.F.C. Button - Specify Size
43 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13173. . . . . . . . . . . . . . . . . . D.L.F.C. Button Retainer
44 . . . . . . . . . . . . 1 . . . . . . . . . . . . .12767. . . . . . . . . . . . . . . . . . Screen - Brine Line
45 . . . . . . . . . . . . 1 . . . . . . . . . . . . .15348. . . . . . . . . . . . . . . . . . O-Ring - D.L.F.C. (not shown)
46 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13497. . . . . . . . . . . . . . . . . . Air Dispenser
47 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13546. . . . . . . . . . . . . . . . . . End Plug Retainer
48 . . . . . . . . . . . . 3 . . . . . . . . . . . . .12112. . . . . . . . . . . . . . . . . . Screw
49 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13363. . . . . . . . . . . . . . . . . . Washer
50 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13296. . . . . . . . . . . . . . . . . . Screw
51A . . . . . . . . . . . . 1 . . . . . . . . . . . . .13708. . . . . . . . . . . . . . . . . . Yoke, Brass, 3/4″NPT
1 . . . . . . . . . . . . .13398. . . . . . . . . . . . . . . . . . Yoke, Brass, 1″NPT
51B . . . . . . . . . . . . 1 . . . . . . . . . . . . .18706. . . . . . . . . . . . . . . . . . Yoke, Plastic, 1″NPT
1 . . . . . . . . . . . . .18706-02 . . . . . . . . . . . . . . . Yoke, Plastic, 3/4″NPT
52 . . . . . . . . . . . . 1 . . . . . . . . . . . . .13308. . . . . . . . . . . . . . . . . . Drain Hose Barb
* Not used with meter controls.

Printed in U.S.A.
Page 18
MODEL 6700 Downflow

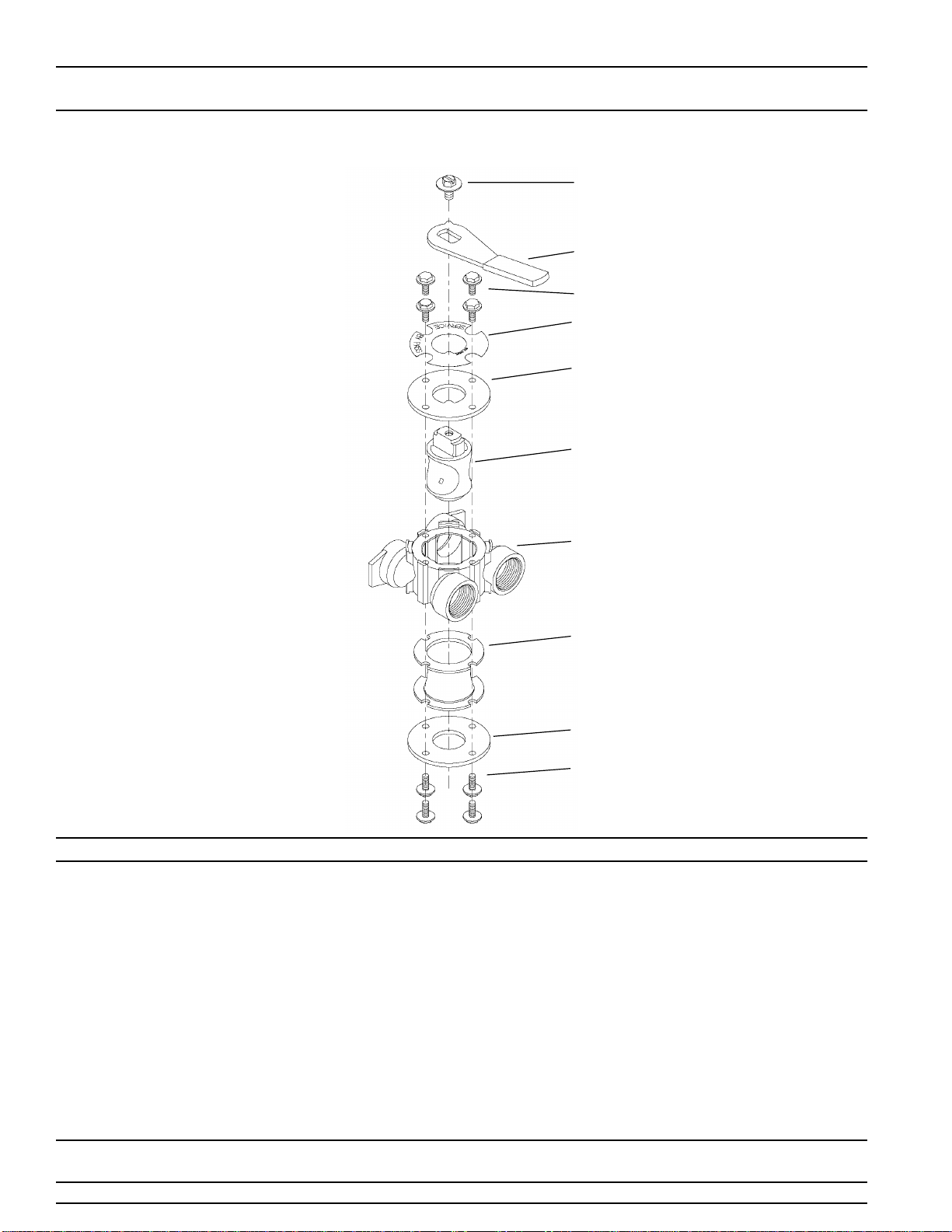

By-pass Valve Assembly, Brass
Item No. Quantity Part No. Description
1 . . . . . . . . . . . 1. . . . . . . . . . . .17290. . . . . . . . . . . . . . . .By-Pass Valve Body, 3/4″
1. . . . . . . . . . . .17290NP . . . . . . . . . . . . . By-Pass Valve Body, 3/4″Nickel Plate
1. . . . . . . . . . . .13399. . . . . . . . . . . . . . . .By-Pass Valve Body, 1″
1. . . . . . . . . . . .13399NP . . . . . . . . . . . . . By-Pass Valve Body, 1″, Nickel Plate
2 . . . . . . . . . . . 1. . . . . . . . . . . .11726. . . . . . . . . . . . . . . .Seal, By-Pass
3 . . . . . . . . . . . 1. . . . . . . . . . . .11972. . . . . . . . . . . . . . . .Plug, By-Pass
4 . . . . . . . . . . . 1. . . . . . . . . . . .11978. . . . . . . . . . . . . . . .Side Cover
5 . . . . . . . . . . . 1. . . . . . . . . . . .13604-01 . . . . . . . . . . . . . Label
6 . . . . . . . . . . . 8. . . . . . . . . . . .15727. . . . . . . . . . . . . . . .Screw
7 . . . . . . . . . . . 1. . . . . . . . . . . .11986. . . . . . . . . . . . . . . .Side Cover
8 . . . . . . . . . . . 1. . . . . . . . . . . .11979. . . . . . . . . . . . . . . .Lever, By-Pass
9 . . . . . . . . . . . 1. . . . . . . . . . . .11989. . . . . . . . . . . . . . . .Screw, Hex Head, 1/4-14
1
2
3
4
5
6
7
8
9
6

Printed in U.S.A.
Page 19
MODEL 6700 Downflow
By-pass Valve Assembly, Plastic
Item No. Quantity Part No. Description
1 . . . . . . . . . . . 1 . . . . . . . . . . . 19723 . . . . . . . . . . . . . . . By-Pass Valve Body, Plastic
2 . . . . . . . . . . . 1 . . . . . . . . . . . 11183 . . . . . . . . . . . . . . . . . O-Ring, -015
3 . . . . . . . . . . . 1 . . . . . . . . . . . 19724 . . . . . . . . . . . . . . . Cap, By-Pass
4 . . . . . . . . . . . 2 . . . . . . . . . . . 17512 . . . . . . . . . . . . . . . Screw, Hex Washer Head, #6-24 x 3
5A . . . . . . . . . . . 1 . . . . . . . . . . . 17820 . . . . . . . . . . . . . . . Plug, By-Pass Inlet
5B . . . . . . . . . . . 1 . . . . . . . . . . . 17820-01. . . . . . . . . . . . . Plug, By-Pass, Outlet (White)
6 . . . . . . . . . . . 4 . . . . . . . . . . . 18661 . . . . . . . . . . . . . . . . . O-Ring, -218
7 . . . . . . . . . . . 2 . . . . . . . . . . . 18662 . . . . . . . . . . . . . . . Retaining Ring
8 . . . . . . . . . . . 2 . . . . . . . . . . . 18660 . . . . . . . . . . . . . . . . . O-Ring
9 . . . . . . . . . . . 2 . . . . . . . . . . . 13305 . . . . . . . . . . . . . . . . . O-Ring, -119
10 . . . . . . . . . . . 2 . . . . . . . . . . . 13255 . . . . . . . . . . . . . . . Clip, Mounting
11 . . . . . . . . . . . 2 . . . . . . . . . . . 13314 . . . . . . . . . . . . . . . Screw, Hex Washer Head, 8-18 x 5/8
12A . . . . . . . . . . . 1 . . . . . . . . . . . 18706 . . . . . . . . . . . . . . . Yoke, Plastic, 1″NPT
18706-02. . . . . . . . . . . . . Yoke, Plastic, 3/4″NPT
12B . . . . . . . . . . . 1 . . . . . . . . . . . 13708 . . . . . . . . . . . . . . . Yoke, Brass, 3/4″NPT
1 . . . . . . . . . . . 13708NP . . . . . . . . . . . . . Yoke, 3/4″NPT Nickel Plated
1 . . . . . . . . . . . 13398 . . . . . . . . . . . . . . . Yoke, Brass, 1″NPT
1 . . . . . . . . . . . 13398NP . . . . . . . . . . . . . Yoke, 1″NPT Nickel Plated
1
2
3
4
5
6
7
8
9
10
11
12A12B
B
5A

Printed in U.S.A.
Page 20
MODEL 6700 Downflow
Meter Assembly
(See opposite page for parts list)
10
11
5
4
3
2
18
7
6
9
