Calibrateur Volt/mA
CONTENT
CONTENTS
1、Safety Information 1
1.1 Warnings and Notes 1
1.2 Symbols and Marks 2
2、Description
2
2.1 Pushbutton Functions 3
2.2 Display 5
3、Using
7
3.1 Input 7
3.1.1 Measure Voltage dc (MEASURE V) 7
3.1.2 Measure Millivolt dc (MEASURE mV) 8
3.1.3 Measure Current dc (MEASURE mA) 9
3.1.4 Measure mA with Loop Power 10
3.2 Output 11
3.2.1 SOURCE mAMode (Sourcing mA) 11
3.2.2 Simulate a Transmitter (SIMULATE mA) 13
3.2.3 Output Voltage dc (SOURCE V) 14
3.2.4 Output Millivolt dc (SOURCE mV) 15
3.2.5 Auto Ramp Function 16
Ⅰ

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator CONTENT
CONTENTS
3.2.6 The “SpanCheck” Function (0%-100%) 17
3.3 Power 18
3.4 Charging Function 19
3.5 BL(Backlignt) 19
4、Technical Index 20
4.1 (MEASURE V dc) 20
4.2 (MEASURE mV dc) 20
4.3 (MEASURE mA dc) 20
4.4 (SOURCE / SIMULATE mA dc) 21
4.5 (SOURCE V dc ) 21
4.6 (SOURCE mV dc) 21
4.7 LOOP Power 21
4.8 General Specifications 22
5、Maintenance and Calibrati
23
5.1
Repair 23
5.2 Cleaning 23
5.3 Replace the Battery and Fuse 23
6、Accessories Included
25
Ⅱ

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Safe Information
一、Safe Information
This Calibrator complies with IEC 61010, CAT I 30 V and Pollution Degree II instrument.
1.1 Warnings and Notes
To avoid electric shock, injury or damage to the Calibrator.
Please use this Calibrator only as described in this instruction sheet or the protection
provided by this instrument may be impaired.
Do not use this Calibrator around explosive gas, vapor or dust.
Never apply more than 30 V between any two terminals or between any terminal and earth
ground.
Please select the appropriate port and scale span before using it.
Never use this Calibrator when the case cover open.
Once the symbol (low battery) appears, replace the battery to avoid false readings that
can lead to electric shock.
Remove test lead from the Calibrator before opening the case or battery cover.
If charge the Calibrator, must be use the power adapter that is provided from Calibrator.
Disconnect the power immediately and return it to detect and maintain if discover abnormal
situations or excessive local temperature on charging.
1

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mACalibrator Safe Information and Description
1.2 Symbols and Marks
Symbol Meaning
Earth ground
Caution: Important information. Refer to instruction sheet
Double insulated
Low battery
Conforms to European Union requirements
二、Description
Volt/mA Calibrator (hereafter to be referred as “Calibrator”) is an accurate tool for current or
voltage supplying and measuring. The Calibrator can souring (output) 0-24mA or simulates a two-wire
transmitter output 0-24mA , it can measures 0-20mA or 4-20mA current loop as well as measure voltage
dc 0-100mV/0-10V. It is widely used to calibrate various loop current or voltage/current equipment.
2

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Description
2.1 Pushbutton Functions
Pushbutton Function
Power ON/OFF pushbutton.
Set up the auto power-off time : Set up the power-off time after power on,
refer to power section for details please.
Backlight ON / OFF pushbutton.
Press to step through modes:
• SOURCE mA mode ,display“SOURCE mA”
• SIMULATE mA mode,display“SIMULATE mA”
• Output voltage dc,display“SOURCE V”
• Output millivolt dc,display“SOURCE mV”
• MEASURE voltage dc,display“MEASURE V”
• MEASURE milivolt dc,display“MEASURE mV”
• MEASURE current dc,display“MEASURE mA”
• Measure current dc with Loop Power, display“MEASURE mA LOOP”
It would storage the current setting status before your turn off the
calibrator and keep it on when you using it again.
3

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Description
By pressing the knob SOURCE mA mode: the current output could be adjusted to the
resolution of 1µA /10µA/100µA/1000µA (default value is 1µA);
SOURCE V mode:the voltage output could be adjusted to the resolution
of 1mV/10mV/100mV/1000mV. (default value is 1mV);
SOURCE mV mode:the voltage output could be adjusted to the resolution
of 0.01mV/0.1mV/1mV/0mV. (default value is 0.01mV);
By rotating the knob , the current or voltage signal output could be
increased or decreased in current setting resolution.
If turn the knob into auto ramp function or 25% stepping mode, the
direction and value could be changed for output signal.
Press to increase the current or voltage with a stepping of 25% of full
scale.
When at full scale point, press key again to decrease the current or
voltage with stepping of 25% of full scale (0-20mA/4-20mA）/（0-100mV）
/（0-10V）.
4

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Description
2.2 Display
5
Press to enter into auto ramp current/voltage output function and
select a ramp output type. Press this pushbutton repeatedly could cycle
through select a ramp output type. stepped ramp display“”，slow ramp
display “”, fast ramp display “”.
Press to select “SpanCheck” function . “SpanCheck” is
displayed. From 0% and press it again to 100%. For example: The
0-20mA SpanChecks ,starting from 0% is 4mA and press it again to 100%
is 20mA.
+
Press and simultaneously to select the “SpanCheck” Span for
example:
• 4 mA-20 mA =0%-100% (default value)
• 0 mA-20 mA =0%-100% (optional)
The selection will be saved until next change.

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Description
6
Symbol Explanation
MEASURE Measure current or voltage
SIMULATE Simulate mA current
SOURCE Sourcing output current
SpanCheck Check of the full scale (0%-100%)
Loop Loop power
mAV The combination of unit symbol: mA/mV/V
Auto ramp type
Stepping direction indicate symbol
Low battery

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Using
3、Using
3.1 Input
3.1.1 Measure Voltage dc
（MEASURE V）
To measure voltage dc
1) Press to step to MEASURE mode.
The display shows “MEASURE V”.
2) Touch test lead probes to the circuit
across the load or power source as
shown in right figure.
3) If the voltage over 10V the LCD will show
“-OL-”.
The lower display area ,shows the
voltage value percentage.
7
Caution
To prevent damage to the unit under
test, ensure that the Calibrator is in
the correct mode before connecting
the test leads.

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Using
3.1.2 Measure Millivolt dc（MEASURE mV）
To measure voltage dc
1) Press to step to MEASURE mode.
The display shows “MEASURE mV”.
2) Touch test lead probes to the circuit across the
load or power source as shown in right figure.
3) If the voltage over 100mV the LCD will shows
“-OL-”.
The lower display area ,shows the current value
percentage.
8
Caution
To prevent damage to the unit under
test, ensure that the Calibrator is in
the correct mode before connecting
the test leads.

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Using

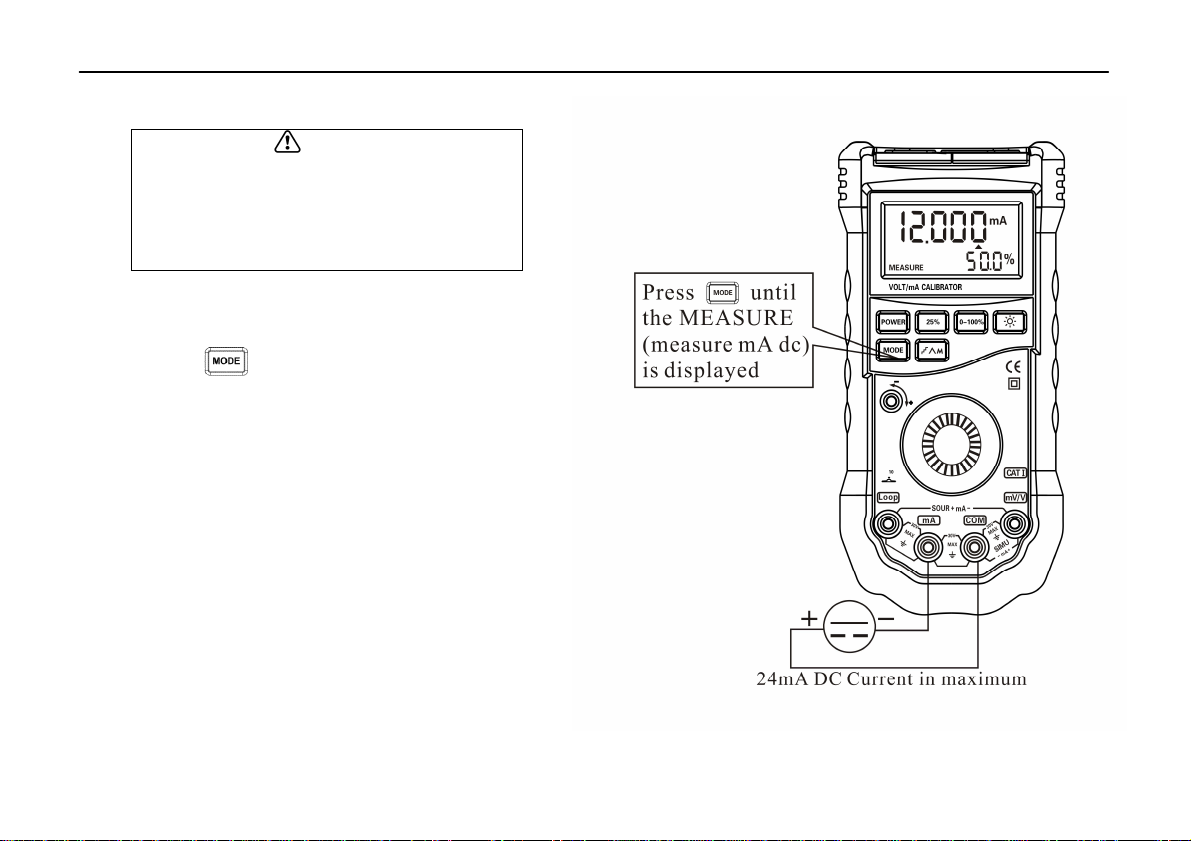

3.1.3 Measure Current dc
（MEASURE mA）
To test mA dc:
1) Prees to step to MEASURE mode.
The display shows “MEASURE mA”
2) Touch test lead probes to the circuit
across the load or power source as
shown in right figure.
3) If the current over 24mA, the LCD
will shows “-OL-”.
The lower display area ,shows the current
value percentage.
9
Caution
To prevent damage to the unit under
test, ensure that the Calibrator is in
the correct mode before connecting
the test leads.

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Using

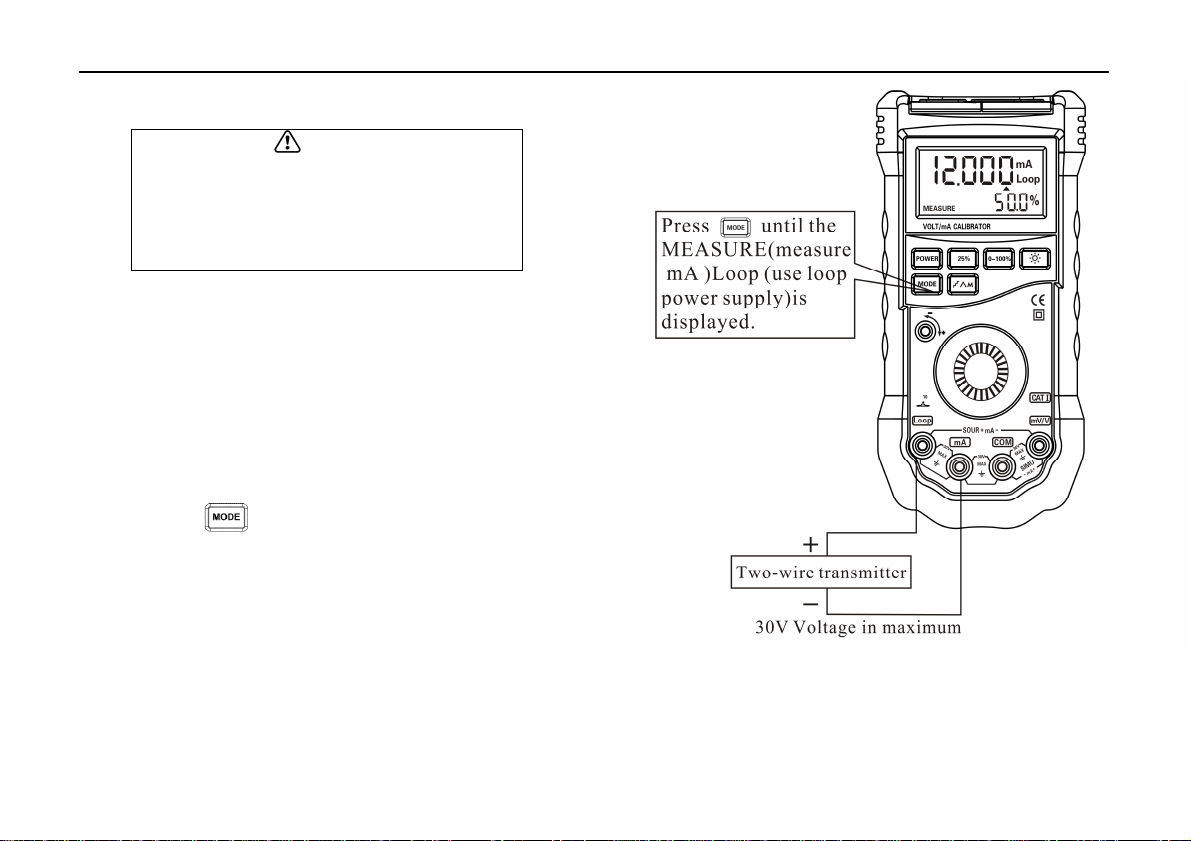

3.1.4 Measure mA with Loop Power
Follow this mode the Calibrator can
supply +24V loop power to the transmitter
and read the loop current value
simultaneously.
The wire connecting as shown below:
To Measure mA dc current with Loop
Power
1) Press to step to “MEASURE mA
LOOP” mode.
The display shows “MEASURE” with unit
“mA”
(measure mA) and Loop symbol.
2) Touch test lead probes to the circuit across the load or power source as shown below.
3) If the current over 24mA, the display will show “-OL-”.
The lower display area ,shows the current value percentage.
10
Caution
To prevent damage to the unit under
test, ensure that the Calibrator is in
the correct mode before connecting
the test leads.

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Using
3.2 Output
3.2.1 SOURCE mA Mode (Source mA)
Use this mode to supply current to a passive circuit.
There must be a path which allows the current to flow between “LOOP” terminal and “mV/V”
terminal, otherwise it will show overload (figure flashing) when you set an output value.
1）Press to step to SOURCE mA mode. The display shows “SOURCE” with unit “mA”
2）The test leads connected as shown in the right figure, the red test wire connected to "LOOP" and the
black test wire connected to "mV/V" socket.
3）If the current over 24mA, the display will show “-OL-”.
4）Press in and rotary the knob to step up/down in different increments.
5）Press key , stepping up/down 25% of full scale for output value.
6）Press key to select auto ramp output type.
7）Press key to select “SpanCheck” function.
11

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Using
12

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Using

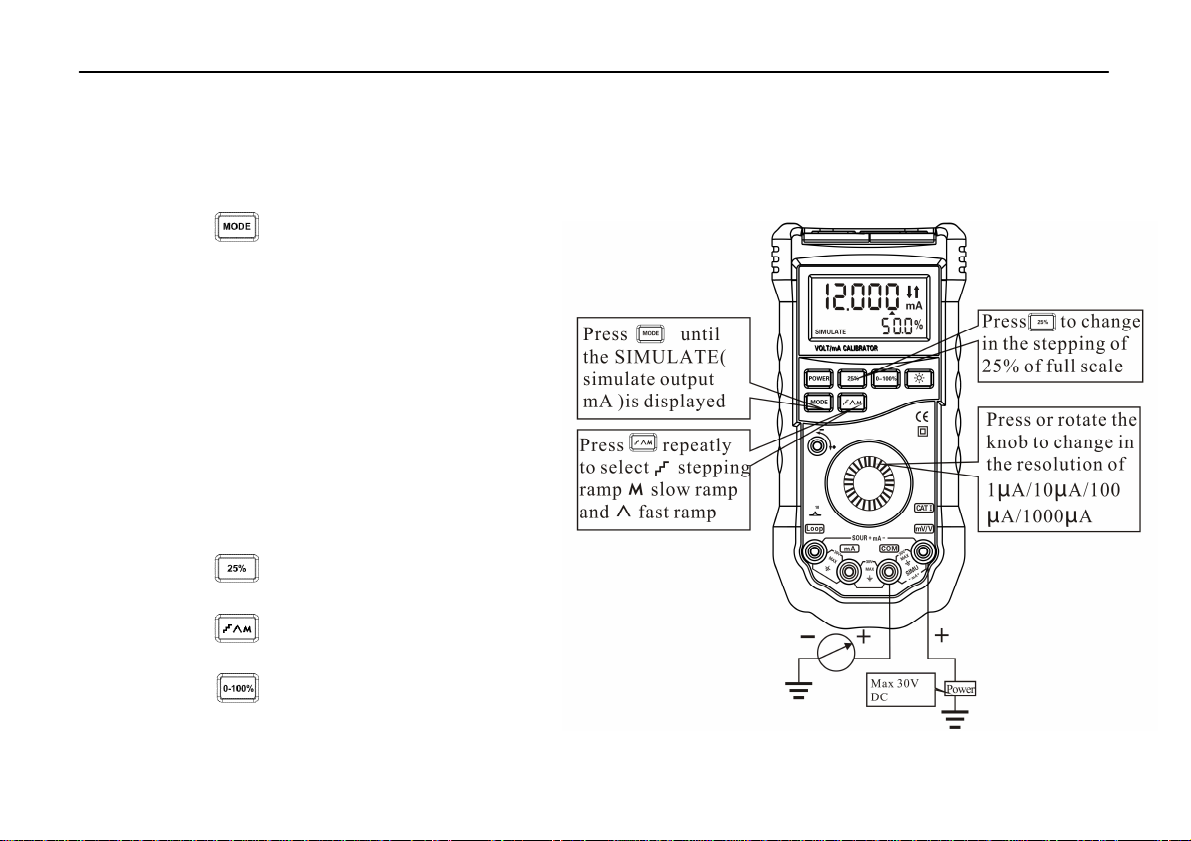

3.2.2 Simulate a Transmitter
When the Calibrator is used as simulate a two-wire transmitter,it can adjust the output loop current by
adjusting the Calibrator. There must be a 12V-28 V loop power to supply. Connect the test leads as
shown in figure.
1) Press to step to SIMULATE mA
mode. The display shows “SIMULATE”
with unit “mA”.
2）The general connection is that red is
positive and black is negative,the red test
wire connected to " mV/V " and the black
test wire connected to "COM" socket.
3）If the current over 24mA, the display will
show “-OL-”.
4）Press in and rotary the knob to step
up/down in different increments.
5）Press key , stepping up/down 25%
of full scale for output value.
6）Press key to select auto ramp output
type.
7）Press key to select “SpanCheck”
function.
13

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Using
3.2.3 Output Voltage dc（SOURCE V）
1）Press to step to SOURCE V mode.
The display shows “SOURCE” with unit “V”.
2）The test leads connected as shown in the right
figure, the general connection is that red is
positive and black is negative,the red test wire
connected to " mV/V " and the black test wire
connected to "COM" socket.
3）If the current over 10V, the display will show
“-OL-”.
4）Press in and rotary the knob to step up/down in
different increments.
5）Press key , stepping up/down 25% of full
scale for output value.
6）Press key to select auto ramp output type.
7）Press key to select “SpanCheck” function.
14

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Using
3.2.4 OUTPUT Millivolt dc（SOURCE mV）
1）Press to step to SOURCE mV mode.
The display shows “SOURCE” with unit “mV”.
2）The test leads connected as shown in the right
figure, the general connection is that red is
positive and black is negative,the red test wire
connected to " mV/V " and the black test wire
connected to "COM" socket.
3）If the current over 100mV, the display will show
“-OL-”.
4）Press in and rotary the knob to step up/down in
different increments.
5）Press key , stepping up/down 25% of full
scale for output value.
6）Press key to select auto ramp output type.
7）Press key to select “SpanCheck” function.
15

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Using
3.2.5 Auto Ramp Function
Auto Ramp function is applied to all of output signal.
In SOURCE mA mode Auto ramp function allows you to apply a varying current singal continuously
from the Calibrator to a passive (sourcing) or active (simulate) loop and you can still leave your hands
free to test the transmitter’s response.
Similary In SOURCE V/SOURCE mV mode,auto ramp function apply a varying voltage singal
continuously from the Calibrator to load circuit.
Press to enter into “Auto Ramp ” mode and select a ramp type.
The Calibrator applies or controls a continuously repeating current or voltage signal in one of three
ramp types in the span range.
Step 25% stepping ramp with 5s of pause per step.
Slow ramp: Smooth ramp with rate of change 0%-100%-0% within 40s.
Fast ramp: Smooth ramp with rate of change 0%-100%-0% within 15s.
Press any pushbutton (except pushbutton) or turn off the Calibrator to exit this function.
16

ADEL Instrumentation – 28 Rue de Stalingrad – 38300 BOURGOIN JALLIEU 1 – 04 74 93 06 37
Volt/mA Calibrator Using
3.2.6 The “SpanCheck” Function (0%-100%)
The “SpanCheck” Function apply to all of output signal.
It realize the current/voltage signal from zero to full scale point transition /step output.
In SOURCE V/SOURCE mV mode,proess key, calibrator can execute 0% point of full scale
output,press key again,it can execute 100% point of full scale output, cycle repeatedly.
“SpanCheck” function can be used to check the zero points or span spacing of a transmitter under
SOURCE or SIMULATE mode.
Press to select “SpanCheck”.
Press any pushbutton (except pushbutton) or rotate the knob to exit this function.
The Calibrator has two mA output spans:
4 mA-20 mA (0%-100% ) [default value] ; 0 mA-20 mA (0%-100%) [optional];
To change the output span, press and simultaneously. The setting value for selection will
be saved until next change.
17
