Megger BITE2 User manual

BITE / POWER DB 
AVTM82318REV1April17,2012 Page1

Power DB LITE Operation
with the
Megger BITE Battery Testers
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page2

INDEX
SECTION DESCRIPTION PAGE
Section 1.0 Power DB Overview 3
Section 2.0 Power DB LITE Operations 5
Section 3.0 Configuring Communications, Select a Form, Site &
String Data
7
Section 4.0 Transferring Data from a BITE2/2P Receiver 12
Section 5.0 Transferring Data from a BITE3 21
Section 6.0 Report Generation 29
Section 6.1 Opening a Report 29
Section 6.2 Manually Entering Site Information 32
Section 6.3 Manually Entering Limits 33
Section 6.4 Manually Entering String Data 34
Section 6.5 Manually Entering Charger Data 35
Section 6.6 Creating Charts 36
Section 6.6.1 Bar Charts 37
Section 6.6.2 Show Symbols 37
Section 6.6.3 Show Limits 38
Section 6.7 Calculating Baseline Data 39
Section 6.8 Inputting a New Battery Baseline Value 40
Section 6.9 Viewing Baseline Data 42
Section 7.0 Entering New Battery Cell Data 43
Section 7.1 Entering New Warning & Alarm Limit Values 46
Section 7.2 Selecting a New Battery Cell 49
Section 8.0 Inputting a Company Logo 51
Section 9.0 Transferring Setup Data to the BITE3 53
Section 10.0 Importing a ProActiv Database 55
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page3

SECTION 1.0: POWER DB OVERVIEW
Power DB is a PC based Megger instrument interfacing software, that operates
with multiple Megger units, including Megger’s line of Battery Testing Instrumentation.
Power DB will operate with the BITE2, BITE2P, BITE3, DMA Hydrometer, Torkel and
BVM voltage monitors.
There are 3 versions of the Power DB software, Power DB LITE, Power DB Advanced
and Power DB Pro. Power DB LITE comes with the BITE2, BITE2P and the BITE3 at no
additional charge. The Power DB Advanced and Pro versions are ordered separately
and have associated charges with them.
The Power DB LITE software allows operator to communicate with the BITE2, BITE2P
and BITE3 as well as import data, configure the units, import Hydrometer data, create
reports and charts, configure the reports and charts, configure battery data as well as
import pre-existing ProActiv Databases. The following table illustrates the differences
between the different versions of Power DB.

COMPARISON GUIDE PowerDB Edition
ONBOARD LITE ADVANCED PRO
Runs in a hardened embedded environment
 



Navigate with arrow and enter keys (no mouse)
 



Manage data files with internal drive and USB drive
 



Uses a subset of PowerDB Pro forms applicable to your
instrument
   


Files can import into PowerDB Pro
     

Relay/Breaker/Recloser curve library
       
Completed forms are saved as files to your computer
       
associates current test data with historical results
       
Control Megger instruments and download test data

     
Control non-Megger instruments

   
280+ industry standard test forms are provided

   

www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page4

advanced Relay Form

   
Trend historical results for asset for predictive failure
analysis 
   
Trend historical results for asset against other similar
assets



 
Database functionality to manage data for all electrical
equipment



 
One step report generation



 
Summarize noted comments and/or deficiencies



 
Trigger work order and maintenance schedules



 
Synchronize results from field to master database

 
Synchronize results with other testers

 
Form editor allows test sheets to be created or customized

 
Import data from other software packages

 
Maintain calibration data for test instruments

 
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page5

SECTION 2.0: POWER DB LITE OPERATIONS
When the Power DB LITE program is executed the following Wizard shall open.
With the Wizard open the operator can select the desired instrument to interface with,
by clicking on the appropriate button or they can choose to open a report by clicking
on the “Open Existing Results File” button or they can chose to close the Wizard by
clicking on the “Cancel” button.
If the operator selects an instrument to interface with the Wizard will then guide the
operator through the communications configuration process.
For the purpose of this document it is going to be assumed that the Wizard has been
closed and the software is operating from the main home screen as shown on the
following page.
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page6

www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page7

SECTION 3.0: CONFIGURING COMMUNICATIONS, SELECT A FORM, SITE &
STRING DATA

To configure the BITE2 or BITE3 communication configuration click on TOOLS in the
main menu bar then click on INSTRUMENT SETUP.
This will re-open the Wizard as shown below.
Select the desired BITE instrument by clicking on the associated button. This will open
the communications configuration screen, as shown below.
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page8


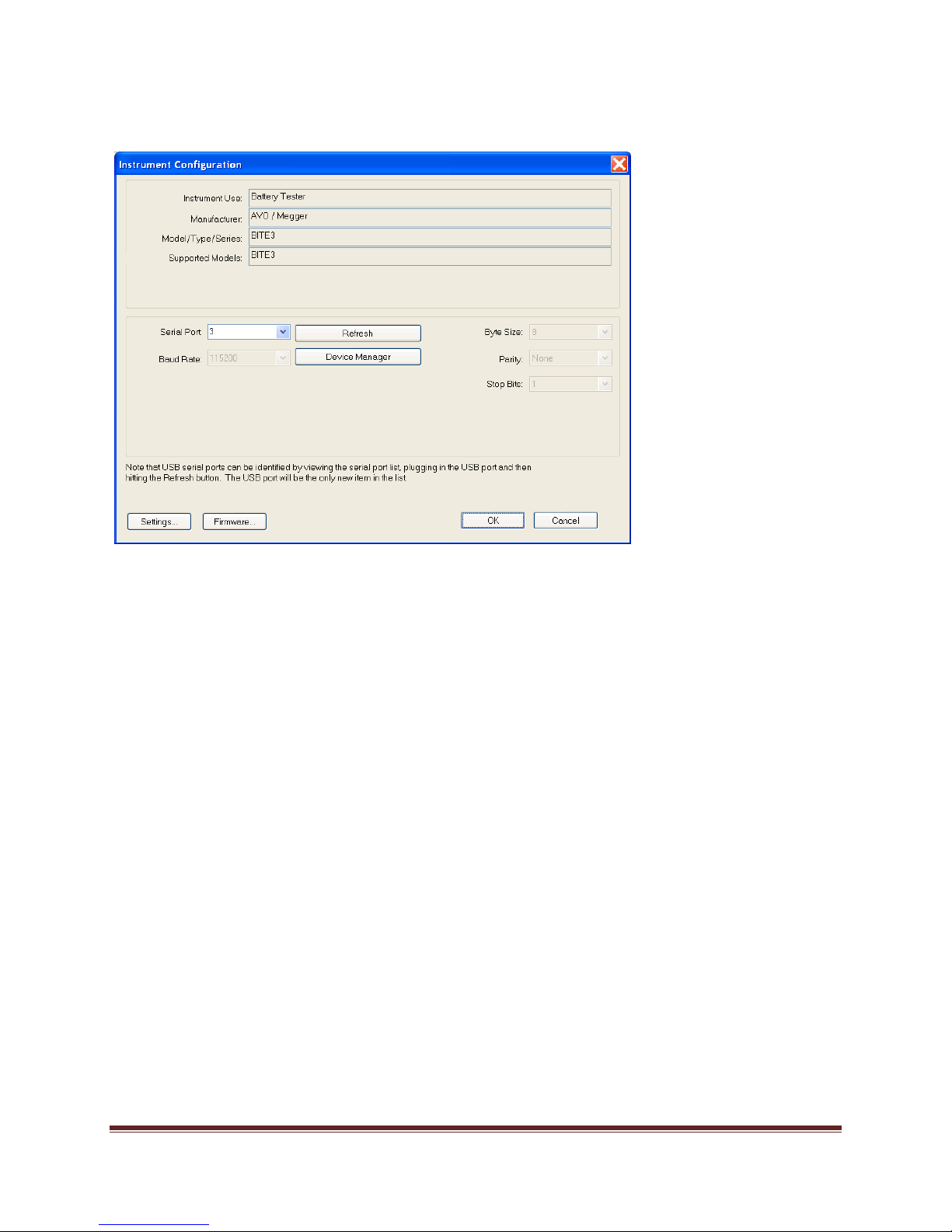

Select the proper serial port that the unit will be connected to. If you are unsure of the
serial port you will be using then click on the DEVICE MANAGER button. This will open
the computers device manager screen as shown below.
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page9

In order to locate the proper serial port, scroll down to PORTS as shown below. Click on
the PLUS button next to “Ports” in order to drop down the menu and view the
communication ports.
Once you know the port you are connecting to then close the device manager screen
and enter that port number in the instrument communications configuration screen of
the Power DB LITE software, then click OK.
The following screen shall open.
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page10

This is the communications configuration screen for the Hydrometer. Select the proper
serial port that the Hydrometer will be connected to. (Typically, it is the same port the
BITE unit is connecting to) If you are unsure of the serial port you will be using then click
on the DEVICE MANAGER button and locate the appropriate port.
Once the proper port number has been entered click on OK then the following message
will appear.
If you want to IMPORT DATA from the BITE unit then click on YES and follow the
instructions as shown on the screen.
If you do not want to SELECT A FORM to view the data in or UPLOAD SITE &
STRING DATA to a BITE3 then click on NO and the Wizard shall open the following
screen.
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page11


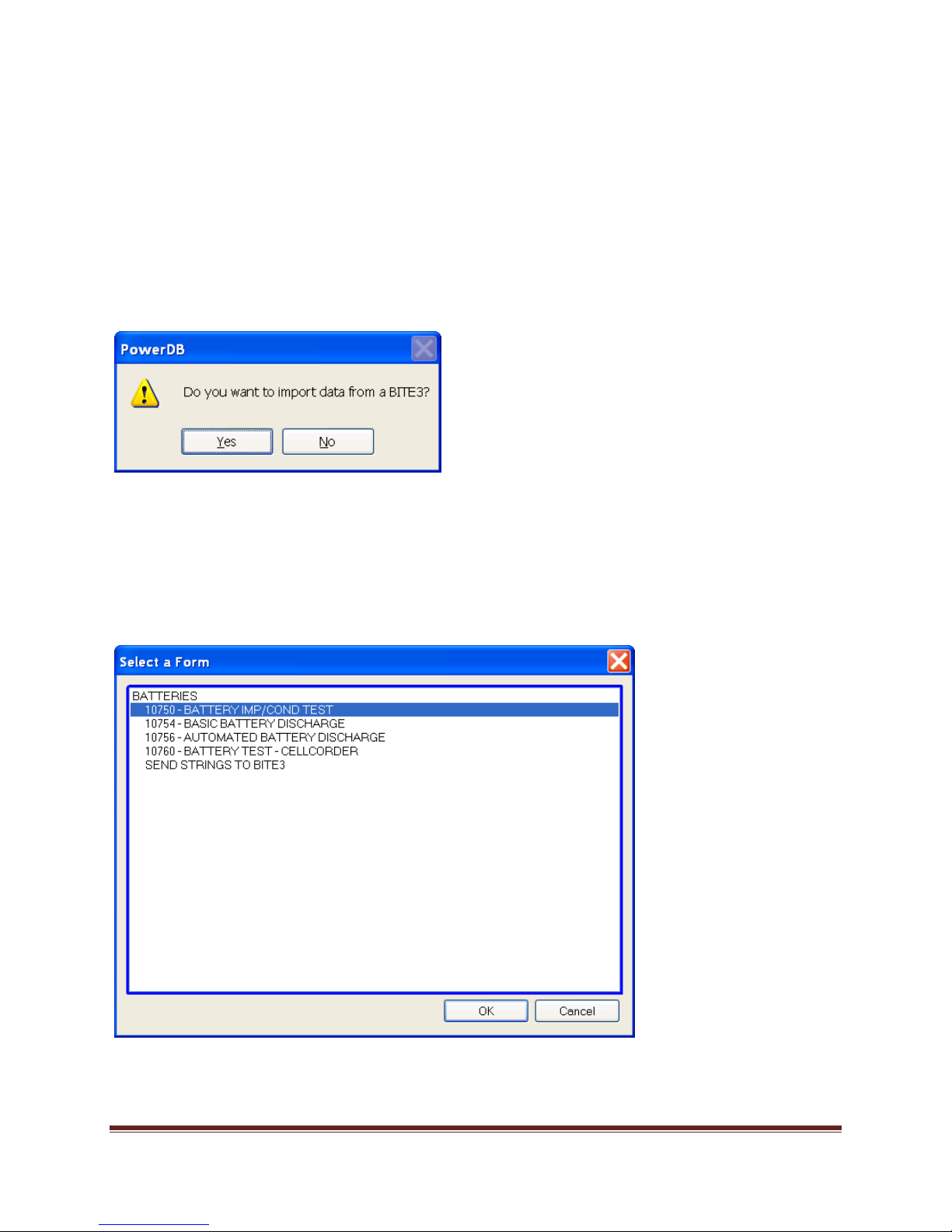

This screen will allow the operator to select the desired form they wish to use to view
the battery test data. In addition this screen will allow the user the option to upload a
Customer Site and String to the BITE3.
To SELECT A FORM, click on the desired form (10750 – BATTERY IMP/COND TEST
for the BITE units) and then click OK. This form will now open and the user can select
the desired test file to view in this form.
To UPLOAD SITE & STRING DATA to a BITE3, click on SEND STRING TO BITE3
then click on OK. The following screen shall open.
Enter the site and string data then click on the SEND TO BITE3 button.
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page12

SECTION 4.0: TRANSFERRING DATA FROM A BITE2/2P RECEIVER
Open PowerDB LITE. (The following screen shall appear)
Click on BITE2. (The following screen shall appear)
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page13

Select COM Port that the unit is connected to then click OK. (The following screen shall
appear)
(NOTE: If you are unsure what COM port the unit will be connected to then click
on DEVICE MANAGER and scroll down to COM Ports. Expand the COM Port
section and you will be able to see what the COM port designations are.)

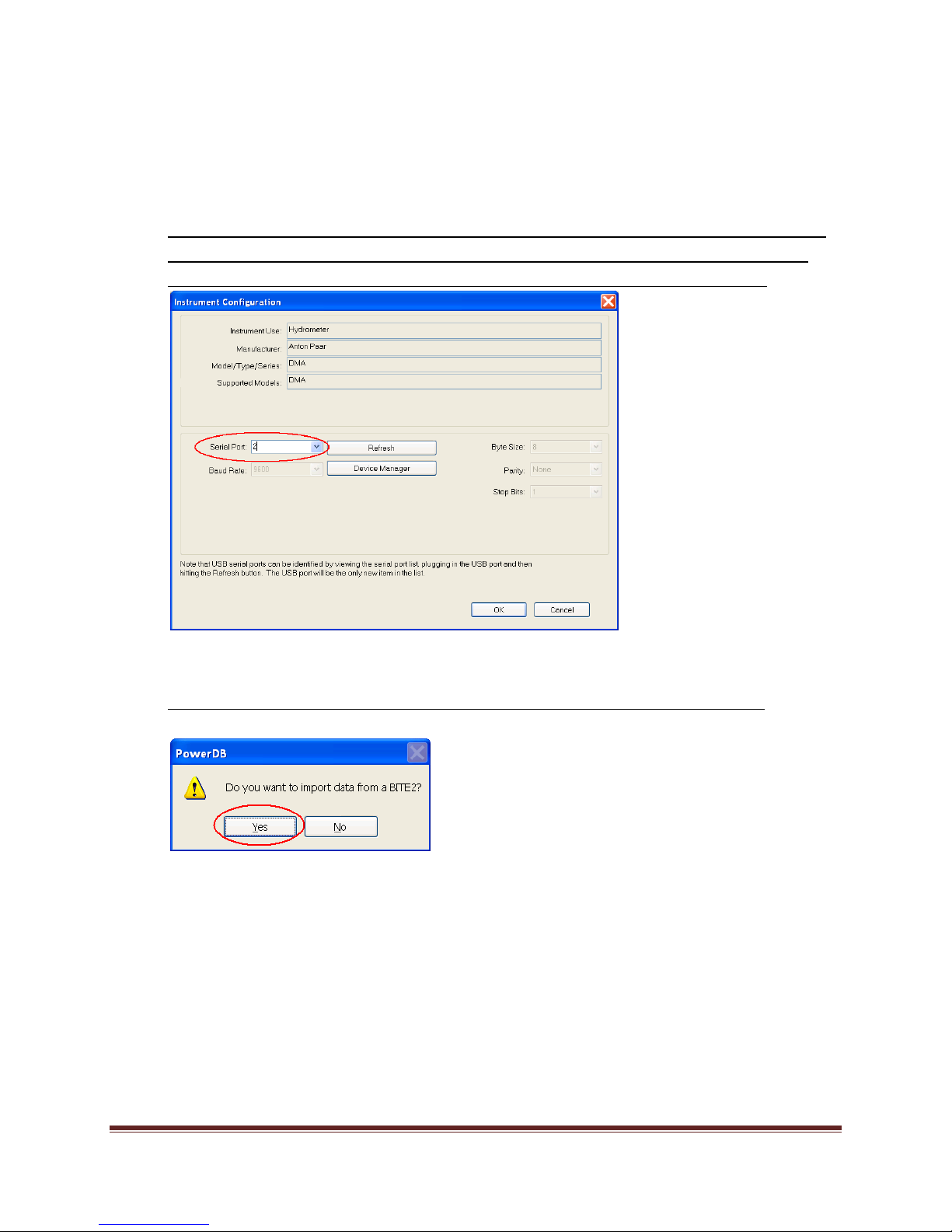

Select COM Port for Hydrometer then click OK. (The following screen shall appear)
(NOTE: If you are not using a hydrometer then just click OK to proceed.)
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page14

Click YES on the “Do you want to import data from a BITE2” screen. (The following
BITE2 data transfer Wizard screen shall appear)
Connect the BITE2 receiver to the COM port you selected.
Power Up the BITE2 receiver by pressing the Power ON key on the receiver.
The message “TRANSMIT DATA (Y/N)?” should appear on the BITE2 Receiver display.
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page15

Click NEXT in the PowerDB software.
(NOTE: Read steps 9, 10 and 11 before proceeding. The software will time out if
too much time lapses between these steps.)
Select “Y” on the BITE2 receiver by pressing the UP arrow key on the BITE2 receiver.
(The following shall be displayed on the BITE2 receiver)
Select “EBITE / PC” on the BITE2 receiver by pressing the UP arrow key on the BITE2
receiver. (The following shall be displayed on the BITE2 receiver)
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page16

Select “PC” on the BITE2 receiver by pressing the DOWN arrow key on the BITE2
receiver. (The receiver shall now start transferring the data to the PC)
When the data transmission is complete the following screen shall be displayed. This
screen shall allow you to select the data path you wish to save the transmitted data to.
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page17

If you wish to save the data to a different path then the one displayed then click on the
BROWSE button and select the desired path.
(NOTE: The default data path is displayed. If you are not saving the data to a
different path just click on NEXT to proceed.)
When the desired path is selected, then click on the NEXT button. (The following screen
shall be displayed)
(NOTE: All the recorded data files in the receiver shall be displayed. Uncheck the
box next to any files you do NOT want to save; such as old files that have
already been saved.)
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page18

Select the desired OWNER by clicking on the drop down arrow. (NOTE: You can also
select to add a NEW OWNER)
Select the desired REGION by clicking on the drop down arrow. (NOTE: You can also
select to add a NEW REGION)
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page19

Select the desired SITE by clicking on the drop down arrow. (NOTE: You can also
select to add a NEW SITE)
Select the desired STRING by clicking on the drop down arrow. (NOTE: You can also
select to add a NEW STRING)
www.actoolsupply.com
www.actoolsupply.com

BITE / POWER DB 
AVTM82318REV1April17,2012 Page20

When selections have been completed click on the FINISH button. The transferred data
shall now be saved to the desired location and the following import completion message
shall appear.
Click OK
