adeptus 78105 User manual

214
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.
This is a SOLID WOOD product:
We inspect all wood and follow quality assurance guidelines that pass third-party inspections.
Note: Real wood has knots, small cracks, and what may look like blemishes. These characteristics
are expected when producing furniture from natural material.
We take extra care with our drawer parts:
1. We use real wood drawer sides and drawer backs.
2. Drawer sides and backs are not finished to protect fabrics from any residual paint odor.
3. Drawer parts are finely sanded to prevent snags.

Safety and Care Advice
50 min
Perform assembly on a clean, hard
surface using the flattened box or a
towel to protect the surface & the unit's
finish. DO NOT assemble on carpet.
Carpet creates too much bounce
making assembly difficult and could
lead to damage of the parts.
DO NOT FORCE OR
OVER-TIGHTEN THE
SCREWS. DOING SO CAN
DAMAGE THE PARTS.
314
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.
·Check that you have all the components and tools listed on pages 3 & 4.
·Remove all fittings from the plastic bags and separate them into their groups.
·Keep children and animals away from the work area, small parts could choke if swallowed.
·Make sure you have enough space to layout the parts before starting.
·Do not stand or put weight on the product, this could cause damage.
·Assemble the item as close to its final position (in the same room) as possible.
·Opened box can be used to protect your floor or counter during assembly.
·Assembly is easier for drawer parts on a counter.
·Parts of the assembly will be easier with 2 people.
·We do not recommend the use of power drill/drivers for inserting screws, as over-
tightening could damage the unit.
·Only use hand screwdrivers.
·Dispose of all packaging carefully and responsibly. Please recycle the box. Go green
·Never sit, stand or allow children to climb on the assembled unit.

4X
3X
150 mm
A=52 C=02 D=33 E=04 F=04
H=16I=02J=01 K=22 + 6 xtra
O=04
L=01 M=02 N=01
G=08 + 2 xtra
8 x 30
mm
Dowel
4 x 30
mm 16 x 5
mm x 1
mm
6 x 10
mm 7 x 50 mm
Screw Washer Screw
Left
Drawer
Runner
Right
Drawer
Runner Knob
Screw
Anti-
tip
Screw Wrench Back Panel
Nail
Anti-tip safety
Strap
Anti-tip
Screw
Cover Anti-tip Wall Anchor
Foot
Phillips
Screwdriver Hammer "L" Square Tool
identify
1Top
2Left Facing Side Panel
3Right Facing Side Panel
4
Drawer Crossbars
5
6
7
8
Back Panels
9Small Drawer Front
10 Drawer Front
11 Left Drawer
12 Right Drawer Side
Drawer Back
Drawer Bottoms
# Description Qty
Parts List
1
1
1
2
4
4
1
3
4
4
4
04
05
05
2
B=56
414
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.
Bottom Crossbars

PREPARE PARTS BY INSERTING DOWELS
1
2
O
8 x 30
mm
Dowel
O=04
Foot
2X
ATTACH THE FEET TO THE SIDE PANELS
4X
4X
4X
O
O
2X
514
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.
PREPARE THE PARTS FOR ASSEMBLY BY INSERTING DOWELS (PART A) AS FOLLOWS:
•Insert 2 dowels (part A) into the top of each side panel (parts 02 & 03).
•Insert 2 dowels (part A) into both ends of each bottom crossbar (part 04).
•Insert 2 dowels (part A) into both ends of the drawer crossbars (part 07).
•Insert 2 dowels each into the front end of each of the drawer sides (parts 10 & 11).
02
03
04
07
10
11
A=44
•Attach the feet (part O) to the bottom of each side panel as shown.
•Do NOT try to force or over-tighten the feet. This could cause damage.
02
03
&

3C=01D=01
L=01
16 x 5
mm
Washer
x 1
mm
Screw
150 mm
Anti-tip safety
Strap
LD
C
ATTACH ANTI-TIP SAFETY STRAP
4
E=04 H=08 6 x 10
mm
Left
Drawer
Runner
Screw
ATTACH LEFT DRAWER RUNNERS (300E) TO THE LEFT FACING
SIDE PANEL
E
H
H
E
H
H
E
H
H
E
H
H
Left Panel
614
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.
01
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR
FROM FURNITURE TIP-OVER. TO AVOID TIP-OVER:
•PLACE HEAVIEST ITEMS IN THE LOWEST
DRAWERS.
•UNLESS SPECIFICALLY DESIGNED TO
ACCOMODATE, DO NOT SET TV'S OR OTHER
HEAVY OBJECTS ON TOP OF THIS PRODUCT.
•NEVER ALLOW CHILDREN TO CLIMB OR HANG ON
DOORS, DRAWERS OR SHELVES.
•NEVER OPEN MORE THAN ONE DRAWER AT A
TIME.
•KEEP REMOTE CONTROLS, TOYS AND OTHER
ITEMS THAT MAY ATTRACT CHILDREN OFF OF
THIS PRODUCT.
USE OF TIP-OVER RESTRAINTS MAY ONLY REDUCE,
BUT NOT ELIMINATE, THE RISK OF TIP-OVER.

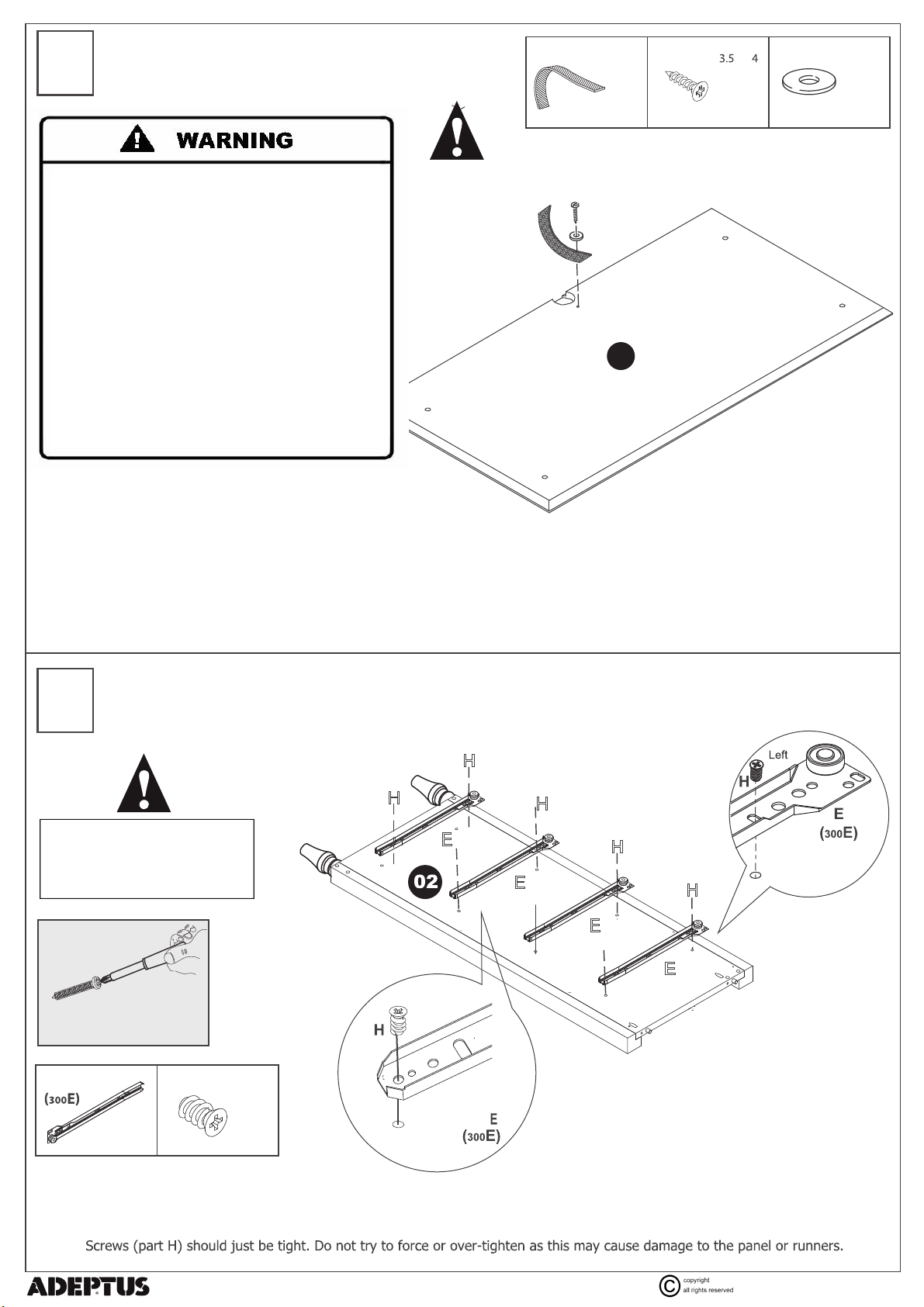

Attach the Anti-tip Safety Strap (part L) to the Top (part 01):
•Position and hold one end of the strap (part L) to the center of the bottom, back of the top (part 01) just in front of the
cut out.
•Place a washer (part C) on top of the strap (part L).
•Secure the strap (part L) by screwing the Part D screw through the washer (part C) and the strap (part L) into the top
(part 01).
•Part D screw should be tight, but do not force or over-tighten as this could cause the wood to split.
Make certain the
screw is in front
of the cut-out for
the strap, not
through the
cutout.
NOTE: The end of the left drawer
runners (300E) (part E) with the
wheel should be on the front side
of the left side panel (part 02).
•
•
Attach 4 (300E) left drawer runners (part E) to the
left side panel (part 02).
Please use care to align the (300E) runners (part E)
correctly with the pre-drilled holes in the left side
panel (part 02), as shown in the enlarged
illustrations.
•Secure the (300E) left drawer runners (part E) to the
left side panel (part 02) using 8 of the part H screws.

5
6
B=06 4 x 30
mm
Screw
F=04 H=08 6 x 10
mm
Right
Drawer
Runner
Screw
ATTACH CROSSBARS TO THE RIGHT
FACING SIDE PANEL
F
H
H
F
H
H
F
H
H
F
H
H
Right Panel
A
04
04
B
5x B B
B
B
B
Right Panel
A
A
A
A
A
A
A
A
A
A
04
714
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.
NOTE: The end of the right drawer
runners (300D) (part F) with the
wheel should be on the front side
of the right side panel (part 03).
FF
(300D)
F
(300D)
HH
•
•
Attach 4 (300D) right drawer runners (part F) to the
right side panel (part 03).
Please use care to align the (300D) runners (part F)
correctly with the pre-drilled holes in the right side
panel (part 03), as shown in the enlarged
illustrations.
•Secure the (300D) right drawer runners (part F) to
the right side panel (part 03) using 8 of the part H
screws.
ATTACH RIGHT DRAWER RUNNERS (300D) TO
THE RIGHT FACING SIDE PANEL
•Attach all crossbars (parts 04 & 07) to the right side panel (part 03) by first aligning the dowels (part A) you inserted in step 1 on
each crossbar (parts 04 & 07) with the pre-drilled dowel holes in the right side panel (part 03).
•Once aligned, push all crossbars (parts 04 & 07) into the the right side panel (part 03) until flush.
•Secure each crossbar (parts 04 & 07) using 6 of the part B screws.
•The part B screws should be just tight. Do not force or over-tighten as this could cause damage to the panel or crossbars.

7
8B=04 4 x 30
mm
Screw
ATTACH THE TOP PANEL
B
B
B
B
BB
Left Panel
Right Panel
4x B
B
B
B
Left Panel
Front
Top
Right Panel
B=06 4 x 30
mm
Screw
04
04
814
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.

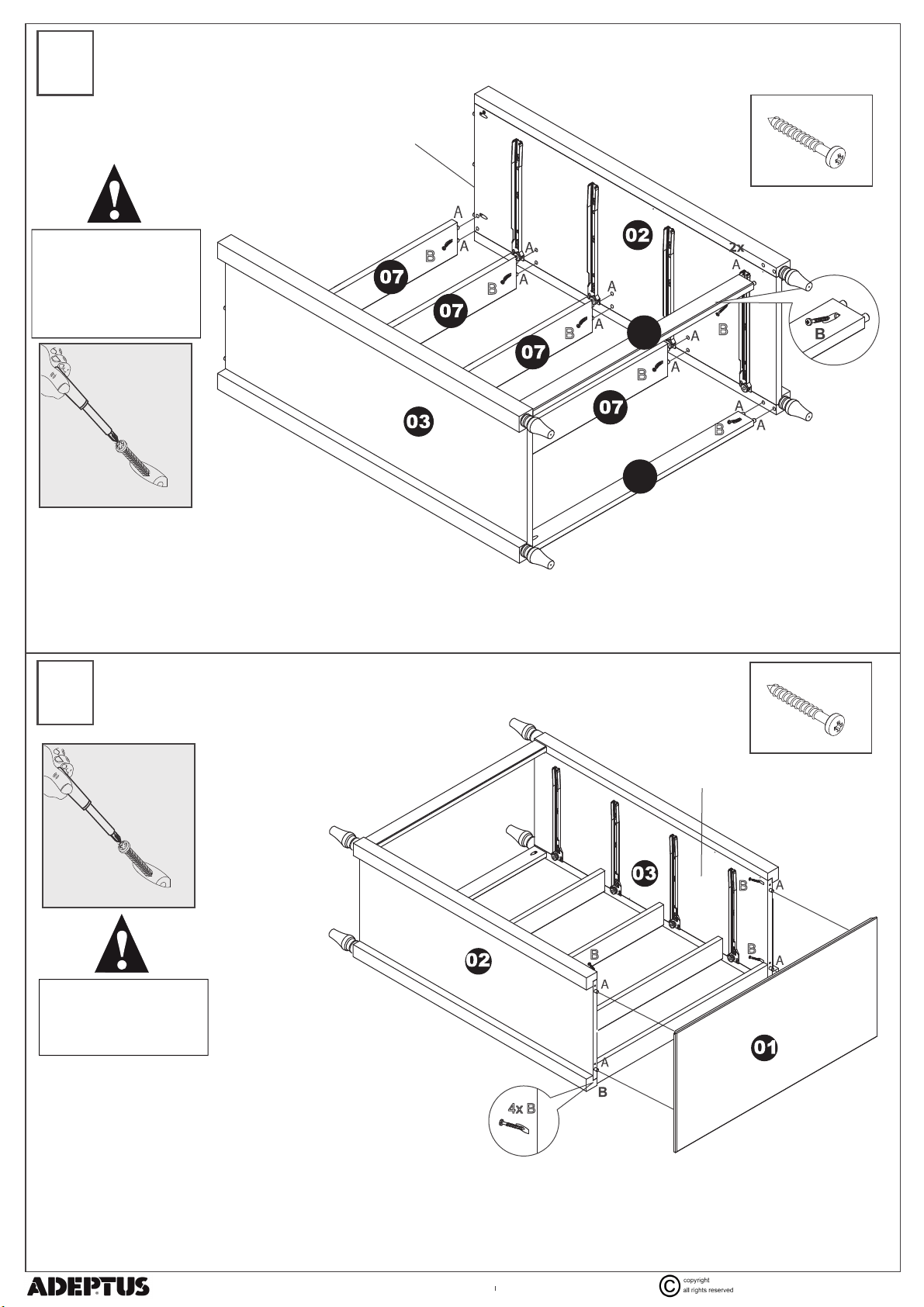

ATTACH THE LEFT FACING SIDE PANEL TO CROSSBARS
NOTE: Do not attempt
this step with the unit
upright. It should be
flat on its front side on
a hard, clean surface.
•Attach all crossbars (parts 04 & 07) to the left side panel (part 02) by first aligning the dowels (part A) you inserted in step 1 on
each crossbar (parts 04 & 07) with the pre-drilled dowel holes in the left side panel (part 02).
•Once aligned, push all crossbars (parts 04 & 07) into the the left side panel (part 02) until flush.
•Secure each crossbar (parts 04 & 07) using 6 of the part B screws.
•The part B screws should be just tight. Do not force or over-tighten as this could cause damage to the panel or crossbars.
•
•
Attach the top panel of the unit (part 01) by first aligning the
4 dowels (part A) that you installed in the side panels (parts
02 & 03) in step 1 with the pre-drilled dowel holes in the top
panel (part 01).
Once aligned, push the the top panel to the partially
assembled unit until flush.
•Secure the top panel (part 01) to the unit using 4 part B
screws on each corner, as shown.
•Screws (part B) should be tight, but do not force or over-
tighten screws (part B) as this could cause damage to parts.
NOTE: The unit is
depicted laying on
its front side.

9
10
Back Panel
Nail
ATTACH BACK PANEL
ATTACH THE ANTI-TIP SCREWS AND COVERS
914
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.
Before attaching the back
panel, make sure the unit is
assembled squarely. Use an
"L" Square tool, if necessary,
as shown.
K=22 + 6 xtra
NOTE: Make sure to pull the
Safety Strap (part L), through
before attaching
the back panels (part 08).
!
Use all back panel nails.
Evenly spaced, they help
make the unit strong.
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
KK
L
08
08
K
•First, make sure the unit is assembled squarely, use an "L" Square tool,
if necessary.
•Once the unit is square, you must also determine the square installation
of the back panels. Use an "L" Square tool, if necessary.
•The 2 back panels (part 08) are taped together. Unfold the back panels
(part 08) to make one full back panel.
•Once you have positioned the back panel (part 08) squarely, secure it to
the unit using 22 of part K nails evenly spaced, as shown.
•It is very important that you utilize all 22 nails. It strengthens the unit.
I=02 J=01 M=02
I
7 x 50
mm
Anti-
tip
Screw Wrench
Anti-tip
Screw
Cover
•The anti-tip screws (part I) should
be screwed into each of the 2 front
feet (part O) approximately 25 mm
or 1 inch as shown in the
illustration.
•Attach 1 anti-tip screw (part I) to
each of the front 2 feet (part O)
using the provided wrench (part
J) as shown in the enlarged
illustration.
M
•After installation of the anti-
tipping screws (part I) to each
front foot (part O), place the
anti-tip screw cover (part M)
over the head of each anti-tip
screw (part I).
5IJ
I
J
O

1014
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.
11
B=30 G=06 E=03
(300E)
F=03
(300D)
D=18
2x B
B
B
B
B
B
B
G
F
D
D
D
DED
D
4 x 30
mm
Screw
ASSEMBLE THE LARGE DRAWERS (3X)
3.5 x 14
mm
Screw
Left
Drawer
Runner
Right
Drawer
Runner
Knob
A
A
A
A
STEP 13 - A
•Using the dowels (part A) inserted into parts 11 and 12 in step 1, align the
drawer sides (parts 11 & 12) with the drawer front (part 10).
•Make sure the groove for the drawer bottom (part 14) is precisely aligned
on all 3 parts (10, 11 & 12) then push together until flush.
•Secure the drawer sides (parts 11 & 12) to the drawer front (part 10) using
2 screws (part B) on each side as shown in the illustration.
•Screws (part B) should be tight, but do not force or over-tighten as this
could cause the wood to split.
10
10
STEP 13 - B
•Slide the drawer bottom (part 14) into
the grooves on parts 10, 11 and 12 as
shown
STEP 13 - E
With the drawer upside down,
•Align the left drawer runner (300E) (part E) with the wheel on the outside
toward the drawer back (part 13). Make sure the opposite end is all
the way forward touching the drawer front (part 10), as shown.
•Secure the left drawer runner (300E) (part E) to the left drawer side (part
11) using 3 screws (part D).
•The first screw (part D) goes through the 3rd hole back from the drawer
front (part 10) and into the left drawer side (part 11).
•The second screw (part D) goes through the center hole of the runner
(300E) (part E) into the left drawer side (part 11).
•The third screw (part D) goes through the last hole in the runner (300E)
(part E) closest to the drawer back (part 13) on the outside by the wheel
as shown.
•Repeat these steps to attach the (300D) right drawer runner (part F) to
the right drawer side (part 12).
STEP 13 - C
•Align the groove in the drawer back (part
13) with the drawer bottom (part 14) and in
between the drawer sides (parts 11 & 12).
•Secure the drawer back (part 13) to the
drawer using 2 screws (part B) on each
side, as shown.

67(33'
•Attach the knobs (part G) to the drawer
front (part 10) by inserting the screw
(part B) through the back of the drawer
front (part 10) and into the back of the
knob (part G).
$OOVFUHZVSDUWV%'VKRXOGEHWLJKWEXWGR
QRWIRUFHRUWU\WRRYHUWLJKWHQDVWKLVPD\FDXVH
GDPDJHWRWKHXQLW
7XUQ
'UDZHU
2YHU
B
G
B
10
10
11
12
13
14 14
10
11
14
12
11
11
12
13
(300E)

1114
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.
A
A
A
A
12
B=10 G=02E=01
(300E)
F=01
(300D)
D=06
2x B
B
B
4 x 30
mm
Screw
ASSEMBLE THE SMALL DRAWER
3.5 x 14
mm
Screw
Left
Drawer
Runner
Right
Drawer
Runner
Knob
B
B
B
B
G
F
D
D
D
DED
D
STEP 14 - E
With the drawer upside down,
•Align the left drawer runner (300E) (part E) with the wheel on the outside
toward the drawer back (part 13). Make sure the opposite end is all
the way forward touching the drawer front (part 09), as shown.
•Secure the left drawer runner (300E) (part E) to the left drawer side (part
11) using 3 screws (part D).
•The first screw (part D) goes through the 3rd hole back from the drawer
front (part 09) and into the left drawer side (part 11).
•The second screw (part D) goes through the center hole of the runner
(300E) (part E) into the left drawer side (part 11).
•The third screw (part D) goes through the last hole in the runner (300E)
(part E) closest to the drawer back (part 13) on the outside by the wheel
as shown.
•Repeat these steps to attach the (300D) right drawer runner (part F) to
the right drawer side (part 12).

67(34'
•Attach the knobs (part G) to the drawer
front (part 09) by inserting the screw
(part B) through the back of the drawer
front (part 09) and into the back of the
knob (part G). (2 extra part G knobs
supplied.)
$OOVFUHZVSDUWV%'VKRXOGEHWLJKWEXWGR
QRWIRUFHRUWU\WRRYHUWLJKWHQDVWKLVPD\FDXVH
GDPDJHWRWKHXQLW
7XUQ
'UDZHU
2YHU
B
G
B
09
10
11
12
13
14 14
09
11
09
09
11
11
12
12
14
13
STEP 14 - A
•Using the dowels (part A) inserted into parts 11 and 12 in step 1, align the
drawer sides (parts 11 & 12) with the drawer front (part 09).
•Make sure the groove for the drawer bottom (part 14) is precisely aligned
on all 3 parts (09, 11 & 12) then push together until flush.
•Secure the drawer sides (parts 11 & 12) to the drawer front (part 09) using
2 screws (part B) on each side as shown in the illustration.
•Screws (part B) should be tight, but do not force or over-tighten as this
could cause the wood to split.
STEP 14 - B
•Slide the drawer bottom (part 14) into
the grooves on parts 09, 11 and 12 as
shown
STEP 14 - C
•Align the groove in the drawer back (part
13) with the drawer bottom (part 14) and in
between the drawer sides (parts 11 & 12).
•Secure the drawer back (part 13) to the
drawer using 2 screws (part B) on each
side, as shown.
(300E)

1214
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.

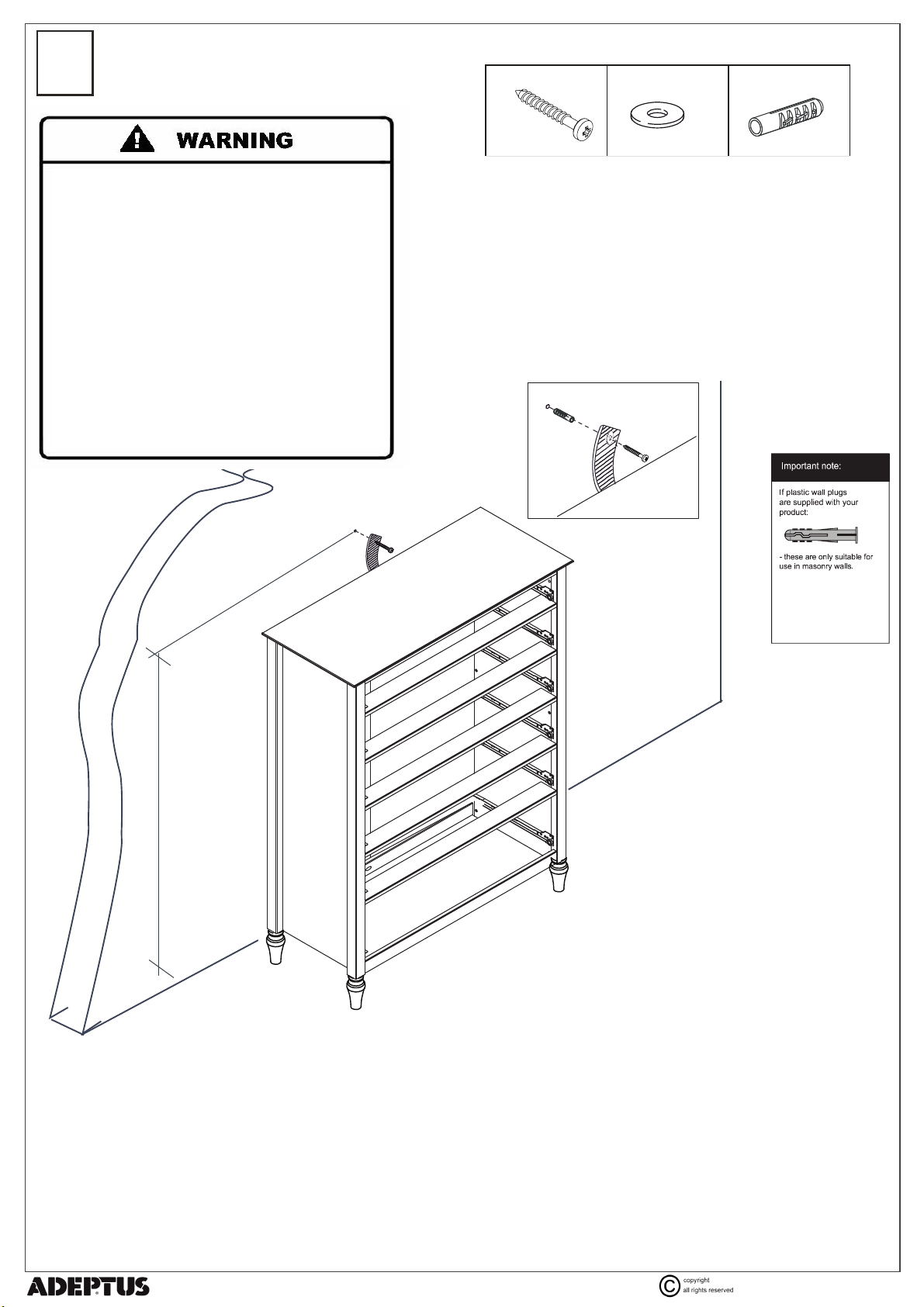

13 ANCHOR THE UNIT TO A WALL
990 mm
C=01 N=01
B
NC
B=01 4 x 30
mm
Screw
16 x 5
mm
Washer Anti-tip Wall Anchor
L
•Secure the unit to a wall to reduce the risk of accidental
tip-over by inserting the wall anchor (part N) into your
wall approximately 990 mm (or 39 inches) above the
floor level.
•Hold the washer (part C) on the front side top of the
anti-tip safety strap (part L).
•Feed the screw (part B) through the washer (part C) and
strap (part L) into the wall anchor (part N).
•Tighten the screw (part B) until secure.
If you have any doubt
regarding the correct
wall plug to use,
please seek
professional advice.
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR
FROM FURNITURE TIP-OVER. TO AVOID TIP-OVER:
•PLACE HEAVIEST ITEMS IN THE LOWEST
DRAWERS.
•UNLESS SPECIFICALLY DESIGNED TO
ACCOMODATE, DO NOT SET TV'S OR OTHER
HEAVY OBJECTS ON TOP OF THIS PRODUCT.
•NEVER ALLOW CHILDREN TO CLIMB OR HANG ON
DOORS, DRAWERS OR SHELVES.
•NEVER OPEN MORE THAN ONE DRAWER AT A
TIME.
•KEEP REMOTE CONTROLS, TOYS AND OTHER
ITEMS THAT MAY ATTRACT CHILDREN OFF OF
THIS PRODUCT.
USE OF TIP-OVER RESTRAINTS MAY ONLY REDUCE,
BUT NOT ELIMINATE, THE RISK OF TIP-OVER.

1314
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.

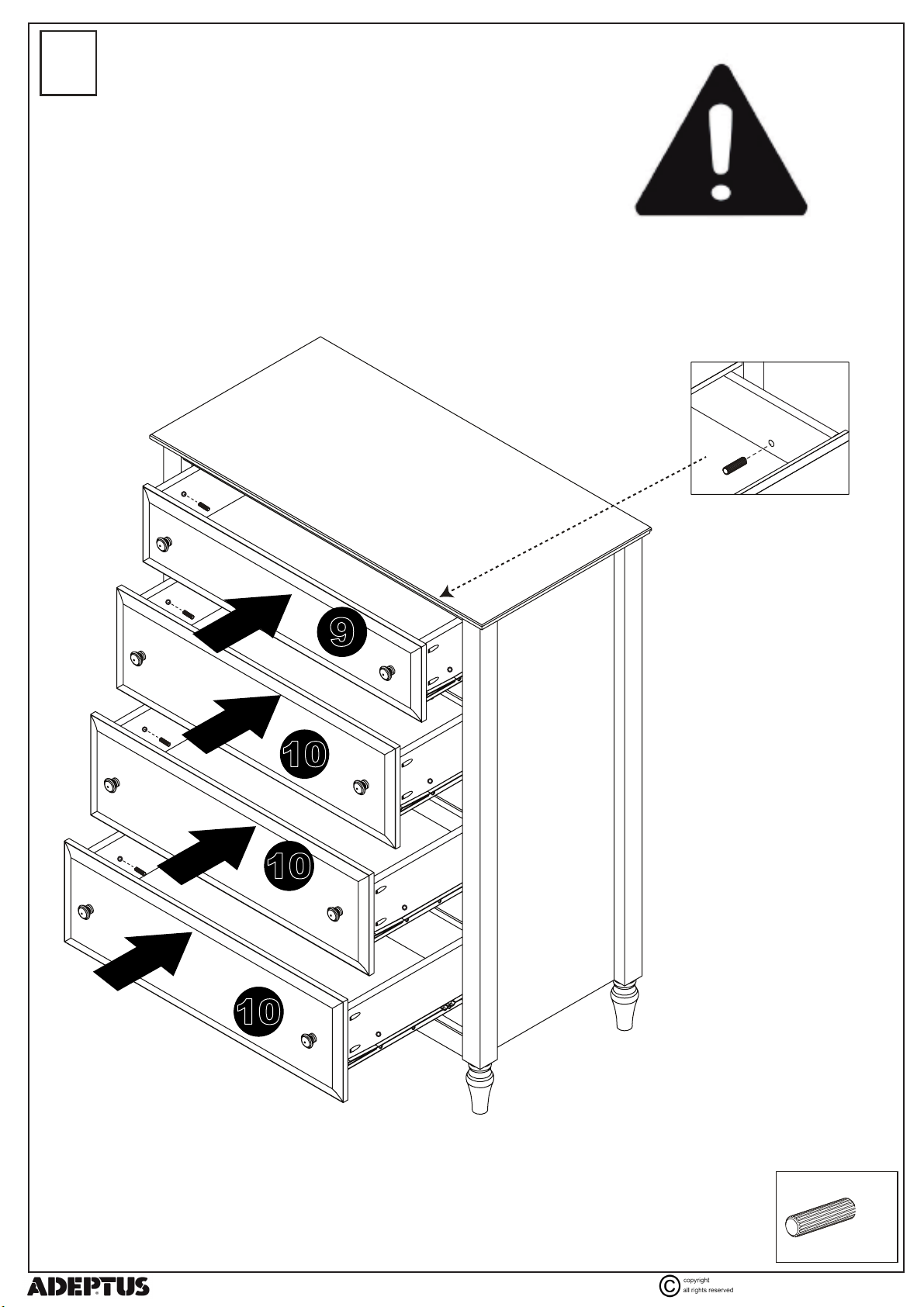

14 INSTALL THE DRAWERS X4
A=08
8 x 30
mm
Dowel
A
A
If you will store more than 10 lbs in any one
drawer, you MUST insert a dowel (part A) into
each side of the drawer as shown. This will
prevent the drawer from extending too far and
causing possible tip-over.
10
10
9
10
A
A
A
A
A
A
A
•Tilt the back of each drawer upward to
get it past the wheels on the drawer
runners.
•Once clear of the wheels, you can level
the drawers and slide them in.
•Then repeat the dowel step for each
side of each drawer.

Completed Assembly !
Care and use instructions:
1414
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.
15
D=08 D

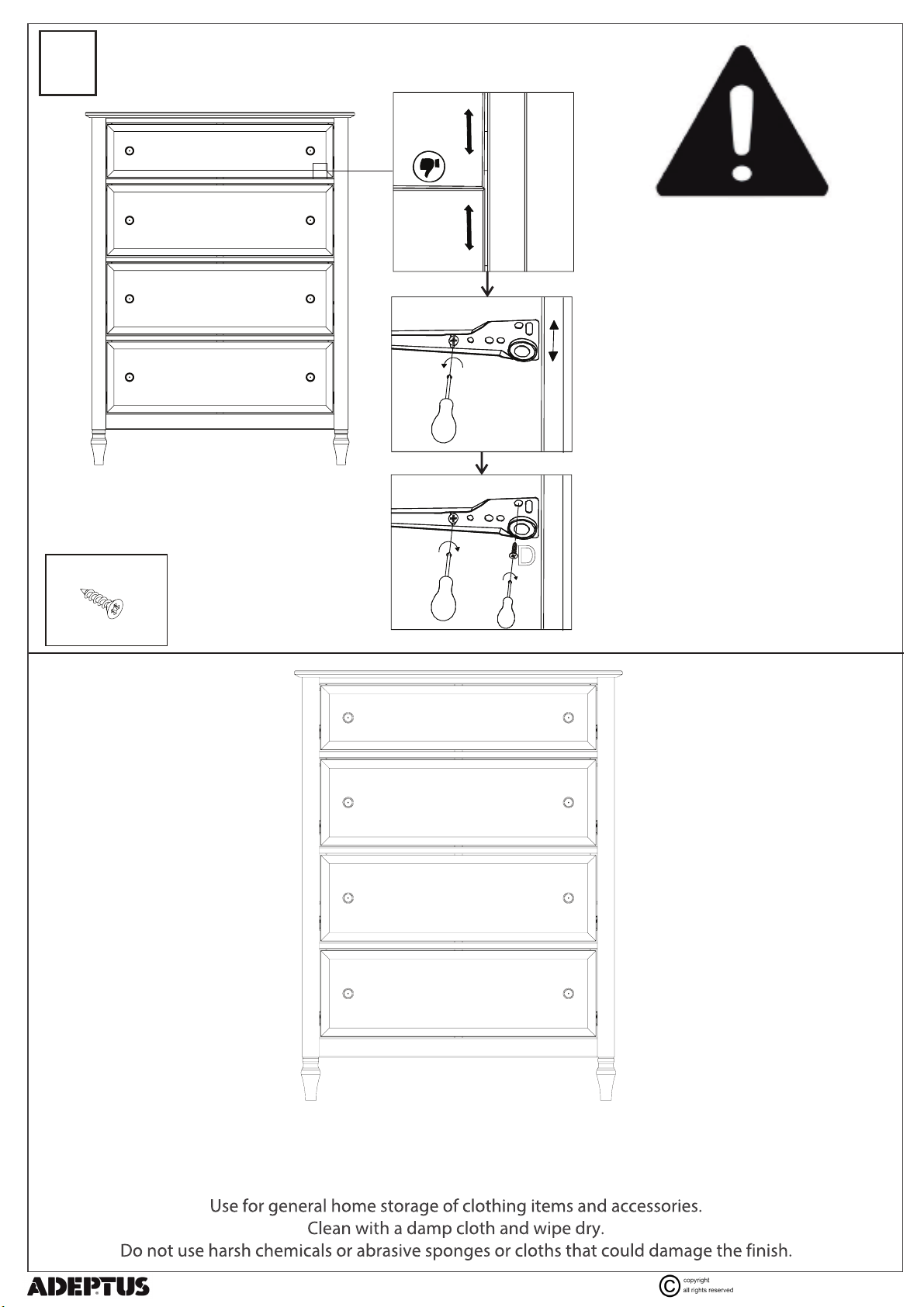

ADJUST DRAWER ALIGNMENT
3.5 x 14
mm
Screw
After completed assembly, it is
necessary to adjust the drawer
alignment to get the drawers
perfectly square.
To adjust the drawer front position:
•Loosen the screw (part H) you used to
install the drawer runner (either parts E
or F) in steps 6 or 7, to the side panel
(parts 02 or 03), depending on the side
(left or right), as shown.
•With the screw (part H) loosened, you
can make the necessary slight
adjustments (up or down) to the drawer
runner to achieve the proper drawer
alignment.
Once the drawer alignment is square, secure
the position of the drawer runners (parts E &
F) to the side panels (parts 02 & 03) by re-
tightening the part H screw and adding the
part D screw as shown.
Complete these steps for both the left and the
right side of each drawer.
H
H
