Adexa YBWA10 User manual

Electric Pressure Cooker
YBW60-100A10
YBW180-300D18
User Manual

Table of contents
Before using the appliance 1
Safety measures 1
Before plugging in 3
Diagram 4
Electric principle diagram 5
Specifications 6
Built in safety features 6
Using the inner pot for the first time
Selection of cooking tools 8
Cooking the crustacean food 8
Thorough cleaning after first use 8
How to operate 9
Taking the food out 12
Troubleshooting 14
Cleaning and maintenance
Seal ring 15
Anti-blocking cover 15
Float valve 16
Recipe 16

Before using the appliance
Read the instructions carefully before using the unit.
1. Remove all packaging including protective foam/cellophane and
labels.
2. Dispose the packaging properly and keep it out of reach of children.
3. Ensure that all parts are complete as shown/mentioned in this
manual.
4. Do not use the unit if it is damaged.
Safety Measures
Use the electric pressure cooker only for its intended domestic
purpose.
This electric pressure cooker is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
This appliance is intended to be used in household and similar
applications such as staff kitchen areas in shops, offices and other
working environments, farm houses, by clients in hotels, motels and
other residential type environments.
Do not use it outdoors.
Always place the appliance on a dry and even surface.
It is prohibited to use the cooker in an environment with flammable
articles or excessively high humidity.
Never place it near any liquid or within the vicinity of water like
bathtub, washbowls, swimming pools and alike.
Use this product with extra caution. The seal ring cannot be replaced
by other rubber rings. It is prohibited to use tension ring to improve the
air tightness.
If any failure occurs while in use, stop using the cooker and send it
back to the authorized reseller or service agent. It is prohibited to
1

dismantle the product or use other parts to replace any parts of the
cooker.
Never use unauthorized attachments or accessories as they may
cause injuries.
No heavy article should be put on the pressure limit valve and the
pressure limit valve should not be replaced by other objects.
It is prohibited to use rag to block the connecting area between the
lid and the locking place of the outer pot.
The anti-blocking cover should be kept clean at all times. The
pressure limit valve should often be checked so as to make sure that
no blocking can occur.
Please do not open the lid before the float has fallen down.
The inner pot has a non-stick coating. To prevent scratches on this
coating, please use wooden or plastic spoons only. The contacting
area between the bottom of inner pot and heating disk should be
kept clean. The inner pot should not be put on a heat source for
cooking nor should it be replaced by other containers.
When the pressure limit valve is lifted for discharging the air, make
sure your hand and face is kept away from the air-discharging pipe
at the valve. Do not touch the lid when the cooking is in progress to
avoid any burn.
Never try to pour out food using the lid handle. Always use both
hands to hold the handles at the two sides of the cooker.
Do not leave the appliance unattended when in operation.
Please insert the body plug into the innermost place of the socket of
the electric pressure cooker. Otherwise, it may result in danger. Please
see the figure for details.
2

If the power cord is wet or has accumulated dust or other particles, it
will have poor insulation performance because of the moisture which
may result in fire or electric shock. Unplug the power cord and use a
clean and soft cloth to clean it.
Cord replacement Instructions: If supply cord is damaged, it should
be replaced by a service agent, manufacturer or similarly qualified
person.
Before plugging in
Check that no parts are damaged. If one is, call or return the unit to
the manufacturer or reseller.
In order to avoid damage, before first use, check the power supply
for compliance with rated voltage.
When assembling, please carefully read the diagram.
3

Diagram
4
Pressure limit value
Float Valve
Lid handle
Lid
Gasket cover
Gasket
Removable inner pot
Stationary inner pot
Control panel
Condensation reservoir
Handle
Heating plate
Base
Measuring cup
Rice Spoon
Power cable

Control panel

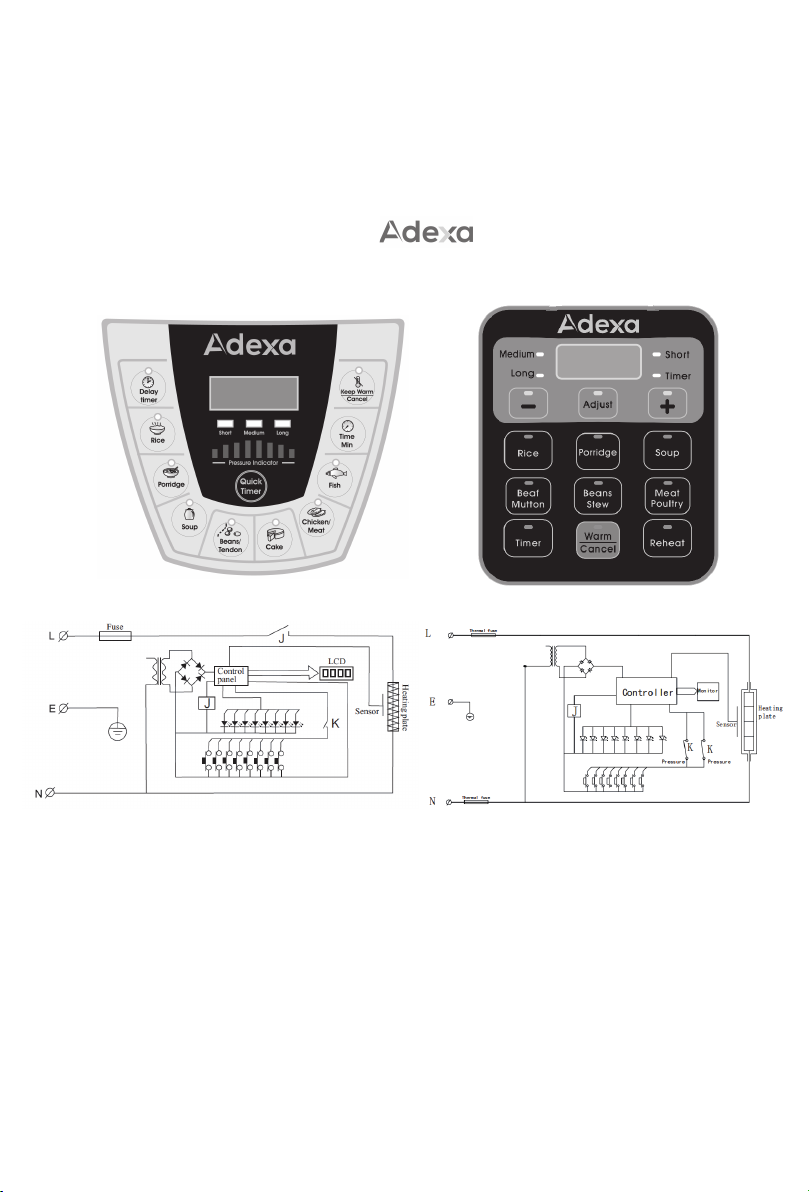

Electric principle diagram
5

Specifications
Model
Voltage
Max power
Frequency
Capacity
Working pressure
0~70Kpa
0~70Kpa
Limiting pressure
90Kpa
90Kpa
Warm-keeping
Temperature
60~80˚C
60~80˚C
Pressure preserving time
0-90 minutes
0-90 minutes
Built in safety features
1.) Float Valve protection
It will ensure there is no pressure produced when the lid and the
body doesn’t match well.
Please open the lid to release the remnant pressure to make sure
the safety of opening and closing of the lid.
2.) Safety Valve and anti-blockage protection
The safety valve will release the air automatically when the inner
pressure exceeds the limited pressure. And the anti-blockage cove
prevents the pressure valve from clogging.
3.) Opening and closing protection
When the temperature in the inner pot is too high, the lid cannot be
opened.
6
220-240V
1000W
50Hz
6L
YBW60-100A10
220-240V
1800W
50Hz
18L
YBW180-300D18

4.) Over pressure and self-releasing protection
When the inner pressure is abnormal, the excess pressure protection
will be activated, shifting the inner pot downwards to create a gap
between the lid and the inner pot. Steam will be released from the
gap into the internal chamber simultaneously disconnecting the coil.
5.) Over temperature protection
When all the protection devices don’t work, and the inner pressure
comes up to the maximum, the fuse will be burned, and the power
will be cut-off automatically to avoid accidents.
6.) Pressure self-control protection
When the inner pressure is high the inner pot will move downwards to
touch the switch to stop heating. And it will restore heating when the
pressure comes down.
7.) High temperature protection
When the inner pressure comes up to the maximum, the
temperature control switch will cut off the power automatically to
stop heating.
8.) Anti dry-burn protection
When the inner pot is in the state of dry-burn, the temperature
control switch will cut off the power automatically to stop heating.
7

Using the inner pot for the first time
Use a cleaning agent to clean the inner pot and dry it. Then apply some
edible oil on the non-stick coating and use a clean rag and kitchen paper to
remove the excess oil on it.
Selection of cooking tools
Use spoons and spatulas made of wood or thermal-resistance plastics to
avoid scratches on the coating. Avoid using sharp metal tools.
Cooking the crustacean food
Crustacean food like the crabs and lobsters may have sharp edges which
may also scratch the non-stick coating after they are put into the cooker for
frying. Avoid using this appliance whenever you cook such foods.
Thorough cleaning after every use
Clean the inner pot with water and cleaning agent using a sponge to ensure
Float Valve protection
Safety Value and anti-blockage
protection
Opening and closing
protection
Over temperature
protection
Pressure self-control
protection
Over pressure and
self-releasing
protection
Anti dry-burn protection
High temperature protection
8

the oil stains will be fully removed. If not, these oil stains will be burned and
stuck on the inner pot on your next use.
Caution: Please do not strike the cooker or put the inner pot directly on the
burner for cooking so as to avoid damaging the coating or affecting the
safety of the inner pot.

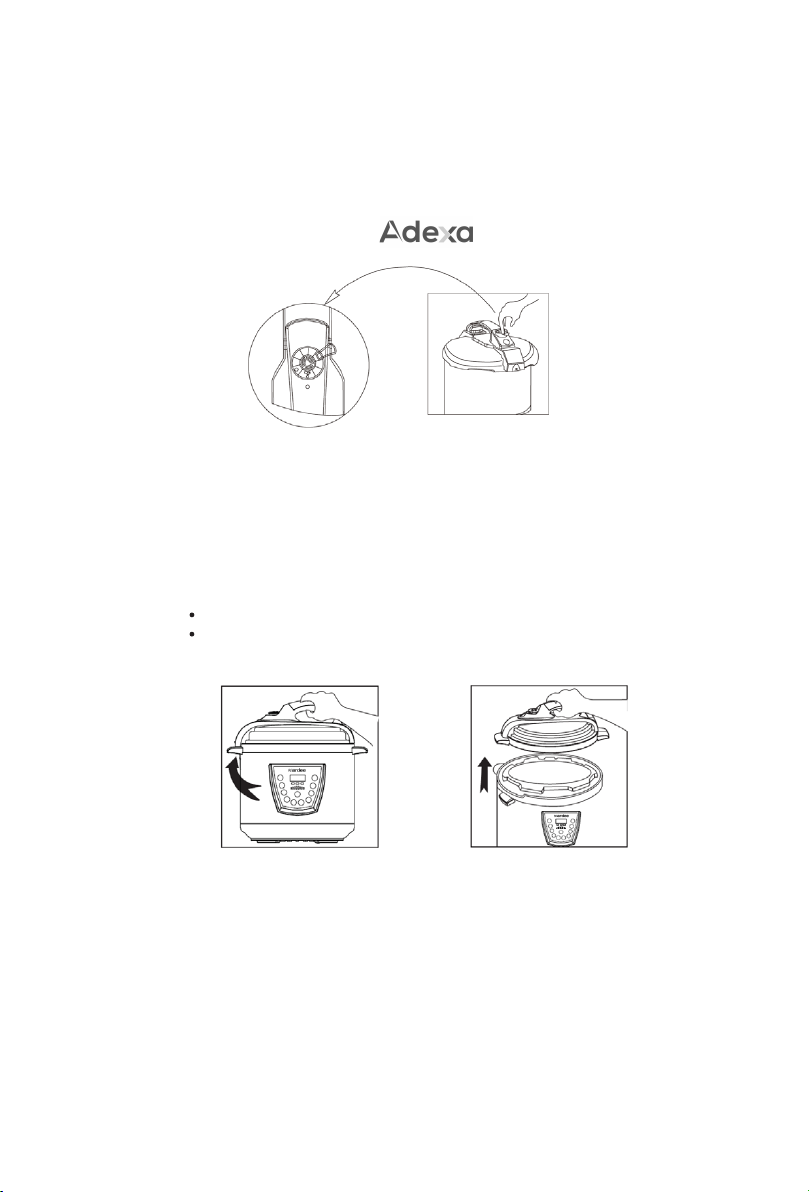

How to operate
Open the lid by holding the lid handle tightly and turn it clockwise to the
edge-limit place and then lift the lid.
Take out the inner pot and put the food and water into it. The quantity of
food and water should not exceed the 4/5 of the height of the inner pot
while for the food which easily swells in water, the quantity should not
exceed 3/5 of the height of the inner pot. The quantity of food and water
9

should not be less than 1/5 of the height of the inner pot. See illustration
below.
For cooking the rice, the maximum quantity of rice for model 3L, 4L, 5L
and 6L is 6cups, 8cups, 10cups and 12cups, respectively, and the
proportion between the water and rice is 1:1. If it is for congee, the
proportion between the water and rice should be 8:1. The proportion
may be adjusted based on personal taste or cooking experiences.
Put the inner pot into the outer pot but before doing so, the bottom of
inner pot and the heating disk should be clean and no foreign object
should be on the surface. After the inner pot is put into the outer pot, you
can turn the pot slightly leftward and rightward to make sure that the inner
pot contacts the heating disk properly.
Cover the cooker with the lid. Before that, check to see if the seal ring has
been put into the lid and use your hand to slightly turn the supporting cap
for the seal ring leftward and rightward so that it can be evenly placed on
the lid. Then use your hand to hold the lid handle tightly and put it on the
edge limit place. And then turn the lid counterclockwise to the locking
place. A sound of “racking” is heard to indicate that the lid is at the
proper position.
10

Turn the air outlet valve to the “ ” will be seen and check to see if the
float valve is fallen down (the float valve should be fallen down before
heating).
Connect the cooker with the power, the indication “ ” will be seen
on the display.
To set the cooking time based on different foods and for more details,
please refer to the Cooking manual.
Users can adjust the time of the pressure according to the food and personal
cooking experience
11
Model No.:YBW60-100A10
Model No.:YBW180-300D18
function rice beaf/mut
ton porridge beans/ste wsoup meat/poult ry reheat
Short 15min 25min 20min 30min 20min 15min 05min
Medium 22min 35min 30min 40min 30min 25min 08min
Long 30min 45min 40min 50min 40min 30min 13min
max adjustable
time 60min 80min 60min 99min 60min 50min 20min
min adjustable
time 12min 15min 10min 20min 15min 05min 03min
default time 22min 35min 30min 40min 30min 25min 08min
Menu
Default
Time
(Min)
Adjustable
Time
(Min)
Short-Medium-Long
Time(min)
Rice 10 8-20 8-10-16
Porridge 20 1-60 10-20-35
Soup 25 1-60 10-25-40
Beans/Tendon 30 1-60 25-30-45
Cake 18 1-33 18
Meat/Chicken 15 1-60 5-15-35
Fish 5 1-20 0-5-10
Time Min - Adjust time -
Keep
Warm/Cancel - - -

Switch on the power and “0000” will appear.
Set the parameter and start heating.
Set the preset time if needed.
Press “timer” button (this button will light up) which adds 0.5 hour
each time. You can press this button to repeat this setting. Longest
time you can preset is 24 hours.
Note: After presetting the time, heating will begin.
a.) Select the menu according to the food.
When cooking rice, press “Rice” button for a quick start to cooking
rice.
b.) Please refer to the cooking guide when choosing “Time Min”.
Press “Time Min” button then press this button again to add the
pressure keeping time by 1 minute.
Note: Pressure keeping time refers to the time it keeps when the food
inside comes up to the working pressure during heating
If the function timer is preset and the timing light is on the LED display
decreases the time by minute and when it comes to “0” the light will
turn off and it will begin to heat.
When the pressure comes up to the working pressure during heating
and intents into the pressure-cooking procedures
a). the display shows “P:00” (“00” is the time which is set for keeping
pressure) and time for pressure keeping reduces by minute.
b.) If you choose “Time Min” button, the display will show “ P:00” (“00”
is the time which is set for keeping pressure. It time is set for 15
minutes, the display will show “P:15” and the time for pressure
keeping reduces by 1 minute.
The display shows “0000” when it finishes the process of pressure
keeping and it rings 3 times. It will enter warm-keeping state when
cooking is finished.
You can cancel the function you set by pressing the “keep
warm/cancel” during cooking or function setting.
Taking the food out
Lift the pressure limit valve to discharge the air until float is fallen down.
12

Note: If the liquid food is cooked (like the congee and sticky liquid),
you should not lift the pressure limit valve to discharge the air
immediately. In this case, the cooker should be cooled until the
float valve is fallen down and then air can be discharged.
Otherwise, the food may be sprayed out from the air-discharging
pipe. You can disconnect the power plug and use a wet towel to
cover the lid so that the cooker can be cooled quickly.
Unplug the power cord.
Use your hand to hold the lid handle tightly and turn the lid clockwise
to the edge limit place. Then lift up the lid to take the food inside the
cooker.
13

Troubleshooting
Please refer to the table below for common queries on this unit as it may
save you time and money. If your concern is not found on the list or your
issue persists, then kindly call our service centre.
Problem
Possible causes
Solutions
Hard to lock the
lid.
The seal ring is not properly
placed
Place the seal ring properly
The float is seized by the
push rod
Push the rod with hands
Hard to open the
lid.
The float is not fallen down
after the air is discharging.
Use a chopstick to press
the float slightly for safety
Air leakage at the
lid.
The lid is not properly
locked
Lock the lid in accordance
with the specifications
The seal ring is not properly
placed.
Place the seal ring
The seal ring has food
residues
Clean the seal ring
The seal ring is damaged
Replace the seal ring
Air leakage at the
float valve.
The seal ring of the float
valve has food residues
Clean the seal ring of the
float valve
The seal ring of the float
valve is damaged
Replace the seal ring of the
float valve
The float valve
cannot be lifted
up.
The pressure limit valve is
not properly placed
Place the float valve at the
correct position
Not enough water inside
the cooker
Place the food and water
according to the
specifications.
Cleaning and maintenance
Please unplug the power cord before cleaning.
Use a piece of rag to clean the body. It is prohibited to soak the
cooker’s body into water or spray water onto it. Use sponge or non-
metal soft brush to clean the inner pot then use a clean, dry cloth to
wipe dry the surface of the inner pot.
13
14

Each time after use, take off the water-collecting box and empty the
water collected in it. Then clean it with water and place it back into
the cooker after it is dried.
Clean the lid with water. When the lid is cleaned, ensure the following
parts are included: seal ring, pressure limit valve, anti-blocking cover,
air-discharging pipe and float valve.
Cleaning of the seal ring
Hold the knob of supporting cap tightly and pull the seal ring up. After the
seal ring is cleaned, align the supporting cap to the supporting shaft in the
middle and press it down. Then check to make sure that the spacing
between the seal ring and the edge of the lid is even and it can be turned
freely. Now it can be used again. Pay attention not to install the seal ring
reversely.
Cleaning of the anti-blocking cover
Pull up the anti-blocking cover then after cleaning, press it down.
15

Cleaning of the float valve
Use your hand to move the core of the float valve upward and downward
and clean the food residues at the seal ring of the float valve.
Cleaning of pressure limit valve
Lift up the pressure limit valve and clean it with water then put the valve back
to the valve base.
Recipe
Braised lamb shanks – Pressure cooker recipe
Ingredients
2 tomatoes
4-6 lamb shank, French trimmed if possible
1/4 cup plain flour or 1/4 cup gluten-free flour
8 teaspoons olive oil
1 onion, chopped
3 carrots , peeled and thickly sliced
1 garlic clove, crushed
16

1 tablespoon fresh oregano, chopped or 1 teaspoon dried oregano
1 teaspoon lemon rind, finely grated
3/4 cup red wine
1/4 cup beef stock or 1/4¼cup vegetable stock
Salt
Fresh ground black pepper
4 teaspoon plain flour (optional for thickening gravy) or 4 teaspoons gluten-
free flour (optional for thickening gravy)
8 teaspoons cold water (optional for thickening gravy)
Directions
Peel the tomatoes, remove the calyx and cut into quarters. If you
prefer, you can drop the tomatoes into boiling water for one minute
and then refresh in ice cold water- this makes removing the skins
easier.
Toss the shanks in the flour (You can do this in a large plastic bag for
a no mess cleanup.) Shake off any excess flour. Discard excess flour.
Heat half of the oil in the cooker (no lid) and brown the shanks, two at
a time if necessary. Remove and set aside.
Add the remaining oil and the onion, carrots and garlic. Fry for 5
minutes, stirring occasionally. Add the tomatoes, oregano, lemon
rind, wine and stock. Bring to the boil, stirring well, for a few minutes.
Return the lamb shanks to the cooker and season well with salt and
pepper. Spoon some of the sauce and vegetables over the meat.
Close and lock the lid. Set cooker to High Pressure and cook for 25
minutes.
Carefully release pressure from the cooker and check the meat is
cooked. The meat should be very tender and almost falling off the
bone. Cook a further 5 minutes if required.
If you would like the gravy a little thicker- add the remaining flour to
the cold water and stir until smooth. Simmer gravy and add the flour
paste in slowly until the gravy is thicker.
Serve with mashed potato and a green veg -- or baked tiny
tomatoes. The green or red really adds colour to the plated meal.
17

Adexa Direct Limited
Address: Unit 1 Swift Point, Cosford Lane,
Swift Valley Ind Est, Rugby CV21 1QN United
Kingdom
Telephone: [phone]
Email: [email protected]
