Adexa BF929A User manual

12L Air Fryer
Owner’s Manual
Save these instructions - For household use only
When using electrical appliances, basic safety precautions should always be
followed. Do not use 12L Air Fryer until you have read this manual thoroughly.

IMPORTANT SAFEGUARDS：
When using electrical appliances, basic safety precautions should always be followed, including：
1. NEVER IMMERSE the Main Unit Housing, which contains electrical components and heating
elements, in water. Do not rinse under the tap.
2. TO AVOID ELECTRICAL SHOCK. DO NOT put liquid of any kind into the Main Unit Housing
containing the electrical components .
3. This appliance has a polarized plug (one blade is wider than the other). To REDUCE THE RISK
OF ELECTRIC SHOCK, this plug is intended to fit into a polarized outlet only one way. If the plug
does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.
DO NOT ATTEMPT to modify the plug in any way.
4. MAKE SURE the appliance is plugged into a dedicated wall socket. Always make sure that the
plug is inserted into the wall socket properly and without any other appliances on the same outlet.
5. To prevent food contact with the interior upper screen and heat element. DO NOT OVERFILL
the Round Basket.
6. DO NOT COVER the Air Intake Vent or Air Outlet Vent while the Air Fryer Oven is operating.
Doing so will prevent even cooking and may damage the Unit or cause it to overheat.
7. NEVER POUR oil into the round Basket. Fire and personal injury could result.
8. While cooking, the internal temperature of the Unit reaches several hundred degrees celsius. TO
AVOID PERSONAL INJURY, never place hands inside the Unit unless it is thoroughly cooled.
9. This appliance is NOT INTENDED FOR USE by persons with reduced physical, sensory, or
mental capabilities or a lack of experience and knowledge unless they are UNDER THE
SUPERVISION of a responsible person or have been given proper instruction in using the
appliance. This appliance is NOT INTENDED FOR USE by children.
10. When cooking, DO NOT PLACE the appliance against a wall or against other appliances. Leave
at least 12cm free space on the back and sides and above the appliance. Do not place anything on
top of the appliance.
11. DO NOT USE this Unit if the plug, the power cord, or the appliance itself is damaged in any way.
12. Do NOT PLACE The Unit on stove top surfaces.
13. If the power cord is damaged, YOU MUST HAVE IT REPLACED by the manufacturer, its
service agent, or a similarly qualified person in order to avoid hazard.
14. Keep the appliance and its power cord OUT OF THE REACH of children when it is in operation
or in the cooling process
15. KEEP THE POWER CORD AWAY from hot surfaces. DO NOT PLUG in the power cord or
operate the Unit controls with wet hands.
16. NEVER CONNECT this appliance to an external timer switch or separate remote-control
system.
17. NEVER USE this appliance with an extension cord of any kind.
18. DO NOT OPERATE the appliance on or near combustible materials, such as tablecloths and
curtains.
19. DO NOT USE the Air Fryer Oven for any purpose other than described in this manual.

20.NEVER OPERATE the appliance unattended.
21.When in operation, air is released through the Air Outlet Vent. KEEP YOUR HANDS AND FACE
at a safe distance from the Air Outlet Vent. Also avoid the air while removing the Round Basket
from the appliance.
The Unit’s outer surfaces may become hot during use. The round basket will be hot. Wear oven
mitts or use the fetch tool when handing hot components. Wear oven mitts when handling hot
surfaces.
22.Should the unit emit black smoke, UNPLUNG IMMEDIATELY and wait for smoking to stop
before removing oven contents.
23.When time has run out, cooking will stop but the fan will continue running for 20 secs to cool
down the unit.
24.Always operate the appliance on a horizontal surfacr that is level, stable, and noncombustible.
25.This appliance is intended for normal household use only. It is not intended for use in
commercial or retail environments.
26.If the 12L air fryer oven is used improperly or for professional or semiprofessional purposes or if
it is not used according to the instructions in the user manual, the warranty becomes invalid and the
manufacturer will not be held liable for damages.
27.Always unplug the appliance after use.
28.Let the appliance cool down for approximately 30 mins. Before handing, cleaning, or storing.
29.Make sure the ingredients prepared in this unit come out cooked to a golden-yellow color rather
than dark or brown. Remove burnt remnants.
IMPORTANT
1. Before initial use and after subsequent use, hand wash the round basket and other cooking
accessories. Then, wipe the outside and inside of the unit with a warm moist cloth and mild
detergent. Finally, preheat the unit for a few minutes to burn off any residue.
2. The cooktop may smoke the first time it is used. It is not defective and the smoke will burn off
within a few minutes.
OVERHEATING PROTECTION
Should the inner temperature control system fail, the overheating protection system will be
activated and the Unit will not function. Should this happen, unplug the power cord. Allow time for
the Unit to cool completely before restarting or storing.
AUTOMATIC SHUT-OFF
The appliance has a built in shut-off device, that will automatically shut down the Unit when the
Timer LED reaches zero. You can manually switch off the appliance by selecting the Power Button.
The fan will continue running for about 20 secs to cool down the unit.

ELECTRIC POWER
If the electrical circuit is overloaded with other appliances, your new Unit may not operate properly.
It should be operated on a dedicated electrical circuit.
Electromagnetic Fields
This appliance complies with all standards regarding electromagnetic fields. If handled properly and
according to the instructions in this user manual, the appliance is safe to use based on scientific
evidence available today.
Parts & Accessories
4. 5.
6.
7. 8.

1. Main Unit with Control Panel
Allows you to control the functions of the Unit.
2. Air Intake Vents
DO NOT COVER the Air Intake Vents while the unit is operating.
3. Hot Air Outlet Vents
DO NOT COVER the Air Outlet Vents while the unit is operating.
4. Crisper Trays
Can be used not only for dehydration, but also to cook crispy snacks or reheat items like pizza.
5. Drip Tray
Cook with the Drip Pan in place for easy clean-up.
6. Round Basket
Great for fries, roasted nuts, and other snacks.Use Rotisserie Fetch Tool to place basket into Unit.
7. Rotisserie Shaft&Forks
Great for all your Chicken
8. Rotisserie Fetch Tool
Use to remove cooked roasts and chicken that have been prepared using the rotisserie
or skewer methods. place under Rotisserie Shaft and lift then gently extract the food.

NOTE: Some accessories may not be included with purchase.
Unpack all listed contents from packaging. Varies by model.
Please remove any clear or blue protective film on the components.
Unit Specifications
Model
number
Supply power Rated
power
Capacity Temperature Display
BF929A 220~240V 50Hz 1800W 12L 80-200 °CLED Touch
Screan
Warning
Forks, Skewers, and other metal parts with this unit are sharp and will get extremely hot during use.
Great care should be taken to avoid personal injury.Wear protective oven mitts or gloves.
Using the Accessories
Placing Drip Tray into Unit
1 Insert Drip Tray into bottom of the Unit
2 Cook with the Drip Pan in place for easy clean-up
Placing Crisper Trays into Unit
1 Place crisper trays into unit by sliding through the side grooves and onto the back lip
2 Place crisper trays closer to the top heating element for faster cooking and added crisp
3 Inserting crisper trays(always use oven mitts when oven is hot)
Placing Round Basket into Unit
1 Open the door of the Unit.
2 Insert the left side of the assembled round basket or split first into the Rotidderie Shaft socket. Be
sure the Rotisserie shaft is in place to engage rotation.
3 Place the right side onto the hanger
Removing Round Basket & Rotisserie Spit from Unit
1 Open the door of the unit to pause cooking cycle or turn unit off by pressing the power button
2 Insert rotisserie fetch tool beneath the rotisserie shaft.
3 Lift the right side of the Rotisserie fetch tool at a slight angle to clear the bracket, then shift to the
right until the left side of the shaft slides out of the rotisserie shaft socket.
4 Carefully remove the round basket or rotisserie spit from the unit.

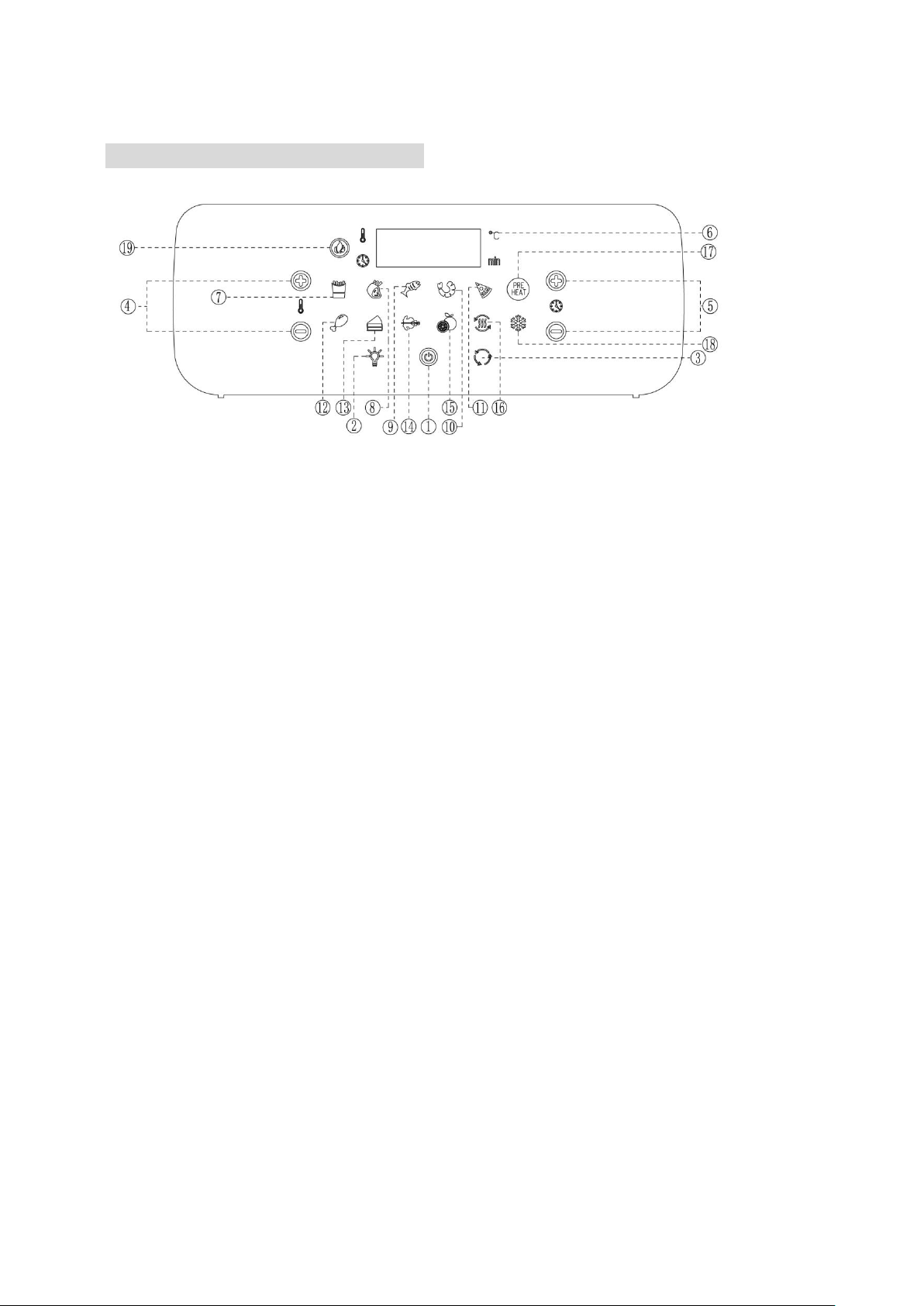

Using the Digital Control Panel
1. Power/Start-Stop Button
Once the Unit is plugged in, the Power Button will light up. Selecting the Power Button once will
cause the full panel to be illuminated. Selecting the Power Button a second time will activate the
cooking process at the default temperature of 150℃and time of 15 mins. Selecting the Power
Button at any time during the cooking process will shut down the Unit, causing the display to go
dark immediately the running light to go dark within 20 secs. The fan will continue running for 20
secs to cool down the Unit.
2. Internal Light
Selecting this button will help you check cooking progress while Unit is in operation.
NOTE: Opening the door during the cooking process will pause the Unit. Internal light will illuminate
if doors open.
3. Rotation Button
Select this button when cooking anything using the Rotisserie Mode. Function can be used with any
preset. The icon will blink while in use.
4. Temperature Control Buttons
These buttons enable you to raise or lower cooking temperature by -15℃intervals ranging from
80℃to 200℃. Dehydration ranges from 30℃to 75℃.
5. Time Control Buttons
These buttons enable you to select exact cooking time to the minute, from 1 min to 90 mins in all
modes except when dehydrating,which uses 30-min intervals and an operating time of 2-24 hrs.
6. LED Digital Display
The Digital Numeric Display will switch between Temperature and Time Remaining during the
cooking process.
7-12. Cooking Presets
Selecting any Preset Button sets the Time and Temperature to the Preset's default value. The
cooking process starts automatically five secs.after the preset has been selected, or the Power
Button can be pressed after the Preset Button to start the Oven immediately. You may override
these presets with Time and Temperature Buttons.
19. Heating icon
This icon will blink in sequence while cooking is in progress and continue blinking up to 20 secs
once you shut Unit down.

Cooking Presets
Preset Button Cooking Chart
Cooking time for whole roasted chicken will vary with weight. Use meat thermometer to check
internal temperature as per chart below.
Preset Button Temperature Time
7 French Fry 200 °C15 min
8 Roast 175°C25 min
9 Fish 165°C15 min
10 Shrimp 160°C12 min
11 Pizza 180°C15 min
12 Chicken 185°C40 min
13 Baking 160°C30min
14 Rotisserie 190°C30min / plus spit rotates
15 Dehydrator 30°C2 hours (*2-24hours)
16 Reheat 115°C2 hours
17 Preheat 80°C5 min
18 Frozen Food 200°C20 min
Using the 12L Air Fryer Oven Without Presets
Once you are familiar with the 12L Air Fryer Oven, you may want to experiment with your own
cooking times and temperatures.
Warning
Never use a cooking vessel filled with cooking oil or any other liquid with this unit!
Fire hazard or personal injury could result.
General Operating Instructions
Before using the Power Air Fryer Oven Elite for the first time
1 Read all material, warning stickers and labels.
2 Remove all packing materials, labels, and stickers.
3 Wash all parts and accessories used in the cooking process with warm soapy water.
NOTE:Only the accessories are dishwasher safe.
4 Wipe the inside and outside of the cooking Unit with a clean,moist cloth.

NOTE:Never wash or submerge the cooking Unit in water.
NOTE:When using this Unit,never fill any cooking vessel with oil or liquid of any kind. This Unit
cooks with hot air only.
Preparing for Use
1. Place the appliance on a stable,level,horizontal,and heat-resistant surface.
2. Select the cooking accessory for your recipe
NOTE:Before initial use and after subsequent use,hand wash the Round Basket and other cooking
accessories.Then,wipe the outside and inside of the Unit with a warm moist cloth and mild
detergent.Finally,preheat the Unit for a few minutes to burn off any residue.
A Versatile Appliance
The 12L Air Fryer Oven is designed to cook a wide variety of your favorite foods. The charts and
tables provided within this manual and the Recipe Guide will help you get great results. Please refer
to this information for proper time/temperature settings and proper food quantities.
Warning
1. NEVER put anything on top of the appliance.
2. NEVER cover the air vents on the top and back of the cooking Unit.
3. NEVER fill any cooking vessel with oil or liquid of any kind. This Unit cooks with hot air only.
4. NEVER use the Oven Door as a place to rest a hot Fry Basket filled with food.The Hot Fry Basket
could damage the Oven Door or cause the Unit to tip.Personal injury could result.
5. ALWAYS use oven mitts when removing hot Crisper Trays.
Cooking with the 12L Air Fryer Oven
1. Place the ingredients on an Crisper Tray, on one of the Rotisserie accessories, or in the Round
Basket.
2. Put the Crisper Tray, Round Basket, or Rotisserie Spit into the unit and shut the oven door. Plug
the power cord into a 120V dedicated outlet.
3. When Round Basket or Rotisserie and food is in place. Press the Power Button.
4. Select a preset function or manually set the Temperature and then the Time. Refer to the
detailed Control Panel instructions.
5. The Unit will automatically start the cooking cycle a few seconds after a preset function is
selected or the Time and/or Temperature are adjusted manually. Alternatively, you can press the
Power Button to begin the cooking cycle immediately once the desired cooking time and
temperature have been selected.
NOTE: You may open the oven door to view the rotisserie at any time during the process to check
the progress.
NOTE: Consult the Charts in this manual or the Recipe Books to determine the correct settings.
Tips
1. Foods that are smaller in size usually require a slightly shorter cooking time than larger ones.

2. Large quantities of food only require a slightly longer cooking time than smaller quantities.
3. Flipping or turning smaller sized foods halfway through the cooking process ensures that all the
pieces are evenly fried.
4. Misting a bit of vegetable oil on fresh potatoes is suggested for a crispier result.When adding a
little oil, do so just before cooking.
5. Snacks normally cooked in an oven can also be cooked in the Power Air Fryer Oven Elite.
6. Use premade dough to prepare filled snacks quickly and easily.Premade dough also requires a
shorter cooking time than homemade dough..
7. Place a baking tin or oven dish in the Power Air Fryer Oven Elite when baking a cake or quiche.
A tin or dish is also suggested when cooking fragile or filled foods.
Important
Removing Cooked or Hot Food
When removing cooked or hot food use the Rotisserie Fetch Tool
(FIG.R)or oven mitts.The Fetch Tool can also be used with Rotisserie Spit.
Warning
1. During the cooking process,the Round Basket and other accessories will become very hot.When
you remove it to check on the progress,make sure you have a trivet or a heat-resistant surface
nearby to set it down on.NEVER place the Round Basket directly on a counter top or table.
2. Cooking accessories will get hot during the air frying process.Wear oven mitts and handle with
care to AVOID INJURY.
Cleaning&Storage
Cleaning
Clean the 12L Air Fryer Oven after each use. The Round Basket and other accessories are made of
durable stainless steel and are dishwasher safe. Never use abrasive cleaning materials or utensils
on these surfaces. Caked-on food should be soaked for easy removal in warm, soapy water.
Remove the power cord from the wall socket and be certain the appliance is thoroughly cooled
before cleaning.
1. Wipe the outside of the appliance with a warm,moist cloth and mild detergent.
2. To clean glass,open the door of the Unit.Push the button on the bottom side of the door to push
the glass through the top of the door.Grab the tab at the top of the glass and carefully remove the
glass from the door.
3. Clean the inside of the appliance with hot water, a mild detergent, and a nonabrasive sponge.
4. If necessary, remove unwanted food residue from the upper screen with a cleaning brush.

Storage
1. Unplug the appliance and let it cool thoroughly.
2. Make sure all components are clean and dry.
3. Place the appliance in the clean, dry place.
Troubleshooting
Error Codes
Display shown Possible Cause Solution
E1 Broken circuit of the thermal sensor Call Customer Service
E2 Short circuit the thermal sensor Call Customer Service
Problem Possible Cause Solution
The power Air Fryer
Oven Elite does not work
1. The appliance is not
plugged in.
2. You have not turned tho
Unit on by setting the
preparation time
temperature
1. Plug power cord into wall
socket
2.Set the temperature and time
check that door is closed
Food not cooked
1. The Round Basket ls
overloaded.
2. The temperature ls set
too low.
1. Use smaller batches for
more even frying.
2. Raise temperature and
continue cooking.
Food is not fried evenly 1. Some foods need to be
turned during the cooking
process
1. see General operations in
this manual on page 12.
White smoke coming
from Unit
1. oil is being used
2.Accessories have excess
grease residue from
previous cooking.
1. Wipe down to remove excess
oil.
2. Clean the Round Basket after
each use.
French fries are not fried
evenly
1. Wrong type of potato
being used.
2.Potatoes not blanched
properly during preparation
1. Use fresh.firm potatoes
2. Use cut sticks and pat dry to
remove excess starch
Fries are not crispy 1.Raw fries have too much
water.
1. Dry potato sticks properly
before misting oil. Cut sticks
smaller. Add a bit more oil.
Blanch cut potatoes.

Frequently Asked Questions
1. Can I prepare foods other than fried dishes with my 12L Air Fryer Oven?
You can prepare a variety of dishes, including steaks, chops, burgers, and baked goods.
2. Is the 12L Air Fryer Oven good for making or reheating soups and sauces?
Never cook or reheat liquids in the 12L Air Fryer Oven.
3. What do I do if the Unit shuts down while suggestions?
As a safety feature,the 12L Air Fryer Oven has an Auto Shut-Off device that prevents damage from
overheating.Unplug and allow the Unit to cool down. Plug back in and restart with the Power Button.
4. Does the Unit need time to heat up?
Preheating is needed when you are cooking from a cold start, add 3 mins to the cook time to
compensate.
5. Is it possible to shut off the Unit at any time?
Press the Power Button once or open the door.
6. Can I check the food during the cooking process?
You can remove the Round Basket at any time while cooking is in progress. During this time, you
can flip the contents on the Crisper Trays if needed to ensure even cooking. Time and temperature
will resume where you left off.
7. Is the Power Air Fryer Oven Elite dishwasher safe?
Only the accessories are dishwasher safe.The Unit itself containing the heating coil and electronics
should never be submersed in liquid of any kind or cleaned with anything more than a hot, moist
cloth or nonabrasive sponge with a small amount of mild detergent.
8. What happens if the Unit still does not work after I have tried all the troubleshooting
suggestions?
Never attempt a home repair.Contact the manufacturer and follow the procedures set forth by the
warranty. Failure to do so could render your warranty null and void.
9. Can the glass in the door be removed for cleaning?
Yes, the inner glass in the door of the 12L Air Fryer Oven can be removed by opening the door,
pushing the button on the bottom side of the door, and grabbing the tab at the top of the glass. This
allows you to clean the glass more easily. To place the glass back in the door, simply open the door
and slide the glass back into the slot in the door
