Introduction: The PAR Z120/ZP120 RGBW is a modern LED twist to the traditional
halogen Par Can. The PAR Z120/ZP120 RGBW powered by a potent 115W quad
C.O.B. LED (Chip On Board) with red, green, blue & white colors. Its output is
comparable to a 1,000W halogen sealed beam Par. It is equipped with 5 different beam
angle options (that may be changed by hand) while powerCON In/Out allows for the
fixture to be daisy chained. 5-pin DMX control offers a variable strobe rate and 5
different dimming curve options.
The PAR Z120/ZP120 RGBW allows lighting and stage designers the look of the
traditional stage par with the technological conveniences of modern day lighting. The
advantages include low power draw (fixture and performers won’t get hot on stage),
DMX control of dimming and strobe (no dimmer controllers need, and optional
additional accessories for customization. This fixture is suitable for theaters, studios,
retail stores, and other similar locations. For best results use fog or special effects
smoke to enhance the beams pr ojections.
Unpacking: Thank you for purchasing the PAR Z120/ZP120 RGBW by ADJ Products,
LLC. Every PAR Z120/ZP120 RGBW has been thoroughly tested and has been shipped
in perfect operating condition. Carefully check the shipping carton for damage that may
have occurred during shipping. If the carton appears to be damaged, carefully inspect
your fixture for any damage and be sure all equipment necessary to operate the unit
has arrived intact. In the event damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Please do not
return this unit to your dealer without contacting customer support first.
!
Customer Support: ADJ Products, LLC provides a toll free customer support line,
to provide help and to answer any question should you encounter problems during your
set up or initial operation. You may also visit us on the web at www.adj.com for any
comments or suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacific Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [e-mail]
!
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this
unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking d ir e c t l y into the light
source at all times!
DOCUMENT VERSION
Please check www.adj.com for the latest revision/update of this guide.
! !
Date
Document
Version
Software
Version
DMX Channel
Mode
Notes
8/1/18
1
1.0
1/2/3
Initial Release

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 5
To optimize the performance of this product, please read these operating instructions
carefully to become familiarized with the basic operations of this unit. These
instructions contain important safety information regarding the use and maintenance of
this unit. Please keep this manual with the unit, for future reference.
•Beam angle: 7°/11.5°/16°/20.5°/25° (manual adjustment)
•6 DMX Channels (4/5/6/7/8/9 Ch. modes)
•4-button DMX menu display on rear panel
•Adjustable latch to manually change beam angle
•Includes gel frame for diffusion filters (Diffusion filter sold separately)
•Strobe effect
•Flicker Free Operation
•Electronic Dimming: 0 - 100% with 5 dimming curves
•Run all night – No duty cycle
!
The PAR Z120/ZP120 RGBW carries a 2 year (730 days) limited warranty. Please fill
out the enclosed warranty card to validate your purchase and warranty. You may also
register your product online at www.adjproducts.com. All returned service items
whether under warranty or not, must be freight pre-paid and accompany a return
authorization (R.A.) number. If the unit is under warranty you must provide a copy
of your proof of purchase invoice. Please contact ADJ Products, LLC customer
support for a R.A. number.
Caution! There are no user serviceable parts inside this unit. Do not attempt any
repairs yourself; doing so will void your manufactures warranty. In the unlikely event
your unit may require service please contact ADJ Products, LLC.
During operation the housing may become extremely hot. A v o i d touching the unit
with bare hands while in use.
ADJ Products, LLC will not accept any liability for any resulting d a m ages caused by
the non-observance of this manual or any un a u t h o rized modification to this unit.
PAR Z120/ZP120 RGBW
Warranty Registration
PAR Z120/ZP120 RGBW
Handling Precautions
PAR Z120/ZP120 RGBW
General Instructions
PAR Z120/ZP120 RGBW
Features

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 6
For Your Own Personal Safety, Please Read and Understand This Manual
Completely Before You Attempt To Install Or Operate This Unit!
•To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture.
•Do not spill water or other liquids into or on to your unit.
•Be sure that the local power outlet matches that of the required voltage for your unit.
•Do not attempt to operate this unit if the power cord has been frayed or broken.
•Do not attempt to remove or break off the ground prong from the electrical cord.
This prong is used to reduce the risk of electrical shock and fire in case of an
internal short.
•Disconnect from main power before making any type of connection.
•Do not remove the cover under any conditions. There are no user serviceable parts
inside.
•Never operate this unit when its cover is removed.
•Always be sure to mount this unit in an area that will allow proper ventilation. Allow
about 6” (15cm) between this device and a wall.
•Do not attempt to operate this unit if it becomes damaged.
•This unit is intended for indoor use only; use of this product outdoors voids all
warranties.
•Always mount this unit in safe and stable matter.
•Power-supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords
at plugs, convenience receptacles and the point where they exit from the appliance.
•The fixture should be cleaned only as recommended by the manufacturer. See
page 21 for cleaning details.
•This fixture should be situated away from heat sources such as radiators, heat
registers, stoves, or other appliances (including amplifiers) that produce heat.
•The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a marked change
in performance.
PAR Z120/ZP120 RGBW
Safety Precautions

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 7
!
!
1 - Display: Show the various menus and the selected functions；
2 - LED indicator：
POWER
On
Power On
DMX
On
DMX input present
3 - Button
MENU
To select the programming functions
DOWN
To go forward in the selected functions
UP
To go backward in the selected functions
ENTER
To confirm the selected functions
4 – Fuse: F 3.15A.
5 – Mains Input/Output：Use powerCON true one mains connection.
6 – DMX Input/Output
PAR Z120/ZP120 RGBW
Overview

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 8
Power Supply: The PAR Z120/ZP120 RGBW contains an automatic voltage
switch, which will auto sense the voltage when it is plugged into the power
source. With this switch there is no need to worry about the correct power
voltage, this unit can be plugged in anywhere.

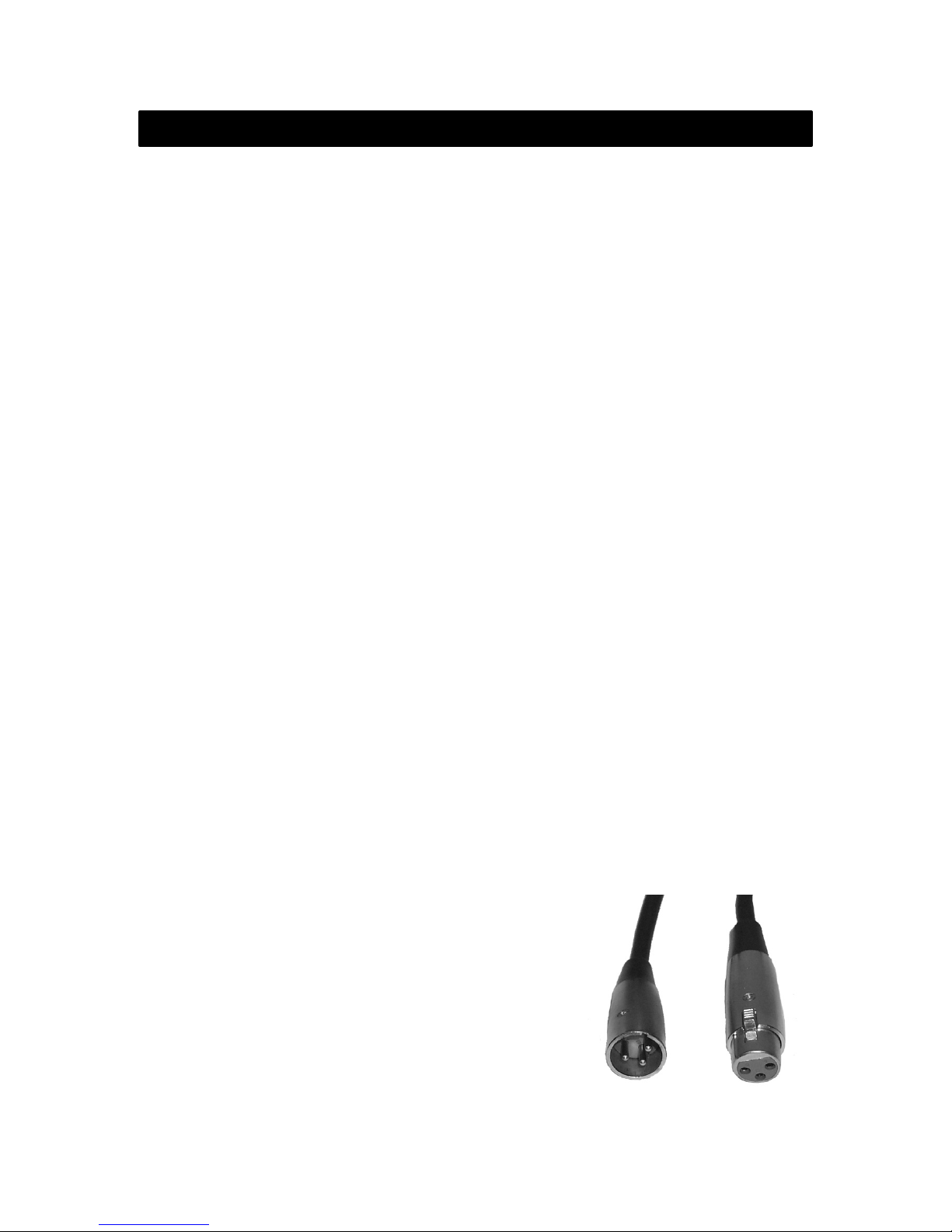

DMX-512: DMX is short for Digital Multiplex. This is a universal pro tocol used
by most lighting and controller manufactures as a form of communication
between intelligent fixtures and controllers. A DMX controller sends DMX
data instructions from the controller to the fixture. DMX data is sent as serial
data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR
terminals located on all DMX fixtures (most controllers only have a DATA “OUT”
terminal).
DMX Linking: DMX is a language allowing all makes and models of
different manufactures to be linked together and operate from a single
controller, as long as all fixtures and the controller are DMX compliant. To
ensure proper DMX data transmission, when using several DMX fixtures try

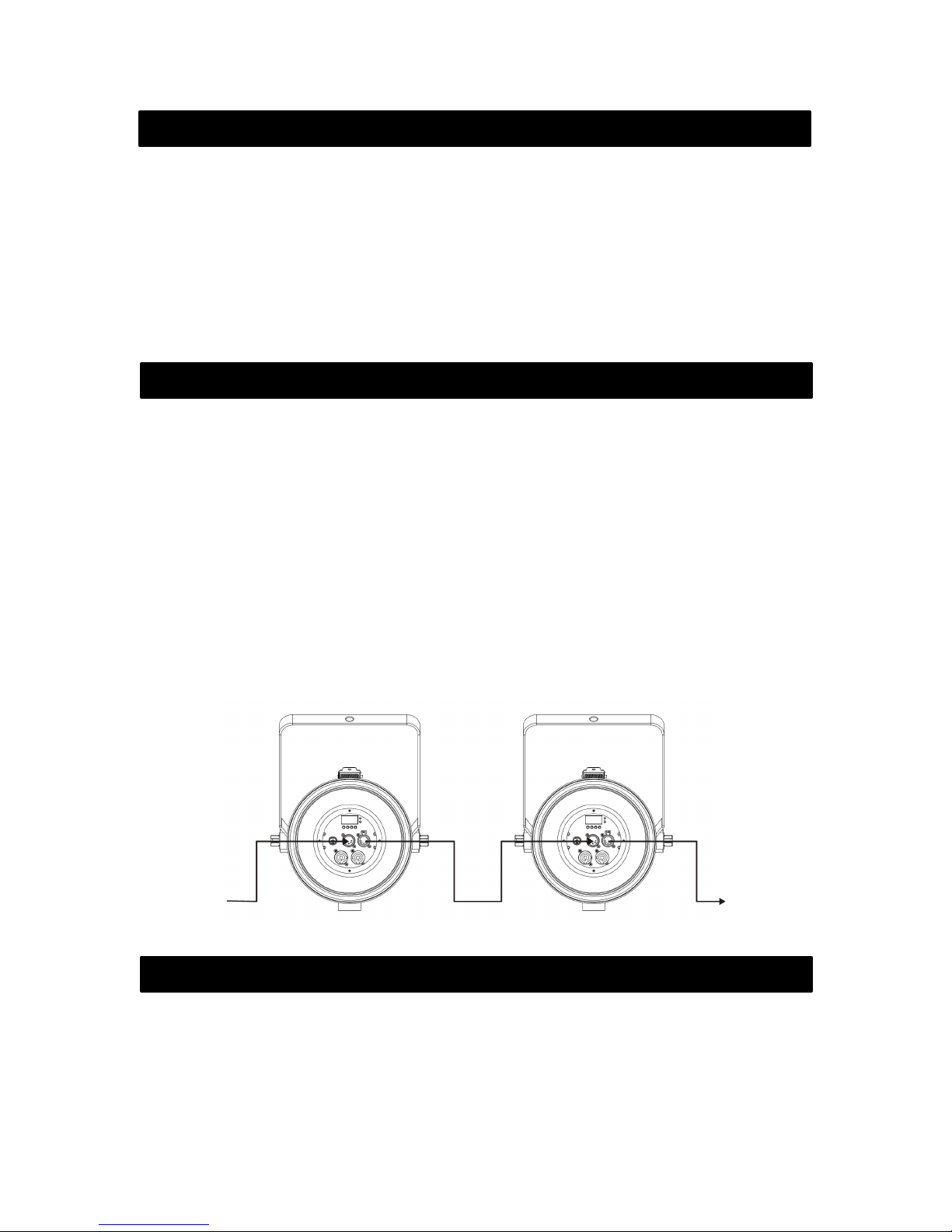

to use the shortest cable path possible. The order in which fixtures are
connected in a DMX line does not influence the DMX addressing. For example,
a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line,
at the beginning, at the end, or anywhere in the middle. Therefore, the first
fixture contr olled by the controller could be the last fixture in the chain. When
a fixture is assigned a DMX address of 1, the DMX controller knows to send
DATA assigned to address 1 to that unit, no matter where it is located in the
DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave
Operation): The PAR Z120/ZP120 RGBW can be controlled via DMX-512
protocol. The PAR Z120/ZP120 RGBW three DMX channel modes; 1 channel
mode, 2 channel mode, & 3 channel mode. The DMX address is set
electronically using the controls on the rear panel of the unit. Your unit and
your DMX controller require an approved DMX-512
110 Ohm Data cable for data input and data output
(Figure 1). We recommend Accu-Cable DMX
cables. If you are making your own cables, be sure
to use standard 110-120 Ohm shielded cable (This
cable be purchased at almost all professional
sound and lighting stores). Your cables should be
made with a male and female XLR connector on
either end of the cable. Also remember that DMX
cable must be daisy chained and cannot be split.!
PAR Z120/ZP120 RGBW
DMX Set Up
Figure 1

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 9
Notice: Be sure to follow figures two and three when making your own cables.
Do not use the ground lug on the XLR connector. Do not connect the cable’s
shield conductor to the ground lug or allow the shield conductor to come in
contact with the XLR’s outer casing. Grounding the shield could cause a short
circuit and erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you
may need to use a terminator on the last unit to avoid erratic behavior. A
terminator is a 110-120 ohm 1/4 watt resistor, which is connected between pins
2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in
the female XLR connector of the last unit in your daisy chain to terminate the
line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the
possibilities of erratic behavior.
Figure 4
DMX512 IN
3-PIN XLR
PAR Z120/ZP120 RGBW
DMX Set Up

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 10
5-Pin XLR DMX Connectors. This unit use 5-pin DMX-512 data cables for
DATA transmission. 5-pin DMX fixtures may be implemented in a 3-pin DMX
line. When inserting standard 5-pin data cables in to a 3-pin line a cable
adaptor must be used, these adaptors are readily available at most electric
stores. The chart below details a proper cable conversion.
3-PIN XLR TO 5-PIN XLR CONVERSION
Conductor
3-Pin XLR Female (Out)
5-Pin XLR Male (In)
Ground/Shield
Pin 1
Pin 1
Data Compliant (-signal)
Pin 2
Pin 2
Data True (+signal)
Pin 3
Pin 3
Not Used
Pin 4 – Do Not Use
Not Used
Pin 5 – Do Not Use
PAR Z120/ZP120 RGBW
DMX Set Up

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 11
!To select any functions, press MENU button until the required one is shown on
the display. Select the function by pressing the ENTER button. Use DOWN and
UP button to change the mode. Once the required mode has been selected,
press ENTER button to setup or it will return to the main functions without any
change after idling 8 seconds automatically. To go back to the functions without
any change press the MENU button. The main functions are shown below:
PAR Z120/ZP120 RGBW
Menu and Functions

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 12
DMX 512 Address Setting
Press the either the MENU, UP, or DOWN buttons until is displayed,
press ENTER.
The current address will now be displayed and flashing. Press the UP or DOWN
buttons to select your desired address. Press ENTER to confirm and exit.
Channel Mode – Select your desired DMX channel mode.
Press the MENU button until is displayed and press ENTER. The current
DMX channel mode will be displayed.
Press the UP or DOWN buttons to find your desired DMX channel mode and
press ENTER to confirm and exit.
!
DMX State - This mode can be used as a precaution mode. In the
event that the DMX signal is lost, interrupted, or power is lost, the
operating mode chosen in the setup is the running mode the fixture will go
into when the DMX signal is lost. You can also set this as the operating
mode you would like the unit to return to when power is applied
Press the MENU button until is displayed and press ENTER. Use the
DOWN and UP button to select (Blackout) /or (Automatic Operation
Color Macro) or (Hold the last state). Press ENTER and the bottom
choice will begin to flash. Use the UP or DOWN buttons to choose an operating
mode you would like the unit to start up in when power is applied or the DMX
signal is lost.
•BLND (Blackout) - If the DMX signal is lost or interrupted, the unit will
automatically go into stand by mode.
!
•HOLD - If the DMX signal is lost the fixture will stay in the last DMX setting. If
power is applied and this mode is set, the unit will automatically go into the last
DMX set up.
Press ENTER to confirm and exit.
PAR Z120/ZP120 RGBW
Menu and Functions

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 13
Dimmer Mode – This will let you select your desired dimmer curve.
Press the MENU button until is displayed, and press ENTER. 1 of 5
dimmer curves will be displayed. “STDA” (standard), “STGE” (stage), “TV” (TV),
“ARAL” (Architectural), or “THAL” (Theatre). See the dimmer curve chart on
page 16 for mor e info.
Press the UP or DOWN buttons to find your desired dimmer curve and press
ENTER to confirm and exit, or exit menu mode without any change after 8
seconds automatically.
White Balance - Calibration
Press the MENU button until is displayed and press ENTER. Use
the DOWN and UP button to select Red, Green or Blue. You can also choose
values between 125‐255. Once selected, press ENTER to confirm and exit, or
exit menu mode without any change after 8 seconds automatically.
Manual mode
Press the MENU button until is displayed and press ENTER. Use the
DOWN and UP buttons to select the Red /Green
/Blue /White /Dimmer
or Strobe . Press ENTER to confirm and
exit, or exit menu mode without any change after 8 seconds automatically.
Color Macros
Press the MENU button until is displayed and press ENTER. Use the
DOWN and UP button to select the Color Macros 1‐64 or OFF. Press ENTER to
confirm and exit, or exit menu mode without any change after 8 seconds
automatically.
PAR Z120/ZP120 RGBW
Menu and Functions

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 14

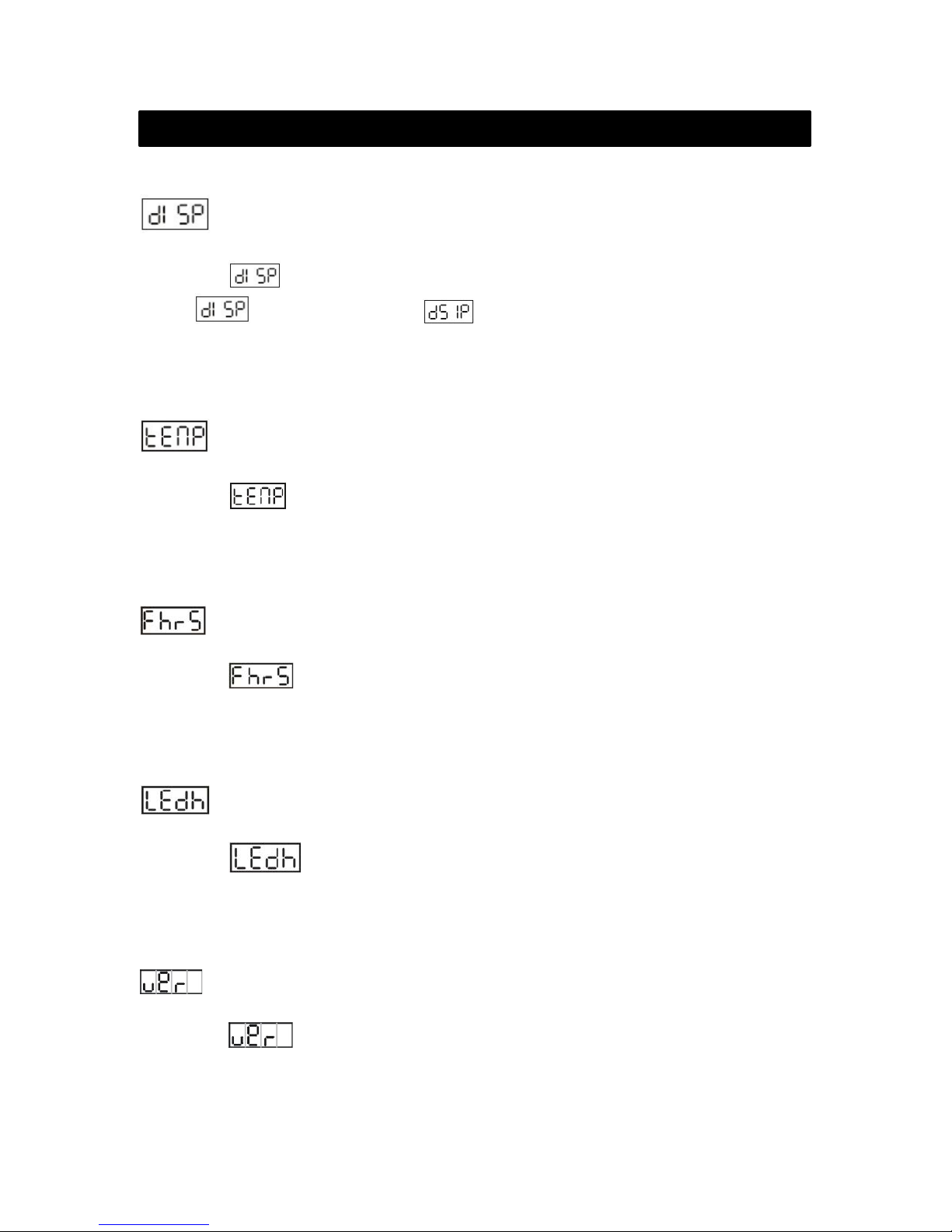

Display Inverse – Reverse the display 180º.
Select the , press the ENTER button. Use the DOWN and UP button to
select (Display Normal) or (Display Inverse). Once selected press
ENTER to confirm and exit, or exit menu mode without any change after 8
seconds automatically.
Temperature Display – Check the temperature of the fixture.
Select the , press ENTER button and the display will show Fahrenheit
degree and Centigrade. Press ENTER to confirm and exit, or exit menu mode
without any change after 8 seconds automatically.
Fixture Hour – Display the running time of the unit.
Select the , press ENTER button and the display will show the number of
working hours of the unit. Press ENTER to confirm and exit, or exit menu mode
without any change after 8 seconds automatically.
LED Usage time
Select the , press ENTER button and the display will show the number
of working hours of the LED. To go back to the functions press the MENU
button.
Firmware Version
Select the , press ENTER button and the display will show the version of
software of the unit. To go back to the functions press the MENU button.
PAR Z120/ZP120 RGBW
Menu and Functions

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 15
Factory Restore
Select the , press the ENTER button. Use the DOWN and UP button to
select 0‐9999. To restore the unit to factory settings, enter the password, “11”
and press the ENTER button.
Universal DMX Control: This function allows you to use a universal DMX-512
controller to control the dimmer, fine dimmer and strobe. A DMX controller
allows you to create unique programs tai lored to your individual needs.
1. The PAR Z120/ZP120 RGBW has 3 DMX channel modes; 1-channel
mode, 2-channel mode and 3-channel mode. See page 17 for a detailed
description of the DMX values and traits.
2. To control your fixture in DMX mode, follow the set-up procedures on pages
11-14 as well as the set-up specifications that are includ ed with your DMX
controller.
3. Use the controller’s faders to control the various DMX fixture traits.
4. This will allow you to create your own programs.
5. Follow the instructions on page 9 to select your DMX channel mode and
set your desired DMX address.
6. For longer cable runs (more than a 100 feet) use a terminator on the last
fixture.
7. For help operating in DMX mode consult the manual included with your
DMX controller.
To adjust the beam angle
slide the beam angle adjuster
located inside/in front of the
lens. See diagram below.
The beam angle can be
adjusted manually, between
7°/11.5°/16°/20.5°/25° .
PAR Z120/ZP120 RGBW
DMX Operation
PAR Z120/ZP120 RGBW
Beam Angle Adjustment
PAR Z120/ZP120 RGBW
Menu and Functions

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 16
DMX controller
No need to turn the unit off when you change the DMX address, as new DMX
address setting will be affected at once. Turn on the unit, under the DMX
signal; the LED will display the saved channel address (001‐512).
PAR Z120/ZP120 RGBW
Controlling the Unit

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 17

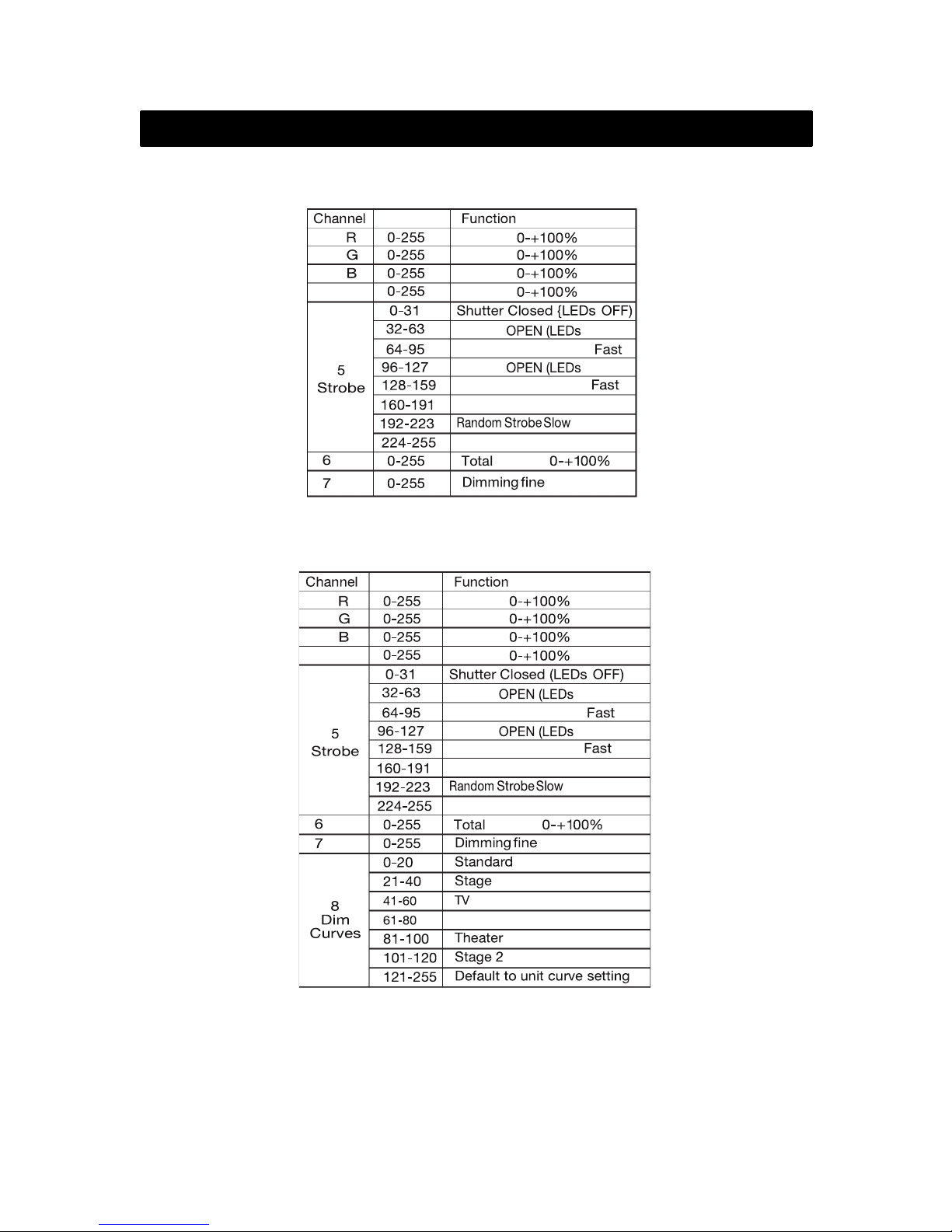

Channel Mode:
4 Channel Mode
Channel
Value
Function
1 R
0-255
Dimmer 0-+100%
2 G
0-255
Dimmer 0-+100%
3 B
0-255
Dimmer 0-+100%
4 W
0-255
Dimmer 0-+100%
5 Channel Mode
Channel
Value
Function
1 R
0-255
Dimmer 0-+100%
2
G
0-255
Dimmer 0-+100%
3 B
0-255
Dimmer 0-+100%
4 W
0-255
Dimmer 0-+100%
5
0-255
Total Dimmer 0-+100%
6 Channel Mode
Channel
Value
Function
1 R
0-255
Dimmer 0-+100%
2 G
0-255
Dimmer 0-+100%
3
B
0-255
Dimmer 0-+100%
4 W
0-255
Dimmer 0-+100%
5
0-255
Total Dimmer 0-+100%
6
0-255
Dimming Fine
PAR Z120/ZP120 RGBW
Controlling the Unit

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 18
7 Channel Mode
8 Channel Mode
Value
1
Dimmer
2
Dimmer
3
Dimmer
4 W
Dimmer
Shutter ON)
Strobe Effect Slow to
Shutter ON)
Strobe Pulse Slow to
Shutter OPEN (LEDs ON)
to Fast
Shutter OPEN (LEDs ON)
Dimmer
!
Value
1
Dimmer
2
Dimmer
3
Dimmer
4 W
Dimmer
Shutter ON)
Strobe Effect Slow to
Shutter ON)
Strobe Pulse Slow to
Shutter OPEN (LEDs ON)
to Fast
Shutter OPEN (LEDs ON)
Dimmer
Architectural
!
PAR Z120/ZP120 RGBW
Controlling the Unit

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 19
9 Channel Mode
PAR Z120/ZP120 RGBW
Controlling the Unit

!
ADJ Products, LLC !ww.adj.com !PAR Z120/ZP120 RGBW User Instructions Page 20
The unit should be mounted using a mounting clamp (not provided), affixing it to the
mounting bracket that is provided with the unit. Always ensure that the unit is firmly
fixed to avoid vibration and slipping while operating. Always ensure that the structure
to which you are attaching the unit is secure and is able to support a weight of 10
times the unit’s weight. Also, always use a safety cable that can hold 12 times the
weight of the unit when installing the fixture. It is recommended that a professional
installs the equipment and it must be installed in a place where it is out of the reach of
people’s grasp in the height of 0 to 30m.
!
Connect the fixtures together in a “daisy chain” by connecting a XLR cable from
the output of one fixture to the input of the next fixture. The DMX output and input
connectors are pass‐through to maintain the DMX circuit when the power to one of
the units is disconnected. At the last fixture, use a line terminator (see DMX Set Up on
page 9). Each lighting fixture needs to have an address set to receive the data sent by
the controller. The address number is between 0‐511 (usually 0 & 1 are equal to 1). The
maximum number of fixtures that can be connected on one power cable is 15 fixtures
at 120V or 24 fixtures at 240V (including the first fixture).
Note: Use caution when power linking other fixtures to the PAR Z120/ZP120 RGBW as the
power consumption of other lighting fixtures will vary. The XLR cable cannot be
branched or split to a “Y” cable. Inadequate or damaged cables, soldered joints or
corroded connectors can easily distort the signal and shut down the system.
Unplug the unit from any power source it may be connected to. Once the power has
been disconnected, use a Phillips-head screwdriver to unscrew the fuse holder located
above the powerCON input. Remove the bad fuse and replace with a new one, and
screw the fuse holder back in.
PAR Z120/ZP120 RGBW
Installation
PAR Z120/ZP120 RGBW
Multiple Unit Power Linking
PAR Z120/ZP120 RGBW
Fuse Replacement
