ADL soft air simplex wds User manual

User Manual
soft air®simplex wds
Art. No. 110 470-wds
Pressure ulcer prevention and treatment-system
Assembly and Operation instructions
Health. Security. Independence.

User manual soft air® simplex wds · Version 09/2018
1 Foreword Seite 3
2 Safety instructions Seite 4
3 Product overview Seite 4
4 Introduction Seite 5
5 Introduction Seite 5
6 Istallation and setting up the mattress Seite 6
7 Pressure setting Seite 7
8 Static function Seite 8
9 CPR function Seite 8
10 Cleaning & servicing instructions Seite 9
11 Troubleshooting Seite 10
12 Indications · Contra indications Seite 11
13 Technical data Seite 11
List of contents
2

User manual soft air® simplex wds · Version 09/2018
1 Foreword
Dear client,
You are now holding the user manual of the soft air® simplex wds therapeutic support
system of ADL® GmbH. The soft air® simplex wds system is a system for pressure
ulcers prevention and treatment produced by ADL® GmbH, Germany. There is a choice
of using the system in the static position or alternating pressure. The soft air® simplex-
wds, large cell system has been developed for pressure ulcer prevention and treatment up
to medium risk (Stage 2).
With the writing of this user manual the product management of the ADL® GmbH
has set itself the goal, to create a good and understandable aid and guidance for the
employment of the system. If nevertheless questions remain, please ask your provider
for direction and assistance.
Ihre
GmbH
3

User manual soft air® simplex wds · Version 09/2018
2 Safety instructions
The system may not be used in presence of open flames, heaters a.o’s. Protect the
equipment against humidity. Operate it only in dry areas. No combustible gases or
liquids may enter into the system.
EXPLOSION DANGER!
Warning! Note! The compressor is under power, as soon as the power supply plug
is put in. Before opening the housing of the compressor please unplug the power
plug. Repairs must be performed only by qualified technical personnel. The compressor
may only be used for its purpose. In case of damage to the compressor the power supply
plug must be unplugged immediately. Damaged power supply cord should be replaced
immediately. Only room temperatures of 0 - 35 °C provide assurance to good compressor
operation.
Do not remove cells from the system (except for repair). Where applicable batteries,
accumulators a. o. parts must be disposed of properly. They do not belong in the trash!
3 Bestandteile soft air® simplex wds
Quantity Description Art. no.
1 soft air® simplex, complete pressure relief
system including compressor and PU cover 110 470-wds
1Service manual 999 190-GB
1User manual soft air® simplex wds 113 003-FO-GB
*soft air® simplex, mattress with cells and PU cover 510 470
*soft air® simplex wds , compressor 110 471-wds-FO
*PVC cell (non-ventilated) individually removable 64000026-FO
*Bi-elastic polyurethane cover, breathable,
washable water repellent 64000027-FO
4
* Spare part items

User manual soft air® simplex wds · Version 09/2018
4 Introduction
soft air® simplex wds is a cover mattress system, meaning there should be an
additional mattress on the bed with a thickness of at least 5 cm.
This system is suitable for patients with a body weight of 40 to 130 kg.
Please note that these weight indications are applicable for patients in a lying
position. Other positions will result in another distribution of weight.
The soft air® simplex wds system is a dynamic three chamber pressure relief
system (ABC-System) with a constant total cycle time of 10 minutes.
With the black switch at the middle of the front panel you can select alternating
pressure or static pressure.
5

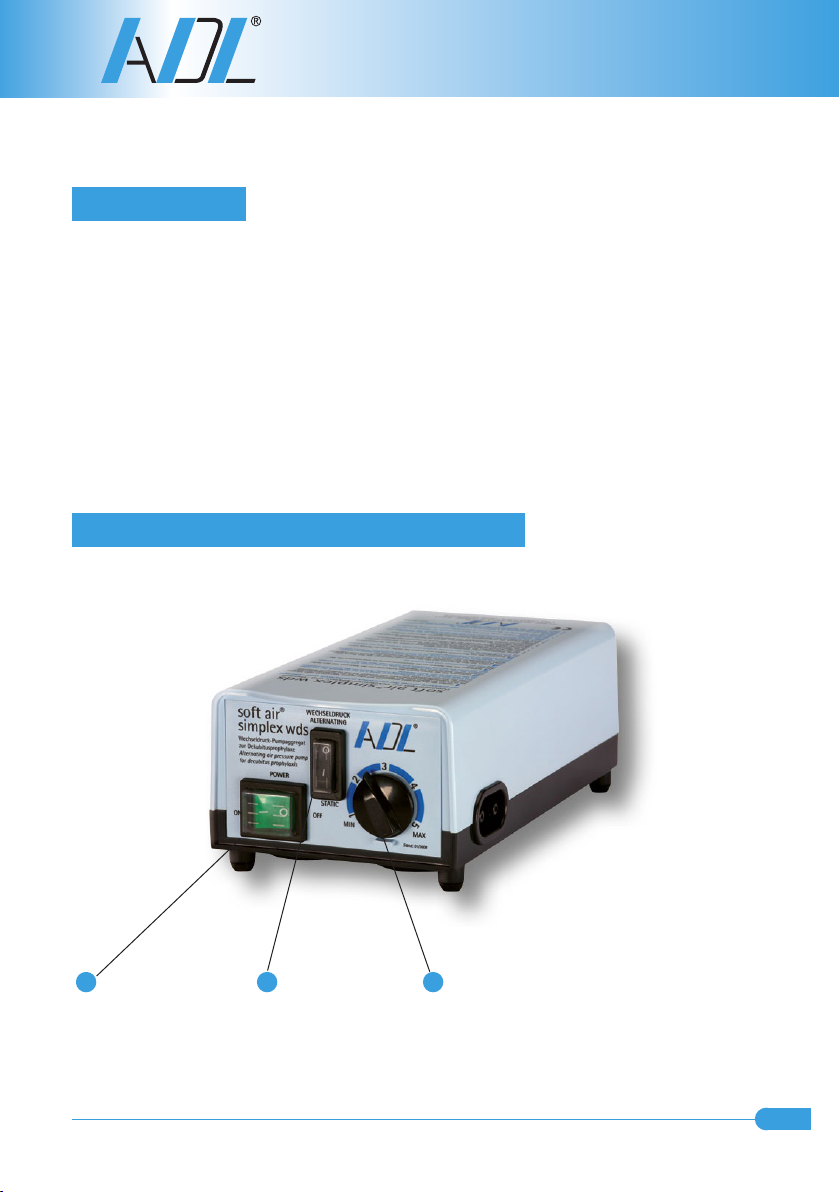

5 Explanation of indications and functions
On / off switch Selection switch
(alternating/static)
Pressure setting
2 31

User manual soft air® simplex wds · Version 09/2018
Place the soft air® simplex wds system on the present mattress and fix the straps
to this mattress. For this purpose simply tuck the bottom parts underneath the
head and foot of the mattress and place it back on the bottom of the bed.
Place the mattress in such a way that the tubing of the system is located at
the foot of the bed.
Verify the CPR (Cardio-Pulmonary Resuscitation) function is closed. The CPR is
designed to quickly deflate the mattress. For quickly deflating the mattress pull
the yellow strap.
Hang the power unit at the foot end of the bed or put it under the bed.
Please note that the unit should not be covered in any way, as thermal
damage can occur!
Connect the tubes to the power unit by pushing the tube on the corresponding
pipe of the power unit.
Note: Check from time to time that the hoses are firmly fit and well connected
onto the pump.
Check if the tubes are not bent or trapped between other parts.
Plug the power supply in.
Switch the unit on. It will take about 30 minutes to inflate the system. After that
the patient can be placed on the mattress.
6 Installation and setting up the mattress
7.
8.
6

User manual soft air® simplex wds · Version 09/2018
7 Pressure setting
The most effective pressure level can be set manually by turning the knob at the
front display of the power unit. Under the deepest point of the patient (normally
under the hip) has to be a distance of 3 - 4 cm to the bottom of the overlay system.
Check it with your hand. 3 - 4 cm are about 2 fingers wide. Open the cover and put
your hand between a inflated and a deflated cell. When the patient sinks too far in
the mattress the „Hammock-effect“ occurs. This should be avoided at all times.
Please take care that the lordosis area’s are filled with supporting material to ensure
the most effective surface contact area.
If there is too less pressure (only one finger), you have to turn the knob clockwise.
If there is too much pressure (check if there is enough supporting material under
the lordosis of the spine and the knees), you have to turn the button anti-clockwise.
Pressurescala Weight
1ca. 40 – 50 kg
2 ca. 50 – 60 kg
3 ca. 60 – 80 kg
4 ca. 80 – 100 kg
5 ca. 100 – 130 kg
7
„Hammock-effect“
(is to avoid)
High extended
pressure in the
sacral area
Optimum surface
(Supporting material
under the knee-point
and lordosis of neck
and lumbar)

User manual soft air® simplex wds · Version 09/2018
8 Static function
In case of a contra indication for alternating pressure according to the indications
overview, the large cell mattress can be switched from alternating pressure to static
pressure with the wds switch at the power unit. Adjustment to maximum comfort in
this mode can be achieved the same way as before.
As in static mode all cells are active, it is necessary to reduce the set pressure
with about 10 – 15 mbar.
To switch over to static function, press the black switch in the middle of the front
panel to “Static”.
To switch over to alternating pressure press the switch at “Alternating”.
Don’t forget to increase the pressure when switching over to alternating
pressure.
Please make sure that the CPR plug (Cardio Pulmonary Resuscitation) is always closed.
This CPR plug is located on the head end of the mattress and is marked with a red flag
labeled CPR. To verify if CPR is tightly closed, the cover near the CPR plug must be
opened by partly unzipping the cover. The lid of the CPR should be tightly closed. For
this, the lid must be pressed firmly into the CPR lower part.
Avoid accidentally opening the CPR when lowering the bed rail. In the event of an
emergency, the system is deflated by jerking the CPR tab. The patient lies on the stron-
ger foam after about 30-60 seconds. Please note that it is better not to perform cardio
pulmonary resuscitation on a foam mattresses. Best is to position the patient on a firm
ground e.g. bu using a special resuscitation board.
9 CPR function
8

User manual soft air® simplex wds · Version 09/2018 9
• During use the mattress and tubes should be cleaned weekly using a damp soft
cloth and mild detergent or non-phenol germicidal solution.
Never use any detergents containing aldehyde!
• After changing to another patient the mattress should be disinfected by an
accredited company approved by the Robert-Koch-Institute. Please ensure
conformity to the European guideline for medical devices , directions for prepa
ration of medicine products and directions for hospital hygiene and prevention
of infections from the Robert-Koch-Institute or other guidelines they rule.
• The PU cover can be washed to a maximum temperature of 95 °C and be re-used
after a thermal process (e.g. Ottalin - Peracet - process).
Also a steam sterilisation process can be applied.
The power unit of the soft air simplex® wds system, should be cleaned with a
damp cloth and soap detergent or a mild non-aldehyde cleaning detergent.
• Disinfection with cleaning on locations is also possible, when instructions for use
and process time are properly kept.
• ADL® GmbH prescribes safety-related revisals of all electric powered parts after
at least 2 years.
The rules for accident prevention BGV A2 will remain unaffected.
The revisals may only be conducted by especially trained personal.
10 Cleaning & Service instructions
Disinfectant recommendations:
BACILLOCID RASANT (BODE), BACILLOL AF (BODE), BACILLOCID SPEZIAL (BODE),
KOHRSOLIN FF (BODE), KOHRSOLIN (BODE), MICROBAC FORTE (BODE), DISMOZON
PUR (BODE), INCIDIN FOAM (ECOLAB), INDUR DES (ECOLAB).
Check with your supplier the disinfectant does not damage plastic surfaces
(PUR, PA, ABS, PVC). Prevent contact on electrical components with damp
or moisture. Cleaning cloths should be damp, not wet. Carefully check no
moisture remains in the system. Execute a functions control procedure before
using the system again.
Check your cleaning process on effectiveness on a regular basis.

User manual soft air® simplex wds · Version 09/2018
Problem Cause Solution
Mattress does not inflate
or inflates insufficiently.
Connectors are not accurately
locked. Tubes are twisted or
kinked. Defect cell.
Check connection and
position of the tubes.
Exchange possible defect cells.
The unit does not operate
(green light at on switch
is not illuminated).
No power available.
Plug defect, power cord
socket defect, safety fuse
defect.
Check plug and partition.
Check the safety fuse at the
location where the power cord
enters the power unit.
The patient sinks too deep
into the mattress.
Air cell defect.
Tubing defect.
Check pressure setting.
Pressure not correctly set.
11 Troubleshooting
10
12 Indications · Contra indications
Indications Contra indications
Alternating
pressure
Pressure ulcers up to medium risk
(Stage 2). Large surface wounds.
Plastic surgery.
Spastics e.g. situation according to
apoplex. Pain patients, e.g. pati-
ents with osteoporosis. Neurologi-
cal patients (e.g. lost of
sensivity). Instable fractures.
Static
pressure
Pressure ulcers up to medium risk
(Stage 2). Large surface wounds.
Spastics e.g. situation according to
apoplex. Pain patients e.g. patients
with osteoporosis.
Spastics e.g. situation according to
apoplex. Pain patients, e.g. pati-
ents with osteoporosis. Neurologi-
cal patients (e.g. lost of
sensivity). Instable fractures.

User manual soft air® simplex wds · Version 09/2018 11
13 Technical data
soft air® simplex wds COVER
Material Polyvinyl chloride (Mattress) Polyurethan
Dimensions in cm 196 x 88 x 12,5 (Mattress)
30 x 12 x 10 (Power unit) 196 x 88 x 12,5
Weight in kg ca. 5,6 (Mattress)
ca. 1,5 ((Power unit) ca. 0,9
Warranty* 2 years --
Electrical
value 230 V / 50 Hz / 7 W (Power unit) --
Fuse 500 mA/ slow --
Cleaning Thermal disinfection (Mattress) 95 °C washable
Application Pressure ulcer prevention and treatment up to medium risk therapy
support (Stage 2), with patient weights between 40 kg – 130 kg.
* Warranty only valid in case of production or material failures.

User manual soft air® simplex wds · Version 09/2018
In case of technical problems please contact your appointed
dealer or directly to ADL® GmbH.
(Dealer stamp)
ADL® GmbH
An der Germania Brauerei 1
48159 Münster
Germany
Phone: + 49 251 149896-0
Fax: + 49 251 149896-99
ADL® GmbH
Production- and servicer center
Im Flürchen 1
99334 Amt Wachsenburg
Germany
Phone: + 49 36202 7519-0
Fax: + 49 36202 7519-12
E-Mail: [email protected]
Internet: www.adl-gmbh.de
Copyright durch ©ADL GmbH · Münster
Stand 09/2018
