User Manual
soft air®wds

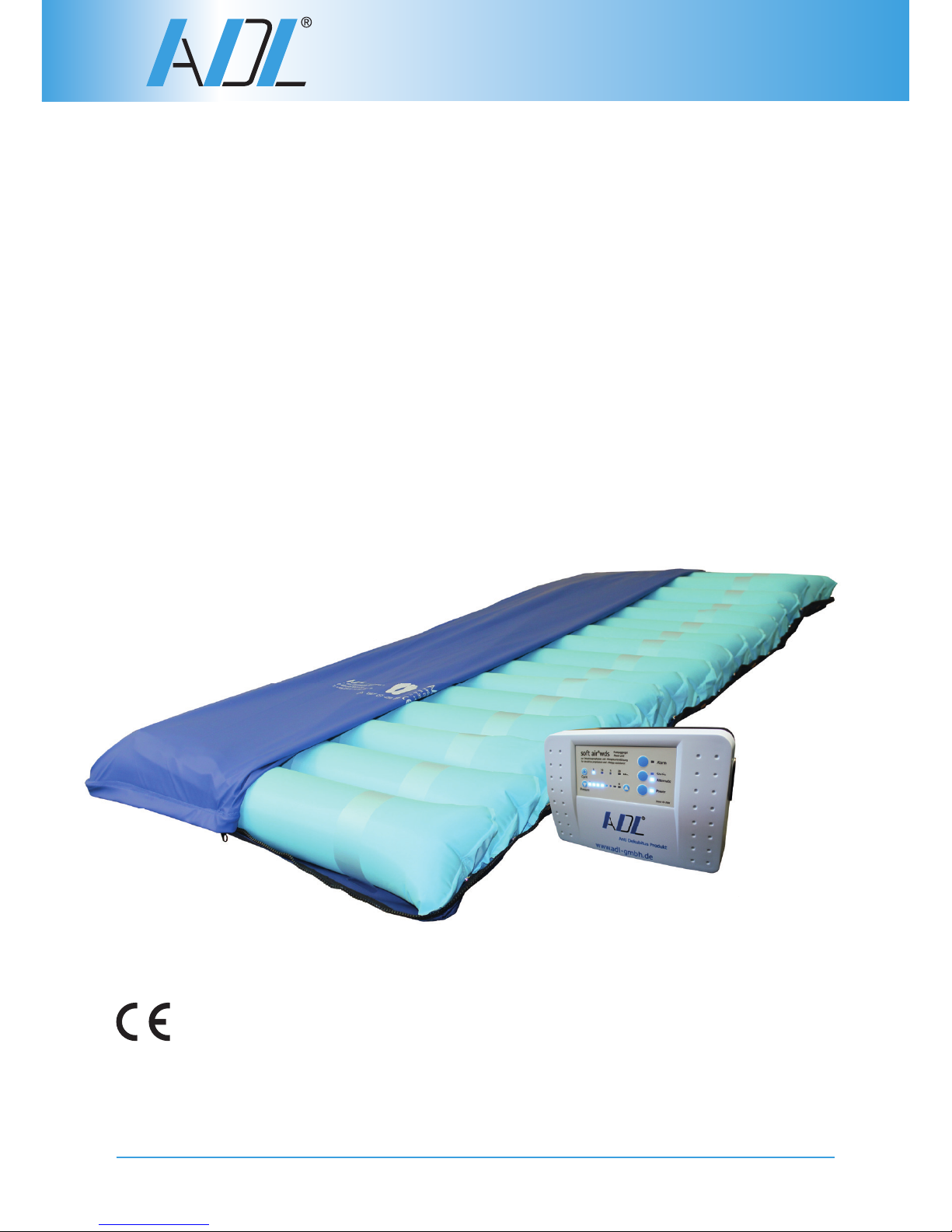

Art. No. 110 400-wds
Pressure ulcer prevention and treatment-system
Assembly and Operation instructions
Health. Security. Independence.

User manual soft air® wds · Version 09/2018
List of contents
2
1 Foreword Page 3
2 Safety instructions Page 4
3 Product overview soft air® wds Page 4
4 Introduction Page 5
5 Explanation of indication and functions Page 5
6 Installation and setting up the mattress Page 6
7 To set soft air® wds Page 7
8 Alternating function Page 9
9 memory-function Page 9
10 CPR-function Page 10
11 Cleaning & Service instructions Page 10
12 Troubleshooting Page 12
13 Indications · Contra indications Page 12
14 Technical data Page 13

3
1 Foreword
Dear client,
you are now holding the user manual of the soft air® wds therapeutic support system
of ADL® GmbH. The soft air® wds system is a system for pressure ulcers prevention
and treatment produced by ADL® GmbH, Germany.
There is a choice of using the system in the static position or alternating pressure.
The soft air® wds large cell system has been developed for pressure ulcer
prevention and treatment up to high risk (Stage 3).
With the writing of this user manual the product management of the ADL® GmbH
has set itself the goal, to create a good and understandable aid and guidance for
the employment of the system. If nevertheless questions remain, please ask your
provider for direction and assistance.
Your
GmbH
User manual soft air® wds · Version 09/2018

Quantity Description Art. no.
1 Base with 3 x 17 cell fixations and 3 fixation straps 64000121-FO
17 Cells, ventilated and non-ventilated (micro
perforation) polyurethane; individually removable 64000028-FO/-BE
1Bi-elastic polyurethane cover, breathable, washable
water repellent 64000029-FO
1 compressor/power unit 110 410-wds-FO
1 Service manual 999 190-GB
1 User manual soft air® wds 112 001-FO-GB
2 Safety instructions
3 Product overview soft air® wds
•The system may not be used in presence of open flames, heaters a.o’s. Protect the
equipment against humidity. Operate it only in dry areas. No combustible gases or
liquids may enter into the system.
EXPLOSION DANGER!
Warning! Note! The compressor is under power, as soon as the power supply plug
is put in. Before opening the housing of the compressor please unplug the power
plug. Repairs must be performed only by qualified technical personnel. The compressor
may only be used for its purpose. In case of damage to the compressor the power
supply plug must be unplugged immediately. Damaged power supply cord should be
replaced immediately. Only room temperatures of 0 - 35 °C provide assurance to
good compressor operation.
•Even a large cell pressure ulcer prevention system does not replace the manual
positioning support from the nursing staff.
•Do not remove cells from the system (except for repair).
User manual soft air® wds · Version 09/2018
4

The soft air® wds system is an overlay mattress system, therefor please make sure that
a foam mattress is used underneath the soft air mattress and the minimum distance of
the bed side guard must comply with DIN EN 1970. With the blue button in the middle
of the front of the pump you can select static pressure or alternate pressure.
This pressure relief system can support patients with body weights of 30 to 140 kg.
(Keep in mind that these weights are applicable to patient in lying position. In different
postures, the weight distributions are different.) The system soft air® wds is a three-
chamber alternating pressure system, with variable cycle times of 5, 10. 15 and 20
minutes and visual and acoustic alarm , The acoustic alarm is activated by pressing the
alarm button once.
After approx. 45 minutes of inflation, the alarm becomes active. The mattress consists
of 17 cells, the first 3head cells are in permanent static mode (not integrated in alter-
nating pressure). Nine cells of the mattress have Micro perforation and thus ensure a
more pleasant climate.
4 Introduction
User manual soft air® wds · Version 09/2018
5 Explanation of indications and functions
2
3
1
4
5
On / off switch
Pressure setting
higher
lower
Cycle time
Mode (Static / Alternating)
Alarm button
2
3
1
45
5

User manual soft air® wds · Version 09/2018
6 Installation and setting up the mattress
Place the soft air wds on the existing mattress and fix fixation straps only to the
moving parts of the bed.
When not correctly attached to the bed this may lead to bed- and mattress
damages.
Place the mattress in such a way that the tubing’s are located at the foot end
of the bed.
Before placing the power unit at the foot end of the bed you have to mount the
brackets at the reverse of the power unit. Slide the brackets from below up in the
fixation slot.
The power unit can also simply be placed underneath the bed.
Please note that the power unit should not be covered in any way, as thermal
damage may occur!
Connect the mattress to the pump by connecting the hose to the pump. Check
with a short pull at the hose if the connector is correctly fixed.
Note: Please check from time to time the O-rings on the connector. If you want to
disconnect the connector from the pump unit, without damaging it, firmly press
the springs (in the middle at both sides of the connector) with your thumb and
forefinger while pulling on the connector.
Check if the tubes are not bent or clamped between other parts.
Switch on the power unit.
6

7
Switch on the power unit
The alarm light is blinking and the system will start to be filled with air.
The alarm light is put out of circuit when inflation of the mattress is completed.
Depending on if it is switched on, an acoustic signal sounds. This can be switched
off and on with the alarm button. The alarm light should be put out of circuit
when the patient is laying on the mattress. Below a beforehand set pressure level,
the alarm light is blinking again.
In 40-45 minutes the filling cycle for soft air® wds will be completed.
7 To set soft air® wds
1
5
5
User manual soft air® wds · Version 09/2018
Bei der Umstellung von Wechseldruck zum statischen Druck und umgekehrt,
muss der Druck in der Matratze durch die Druckregelungstasten neu angepasst
werden. In der Regel ist der Fülldruck bei statischem Betrieb geringer als bei
Wechseldruckbetrieb.
The most effective pressure level can be set with the pressure setting button.
The scale is divided into 8 parts. After switching on the power unit, the pressure is
set in the middle part of the scale, around 30 - 40 mbar. Pressure can be lowered
by repeated pressing on the button down to around 10 mbar. By repeated
pressing on the right button a maximum pressure of 105 mbar can be set. It is
imperative to check the pre-adjustment with a “hand check”. Try to move your
hand under the knee-joint, the lumbar and neck lordosis in order to check if
supporting material is present. When the patient sinks to far in the mattress the
so called Hammockeffect occurs. This should be prevented at all times.
When pressure is too high there will be a lack of supporting material underneath
the lordosis area’s of the body. The situation can be improved by deflating the
mattress by (repeatedly) pressing the left button. When pressure is too low
(Hammock effect), (repeatedly) press the right button. Each time when changing
pressure level you will have to wait minimum 5 to maximum 20 minutes before
checking the contact area again..
Note: From pressure level 5 (70-90 mbar), it may be necessary to increase the
cycle time from 5 to 10 minutes, since under certain circumstances, a too low
set cycle time could make the system to not directly reach the desired pressure
value.
2
4
2
6.

User manual soft air® wds · Version 09/2018
8
Optimum surface
(Supporting material
under the knee-point
and lordosis of neck
and lumbar)
„Hammock effect“
(is to avoid)
High extended
pressure in the
sacral area
Steps Weight
1. Step = 1 led light ca. 30 – 40 kg
2. Step = 2 led lights ca. 40 – 50 kg
3. Step = 3 led lights ca. 50 – 70 kg
4. Step = 4 led lights ca. 60 – 80 kg
5. Step = 5 led lights ca. 70 – 90 kg
6. Step = 6 led lights ca. 80 – 100 kg
7. Step = 7 led lights ca. 85 – 105 kg
8. Step = 8 led lights ca. until 140 kg

User manual soft air® wds · Version 09/2018
Once set, the pressure setting will be saved and will be retained until the pressure
setting is changed again. In the event of a power failure, the pressure setting is also
retained, and after the power is back on, the pump will automatically operate at the
last set pressure.
8 Alternating function
9 memory-function
In the case of the contraindications for the alternating pressure mentioned in the
indication table, the mattress pressure can be switched from alternate to static soft
storage by pressing button 4 (Static / Alternate) on the pump, during which the
display changes the operating mode from blue (alternate) to green (static). A comfort
setting is still possible in this mode. Since all cells support the static mode, a reduction
of 10-20 mbar from the set value is necessary.
To switch on the static function, press the button 4 , which is the middle blue button
on the right edge of the control panel. The display changes to the green LED (static).
To turn off the static function, press this button again. The display changes back to the
blue LED (Alternate). Please do not forget to increase the pressure by approx. 10 - 20
mbar, if you switch on the alternating pressure function again.
4
4
9

User manual soft air® wds · Version 09/2018
10
Please make sure that the CPR plug (Cardio Pulmonary Resuscitation) is always closed.
This CPR plug is located on the head end of the mattress and is marked with a red flag
labeled CPR. To verify if CPR is tightly closed, the cover near the CPR plug must be
opened by partly unzipping the cover. The lid of the CPR should be tightly closed. For
this, the lid must be pressed firmly into the CPR lower part. Avoid accidentally opening
the CPR when lowering the bed rail.
In the event of an emergency, the system is deflated by jerking the CPR tab. The
patient lies on the stronger foam after about 30-60 seconds. Please note that it is
better not to perform cardio pulmonary resuscitation on a foam mattresses. Best is to
position the patient on a firm ground e.g. bu using a special resuscitation board.
11 Cleaning & Service instructions
10 CPR-function
•During use the mattress and tubes should be cleaned weekly using a damp soft
cloth and mild detergent or non-phenol germicidal solution.
Never use any detergents containing aldehyde!
•After changing to another patient the mattress should be disinfected by an
accredited company approved by the Robert-Koch-Institute. Please ensure
conformity to the European guideline for medical devices , directions for prepa
ration of medicine products and directions for hospital hygiene and prevention
of infections from the Robert-Koch-Institute or other guidelines they rule.
•The PU cover can be washed to a maximum temperature of 95 °C and be re-used
after a thermal process (e.g. Ottalin - Peracet - process).
Also a steam sterilisation process can be applied. The power unit of the soft air®
wds system, should be cleaned with a damp cloth and soap detergent or a mild
non-aldehyde cleaning detergent.

User manual soft air® wds · Version 09/2018 11
Check with your supplier the disinfectant does not damage plastic surfaces
(PUR, PA, ABS, PVC).
Prevent contact on electrical components with damp or moisture. Cleaning
cloths should be damp, not wet. Carefully check no moisture remains in the
system.
Execute a functions control procedure before using the system again.
Check your cleaning process on effectiveness on a regular basis.
!
•Disinfection with cleaning on locations is also possible, when instructions for use
and process time are properly kept.
•ADL® GmbH prescribes safety-related revisions of all electric powered parts after
at least 2 years.
The accident prevention regulations DGUV regulation 3 remain unaffected.
These checks may only be carried out by specially trained personnel.
Disinfectant recommendations:
BACILLOCID RASANT (BODE), BACILLOL AF (BODE), BACILLOCID SPEZIAL (BODE),
KOHRSOLIN FF (BODE), KOHRSOLIN (BODE), MICROBAC FORTE (BODE), DISMOZON PUR
(BODE), INCIDIN FOAM (ECOLAB), INDUR DES (ECOLAB).

User manual soft air® wds · Version 09/2018
12
12 Troubleshooting
Problem Cause Solution
Mattress does not
inflate or inflates
insufficiently.
Connectors are not
accurately locked. Tubes
are twisted or kinked.
Defect cell.
Check connection and
position of the tubes.
Exchange possible defect cells.
The unit does not
operate (green light
at on switch is not
illuminated).
No power available.
Plug defect, power cord
socket defect, safety
fuse defect.
Check plug and partition.
Check the safety fuse at the
location where the power
cord enters the power unit.
Red alarm light is
blinking and acoustic
signals sounds.
Connectors not accu-
rately locked. Air cell
defect. Tubing defect.
Check connectors, cells and
tubing. Check CPR valve. Ex-
change possible defect cell.
The patient sinks
too deep into the
mattress.
Air cell defect.
Tubing defect. Pressure
not correctly set.
Check cells and tubing
connections. Check pressure
setting. Exchange possible
defect cell.
13 Indications · Contra indications
Function Indications Contra indications
Alternating
pressure
Pressure ulcers up to high risk
(Stage 3). Large surface wounds. Plastic
surgery.
Spastics e.g. situation accor-
ding to apoplex. Pain patients,
e.g. patients with osteoporosis.
Neurological patients (e.g. lost of
sensivity). Instable fractures.
Static
pressure
Pressure ulcers up to high risk
(Stage 3). Large surface wounds.
Spastics e.g. situation according to
apoplex. Pain patients e.g. patients with
osteoporosis.
Spastics e.g. situation accor-
ding to apoplex. Pain patients,
e.g. patients with osteoporosis.
Neurological patients (e.g. lost
of sensivity). Instable fractures.

User manual soft air® wds · Version 09/2018 13
14 Technical data
Mattress Pump
Material PU-Nylon ABS
Dimensions
in cm 190 x 86,5 x 13,5 23 x 15 x 8,5
Weight in kg 6,1 ~1,5
Warranty* 2 years 2 years
Electr.
connections - 230 V /7 W
Protection class - Protection class ll
Fuse - 230 V/F500mA (slow)
Cover Polyurethane, washable to 95 °C, can be used in dryer (to 50 °C)
Application Pressure ulcer prevention and treatment up to High Risk
(Stage 3), patient weights between 30 -140 kg.
* Warranty only valid in case of production or material failures.

In case of technical problems please contact your appointed
dealer or directly to ADL® GmbH.
(Dealer stamp)
User manual soft air® wds · Version 09/2018
ADL® GmbH
An der Germania Brauerei 1
48159 Münster
Germany
Phone: + 49 251 149896-0
Fax: + 49 251 149896-99
ADL® GmbH
Production- and servicer center
Im Flürchen 1
99334 Amt Wachsenburg
Germany
Phone: + 49 36202 7519-0
Fax: + 49 36202 7519-12
E-Mail: [email protected]
Internet: www.adl-gmbh.de
Copyright durch ©ADL GmbH · Münster
Stand 09/2018
