Adler TP700 User manual

Desktop POS Printer
TP700
User Manual

TP700 User Manual
CONTENTS
CAUTIONS............................................................................................................................................... 4
Important Safety Instructions.................................................................................................................5
POS printer packing-case........................................................................................................................6
1 Overview..............................................................................................................................................7
1.1 Introductions............................................................................................................................ 7
1.2 The main features.....................................................................................................................7
2 Specifications.......................................................................................................................................8
2.1 Printer specification..................................................................................................................8
2.2 Printing media specification...................................................................................................10
2.2.1 Continuous thermal paper specification..................................................................... 10
2.2.2 Notices.........................................................................................................................10
2.3 Printing and cutting position.................................................................................................. 11
2.3.1 Printing position.......................................................................................................... 11
2.3.2 Cutting position........................................................................................................... 11
3 Printer Components.......................................................................................................................... 12
3.1 Appearance and component.................................................................................................. 12
3.2 Specification of Indicated light and beeper........................................................................... 14
4 Printer Packing.................................................................................................................................. 15
4.1 Open packing..........................................................................................................................15
4.2 Choose installation site and direction of printer....................................................................15
4.3 Connect the printer power adapter....................................................................................... 15
4.4 Connecting the Interface Cable.............................................................................................. 18
4.5 Connecting the Cash Drawer..................................................................................................18
4.6 Paper roll installation............................................................................................................. 19
4.6.1 Confirm print paper.....................................................................................................19
4.6.2 TP700 installation/change Paper.................................................................................20
4.7 Setting DIP switch...................................................................................................................22
4.7.1 Serial Interface (RS-232C)............................................................................................22
4.7.2 Interfaces of USB and Ethernet................................................................................... 23
4.7.3 Auto cutter enable/disable selection.......................................................................... 25
4.8 Print self-testing..................................................................................................................... 25
5 Interfaces Signal................................................................................................................................ 26
5.1 USB interface.......................................................................................................................... 26
5.2 Power Supply interface definition..........................................................................................26
5.3 Cash Drawer interface signal..................................................................................................27
5.4 Serial interface and Ethernet interface.................................................................................. 28
6 Troubleshooting................................................................................................................................ 29
6.1 Printer not working................................................................................................................ 29
6.2 LED indicator on the control panel and beeper alarm...........................................................29
6.3 Troubles occur during printing............................................................................................... 30
6.4 Problems emerge during the paper cutting processes.......................................................... 30
6.5 Removing Jammed Paper.......................................................................................................31
7 PRINTER CLEANING AND MAINTENANCE......................................................................................... 32
7.1 Cleaning Head.........................................................................................................................32

TP700 User Manual
7.2 Cleaning Sensors, Roller and/or Paper Path.......................................................................... 32
8 Windows Driver Manual....................................................................................................................33
8.1 Manual Information............................................................................................................... 33
8.2 Operating System (OS) Environment..................................................................................... 33
8.3 Windows Driver Preparation..................................................................................................33
8.4 Windows Driver Installation...................................................................................................34
8.5 Windows Driver Setting Detail............................................................................................... 37
8.5.1 Printing Preferences.................................................................................................... 37
8.5.2 Printer properties........................................................................................................ 71
8.6 Uninstall Windows Driver.......................................................................................................74
9 Utility Tool For POS Instruction......................................................................................................... 76
9.1 Utility Tool Installation........................................................................................................... 77
9.2 ADLER Utility Tool Using.........................................................................................................80
9.2.1 Add/Modify/Delete/Connect Printer.......................................................................... 80
9.2.1.1 Add printer....................................................................................................... 80
9.2.1.2 Modify printer.................................................................................................. 82
9.2.1.3 Delete printer................................................................................................... 84
9.2.1.4 Connection Test................................................................................................85
9.2.2 Functions..................................................................................................................... 87
9.2.2.1 Printer Test....................................................................................................... 88
9.2.2.2 Command Test................................................................................................. 92
9.2.2.3 Manage Images................................................................................................ 95
9.2.2.4 Code Page Setting............................................................................................ 99
9.2.2.5 Download Fonts............................................................................................. 100
9.2.2.6 Parameter Setting.......................................................................................... 101
9.2.2.7 Advanced Setting........................................................................................... 102
9.3 Firmware Update................................................................................................................. 121

TP700 User Manual
4
CAUTIONS
Warnings :
This must be complied with in order to avoid any damage to the human body and to the
equipment.
This is showing the important information and tips for the printer operating.
Note
：
Due to continuous improvement of our product, the description of printer
specification, accessories, design in this manual may slightly different, please take in kind
prevail.

TP700 User Manual
5
Important Safety Instructions
1. Safety warning
Warnings: The print head will become very hot during printing; avoid contact with the print
head after printing has finished.
Warnings: Do not touch the print head and connector in case static damages the print head.
2. Instructions
Read the following instructions thoroughly before starting up your printer.
1) Place the printer on a solid and even base so that it does not fall.
2) Leave enough space around printer for operation and maintenance.
3) Keep all liquids away from the printer.
4) Do not expose the printer to high temperatures, direct sunlight or dust.
5) Protect the printer from shock, impact and vibration.
6) Ensure the printer is connected to a socket with the correct mains voltage.
7) Switch off the printer power supply when not in use.
8) To ensure the printing quality and reliability, suggest use the recommended paper or the
same quality paper.
9) Please switch off the power supply when connecting/disconnecting all the ports or it will
cause damage to the printer control circuit.
10) Never carry out maintenance or repair work yourself. Always contact a qualified service
technician.
11) Keep this User Manual in a place which is easily accessible at all times.

TP700 User Manual
6

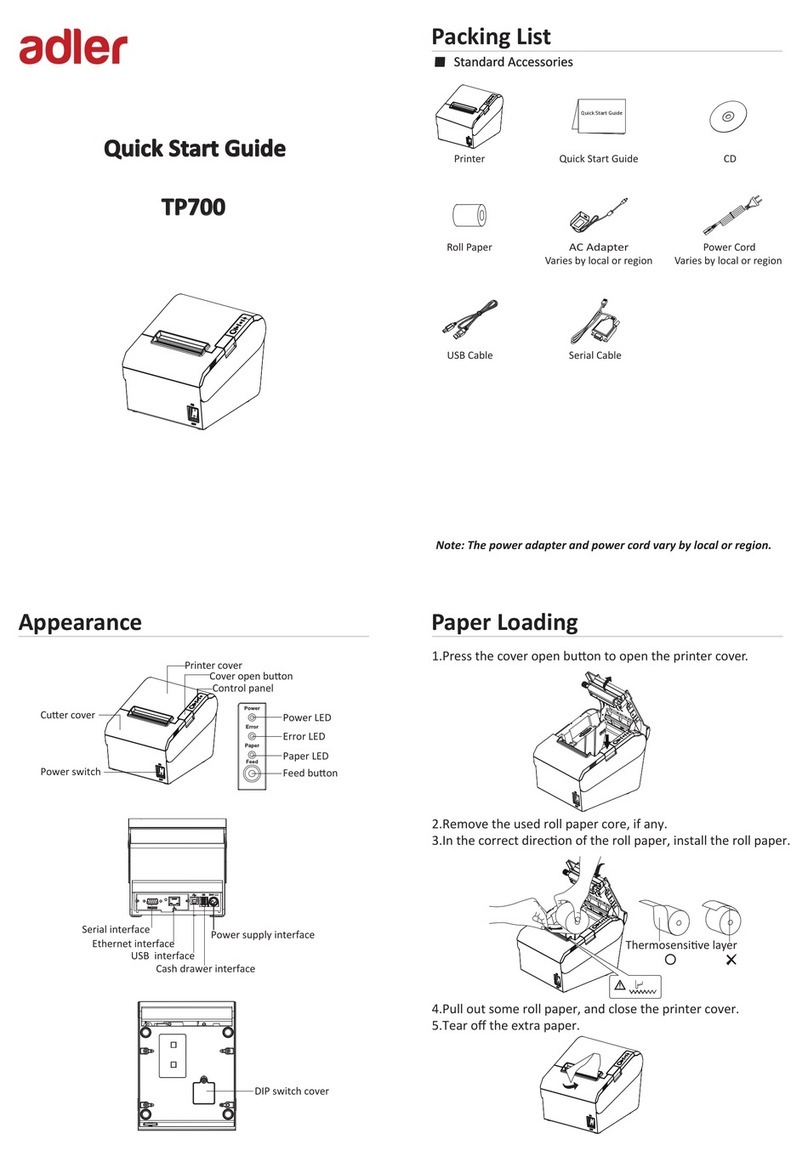

POS printer packing-case
Please check you get all in carton.
Notes:
►The AC adapter and power cord vary by local or region.
►The packing materials are actually dependent on the order.

TP700 User Manual
7
1 Overview
1.1 Introductions
TP700 is a thermal receipt printer with auto-cutter, featured by high printing quality, high printing
speed, high stability, etc. It can be used in commercial POS system, food industry and applications
which need real-time field print receipts.
TP700 can connect to other equipment through parallel, serial, USB, and Ethernet interfaces. And
the printer drivers are available for the WINDOWS XP/7/8/10 operating system.
1.2 The main features
1) Automatic paper cutting
2) Low noise
3) High printing speed
4) Easy paper loading
5) User convenient maintenance
6) Compatible with various width paper
7) Cash drawer interface

TP700 User Manual
8
2 Specifications
2.1 Printer specification
Table2-1 General Specification
(1/2)
Model
TP700
Printing
Parameter
Print method
Direct thermal line printing
Resolution
203/180DPI
Print width
72mm/48mm
Print speed
200～250mm/s
Interface
USB, cash drawer, serial, Ethernet and power supply
Print density
Adjustable from level 1 to level 4
Page Mode
Support
Memory
RAM
2MB
Flash
4MB
Fonts
Chinese
GBK 16×16, 24×24dots
Alphanumeric
ASCII 9×17,12×24dots
User-defined
Support
Code page
Optional international character sets : PC437(std.Europe), Katakana,
PC850(Multilingual), PC860(Portuguese), PC863(Canadian),
PC865(Nordic), PC857(Turkish), PC737(Greek), ISO08859-7(Greek),
WPC1252, PC866(Cyrillic #2), PC852(Latin 2), PC858(Euro), KU42(Thai),
TIS11(Thai), TIS18(Thai), PC720(Arabic), WPC775(Baltic Rim),
PC855(Cyrillic), PC862(Hebrew), PC864(Arabic), ISO8859-2(Latin2),
ISO8859-15(Latin9), WPC1250(Latin 2), WPC1251(Cyrillic),
WPC1253(Greek), WPC1254(Turkish), WPC1255(Hebrew),
WPC1256(Arabic), WPC1257(Baltic Rim), WPC1258(Vietnamese),
MIK(Cyrillic), PC755(Latin 2), Iran, Iran II, Latvian, ISO-8859-1(WestEur),
ISO-8859-3(Latin 3), ISO-8859-4(Baltic), ISO-8859-5(Cyrillic), ISO-8859-
6(Arabic), ISO-8859-8(Hebrew),ISO-8859-9(Turkish), PC856,
PC3848(ABICOMP), MONGOLIAN, VISCII
Graphics
Support varied density bitmap as and download bitmap printing
Max size of each bitmap is 40K, the total size of bitmap is 256k
Barcode
1D
UPC-A, UPC-E, EAN(JAN)8, EAN(JAN)13, CODE39, CODE128, CODE93,
CODABAR, ITF
2D
PDF417, QR code
Detect
Function
Sensors
Paper out, cover open, paper near end and black mark (optional)
sensors

TP700 User Manual
9
Table2-1 General Specification (Continued)
(2/2)
Model
TP700
LED Indicator
Power LED
Green LED
Paper LED
Red LED
Error LED
Red LED
Power Supply
Charging
External power adapter
Input
AC100V-240V 50-60HZ
Output
24V 2.5A
Paper
Paper type
Specified Thermal Paper
Paper width
0
1
80

mm/
0
1
58

mm
Paper thickness
0.065~0.090mm
Paper roll
diameter
Max. OD ф83mm
Paper load
Upward cover open and Easy paper loading
Paper cut
Slide type dual cutter / Partial cut / Manual-retreat cutter
Support the setting for cover closed cutter
Command
ESC/POS
Physical Spec.
Operating
condition
0°C~40°C, 0%~85%RH
Storage condition
-20°C~70°C, 5%~95%RH
Dimensions
L*W*H
195*147*147mm
Weight
1.8kg
Reliability
TPH lifetime
150km
Cutter lifetime
2,000,000 cuts
MTBF
360, 000 hours
Software
Function
Driver program
Windows(Win7/Win8/Win10/Vista/XP)

TP700 User Manual
10
2.2 Printing media specification
2.2.1 Continuous thermal paper specification
Paper type: specified thermal paper
Paper width:
0
1
80

mm/
0
1
58

mm
Paper outer diameter: Max. 83 mm
Paper roll core: internal diameter: 12mm
Outer diameter: 18mm
Paper thickness: 0.065 ～0.090mm
Paper Type
Manufacturer
FD210,PD150R,PD160R
OJI Paper CO.,LTD.
2.2.2 Notices
►Please use the recommended thermal paper or same quality paper, otherwise it will
influence the printing quality and decrease the thermal print head life.
►Don’t stick the paper on the paper roll mandril.
►If the thermal paper is polluted by chemical or oil, the thermal paper heat sensibility
decreases, which will influence the printing quality.
►Don’t use finger nail or hard articles to touch the surface of thermal paper, otherwise
it will cause color fading.
►When the environment temperature is higher than 70°C, the thermal paper color will
fade, so pay attention to the influence of temperature, humidity and sunlight.

TP700 User Manual
11
2.3 Printing and cutting position
2.3.1 Printing position
0
1 -
80
mm Print Paper
0
1 -
58
mm Print Paper
2.3.2 Cutting position
Figure 2.3.2
Type
Paper Cutting Position(L1)
TP700
11.8mm

TP700 User Manual
12
3 Printer Components
3.1 Appearance and component
Note: The views above are for your reference. Ports may vary.

TP700 User Manual
13
Specification of some part elements
1) Power switch
Press “0” to turn off power and press “1” to turn on power supply.
2) Feed Button
Feed paper: When it’s not in the alarm status, push the button to feed paper. Push the button
continuously to feed the long distance.
3) Power LED
It indicates the power status.
4) Paper LED
It detects the status of paper, such as paper near end and paper out. See more details in ”3.2
Specification of Indicated light and beeper”.
5) Error LED
If there is an abnormal phenomenon and error LED flashing, it means the printer is in the wrong
status. Please turn off the power immediately.
6) Paper guide
Paper guide can change the position to adapt to different paper width.
TP700 storehouse has 4 paper guide slot.
Paper guide slot 1/4 adapt to
0
1
80

mm/
0
1
58

mm print paper respectively.
Warnings：
Paper guide is essential to adjusting the paper width. Please keep it properly.

TP700 User Manual
14
3.2 Specification of Indicated light and beeper
Function specification of Indicated light and beeper
Name
Status
Specification
POWER LED
（Green）
Bright
The printer work well
Extinguish
The printer does not work
ERROR LED
（Red）
Flashed
The printer in an error state
Extinguish
The printer in a normal state
PAPER LED
（Red）
Bright
The printer in paper out state
Extinguish
The printer in a normal state
Notes: The printer uses a thermistor to detect the temperature of the print head. If the
temperature of print head is more than 65°C, printer will send a warning. If the
temperature of print head is more than 80°C, printer will stop working until the
temperature is less than 60°C.
Description
Power LED
Error LED
Paper LED
Beeper
Open the cover of
printer
Bright
Bright
Bright
“Beep ,Beep—,Beep”
Full of paper
Bright
Extinguish
Extinguish
Silent
No paper
Bright
Bright
Bright
“Beep Beep Beep”.
Paper near end
Bright
Extinguish
Bright
Silent
Cutter jam
Bright
Flashed
Extinguish
”Beep—，Beep—”

TP700 User Manual
15
4 Printer Packing
4.1 Open packing
When opening the package, according to the packing list to check if items are missing or damaged,
if so, please contact the dealer or manufacturer.
4.2 Choose installation site and direction of printer
1) The printer should install at a flat and steady place. It’s recommend that install the printer at
horizontal line. The angle of inclination should not exceed ± 10°(paper feed direction) if tilt
install printer, it does not allow to tilt by other direction.
2) Keep printer far away from source of water.
3) Avoid the printer on place where it is vibration and shock.
4) Ensure printer ground connect is safe.
5) When the printer is at operation and maintenance, it is recommended to retain the enough
space to ensure the printer can work in reliability and ease of operation.
4.3 Connect the printer power adapter
1) Turn off the printer power.
2) Plug in the cable connector of the AC adapter to the power connector at the rear of the printer.
3) Connect the Power cord to the inlet of AC adapter, and insert the Power cord plug into a
suitable wall outlet.

TP700 User Manual
16
The plug of AC adapter is designed in a switch type, when accessing AC adapter and uttered the
voice "click", it means the connected socket switch is locked the adapter connect well, otherwise
please connect again.
When pulling out the adapter, please pinch the shell of AC adapter and pull the switch up, when
the switch is fully opened then pull out the AC adapter.
Don’t put forth your strength to pull the plug by squeezing at any of place of AC adapter because it
is more difficult to pull it out and easy to damage the cable.

TP700 User Manual
17
Notes
：
►Please only use the AC adapter recommended by supplier or equivalent products.
►When disconnecting the AC adapter plug, handhold plug connector housing to avoid the
pulling on the cable in force.
►Avoid dragging the AC adapter cable, otherwise it will damage the cable, causing fire
and shock.
►Avoid putting AC adapter around a heating device, otherwise the cable may melt,
causing fire and shock.
►If you do not use the printer for a long time, disconnect the power supply of printer AC
adapter.

TP700 User Manual
18
4.4 Connecting the Interface Cable
1) Make sure the printer's power switch is turned off.
2) Put the interface cable into the matched interface and fixed with screws (or spring) on the plug.
3) Connect the other end of the interface cable to the host.
4.5 Connecting the Cash Drawer
1) Make sure the printer's power switch is turned off.
2) Connect the cash drawer cable into the cash drawer interface on the rear side of the printer.
Warning: Cash drawer interface can only be connected to a voltage of 24V cash drawer
device (can’t connect to the phone line, etc.).

TP700 User Manual
19
4.6 Paper roll installation
After connecting the AC adapter and interface cable, you can install media for printing. Confirm the
type of paper used by the printer before printing. The default paper type is specified thermal paper.
Choose the paper guide according to the printing paper.
4.6.1 Confirm print paper
Method:
1) Put the finger into the hole in the paper guide, then lift the paper guide.
2) According to the paper width, insert the paper guide in the proper position.

TP700 User Manual
20
4.6.2 TP700 installation/change Paper
1) Turn off printer power supply.
2) Pressing the open button, open the top cover of TP700（Like figure 4.6.1）
Figure 4.6.1
3) Put the paper into printer. Pay attention to the direction of the paper.（Like figure 4.6.2）
Figure 4.6.2
