ADLINK Technology PCI-7230 User manual

PCI-7230
32 Channels Isolated
Digital I/O Card

@Copyright 1996 ADLink Technology Inc.
All Rights Reserved.
Manual second edition: 7 July, 1997
Manual second edition: 11 November, 1997
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
Trademarks
PCI-7230 is registered trademarks of ADLink Technology Inc., Advantech and PCL-730
is a trademark of Advantech Co., Ltd. IBM PC is a registered trademark of International
Business Machines Corporation. Intel is a registered trademark of Intel Corporation.
Other product names mentioned herein are used for identification purposes only and may
be trademarks and/or registered trademarks of their respective companies.

Contents • i
CONTENTS
CHAPTER 1 INTRODUCTION..........................................................................1
1.1 FEATURES........................................................................................3
1.2 APPLICATIONS..................................................................................3
1.3 SPECIFICATIONS...............................................................................4
CHAPTER 2 INSTALLATION............................................................................5
2.1 WHAT YOU HAVE .............................................................................5
2.2 UNPACKING......................................................................................6
2.3 PCI-7230'S LAYOUT ........................................................................7
2.4 PCI-7230 INSTALLATION OUTLINE ...................................................7
2.4.1 Hardware configuration...........................................................7
2.4.2 PCI slot selection.....................................................................7
2.4.3 Installation Procedures ............................................................8
2.4.4 Running the 7230UTIL.EXE.....................................................8
2.5 CONNECTOR PIN ASSIGNMENT ........................................................9
CHAPTER 3 REGISTER STRUCTURE & CONNECTION..................................11
3.1 I/O REGISTERS FORMAT................................................................11
3.2 DIGITAL INPUT REGISTER...............................................................12
3.3 DIGITAL OUTPUT REGISTER ...........................................................12
3.4 ISOLATED DIGITAL INPUT CHANNELS ..............................................13
3.5 ISOLATED DIGITAL OUTPUT CHANNELS...........................................13
CHATPER 4 C/C++ LIBRARIES ....................................................................15
4.1 INSTALLATION.................................................................................15
4.1.1 Backup Your Disk...................................................................15
4.1.2 Installation ............................................................................16
4.2 RUNNING TESTING UTILITY (7230UTIL.EXE)................................17
4.3 SOFTWARE DRIVER NAMING CONVENTION.....................................17
4.4 _7230_INITIAL...............................................................................18
4.5 _7230_DI......................................................................................19
4.6 _7230_DO....................................................................................20
PRODUCT WARRANTY/SERVICE...................................................................21

Introduction • 1
1
Introduction
The PCI-7230 provides 32 isolated digital I/O, 16 Isolated inputs
and 16 isolated outputs. The isolated I/O channels are isolated to
2,500 Vrms (excluding cables), both channel-to-channel and
channel-to-computer. It protects your computer against damage
caused by accidental contact with high external voltage and
elimates troublesome ground loops.
The PCI-7230 uses SAIC PCI controller to interface the board to
the PCI bus. The ASIC fully implement the PCI local bus
specification Rev 2.0. All bus relative configurations, such as
base memory address and interrupt assignment, are
automatically controlled by BIOS software. It does not need any
user interaction and pre-study for the configurations. This
removes the burden of searching for a conflict-free configuration,
which can be very time consuming and difficult with some other
bus standards.

2 • Introduction
Software Supporting :
There are several software options help you get your application
running quickly and easily.
1. Linking with data acquisition software packages :
. DasyLab 3.0
. LabVIEW 4.0, LabWindows
. Visual Lab M
2. Custom Program :
For the customer who are writing their own programs, the PCI-
7230 is supported by a comprehensive set of drivers and
programming tools. These software supports are available in
multiple platform.
.MS-DOS C/C++ program library.
.PCIS-DASK :Advanced data acquisition software kit for
Win-95 and Win-NT
.PCIS-OCX :ActiveX (OLE) class library for Win-95 and
Win-NT

Introduction • 3
1.1 Features
The PCI-7230 Isolated D/I Card provides the following advanced
features:
•16 Isolated Digital Input Channels
•16 Isolated Digital Output Channels
•High output driving capability
•2,500 Vrms high voltage isolation
•Interrupt is controlled from external signal
•Dual interrupt trigger
•200mA sink current on isolated output channels
•Up to 24V voltage protection for isolated input
•37-pin D-type connector
1.2 Applications
•Laboratory and Industrial automation
•Watchdog timer
•Event counter
•Frequency counter and generator
•Low level pulse generator
•Time delay
•Industry automation

4 • Introduction
1.3 Specifications
♦ Isolated Digital I/O ( DIO)
•Optical Isolated Input Channel
Channel No. :16 digital inputs
Input Voltage :5 - 24Vdc
Input resistance :1.2KΩ@ 0.5W
Isolated voltage :2,500 Vdc
Throughput :10K Hz
•Optical isolated Output channel
Channel No. :16 digital inputs
Output Voltage:open collector 5 to 40Vdc
Sink Current :200mA max.
Isolated voltage :2,500 Vdc
Throughput :10K Hz
•Interrupt sources
Channel 0 and channel 1 of digital input channels
♦General Specifications
•Connector : 37-pin D-type connector
•Operating Temperature : 0°C ~ 60°C
•Storage Temperature : -20°C ~ 80°C
•Humidity : 5 ~ 95%, non-condensing
•Power Consumption : +5 V @ 660 mA
•Dimension : Compact size only 98mm(H) X 173mm(L)

Installation • 5
2
Installation
This chapter describes the configurations of the PCI-7230 and
teach users to install the PCI-7230. At first, the contents in the
package and unpacking information that you should care about
are described. The PCI-7230 is plug-and-play; it is very easy to
install into any PC system with PCI slots.
2.1 What You Have
In addition to this User's Manual, the package includes the
following items:
•PCI-7230 Isolated Digital I/O Card
•DOS software library and utility
If any of these items is missing or damaged, contact the dealer
from whom you purchased the product. Save the shipping
materials and carton in case you want to ship or store the
product in the future.

6 • Installation
2.2 Unpacking
Your PCI-7230 card contains sensitive electronic components
that can be easily damaged by static electricity.
The card should be done on a grounded anti-static mat. The
operator should be wearing an anti-static wristband, grounded at
the same point as the anti-static mat.
Inspect the card module carton for obvious damage. Shipping
and handling may cause damage to your module. Be sure there
are no shipping and handing damages on the module before
processing.
After opening the card module carton, extract the system module
and place it only on a grounded anti-static surface component
side up.
Again inspect the module for damage. Press down on all the
socketed IC's to make sure that they are properly seated. Do this
only with the module place on a firm flat surface.
Note : DO NOT APPLY POWER TO THE CARD IF IT HAS
BEEN DAMAGED.
You are now ready to install your PCI-7230.

Installation • 7

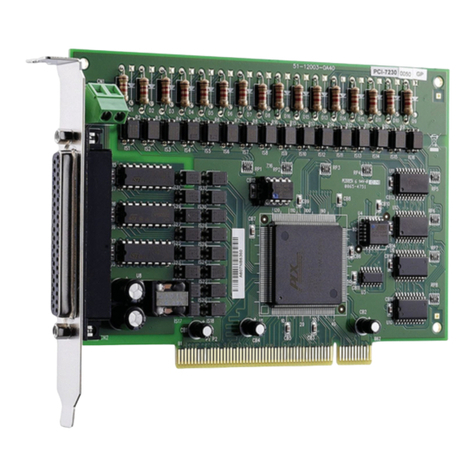

2.3 PCI-7230's Layout
PCI-7230
CN1
CN2
PCI Connector Chip
Figure 2.1
2.4 PCI-7230 Installation Outline
2.4.1 Hardware configuration
PCI-7230 has plug and play component, the card can requests
memory usage (I/O port locations) of the PCI-7230 is assigned
by system BIOS. The address assignment is done on a board-
by-board basis for all PCI-7230s in the system.
2.4.2 PCI slot selection
Your computer will probably have both PCI and ISA slots. Do not
force the PCI-7230 into a PC/AT slot.

8 • Installation
2.4.3 Installation Procedures
1. Turn off your computer
2. Turn off all accessories (printer, modem, monitor, etc.)
connected to computer.
3. Remove the cover from your computer.
4. Select a 32-bit PCI expansion slot. PCI slot are short than ISA
or EISA slots and are usually white or ivory.
Caution !! Don‘t put PCI-7230 card into ISA or EISA slot.
5. Before handling the PCI-7230, discharge any static buildup on
your body by touching the metal case of the computer. Hold
the edge and do not touch the components.
6. Position the board into the PCI slot you selected.
7. Secure the card in place at the rear panel of the system unit
using screw removed from the slot.
2.4.4 Running the 7230UTIL.EXE
A testing program is included in this utility, you can check if your
PCI-7230 can work properly. Refer Section 5.2 for further
detailed information.

Installation • 9
2.5 Connector Pin Assignment
The pin assignment of the 37 pins D-type connector CN2, which
is an isolated DIO signal connector, is shown in Figure 2.7.
(1)
(9)
(8)
(7)
(6)
(5)
(2)
(3)
(4)
(14)
(10)
(13)
(11)
(12)
(19)
(15)
(18)
(16)
(37)
(24)
(23)
(21)
(22)
(20)
(25)
(28)
(26)
(27)
(29)
(34)
(30)
(33)
(31)
(32)
(35)
(36)
(17)
EIGND
IDI_0
IDI_5
IDI_2 IDI_1
IDI_3
IDI_7
IDI_6
IDI_8 IDI_9
IDI_10 IDI_11
IDI_12
IDI_15
IDI_14 IDI_13
IDI_4
ID0_0
EOGND
EOGND
EOGND
ID0_1
ID0_4
ID0_2
ID0_6
ID0_3
ID0_8
ID0_10
ID0_12
ID0_14
ID0_7
ID0_5
ID0_9
ID0_11
ID0_15
ID0_13
VDD
Legend:
IDI_n :Isolated digital input channel #n
IDO_n :Isolated digital output channel #n
EIGND :Ground return path of isolated input channels
EOGND :Ground return path of isolated output channels
VDD :Power supply of isolated output channels
Figure 2.7. Pin Aassignment of Connector CN3

10 • Installation
CN 1 : Isolated Output GND Terminal
1 2E.GND E.GND
Legend : DO n : Digital output signal channel n
DI n : Digital input signal channel n
GND : Digital ground
E.GND : External Ground for Isolated Input

Register Structure & Connection • 11
3
Register Structure & Connection
3.1 I/O Registers Format
The PCI-7230 requires 2 consecutive addresses (32-bit) in the
PC I/O address space. Table 3.1 shows the I/O address of each
register with respect to the base address.
Address Write Read
Base (0 - 3 ) Isolated DO Isolated DI
Table 3.1. I/O Address Map of PCI-7230
DO -- Digital Output
DI -- Digital Input
Caution :
1. I/O prot is 32-bit width (PCI is 32-bit data transfer)
2. 8-bit or 16-bit I/O access is not allowed.

12 • Register Structure & Connection
3.2 Digital Input Register
There are 16 isolated digital input channels on the PCI-7230,
each bit of based address (0 -1) is corresponding to a signal on
the digital input channel.
Address :BASE + 0 ~ BASE + 3
Attribute :read only
Data Format :
Bit 7 6 5 4 3 2 1 0
Base + 0 IDI_7 IDI_6 IDI_5 IDI_4 IDI_3 IDI_2 IDI_1 IDI_0
Base + 1 IDI_15 IDI_14 IDI_13 IDI_12 IDI_11 IDI_10 IDI_9 IDI_8
Base + 2 - - - - - - - -
Base + 3 - - - - - - - -
IDI_N: Isolated Digital Input CH N
3.3 Digital Output Register
There are total 16 digital output channels on the PCI-7230, each
bit of based address (0 -1) is corresponding to a signal on the
digital output channel.
Address :BASE + 0 ~ BASE + 3
Attribute :write only
Data Format :
Bit 76543210
Base + 0 IDO_7 IDO_6 IDO_5 IDO_4 IDO_3 IDO_2 IDO_1 IDO_0
Base + 1 IDO_15 IDO_14 IDO_13 IDO_12 IDO_11 IDO_10 IDO_9 IDO_8
Base + 2 --------
Base + 3 --------
IDO_N: Isolated Digital Output CH N

Register Structure & Connection • 13
3.4 Isolated Digital Input Channels
The isolated digital output is an open collector transistor output.
The input accept voltage form 5V to 24V and input resister is
1.2K Ω. The connection between outside signal and PCI-7230 is
shown below.
1.2K Ohmo
Isolated
Input
1N4001
ACL-7130
External Signal
3.5 Isolated Digital Output Channels
The connection of isolated-digital output is shown as following
diagram. An external voltage source (5~40VDC) is necessary to
power the internal isolated circuits, and it is connected with pin-
19 of CN2. When the isolated digital output goes to high, the
sink current will be from VDD.
ACL-7130
+
-
DDV
Load
5~40V
62003
-
PCI-7230
PCI-7230
