ADS AKX-FO(RS)-FO1A-[AKX-FO1]-EN User manual

REVISION DATE
20131121
DOCUMENT NUMBER
NOTICE The manufacturer will accept no responsability for any electrical
damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be in-
stalled by a certified technician. Please review the Installation Guide carefully
before beginning any work.
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
INSTALL GUIDE
AKXFORSFO1AAKXFO1EN
HARDWARE
AKXFO1/AKXFO14BAM/AKXFO12WSS
FIRMWARE
AKXFORSFO1AAKXFO1
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
ACCESSORIES
ADSUSB REQUIRED
COMPATIBLE RFKIT OPTIONAL
DIRECTED SMARTSTART & ADSHRNRSSM01 OPTIONAL
13039

VEHICLE LIST - 1 OF 1
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS OEM KEYLESS START DOOR LOCK DOOR UNLOCK ARM OEM ALARM DISARM OEM ALARM TRUNK/HATCH RELEASE POWER LIFTGATE RAP SHUTDOWN CTRL HOOD STATUS (W/OEM SW) DOOR STATUS BRAKE PEDAL STATUS TACHOMETER STATUS PARKING LIGHT CTRL
FORD
Edge STD key AT 07-10 1 • • • • • • • • • • • • •
Escape / Hybrid STD key AT 08-12 1 • • • • • • • • • • • •
Explorer STD key AT 06-10 3 • • • • • • • • • • • •
Fiesta STD key AT 11-13 4 • • • • • • • • • • • •
Flex STD key AT 09-12 1 • • • • • • • • • • • • •
Focus STD key AT 08-11 5 • • • • • • • • • • • • •
Fusion STD key AT 06-09 2 • • • • • • • • • • • • •
Fusion STD key AT 10-12 1 • • • • • • • • • • • • •
Mustang Convertible / Coupe STD key AT 10-13 5 • • • • • • • • • • • • •
SportTrac STD key AT 07-10 3 • • • • • • • • • • • •
Taurus STD key AT 08-12 1 • • • • • • • • • • • • •
Taurus X STD key AT 08-09 1 • • • • • • • • • • • • •
LINCOLN
MKS STD key AT 09-12 1 • • • • • • • • • • • • •
MKX STD key AT 07-10 1 • • • • • • • • • • • • •
MKZ STD key AT 07-09 2 • • • • • • • • • • • • •
MKZ / Hybrid STD key AT 10-12 1 • • • • • • • • • • • • •
Zephyr STD key AT 06 2 • • • • • • • • • • • • •
MAZDA
Tribute STD key AT 08-11 1 • • • • • • • • • • • •
MERCURY
Mariner / Hybrid STD key AT 08-10 1 • • • • • • • • • • • •
Milan STD key AT 06-09 2 • • • • • • • • • • • • •
Milan / Hybrid STD key AT 10 1 • • • • • • • • • • • • •
Mountaineer STD key AT 06-10 3 • • • • • • • • • • • •
Sable STD key AT 08-09 1 • • • • • • • • • • • • •
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 2 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

BOX CONTENTS - 1 OF 1
C
B
A
D
E
MS1MS1
MS2MS2
VS2VS2
VS1VS1
VS4VS4
VS3VS3
F
GRF PORT/WEBLINK PORT
TELEMATIC PORT
BOX CONTENTS
T-HARNESS 1
AFTERMARKET HOOD SWITCH AND CABLE
WARNING STICKER
10 PIN CONNECTOR
12 PIN CONNECTOR
MODULE
LED 2
LED 1
PROGRAMMING
BUTTON
WEBLINK CABLE (required accessory sold separately)
WEBLINK CABLE
COMPUTER
USB PORT
4 PIN BLACK CABLE
MODULE
WEBLINK PORT
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 3 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 4 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
COMPATIBLE ACCESSORIES - 1 OF 1
RF KIT
RF KIT (Visit our website to see if this accessory is included with your product)
ANTENNA
FLASH RF DECODER
BEFORE INSTALLATION
RF DECODERBLUE CABLE BLACK CABLE
(NC) RED
(NC) BLACK
BLACK
BLUE
MODULE
RF PORT
TELEMATIC KIT (accessories sold separately)
(NC)
(NC)
(NC)
DIRECTED SMARTSTART
ADS-HRN(RS)-SM01
MODULE
TELEMATIC PORT
DOC.: #13039

C
H
E
J
G
K
A
F
I
B
L
D

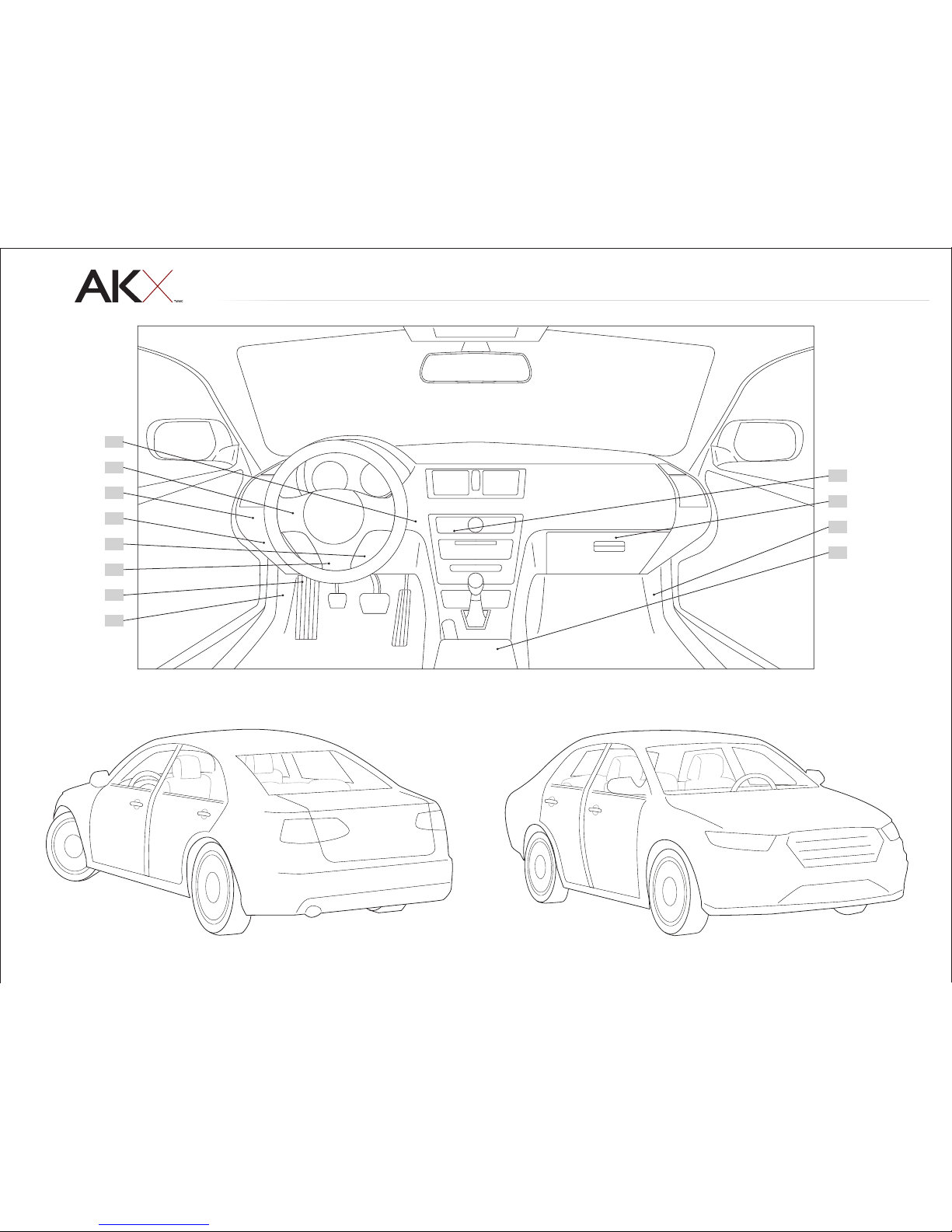

COMPONENT LOCATOR - 1 OF 1
INTERIOR VIEW
DRIVER SIDE VIEW PASSENGER SIDE VIEW
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 5 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

01
+ -
V
02
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MINMAX
DC
400
mA
10A COM
FUSED
V
!600VCAT IV
1000VCAT III
V
03
12V
Ω
COM
V
04
Ω
COM
V
05
+ -
12V
06
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MINMAX
400
mA
10A COM
FUSED
V
!600VCATIV
1000VCATIII
V
DC
RANGEHOLD
OFF
VHz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MINMAX
400
mA
10A COM
FUSED
V
!600VCAT IV
1000VCAT III
V
DC
07
+ -
12V
>>
08
EQUIPMENT TESTING - 1 OF 1
Check vehicle battery voltage.
Set multimeter to DC volts. Connect RED test
probe to Voltage (+) input. Connect BLACK test
probe to Common (-) input.
Put RED test probe tip on 12V (+).
Put BLACK test probe tip on ground (-).
If multimeter reads under 12V (+), charge
vehicle battery.
If vehicle battery doesn’t get a 12V (+)
reading when tested, verify cables, fuses and
equipment.
If vehicle battery doesn’t hold charge, change
the battery.
NOTE: Multimeter must read approximately
12V (+) and remains stable.
Equipment testing procedure completed.
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 6 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

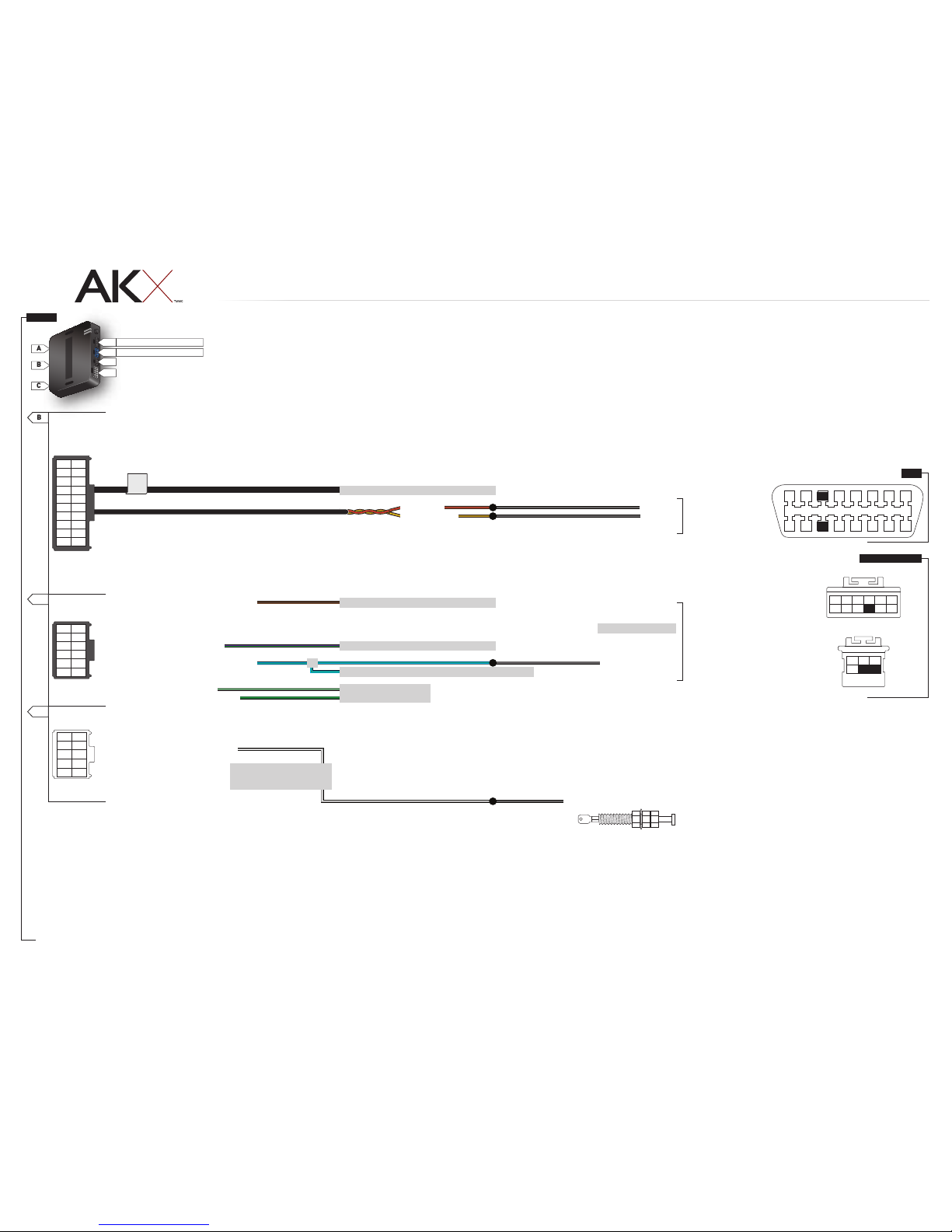

TYPE 1 - WIRE CHART - 1 OF 6
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
FORD
Edge
STD key
AT
07-10
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Blue/White (-) BCM, driver side dash D
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, driver side dash D
Lock C2280C Gray 26 pin 17 Gray/Yellow (-) BCM, driver side dash D
Unlock C2280C Gray 26 pin 04 Purple/Gray (-) BCM, driver side dash D
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, driver side dash D
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, driver side dash D
Trunk Release C2269 Black 6 pin 05 Gray/Yellow (-) At liftgate switch on driver side dash A
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, driver side dash D
Auto Light C205 Gray 10 pin 09 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 04 White/Purple (-) Headlight switch A
Escape Hybrid
STD key
AT
08-12
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Brown (-) BCM, center console towards the passenger side E
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, center console towards the passenger side E
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, center console towards the passenger side E
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, center console towards the passenger side E
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, center console towards the passenger side E
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, center console towards the passenger side E
Trunk Release ~ ~ ~ ~ ~ ~ ~ ~
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, center console towards the passenger side E
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 09 White/Purple (-) Headlight switch A
Escape
STD key
AT
08-12
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Brown (-) BCM, center console towards the passenger side E
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, center console towards the passenger side E
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, center console towards the passenger side E
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, center console towards the passenger side E
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, center console towards the passenger side E
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, center console towards the passenger side E
Trunk Release ~ ~ ~ ~ ~ ~ ~ ~
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, center console towards the passenger side E
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 09 White/Purple (-) Headlight switch A
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 7 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

TYPE 1 - WIRE CHART - 2 OF 6
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
FORD
Flex
STD key
AT
09-12
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Blue/White (-) BCM, driver side dash B
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, driver side dash B
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, driver side dash B
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, driver side dash B
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, driver side dash B
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, driver side dash B
Trunk Release C2269 Black 6 pin 06 Gray/Yellow (-) At liftgate switch on driver side dash A
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, driver side dash B
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
Fusion Hybrid
STD key
AT
10-12
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Blue/White (-) BCM, driver side dash F
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, driver side dash F
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2280C Gray 26 pin 20 Brown/Yellow (-) BCM, driver side dash F
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, driver side dash F
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
Fusion
STD key
AT
10-12
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Blue/White (-) BCM, driver side dash F
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, driver side dash F
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2280C Gray 26 pin 20 Brown/Yellow (-) BCM, driver side dash F
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, driver side dash F
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 8 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

TYPE 1 - WIRE CHART - 3 OF 6
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
FORD
Taurus
STD key
AT
08-12
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Blue/White (-) BCM, driver side dash F
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, driver side dash F
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2280C Gray 26 pin 20 Brown/Yellow (-) BCM, driver side dash F
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, driver side dash F
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
Taurus X
STD key
AT
08-09
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Blue/White (-) BCM, driver side dash F
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, driver side dash F
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2114 Black 12 pin 10 Gray/Yellow (-) At switch in center dash H
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, driver side dash F
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
LINCOLN
MKS
STD key
AT
09-12
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Blue/White (-) BCM, driver side dash F
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, driver side dash F
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2280C Gray 26 pin 20 Brown/Yellow (-) BCM, driver side dash F
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, driver side dash F
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 09 White/Purple (-) Headlight switch A
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 9 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

TYPE 1 - WIRE CHART - 4 OF 6
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
LINCOLN
MKX
STD key
AT
07-10
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Blue/White (-) BCM, driver side dash D
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, driver side dash D
Lock C2280C Gray 26 pin 17 Gray/Yellow (-) BCM, driver side dash D
Unlock C2280C Gray 26 pin 04 Purple/Gray (-) BCM, driver side dash D
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, driver side dash D
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, driver side dash D
Trunk Release C2269 Black 6 pin 05 Gray/Yellow (-) At liftgate switch on driver side dash A
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, driver side dash D
Auto Light C205 Gray 10 pin 09 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 04 White/Purple (-) Headlight switch A
MKZ Hybrid
STD key
AT
10-12
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Blue/White (-) BCM, driver side dash F
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, driver side dash F
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2280C Gray 26 pin 20 Brown/Yellow (-) BCM, driver side dash F
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, driver side dash F
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
MKZ
STD key
AT
10-12
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Blue/White (-) BCM, driver side dash F
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, driver side dash F
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2280C Gray 26 pin 20 Brown/Yellow (-) BCM, driver side dash F
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, driver side dash F
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 10 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

TYPE 1 - WIRE CHART - 5 OF 6
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
MAZDA
Tribute
STD key
AT
08-11
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Brown (-) BCM, center console towards the passenger side E
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, center console towards the passenger side E
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, center console towards the passenger side E
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, center console towards the passenger side E
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, center console towards the passenger side E
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, center console towards the passenger side E
Trunk Release ~ ~ ~ ~ ~ ~ ~ ~
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, center console towards the passenger side E
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 09 White/Purple (-) Headlight switch A
MERCURY
Mariner Hybrid
STD key
AT
08-10
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Brown (-) BCM, center console towards the passenger side E
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, center console towards the passenger side E
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, center console towards the passenger side E
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, center console towards the passenger side E
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, center console towards the passenger side E
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, center console towards the passenger side E
Trunk Release ~ ~ ~ ~ ~ ~ ~ ~
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, center console towards the passenger side E
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 09 White/Purple (-) Headlight switch A
Mariner
STD key
AT
08-10
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Brown (-) BCM, center console towards the passenger side E
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, center console towards the passenger side E
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, center console towards the passenger side E
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, center console towards the passenger side E
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, center console towards the passenger side E
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, center console towards the passenger side E
Trunk Release ~ ~ ~ ~ ~ ~ ~ ~
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, center console towards the passenger side E
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 09 White/Purple (-) Headlight switch A
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 11 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

TYPE 1 - WIRE CHART - 6 OF 6
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
MERCURY
Milan Hybrid
STD key
AT
10
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Blue/White (-) BCM, driver side dash F
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, driver side dash F
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2280C Gray 26 pin 20 Brown/Yellow (-) BCM, driver side dash F
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, driver side dash F
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
Milan
STD key
AT
10
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Blue/White (-) BCM, driver side dash F
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, driver side dash F
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2280C Gray 26 pin 20 Brown/Yellow (-) BCM, driver side dash F
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, driver side dash F
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
Sable
STD key
AT
08-09
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Horn C2280B Black 52 pin 41 Blue/White (-) BCM, driver side dash F
Driver Door Pin C2280C Gray 26 pin 14 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Gray 26 pin 17 Blue/Green (-) BCM, driver side dash F
Unlock C2280C Gray 26 pin 04 Yellow/Purple (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Gray 26 pin 18 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Gray 26 pin 06 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2280C Gray 26 pin 20 Brown/Yellow (-) BCM, driver side dash F
Parking Light C2280E Gray 13 pin 06 Purple/White (+) BCM, driver side dash F
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 12 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

10111213
14151617181920212223242526
123
456789
C2280B
C2280E
C2280C
86
30
87A
87
85 86
30
87
87A
85
VS2VS2
VS1VS1
VS4VS4
VS3VS3
86
30
87
87A
85
MS1MS1
MS2MS2
A
B
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
3
6
4
1
2
5
C
7
9
3
10
8
11
12
6
4
1
2
5
C
B
A
D
E
10
12345
67 8 9
10111213
14151617181920212223242526
27282930313233343536373839
123456789
40
414243444546474849505152
1N4001
DIODE
10 AMPS
10 AMPS
10
1234567
8 9 1311 12
1N4001
DIODE
1N4001
DIODE
F
GIMMOBILIZER CONNECTOR
IGNITION CONNECTOR
IGNITION HARNESS
IMMOBILIZER HARNESS
IGNITION SWITCH (UNDER STEERING COLUMN)
PARKING LIGHT (+) - 06
DRIVER DOOR PIN (OPEN) - 14
12V (+)
PARKING LIGHT (+) - 06
HORN (-) - 41
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
03 EMPTY
04 EMPTY
05 EMPTY
07 EMPTY
09 EMPTY
10 EMPTY
06 PURPLE/GREEN - LOCK (-) OUTPUT
08 BLUE/GREEN - TRUNK/LIFTGATE (-) OUTPUT
11 GRAY/GREEN - HORN (-) OUTPUT
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
OPTIONAL
OR
OR
OR
WITHOUT
AUTO LIGHT
WITH
AUTO LIGHT
TYPE 1 - WIRING DIAGRAM - 1 OF 2
PARKING LIGHT SWITCH
MODULE
GREEN/WHITE
GREEN/VIOLET
LOCK (-) - 17
LOCK/ARM 9/0 (-) - 06
LOCK/ARM 7/8 (-) - 18
UNLOCK (-) - 04
TRUNK RELEASE (-) - 20
C205
GRAY
* SEE NEXT PAGE FOR LIFTGATE RELEASE CONNECTION
* SEE NEXT PAGE FOR WIRE CONNECTION
TRUNK RELEASE
WITHOUT ALARM
WITH ALARM
BCM (DRIVER SIDE DASH)
BCM (DRIVER SIDE DASH)
C2280E
GRAY
C2280C
GRAY
C2280B
BLACK
LIGHT OFF (-)
AUTO LIGHT (OPEN)
12V (+)
REFER TO WIRE CHART
TELEMATIC PORT
RF PORT/WEBLINK PORT
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 13 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

MS1MS1
B
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
10 11 12 13 14 15 16
1 2 345678
9
C
7
9
3
10
8
11
12
6
4
1
2
5
D
7
9
3
10
8
6
4
1
2
5
C
B
A
D
E
123
45 6
123456
78910 11 12
F
G
CANL - 11
CANH - 03
BROWN/RED
BROWN/YELLOW
OBDII
TYPE 1 - WIRING DIAGRAM - 2 OF 2
LIFTGATE RELEASE (-)
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
03 EMPTY
04 EMPTY
05 EMPTY
07 EMPTY
09 EMPTY
10 EMPTY
06 PURPLE/GREEN - LOCK (-) OUTPUT
08 BLUE/GREEN - TRUNK/LIFTGATE (-) OUTPUT
11 GRAY/GREEN - HORN (-) OUTPUT
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
* SEE PREVIOUS PAGE FOR WIRE CONNECTION
* SEE PREVIOUS PAGE FOR WIRE CONNECTION
* SEE PREVIOUS PAGE FOR WIRE CONNECTION
* SEE PREVIOUS PAGE FOR
WIRE CONNECTION
REFER TO WIRE CHART
LIFTGATE SWITCH
LIFTGATE SWITCH
C2269 - BLACK
C2114 - BLACK
04 GRAY/WHITE - HOOD STATUS (-) INPUT
MODULE
03 GRAY/BLACK (NC)
OR
* SEE PREVIOUS PAGE FOR TRUNK RELEASE CONNECTION
AFTERMARKET HOOD SWITCH (-)
WITHOUT OEM HOOD SWITCH:
INSTALL AND CONNECT TO
AFTERMARKET HOOD SWITCH
TELEMATIC PORT
RF PORT/WEBLINK PORT
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 14 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

TYPE 2 - WIRE CHART - 1 OF 2
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
FORD
Fusion
STD key
AT
06-09
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Brake C278 White 04 pin 04 Purple/White (+) At brake pedal I
Horn C2280B Black 32 pin 06 Blue/White (-) BCM, driver side dash* F
Driver Door Pin C2280C Blue 32 pin 11 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Blue 32 pin 04 Gray/Yellow (-) BCM, driver side dash F
Unlock C2280C Blue 32 pin 10 Purple/Gray (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Blue 32 pin 16 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Blue 32 pin 21 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2280D Gray 32 pin 27 Brown (-) BCM, driver side dash F
Parking Light C2280E Beige 32 pin 30 Gray/Yellow (+) BCM, driver side dash* F
Auto Light C205 Gray 10 pin 09 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 04 White/Purple (-) Headlight switch A
LINCOLN
MKZ
STD key
AT
07-09
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Brake C278 White 04 pin 04 Purple/White (+) At brake pedal I
Horn C2280B Black 32 pin 06 Blue/White (-) BCM, driver side dash* F
Driver Door Pin C2280C Blue 32 pin 11 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Blue 32 pin 04 Gray/Yellow (-) BCM, driver side dash F
Unlock C2280C Blue 32 pin 10 Purple/Gray (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Blue 32 pin 16 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Blue 32 pin 21 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2280D Gray 32 pin 27 Brown (-) BCM, driver side dash F
Parking Light C2280E Beige 32 pin 30 Gray/Yellow (+) BCM, driver side dash* F
Auto Light C205 Gray 10 pin 09 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 04 White/Purple (-) Headlight switch A
* WARNING: Multiple wires with the same color on the connector. Verify pin location and test wire.
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 15 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

TYPE 2 - WIRE CHART - 2 OF 2
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
LINCOLN
Zephyr
STD key
AT
06
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Brake C278 White 04 pin 04 Purple/White (+) At brake pedal I
Horn C2280B Black 32 pin 06 Blue/White (-) BCM, driver side dash* F
Driver Door Pin C2280C Blue 32 pin 11 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Blue 32 pin 04 Gray/Yellow (-) BCM, driver side dash F
Unlock C2280C Blue 32 pin 10 Purple/Gray (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Blue 32 pin 16 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Blue 32 pin 21 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2280D Gray 32 pin 27 Brown (-) BCM, driver side dash F
Parking Light C2280E Beige 32 pin 30 Gray/Yellow (+) BCM, driver side dash* F
Auto Light C205 Gray 10 pin 09 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 04 White/Purple (-) Headlight switch A
MERCURY
Milan
STD key
AT
06-09
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Brake C278 White 04 pin 04 Purple/White (+) At brake pedal I
Horn C2280B Black 32 pin 06 Blue/White (-) BCM, driver side dash* F
Driver Door Pin C2280C Blue 32 pin 11 Green/Purple (OPEN) BCM, driver side dash F
Lock C2280C Blue 32 pin 04 Gray/Yellow (-) BCM, driver side dash F
Unlock C2280C Blue 32 pin 10 Purple/Gray (-) BCM, driver side dash F
Lock/Arm 7/8 C2280C Blue 32 pin 16 Purple/Green (-) BCM, driver side dash F
Lock/Arm 9/0 C2280C Blue 32 pin 21 Yellow/Green (-) BCM, driver side dash F
Trunk Release C2280D Gray 32 pin 27 Brown (-) BCM, driver side dash F
Parking Light C2280E Beige 32 pin 30 Gray/Yellow (+) BCM, driver side dash* F
Auto Light C205 Gray 10 pin 09 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 04 White/Purple (-) Headlight switch A
* WARNING: Multiple wires with the same color on the connector. Verify pin location and test wire.
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 16 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

86
30
87A
87
85 86
30
87
87A
85
VS2VS2
VS1VS1
VS4VS4
VS3VS3
86
30
87
87A
85
MS1MS1
MS2MS2
A
B
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
3
6
4
1
2
5
C
7
9
3
10
8
11
12
6
4
1
2
5
C
B
A
D
E
10
12345
6 7 8 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
2
3
4
5
6
7
8
9
1N4001
DIODE
10 AMPS
10 AMPS
C2280B
C2280E
C2280D
C2280C
10 11 12 13
17 18 19 20 21 22 23 24 25 26
12345 6 7 8 9 14 15
27 28
16
29 30 31 32
10 11 12 13
17 18 19 20 21 22 23 24 25 26
1 2 3 4 5 6 7 8 9 14 15
27 28
16
29 30 31 32
1N4001
DIODE
1N4001
DIODE
F
GIMMOBILIZER CONNECTOR
IGNITION CONNECTOR
IGNITION HARNESS
IMMOBILIZER HARNESS
IGNITION SWITCH (UNDER STEERING COLUMN)
PARKING LIGHT (+) - 30
DRIVER DOOR PIN (OPEN) - 11
12V (+)
PARKING LIGHT (+) - 30
HORN (-) - 06
TRUNK RELEASE (-) - 27
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
03 EMPTY
04 EMPTY
05 EMPTY
07 EMPTY
09 EMPTY
10 EMPTY
06 PURPLE/GREEN - LOCK (-) OUTPUT
08 BLUE/GREEN - TRUNK (-) OUTPUT
11 GRAY/GREEN - HORN (-) OUTPUT
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
OPTIONAL
OR
WITHOUT
AUTO LIGHT
WITH
AUTO LIGHT

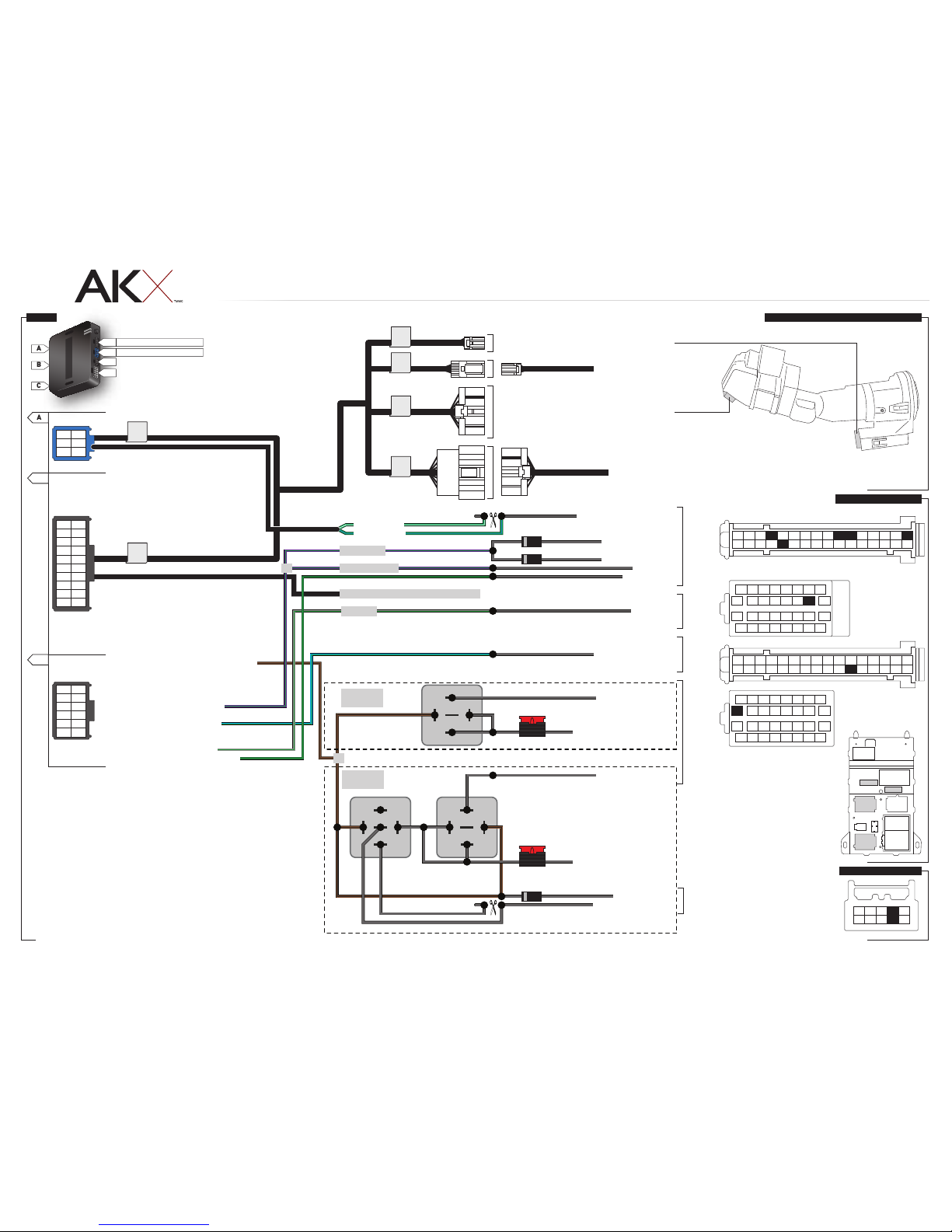

TYPE 2 - WIRING DIAGRAM - 1 OF 2
PARKING LIGHT SWITCH
MODULE
GREEN/WHITE
GREEN/VIOLET
UNLOCK (-) - 10
C205
GRAY
* SEE NEXT PAGE FOR WIRE CONNECTION
BCM (DRIVER SIDE DASH)
BCM (DRIVER SIDE DASH)
C2280E
BEIGE
C2280C
BLUE
C2280D
GRAY
C2280B
BLACK
LIGHT OFF (-) - 04
AUTO LIGHT (OPEN) - 09
12V (+)
OR LOCK (-) - 04
LOCK/ARM 9/0 (-) - 21
LOCK/ARM 7/8 (-) - 16
WITHOUT ALARM
WITH ALARM
TELEMATIC PORT
RF PORT/WEBLINK PORT
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 17 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

MS1MS1
B
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
10 11 12 13 14 15 16
1 2 345678
9
D
7
9
3
10
8
6
4
1
2
5
C
B
A
D
E
C278C278
1122334
F
G
CANL - 11
CANH - 03
BROWN/RED
BROWN/YELLOW
OBDII

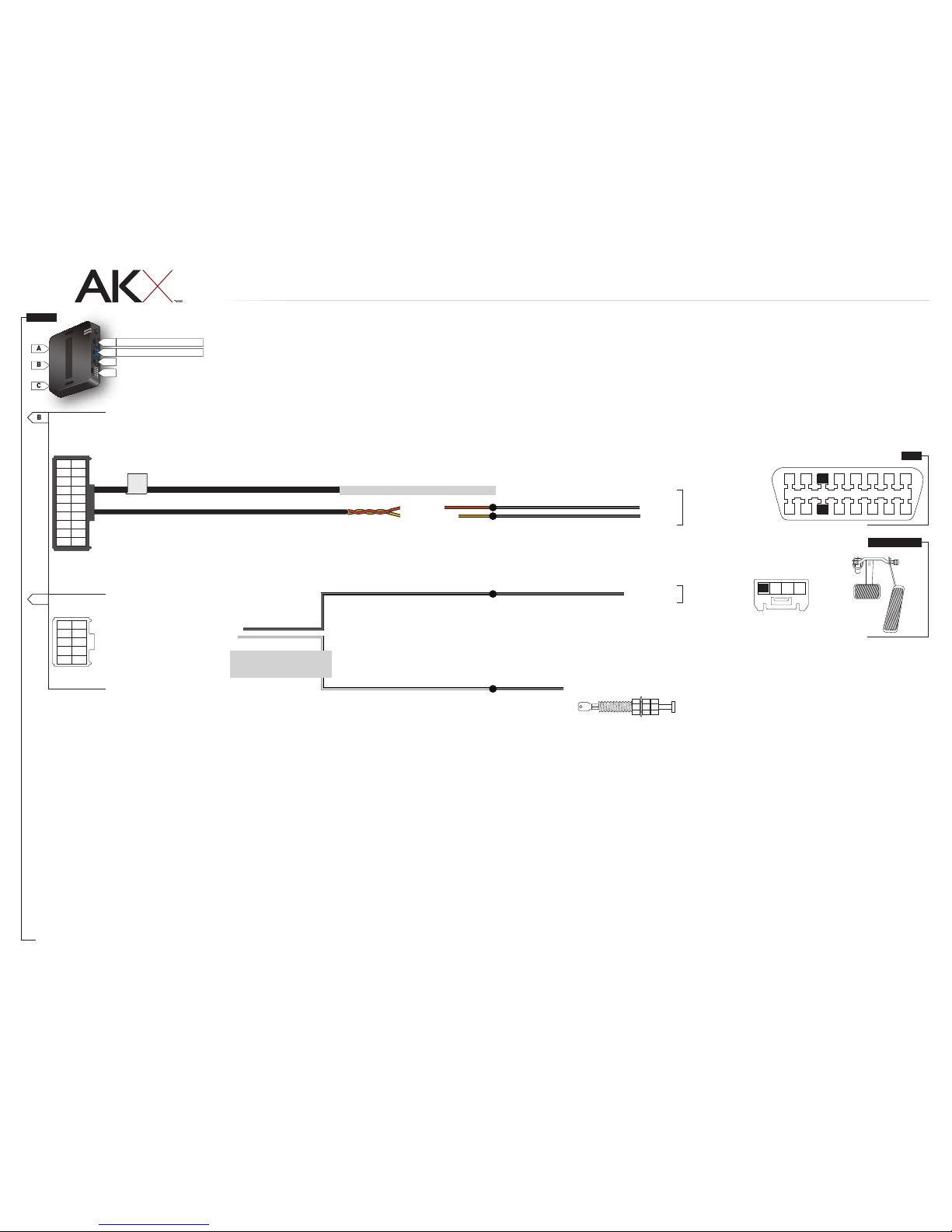

TYPE 2 - WIRING DIAGRAM - 2 OF 2
* SEE PREVIOUS PAGE FOR WIRE CONNECTION
04 GRAY/WHITE - HOOD STATUS (-) INPUT
MODULE
BRAKE (+) - 04
BRAKE SWITCH
03 GRAY/BLACK - BRAKE STATUS (+) INPUT
C278 - WHITEC278 - WHITE
AFTERMARKET HOOD SWITCH (-)
WITHOUT OEM HOOD SWITCH:
INSTALL AND CONNECT TO
AFTERMARKET HOOD SWITCH
TELEMATIC PORT
RF PORT/WEBLINK PORT
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 18 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

01
OFF
ACC ON
START
02
03
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MINMAX
DC
400
mA
10A COM
FUSED
V
!600VCAT IV
1000VCAT III
V
04
Ω
COM
V
_________________________________
05
06
07
08
09
10
RANGEHOLD
V Hz
Hz
Hz
~~
V
mV Ω
)))))
mA
MINMAX
V
DC
11
RANGEHOLD
V Hz
Hz
Hz
~~
V
mV Ω
)))))
mA
MINMAX
V
DC
>>
12
_________________________________
13
14

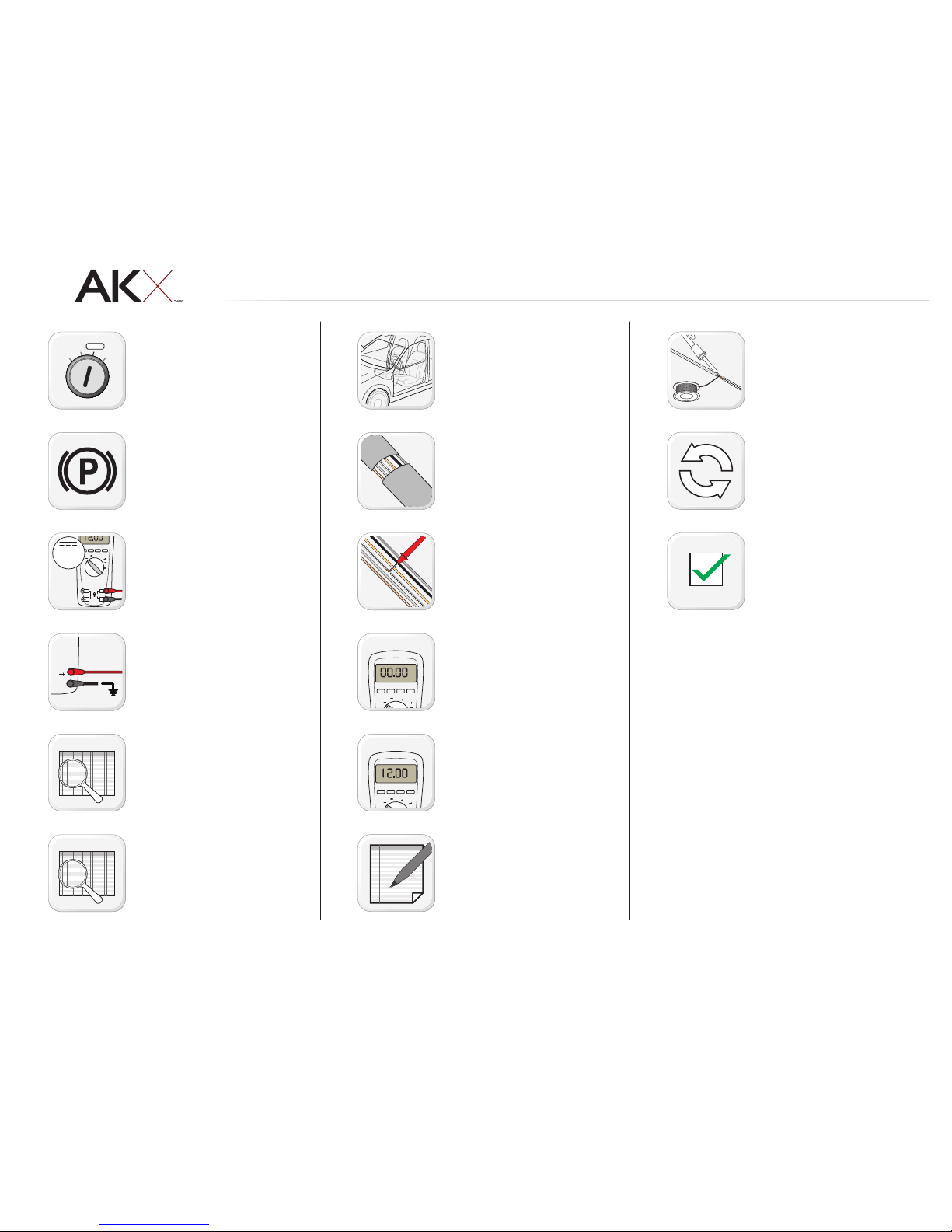

WIRE TESTING PROCEDURE - 1 OF 1
Turn key to ON position.
Activate E-brake.
Set multimeter to DC volts. Connect RED test
probe to Voltage (+) input. Connect BLACK test
probe to Common (-) input.
Put BLACK test probe tip on GROUND (-).
See “Testing Reference”, identify the wire to
test under “Wire Description”.
See “Wire Chart”, identify the wire color
and location of the wire listed under “Wire
description”.
Locate potential wires that correspond to the
wire listed under “Wire Description” in terms
of wire color and location.
Test each wire individually
Put RED test probe tip on the wire to test.
See “Testing Reference”. Apply “Test 1
setting” and verify “Test 1 Reading”.
See “Testing Reference”. Apply “Test 2
setting” and verify “Test 2 Reading”.
If the multimeter reading DOES NOT match,
repeat steps 9 to 11 with another potential
wire to get a reading match.
Connect the wire listed under “Wire
Description” as shown in the “Wiring
Diagram”.
Repeat steps 5 to 12 with every wire listed
under “Wire Description” of the “Testing
Reference”.
Testing Procedure completed.
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 19 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039

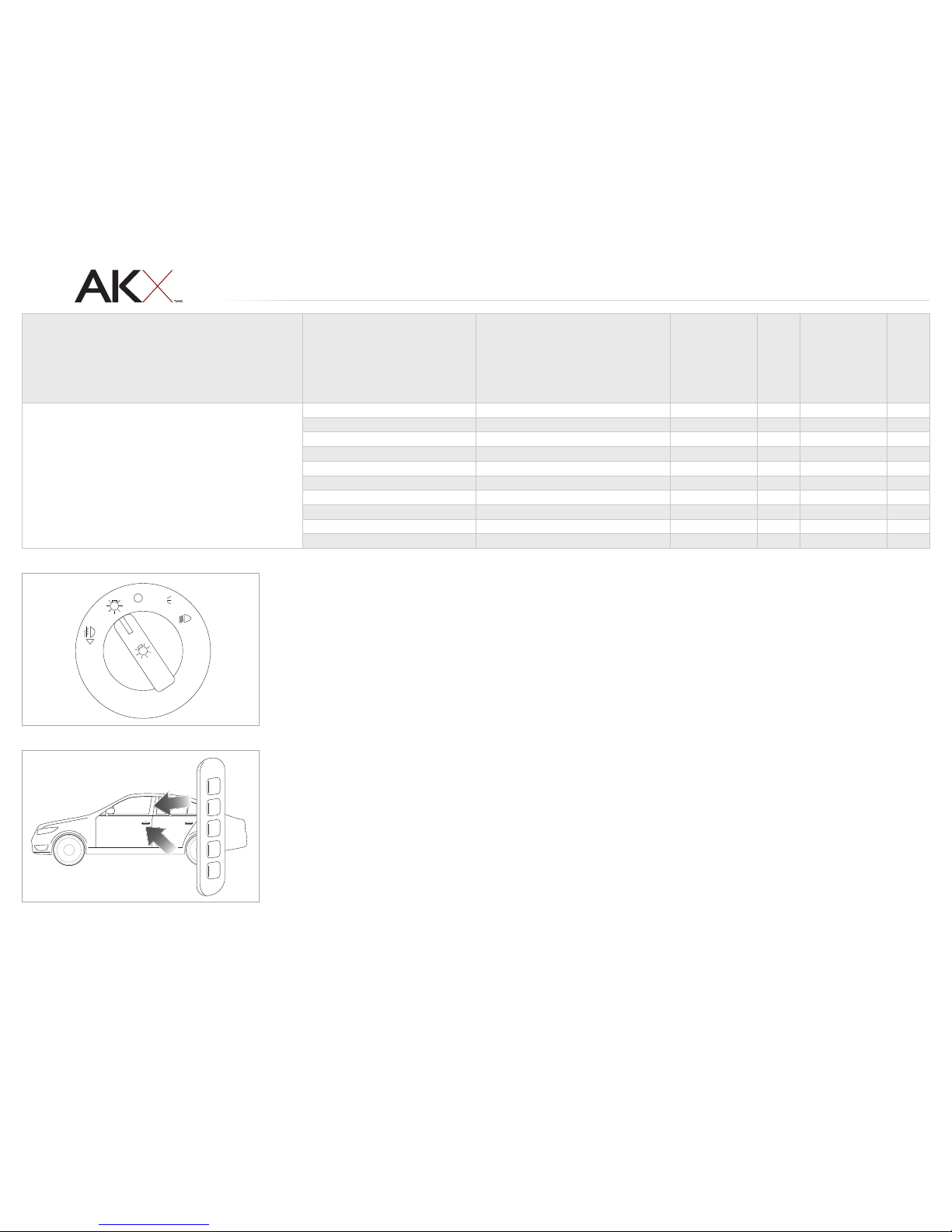

TYPE 3 - TESTING REFERENCE - 1 OF 1
TESTING REFERENCE:
NOTES
WIRE DESCRIPTION TEST ITEM TEST 1 SETTING TEST 1 READING TEST 2 SETTING TEST 2 READING
I WARNING: Read and follow both the "Equipment Testing"
section and the "Wire Testing" section before installing.
Auto Light Headlight switch* AUTO 0V OFF 12V+
Light Off Headlight switch* OFF 0V AUTO 12V+
Parking Light Headlight switch* OFF 0V Parking 12V+
Brake Brake Pedal Disable 0V Enable 12V+
Horn Horn Trigger Enable 0V Disable 12V+
Driver Door Pin Driver Door Close 0V Open 12V+
Unlock Driver Door "Unlock" Button Enable 0V Disable 12V+
Lock Driver Door "Lock" Button Enable 0V Disable 12V+
Lock/Arm 7/8 Driver Door Keypad "7/8" Button** Enable 0V Disable 12V+
Lock/Arm 9/0 Driver Door Keypad "9/0" Button** Enable 0V Disable 12V+
*Headlight switch: 1-AUTO; 2-OFF; 3-Parking.
**Driver Door Keypad.
12
34
56
78
90
A
1
2
3
P
www.autokinetix.comAutomotive Data Solutions Inc. © 2013
PAGE 20 OF 40
• 20131121
AKXFORSFO1AAKXFO1EN
DOC.: #13039
