ADS ADS-BM1 User manual

Revision Date
20140807
Document numbeR
notice The manufacturer will accept no responsability for any electrical
damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be in-
stalled by a certified technician. Please review the Installation Guide carefully
before beginning any work.
beFoRe instaLLation
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
instaLL guiDe
OEMIDSRSBM1ADSBM1EN
haRDwaRe
ADSBM1
accessoRies
ADSUSB REQUIRED
FiRmwaRe
OEMIDSRSBM1ADSBM1
www.idatastart.comAutomotive Data Solutions Inc. © 2014
15748

VEHICLE LIST - 1 OF 1
* If equipped with a factory hood switch.
** If equipped with an electric E-brake and it is activated, vehicle will shudown when a door is opened during RS sequence.
*** If equipped with the Confort Access System, the door handles will not be functional during RS sequence.
MAKE MODEL YEAR INSTALL TYPE
FEATURES
REMOTE START FROM OEM REMOTES SECURE TAKEOVER** DATA IMMOBILIZER BYPASS ARM OEM ALARM DISARM OEM ALARM DOOR LOCK DOOR UNLOCK PRIORITY UNLOCK TRUNK/HATCH RELEASE POWER LIFTGATE PARKING LIGHT CTRL RAP SHUTDOWN CTRL TACHOMETER STATUS MONITORING BRAKE PEDAL STATUS MONITORING VSS STATUS MONITORING GLOW PLUG STATUS MONITORING DOOR STATUS MONITORING TRUNK STATUS MONITORING HOOD STATUS MONITORING*
BMW
1 Series PTS AT 08-13 1 • • • • • • • • • • • • • • • • •
3 Series PTS AT*** 06-11 1 • • • • • • • • • • • • • • • • •
3 Series Coupe PTS AT*** 07-13 1 • • • • • • • • • • • • • • • • •
5 Series PTS AT 05-10 1 • • • • • • • • • • • • • • • • •
6 Series PTS AT 05-10 1 • • • • • • • • • • • • • • • • •
1M PTS AT 11 1 • • • • • • • • • • • • • • • • •
M3 PTS AT*** 08-12 1 • • • • • • • • • • • • • • • • •
M3 Coupe PTS AT*** 08-13 1 • • • • • • • • • • • • • • • • •
M5 PTS AT 06-10 1 • • • • • • • • • • • • • • • • •
M6 PTS AT 06-10 1 • • • • • • • • • • • • • • • • •
X1 PTS AT*** 12-14 1 • • • • • • • • • • • • • • • • •
X5 PTS AT 07-13 1 • • • • • • • • • • • • • • • • •
X5 Diesel PTS AT 07-13 1 • • • • • • • • • • • • • • • • • •
X5 M PTS AT 10-13 1 • • • • • • • • • • • • • • • • •
X6 PTS AT 08-14 1 • • • • • • • • • • • • • • • • •
X6 M PTS AT 10-14 1 • • • • • • • • • • • • • • • • •
Z4 PTS AT*** 09-14 1 • • • • • • • • • • • • • • • • •
MINI
Clubman PTS AT*** 08-14 1 • • • • • • • • • • • • • • • • •
Cooper PTS AT*** 07-14 1 • • • • • • • • • • •••• •••
Cooper Convertible PTS AT*** 08-14 1 • • • • • • • • • • • • • • • • •
Countryman / ALL-4 PTS AT 11-14 2 • • • • • • • • • • • • • • • • •
Coupe PTS AT*** 12-14 1 • • • • • • • • • • • • • • • • •
Paceman PTS AT 13-14 2 • • • • • • • • • • • • • • • • •
Roadster PTS AT*** 12-14 1 • • • • • • • • • • • • • • • • •
NOTES
I This fi rmware covers Automatic Transmission
(AT) vehicles only.
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 2 oF 18
• 20140807
DOC.: #15748

www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 3 oF 18
• 20140807
BOX CONTENTS - 1 OF 1
2
1
3
4
21 3 4
2
1
3
21 3
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
3
6
4
1
2
5
3
6
4
1
2
5
7 93
108
1113
1412
1517
181664
1
2
5
ADS-HRNBMW01-2
7
9
3
10
8
6
4
12
5
2
1
2
1
3
4
2
1
3
4
2
1
3
4
7
9
3
10
8
11 12
6
4
12
5
MODULE
BOX CONTENTS
18 PIN WHITE CONNECTOR - ADAPTER CABLE
AFTERMARKET HOOD SWITCH AND CABLE
STICKER 1
EXPANSION PACK
STICKER 2
10 PIN WHITE CONNECTOR
12 PIN BLACK CONNECTOR
PROGRAMMING
BUTTON
LED 1 LED 2
XP LED 1
LED LED
XP LED 2
RED
BLUE
BLACK
BLACK
RF PORT/WEBLINK PORT
BLACK
BLUE
BLACK
BLACK
BLACK
TOP VIEW TOP VIEWBOTTOM VIEW
BLACK
USB
BLUE
TELEMATIC
PORT
WHITE
BLACK
EXPANSION PACK ASSEMBLY
EXPANSION CABLE
WHITE
T-HARNESS 1
T-HARNESS 2
T-HARNESS 2
THE ADS-HRNBMW01-2 CABLE IS INCLUDED IN KITS
MANUFACTURED AFTER 11/12/2013. CONTACT YOUR
AUTHORIZED DEALER, IF THIS CABLE IS NOT INCLUDED.
WEBLINK CABLE (required accessory sold separately)
WEBLINK CABLE
COMPUTER
USB PORT
4 PIN BLACK CABLE
MODULE
WEBLINK PORT
DOC.: #15748

technicaL note - 1 OF 1
imPoRtant instaLL viDeo gaLLeRY avaiLabLe onLine
Before installing this product, consult our Install Video Gallery and watch:
• Vehicle Disassembly Procedure videos
• Module Connection Procedures videos
• Module Programming Procedures videos
Simply visit our forum and register at
http://www.12voltdata.com/forum/viewtopic.php?f=340&t=9683&sid=a61772b486e4584ad6f058b171ffa425
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 4 oF 18
• 20140807
DOC.: #15748

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16

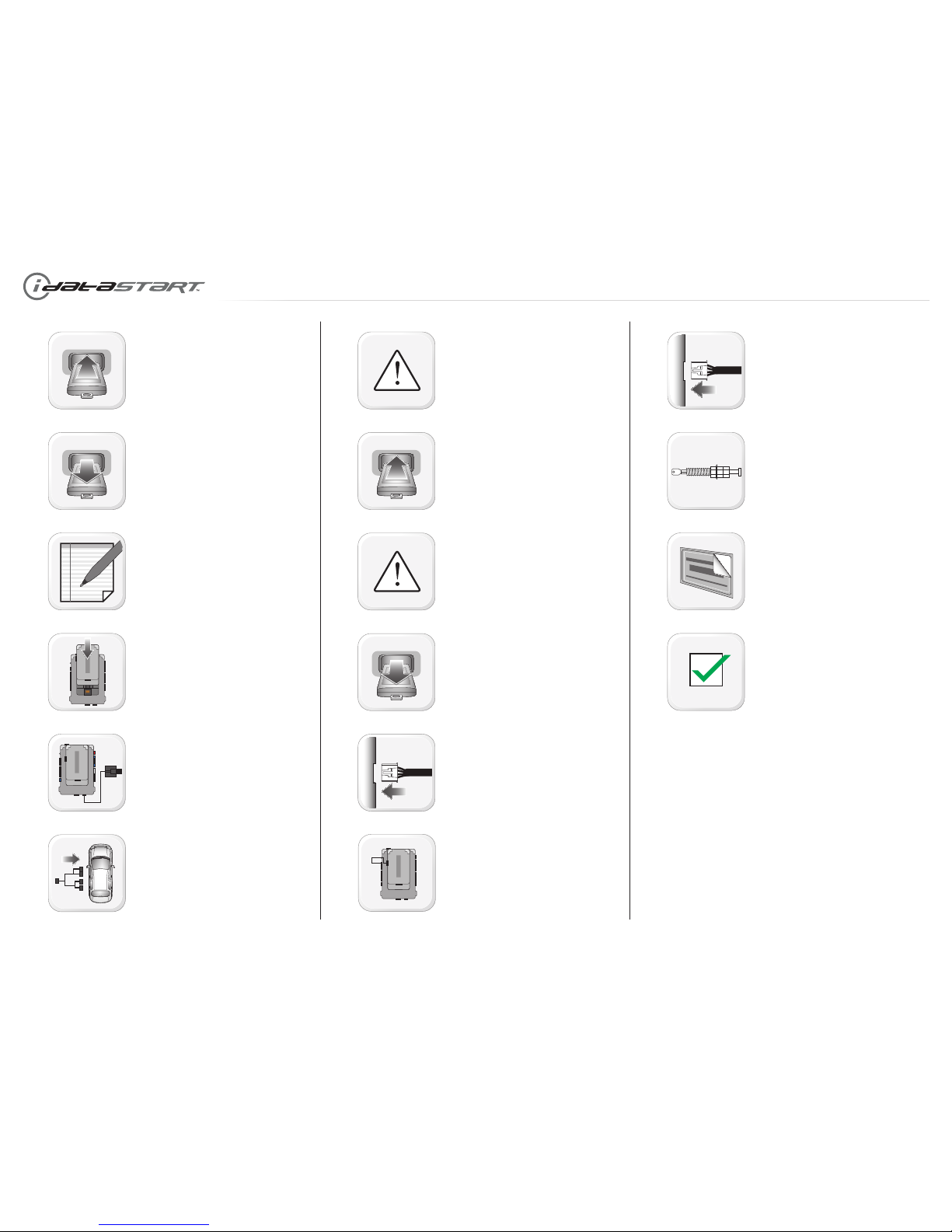

MODULE INSTALLATION PROCEDURE - 1 OF 1
START vehicle. Verify all vehicle
functionalities. If the vehicle displays error
messages or any malfunction: stop the
installation and service the vehicle.
Turn ignition to OFF position. Remove keyfob
from keyport.
Verify all keyfob functionalities (Door Lock,
Door Unlock, Trunk Release and Comfort
Access System if equipped).
Insert the expansion pack into module.
Connect the module to the computer with the
WEBLINK cable. Flash the module with the
latest firmware then flash the expansion pack.
Connect and secure every connector to the
vehicle, as shown in STEP 1 of the WIRING
DIAGRAM.
WARNING: Any vehicle harness that is
disconnected during installation, must be
re-connected before performing any system
tests. Failure to comply will result in vehicle
displaying error messages. An OEM scantool
will be required to clear the error messages.
START vehicle. Verify all vehicle
functionalities.
WARNING: If the vehicle displays error
messages or any malfunction, stop the
installation, verify every connection and if the
problem persists, call technical support.
Turn ignition to OFF position. Remove keyfob
from keyport.
Connect and secure every connector to the
module, as shown in STEP 2 of the WIRING
DIAGRAM.
Connect and secure every connector of the
expansion cable to the module, as shown in
STEP 3 of the WIRING DIAGRAM.
If required, connect an accessory as shown
in the COMPATIBLE ACCESSORIES section of
the guide.
If the vehicle is not equipped with a factory
hood switch, install an aftermarket hood
switch as shown in STEP 4 of the WIRING
DIAGRAM.
Put sticker 1 on a clean and visible surface
in the engine bay and put sticker 2 under the
dashboard near the OBDII connector.
Module installation procedure completed.
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 5 oF 18
• 20140807
DOC.: #15748

B1B1
C1C1
1
2
3
4
A1A1
CONNECT TO MODULE
STEP 3 CONNECT TO MODULE
STEP 4
TYPE 1 - WIRING DIAGRAM - 1 OF 1
BRAKE HARNESS
RELAY
RELAY
C2 HARNESS
B2 HARNESS
C1 CONNECTOR
B1 CONNECTOR
BRAKE SWITCH
CONNECT THE FOLLOWING TO THE VEHICLE
START THE VEHICLE WITH THE OEM KEYFOB
TO TEST THE CONNECTIONS
WHITE 18 PIN
WARNING: THE ADAPTER CABLE IS NOT REQUIRED
BLACK 4 PIN
BLACK 6 PIN
WARNING:
THESE CONNECTORS
HAVE TWO [2X] LOCKING
MECHANISMS.
INSERT THE CONNECTOR
IN ITS HOUSING AND
APPLY GENTLE PRESSURE
ON BOTH EXTREMITIES
TO SECURE THE
CONNECTION. (TWO AUDIBLE
CLICKS WILL BE HEARD.)
MODULE
BLACK 20 PIN
STEP 1
STEP 2
1-TO CONNECT THE MODULE: FOLLOW STEPS 1 TO 4
2-TO DISCONNECT THE MODULE: FOLLOW STEPS 4 TO 1
WARNING
07 GRAY/WHITE - HOOD STATUS (-) INPUT
08 GRAY/BLACK (NOT USED)
WHITE 10 PIN
IF NOT EQUIPPED
WITH AN OEM HOOD SWITCH,
INSTALL AN AFTERMARKET HOOD SWITCH
CONNECT IF REQUIRED
HOOD SWITCH
MINI: BEHIND INSTRUMENT PANEL, DRIVER SIDE
BMW: UNDER DASH, DRIVER SIDE
COMFORT ACCESS SYSTEM MODULE
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 6 oF 18
• 20140807
DOC.: #15748

TYPE 2 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
MINI
Countryman / ALL-4 PTS AT 11-14
12V X14261 ~ 51 pin 02 Red/Yellow (+) Driver kick panel ~
Ground X14261 ~ 51 pin 47 Brown or Brown/Black (-) Driver kick panel ~
CanH X14261 ~ 51 pin 46 Orange/Green (DATA) Driver kick panel ~
CanL X14261 ~ 51 pin 45 Green (DATA) Driver kick panel ~
Paceman PTS AT 13-14
12V X14261 ~ 51 pin 02 Red/Yellow (+) Driver kick panel ~
Ground X14261 ~ 51 pin 47 Brown or Brown/Black (-) Driver kick panel ~
CanH X14261 ~ 51 pin 46 Orange/Green (DATA) Driver kick panel ~
CanL X14261 ~ 51 pin 45 Green (DATA) Driver kick panel ~
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 7 oF 18
• 20140807
DOC.: #15748

1
2
3
4
A1A1
3
4
5
6
1
2
17
18
19
20
7
8
15
16
11
12
13
14
9
10
23
24
25
26
21
22
37
38
39
40
27
28
35
36
31
32
33
34
29
30
43
44
45
46
41
42
47
48
51
49
50
X14261
5 AMPS
2 31 4 5 6 7
8910 12 1311 14
X14261
CONNECT TO MODULE
STEP 2
CONNECT TO MODULE
STEP 3

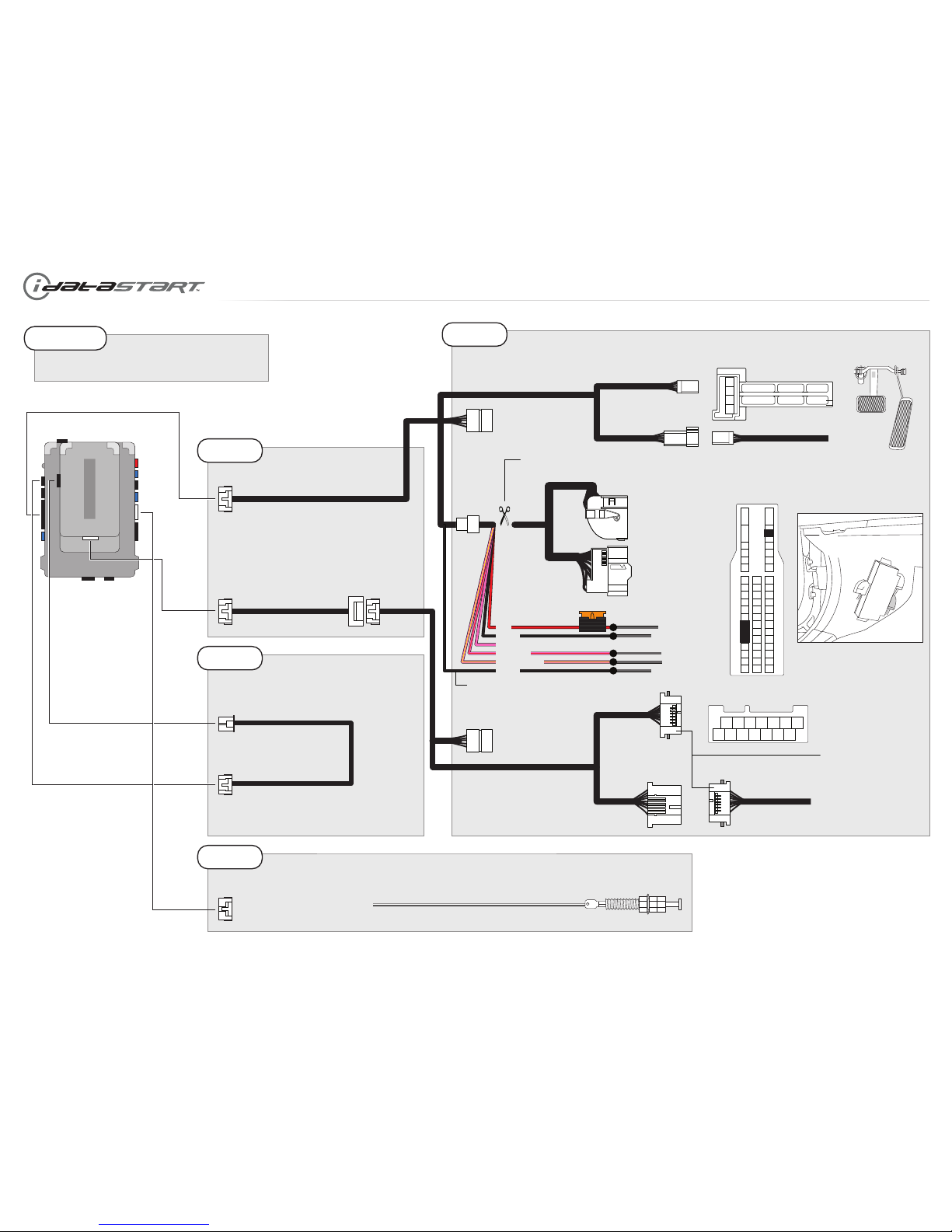

TYPE 2 - WIRING DIAGRAM - 1 OF 1
BRAKE HARNESS
RELAY
RELAY
KEYPORT HARNESS
BRAKE SWITCH
DRIVER KICK PANEL
CONNECT
IF WIRE
IS PRESENT
CONNECT THE FOLLOWING TO THE VEHICLE
START THE VEHICLE WITH THE OEM KEYFOB
TO TEST THE CONNECTIONS
CUT AND REMOVE CONNECTORS
FROM T-HARNESS
WHITE 18 PIN WHITE 18 PIN
ADAPTER CABLE
BLACK 4 PIN
BLACK 6 PIN
WARNING:
THESE CONNECTORS
HAVE TWO [2X] LOCKING
MECHANISMS.
INSERT THE CONNECTOR
IN ITS HOUSING AND
APPLY GENTLE PRESSURE
ON BOTH EXTREMITIES
TO SECURE THE
CONNECTION. (TWO AUDIBLE
CLICKS WILL BE HEARD.)
PINK (NOT USED)
RED
BLACK
PINK/YELLOW
PINK/RED
BLACK
GROUND - 47
GROUND - 47
CANH - 46
CANL - 45
12V (+) - 02
MODULE
BLACK 20 PIN
STEP 1
1-TO CONNECT THE MODULE: FOLLOW STEPS 1 TO 4
2-TO DISCONNECT THE MODULE: FOLLOW STEPS 4 TO 1
WARNING
07 GRAY/WHITE - HOOD STATUS (-) INPUT
08 GRAY/BLACK (NOT USED)
WHITE 10 PIN
IF NOT EQUIPPED
WITH AN OEM HOOD SWITCH,
INSTALL AN AFTERMARKET HOOD SWITCH
CONNECT IF REQUIRED
HOOD SWITCH
STEP 4
KEYPORT CONNECTOR
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 8 oF 18
• 20140807
DOC.: #15748

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15

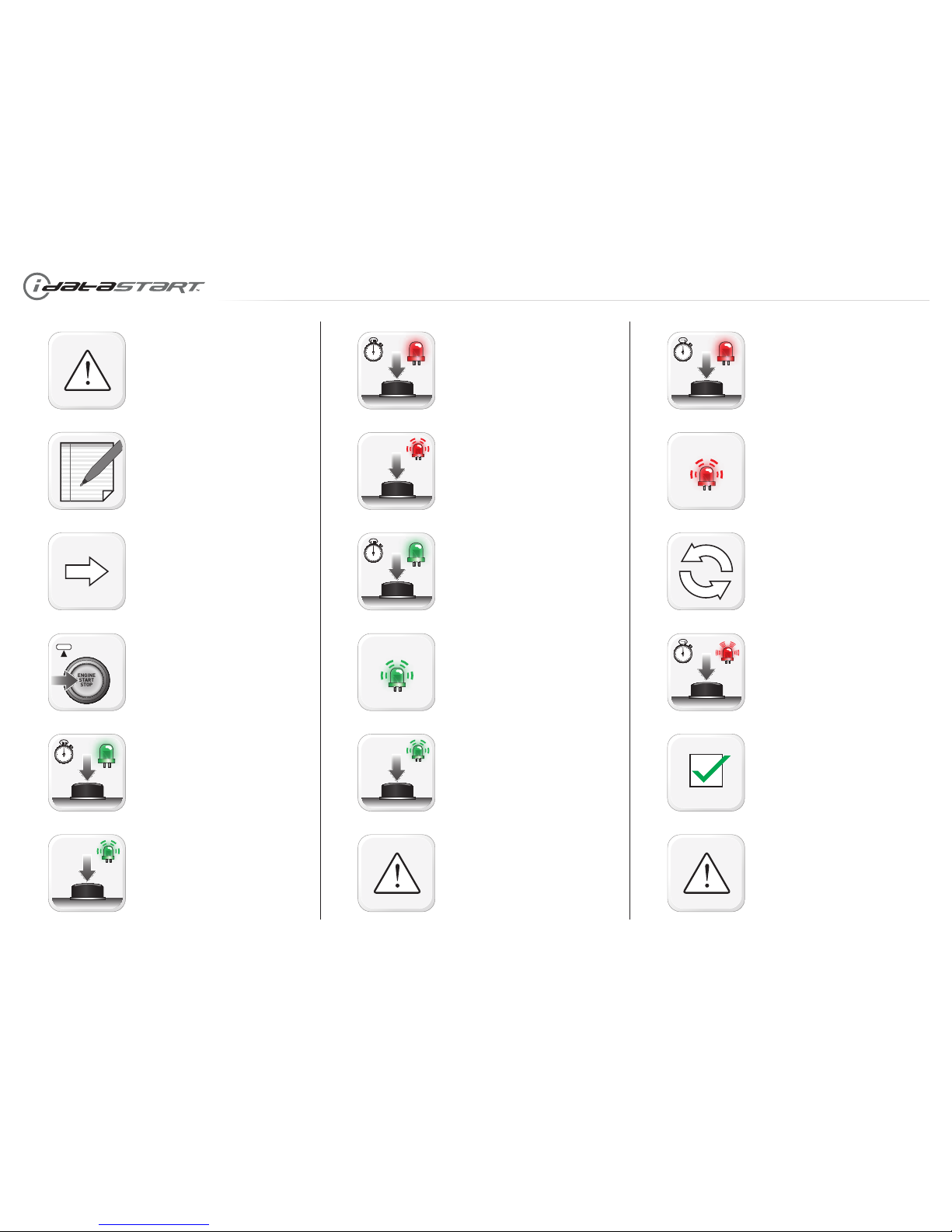

MODULE PROGRAMMING PROCEDURE - 1 OF 1
LED 1 is solid RED. Insert keyfob 1 into
keyport.
Within 10 seconds, LED 1 will flash GREEN
once (1x).
Remove keyfob 1 from keyport.
LED 1 will turn solid RED. Wait 5 seconds.
Insert keyfob 1 into keyport.
Within 10 seconds, LED 1 will flash GREEN
rapidly.
Remove keyfob 1 from keyport.
WARNING: Follow steps 4, 3, 2 as shown in the
wiring diagram to disconnect the module from
the vehicle.
Connect module to computer and proceed
with KLON programming.
WARNING: Follow steps 2, 3, 4 as shown in
the wiring diagram to connect the module to
the vehicle.
LED 1 will turn solid RED.
Insert keyfob 1 into keyport.
LED 1 will turn solid GREEN for 2 seconds.
Remove keyfob 1 from keyport.
Module Programming Procedure completed.
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 9 oF 18
• 20140807
DOC.: #15748

>>
01
02
03
ENGINE
START
STOP
STOP ACC ON START
ON
04
05
ENGINE
START
STOP
STOP ACC ON START
STOP
06
07
>>
VALET MODE PROGRAMMING PROCEDURE - 1 OF 1
NOTE: In Valet Mode, the Remote starter is not
functional. Keyless entry, Lock and Unlock will
remain functional. See RF kit user manual for
alternate valet mode programming.
Insert keyfob into keyport.
Time restriction. Complete next step within 5
seconds.
Cycle ignition ON five times [5x OFF/ON]
rapidly. Parking Light will flash once [1x].
Wait, Parking Light will flash once [1x] to
indicate that the valet mode is ON or twice [2x]
to indicate that the valet mode is OFF.
Turn ignition to STOP position.
Remove keyfob from keyport.
Valet Mode Programming Procedure
completed.
To exit valet mode: repeat steps 1 to 6.
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 10 oF 18
• 20140807
DOC.: #15748

>>
>>
>>
01
ENGINE
START
STOP
STOP ACC ON START
STOP
02
03 [X]
04
05 [Y]
06
07 [Z]
08 [Z]
09
10
11 [Y]
12
13
14
>>
MODULE NAVIGATION PROCEDURE - 1 OF 1
It is mandatory to exit the Module Navigation
at the end of this procedure. Failure to exit the
Module Navigation will drain vehicle battery.
To exit the Module Navigation at any time:
Follow STEP 13.
Module must be programmed to the vehicle.
Use the Module Navigation Chart on the next
page.
Set ignition to OFF position.
TO ACCESS THE MENUS: Press and hold
programming button until LED 1 turns solid
GREEN.
IN THE MENUS: Press the programming
button as many times as the menu number
indicates. LED 1 will flash GREEN an equal
amount of times continuously.
TO ACCESS THE OPTIONS: Press and hold
programming button until LED 1 turns solid
RED.
IN THE OPTIONS: Press the programming
button as many times as the option number
indicates. LED 1 will flash RED an equal
amount of times continuously.
TO ACCESS THE SETTINGS: Press and hold
programming button until LED 1 turns solid
GREEN.
LED 1 will flash GREEN as many times as
the current (or default) setting number,
continuously.
IN THE SETTINGS: Press the programming
button as many times as necessary to access
your setting. LED 1 will flash GREEN an equal
amount of times continuously.
To return to the MENUS: exit the Module
Navigation and redo the Module Navigation
Procedure.
To save and return to the OPTIONS: Press and
hold programming button until LED 1 turns
solid RED.
LED 1 will flash RED as many times as the
current option number continuously.
Configure every other setting and proceed to
step 13.
MANDATORY: EXIT MODULE NAVIGATION.
Press and hold programming button for 7
seconds. LED 1 will flash RED rapidly. Release
programming button. LED 1 will turn OFF.
Module navigation completed.
Failure to exit the Module Navigation will drain
vehicle battery.
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 11 oF 18
• 20140807
DOC.: #15748

moDuLe navigation chaRt - 1 OF 1
moDuLe navigation chaRt:
notes
[X] menus [Y] oPtions [Z] settings
I Default settings are listed in bold.
01 CONFIGURATION
01 DISARM/UNLOCK BEFORE START 01 oFF
II Make sure the option is covered on the vehicle before
attempting to change the setting.
02 ON
02 RELOCK AFTER START 01 oFF
02 ON
03 RELOCK AFTER SHUTDOWN 01 oFF
02 ON
04 FORCE UNLOCK ALL ON FIRST PRESS 01 oFF
02 ON
05 TAKEOVER 01 enabLe
02 DISABLE*
06 SECURE TAKEOVER DELAY
01 45 sec
02 90 SEC
03 03 MIN
04 04 MIN
07 FACTORY KEYLESS RS SEQUENCE
01 DISABLE
02 N/A
03 LOCK + UNLOCK + LOCK
04 LocK + LocK + LocK
08 MODULE RUN TIME
01 03 MIN
02 05 MIN
03 10 MIN
04 15 MIN
05 25 MIN
06 30 MIN
07 35 MIN
08 15 min
09 WAIT TO START DELAY
01 02 sec
02 05 SEC
03 08 SEC
04 10 SEC
05 15 SEC
06 20 SEC
07 25 SEC
08 30 SEC
10-15 N/A 01 N/A
02-07 Technical Support only 01 N/A 01 N/A
*Vehicle will shutdown when a door is opened.
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 12 oF 18
• 20140807
DOC.: #15748

Remote staRteR eRRoR coDes - 1 OF 1
Remote staRteR eRRoR coDes:
notes
[X] numbeR oF PaRKing Light FLashes Diagnostic
I WARNING: The following applies only when the parking
lights are connected and supported by the system.
03 Foot brake is ON.
04 Hood is open.
II After a remote starter failure, the parking lights will fl ash
[X] number times to indicate an error code. See table.
05 Engine tach signal is lost.
06 System is in Valet Mode.
07 Vehicle is moving (VSS).
08 Glow plug timeout error.
09 RS not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence.
10 N/A
11 N/A
12 N/A
13 N/A
14 N/A
15 N/A
16 CAN communication failure during RS sequence.
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 13 oF 18
• 20140807
DOC.: #15748

moDuLe Diagnostics - 1 OF 1
test moDuLe
LeD 1 status Diagnostic
I DURING PROGRAMMING
Flashing RED Missing/wrong information from firmware or vehicle.
Solid RED Module waiting for more vehicle information.
Flashing GREEN Additional steps required to complete module programming.
Solid GREEN then OFF Module correctly programmed.
OFF No activity or module already programmed.
II DURING REMOTE START
Flashing RED Module incorrectly programmed.
Solid RED Module incorrectly programmed.
Flashing GREEN Module correctly programmed and operational.
Solid GREEN then OFF Reset in progress.
OFF Invalid ground when running status from remote starter.
III WITH IGNITION OFF
Flashing RED Module incorrectly programmed or connected.
Solid RED Module not programmed. Waiting for more vehicle information.
Flashing GREEN False ground when running status from remote starter.
Solid GREEN then OFF Reset in progress.
OFF Module at rest and ready for a remote start sequence.
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 14 oF 18
• 20140807
DOC.: #15748

01
02
03
04
05
06
07
08
>>
MODULE RESET PROCEDURE - 1 OF 1
Disconnect all connectors from module except
the BLACK 20-PIN connector.
Disconnect the BLACK 20-PIN connector.
PRESS AND HOLD programming button while
connecting the BLACK 20-PIN connector.
Wait, LED 1 will flash RED. RELEASE
programming button.
LED 1 will turn RED for 2 seconds.
Module RESET completed.
Reconnect all connectors.
Repeat programming procedure.
Failure to follow procedure may result with a
DTC or a CHECK ENGINE error message.
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 15 oF 18
• 20140807
DOC.: #15748

>>
01
02
03
04
05
06
>>

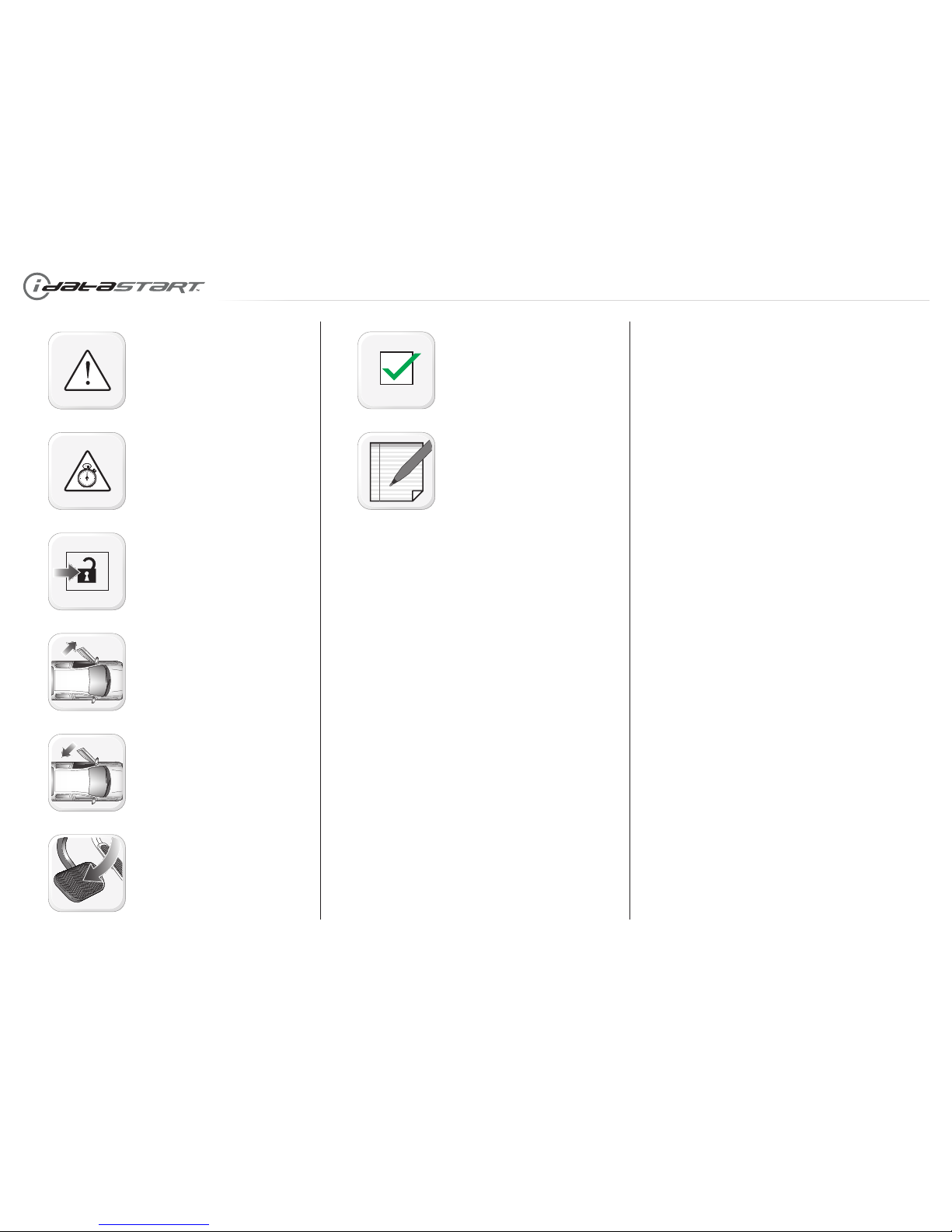

TAKEOVER PROCEDURE - 1 OF 1
All vehicle doors must be closed and locked
prior to remote start sequence.
Time restriction. Complete steps 2 to 5 within
45 seconds.
Unlock driver door.
Open driver door and enter vehicle.
Close driver door.
Press and release BRAKE pedal.
Take over procedure completed.
Failure to follow procedure will result in
vehicle engine shutdown.
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 16 oF 18
• 20140807
DOC.: #15748

instaLLation checKList - 1 OF 2
checKList
01 WARNING: Vehicle engine will start many times. Test in a well ventillated area.
02 Open driver door window for easy vehicle access.
03 Close all vehicle doors, hood and trunk.
04 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.
Question 1: Does the vehicle remote start?
¨
¨
YES: Go to step 5.
NO: The module doesn't detect OEM remote lock button from the vehicle communication network. Check all connection, repeat step 4 and call technical support if the problem persist.
05 Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle.
Question 2: Does the vehicle shut down?
¨
¨
YES: Go to step 6.
NO: Repeat step 5. If problem persists, push vehicle start button once [1x] to shut down the vehicle and call technical support.
06 Unlock and open driver door.
07 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.
Question 3: Does the vehicle remote start?
¨
¨
YES: The module does NOT detect the door signal from the vehicle communication network. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle and call technical support.
NO: Go to step 8.
08 Open hood.
Question 4: Is the orange warning sticker "Sticker 1" placed under the hood?
¨
¨
YES: Leave hood open and go to step 9.
NO: Put the mandatory orange warning sticker "Sticker 1", leave hood open and go to step 9.
09 Close all doors.
10 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.
Question 5: Does the vehicle remote start?
¨
¨
YES: Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle. Go to Question 6.
NO: Go to step 11.
Question 6: Is the vehicle equipped with a factory hood switch? (Inside hood latch)
¨
¨
YES: The module does NOT detect the hood signal from the vehicle communication network. Call technical support.
NO: Install the mandatory hood switch included in the kit. Repeat installation checklist.
11 Close hood.
12 Enter vehicle. Do NOT press brake pedal.
13 Close all doors.
14 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.
15 Wait for the vehicle to start.
16 Press brake pedal.
Question 7: Does the vehicle shut down?
¨
¨
YES: Go to step 17.
NO: The module does NOT detect the brake pedal signal from the vehicle communication network. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle and call technical
support.
17 Apply parking brake.
18 Exit vehicle.
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 17 oF 18
• 20140807
DOC.: #15748

instaLLation checKList - 2 OF 2
checKList
19 Close all doors.
20 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.
21 Wait for the vehicle to start.
Question 8: Is the vehicle equipped with Comfort Access System ?
¨
¨
YES: For 1, 5, 6, X5, X6: Touch exterior driver door handle to unlock door using Comfort Access System. Within 45 seconds, go to step 22.
YES: For 3, X1, Z4, Mini: Press UNLOCK button once [1x] on the OEM keyfob. Within 45 seconds, go to step 22.
NO: Press UNLOCK button once [1x] on the OEM keyfob. Within 45 seconds, go to step 22.
22 Open driver door.
Question 9: Does the vehicle shut down?
¨
¨
YES: For Z4, X5, X6: Go to step 25.
YES: For 1, 3, 5, 6, X1: The module does NOT detect the parking brake signal or the unlock signal from the vehicle communication network. Call technical support.
NO: For Z4, X5, X6: The module does NOT detect the parking brake signal correctly from the vehicle communication network. Call technical support.
NO: For 1, 3, 5, 6, X1: Go to step 23.
23 Press and release brake pedal.
24 Push vehicle start button once [1x] to shut down the vehicle.
25 Installation checklist completed.
www.idatastart.comAutomotive Data Solutions Inc. © 2014 OEMIDSRSBM1ADSBM1EN
Page 18 oF 18
• 20140807
DOC.: #15748
