VANDAL RESISTANT

BACK-LIT WEATHERPROOF

RFID ACCESS CONTROL KEYPAD

DK-2882

Programming & Installation Manual

FOR ELECTRIC LOCK, INTER-LOCK

AND SECURITY SYSTEM INSTALLATIONS

TABLE OF CONTENTS

INTRODUCTION

FEATURES

SPECIFICATIONS

INSTALLATION

Precautions

Package Contents

CONNECTION TERMINALS

The On-Board LED Indicators

The Pacifier Tones & The LED Signals

The Jumper for Back-Lit Selection

FEATURE PROGRAMMING & OPERATION INSTRUCTIONS

Set System in Programming Mode with The Master Code

Direct Access to Programming Mode with The “Dap” Code – 8 0 8 0

Refresh The System with The “Refreshing Code” --- 9 9 9 9

The Default Values of The Keypad

KEYPAD PROGRAMMING MAKE SIMPLE – For General Users

FEATURE PROGRAMMING -- KEY IN AND STORE THE DESIRED VALUES

Programming Criteria for Codes

Record A Master Code

Record A Super User PIN

Operation And Functions of The Super User PIN

Record The Common User PINs for Output 1, 2 & 3

Record-Delete PINs or Cards for Output 1, 2, & 3

Examples – Programming And Operation

Visitor Codes (For Output 1 Only)

Duress Codes (For Outputs 1, 2 & 3)

The Operation And Function of The Duress Code

Configuration of The Output Modes for Output 1, 2 And 3

Personal Safety And System Lock-Out

User PIN Entry Mode

Pacifier Tones On-Off Selection

Output Operation Announcer

Status LED Flashing On-Off in Standby

Door Forced Open Warning & Timing

Door Propped-Up Warning & The Delay Time

Intelligent Egress Button – An Unique Feature of A Contemporary Keypad

Where And Why “Going Out” Needs Attention

Egress Delay , Warning And Alarm

Configurations of The Egress Warning And Alarm

........................................................................................4

.............................................................................................4

........................................................................................5

..........................................................................................6

.........................................................................................6

................................................................................7

............................................................................9

.....................................................................9

.......................................................................9

.....................................................1 0

....................................................1 0

..........................................1 0

.................................................1 1

.......................................................................1 1

.................................................1 2

........................................1 4

.........................................................................1 4

.................................................................................1 5

...............................................................................1 6

..........................................................1 6

.........................................................1 6

..........................................................1 7

...............................................................1 8

........................................................................2 0

.....................................................................2 1

.........................................................2 2

....................................................2 3

....................................................................2 3

..................................................................................2 4

..........................................................................2 4

............................................................................2 4

....................................................................2 5

.....................................................................2 5

..............................................................2 5

.......................................2 6

...........................................................2 6

.......................................................................2 7

........................................................2 7

APPENDIX

DRY CONTACT

A dry contact means that no electricity is connected to it. It is prepared for free connections. The Relay Output

contacts provided in this keypad system are dry contacts.

N.C.

Normally Closed, the contact is closed circuit at normal status. It is open circuit when active.

N.O.

Normally Open, the contact is open circuit at normal status. It is closed circuit when active.

TRANSISTOR OPEN COLLECTOR OUTPUT

An open collector output is equivalent to a Normally Open (N.O.) contact referring to ground similar to a relay

contact referring to ground. The transistor is normally OFF, and its output switches to ground (

) when active.

The open collector can only provide switching function for small power but it is usually good enough for

controlling of an alarm system. The Duress, Inter-lock and Key Active/Alarm Outputs of the keypad are open

collector outputs.

OPEN COLLECTOR

OUTPUT ----

Output switches to

ground when activates

N.O. CONTACT

OUTPUT ----

Output switches to

ground when activates

EQUIVALENT

Use the Normally Open (N.O.) output contact to shunt a Normally Closed (N.C.) protection zone of an alarm

system.

Set output contact to Start / Stop Mode (Programming Option 52, Output Mode=0).

Use the (N.O.) or (N.C.) output contact to make arm-disarm control of an alarm system.

Consult your alarm control panel manual for the appropriate output contact to be used in arm-disarm control.

Usually set output 2 to Momentary mode (Programming Option 521, Location 52, Output Mode=1) for multi

station systems and Start / Stop mode (Programming Option 520, Location 52, Output Mode=0) for single

station systems.

(F) OUTPUT 2

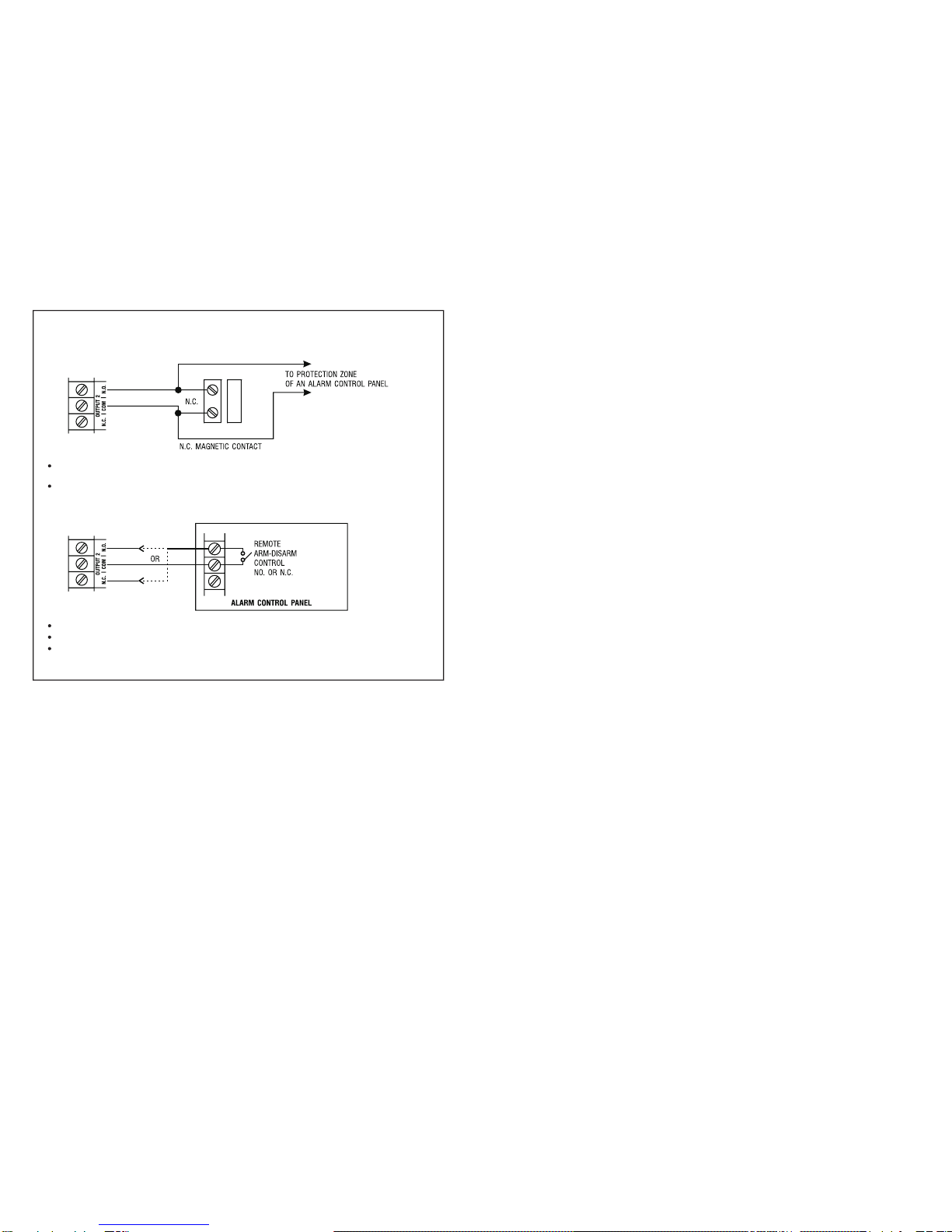

( i ) Shunting an N.C. Zone

( ii ) Alarm System Arm-Disarm Control

Door Opening Alarm & Timer

Close The Programming Mode

THE WIRE HARNESS FOR “WIEGAND DATA OUTPUT” & “APO DATA I/O”

Split-decoded Keypad System

The Wire Harness

Set The Wiegand Output for Keypad or Reader Mode ------ 9 4 0 Or 9 4 1

Wiegand Output at Keypad Operation Mode

Wiegand Code Format for The PIN/Code Reading ------ 9 5 0 Or 9 5 1

Wiegand Output Code Format

THE 26 BIT WIEGAND DATA OUTPUT READING FROM THE EM CARDS

Diagram of The Wiegand Protocol Timing and Its Electrical Manner

Example 1: Wiegand Output of Reading An EM Card

THE 34 BIT WIEGAND DATA OUTPUT READING FROM THE USER PINS

Example 2 : Wiegand Output in Binary Code from PIN / Code Entry

Example 3 : Wiegand Output in BCD Code from PIN / Code Entry

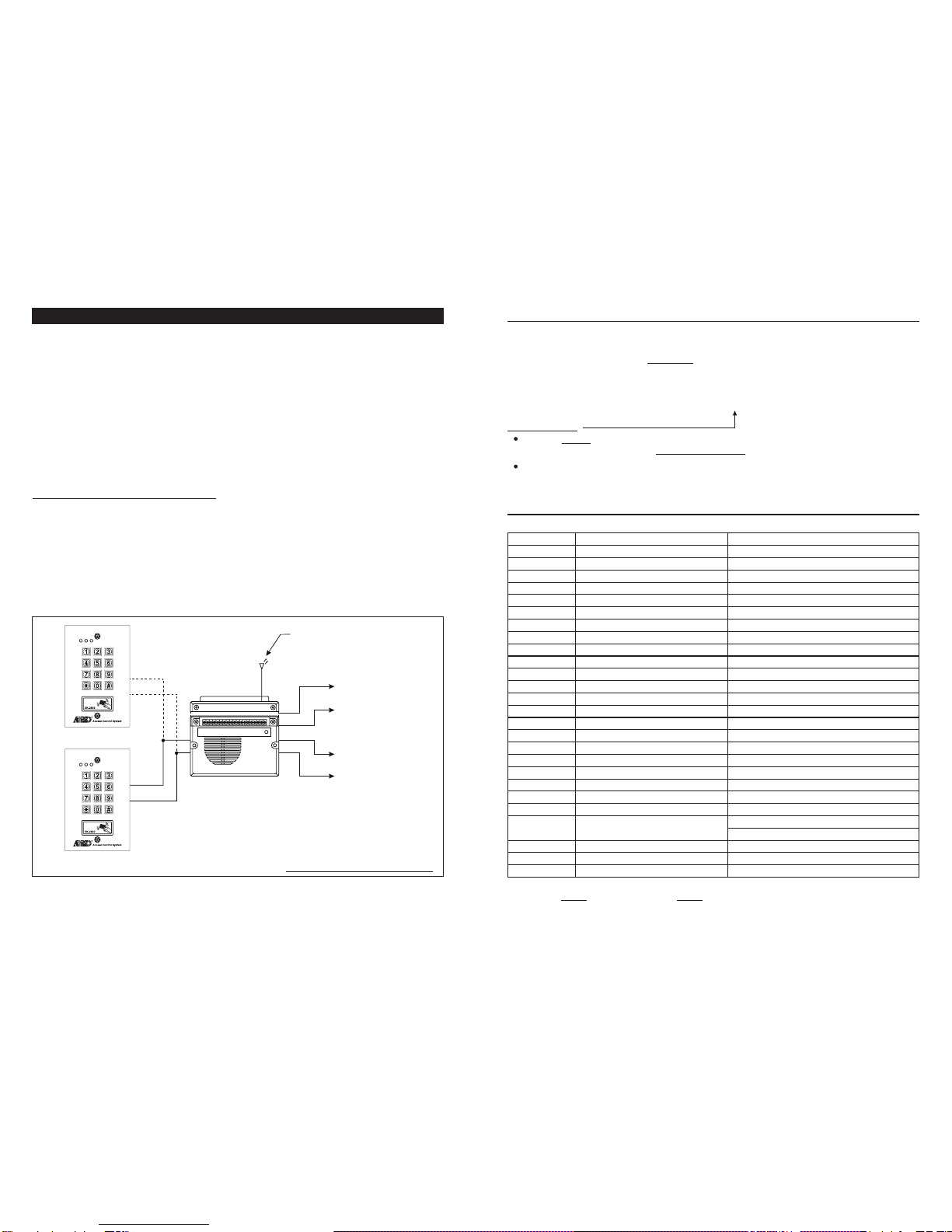

THE APO DATA I/O PORT -- FOR SETTING UP A SPLIT-DECODED KEYPAD

The Optional DA-2800 Controller --- Introduction

PROGRAMMING SUMMARY CHART

APPLICATION EXAMPLES

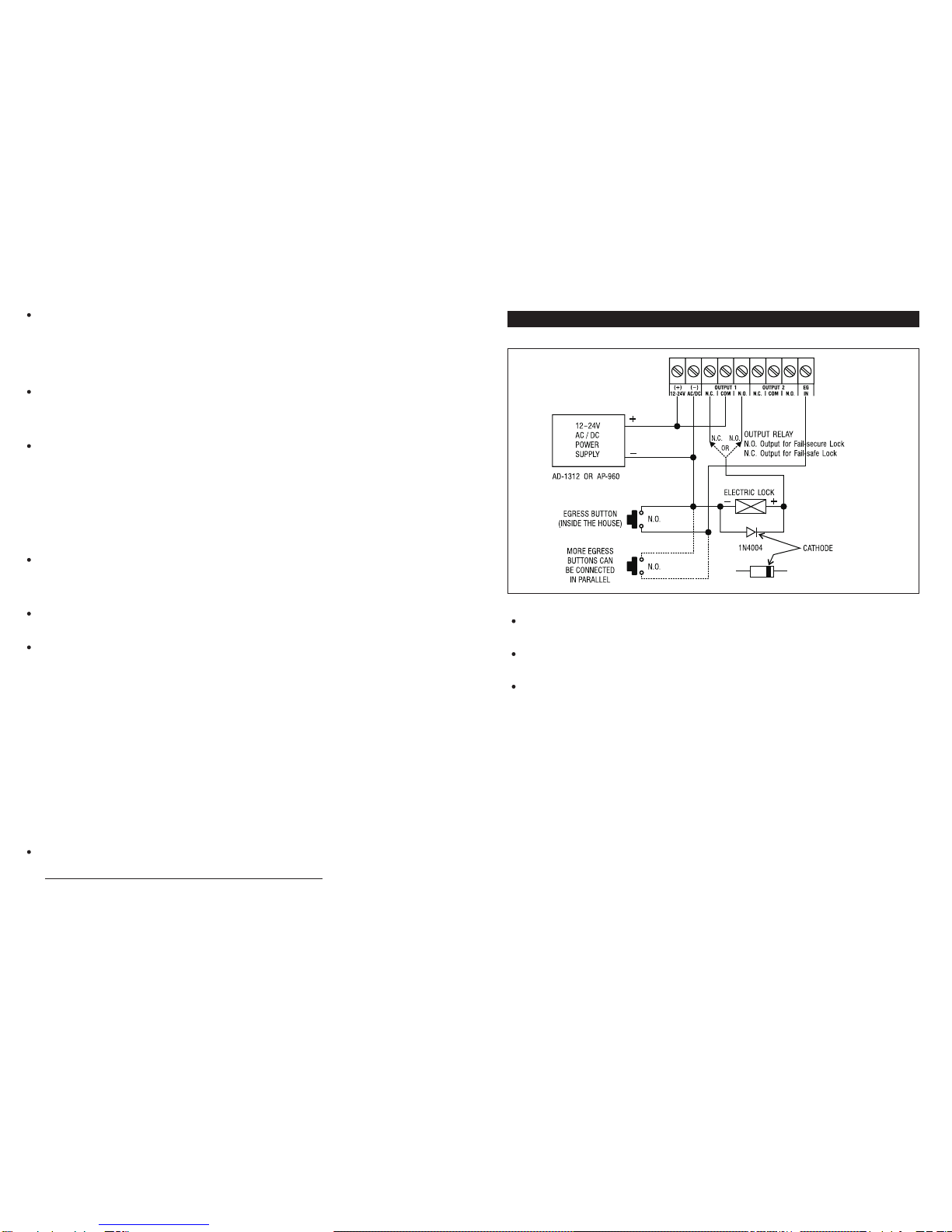

Basic Wirings of A Stand Alone Door Lock

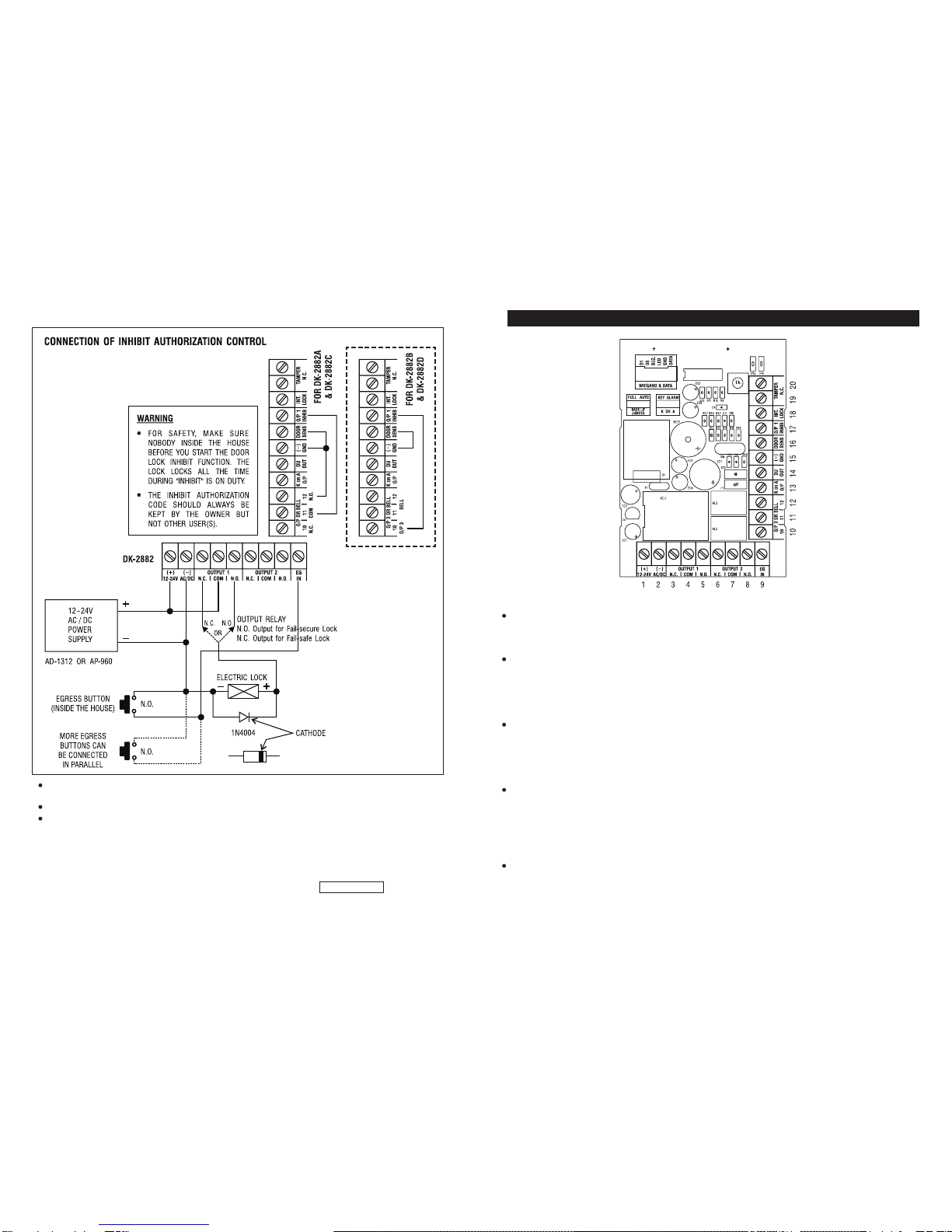

Basic Wirings of A Stand Alone Door Lock with Inhibit Authorization Code

Basic Wirings of An Inter-Lock System Using Two Keypads

APPLICATION HINTS FOR THE AUXILIARY TERMINALS

APPENDIX

............................................................................2 8

...........................................................................2 8

........................................2 9

...........................................................................2 9

.....................................................................................2 9

......................................3 0

.............................................................3 0

.........................................3 0

.........................................................................3 0

...........................................3 1

............................................3 1

........................................................3 2

..........................................3 2

............................................3 2

.............................................3 3

.......................................3 4

...........................................................3 4

............................................................................35

................................................................................3 7

................................................................3 7

......................................3 8

..................................................3 9

.......................................................4 0

.............................................................................................4 3

INTRODUCTION

The DK-2882 line of keypads is a self-contained three relay outputs, vandal resistant and weatherproof keypad. It

combines the functions of digital keypad and proximity EM card reader in one unit.

The DK-2882 can work independently as a stand alone keypad or works together with an optional “APO controller” to

form a high security split-decoded keypad system. It is also a card reader providing of 26 bits Wiegand data output

from reading of an EM Card and 34 bits data output from the entry of an PIN/code. The Wiegand data can be used by

consultants and end users when setting product design or system installation criteria.

The DK-2882 comes with plenty of functions for owner’s selection via programming. Owners can take them freely to

tailor the desired features for their system.

DK-2882 is an ideal keypad mainly for Door Strike and Alarm Arm-disarm control. It is also a programmable industrial

timer (with the timing of 1 second to over 24 hours) for Automatic Operator systems.

The DK-2882 line of keypads has four versions. Version A and B are designed for surface mounting on wall or fitting on

a standard gooseneck post. The C and D are the flush mount versions. They are designed to flush mount on solid wall

or hollow wooden wall with its back box.

DK-2882A – Output Relays for Output 1, 2 and 3 (Surface / Gooseneck Mount Version)

DK-2882B – Output Relays for Output 1, 2 and Door Bell (Surface / Gooseneck Mount Version)

DK-2882C – Output Relays for Output 1, 2 and 3 (Flush Mount Version)

DK-2882D – Output Relays for Output 1, 2 and Door Bell (Flush Mount Version)

FEATURES

A member of the Tri-Tech series keypads compatible with the optional APO Access Controller

Indoor or outdoor installation

Stand Alone or Inter-lock system built-in with all the required control logics

Controls “Going in” with PIN and/or Card; and “Going out” with programmable egress button

Durable steel housing for surface or gooseneck mounting (DK-2882A / DK-2882B)

Plastic back box for flush mounting on solid or hollow wooden wall (DK-2882C / DK-2882D)

Built-in Tamper Switch

Heavy duty 1.5mm stainless steel faceplate

Die-casting metal back-lit keyboard with dual brightness levels

Vandal resistant and weatherproof (IP-66)

Data I/O port for Up-grading the system to Split-decoded operation with the optional “APO Controller”

26 bit standard Wiegand data output on reading of EM cards

34 bit Wiegand data output in BCD or Binary on PIN / code entry

Three outputs controlled by independent groups of codes / PINs / Cards

Programmable Timers for Door Strike, Alarm Arm-disarm Control or Industrial Automatic Operators

The Alarm Output switches to (

) ground in door forced to open or the door open after Egress Delay. You may

use it to turn ON an LED lamp and/ or a small buzzer to notify a guard; or connect it to a 24 hour Normally

Open protection zone of an alarm system. See Location 80 and Location 91 for more information about these

functions.

The Duress Output switches to (

) ground when duress code is entered. You may use it to turn ON an LED

lamp and/ or a small buzzer to notify a guard; or connect it to a 24 hour Normally Open protection zone of an

alarm system.

Only one connection option is recommended. Make sure that the sink current does not exceed the maximum

rating of 100mA.

Only one connection option is recommended. Make sure that the sink current does not exceed the maximum

rating of 100mA.

(D) ALARM OUTPUT -- SET THE "K OR A" JUMPER TO "A"

(E) DURESS OUTPUT

APPLICATION HINTS FOR THE AUXILIARY TERMINALS

The Key Active Output switches to (

) ground for 10

seconds whenever a key is touched. You may use

it to turn ON an LED lamp and /or a small buzzer to

notify a guard; or to energize a relay to switch ON

lights or trigger an CCTV Camera to start recording.

Make sure that the relay for switching ON lights

has high enough isolation between high voltage

and low voltage to prevent damage of the keypad.

Only one connection option is recommended. Make

sure the sink current does not exceed the maximum

rating of 100mA.

External power supply and isolation relay are strictly

necessary in driving high power device, such as

lights.

The tamper switch is Normally Closed while the keypad

is secured on gang box. It is open when the keypad

is removed from the gang box. To prevent sabotage,

connect these terminals in series with a 24 hour N.C.

protection zone of an alarm system if required.

With the help of a Normally Closed door

position sensor (usually a magnetic door

switch) on the door to set up the following

functions:

Door Auto Relock -- The system will immediately

relock the door after a valid access has been gained to

prevent "tailgate" entries.

Door Forced-open Alarm -- The keypad will generate

alarm instantly if the door is forced to open. Enable the

function at Location 80.

Door Propped-up Alarm -- The keypad will generate

alarm if the door is left open longer than the pre-set

delay time. Enable the function at Location 81.

Inter-lock Control -- When the door is open, the

interlock output of the keypad will give a (

) command

to stop the other keypad in an inter-lock system.

(A) TAMPER N.C.

(B) DOOR SENS

(a) (b)

SPECIFICATIONS

Operating Voltage:

12V-24V AC/DC, No jumper selection is required for the full voltage range

Operating Current:

65mA (quiescent) to 100mA (three relays active)

Environmental Temperature:

-30 C to +70 C

Environmental Humidity:

5-95% relative humidity non-condensing

Working Environment:

All weather, IP-66

Number of Users:

Output 1 – 1,000 (PIN and/or Cards) + 50 Duress Codes

Output 2 – 100 (PIN and/or Cards) + 10 Duress Codes

Output 3 – 100 (PIN and/or Cards) + 10 Duress Codes

Proximity Card:

Standard EM Card or Keyfob, 125Khz

Number of Visitor Codes:

50, for Output 1 only (programmable for one time or with the time limited)

Timings for Code Entry and Card Reading:

10 seconds waiting for next digit entry

30 seconds waiting for code entry after card reading

The Timers:

Three 1-99,999 Seconds (Over 24 Hours possible) Independent Programmable Timers for O/P 1, 2 & 3

Egress Button:

Programmable for Instant, Delay with Warning and/or Alarm

Momentary or Holding Contact for the Exit Delay

Input Sensing Terminals:

a) Door position, b) Egress, c) O/P 1 inhibit

Output Control Terminals:

Transistor Open Collector 24VDC/100mA sink Max for the following outputs

a) Duress, b) Alarm, c) Key Active, d) Output 3 (Door Bell version only), e) Inter-lock

Output Contact Ratings:

Output Relay 1 – N.C. & N.O. dry contacts, 5A/24VDC Max.

Output Relay 2 – N.C. & N.O. dry contacts, 1A/24VDC Max.

Output Relay 3 – N.C. & N.O. dry contacts, 1A/24VDC Max. (N.O. contact only for Door Bell version)

Tamper Switch – N.C. dry contact, 50mA/24VDC Max.

Dimensions:

DK-2882A / DK-2882B – 156(H) X 103(W) X 50/70(D)mm

DK-2882C / DK-2882D – 151(H) X 97.5(W) X 42(D)mm

Weight:

DK-2882A / DK-2882B – 1.03Kg net

DK-2882C / DK-2882D – 460g net

Housing:

DK-2882A / DK-2882B – Anodized steel, powder paint coating outer box & plastic inner box

DK-2882C / DK-2882D – Plastic back box

Faceplate Material:

1.5mm stainless steel

Specifications are subject to change for modification without notice

INSTALLATION

DK-2882A / DK-2882B -- Surface Mount Version DK-2882C / DK-2882D -- Flush Mount Version

PRECAUTIONS

1) Prevent Interference:

The EM Card reader is working at the frequency of 125Khz. Installation precautions are necessary.

i) Make sure the location for installation has no strong low frequency electro-magnetic wave signals. Especially in

the range of 100-200Khz

ii) If there is more than one keypads with the same operation frequency installed closely in the same

location, make sure that they are at least 30-60cm (1-2ft) apart from each other to prevention interference.

2) Prevent Accidental Short Circuit:

In the previous experience, most of the damages to the keypad are in the installation due to accidental touching of the

components on circuit board with the wires carrying power. Please be patient and also study the manual to become

familiar with the specifications of the system before starting the installations.

i) Do not apply power to the system while it is in installation.

ii) Check carefully all the wirings are correct before applying power to the system for testing.

PACKAGE CONTENTS

• One DK-2882 Keypad

• Two EM cards

• One pack of Mounting Screws

• One Centre Pin Torx Screw Wrench

• One Wire Harness ( SIx wires)

• One Programming & Installation Manual

Plastic back boxPlastic inner boxSteel Box FaceplateFaceplate

An inter-lock system needs two door controllers. This application example uses two DK-2882 with simple cross wire

connection on their "Output 1 Inhibit" and "Inter-lock Control Output" terminals. It is necessary to

link up the "(

) GND" terminals of the two keypads as common ground to achieve the inter-lock logical functions.

Use keypad to open the door from outside

Press egress button to open the door from inside

Connect the door magnetic sensors on the doors to monitor their positions

While door 1 is open, then, door 2 is forced to keep close, or vice versa

Use N.O. Relay output for fail-secure lock; and N.C. output for fail-safe lock

Please also see the "NOTE" stated in the Application Example (1)

3) BASIC WIRINGS OF AN INTER-LOCK SYSTEM USING TWO KEYPADS

2) BASIC WIRINGS OF A STAND ALONE DOOR LOCK WITH INHIBIT AUTHORIZATION CODE

Use output 3 as authorization control. The owner may key in the user code 3 to stop the operation of the electric

lock in the night time or after office hour to prevent unauthorized access.

Set output 3 in Start / Stop mode (Programming Location 53 Output Mode =0) for ON-OFF control.

Simply connect the "output 1 inhibit" (O/P 1 INHIB) terminal with output 3 as like the wiring diagram shown. User

code 1 is invalid while the "O/P 1 INHIB" terminal is shunted to ground with user code 3.

NOTE:

1) The Inhibit Authorization Control in this example is made up with hardware connection of Output 3 to the “Output

1 Inhibit” terminal. It gives inhibit function to all User PINs and Cards and the Egress Button for Output 1 with the

User PIN 3.

2) A software Inhibit function is also available in the keypad. It is made up with the .

The Inhibit function in this way gives to all User PINs and Cards for Output 1 only but not to the Egress Button.

Please see Location 02 for the details.

SUPER USER PIN # 21

CONNECTION TERMINALS

1 - 2 : 12-24V AC/DC (Power Input Terminal)

Connect to 12-24V AC or DC power supply. The (

) supply and the (

) GND are the common grounding points of the

system. The system accepts full input voltage range and no jumper selection is required.

3 - 4 - 5 : OUTPUT 1 (Output Relay 1)

5 Amp relay dry contact controlled by the group of PINs or Cards for Output 1, recommended for door strike. Terminal 3

is Normally Closed (N.C.), terminal 5 is Normally Open (N.O.) and terminal 4 is the common point of the two contacts.

Use N.C. output for Fail-safe locking device; and N.O. output for Fail-secure locking device. The relay is programmable

for Start/Stop (toggle) mode or Momentary timing mode. See programming Location 51 for the details.

6 - 7 - 8 : OUTPUT 2 (Output Relay 2)

1 Amp relay dry contact controlled by the group of PINs or Cards for Output 2, it is an auxiliary output ideally for

controlling security system or automatic operator. Terminal 6 is Normally Closed (N.C.), terminal 8 is Normally Open

(N.O.) and terminal 7 is the common point of the two contacts. The relay is programmable for Start/Stop (toggle) mode

or Momentary timing mode. See programming Location 52 for the details.

9 : EG IN ( Egress Input)

A Normally Open (N.O.) input terminal referring to (

) ground. With the help of connecting a normally opened button to

activate Output 1 for door opening in the same manner of using the group of User PINs or Cards.

Egress button is usually put inside the house near the door. More than one egress buttons can be connected in parallel

to this terminal. Leave this terminal open if not used.

See Programming Locations 90 and 91 for more information about the Egress Button with other features.

For DK-2882A & DK-2882C Only* 10 - 11 - 12 : OUTPUT 3 (Output Relay 3)

1 Amp relay dry contact controlled by the group of PINs or Cards for Output 3 in the version “A” & “C” keypads, it

is an auxiliary output ideally for controlling security system or automatic operator. Terminal 10 is Normally Closed

(N.C.), terminal 12 is Normally Open (N.O.) and terminal 11 is the common point of the two contacts. The relay is

programmable for Start/Stop (toggle) mode or Momentary timing mode. See programming Location 53 for the details.

For DK-2882B & DK-2882D Only* 10 : OUTPUT 3 (NPN Transistor Open Collector Output)

An NPN transistor open collector output is for the version “B” & “D” keypads, which is controlled by the group of PINs

or Cards for Output 3. It has the maximum power rating of 24VDC/100mA sink. It is equivalent to an N.O. (Normally

Open) terminal referring to ground. It can be used to drive small power device, such as a relay or a low power control

point of other equipment. This output point is programmable for Start/Stop (toggle) mode or Momentary timing mode.

See programming Location 53 for the details.

For DK-2882B & DK-2882D Only* 11 - 12 : DOOR BELL (Output Relay Contact for Door Bell)

Door Bell output is for the version “B” & “D” only. It is a Normally Open (N.O.) relay dry contact with maximum rating of

24VDC/1Amp. It is prepared as a triggering contact of a low voltage door chime. The contact point keeps close as long

as the bell button on the keypad is pressed.

13 : “K” OR “A” O/P (Keypad Active Output or Alarm Output)

An NPN transistor open collector output with the maximum power rating of 24VDC/100mA sink. It is equivalent to an

N.O. (Normally Open) terminal referring to ground. It can be used to drive small power device, such as a relay or a low

power control point for other equipment. This output point is selectable to give Keypad Active Output or Alarm Output

via the Selection of the “K or A” jumper.

a) Keypad Active Output (“K”) --- It switches to (-) ground for 10 seconds on each key touch. It can be used to turn

on light, CCTV camera, or buzzer to notify a guard. See Application Hints for more information.

b) Alarm Output (“A”) --- It switches to (

) ground while the Door Forced Open Alarm occurs in order to trigger

external alarm to give notification at remote location.

14 : DU OUT (Duress Output)

An NPN transistor open collector output with the maximum power rating of 24VDC/100mA sink. It is equivalent to an N.O.

(Normally Open) terminal switching to (

) ground after the Duress Code is entered. Use it to trigger an alarm zone of a

security system, or turn on a buzzer to notify a guard.

15 : GND (Common Ground)

A grounding point of the keypad that is common to terminal 2.

16 : DOOR SENS N.C. (Door Position Sensing Input -- Normally Close)

A Normally Closed (N.C.) sensing point referring to (-) ground, with the help of a normally closed magnetic contact

monitors the open or close status of the door. It initiates the following functions for the system:

a) Door Auto Re-lock

The system immediately re-locks the door after it is re-closed before the end of the programmed time for output 1. It

prevents unwanted “tailgate” entry.

b) Door Forced Open Warning

The keypad generates “door forced open” warning and alarm instantly once the door is forced to open without a valid

user PIN, Card or egress button. The warning lasts as long as the time programmed (1

999 sec). It can be stopped

with an User PIN or card for output 1 at anytime. See programming Location 80 for the details.

c) Door Propped-up Warning

The keypad generates propped-up warning beeps (does not activates alarm output) while the door is left open

longer than the allowable time programmed. The warning will last as long as the door is open until re-closed. See

programming Location 81 for the details.

d) Inter-lock Control

The inter-lock control output always goes to (

) while the door is open, which gives signal to disable the other

keypad in the inter-lock system. See the Inter-lock terminal description for more information.

17 : O/P 1 INHIBIT N.O. (Output 1 Inhibit Control Input – Normally Open)

A Normally Open (N.O.) sensing input point for controlling the Output 1, with this terminal connecting to (

) ground,

the Egress Button, the group of User PINs and Cards for Output 1 are all disabled. It is prepared mainly for the cross

wire connection with the “Inter-lock O/P” point on the other keypad in an Inter-lock system.

APPLICATION EXAMPLES

1) BASIC WIRINGS OF A STAND ALONE DOOR LOCK

DK-2882

NOTE:

Connect the 1N4004 as close as possible to the lock in parallel with the lock power terminals of the lock to absorb

the back EMF to prevent it from damaging the keypad. The 1N4004 is not required if the electric lock is AC operated.

To avoid Electro-Static-Discharge from interfering with the operation of the keypad, always ground the (

) terminal

of the keypad to earth.

Always connect DOOR SENSOR terminal to (

) ground if not used.

8 0 Door Forced Open Warning

& Time

FUNCTION MODE / TIME:

0---OFF

1-999 Seconds 80 FUNCTION / TIME #

Mode = 0,

Door Forced

Open

Warning OFF

8 1 Propped-up Warning & Time 81 FUNCTION / TIME # Mode = 0,

Propped-up

Warning OFF

9 0 Egress Delay Warning &

Alarm

CODE 1

FUNCTION MODE:

1---Momentary, No warning

2---Momentary, with warning

3---Momentary, with warning +

Alarm

4---Hold Contact, No warning

5---Hold Contact, with warning

6---Hold Contact, with warning

+ Alarm

CODE 2

DELAY TIME:

0---No Delay

1-99 Seconds

90 CODE 1 CODE 2 #

Mode = 1

Momentary,

No warning

TIME = 0

No Delay

9 1 Door Opening Alarm &

TIMER

ALARM TIME:

0---No Alarm

1-999 Seconds

91 ALARM TIME # TIME = 0,

No Alarm

9 4 Wiegand Output Mode

MODE:

0---Keypad

Valid Codes Only

1---Reader

All Codes

94 WIEGAND O/P MODE # Mode = 1

Keypad Mode

9 5 Wiegand Data Mode For

PIN / CODE

MODE:

0---Binary

1---BCD

95 WIEGAND DATA MODE # Mode = 0

Binary

SYSTEM CODES FUNCTION CODE ENTRY RESULTS

0 0 0 0

Factory Set Master Code

for User to set system in

programming Mode at the

first time.

THIS IS NOT A PERMANENT

S Y S T E M C O D E & I T I S

CHANGED IF A NEW MASTER

CODE IS PROGRAMMED.

0000 * *

NEW MASTER CODE * *

System in Programming Mode

9 9 9 9

REFRESH CODE -- Refresh

the system and set all its

function back to default

values.

9999 # All programmed data are cleared and

back to the default values except the

Master Code

8 0 8 0

DAP CODE-- Direct access

to programming mode. Valid

only in the power-up delay

period

8080 # System in Programming Mode

0 9 9 9

USER PINs / Codes / Cards

whole group clearance Code

Key in the Code to clear all

the users in the Location

LOCATIONS:

10--- User Group 1

20--- User Group 2

30--- User Group 3

40--- Vistor Group

41--- Duress Group 1

42--- Duress Group 2

43--- Duress Group 3

LOCATION NO. 0999 # Whole group of users in the selected

location are cleared

* * Exit Programming Code ** The system back to normal opration

after programming

THE ON-BOARD LED INDICATORS

RED / GREEN (Right) --- It lights up in Green for Output 1 activation; and Red for Output 2 activation.

AMBER (Centre) ---------It flashes on Standby. It shows the system status in synchronization with the beep tones.

The standby flashing can be set to OFF in programming. See Location 73 for the details.

RED (Left) ----------------It lights up while one of the output is inhibited. It is also the Wiegand LED in reader mode

THE PACIFIER TONES & THE LED SIGNALS

The buzzer and the amber LED indicator give following tones and signals respectively for system status:

STATUS TONES * LED SIGNALS

1) On Programming Mode ----- ON

2) Successful Key Entry 1 Beep 1 Flash

3) Successful Code / Card Entry 2 Beeps 2 Flashes

4) Unsuccessful Code / Card Entry 5 Beeps 5 Flashes

5) Power Up Delay Continuous Beeps Continuous Flashes

6) Output Relay Activation ** 1 Second Long Beep

7) On Standby *** ----- 1 Flash in 2 Seconds Interval

8) System Refreshing ----- Fast Flashes for 1 Minute

9) Card or PIN Already Stored in System 1 Long Beep -----

NOTE:

* All Pacifier Tones can be ON or OFF through the programming option at Location 71

* * The Output Relay Activation beep can be ON-OFF through the programming option at Location 72

* * * The Standby flashing can be ON or OFF through the programming option at Location 73

THE JUMPER FOR BACK-LIT SELECTION

1) Full Back-lit ---

The keypad gives dim backlit on standby. It turns to full backlit when a key button is pressed, then

back to dim backlit 10 seconds after the last key button is pressed.

2) Auto Back-lit --- The backlit is OFF on standby. It turns to full backlit when a key button is pressed, then back to OFF

10 seconds after the last key button is pressed.

18 : INTER-LOCK O/P (Inter-lock Control Output)

An NPN transistor open collector output with the maximum power rating of 24VDC/100mA sink. It is OFF at normal

condition and it switches to (

) ground immediately for the first 5 seconds after keying in a valid User PIN or reading

a card to operate Output 1, then, it will keep tying to (

) ground during the Door Position Sensor is open circuit due to

door opening. Use this output point to make cross wire connection with the other keypad’s “O/P 1 Inhibit” point in an

Inter-lock system to prevent both doors can be opened at the same time.

An Inter-lock System:

An inter-lock system is a two-door system that always allows only one of the doors to open during the operation. While

one of the doors is opened, the other door keeps close until the opened door is re-closed. It prevents the unauthorized

people dashing into a protected area while the doors are in use.

An inter-lock system needs two keypads and two door position sensing switches for the two doors.

19 - 20 : TAMPER N.C. (Tamper Switch Normally Closed Contact)

A normally closed dry contact while the keypad is secured on its box. It is open while keypad is separated from the box.

Connect this N.C. terminal to the 24 hour protection zone of an alarm system if necessary.

The tamper switch in the DK-2882A and DK-2882B is activated by the fixing screw of the front plate; in the DK-2882C

and DK-2882D it is activated by a magnet equipped on the back of the plastic box.

FEATURE PROGRAMMING & OPERATION INSTRUCTIONS

SET SYSTEM IN PROGRAMMING MODE WITH THE MASTER CODE

IMPORTANT NOTE:

1) It is always necessary to set system in programming mode before the programming.

2) For the owner’s convenience in programming at the first time, the factory has put a Master Code 0 0 0 0 into the

keypad (It is NOT a default code). To compromise security, in all cases, the owner should program a new Personal

Master Code to invalidate the factory set Master Code after the keypad is owned.

3) The Button has two functions in the keypads with Door Bell button. It is a door bell button while the keypad is in

normal operation; and it is equivalent to a *Button in programming mode.

MASTER CODE

The Master Code can be a factory set master code or the private master code that

was set by the owner.

Validate the master code with * * (or ) .

2-beep confirms a valid master code. The Mains LED (Amber) is constantly ON after the system is set in the

programming mode.

DIRECT ACCESS TO PROGRAMMING MODE WITH THE “DAP” CODE – 8 0 8 0

Set System To Programming Mode In Case Of The Master Code Is Forgotten ! !

The owner requires to apply the following procedures precisely to set the system into programming mode

with the DAP code 8 0 8 0.

1) Switch OFF all the power for 1 minute to ensure that the system is fully discharged.

2) Switch ON power again. The system is in Power-up Mode for 1 minute and the buzzer gives beeps during the whole

period. This is the only time limit the system to accept the DAP code 8 0 8 0.

3) After keying in the DAP code and validate it with the * *(or ), the power up beep stops. The keypad turns

itself to programming mode like using the Master Code and it is ready to accept the new programming data.

4) If the DAP code is not keyed in within the power up period, the system will set itself to normal operation mode. To set

it back to power-up mode, repeat procedures 1-3.

DAP CODE

The DAP code is fixed on 8 0 8 0 and it is valid only in the Power-up Period.

Validate the DAP code with the * * (or ).

2-beep confirms the system is in the Programming Mode; and the Mains LED is constantly ON.

See “RECORD A MASTER CODE” at “Location 01” for the details of programming a new master code.

NOTE:

If the keypad is linking up with the DA-2800 controller in the Split-decoded operation, it is necessary to put the

controller’s “Link-up Jumper” to “ON” position to get the new Master Code for it. As the Master Code is also the link-up

code of the two units. Do Not Forget to put the Link-up jumper back to OFF position after the programming. Otherwise,

the controller will accept other keypads to link up with it.

0000

8080

MASTER CODE VALIDATION

DAP CODE VALIDATION

PROGRAMMING SUMMARY CHART

LOCATION FUNCTION ENTRY LIMITS & CODE

OPTIONS CODE ENTRY FACTORY

DEFAULT

0 1 Master Code 4-8 Digits 01 MASTER CODE # NIL

0 2 Super User PIN 4-8 Digits 02 SUPER USER PIN # NIL

0 3 Common User PIN for O/P 1

4-8 Digits

03 COMMON USER PIN 1 # NIL

0 4 Common User PIN for O/P 2 04 COMMON USER PIN 2 # NIL

0 5 Common User PIN for O/P 3 05 COMMON USER PIN 3 # NIL

1 0 User PINs / Cards for O/P 1

CODE 1

MEDIA:

1---EM Card

2---Private User PIN

3---EM Card+Sec User PIN

4---EM Card+Com User PIN

5---Detection of User

CODE 2

USER ID:

000-999---Group 1(10)

001-100---Group 2(20)

001-100---Group 3(30)

CODE 3

USER PINs / Cards:

4-8 Digits / Cards

10 CODE1 CODE2 CODE3 #NIL

2 0 User PINs / Cards for O/P 2 20 CODE1 CODE2 CODE3 #NIL

3 0 User PINs / Cards for O/P 3 30 CODE1 CODE2 CODE3 #NIL

4 0 Visitor Codes

CODE 1

VISTOR ID: 01-50

CODE 2

VALID PERIOD:

00---One Time

01-99 Hours

CODE 3

VISTOR CODE:

4-8 Digits

40 CODE1 CODE2 CODE3 #NIL

4 1 Duress Code for O/P 1

CODE ID: 01-50

DURESS CODE: 4-8 Digits

CODE ID

DURESS CODE

# NIL

4 2 Duress Code for O/P 2 42

CODE ID

DURESS CODE

# NIL

4 3 Duress Code for O/P 3 43

CODE ID

DURESS CODE

# NIL

5 1 O/P Mode for O/P 1 OUTPUT MODE & TIME:

0--- Start / Stop

1---99999 Seconds,

Momentary

51 O/P MODE & TIME # 5 Second

5 2 O/P Mode for O/P 2 52 O/P MODE & TIME # 5 Second

5 3 O/P Mode for O/P 3 53 O/P MODE & TIME # 5 Second

6 0 Personal Safety & Lock-out

LOCK-OUT CODE:

1---10 Trial, Lock-out 30 Sec.

2---10 Trial, Activates Duress

5-10---5-10 Trial, Lock-Out 15

Minutes

00---No Lock-out

60 LOCK-OUT CODE #

Code = 1,

10 Trials,

Lock-out 30

Seconds

7 0 PIN Entry Mode

ENTRY MODE:

1---Auto Mode

2---Manual Mode

70 ENTRY MODE # Mode = 2,

Manual Mode

7 1 Pacifier Tone ON-OFF

FUNCTION MODE:

0---OFF

1---ON

71 FUNCTION MODE # Mode = 1,

Pacifier Tone

7 2 Output Announcer 72 FUNCTION MODE # Mode = 1

Announcer ON

7 3 Standby LED Flashing 73 FUNCTION MODE # Mode = 1,

Flashing On

THE APO DATA I/O PORT -- FOR SETTING UP A SPLIT-DECODED KEYPAD

The information here is for setting up the DK-2882 with an optional “Digital Keypad Access Controller DA-2800” to

make up a high security Split-decoded Keypad system only. It is NOT required for the keypad in Stand Alone operation.

The access control system utilizing of Wiegand data and control panel approach is usually taken by consultants when

setting their product designs. Most of the general end users do not make system installation criteria by themselves but

just like to up grade their system to a split-decoded system. A Digital Keypad Access Controller DA-2800 is instantly

available from APO for purchase. It is compatible with all the keypads in the DK-2800 series except the DK-2830, DK-

2850 and DK-2880.

The DK-2882 comes with a data I/O (data input and output) port for the connection with the APO’s Access Controller

DA-2800 for Split-decoded operation to up-grade its security level. Once the DK-2882 is connected with the controller,

all the commands from it will be faithfully decoded by the decoder. The input & output control functions available from

the keypad are now all transferred to the controller. The keypad’s role is just a card reader and/or a keyboard for code

entry. The link up of the two units is very simple. It is just one wire (The Pink Wire) for the I/O ports and a common

grounding wire (The Black Wire) for the two units. The I/O port provides the data in the proprietary APO format. It ONLY

works with the DA-2800.

The Optional DA-2800 Controller --- Introduction

The DA-2800 controller unit is compatible with the DK-2882. Maximum 4 keypads can be connected in parallel to it. It

decodes the data faithfully from the keypads even each of them have different settings of their own. The only criterion

for multi-keypad link-up is all the keypads are set with the same Master Code and is read by the controller while it is in

the link-up mode.

Apart from the decoding function to follow the features from the keypad(s), the DA-2800 is also an independent

4-channel RF remote controller to operate its 3 output relays and the built-in door chime. The DA-2800 is an ideal

device working independently in the RF remote control areas, such as door lock strike in access control, garage door

opening control, alarm arm-disarming control and automatic operator control etc.

The DK-2882 is up graded to a Tri-Tech system after in connection with the DA-2800 controller. The system accepts EM

Cards, User PINs and the RF Remote Keys in access control.

The User Manual of the DA-2800 provides the operation details of the system on decoding controller mode and

independent operation mode.

Please contact your local agent if purchase of the DA-2800 Controller is required.

DK-2882 IN SPLIT-DECODED OPERATION

RF WIRELESS

REMOTE CONTROL

DOOR LOCK

GARAGE

DOOR OPENER

SECURITY SYSTEM

AUTOMATIC

OPERATOR

COMMON

GROUND

COMMON GROUND

DA-2800 CONTROLLER

DK-2882

MAXIMUM 4 DK-2882 CAN BE CONNECTED IN PARALLEL

DATA I/O

EXIT

DA-2800 ACCESS CONTROLLER

REFRESH THE SYSTEM WITH THE “REFRESHING CODE” --- 9 9 9 9

The system can be refreshed to clear all the old data stored and back to its ex-factory default values.

IMPORT NOTE:

Make sure that you really want to clear ALL the OLD data before entering of the Refreshing Code. The keypad will be

back with its default values like a new unit. Re-program of the desired values are necessary.

REFRESHING CODE

The Code 9 9 9 9 is for refreshing of the system. Once it is keyed in and validated with #, all the values

programmed previously will be cleared EXCEPT the Master Code.

The refreshing takes around 1-2 minutes depending on the data previously stored. During the keypad is being

refreshed the Status LED (Amber) flashes fast until the end.

THE DEFAULT VALUES OF THE KEYPAD

PROGRAMMING

LOCATION PARAMETERS DEFAULT FUNCTIONS & VALUES

0 1 Master Code 0 0 0 0 Factory Set, Not a default value *

0 2 Super User PINs Nil ----- User Program Required

0 3 Common User PIN 1 Nil ----- User Program Required

0 4 Common User PIN 2 Nil ----- User Program Required

0 5 Common User PIN 3 Nil ----- User Program Required

1 0 User PINs & Cards for O/P 1 Nil ----- User Program Required

2 0 User PINs & Cards for O/P 2 Nil ----- User Program Required

3 0 User PINs & Cards for O/P 3 Nil ----- User Program Required

4 0 Visitor Codes Nil ----- User Program Required

4 1 Duress Code for O/P 1 Nil ----- User Program Required

4 2 Duress Code for O/P 2 Nil ----- User Program Required

4 3 Duress Code for O/P 3 Nil ----- User Program Required

5 1 O/P Mode of The O/P 1 Time = 5 Sec, Momentary

5 2 O/P Mode of The O/P 2 Time = 5 Sec, Momentary

5 3 O/P Mode of The O/P 3 Time = 5 Sec, Momentary

6 0 Personal Safety & Lock-out Code = 1, 10 False Code/Card Lock-out 30 Sec

7 0 User Code Entry Mode Code = 2, Manual Entry Mode

7 1 Pacifier Tones ON-OFF Selection Code = 1, Pacifier Tone ON

7 2 O/P Operation Announcer Code = 1 Sec, Notification Beep ON

7 3 Status LED Standby Flashing ON-OFF Code = 1, Flashing Enabled

8 0 Door Forced Open Warning & Timing Code = 0, Warning Disabled

8 1 Door Propped-up Warning & Delay Code = 0, Warning Disabled

9 0 Egress Delay & Warning Code 1 = 0, Instant, No Delay

Code 2 = 1, Momentary Contact without Warning

9 1 After Door Opening Alarm Code = 0, Alarm O/P Disabled

9 4 Wiegand Output Mode Code = 0, Wiegand O/P for Valid Code/Card Only

9 5 Wiegand Data Mode Code = 0, Wiegand Data in Binary for Entry of PIN

NOTE:

The DAP Code 8 0 8 0 and the Refreshing Code 9 9 9 9 are fixed in the system program. It can not be changed in any

ways or be influenced by the system in default setting.

REFRESHING CODE VALIDATION

9999 #

KEYPAD PROGRAMMING MAKE SIMPLE – For General Users

The DK-2882 is a multi purpose keypad. It has many functions for user’s selection. For those general users taking the

keypad for door strike only, most of the features can be kept in their Default values. Only the User PINs / Cards and a

private Master Code are necessary to program for the system.

The keypad accepts 1) Card only, 2) PIN only, 3) Card + PIN or 4) Card + Common User Code to operate its outputs.

PROGRAMMING

NOTE: The button is equivalent to the *button in the keypad with bell button.

1) Set System to Programming Mode with The Factory Set Master Code 0 0 0 0

---- 2 beeps, system is in Programming Mode

2) Change The Factory Set Master Code to Owner’s Private Master Code for Security Reason

---- 2 beeps, 3 2 8 9 is a Master Code for example only

3289 is the new Master Code and the 0000 is erased

3) Record an “EM Card” to Operate The Output 1 for Door Open

(a) (b) (c) (d) (e)

(a) 10 = Programming Location for Output 1

(b) 1 = Programming option for EM Card only

(d) Read Card = Put the Card close to the card reader

(e) # = Confirm the card is read, 2 beeps

4) Set an “User PIN” to Operate The Output 1 for Door Open

(a) (b) (c) (d) (e)

(a) 10 = Programming Location for Output 1

(b) 2 = Programming option for User PIN only

(d) 8321 = The User PIN that is programmed for door open. 8321 is an User PIN for example only

(e) # = Confirm the User PIN, 2 beeps

5) Record an “EM Card + User PIN” to Operate The Output 1 for Door Open

10 3 003 6123 #

(a) (b) (c) (d) (e) (f)

(a) 10 = Programming Location for Output 1

(b) 3 = Programming option for EM Card + User PIN. (The User PIN can be repeated use or proprietary)

(d) Read Card = Put the Card close to the card reader

(e) 6301 = The User PIN to be used with the EM Card

(f) # = Confirm the Card+PIN is stored, 2 beeps

6) Record an “EM Card + Commom User Code” to Operate The Output 1 for Door Open

10 4 004 #

(a) (b) (c) (d) (e)

(a) 10 = Programming Location for Output 1

(b) 4 = Programming option for EM Card + Common User Code

(d) Read Card = Put the Card close to the card reader

(e) # = Confirm the card is read, 2 beeps, the Common User Code goes to this User ID automatically

(f) A Common User Code (for example: 8 6 2 5) MUST be set at the Programming Location 03 first for this operation

mode. The code can be used for all the EM Cards in this operation mode.

0000 **

01 3289 #

10 2 002 8321 #

10 1 001 #

READ CARD

B) The keyed-in PIN is 1 2 3 4

The PIN in Decimal Number : 1 2 3 4

The PIN 1 2 3 4 Equivalent to Hex Number : 4 D 2

E 0 0 0 0 0 4 D 2 O

An Even Parity Bit of 0 0 0 0 = 0 An Odd Parity Bit of 0 4 D 2 = 0

The 34 bits Wiegand data sending out in Binary from entry of the PIN:

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 1 1 0 1 0 0 1 0 0

C) The keyed-in PIN is 0 0 0 0 1 2 3 4

The PIN in Decimal Number : 0 0 0 0 1 2 3 4

The PIN 0 0 0 0 1 2 3 4 Equivalent to Hex Number : 4 D 2

E 0 0 0 0 0 4 D 2 O

An Even Parity Bit of 0 0 0 0 = 0 An Odd Parity Bit of 0 4 D 2 = 0

The 34 bits Wiegand data sending out in Binary from entry of the PIN:

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 1 1 0 1 0 0 1 0 0

Important Note:

a) From the above examples (B) & (C), The PINs 1 2 3 4 and 0 0 0 0 1 2 3 4 give the same Wiegand data output in Binary.

b) Pressing any number of only 0’s prior to the PIN makes error code in Binary. Do NOT program the PIN with 0’s in

front of it if Binary code is selected.

c) The above error does not happen with the Wiegand data output in BCD

Example 3 : Wiegand Output in BCD Code from PIN / Code Entry

A) The keyed-in PIN is 1 2 3 4 5 6 7 8

E 1 2 3 4 5 6 7 8 O

An Even Parity Bit of 1 2 3 4 = 1 An Odd Parity Bit of 5 6 7 8 = 1

The 34 bits Wiegand data sending out in BCD from entry of the PIN:

1 0 0 0 1 0 0 1 0 0 0 1 1 0 1 0 0 0 1 0 1 0 1 1 0 0 1 1 1 1 0 0 0 1

B) The keyed-in PIN is 1 2 3 4

E F F F F 1 2 3 4 O

An Even Parity Bit of F F F F = 0 An Odd Parity Bit of 1 2 3 4 = 0

The 34 bits Wiegand data sending out in BCD from entry of the PIN:

0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 1 0 0 1 0 0 0 1 1 0 1 0 0 0

C) The keyed-in PIN is 0 0 0 0 1 2 3 4

E 0 0 0 0 1 2 3 4 O

An Even Parity Bit of 0 0 0 0 = 0 An Odd Parity Bit of 1 2 3 4 = 0

The 34 bits Wiegand data sending out in BCD from entry of the PIN:

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 1 0 0 0 1 1 0 1 0 0 0

Example 1: Wiegand Output of Reading An EM Card

Each EM card or Keyfob is marked with an unique ID in Decimal Digits that is the code read by the DK-2882 reader. The

EM card is also marked with a “3 digit+5 digit” code that does not belong to this system and can be ignored.

a) The Code Marked on One of The EM Cards :

The ID Code to be read for Wiegand Output The Code does not belong to this system

The Code in Decimal Number : 6 6 1 3 7 7 9

The Code 6 6 1 3 7 7 9 Equivalent to Hex Number : 6 4 E B 1 3

b) Each Hex Number Consists of 4 Bits, Total 26 Bits of Wiegand Data Output from Card Reading:

E 6 4 E B 1 3 O

An Even Parity Bit of 6 4 E = 0 An Odd Parity Bit of B 1 3 = 1

c) The 26 bits Wiegand data sending out in Binary after reading of the card:

0 0 1 1 0 0 1 0 0 1 1 1 0 1 0 1 1 0 0 0 1 0 0 1 1 1

NOTE:

In all the operation configurations of card reading including “Card only”, “Card + Private User PIN”, and “Card +

Common User PIN”, the card has the priority to be read and all these configurations are considered of reading a Card.

The keypad provides Wiegand Data output for the Card only and the User PINs attached are NOT taken into account for

the Wiegand output.

THE 34 BIT WIEGAND DATA OUTPUT FROM THE ENTRY OF USER PINS

Wiegand is also a commonly used interface between keypad with user PINs and control panels used in access control.

The DK-2882 is designed to accept both card reading and PIN code entry in operation without conflict to the two media

and confusion to the control panel. The DK-2882 accepts User PINs up to 8 digits maximum in decimal numbers. The

Wiegand data protocol has been expended to 34 bits to accommodate the maximum PIN length without causing code

error (26 bits Wiegand data for PIN causes error to number 16,777,215 or any number above 16,777,215). Consultants

can select the 34 bits Wiegand data output in Binary (format code 950) or BCD (format 951) in the PIN/Code entry

for product design. The 34 bit and the 26 bit Wiegand signals are transmitted in the same electrical manner and timing

standard.

The 34 bit Wiegand protocol for PINs has 1 first parity bit, 32 bits for the PIN code, and 1 stop bit for a total of 34 bits.

The first parity bit is an Even parity bit calculated from the first 16 bits of the code and the trailing parity bit is an Odd

parity bit from the last 16 bits.

Example 2 : Wiegand Output in Binary Code from PIN / Code Entry

A) The keyed-in PIN is 1 2 3 4 5 6 7 8

The PIN in Decimal Number : 1 2 3 4 5 6 7 8

The PIN 1 2 3 4 5 6 7 8 Equivalent to Hex Number : B C 6 1 4 E

E 0 0 B C 6 1 4 E O

An Even Parity Bit of 0 0 B C = 1 An Odd Parity Bit of 6 1 4 E = 0

The 34 bits Wiegand data sending out in Binary from entry of the PIN:

1 0 0 0 0 0 0 0 0 1 0 1 1 1 1 0 0 0 1 1 0 0 0 0 1 0 1 0 0 1 1 1 0 0

0006613779 008,18789

REMARK:

If more User PINs and Cards are required for Output 1, repeat the procedures (3) , (4) , (5) or (6) above with other User

IDs, such as 005, 006, 007 --- 999 etc. Total 1,000 users are allowed. See Programming Location 10 for the details.

7) Close The Programming Mode

---- 2 beeps

The programming mode is closed. The keypad is back to normal operation mode

OPERATION

8) Open The Door with The EM CARD

---- 2 beeps, the door is open

9) Open The Door with The User PIN

8321 #---- 2 beeps, the door is open

10) Open The Door with The EM CARD + User PIN

6123 #---- 2 beeps, the door is open

11) Open The Door with The EM CARD + Common User Code

8625 #---- 2 beeps, the door is open

REMARK:

In the next Section, “KEY IN AND STORE THE DESIRED VALUES” describes all the features and functions of the system

in detail. Users can follow them to tailor the desired values for their access control system. Suggest the general users

also spend some time on them to get acquaint with this powerful system for future expansion.

READ CARD

FEATURE PROGRAMMING -- KEY IN AND STORE THE DESIRED VALUES

The feature values can be set and stored into the system one by one with the desired Programming Locations.

Programming can be made continuously and it is not necessary to be in sequence order. Just go to the desired

programming location and key in the value for the desired feature.

IMPORTANT NOTE --- Programming Criteria for Codes:

a) The Prime Codes:

All the Private User PINs, Master Code, Duress Codes, Super User PIN, Common User Codes and the Visitor User

Codes belong to Prime Codes in the system. They have the priority to be read and they MUST be unique and can not

be repeated in the programming. A Prime code also can NOT be programmed as a Secondary code to work with the EM

Card or vice versa.

b) The Prime Cards:

All the EM Cards used in this system are Prime Cards. The cards used for the Outputs 1, 2 and 3 MUST be unique and

can not be repeated use for different Outputs in the programming. The Card always has the priority to be read when

working with an User PIN in “EM Card + Secondary PIN” or EM Card + Common User PIN”.

c)Warning for Repeated Use of A Prime Code or Card:

One long beep is given if a Code/PIN is keyed in or a Card is read. It means that a Prime Code or a Prime Card is

repeated. The Code/PIN or Card was already in one of the PIN or Card Locations or IDs. The programming is invalid.

Change a new Code/PIN or Card and program it again.

d)Secondary User PINs:

The Secondary User PINs are prepared to enhance security. It is put after a Card in “EM Card + Secondary User PIN”

programming. They can be a repeated code within the Secondary PINs but it is NOT allowed a duplicate of the Prime

Codes. The system will reject a duplicated Prime Code for Secondary User PIN or vice versa.

e)Getting Advantages from The Secondary User PINs:

The repeated Secondary PINs can be used as a Group Common User Code or called Department User Code for a group

of EM Cards, which simplifies the programming of using large number of different User PINs. EM Card with Department

Code prevents a lost card used by people of other department. Also, it will be easier to trace out the department of the

lost card belongs to. Of cause, the owner can use a proprietary Secondary User PIN for each EM Card in the “EM Card

+ Secondary User PIN” programming to further increase the security if it is the main concern.

f) Security Level Comparison of The Secondary User PIN/Code following Card Reading:

i) EM Card + Common User Code --- All EM Cards use the same User Code. Security level is better than just Card

only. A lost Card picked up by any people can be used if he knows the Common User Code.

ii) EM Card + Department User Code --- The EM Cards are divided into groups with a Department User Code. A lost

Card can be used only by the people in the same group who know the Department Code.

iii) EM Card + Secondary User PIN --- Each EM Card has its own proprietary User PIN. A lost Card can not be used

by other people.

NOTE:

Each EM Card is a Prime card and it has the priority to be read. The system provides the proprietary Wiegand Data

output from each card faithfully. The Secondary PIN/Code following the card reading does not affect the ID of the Card

in the Wiegang Data.

g) Make A List Recording of The User Name VS User Code:

Suggest the owner to make a list recording of the User Names corresponding to the Codes/PINs/Cards that are going to

store in the Locations and the IDs before the programming. It will be a useful tool for the owner to easily program them

smoothly and also to trace them from this multi-users system in the future.

Example: (Please see the following page)

THE 26 BIT WIEGAND DATA OUTPUT FROM THE EM CARDS

Wiegand is a commonly used interface between readers and control panels used in access control, security and other

related industries. The majority of cards in access control systems use a Wiegand interface to transmit data read from

a card to a control panel. The control panel will then validate the data received and grant or deny access. The Wiegand

data output from the DK-2882 provides a level of compatibility for readers and control panels that can be used by

consultants and end users when setting product design or system installation criteria.

The Wiegand interface uses three wires, one of which is a Common Ground (Wire 5 – Black) and two of which are

data transmission wires called DATA 0 (Wire 2 – Green) and DATA 1 (Wire 1 – Yellow). When no data is being sent

both DATA 0 and DATA 1 are at high voltage. When a “0” is sent the DATA 0 is at low voltage while the DATA 1 stays at

a high voltage. When a “1” is sent DATA 1 is at the low voltage while DATA 0 stays at the high voltage.

There are also two indication wires for the visible and audible signals feeding back from the control panel. They are 0V

active. The Buzzer Control Line (Wire 3 – Brown) is audible signal control wire, and the Red LED Control Line (Wire 4

– Orange) is the visible indication control wire.

The high voltage level in the DK-2882 is +5VDC to accommodate for long cable runs (approximate 500 feet) from it to

the associated access control panel typically located in a secure closet.

The Wiegand protocol for card reading has 1 first parity bit, 24 bits of the Card ID, and 1 stop bit for a total of 26 bits.

The first parity bit is an Even parity bit calculated from the first 12 bits of the code and the trailing parity bit is an Odd

parity bit from the last 12 bits. The data transmitted is in Binary codes for the Card reading.

Diagram of The Wiegand Protocol Timing and Its Electrical Manner

50 uS pulse

Data 0 Line

2 mS pulse interval

Data 1 Line

0 1 0 1

+5V

SET THE WIEGAND OUTPUT FOR KEYPAD OR READER MODE (Location 94)

Two operation modes are available for the Wiegand output. The selection codes are 0and 1.

WIEGAND OUTPUT AT KEYPAD OPERATION MODE

0 --- Self-contained Keypad Mode -- (Default)

Self-contained Mode includes the keypad in Stand Alone and Split-decoded operation with the optional APO Controller.

The system provides full functions to operate its outputs and at the same time provides Wiegand Data Output for all the

VALID Cards and User PINs including the Duress Codes and Visitor Codes. No Wiegand Data Output for the invalid PINs

and Cards.

1 --- Card & Code Reader Mode

In the Card & Code Reader Mode, the keypad provides Wiegand Data Output for all the Card readings and PINs/Code

entries but does not operate its outputs. It is solely a card and code reader.

WIEGAND CODE FORMAT FOR THE PIN/CODE READING (Location 95)

Two Wiegand output code formats, Binary and BCD outputs are available for the selection in PIN/Code entry. The format

codes are represented by 0and 1.

NOTE:

This code format selection is for the PIN/Code entry only. It does not affect the Wiegand data output on Card reading.

Card reading always gives Binary output.

WIEGAND OUTPUT CODE FORMAT

0 --- Wiegand Data Output in Binary Code -- (Default)

The system provides a 34 bits Wiegand data output in Binary code format for each PIN/Code reading.

1 --- Wiegand Data Output in BCD Code

The system provides a 34 bits Wiegand data output in BCD code format for each PIN/Code reading.

WIEGAND O/P MODELOCATION

OUTPUT CODE FORMAT

VALIDATION

VALIDATIONLOCATION

#95

0or 194

0or 1

Example:

User Name Location Function Code User ID PIN/Code Card # Remark

1,000

RECORD A MASTER CODE (Location 01)

MASTER CODE

Master Code is the authorization code for setting the system to programming mode. It is NOT an User Code

operating of the output relays.

The Master Code can be 4 to 8 digits. Press # key to confirm code entry

When a new master code is keyed in and confirmed, the old master code is replaced automatically.

The master code is also the Link-up Code between the keypad and the optional controller of the system in Split-

decoded operation.

Example: Set a Master Code with the number of “2 2 3 3” ----

RECORD A SUPER USER PIN (Location 02)

The Super User PIN has TWO functions. It is prepared for the owner to simply use only one User PIN to operate the

three outputs of the keypad and make operation inhibit enable / disable to the system outputs.

SUPER USER PIN

The Super User PIN can be 4 to 8 digits.

Two beeps will be heard after pressing the # key to confirm code entry.

When a new Super User PIN is keyed in and confirmed, the old one is replaced.

Example: Set a Super User PIN with the number of “2 5 8 0” ----

To deleted a Super User PIN from memory: Key in just the Location number and #. ----

4 to 8 Digits

SUPER USER PIN VALIDATIONLOCATION

02 2580 #

02 #

4 to 8 Digits

MASTER CODE VALIDATIONLOCATION

01 2233 #

OPERATION AND FUNCTIONS OF THE SUPER USER PIN

1) Operate Output 1, 2, and 3

The operation of the Super User PIN is just like a normal User PIN. Simply key-in the PIN with a specific output

number for the desired Output.

---------- Output 1 Activates

---------- Output 2 Activates

---------- Output 3 Activates

2) Inhibit The User PINs For Output 1

The Super User PIN can also be used to inhibit the normal User PINs/Cards for the Output 1 (usually they are for

door strike). It enhances the security level of the access control system, such as to stop a keypad after office hour

or while the house is nobody inside. Once the Output 1 is inhibited, the User PINs/Cards for it become invalid and

those people even know the User PINs are refused during the system is inhibited. The inhibit function is toggled in

Start / Stop mode with the following code entry.

---------- The Whole Group of User PINs & Cards for Output 1 are Disabled

or Enabled in Toggle

NOTE:

The inhibit function setting with the Super User PIN applies to ALL the whole group of User PINs and Cards for

Output 1 ONLY, but not for Output 2 and Output 3.

For safety reason, the inhibit function initiated with the Super User PIN does not govern the Egress Button. The

door still can be opened with it from inside.

RECORD THE COMMON USER PINS FOR OUTPUT 1, 2 & 3 (Locations 03, 04, & 05)

The Common User PINs 1, 2 and 3 are prepared for operating of the Output 1, Output 2 and Output 3 respectively as

an enhance code. The Common User PINs MUST work in the form of “Card + Common PIN” to operate the outputs to

increase the security of the access control system. See Locations 10, 20 & 30 for more information.

NOTE : Common User PIN alone can NOT be used to operate the Outputs directly.

COMMON USER PIN LOCATIONS

-- Location Stores The Common User PIN for Output 1

-- Location Stores The Common User PIN for Output 2

-- Location Stores The Common User PIN for Output 3

COMMON USER PINS

The Common User PIN can be 4 to 8 digits. Press # key to confirm the code entry.

When a new Common User PIN is keyed in and confirmed, the old one is replaced.

Example: Set a Common User PIN with the number of “1 3 5 7” for Output 1 ----

To deleted a Common User PIN from memory: Key in just the Location number and #. ----

4 to 8 Digits

SUPER USER PIN

COMMON USER PIN VALIDATIONLOCATIONS

# 11

# 12

# 13

# 21

03 1357 #

03 #

THE WIRE HARNESS FOR “WIEGAND DATA OUTPUT” & “APO DATA I/O”

NOTE: The information in this section is NOT for the system in Stand Alone operation. It is not necessary to plug in the

wire harness to the socket, just leave it open.

The information below is for setting the DK-2882 keypad with the Wiegand data interface to a control panel, or the APO

Data I/O interface to an APO Controller to make up a high security split-decoded system.

Split-decoded Keypad System

Most of the general purpose keypads on the market are self-contained systems for stand alone operation. It controls the

appliance(s) directly with its output relay contact(s); such as the electric lock in an access control system. The electric

lock is connected to the keypad that is installed outside the house. The thief can open the door without a code or card

but just open the keypad box and make contact to the output relay terminal. It is a safety drawback in security.

The high security systems are usually operating in the Split-decoded mode that combines an outside unit for card

reading and code entry; and a control panel or a decoder unit installing in a secure closet inside the house. The outside

unit and the inside unit communicate in digital data with each other. All the commands are in digital codes, the thief can

do nothing to the inside unit even the outside unit is opened in sabotage. This design philosophy confirms high security

to the area protected, but not just relying on the protection of the keypad with the outer box and two screws.

The Wire Harness

The DK-2882 comes with two sets of interface wires from the wire harness. The Wires 1-4 are the Wiegand interface

wires. The Wire 6 is the Data Input/Output wire for the connection with the optional APO’s Digital Keypad Access

Controller, DA-2800 for high security Split-decoded operation. The Wire 5 is the Common Grounding point of these

signal wires.

The Wires :

1) Yellow --------- D1, Wiegand DATA 1

2) Green ---------- D0, Wiegand DATA 0

3) Brown --------- Buzzer control line, 0V active, for Wiegand audible status indication

4) Orange -------- Red LED control line, 0V active, for Wiegand visible status indication

5) Black ---------- (

) Common Ground

6) Pink ------------ APO’s data In/Out line, for APO’s decoder connection

DOOR OPENING ALARM & TIMER (Location 91)

ALARM & TIMING AFTER DOOR OPENING

0--- No Alarm – (Default)

The Alarm Output is disabled

1– 999 --- Alarm Timer

The Door Open Alarm operates the Alarm Output (Terminal 13) only. Put any Timing Figure of 1 to 999 into the box to

enable the function of the Door Opening Alarm. The figure is the time in second of the alarm duration, which starts to

count after the door is opened and it resets automatically when the time reaches.

NOTE: The Door Opening Alarm is designed to protect the emergency exit door from use by the un-authorized person.

The alarm occurs when the door is opened or forced to open. However, Alarm will not happen if the door is opened with

a valid User Code or Card.

The Manner of The Door Opening Alarm:

a) The door is forced to open without using PIN/Card – Alarm

b) The door is opened with Egress Button – Alarm

c) The door is opened with PIN/Card – No Alarm

CLOSE THE PROGRAMMING MODE ( * * )

Always close programming mode with * * to set system back to normal Operation after programming.

The button is equivalent to the *button in the keypad with bell button.

VALIDATION

** ------------------------------- System is back to normal operation mode

ALARM TIME VALIDATIONLOCATION

0or 1

99991 #

RECORD-DELETE PINS OR CARDS FOR OUTPUT 1, 2, & 3 (Locations 10, 20 & 30)

Total of 1,200 User PINs and/or Cards are available for the 3 user groups to control the 3 outputs.

1) 1,000 ---- for Output 1 (Group 1)

2) 100 ------ for Output 2 (Group 2)

3) 100 ------ for Output 3 (Group 3)

The Private User PINs and Cards in the 3 user groups MUST be unique. Repeated PINs will be rejected. Secondary User

PINs in the “EM Card + Secondary User PIN” can be repeated. See the Important Note --- Programming Criteria for

Codes at page 14 for more information.

USER GROUP LOCATIONS

– Group 1 --For User PINs/Cards Controlling Output 1

1,000 Users are allowed in group 1 for O/P 1

– Group 2 --For User PINs/Cards Controlling Output 2

100 Users are allowed in group 2 for O/P 2

– Group 3 -- For User PINs/Cards Controlling Output 3

100 Users are allowed in group 3 for O/P 3

SELECTION OF OPERATION MEDIA

Number 1, 2, 3 or 4 represents the Media to be used to operate the keypad.

Number 5 is the authorization code for deleting of an PIN and/or Card from

its User ID.

= EM Card only; = Private User PIN only;

= EM Card + Secondary User PIN = EM Card + Common User PIN

= Delete an User PIN &/or Card from the selected User ID number

= Clear all the PINs & Cards from the selected Location. It takes 1-5

seconds depending on the Location selected and the data stored.

Please see the programming example below for the details.

USER ID NUMBER

A 3-digit ID is an identified number for each User PIN and/or Card.

Repeated ID number will be rejected by the system

a) ID Number 000

999 for 1,000 User PINs/Cards to operate Output 1

b) ID Number 001

100 for 100 User PINs/Cards to operate Output 2

c) ID Number 001

100 for 100 User PINs/Cards to operate Output 3

CARD &/OR USER PINS

The User PINs can be 4-8 digits. Key in the User PIN on each ID Number box, then confirm it with # key

Just simply put the EM card close to the reader window to read it on each ID Number box, then, confirm it with

# key if it is a Card ONLY, or Card + Common User PIN entry. The Common User PIN is NOT required to key-in

here. It will go into its location automatically following the Card is read.

Read the Card first, then key in the Secondary User PIN on each ID Number box, then confirm it with # key if it

is Card + Secondary User PIN. The Secondary User PINs can be a duplicated User PIN or a proprietary User

PIN. Owner can use the same secondary User PIN for a group of Cards as a group Common User Code (or called

Department Code) for a specific relay output.

Cards (Operation Media # 1, 3, & 4) and Private User PINs (Operation Media 2) MUST be unique. A repeated EM

card or Private User PIN will be rejected and one long beep will be generated by the system to notify the owner.

30 1

5 000

999 #

1 2

3 4

0999

CARD &/OR USER PIN VALIDATIONLOCATIONS MEDIA USER ID

CARD &/OR USER PIN

EXAMPLES – PROGRAMMING AND OPERATION

1) Example 1 -- EM Card Only :

i) Programming :

10 1 001 #

(a) (b) (c) (d) (e)

(a) The card is programmed for operating of the Output 1

(b) The operation is EM Card only

(d) Put the card close to the reader to read it, one beep confirms the reading

(e) Press # to store the “Card” into memory, two-beep confirms a valid entry

ii) Operation : (while the system is back to operation mode only)

(a)

a)Put the EM card close to the reader. Two-beep confirms the card is read and the Output 1 activates

2) Example 2 -- Private User PIN Only :

i) Programming :

20 2 001 1234 #

(a) (b) (c) (d) (e)

(a) The Private User PIN is programmed for operating of the Output 2

(b) The operation is Private User PIN only

(d) Put Private User PIN “1 2 3 4” into the storage location

(e) Press # to confirm and store the “Private User PIN” into memory, two-beep confirms a valid entry

ii)Operation : (while the system is back to operation mode only)

1234 #

(a) (b)

(a) Key in the Private User PIN “1 2 3 4”

(b) Confirm it with the # key. Output 2 activates

3) Example 3 -- EM Card + Secondary User PIN :

i) Programming :

10 3 002 24680 #

(a) (b) (c) (d) (e) (f)

(a) The card is programmed for operating of the Output 1

(b) The operation is EM Card + Secondary User PIN

(d) Put the card close to the reader. One beep confirms the reading

(e) Put Secondary User PIN “2 4 6 8 0” into the storage location

(f) Press # to store the “Card + Secondary User PIN” into memory, two-beep confirms a valid entry

ii) Operation : (while the system is back to operation mode only)

24680 #

(a) (b) (c)

(a) Put the EM card close to the reader. Two-beep confirms the reading and 30 seconds waiting time is given for the

entry of the User PIN, the Amber LED keeps flashing

(b) Key in the Secondary User PIN “2 4 6 8 0”

Read Card

EGRESS DELAY , WARNING AND ALARM (Location 90)

CONFIGURATIONS OF THE EGRESS WARNING AND ALARM

Key in the number to enable 1 of the 6 configurations described below:

1--- Momentary Contact Mode without Warning -- (Default)

•Press the Button once. No warning or alarm is given during Egress Delay.

•Good for silent area. The people have to wait for the door open until the delay time

reaches.

2--- Momentary Contact Mode with Warning Beep

•Press the Button once. The system gives Warning Beeps during the Egress Delay.

•Good for the place required attention. The keypad beeps during the people are waiting for

the door open.

3--- Momentary Contact Mode with Warning Beep & Alarm

•Press the Button once. The system gives Warning Beeps and also activates its Alarm O/P

during the Egress Delay

•Good for door for the authorized people only. The keypad beeps and report alarm to a

security system during the people are waiting for the door open.

•This is usually an “Emergency Exit”. The door can be opened with the Keypad without

triggering of the Buzzer and Alarm Output.

4--- Holding Contact Mode without Warning

•Press and hold the Button. No warning or alarm is given during the Egress Delay.

•Good for the silent area. The people require to press & hold the button until the delay time

reaches for the door open.

5--- Holding Contact Mode with Warning Beep

•Press and hold the Button. The system gives Warning Beeps during Egress Delay.

•Good for the place required attention. The keypad beeps while the button is kept pressed

during the people are waiting for the door open.

6--- Holding Contact Mode with Warning Beep & Alarm

•Press and hold the Button. The system gives Warning Beeps and also activates its Alarm

O/P during Egress Delay.

•This is usually an “Emergency Exit”. The door can be opened with the Keypad without

triggering of the Warning and Alarm.

EGRESS DELAY TIMER

0--- No Delay – (Default)

Output 1 activates instantly (the door is released instantly) when the Egress Button is pressed.

1– 99 --- Egress Delay Timing

Put any number of 1 to 99 into the box to enable the Egress Delay. The number is the time in second, which starts to

count when the Egress Button is pressed. Output 1 activates (the door is released) when the delay time reaches.

NOTE:

1) Momentary Contact -- The Egress Delay starts to count when the egress button is momentarily pressed. Output 1

activates automatically (door is released) when the delay time reaches.

2) Holding Contact -- The user MUST hold the egress button in contact for the whole period of the Egress Delay time

until Output 1 activates. If the egress button is released before the end of the Egress Delay, the timer will stop to count

and reset.

3) The Egress Delay does not affect the operation of the User PINs/Cards for Output 1. The User PINs/Cards always

give INSTANT action.

FUNCTION MODES VALIDATIONDELAY TIMELOCATION

6 0 or 1

99 #90

INTELLIGENT EGRESS BUTTON – AN UNIQUE FEATURE OF A CONTEMPORARY KEYPAD

Most of the keypads for access control are just for controlling of “Going In” from outside. It is not enough for today’s

access control systems. In fact, controlling of “Going Out” is also very important in many public passage areas. They

are not allowed to use locks or digital keypads for stopping of “Going Out” due to safety reasons. Such as hospitals,

kindergartens, elderly homes, convenient stores, emergency exits etc.. The wardens, teachers, shopkeepers and the

guards are always required to keep an eye on people to prevent unattended leaving, shoplifting, and illegal use of the

emergency exits.

The Intelligent Egress Button can be programmed to do something to get the attention of the person on duty before the

door is opened. The button offers programmable egress delay, delay with warning, holding button required for the delay,

momentary button contact with warning for the delay and even gives alarm when a controlled door is opened.

Locations 90 and 91 below are the places for setting the desired functions for the Egress Button.

The functions programmed to the Egress Button do not affect the normal operation of the system with its keypad. For

the safety consideration, the operation of the keypad with PIN, Code or Card is always in the first priority to give instant

action to the output relay 1 for door strike.

It is NOT required to program the Egress Button with the special function in normal use. Just leave it on its default

values.

WHERE AND WHY “GOING OUT” NEEDS ATTENTION

Examples for areas may need an Intelligent Egress Button:

Hospital:

Some of the patients are not allowed to leave the ward without doctor’s permission. An egress button with exit delay

and warning beeps will help the nurse or warden to get the attention to the door when the egress button is pressed.

Further setting of the egress button with holding contact for the delay even gives higher level of security to a controlled

door.

Kindergarten:

Young children are always active. Some of them may be willing to go out to explore their ways of playing. For safety

reason, teachers have to watch all of them in the attended area. Leaving school alone without the companion of parents

or teacher is dangerous to the young children. An egress button with delay and warning beeps will be helpful to prevent

the children trying to go out without getting the attention of the teacher.

Elderly Home:

Elderly needs constant attention and care. Some old people have poor memory. They may forget the way to come

back if they leave home alone. An egress button with delay and warning beep will easily get the attention of the warden

before the door is open.

Convenient Store:

Most of the convenient stores have just only one or two shopkeepers on duty. They are usually the cashier. Shoplifting

may easily happen while the shopkeeper is busily serving customers at the cashier desk. A holding contact egress

button with delay and warning beeps may help to stop most of the shoplifting. As the thief knows that he is gotten

attention by the shopkeeper before the door is open.

High Traffic Passage:

A short buffer time may be necessary for opening a door outward after pressing the egress button for those exits open

to a high traffic passage. An egress button with short delay and warning beeps helps the user to pay attention to the

people passing by to prevent hitting them when the door is pushed outward.

Emergency Exit:

Emergency Exit is not open to the public for daily use. It is for emergency case only. It is usually closed and watched

by the security guards. The egress button of this keypad can be programmed to offer exit delay with warning beeps and

even gives alarm output to trigger an alarm system when the door is forced to open or the door is open after the exit

delay expired. It is an useful tool to get the attention of the person on duty.

4) Example 4 -- EM Card + Common User PIN :

i) Programming :

10 4 003 #

(a) (b) (c) (d) (e)

(a) The card is programmed for operating of the Output 1

(b) The operation is “EM Card + Common User PIN”

(d) Put the card close to the reader. One beep confirms the reading. (No need to key in a Common User PIN but

there MUST be a Common User PIN already recorded in Location 03; (or 04, 05 if for O/P 2, O/P 3).

(e) Press # to store the “Card” into memory. Two-beep confirms a valid entry

ii) Operation : (while the system is back to operation mode only)

(a) (b) (c)

a) Put the EM card close to the reader. One-beep confirms the reading and 30 seconds waiting time is given for the

entry of the Common User PIN, the Amber LED keeps flashing

b) Key in the Common User PIN “1 3 5 7” (the number programmed in “Location 0 3” for Output 1 in the previous

Example)

c) Confirm it with the # key. Output 1 activates

5) Example 5 -- Delete an User PIN & / or EM Card (for O/P 1, 2 or 3) :

i) Delete An User PIN or A Lost EM Card

10 5 #

(a) (b) (c) (d)

a) Key in the User Group that the User ID belongs to. “10” for the Group 1, “20” for the Group 2, and “30” for the

Group 3

b) Key in “5” that is the Command Code for making a deletion here

c) Key in the User ID that stored the User PIN, the lost EM card or the EM Card+User PIN

d) Press the # key. Two-beep confirms a valid entry and the PIN and/or Card in that User ID is cleared

ii) Delete an EM Card

10 5 #

(a) (b) (c) (d)

a) Key in the User Group that the EM Card belongs to. “1 0” for the Group 1, “2 0” for the Group 2, and “3 0” for the

Group 3

b) Key in “5” that is the Command Code for making a deletion here

c) Put the EM card close to the reader. One-beep confirms the reading. Read the Card only also makes a valid

deletion to the Card working with the Common User PIN or the Secondary User PIN

d) Press the # key. Two-beep confirms a valid entry. The EM Card in that User ID is cleared. Key in the User ID is not required.

6) Example 6 – Clear The Whole Group of Users :

Whole group of users including the PINs and Cards can be cleared with the following command.

10 0999 #

(a) (b) (c)

a) The User Group 1 – “10” is selected to be cleared. “20” for Group 2 & “30” for Group 3

b) Key in the Group Deletion Command, 0 9 9 9

c) Confirm the deletion with #. All the User PINs and Cards in the Group 1 are cleared. It takes 1-5 seconds

depending on the data stored.

7) Example 6 – Report A Duress While Using EM Card :

The Duress Codes are Prime User Codes in the system. In the “EM Card + Secondary User PIN” or “EM Card +

Common User PIN” operation, they can be used to replace the “Secondary User PIN” or the “Common User PIN”

to operate the specific output and report a duress alarm event. Programming is not required. The system has this

function automatically while Duress Code exists.

Read Card

User ID

Read Card

Common User PIN

Read Card

Operation : (while the system is in the operation mode)

(a) (b) (c)

a) Put the EM card close to the reader. One-beep confirms the reading and 30 seconds waiting time is given for the

entry of the Duress Code, the Amber LED keeps flashing

b) Key in one of the Duress Codes for the specific output (the Code programmed in “Location 41, 42, or 43” for

Output 1, 2 and 3 respectively)

c) Confirm it with the # key. The specific Output activates in a normal way and the Duress Output also activates to

report Duress Event to an alarm system.

NOTE: The Duress Event can not be reported if the operation mode is EM Card alone.

VISITOR CODES (FOR OUTPUT 1 ONLY) (Location 40)

The Visitor Codes are the temporary user codes for operating of the Output 1 (mainly for door strike in access control).

They can be programmed as “One Time Codes” or “Codes with Time Limit”. The Visitor Codes will be cleared

automatically after use if they are one time codes, or, when the allowed time expires.

VISITOR ID

50 Visitor IDs for storing the codes. They are represented by a

Two-digit ID Number of 01 to 50.

0999 = Clear all the Visitor Codes from Location 40. Please

see the Programming example below for the details.

VALID PERIOD

The codes in this box MUST be two digits and they represent the time of the operation.

00 --- One Time Code

One Time Code has no time limit but it can only be used for ONCE.

It is cleared by the system automatically after use.

99 --- Time Limit in Hour(s)

The Visitor Code can be set with the valid time limit of 1 Hour to 99 Hours with a

two-digit number of 01 to 99. The visitor code is cleared by the system when

the time limit reaches.

VISITOR CODES

When a new Visitor Code is put in the same Code box, the old code is replaced.

The Visitor Codes can be 4-8 digits for the Manual Mode code entry.

The Visitor Codes MUST be in the same digit length with the Master Code for Auto Mode code entry.

EXAMPLES:

Example 1: Set a “One Time Visitor Code” with the number of “1 2 6 8” for the Output 1

40 01 00 1268 #

(a) (b) (c) (d) (e)

(a) Visitor Code Programming, (b) The Visitor ID, (c) An One Time Code, (d) The Visitor Code, (e) Entry Confirmation

Example 2: Set a “Visitor Code” with the number of “1 3 7 8” and valid for three hours for the Output 1

40 02 03 1378 #

(a) (b) (c) (d) (e)

(a) Visitor Code Programming, (b) The Visitor ID, (c) Valid for 3 Hours, (d) The Visitor Code, (e) Entry Confirmation

Read Card Duress Code

4-8 DIGITS

40 #

50 00 or 01

VISITOR CODE VALIDATIONLOCATION VISITOR ID VALID PERIOD

STATUS LED FLASHING ON-OFF IN STANDBY (Location 73)

STANDBY FLASHING ON-OFF

Some people find the flashing light of the status LED (the amber LED) is annoying during the keypad is on standby,

especially at the night time. The standby flashing can be ON-OFF with the setting here.

1--- Standby Flashing ON -- (Default)

The Status LED gives Standby Flashing all the time during the keypad is on standby. It also gives all the light

indications showing the operation status of the system.

0--- Standby Flashing OFF

The Standby Flashing is disabled but it does not affect the system status indications. All the light indications from it

are unchanged.

DOOR FORCED OPEN WARNING & TIMING (Location 80)

DOOR FORCED OPEN WARNING ON-OFF & TIMING

The Door Forced Open Warning function requires a Door Position Sensing switch (usually a magnetic contact) to work

with. Once a Timing Figure is put into the Function Mode box, the warning mode is enabled.

0--- Door Forced Open Warning OFF – (Default)

999 --- Door Forced Open Warning & Alarm ON & Timing

The Timing Figure for the Warning can be 1-999 seconds. The keypad generates the door forced open warning

beeps and activates the alarm output instantly if the door is forced to open without a valid User PIN/Card or pressing

of the Egress Button. The beeps and alarm will last as long as the time set on the timer and it can be stopped at

anytime with an User PIN/Card in Group 1 before the end of the time.

The Manner of The Door Forced Open Warning:

a) The door is forced to open (without using PIN/Card or Egress Button) – Warning & Alarm

b) The door is opened with PIN/Card – No Warning or Alarm

c) The door is opened with Egress Button – No Warning or Alarm

DOOR PROPPED-UP WARNING & THE DELAY TIME (Location 81)

DOOR PROPPED-UP WARNING ON-OFF & TIMING

If somebody opened the door and it is left open longer than the allowable delay time, the keypad will generate door

propped-up warning until the door is re-closed. There is warning beeps from the keypad only but does not activates

the alarm output.

0--- Door Propped-up Warning OFF – (Default)

999 --- Door Propped-up Warning ON & The Delay Time

The Delay Time can be 1 to 999 seconds. It is the time allows the door to open without starting of the warning.

FUNCTION MODES

VALIDATION

LOCATION

0or 1

999

0or 1

999

FUNCTION MODES VALIDATIONLOCATION

1or 0 #73

Table of contents

Popular Keypad manuals by other brands

Satel

Satel abax2 manual

CADDX

CADDX RANGER 9060E manual

Dorma

Dorma AC-225 installation instructions

Blink Marine

Blink Marine PKP-2300-SI-FR user manual

NEC

NEC Aspire IP Keyset user guide

urmet domus

urmet domus 1051/025 Installation, programming and functions manual

International Electronics

International Electronics 212iLM Mullion installation manual

Blink Marine

Blink Marine CANopen PKP3500SI manual

CISA

CISA 06525-75 manual

Bticino

Bticino Terraneo 342610 instruction sheet

DSC

DSC PC 4010 manual

iDTRONIC

iDTRONIC ID Lock 5000 manual

Nicolaudie

Nicolaudie STICK-KE2 manual

DSC

DSC HS2LCDWF v1.0 installation instructions

Lutron Electronics

Lutron Electronics SQE-2 manual

S&G

S&G Biometric Keypad Programming and operating instructions

Paradox

Paradox Esprit+ 642 user manual

US Automatic

US Automatic 050551 manual

ADSF DK-2882 User manual

Popular Keypad manuals by other brands
