ADTEK ST-VA User manual

1 / 12 ST-VA/PR/SG/PM/RS/T MANUAL -2015-09-08
ST-VA(V1.0)
VOLT/CURRENT CONDITIONER
ST-PR(V1.0)
PROCESS(DC) CONDITIONER
ST-SG(V1.0)
STRAIN GAUGE CONDITIONER
ST-PM(V1.0)
POTENTIOMETER CONDITIONER
ST-RS(V1.0)
RESISTANCE CONDITIONER
ST-T(V1.0)
TEMPERATURE CONDITIONER
OPERATION MANUAL
■FEATURES
【ST-VA】
Measuring Voltage 0~600V or Current 0~5A for DC / AC / TRMS
Accuracy: 0.04% or 0.1%; Display range: -19999~29999
【ST-PR】
Measuring Voltage 0~10Vdc & Current 0(4)~20mAdc
Accuracy: 0.04%; Display range: -19999~29999
【ST-SG】
Measuring Strain Gauge 0~1.0/~2.0/~4.0/…../~10.0/20.0/~40.0mV/V
Field calibration with strain gauge to meet the system requirement
【ST-PM】
Measuring Potentiometer 0~100Ω/~2KΩ; 0~100Ω~100 KΩ(3 wire)
Field calibration with strain gauge to meet the system requirement
【ST-RS】
Measuring Resistance 0~200Ω/~2000Ω/~20.00KΩ/~200.0KΩ(2 wire)
Field calibration with Resistance to meet the system requirement
【ST-TR(C)】
Measuring Rtd: Pt100Ω/ Thermocouple: K, J, E, T, R, S, B
FUNCTIONS
●User function, easily programmable via the top panel
●Analogue output, RS 485 communication port and 1 Relay output
available
●Analogue output can be selected in 0~10V/0(4)~20mA
●Relay output for Hi / Lo energized with Start Delay / Hysteresis /
Energized & De-energized Delay / Relay Energized Hold….. functions
●RS 485 communication port available
FUNCTIONS
■DISPLAY FUNCTIONS
EX：Low Cut is set for -0.01, if the display is ≤ -0.01,
and all the display will be 0.
Digital filter: seting range from 0(None)/1~99 times.
The digital filter can reduce the magnetic noise in field.
Digital Fine Adjustment: seting range from
-19999~+29999 ;Users can get Fine Adjustment by
front key of the converter, and “Just Key In” the value
which user want to show in the current input signals.
Maximum Hold or Minimum Hold:
The converter will keep display in maximum value
during power on until manual reset by front key in
【User Level】
Write to display by RS485 command
The display can be written by RS485 command. In
past, The converter nomorlly receive 4~20mA or
0~10V from AO card or BCD card of PLC. We support
a new solution by RS485 writing in so that can be
save cost and wiring into PLC.
Low Cut / Digital Filter / Digital Fine Adjustment
Low Cut: seting range from -5000~+5000 counts.
If the setting value is positive, it means the range of
absolute value will be 0; PV≤ Setting value, the
display will be 0;
EX：Low Cut is set for 0.10, if the display is from
-0.10~+0.10, that will be 0.
If the setting value is negative, it means the range of
under setting value will be 0; PV≤ -Setting value, the
display will be 0;
■RELAY FUNCTIONS
Start Delay
Hysteresis: Settable range from 0~9999 Counts
Relay energized delay: Settable range from
0.1(second)~9(minutes)59.9(seconds);
Relay de-energized delay: Settable range from
0.1(second)~9(minutes)59.9(seconds)
Relay energized mode Hi / Lo / Hi.HLd / Lo.HLd / DO
Hi:Relay will energize when PV > Set-Point
Lo:Relay will energize when PV < Set-Point
Hi.HLd (Lo.HLd): When the PV Higher (or lower) than
set-point, the relay will be energized and hold until
manual reset by from key in【User Level】.

2 / 12 ST-VA/PR/SG/PM/RS/T MANUAL -2015-09-08
DO:Relay is energized by RS485 command directly,
and no longer to compare with set-point of relay
■ANALOGUE OUTPUT FUNCTIONS
SCALE
Default: Ai.Lo: 0%, Ai.Hi: 100%; Lo.SC: 0.00, Hi.SC: 100.00
Change to Ai.Lo: 0%, Ai.Hi: 75%; Lo.SC: 0.00, Hi.SC: 199.99
0.00
199.99
100.00
0.00%
100.00%
50.00%
INPUT
75.00%
0.00%
100.00%
50.00%
OUTPUT
199.99
100.00
0.00
Setted Scaling: Lo.SC: 0.00, Hi.SC: 199.99;
Desired Output: Ao.Lo: 50.00(PV), Ao.Hi: 150.00(PV)
50.00
150.00
SCALE
FIELD CALIBRATION(This function is for ST-SG, ST-PM & ST-RS)
In pass time, engineers have take a lot of time to adjust meters or converter to meet the structure of machinery zero
and span for the Load Cell and Potentiometer measuring. Now, our ST-LC support easlier process to do it called
“Field Calibration”.
Field calibration can be done individual in input 1 and input 2.
Adjust the structure of machinery to be “zero status”.
Enter the right pass code of the meter to get into the Field Calibration Level.
Move page to the CAL1.L , and press
ENT
Key to stand by. Press
ENT
Key again to read the signal low of sensing
device. After it done, the page will change to CAL1.H automatically. The low point will be the new zero.
Adjust the structure of machinery to be “span status”.
In CAL1.H page, press
ENT
Key to stand by. Press
ENT
Key again to read the signal high of sensing device. After it
done, the page will change to C.SEL1 automatically. The high point will be the new span.
Reading the signal will take few seconds.
Please check the setting of high scale Hi.SC and low scale Lo.SC again, after the “Field Calibration” has done.
C.SEL1(Calibration parameter selection): Field calibration don’t change the default calibration. So, after you do field
calibration, you can select default calibration if you want.
■APPLICATIONS
Switch Boards
Motor Control Boards
Display Voltage or Amp for Mechanical Equipment
Testing Instruments
AO
AL
RS 485
mVdc信號輸出
電流分流器
ENT
◄
◄
◄
ENT
MULTI-FUNCTION CONVERTER
M.H.
D.H.
COM
RL
Measuring Input
ST-SERIES APPLICATION FOR VOLTAGE / CURRENT & FREQUENCY MEASURING
RS 485 Modbus RTU Mode (up to 38400bps)
1 Relay Output:
Mode: High or Low Energized / Energized Hold / DO
Functions: Start delay / Energized & De-energized
delay / Hysteresis
Analog Output 0~10V/0(4)~20mA
Display:
Mode: Measuring Value / Maximum Hold/ Minimum
Hold / Reading value from RS485 command
電流分流器
馬達
配電盤
E
N
T
◄
◄
◄
ENT
MULTI-FUNCTION CONVERTER
M.H.
D.H.
COM
RL
E
N
T
◄
◄
◄
ENT
MULTI-FUNCTION CONVERTER
M.H.
D.H.
COM
RL
E
N
T
◄
◄
◄
ENT
MULTI-FUNCTION CONVERTER
M.H.
D.H.
COM
RL
■FRONT PANEL
■INSTALLATION
EN
T
?
?
?
ENT
MULTI-FUNCTION CONVERTER
M.H.
D.H.
COM
RL
Comm. status
Relay status
Indication
Operation Key
Display screen
DIN RAIL 35mm
CLAMP
4mm dia. MTG HOLE
15mm deep

3 / 12 ST-VA/PR/SG/PM/RS/T MANUAL -2015-09-08
■DIMENSIONS
(UNIT: mm)
2 xψ4.5
74.0
7.60
9
70.0
5
8
7
6
2
10
11
1
4
3
102.0
130.0
80.0
50.0
50.0

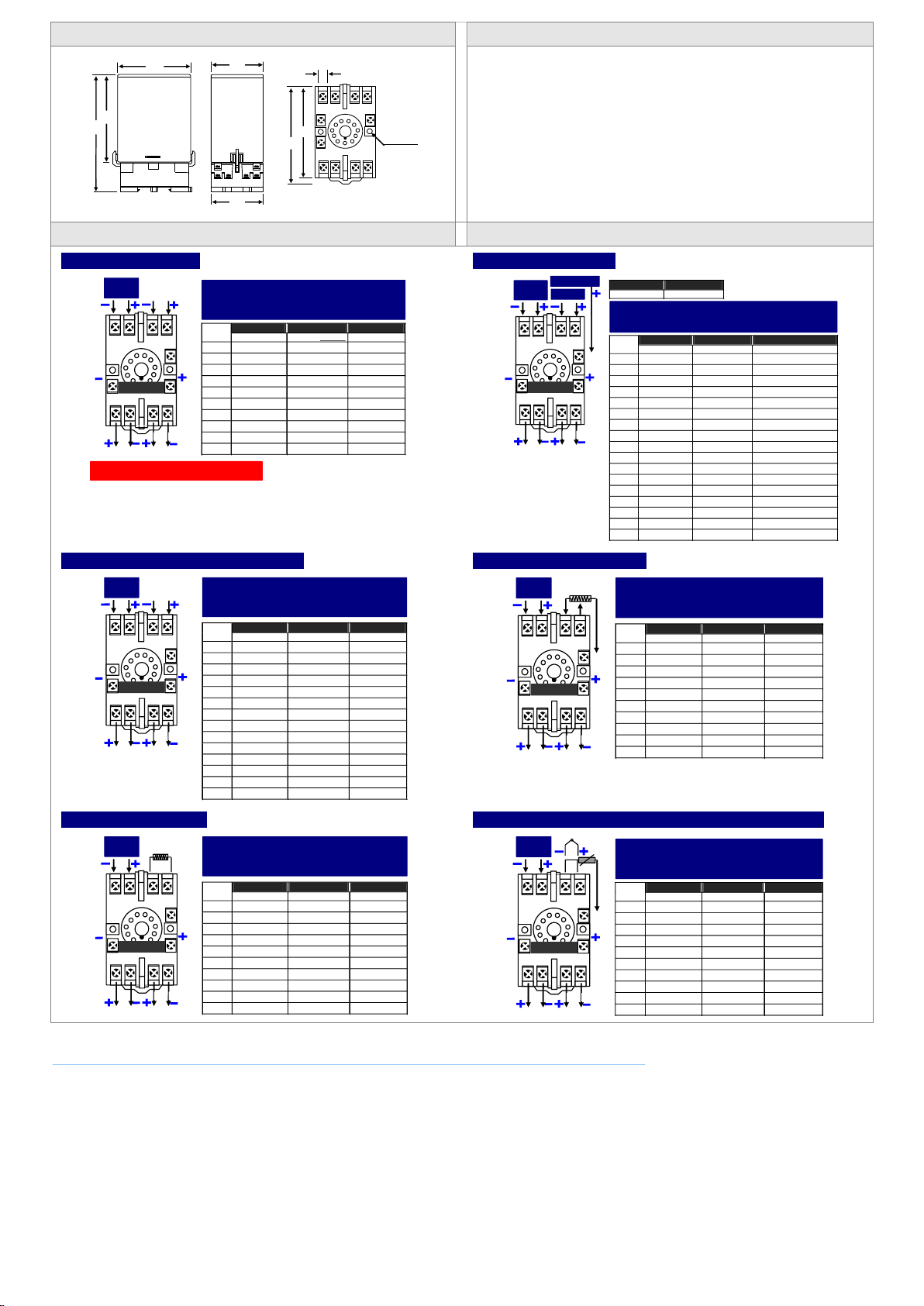

■WIRING DIAGRAM
【ST-VA 600V or 5A】
OUTPUT 1
OUTPUT 2
OUTPUT 3
TERMINAL 1+ & 2-
TERMINAL 10+ & 11-
TERMINAL 3+ & 9-
3 O/P
RS485
ANALOGUE
RELAY
3 O/P
ANALOGUE
RELAY
RELAY
3 O/P
RS485
RELAY
RELAY
3 O/P
RELAY
RELAY
RELAY
2 O/P
RS485
ANALOGUE
2 O/P
RS485
RELAY
2 O/P
ANALOGUE
RELAY
1 O/P
ANALOGUE
1 O/P
RS485
1 O/P
RELAY
AUX.
POWER
9
4
3
INPUT
10
2
1
11
8
5
6
7
OUTPUT3
DO NOT UNPLUG IF LIVE
OUTPUT2
G
OUTPUT1
A
B
Remark: ST series has been designed in
multi-output with limited terminals. Please
check the output functions and specify
terminals as label on product before wiring.
【ST-PR DC SIGNAL】
20mA INPUT
10V INPUT
TERMINAL 5+ & 6-
TERMINAL 4+ & 6-
OUTPUT 1
OUTPUT 2
OUTPUT 3
TERMINAL 1+ & 2-
TERMINAL 10+ & 11-
TERMINAL 3+ & 9-
3 O/P
RS485
ANALOGUE
EXCITATION SUPPLY
3 O/P
ANALOGUE
RELAY
EXCITATION SUPPLY
3 O/P
RS485
RELAY
EXCITATION SUPPLY
3 O/P
RELAY
RELAY
EXCITATION SUPPLY
3 O/P
RS485
ANALOGUE
RELAY
3 O/P
ANALOGUE
RELAY
RELAY
3 O/P
RS485
RELAY
RELAY
3 O/P
RELAY
RELAY
RELAY
2 O/P
ANALOGUE
EXCITATION SUPPLY
2 O/P
RS485
EXCITATION SUPPLY
2 O/P
RELAY
EXCITATION SUPPLY
2O/P
RS485
ANALOGUE
2 O/P
RS485
RELAY
2 O/P
ANALOGUE
RELAY
1 O/P
ANALOGUE
1 O/P
RS485
1 O/P
RELAY
AUX.
POWER
9
4
3
INPUTmA
OUTPUT2
G
10
2
1
11
8
5
6
7
OUTPUT1
A
B
OUTPUT3
INPUT V
Remark: ST series has been designed in multi-output with
limited terminals. Please check the output functions and
specify terminals as label on product before wiring.
【ST-SG STRAIN GAUGE / LOAD CELL】
OUTPUT 1
OUTPUT 2
OUTPUT 3
TERMINAL 1+ & 2-
TERMINAL 10+ & 11-
TERMINAL 3+ & 9-
3 O/P
RS485
ANALOGUE
EXCITATION
3 O/P
ANALOGUE
RELAY
EXCITATION
3 O/P
RS485
RELAY
EXCITATION
3 O/P
RELAY
RELAY
EXCITATION
3 O/P
RS485
ANALOGUE
RELAY
3 O/P
ANALOGUE
RELAY
RELAY
3 O/P
RS485
RELAY
RELAY
3 O/P
RELAY
RELAY
RELAY
2 O/P
ANALOGUE
EXCITATION
2 O/P
RS485
EXCITATION
2 O/P
RELAY
EXCITATION
2 O/P
ANALOGUE
RELAY
2 O/P
RS485
RELAY
2 O/P
RS485
ANALOGUE
AUX.
POWER
9
4
3
INPUT
OUTPUT2
G
10
2
1
11
8
5
6
7
OUTPUT1
A
B
OUTPUT3
Remark: ST series has been designed in
multi-output with limited terminals. Please
check the output functions and specify
terminals as label on product before wiring.
【ST-PM POTENTIOMETER】
OUTPUT 1
OUTPUT 2
OUTPUT 3
TERMINAL 1+ & 2-
TERMINAL 11+ & 10-
TERMINAL 3+ & 9-
3 O/P
RS485
ANALOGUE
RELAY
3 O/P
ANALOGUE
RELAY
RELAY
3 O/P
RS485
RELAY
RELAY
3 O/P
RELAY
RELAY
RELAY
2 O/P
RS485
ANALOGUE
2 O/P
RS485
RELAY
2 O/P
ANALOGUE
RELAY
1 O/P
ANALOGUE
1 O/P
RS485
1 O/P
RELAY
AUX.
POWER
9
4
3
INPUT
OUTPUT2
G
10
2
1
11
8
5
6
7
OUTPUT1
A
B
OUTPUT3
Remark: ST series has been designed in
multi-output with limited terminals. Please
check the output functions and specify
terminals as label on product before wiring.
【ST-RS RESISTANCE】
OUTPUT 1
OUTPUT 2
OUTPUT 3
TERMINAL 1+ & 2-
TERMINAL 10+ & 11-
TERMINAL 3+ & 9-
3 O/P
RS485
ANALOGUE
RELAY
3 O/P
ANALOGUE
RELAY
RELAY
3 O/P
RS485
RELAY
RELAY
3 O/P
RELAY
RELAY
RELAY
2 O/P
RS485
ANALOGUE
2 O/P
RS485
RELAY
2 O/P
ANALOGUE
RELAY
1 O/P
ANALOGUE
1 O/P
RS485
1 O/P
RELAY
AUX.
POWER
9
4
3
INPUT
OUTPUT2
G
10
2
1
11
8
5
6
7
OUTPUT1
A
B
OUTPUT3
Remark: ST series has been designed in
multi-output with limited terminals. Please
check the output functions and specify
terminals as label on product before wiring.
【ST-TR(C) TEMPERATURE PT100Ωor THERMOCOUPLE】
OUTPUT 1
OUTPUT 2
OUTPUT 3
TERMINAL 1+ & 2-
TERMINAL 10+ & 11-
TERMINAL 3+ & 9-
3 O/P
RS485
ANALOGUE
RELAY
3 O/P
ANALOGUE
RELAY
RELAY
3 O/P
RS485
RELAY
RELAY
3 O/P
RELAY
RELAY
RELAY
2 O/P
RS485
ANALOGUE
2 O/P
RS485
RELAY
2 O/P
ANALOGUE
RELAY
1 O/P
ANALOGUE
1 O/P
RS485
1 O/P
RELAY
AUX.
POWER
9
4
3
INPUT
OUTPUT2
G
10
2
1
11
8
5
6
7
OUTPUT1
A
B
OUTPUT3
A
B
b
Remark: ST series has been designed in
multi-output with limited terminals. Please
check the output functions and specify
terminals as label on product before wiring.
Amend: 2010/4/28: Change power supply code from D25 to ADL: AC/DC20~56V, ADH:AC/DC85~264V

4 / 12 ST-VA/PR/SG/PM/RS/T MANUAL -2015-09-08
■ORDER INFORMATION
■ORDERING INFORMATION
ST−VA−
DC/AC/
TRMS
Input
Signal
−
Relay
Output
−
Analogue
Output
−
RS 485
Port
−
Aux.
Powered
CODE
DC/AC/TRMS
CODE
VOLTAGE INPUT
CODE
CURRENT INPUT
CODE
RELAY O/P
CODE
ANALOG O/P
CODE
RS485 PORT
CODE
AXU. POWER
D
DC measuring
V1
0 ~ 199.99 mV
A1
0 ~ 199.99 uA
N
None
N
None
N
None
A1
AC115V
A
AC measuring
V2
0 ~ 1.9999 V
A2
0 ~ 1.9999 mA
R1
1 Relay
8
RS 485
A2
AC230V
T
TRMS measuring
V3
0 ~ 19.999 V
A3
0 ~ 19.999 mA
R2
2 Relay
V
0(1) ~ 5 V
0 ~ 10 V
V4
0 ~ 199.99 V
A4
0 ~ 199.99 mA
R3
3 Relay
ADL
AC/DC 20~56 V
V5
0 ~ 300.0 V
A5
0 ~ 1.9999 A
I
0 ~ 10 mA
0(4)~20 mA
ADH
AC/DC85~264 V
V6
0 ~ 500 V
A6
0 ~ 1.0000 A
VA
0 ~ 50mV
A7
0 ~ 5.000 A
VB
0 ~ 60mV
AO
Specify A input
VO
Specify V input
OPTION 1
OPTION 2
OPTION 3
OPTION 4
3 outputs can be specified at most for Analogue, RS485 & 3 Relay
For Example: Specify 2 Relay and 1 RS485 output (3 outputs)
The ordering code: ST-VA-xx-R2-N-8-xx
■ORDERING INFORMATION
ST−PR−
Input
Signal
−
Relay
Output
−
Analogue
Output
−
RS 485
Port
−
Excitation
Supply
−
Aux.
Powered
CODE
INPUT RANGE
CODE
RELAY O/P
CODE
ANALOG O/P
CODE
RS485 PORT
CODE
EXCIT. SUPPLY
CODE
AXU. POWER
A1
0(4 ) ~ 20 mA / 0~10 mA
N
None
N
None
N
None
N
None
A1
AC 115 V
AL
4~20 mA (with Excit.Pw 24V)
R1
1 Relay
8
RS 485
E24
DC 24V
A2
AC 230 V
V1
0 ~ 10 V / 0(1) ~ 5 V
R2
2 Relay
V
0(1) ~ 5 V
0 ~ 10 V
EO
Specify
AV
0~10V/0~20mA(all in one)
R3
3 Relay
ADL
AC/DC 20~56V
AO
Specify A input
I
0 ~ 10 mA
0(4)~20 mA
ADH
AC/DC 85~264V
VO
Specify V input
OPTION 1
OPTION 2
OPTION 3
3 outputs can be specified at most for Analogue, RS485, 3 Relay & Excitation supply.
For Example: Specify 1 Relay, 1 Analogue and RS485 output (3 outputs)
The ordering code: ST-PR-xx - R1- I –8 –N –xx
OPTION 4
OPTION 5
■ORDERING INFORMATION
ST−SG−
Input
Signal
−
Relay
Output
−
Analogue
Output
−
RS 485
Port
−
Excitation
Supply
−
Aux.
Powered
CODE
INPUT
CODE
INPUT
CODE
RELAY O/P
CODE
ANALOG O/P
CODE
RS485 PORT
CODE
EXCITATION
CODE
AXU. POWER
S1
1.0mV/V
S8
10.0mV/V
N
None
N
None
N
None
E05
DC 5V
A1
AC 115 V
S2
2.0mV/V
S9
20.0mV/V
R1
1 Relay
8
RS 485
E10
DC 10V
A2
AC 230 V
S3
4.0mV/V
SA
40.0mV/V
R2
2 Relay
V
0(1) ~ 5 V
0 ~ 10 V
EO
Specify
SO
Specify
R3
3 Relay
ADL
AC/DC 20~56 V
I
0 ~ 10 mA
0(4)~20 mA
ADH
AC/DC 85~264V
OPTION 1
OPTION 2
OPTION 3
OPTION 5
OPTION 4
3 outputs can be specified at most for Analogue, RS485 port, 3 Relay & Excitation Supply
■ORDERING INFORMATION
ST−PM−
Input
Signal
−
Relay
Output
−
Analogue
Output
−
RS 485
Port
−
Aux.
Powered
CODE
INPUT RANGE
CODE
RELAY O/P
CODE
ANALOG O/P
CODE
RS485 PORT
CODE
AXU. POWER
P1
0~100Ω/~2.0 KΩ
N
None
N
None
N
None
A1
AC 115 V
P2
0~2.0 KΩ/~100.0 KΩ
R1
1 Relay
8
RS 485
A2
AC 230 V
PO
Specify input
R2
2 Relay
V
0(1) ~ 5 V
0 ~ 10 V
R3
3 Relay
ADL
AC/DC 20~56 V
I
0 ~ 10 mA
0(4)~20 mA
ADH
AC/DC 85~264V
OPTION 1
OPTION 2
OPTION 3
3 outputs can be specified at most for Analogue, RS485 & 3 Relay
For Example: Specify 2 Relay and 1 Analogue output (3 outputs)
The ordering code: ST-PM-xx-R2-I-N-xx
OPTION 4
■ORDERING INFORMATION
ST−RS−
Input
Signal
−
Relay
Output
−
Analogue
Output
−
RS 485
Port
−
Aux.
Powered
CODE
INPUT RANGE
CODE
RELAY O/P
CODE
ANALOG O/P
CODE
RS485 PORT
CODE
AXU. POWER
R1
0.00Ω~ 200.00 Ω
N
None
N
None
N
None
A1
AC 115 V
R2
0.0Ω~ 2000.0 Ω
R1
1 Relay
8
RS 485
A2
AC 230 V
R3
0.000Ω~ 20.000 KΩ
R2
2 Relay
V
0(1) ~ 5 V
0 ~ 10 V
R4
0.00Ω~ 200.00 KΩ
R3
3 Relay
ADL
DC 20~56 V
RO
Specify
I
0 ~ 10 mA
0(4)~20 mA
ADH
AC/DC 85~264V
OPTION 1
OPTION 2
OPTION 3
OPTION 4
3 outputs can be specified at most for Analogue, RS485 & 3 Relay
For Example: Specify 1 Analogue output and 2 Relay (3 outputs)
The ordering code: ST-RS-xx –R2-I-N-xx

5 / 12 ST-VA/PR/SG/PM/RS/T MANUAL -2015-09-08
■ORDERING INFORMATION
ST−T
Input
Signal
−
Relay
Output
−
Analogue
output
−
RS 485
Port
−
Axu.
Power
CODE
INPUT RANGE
CODE
INPUT RANGE
CODE
RELAY O/P
O
P
T
I
O
N
A
L
O
CODE
ANALOG O/P
CODE
RS485 PORT
CODE
AXU. POWER
P1
Pt100Ω-50.00~199.99 °C
K1
Type K 0.0~1200.0 °C
N
None
N
None
N
None
A1
AC 115 V
P2
Pt100Ω-150.0~800.0 °C
J1
Type J 0.0~750.0 °C
R1
1 Relay
8
RS 485
A2
AC 230 V
E1
Type E 0.0~1000.0 °C
R2
2 Relay
V
0(1) ~ 5 V
0 ~ 10 V
T1
Type T 0.0~400.0 °C
R3
3 Relay
ADL
AC/DC 20~56 V
R1
T/C type R 400~1600 °C
I
0 ~ 10 mA
0(4)~20 mA
ADH
AC/DC 85~264 V
S1
T/C type S 400~1600 °C
B1
T/C type B 400~1800 °C
OPTION 1
OPTION 2
OPTION 3
OPTION 4
3 outputs can be specified at most for Analogue, RS485 & 3 Relay
For Example: Specify 2 Relay and 1 RS485 output (3 outputs)
The ordering code: ST-T-xx-R2-N-8-xx
Amend: 2010/4/28: Change power supply code from D25 to ADL: AC/DC20~56V, ADH:AC/DC85~264V
■OPERATING STEPS:
STEP
DESCRIPTION
DISPLAY
FLASH
REMARK
BEFORE POWER ON, PLEASE CHECK THE SPECIFICATION AND
CONNECTION AGAIN.
SELF-DIAGNOSIS AND ERROR CODE:
: Display is positive-overflow (Signal is over display range)
(Please check the input
signal)
: Display is negative-overflow (Singal is under display range)
(Please check the input
signal)
: ADC is positive-overflow (Signal is higherthan input 120%)
(Please check the input
signal)
: ADC is negative-overflow (Signal is lower than input -120%)
(Please check the input
signal)
/
: EEPROM occars error
(Please send back to
manufactory for repaire)
/
: Calibrating Input Signal do not process
(Please process Calibrating
Input Signal)
/
: Calibrating Input Signal error
(Please check Calibrating
Input Signal)
/
: Calibrating Output Signal do not process
(Please process Calibrating
Output Signal)
/
: Calibrating Output Signal error
(Please check Calibrating
Output Signal)
*Please enter to Engineer Level to check andset the paraconverters when users startto install the
converter
*KEY FUNCTIONS:
SHIFT: (1) In each Function Index Page, press this key about 1 second will return to the
Function Group.
(2) In Function Setting Page, press this key about 1 second will return to the
Function Index page.
(3) During Setting, press this key will move the bright digit (i.e. can be adjusted digit)
UP: (1) During number Setting, press this key can roll the digit up.
(2) In Function Setting Page, press this key can switch functions.
(3) In Function Index Page, press this key will back to the last Function Index Page.
DOWN: (1) During number Setting, press this key can roll the digit down.
(2) In Function Setting Page, press this key can switch functions.
(3) In Function Index Page, press this key will go to the next Function Index Page.
ENT
ENTER: Press this key to confirm and save the setting.
In Engineer Level, the
screen will return to
Measuring Page after do
not press any key over 2
minutes, or press
for 1 second.

6 / 12 ST-VA/PR/SG/PM/RS/T MANUAL -2015-09-08
USER LEVEL
Power on
USER LEVEL
Press for 1 second can back to Measuring Page
Self-diagnosis
0
−
0
▲
▼
▼
▼
Pv: Present Value
If the display function has
been set RS485, the Measuring
Page will show the number
what is from RS485 command.
The reading will move to this
step for checking
0
−
4
▲
▼
▼
▼
MAX:PV Maximum memorize
Display the model
number
St.vA: 0~600V/0~5A
St.Pr: 0~10V/0~20mA
St.SG: Strain Gauge
St.PM: Potentiometer
St.t: temperature
0
−
5
▲
▼
▼
▼
M.rSt: Maximum & Minimum
storage reset
Selectable: YES / no
Display the software
version
0
−
1
▲
▼
▼
▼
rY.1.SP.: Relay 1 Set-point
setting
(default:10000)
Settable Range: 0~99999
0
−
6
▲
▼
▼
▼
St-vA: The model number
vEr1.0: fameware version 1.0
ENT
MEASURING PAGE
Press
1sec.
Press
1sec.
0
−
2
▲
▼
▼
▼
rY.rSt: Reset for energize
hold of Relay
Selectable: YES / no
0
−
1
▲
▼
▼
▼
Cyclic to first page
ENT
Enter the password to
get into Engineer Level
0
−
3
▲
▼
▼
▼
Min:PV Minimum memorize
YES
Correct
NO
Default=1000
ENGINEER LEVEL

7 / 12 ST-VA/PR/SG/PM/RS/T MANUAL -2015-09-08
ENGINEER LEVEL –INPUT GROUP
ENT
Measuring Page
ENGINEER LEVEL
In Function Index Page, press
ENT
to enter Function Setting Page for setting;
press over 1 second to return Function Group Page.
ENT
Pass code enter
A
−
0
▲
▼
▼
▼
The Function is for ST-PRonly
Ai.tYP: Analog input type &
range
(default: A.4~20);
Selectable: v.0-10(0~10V) /
v. 0~5(0~5V) / v.1-5(1~5V) /
A.0-10(0-10mA) /
A.0-20(0~20mA) /
A.4-20(4~20mA)
Press
ENT
to enter & setting
A
−
9
▲
▼
▼
▼
Z.S.CLr: Clear Fine Zero &
Span Adjustment for PV
display
(Default: nonE);
Range:nonE / Pv.Zro / Pv.SPn
/ botH
Press
ENT
to enter & setting
YES
CHECK
NO
default=1000
▲
▼
▼
INPUT GROUP
Press
ENT
F N
Press
1sec.
A
−
1
▲
▼
▼
▼
Ai.Lo: Analogue input low
(Default: 0.00%);
Range: 0.00%~100.00%
Press
ENT
to enter & setting
A
−
1
0
▲
▼
▼
▼
diPLY: Display Function
(default: Pv);
Selectable:
Pv / Mini.H / MAx.H / RS485
Pv: Present Value
Mini.H: Minimum. Hold
MAx.H: Maximum Hold
RS485: Writing to display
from RS485 command
Press
ENT
to enter & setting
A
−
2
▲
▼
▼
▼
Ai.Hi: Analogue input high
(Default: 100.00%);
Range: 0.00%~100.00%
Press
ENT
to enter & setting
A
−
3
▲
▼
▼
▼
Pv.dP: Decimal Point of PV
(Default: 0);
Range: 0/ 0.0 / 0.00 / 0.000 /
0.0000
Press
ENT
to enter & setting
A
−
1
1
▲
▼
▼
▼
Lo.Cut: Low Cut to show “0”
(default: 0);
Settable: ±19999 counts
Press
ENT
to enter & setting
A
−
4
▲
▼
▼
▼
Sq.rot: Square Root
(Default: no)
Range:
no / YES
Press
ENT
to enter & setting
A
−
1
2
▲
▼
▼
▼
AvG: Average for PV
(default: 1time);
Settable:
1(no function)~99times
Press
ENT
to enter & setting
A
−
5
▲
▼
▼
▼
Lo.SC: Low scale
(Default: 0);
Range: -19999~+29999
Press
ENT
to enter & setting
A
−
1
3
▲
▼
▼
▼
Mv.AvG:Moving Average
(default: 1time);
Settable:
1(no function)~99times
Press
ENT
to enter & setting
A
−
6
▲
▼
▼
▼
Hi.SC: High scale
(Default: 199.99);
Range: -19999~+29999
Press
ENT
to enter & setting
A
−
1
4
▲
▼
▼
▼
d.FiLt: Digital filter
(default: 0);
Selectable:
0(no function)/1~99times
Press
ENT
to enter & setting
A
−
7
▲
▼
▼
▼
Pv.Zro: Fine Zero Adjustment
for PV display
(Default: 0);
Range: -19999~29999
Press
ENT
to enter & setting
A
−
1
5
▲
▼
▼
▼
*(ST-SG-PCI ver
have this feature)
dn.key(down key): Panel down
key Function Setting
(default`: nonE);
Selectable: nonE/ rel.pv /
pv.hld / m.rst
nonE(None): None Lock
rel.pv 顯Display window will
show the relative value
(ΔPV) or tare function
pv.hld Display will no longer be
maintained and that
changes to follow the input
signal changes, until the
contact is opened (OFF)
m.rstFunction is to enforce the
max (min) value of the
reversion
Press
ENT
to enter & setting
A
−
8
▲
▼
▼
▼
Pv.SPn: Fine Span
Adjustment for PV display
(Default: 0);
Range: -19999~29999
Press
ENT
to enter & setting
A
−
1
6
▲
▼
▼
▼
P.CodE: Pass Code for enter
Engineer Level
(default: 1000);
Selectable: 0000~9999
Press
ENT
to enter & setting
A
−
1
7
▲
▼
▼
▼
F.LoCk: Function Level Lock
(default: nonE);
Selectable: nonE / USEr / EnG
/ ALL
none: No lock
USEr: User Level lock
EnG: Engineer Level lock
ALL: All Level lock
Press
ENT
to enter & setting
Cyclic to first page
ENGINEER LEVEL --- RELAY GROUP, ANALOGUE OUTPUT

8 / 12 ST-VA/PR/SG/PM/RS/T MANUAL -2015-09-08
(The group will be hidden, if the converter without the functions)
ENGINEER LEVEL
In Function Index Page, press
ENT
to enter Function Setting Page for setting;
press over 1 second to return Function Group Page.
▲
▼
▼
RELAY GROUP
Press
ENT
F N
Press
1sec.
B
−
1
▲
▼
▼
▼
rY.Sb: Start band for Relay
energized
(default: 0);
Settable: 0~9999 counts
Press
ENT
to enter & setting
B
−
4
▲
▼
▼
▼
rY1.HY.: Relay 1 Hysteresis
(default: 0);
Settable: 0~5000 counts
Press
ENT
to enter & setting
B
−
2
▲
▼
▼
▼
rY.Sd: Start delay time for
Relay energized
(default: 0:00.0);
Settable: 0:00.0~9(m):59.9(s)
Press
ENT
to enter & setting
B
−
5
▲
▼
▼
▼
rY1.rd: Relay 1 energized
delay time
(default: 0:00.0);
Settable: 0:00.0~9(m):59.9(s)
Press
ENT
to enter & setting
B
−
3
▲
▼
▼
▼
rY1.Md: Relay 1 energized
mode
(default: Hi);
Selectable:
oFF / Lo / Hi/ Lo.HLd / Hi.HLd
/ do
oFF:Turn off the Relay
Lo: Low Level Energized; The
relay energized when PV
＜Setpoint.
Hi: High Level Energized; The
relay energized when PV＞
Setpoint
Lo.HLd: Low Level energized
hold; When the PV lower
than set-point, the relay will
be energized and hold until
manual reset by from key in
User Level or E.C.I.
Hi.HLd: High Level energized
hold; When the PV higher
than set-point, the relay will
be energized and hold until
manual reset by from key in
User Level or E.C.I.
do(Digital Outptu)：Relay
energized by RS485
command
Press
ENT
to enter & select
B
−
5
▲
▼
▼
▼
rY1.rd: Relay 1 energized
delay time
(default: 0:00.0);
Settable: 0:00.0~9(m):59.9(s)
Press
ENT
to enter & setting
B
−
1
▲
▼
▼
▼
Cyclic to first page
▲
▼
▼
ANALOGUE OUTPUT
GROUP
Press
ENT
F N
Press
1sec.
D
−
1
▲
▼
▼
▼
Ao.Typ: Analogue Output
type selection
(default: A.4~20);
Settable:
v.0-10 (0~10V) / v.0~5(0~5V) /
v.1-5(1~5V) / A.0-20(0~20mA)
/ A.4-20(4~20mA) /
A.0-10(0-10mA)
Press
ENT
to enter & setting
D
−
5
▲
▼
▼
▼
Ao.SPn: Fine Span
Adjustment for Analog High
Output
(default: 0);
Settable: -19999~29999
Press
ENT
to enter & setting
D
−
6
▲
▼
▼
▼
Z.S.CLr: Zero & Span Clear
for Adjustment
(default: nonE);
Settable: nonE / Ao.Zro /
Ao.SPn / both
nonE: No clear
Ao.Zro: Clear Zero Adjustment
Ao.SPn: Clear Span
Adjustment
both: Clear Zero and Span
Adjustment
Press
ENT
to enter & setting
D
−
2
▲
▼
▼
▼
Ao.LS: Analogue Low Output
relative Low Scale
(default: according to Lo.SC);
Settable: -19999~19999
Press
ENT
to enter & setting
D
−
3
▲
▼
▼
▼
Ao.HS: Analogue High
Output relative High Scale
(default: according to Hi.SC);
Settable: -19999~29999
Press
ENT
to enter & setting
D
−
7
▲
▼
▼
▼
Ao.LMt: Analog Output High
Limit
(default: 110.00);
Settable: -0.00~110.00% of FS
Press
ENT
to enter & setting
D
−
4
▲
▼
▼
▼
Ao.Zro: Fine Zero Adjustment
for Analog Low Output
(default: 0);
Settable: -19999~29999
Press
ENT
to enter & setting
D
−
1
▲
▼
▼
▼
Cyclic to first page
ENGINEER LEVEL --- RS485 GROUP
(The group will be hidden, if the converter without the function)

9 / 12 ST-VA/PR/SG/PM/RS/T MANUAL -2015-09-08
ENGINEER LEVEL
In Function Index Page, press
ENT
to enter Function Setting Page for setting;
press over 1 second to return Function Group Page.
▲
▼
▼
RS485 GROUP
Press
ENT
F N
Press
1sec.
E
−
1
▲
▼
▼
▼
Adres: Device number of the
converter
(default: 1);
Settable: 1~255
Press
ENT
to enter & setting
E
−
3
NstB2
▲
▼
▼
▼
PritY: Parity
(default: n.Stb.2);
Settable:
n.Stb.1 / n.Stb.2 / odd / EvEn
n.Stb.1: None, 1 stop bit
n.Stb.2: None, 2 stop bits
odd: odd
EvEn: Even
E
−
2
▲
▼
▼
▼
baud: Baud rate
(default: 9600);
Settable: 1200 / 2400 / 4800 /
9600 / 19200 / 38400
Press
ENT
to enter & select
E
−
1
▲
▼
▼
▼
Cyclic to first page
▲
▼
▼
Cyclic to Input Group
■RS485 ModBus RTU Mode
1. Function 03H (Read Holding Registers)
Request Data Frame; EX: Read the data of display value(0000H starts from 1 Word)
SLAVE
Address
FUNCTION
Starting
Address Hi
Starting
Address Lo
No. of Word
Hi
No. of Word
Lo
CRC
Lo
CRC
Hi
01H
03H
00H
00H
00H
01H
84H
0AH
Response Data Frame; EX: The response value is ”0”
SLAVE
Address
FUNCTION
Byte
count
Data
Hi
Data
Lo
CRC
Lo
CRC
Hi
01H
03H
02H
00H
00H
B8H
44H
Request Data Frame (EX: Continue to request the data of 10 points)
SLAVE
Address
FUNCTION
Starting
Address Hi
Starting
Address Lo
No. of Word
Hi
No. of Word
Lo
CRC
Lo
CRC
Hi
01H
03H
00H
00H
00H
0AH
C5H
CDH
Response Data Frame
SLAVE
Address
FUNCTION
Byte
count
Data(1)
Hi
Data(1)
Lo
…
…
Data(10)
Hi
Data(10)
Lo
CRC
Lo
CRC
Hi
01H
03H
14H
00H
00H
…
…
01H
00H
--
--
2. Writing Command by Function 06H (Preset Single Register)
Request Data Frame
SLAVE
Address
FUNCTION
Code
Starting
Address Hi
Starting
Address Lo
Preset
DATA Hi
Preset
DATA Lo
CRC
Lo
CRC
Hi
01H
06H
00H
00H
00H
02H
08H
0BH
Response Data Frame
SLAVE
Address
FUNCTION
Code
Starting
Address Hi
Starting
Address Lo
Preset
DATA Hi
Preset
DATA Lo
CRC
Lo
CRC
Hi
01H
06H
00H
00H
00H
02H
08H
0BH
■ADDRESS TABLE **Address numbers are Hexadecimal
User Level
Name
Address
Range
Explain
Initial
Write/Read
Note
PV
0000h
-19999~29999
Present Value
R

10 / 12 ST-VA/PR/SG/PM/RS/T MANUAL -2015-09-08
RY1.SP
0001h
-19999~29999
Relay 1 Set Point
10000
R/W
RELAY
STATUS
0002h
Relay Status
bit0=1 Relay 1 ON
bit0=0 Relay 1 OFF
00h
R/W
0003h
-19999~29999
The Minimum of PV
R
0004h
-19999~29999
The Maximum of PV
R
SYSTEM
STATUS
0005h
SYSTEM STATUS
bit0=1 EEP fail;
bit1=1 Input calibration fail;
bit2=1 Input calibration NG;
bit3=1 Analogue Output calibration fail;
bit4=1 Analogue Output calibration NG
00h
R
0006h
0~1
Reset Maximum & Minimum Value
0:No 1:Yes
00h
R/W
0007h
-19999~29999
PV showing from RS485 command(data)
00h
R/W
Engineer Level
【Input Group】
Name
Address
Range
Explain
Initial
Write/Read
Note
RESERVED
0008h
Not use unless ST-PR
0~5
ST-PR
Analogue Input Type
0:0~10V 1:0~5V 2:1~5V 3:0~20mA
4:4~20mA 5:0~10mA
00h
R/W
0009h
0.00~100.00%
Input Low
0
R/W
000Ah
0.00~100.00%
Input High
10000
R/W
000Bh
0~4
PV Decimal Point
0: 00000 1: 0000.0 2: 000.00 3: 00.000
4: 0.0000
00h
R/W
000Ch
-19999~29999
Low Scale
0
R/W
000Dh
-19999~29999
High Scale
19999
R/W
000Eh
-19999~29999
PV ZERO
0
R/W
000Fh
-19999~29999
PV SPAN
0
R/W
0010h
0~3
The clear of PV_ZERO and PV_SPAN
0:None 1:PV_ZERO 2:PV_SPAN 3:
Both
00h
R/W
0011h
0~3
Display Mode
0:PV 1: Minimum Hold 2: Maximum Hold
3: RS485
00h
R/W
0012h
-19999~19999
Low Cut
0
R/W
0013h
1~99
Average for Present Value
5
R/W
0014h
0~99
Digital Filter
0
R/W
0015h
0000~9999
Pass Code
1000
R/W
0016h
0~3
Function Lock
0: none 1: User Level 2: Engineer Level
3: All
00h
R/W
【Relay Group】
Name
Address
Range
Explain
Initial
Write/Read
Note
0017h
0000~9999
Start Band of Relay
0
R/W
0018h
0000~5999
(0.1second)
Start Delay Time of Relay
0
R/W
Name
Address
Range
Explain
Initial
Write/Read
Note
0019h
0~5
Relay1 Energized Mode
0: oFF(no use);
1: Lo(Low Energized);
2: Hi(High Energized)
3: Lo Hold(Low Energized Hold)
4: High Hold(High Energized Hold)
02h
R/W

11 / 12 ST-VA/PR/SG/PM/RS/T MANUAL -2015-09-08
5: DO(Digital Output);
001Ah
0000~5000
Hysteresis of Relay1
0
R/W
001Bh
0000~5999
(0.1second)
Energized Delay Time of Relay1
0
R/W
001Ch
0000~5999
(0.1second)
De-Energized Delay Time of Relay1
0
R/W
001Dh
0~1
Reset for Relay Energized Hold
0: No 1: Yes
00h
R/W
【AO Group】
Name
Address
Range
Explain
Initial
Write/Read
Note
001Eh
0~5
Analog Output Type
0: 0~10V 1: 0~5V 2:1~5V
3: 0~20mA 4: 4~20mA 5: 0~10mA
00h
R/W
001Fh
-19999~29999
Analogue Output Low Scale
0
R/W
0020h
-19999~29999
Analogue Output High Scale
19999
R/W
0021h
00.00%~110.00%
Analogue Output High Limit
11000
R/W
0022h
0~3
The clear of AO_ZERO and AO_SPAN
0: None 1: AO_ZERO 2: AO_SPAN
3: Both
00h
R/W
【RS485 Group】
Name
Address
Range
Explain
Initial
Write/Read
Note
0023h
1~255
RS485 address
1
R/W
0024h
0~5
RS485 baud rate
0:1200 1:2400 2:4800 3:9600
4:19200 5:38400
03h
R/W
}}
0025h
0~3
RS485 parity
0: n-8-1 1: n-8-2, 2: odd, 3: even,
01h
R/W
■Field Calibration Group [for ST-SG / ST-PM / ST-RS only]
Please according to the numbers to do the field calibration
()
Potentiometer 0~1.0Kohm
RL 1
RL 2
2
RL3
RL 4
COM
CI1
1
CI2
CI3
ENT/FN
?
?
?
mm
Low End
High End
2
caLlo
caLls
3
5
caLhi
caLhs
6
1
4
1
2
3
4
5
6
INDEX
FUNCTION DESCRIPTION
PARAMETERS & SETTING
SET
168*8
Measuring Page
enter
Pcode
&
Pass Code Page
enter
Fcode
0000
2000
Pass Code Page for Field Calibration
Level
Enter the exactly pass code of the
meter to access the Field Calibration
Level. Otherwise, it will be turning
back to measuring page.
Pass Code
Adjust the structure of machinery to the lower signal output status(or any
lower status).
NO
YES

12 / 12 ST-VA/PR/SG/PM/RS/T MANUAL -2015-09-08
F−1
caLlo
0022h
052eh
caLlo(CAL.Lo): Field Calibration Low.
The low calibration is not need the exactly
"zero" to calibrate because of the "field
calibration" function could be calibrate any
lower point.
Waiting for the value till stable,
pressed
Key to read signal low
of sensing device.
Waiting for above reading stable
(around 3~5seconds), press
Key again to complete the
calibration lower point, and go to
[caLls].
F−2
caLls
)0
000)0
000)0
caLls(CAL.LS): the value to be set is
relative to Field Calibration low point.
Settable range: -19999~29999
Shift
Up
Down
Enter
Adjust the machinery structure to the higher signal output status(or any
higher status).
F−3
caLhi
6478h
699bh
caLhi(CAL.Hi): Field Calibration High.
The high calibration is not need the
exactly "span" to calibrate because of the
"field calibration" function could be
calibrating any higher point.
Waiting for the value till stable,
pressed
Key to read signal high
of sensing device.
Waiting for above reading stable
(around 3~5seconds), press
Key again to complete the
calibration higher point, and go to
[caLhs].
F−4
caLhs
250)0
250)0
250)0
caLhs(CAL.HS): the value to be set is
relative to Field Calibration high point.
Settable range: -19999~29999
Shift
Up
Down
Enter
F−5
Csel
deflt
deflt
field
Csel(C.SEL): Calibration parameter
selection;
As the user finished the procedures of
field calibration, the field calibration datum
has been saved in EEProm and it can't
change the default(factory) calibration
datum . Even the field calibration has been
done, the user can still select either default
calibration or field calibration.
Programmable:
deflt(default): factory calibration
points and factors
field(field): field calibration points
and factors
Up
Down
Enter
◘If the user select field
calibration of the [lOsc](step
A-4) and [hIsc](A-5) will be
replaced by the [caLls] and
[caLhs]which it can not to be
change by anyone. If user has to
change the scaling, it's the only
way to access field calibration
level to set in [caLls](step F-2)
and [caLhs](step F-4).
◘Please double check the
[lOsc](step A-4) and [hIsc](A-5)
whether are correct after
selection the deflt or field.
