Sennheiser ew 300 IEM G3 User manual

SR 300 IEM
Instruction manual

Contents
1
Contents
Important safety instructions ............................................................................................................................... 2
The evolution wireless series ew 300 IEM G3 ...................................................................................................... 4
The SR 300 IEM G3 rack-mount transmitter ........................................................................................................ 4
The frequency bank system .................................................................................................................................... 4
Delivery includes ..................................................................................................................................................... 5
Product overview .................................................................................................................................................... 6
Overview of the SR 300 IEM G3 transmitter ........................................................................................................ 6
Overview of the displays .......................................................................................................................................... 7
Putting the transmitter into operation ............................................................................................................... 8
Preparing the transmitter for use .......................................................................................................................... 8
Connecting external devices ................................................................................................................................ 11
Connecting transmitters in a network ............................................................................................................... 12
Connecting the mains unit ................................................................................................................................... 12
Using the transmitter .......................................................................................................................................... 13

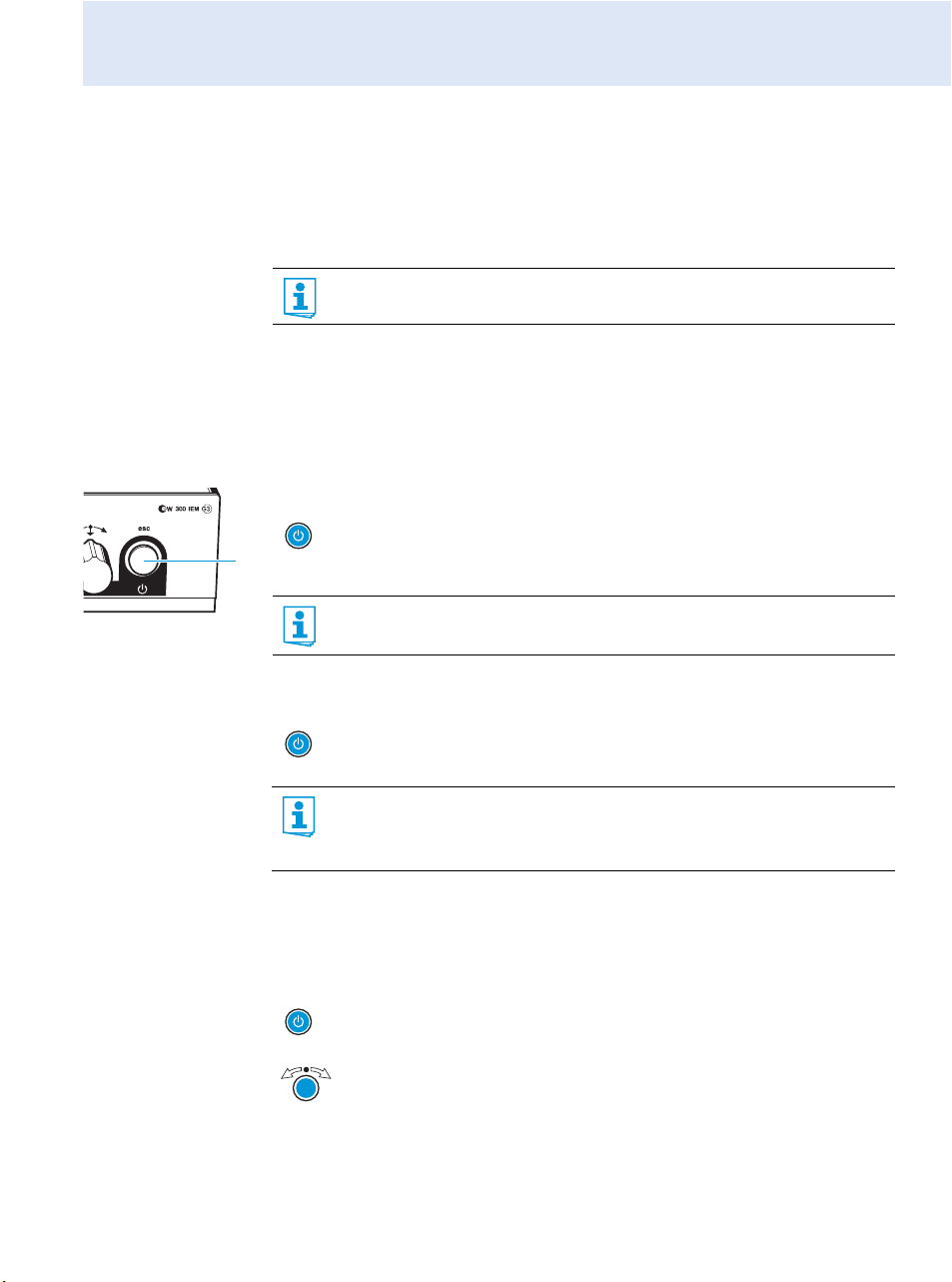

Switching the transmitter on/off ....................................................................................................................... 13

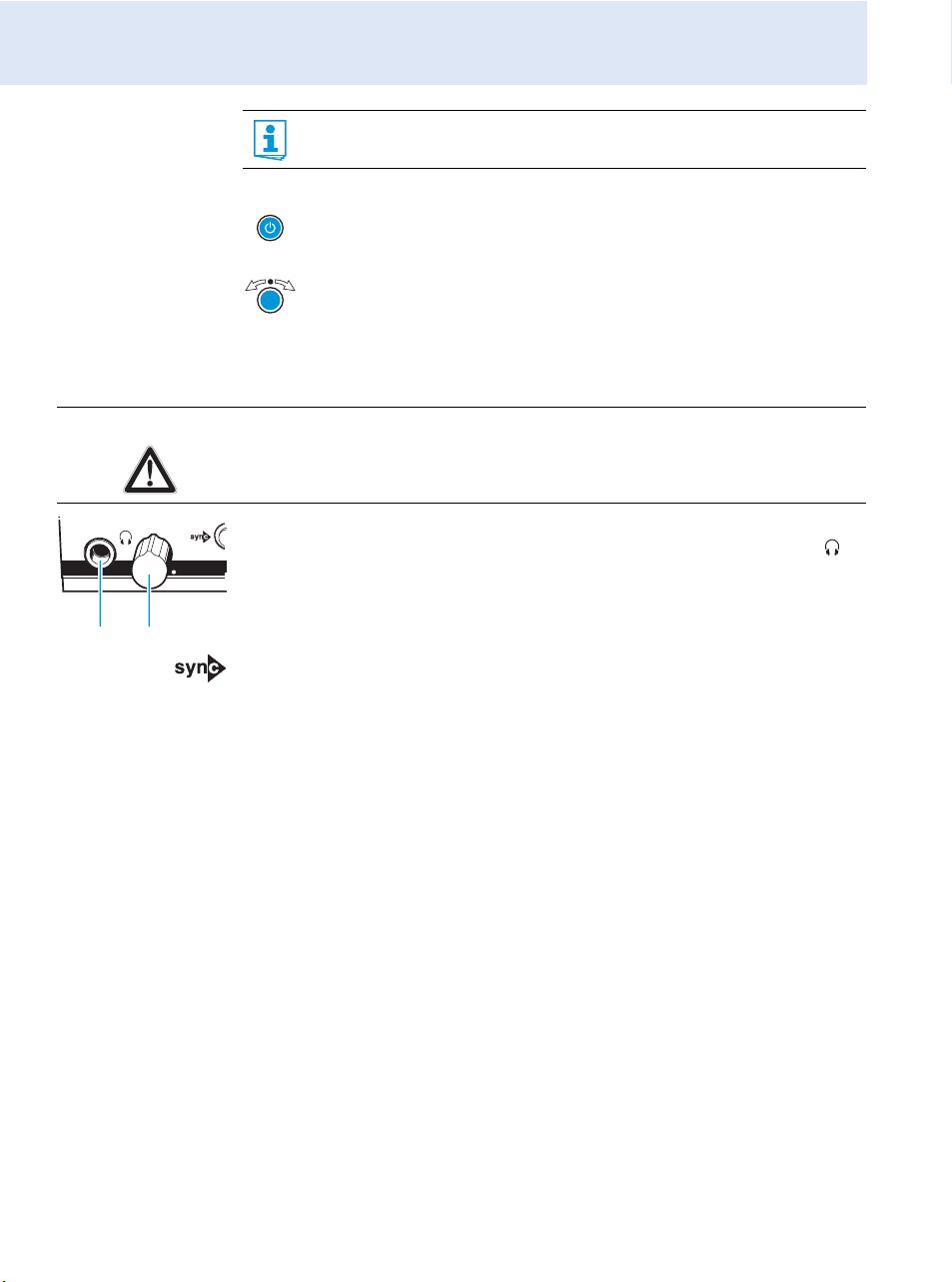

Monitoring the audio signal via headphones ................................................................................................... 14

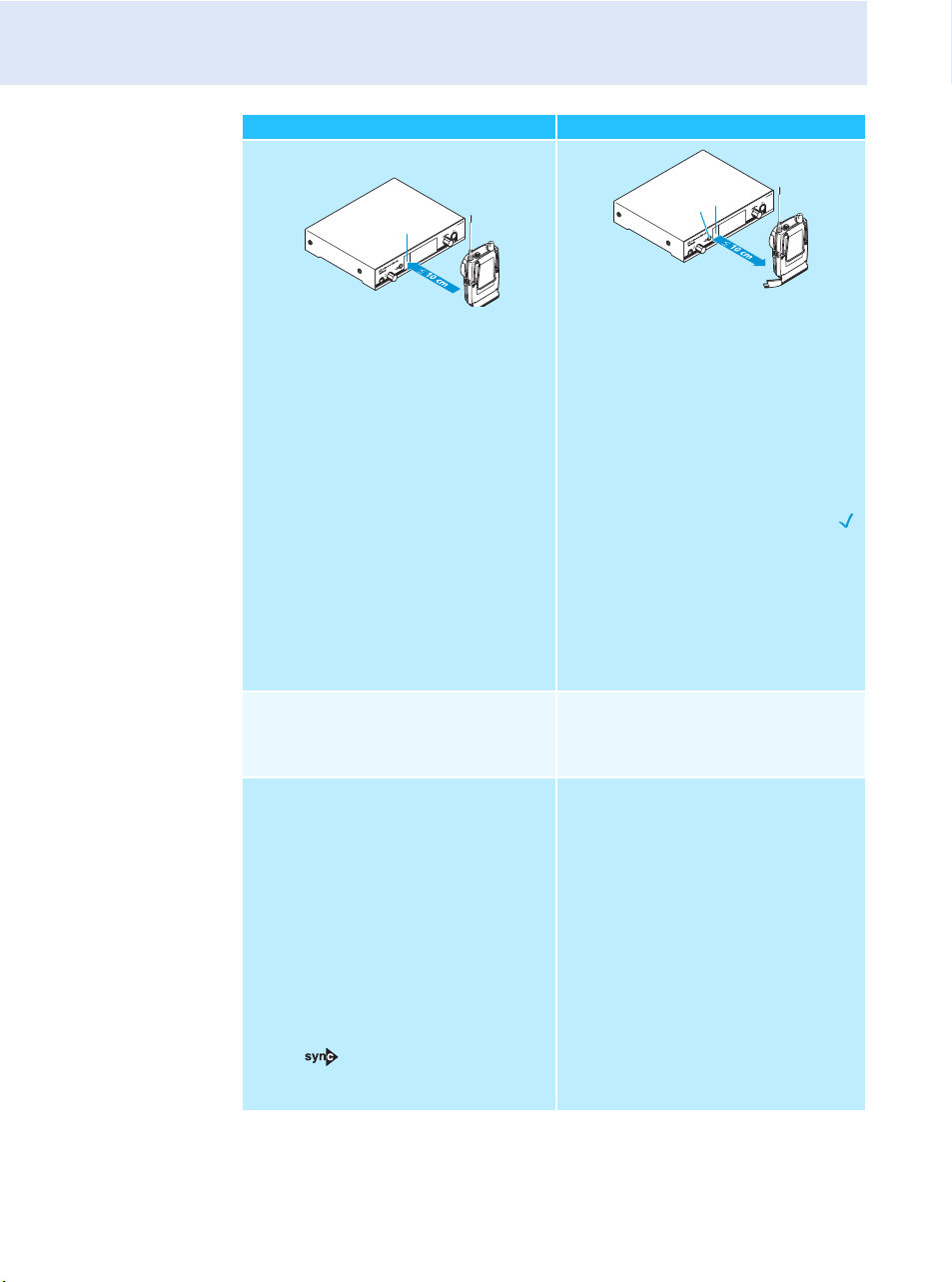

Synchronizing transmitters and receivers via the infra-red interface ........................................................ 14
Adjusting the audio channels .............................................................................................................................. 17

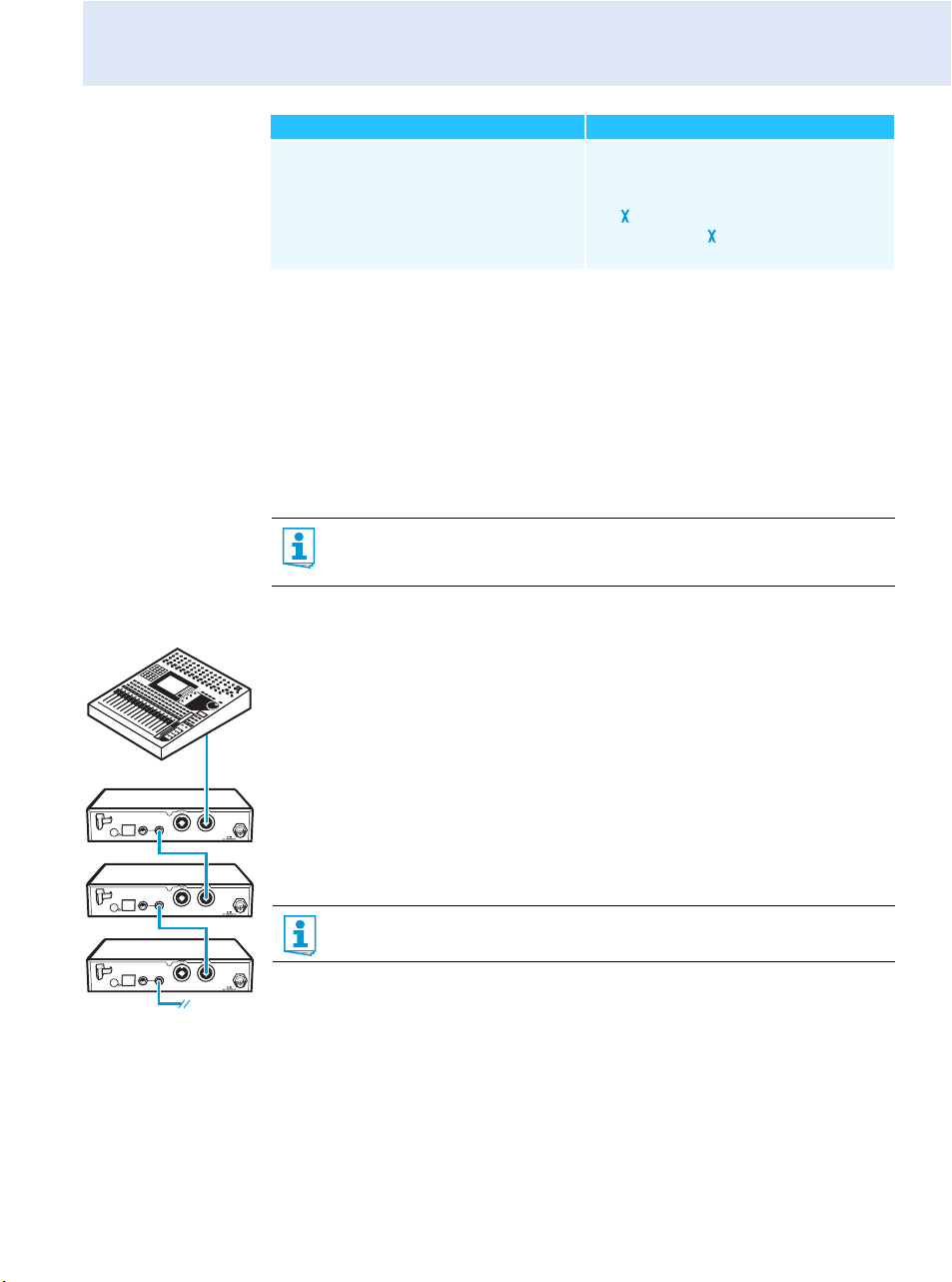

Daisy chaining audio signals ................................................................................................................................ 17

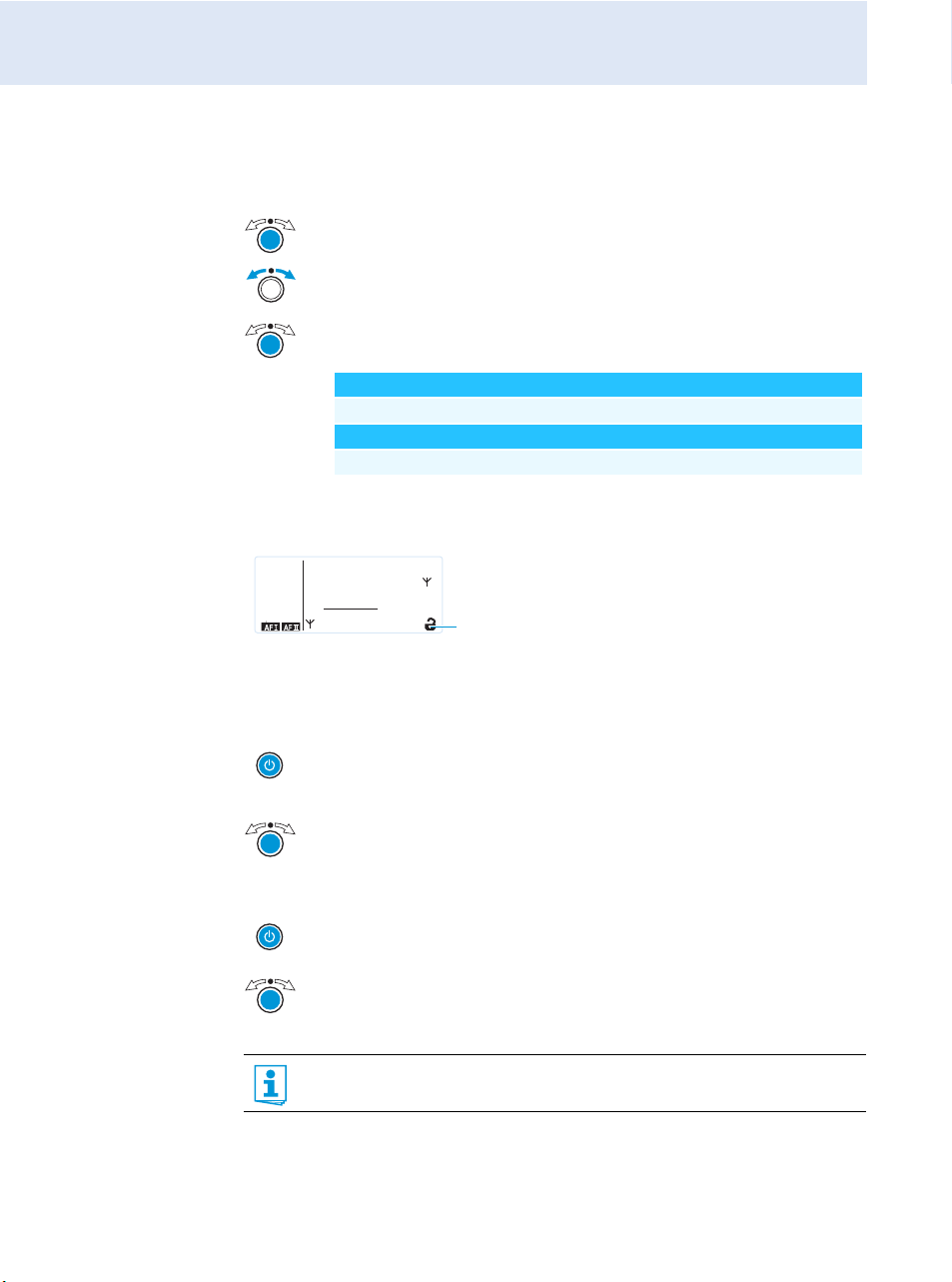

Deactivating the lock mode temporarily ........................................................................................................... 18
Activating/deactivating the RF signal ............................................................................................................... 18
Using the operating menu .................................................................................................................................. 19
The buttons ............................................................................................................................................................. 19
Overview of the operating menu ........................................................................................................................ 20
Synchronizing the transmitter with a receiver ................................................................................................ 21
Cleaning the transmitter ..................................................................................................................................... 23
If a problem occurs ... ........................................................................................................................................... 23
Specifications ........................................................................................................................................................ 25
Manufacturer Declarations ................................................................................................................................. 27
For more detailed information on the individual sections of this instruction manual, visit the corre-
sponding product page on our website at www.sennheiser.com.

Important safety instructions
2
Important safety instructions
• Read this instruction manual.
• Keep this instruction manual. Always include this instruction manual when passing the
product and the mains unit on to third parties.
• Heed all warnings and follow all instructions in this instruction manual.
• Only clean the product and the mains unit when they are not connected to the mains. Use a
cloth for cleaning.
• Never open the product, otherwise you can receive an electric shock. If products are opened
by customers in breach of this instruction, the warranty becomes null and void.
• Refer all servicing to qualified service personnel.
Servicing is required if the product or the mains unit have been damaged in any way, liquid
has been spilled, objects have fallen inside, the product or the mains unit have been
exposed to rain or moisture, do not operate properly or have been dropped.
• WARNING: To reduce the risk of fire or electric shock, do not use the product and the mains
unit near water and do not expose them to rain or moisture. Do not place objects filled with
liquids, such as vases or coffee cups, on the product.
• Only use the supplied mains unit.
• Unplug the mains unit from the wall socket
– to completely disconnect the device from the mains,
– during lightning storms or
– when unused for long periods of time.
• Only operate the mains unit from the type of power source specified in the chapter
“Specifications” (see page 25).
• Ensure that the mains unit is
– in a safe operating condition and easily accessible,
– properly plugged into the wall socket,
– only operated within the permissible temperature range,
– not covered or exposed to direct sunlight for longer periods of time in order to prevent
heat accumulation (see “Specifications” on page 25).
• Do not block any ventilation openings. Install the product and the mains unit in accordance
with the instructions given in this instruction manual.
• Do not install the product and the mains unit near any heat sources such as radiators,
stoves, or other devices (including amplifiers) that produce heat.
• Only use attachments/accessories specified by Sennheiser.
• When replacement parts are required, only use replacement parts specified by Sennheiser
or those having the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
• Do not overload wall outlets and extension cables as this may result in fire and electric
shock.

Important safety instructions
3
Danger due to high volumes
This product is also intended for professional use. Commercial use is subject to the safety-at-
work regulations. Sennheiser, as the manufacturer, is therefore obliged to expressly point out
possible health risks arising from use.
This product is capable of producing sound pressure exceeding 85 dB(A). 85 dB(A) is the
sound pressure corresponding to the maximum permissible volume which is by law (in some
countries) allowed to affect your hearing for the duration of a working day. It is used as a
basis according to the specifications of industrial medicine. Higher volumes or longer dura-
tions can damage your hearing. At higher volumes, the duration must be shortened in order
to prevent hearing damage. The following are sure signs that you have been subjected to
excessive noise for too long a time:
• You can hear ringing or whistling sounds in your ears.
• You have the impression (even for a short time only) that you can no longer hear high
notes.
Intended use
Intended use of the SR 300 IEM G3 transmitter includes:
• having read this instruction manual especially the chapter “Important safety instructions”,
• using the product within the operating conditions and limitations described in this instruc-
tion manual.
“Improper use” means using the product other than as described in these instructions, or
under operating conditions which differ from those described herein.

The evolution wireless series ew 300 IEM G3
4
The evolution wireless series ew 300 IEM G3
This transmitter is part of the evolution wireless series generation 3 (ew G3). With this series,
Sennheiser offers high-quality state-of-the-art RF transmission systems with a high level of
operational reliability and ease of use. Transmitters and receivers are designed for moni-
toring applications and permit wireless transmission with studio-quality sound.
The SR 300 IEM G3 rack-mount transmitter
With the SR 300 IEM G3 2-channel/stereo monitoring transmitter, musicians, video and
sound amateurs, reporters/broadcasters, etc. can directly monitor the received sound signals
without troublesome cables or monitor speakers being required. In addition, it can also be
used for any application where talkback signals are to be transmitted.
Features of the SR 300 IEM G3 transmitter:
• Optimized PLL synthesizer and microprocessor technology
•Stereo/monoselection
•HDX noise reduction system
• Switching bandwidth of 42 MHz
• Safe configuration of a multi-channel system using the WSM
• Easy setup of a multi-channel system using the Easy Setup Sync function

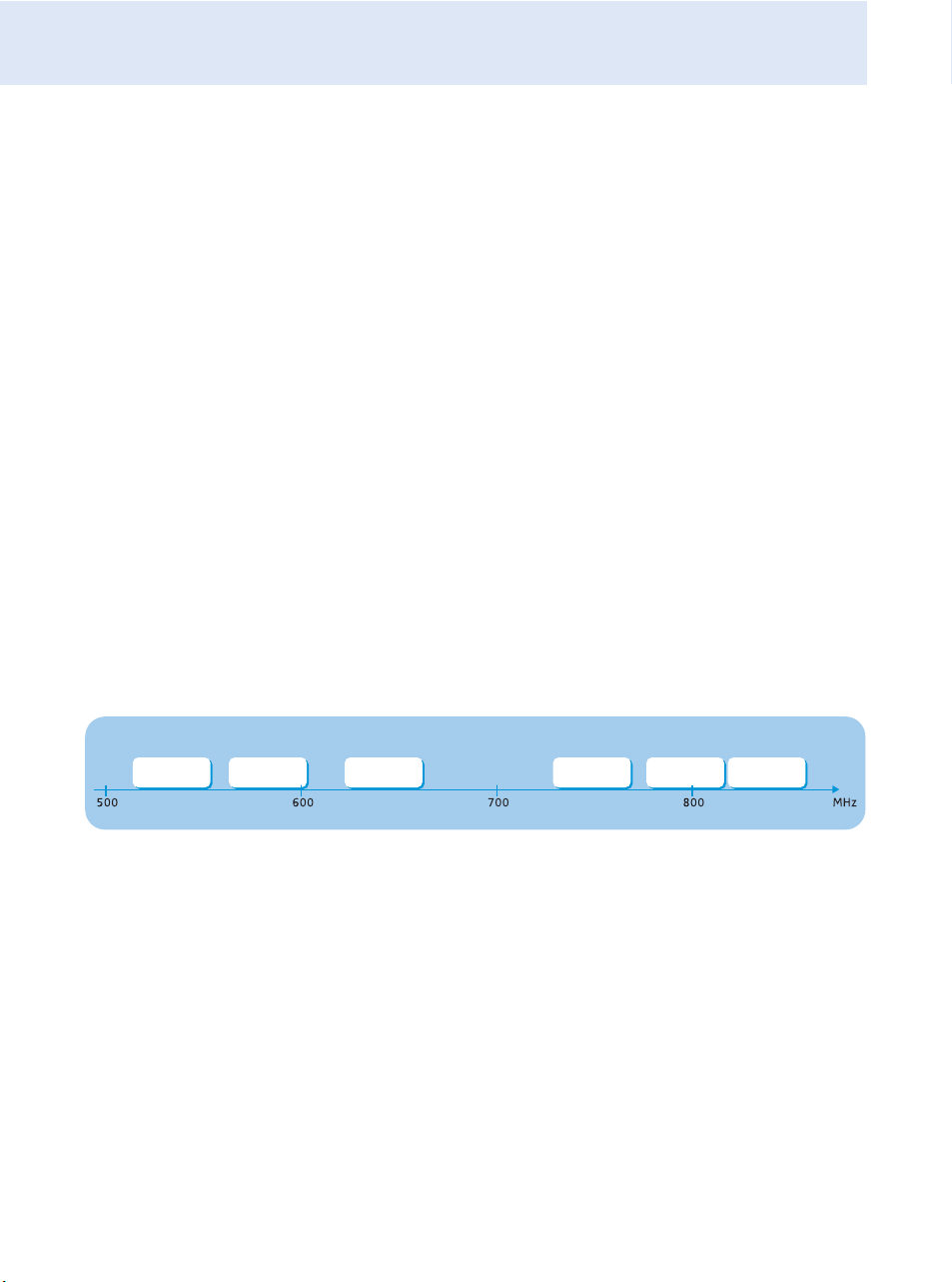

The frequency bank system
The transmitter is available in 6 UHF frequency ranges with 1,680 transmission frequencies
per frequency range:
Range A:Range G:Range B: Range C:Range D:Range E:
516 – 558 566 – 608 626 – 668 734 – 776 780 – 822 823 – 865

Delivery includes
5
Each frequency range (A–E, G) offers 26 frequency banks with up to 16 channels each:
Each of the channels in the frequency banks “1” to “20” has been factory-preset to a fixed
transmission frequency (frequency preset). The factory-preset frequencies within one
frequency bank are intermodulation-free. These frequencies cannot be changed.
For an overview of the frequency presets, please refer to the supplied frequency information
sheet. Updated versions of the frequency information sheet can be downloaded from the
corresponding product page on our website at www.sennheiser.com.
The frequency banks “U1” to “U6” allow you to freely select and store transmission frequen-
cies. It might be that these transmission frequencies are not intermodulation-free (see
page 22).
Delivery includes
The packaging contains the following items:
1 SR 300 IEM G3 rack-mount transmitter
1 NT 2-3 mains unit with one country adapter
1 rod antenna
1 GA 3 rack adapter
1 instruction manual
1 frequency information sheet
1 RF licensing information sheet
4 device feet

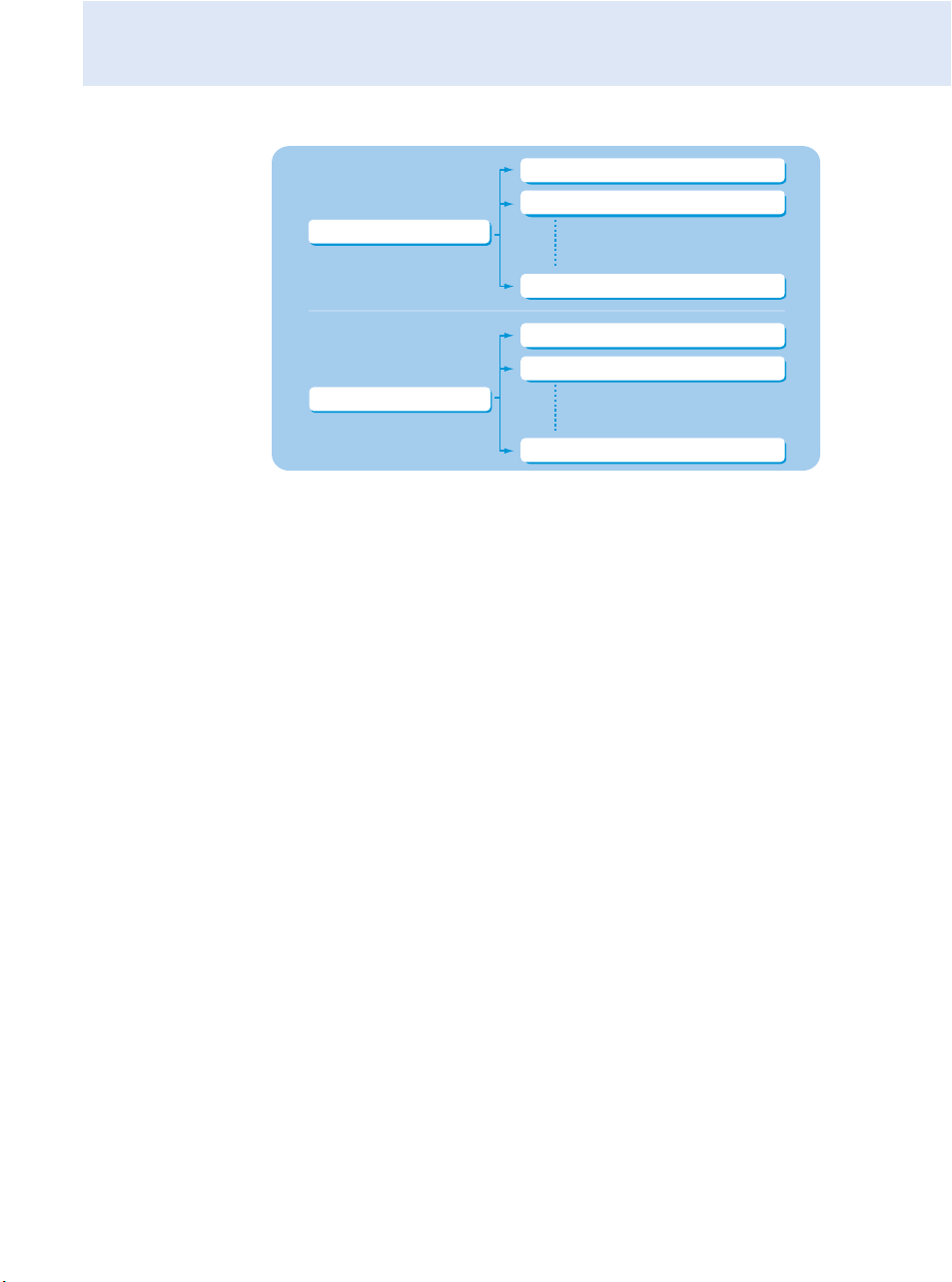

Frequency bank 1... 20
Frequency bank U1 ... U6
Channel 16 – frequency preset
Channel 1– frequency preset
Channel 2– frequency preset
Channel 16 – freely selectable frequency
Channel 1– freely selectable frequency
Channel 2– freely selectable frequency

Product overview
6
Product overview

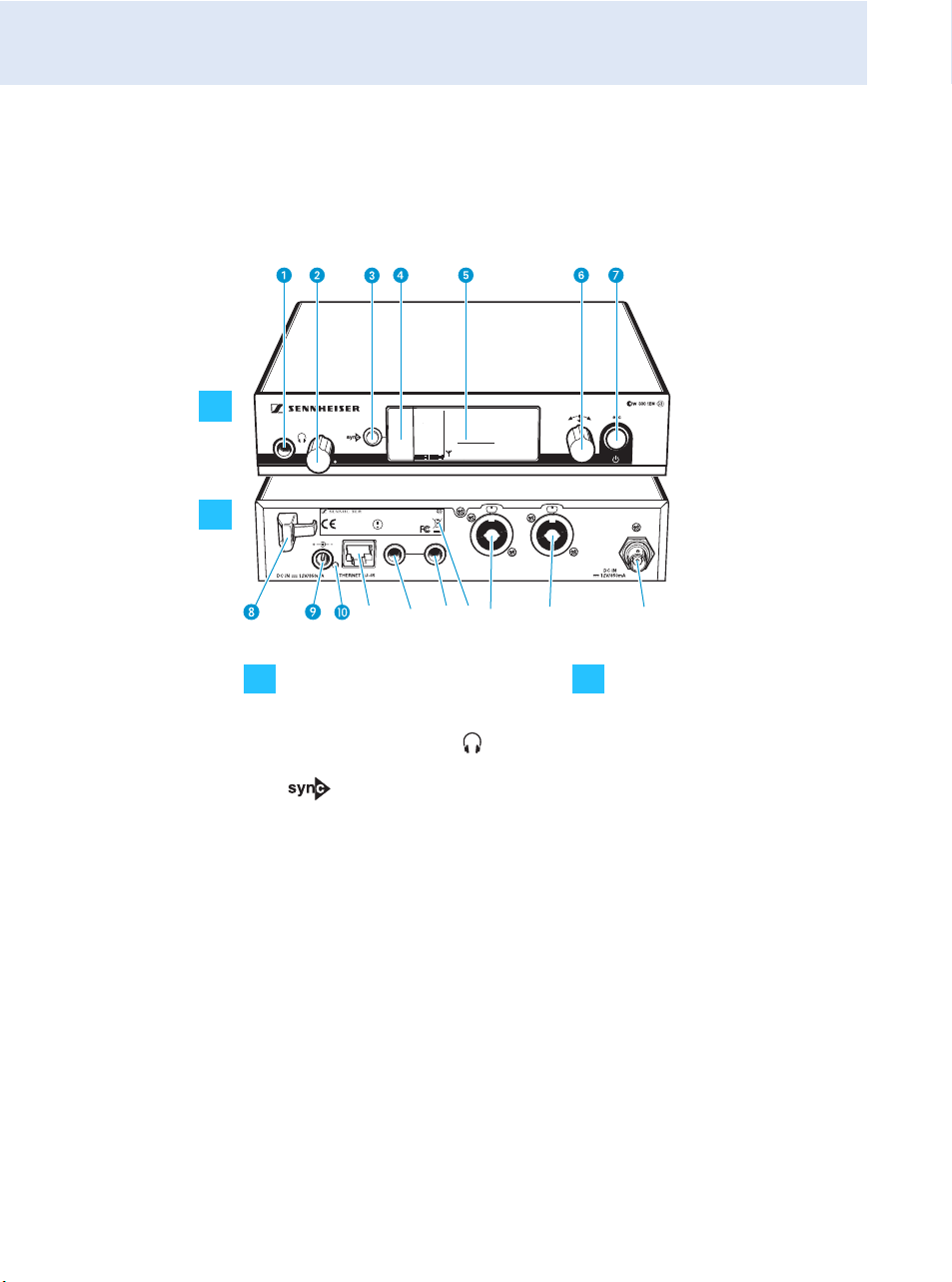

Overview of the SR 300 IEM G3 transmitter
A
B
PUSH PUSH
L(I) R(II)
+22dBu
MAX
Loop Out
BAL
L(I) R(II)
BAL
AF IN
+22dBu MAX RF OUT
0682
FREQ Range-D 780-822 MHz
DESIGNED AND MADE IN GERMANY FMO
Stereo Transmitter SR 300 IEM
IDENT NO 627925
SER NO 2518100155
IC 2099A-G3SREK
ANT
516.000
ew300IEM
B.Ch: 1 1
EQ
Standard -18dB
MHz
Stereo Transmitter
PEAK
-10
0
-20
-30
-40
AF I
PEAK
-10
0
-20
-30
-40
AF II
AF II
  
Operating elements – front panel Operating elements – rear panel
Headphone output,
¼” (6.3 mm) jack socket ( )
Headphone volume control
button, backlit
Infra-red interface
Display panel, backlit in orange
Jog dial
STANDBY button with operation
indication (red backlighting),
serves as the ESC (cancel) key in
the operating menu
Cable grip for power supply DC
cable
DC socket (DC IN) for connection of
NT 2-3 mains unit
LED (yellow) for network activity
indication
LAN socket (ETHERNET RJ 45)
Audio output left
(LOOP OUT BAL L(I)),
¼” (6.3 mm) jack socket
Audio output right
(LOOP OUT BAL R(II)),
¼” (6.3 mm) jack socket
Type plate
Audio input left (BAL AF IN L(I)),
¼” (6.3 mm) jack/XLR-3 combo
socket
Audio input right (BAL AF IN R(II)),
¼” (6.3 mm) jack/XLR-3 combo
socket
)
Antenna output (RF OUT)
with remote power supply input,
BNC socket
A
B

Product overview
7

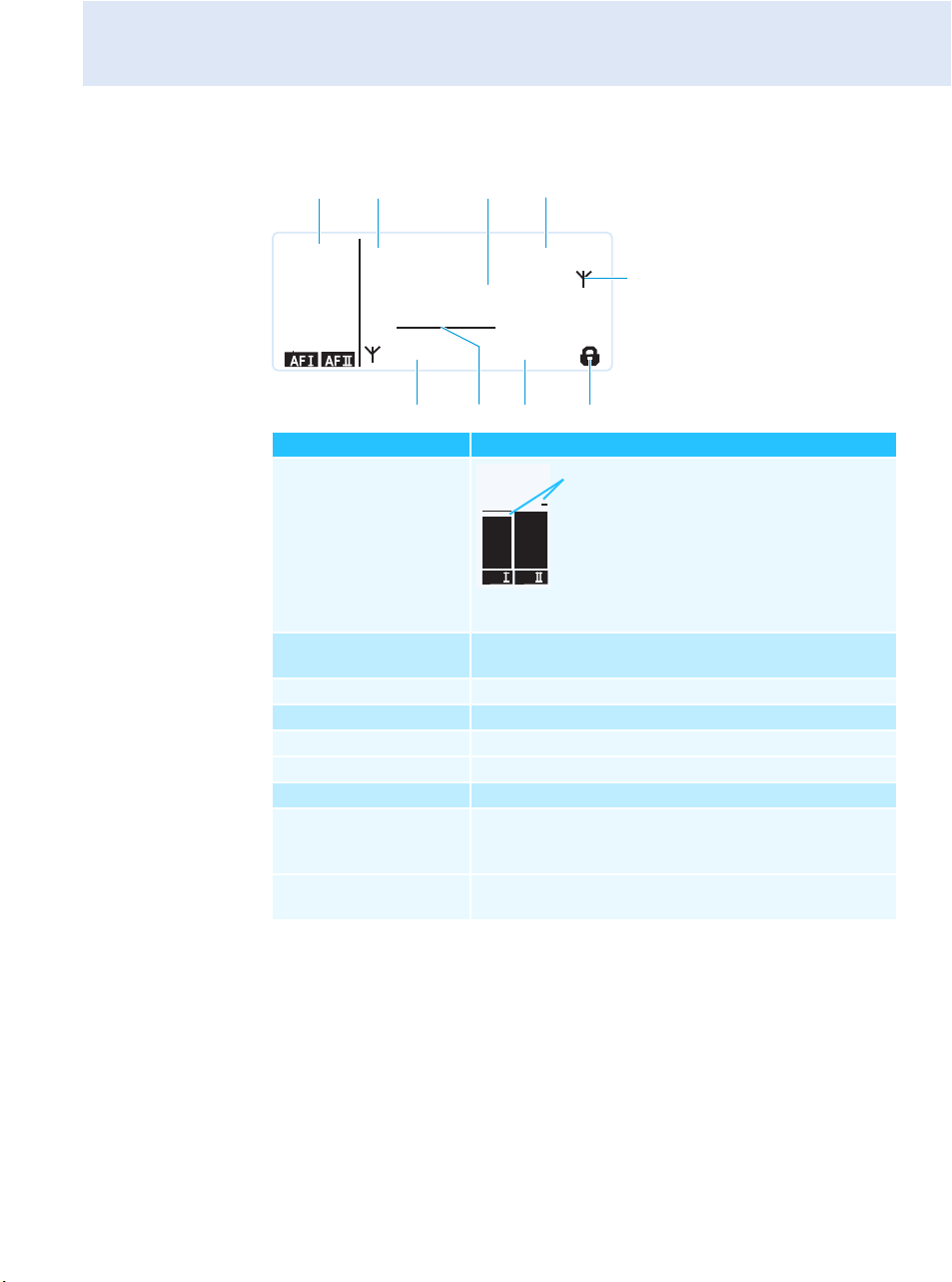

Overview of the displays
After switch-on, the transmitter displays the standard display.
Display Meaning
Audio level
“AF IN L(I)” and
“AF IN R(II)”
(AF = Audio Frequency)
Frequency bank and
channel
Current frequency bank and channel number
Frequency Current transmission frequency
Name Freely selectable name of the transmitter
Transmission icon RF signal is being transmitted
Transmission power Current transmission power
Equalizer setting Current equalizer setting
Input sensitivity Current input sensitivity for the audio signal available
at the audio input sockets BAL AF IN L (I)  and
BAL AF IN R (II) 
Lock mode icon
(see page 18)
Lock mode is activated
PEAK
-10
0
-20
-30
-40
PEAK
-10
0
-20
-30
-40
516.000
ew300IEM
B.Ch: 1 1
EQ
Standard -18dB
MHz
햴

 
PEAK
-10
0
-20
-30
-40
PEAK
-10
0
-20
-30
-40
AF I AF II
Modulation of the left (I) and right (II) audio
channel with peak hold function
When the level displays for audio level show
full deflection, the audio input level is exces-
sively high. When the transmitter is overmod-
ulated frequently or for extended periods of
time, the “PEAK” display is shown inverted.

Putting the transmitter into operation
8
Putting the transmitter into operation
Preparing the transmitter for use
Setting up the transmitter on a flat surface
Place the transmitter on a flat, horizontal surface. Please note that the device feet can leave
stains on delicate surfaces.

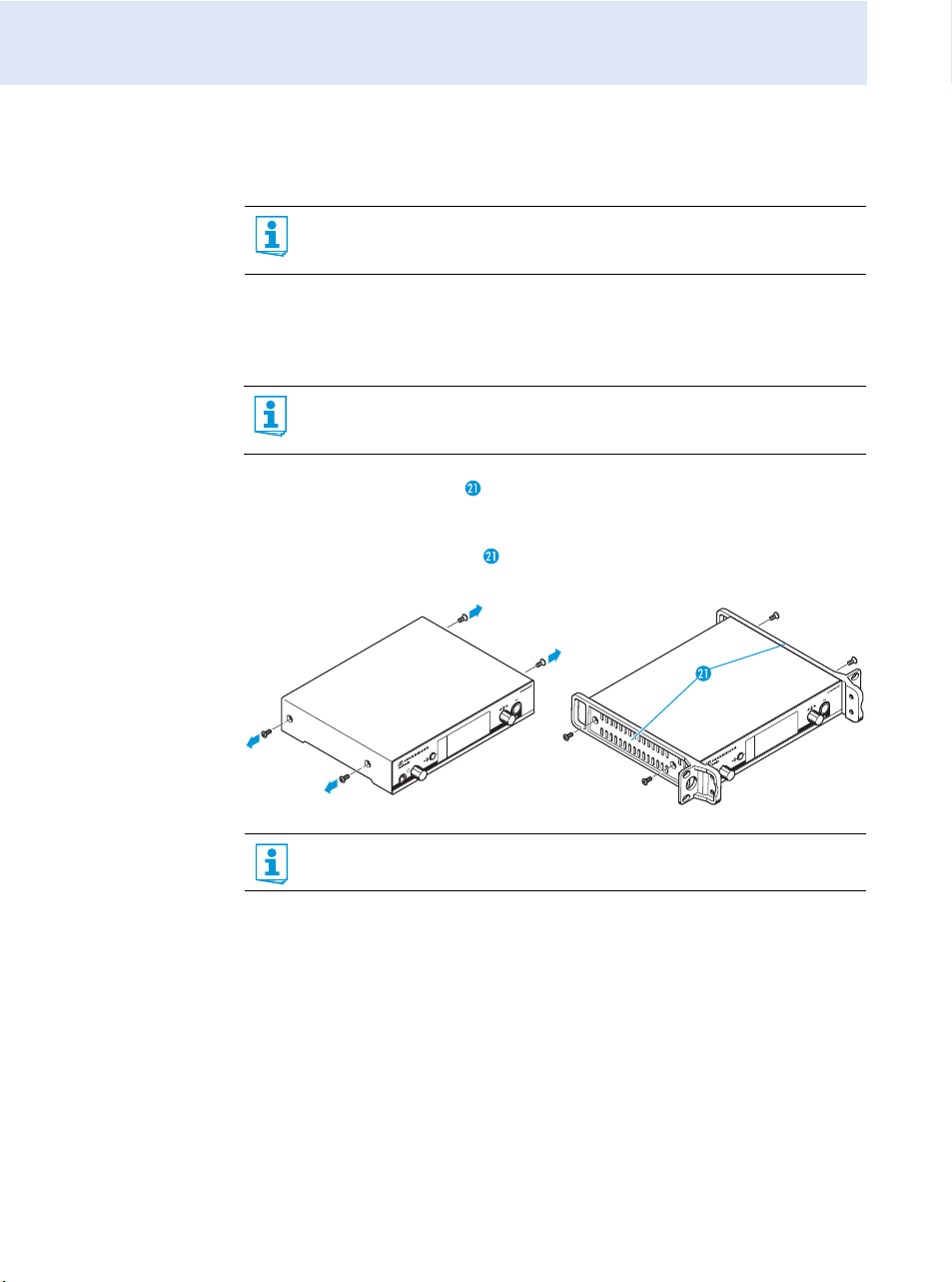

Mounting the rack
mount “ears”
To fasten the rack mount “ears” :
왘Unscrew and remove the two recessed head screws (M4x8) on each side of the trans-
mitter (see left-hand diagram).
왘Secure the rack mount “ears” to the sides of the transmitter using the previously
removed recessed head screws (see right-hand diagram).
Fitting the device feet
왘Clean the base of the transmitter where you want to fix the device feet.
왘Fit the device feet to the four corners of the transmitter.
When using more than one transmitter, we recommend connecting remote
antennas and, if necessary, using Sennheiser antenna accessories. Fore more infor-
mation, visit the ew G3 product page at www.sennheiser.com.
The rack mount “ears” are designed to help protect the operating elements from
damage or deformation, e.g. if the transmitter is dropped. Therefore, fasten the rack
mount “ears”, even if you do not want to rack mount your transmitter.
Do not fit the device feet when mounting the transmitter into a 19” rack.

Putting the transmitter into operation
9
Connecting the
rod antenna
The supplied rod antenna  is suitable for use in good reception conditions.
왘Connect the rod antenna (see diagram).
Mounting the transmitter into a 19” rack
Rack mounting one
transmitter
왘Secure the rack mount “ears” of the supplied GA 3 rack adapter to the transmitter as
described on page 8.
왘Secure the blanking plate to one of the rack mount “ears” using two recessed head
screws (M 6x10) (see diagram).
Do not fit the device feet when mounting the transmitter into a 19” rack.


CAUTION! Risks when rack mounting the transmitter!
When installing the device in a closed or multi-rack assembly, please consider that, during
operation, the ambient temperature, the mechanical loading and the electrical potentials will
be different from those of devices which are not mounted into a rack.
왘Make sure that the ambient temperature within the rack does not exceed the permissible
temperature limit specified in the SR 300 IEM G3 specifications. If necessary, provide
additional ventilation.
왘Make sure that the mechanical loading of the rack is even.
왘When connecting to the power supply, observe the information indicated on the type
plate. Avoid circuit overloading. If necessary, provide overcurrent protection.
왘When rack mounting, please note that intrinsically harmless leakage currents of the indi-
vidual mains units may accumulate, thereby exceeding the allowable limit value. As a
remedy, ground the rack via an additional ground connection.

Putting the transmitter into operation
10
왘Connect the antenna. You have the following options:
– You can connect the supplied rod antenna to the rear of the transmitter (see
page 9). In this case, insert the two blanking plugs into the holes of the blanking
plate (see diagram on page 9).
– You can use the AM 2 antenna front mount kit (optional accessory) and mount the rod
antenna to the blanking plate .
– You can use a remote antenna, if necessary in conjunction with the AC 3 antenna
combiner.
왘Slide the transmitter with the mounted blanking plate into the 19” rack.
왘Secure the rack mount “ear” and the blanking plate to the 19” rack.
Rack mounting two
transmitters
To mount two transmitters into a rack using the GA 3 rack adapter:
왘Place the two transmitters side by side upside-down onto a flat surface.
왘Secure the jointing plate to the transmitters using six recessed head screws (M 3x6).
왘Secure the rack mount “ears” to the transmitters as described on page 8.
To mount the antennas:
왘Use remote antennas, if necessary in conjunction with the AC 3 antenna combiner.
For more information, visit the ew G3 product pages at www.sennheiser.com.
To mount the transmitters into the rack:
왘Slide the transmitters into the 19” rack.
왘Secure the rack mount “ears” to the 19” rack.

Putting the transmitter into operation
11
Connecting external devices
Connecting external devices to the input sockets
왘Use a suitable cable to connect the output of an external device (e.g. a mixing console or an
additional SR 300 IEM G3) to the input socket BAL AF IN L(I)  and/or BAL AF IN R(II) 
(see also page 17).
왘Adjust the output level of your external device.
왘Via the operating menu, adjust the transmitter’s input sensitivity. The input sensitivity
is adjusted via the “Sensitivity” menu item and is common for both inputs (see page 20).
Connecting external devices to the output sockets
왘Use a suitable cable to connect the input of an external device (e.g. a mixing console or
an additional SR 300 IEM G3) to the output socket LOOP OUT BAL L(I) and/or LOOP
OUT BAL R(II) (see also page 17).
Connecting a remote antenna to the BNC socket
Use a remote antenna when the transmitter position is not the best antenna position for
optimum transmission. You can choose between two antennas:
• A 2003 UHF passive directional antenna
• A 1031 passive omni-directional antenna
왘Use a low-attenuation 50-Ωcable to connect the antenna to the transmitter.
왘If possible, use a short antenna cable and as little connections as possible, since long
cables and many connectors lead to an attenuation of the antenna signal.
왘Position the antenna in the same room in which the transmission takes place.
왘Observe a minimum distance of 1 m between the antenna and metal objects (including
reinforced concrete walls).
Connecting the AC 3 antenna combiner to the BNC socket
To make multi-channel systems, you should use the AC 3 antenna combiner (optional acces-
sory). The AC 3 allows you to operate up to four transmitters with a single antenna without
virtually any intermodulation.
In addition, the AC 3 incorporates DC distribution to enable simultaneous powering of up to
four transmitters via its BNC sockets.
왘Connect the AC 3 antenna combiner to the BNC socket .
PUSH PUSH
L(I) R(II)
BAL
AF IN
+22dBu MAX

The input amplifier of the SR 300 IEM G3 is designed for line level input.
The signal received from the AF input sockets BAL AF IN L(I)  and BAL AF IN R(II)
is actively buffered and then routed to the output sockets LOOP OUT BAL L(I) 
and LOOP OUT BAL R(II) . The AF output sockets will therefore work only when the
transmitter is switched on and powered.

Putting the transmitter into operation
12
Connecting transmitters in a network
You can connect several transmitters in a network. The transmitters are remote controlled via
a PC running the “Wireless Systems Manager” (WSM) software. This software will assist in
the quick and safe configuration of multi-channel systems.
왘Connect a standard network cable (at least Cat 5) to the LAN socket of the transmitter.
왘Connect your transmitters to an Ethernet switch.
왘Connect a PC to the Ethernet switch.
When a transmitter is properly connected to the Ethernet switch or the PC, the yellow
LED at the rear of the transmitter lights up.
For further information on network operation, refer to page 22.
Connecting the mains unit
Only use the supplied mains unit. It is designed for the transmitter and ensures safe
operation.
왘Insert the yellow connector of the NT 2-3 mains unit into the yellow socket of the
transmitter.
왘Pass the cable of the mains unit through the cable grip .
왘Slide the supplied country adapter onto the mains unit .
왘Plug the mains unit into a wall socket.
The STANDBY button is backlit in red.
The “Wireless Systems Manager” (WSM) software can be downloaded from the
corresponding product page on our website at www.sennheiser.com.
L(I)
+22dBu
MAX
Loop Ou
BAL
0682
FREQ Range-D 780-822 MHz
DESIGNED AND MADE IN GERMANY FMO
Stereo Transmitter SR 30
IDENT NO 627925
SER NO 2518100155
IC 2099A-G3SREK





The AC 3 antenna combiner incorporates DC distribution to enable simultaneous
powering of up to four transmitters via its BNC sockets. These transmitters do not
require their individual power supply (see also page 11).

Using the transmitter
13
Using the transmitter
To establish a transmission link, proceed as follows:
1. Switch the transmitter on (see below).
2. Switch the receiver on (see the instruction manual of the receiver).
The transmission link is established.
If you cannot establish a transmission link between transmitter and receiver:
왘Make sure that transmitter and receiver are set to the same frequency bank and to the
same channel.
왘If necessary, read the chapter “If a problem occurs ...” on page 23.
Switching the transmitter on/off
To switch the transmitter on (online operation):
To switch the transmitter to standby mode:
왘If necessary, deactivate the lock mode (see page 18).
To completely switch the transmitter off:
왘Disconnect the transmitter from the mains by unplugging the mains unit from the wall
socket.
The backlighting of the STANDBY button goes off.
To switch the transmitter on and to deactivate the RF signal on switch-on (offline operation):
It is vital to observe the notes on frequency selection on page 21.

왘Press the STANDBY button .
The transmitter switches on and the standard display appears.
The transmitter transmits an RF signal and the transmission icon is displayed
You can switch the transmitter on and deactivate the RF signal on switch-on.
For more information, see below.
왘Keep the STANDBY button pressed until “OFF” appears on the display panel.
The display panel switches off.
When in the operating menu, pressing the STANDBY button will cancel your entry
(ESC function) and return you to the standard display.
The STANDBY button is backlit in red both during operation and in standby mode.
왘Press the STANDBY button until “RF Mute On?” appears on the display panel.
왘Press the jog dial.
The transmission frequency is displayed but the transmitter does not transmit
an RF signal. The transmission icon 
is not displayed .

Using the transmitter
14
To activate the RF signal:
Monitoring the audio signal via headphones
You can monitor the audio signal via the headphone output.
왘Set the headphone volume control to the minimum position.
왘Connect headphones with a ¼” (6.3 mm) stereo jack plug to the headphone output .
왘Gradually increase the volume and monitor the audio signal with the lowest possible
volume.
Synchronizing transmitters and receivers via the infra-red
interface
Easy Setup Sync function (EK 300 IEM G3 -> SR 300 IEM G3)
Once you have performed a frequency preset scan with your EK 300 IEM G3 diversity receiver
(see the instruction manual of the receiver), you can use the Easy Setup Sync function to
transfer unused frequency presets from the receiver to the transmitters via the infra-red
interface. The diversity receiver transfers the first unused channel from the current frequency
bank to the first transmitter and the next unused channel to the second transmitter and
so on.
Sync function (SR 300 IEM G3 -> EK 300 IEM G3)
On the other hand, you can use the Sync function to adjust settings for your EK 300 IEM G3
diversity receiver directly on your SR 300 IEM G3 rack-mount transmitter and transfer theses
settings to the receiver via the infra-red interface.
Via the “Sync Settings” submenu, you can adjust the parameters listed below and activate or
deactivate their transfer to the receiver (see page 20).
Use this function to prepare a transmitter for use during live operation without
causing interference to existing transmission links.
왘Briefly press the STANDBY button .
“RF Mute Off” appears on the display panel.
왘Press the jog dial.
The transmission icon is displayed again.
CAUTION! Danger of hearing damage!
Listening at high volume levels for long periods can lead to permanent hearing defects.
왘Set the headphone volume control to the minimum position before putting the head-
phones on.
 

Using the transmitter
15
Carrying out an Easy Setup Sync or a Sync function
The following assumes that you are using the Easy Setup Sync function for setting up a multi-
channel system. You can also you the Easy Setup Sync function for establishing a transmis-
sion link between one transmitter and one receiver.
Setting Transferred parameters
“Balance”Current balance setting
(“−15”/“+15”)
“Squelch”Current squelch setting
(“Off”, “5 dB” ... “25 dB”)
“Mode”Current audio mode setting
(“Stereo”/“Focus”)
“High boost”Current treble boost setting
(“flat”/“High boost”)
“Auto Lock”Current lock mode setting
(“active”/“inactive”)
“Limiter”Current limiter setting
(“−18 dB”, “−12 dB”, “−6dB”, “Off”)
When carrying out the Sync function, the transmitter’s current frequency bank
and channel setting is automatically transferred to the receiver via the infra-red
interface.
Easy Setup Sync Sync
왘Switch your rack-mount transmitters
and your diversity receiver on.
왘Switch your rack-mount transmitter
and your diversity receiver on.
왘On all transmitters, call up the “Easy
Setup” menu item.
The text “Easy Setup Sync” and the
icon appear on the display panels of the
transmitters.
The RF signal of the transmitters is auto-
matically deactivated.
왘Press the button on the trans-
mitter.
The icon appears on the display
panels of the transmitter.
왘Use your EK 300 IEM G3 diversity receiver
to perform a frequency preset scan and
select a frequency bank with a sufficient
number of unused channels (see the
instruction manual of the receiver).
–

Using the transmitter
16
왘Place the infra-red interface of the
receiver (see the instruction manual of
the receiver) in front of the infra-red
interface of the first transmitter.
The next unused frequency preset is
transferred from the receiver to the
transmitter.
As soon as the transfer is completed, the
display panel of the transmitter displays the
numbers of the transferred frequency bank
and channel.
Please note that the transmitter does not
automatically store the frequency bank and
channel setting.
왘Place the infra-red interface of the
receiver (see the instruction manual of
the receiver) in front of the infra-red
interface of your transmitter.
The parameters adjusted via the “Sync
Settings” menu item are transferred
from the transmitter to the receiver.
In addition, the current frequency bank and
channel setting is transferred.
When the transfer is completed, “ ”
appears on the display panel of the trans-
mitter. The transmitter then switches back
to the standard display.
The transferred parameters are automati-
cally adjusted and stored by the receiver.
The transmission link between transmitter
and receiver is now established.
왘Place the infra-red interface of the diver-
sity receiver in front of the infra-red
interfaces of the remaining transmitters,
one after the other.
–
왘Store the frequency bank and channel
setting by pressing the jog dial on your
transmitters. You can carry out the Sync
function (see right-hand column) at a
later time to establish a transmission link
between transmitters and receivers.
OR:
왘Immediately synchronize your receivers
with your transmitters by carrying
out the Sync function (see right-hand
column).
This establishes a transmission link
between transmitters and receivers.
The icon in the left lower corner of
the transmitter display indicates that
the Sync function can be carried out.
–
Easy Setup Sync Sync
OFF
2
4
6
PHONES

OFF
2
4
6
PHONES

쐋

Using the transmitter
17
Adjusting the audio channels
Via the “Mode” menu item, you can adjust the audio channels.
왘Select “Stereo” if you want to transmit two separate audio signals on channel I and
channel II (e.g. channel I = audio signal of the presenter/musician, channel II = sum of all
audio signals).
This allows the presenter/musician to adjust the balance between the left and right
stereo signal on his receiver.
왘Select “Mono” if you only want to transmit an audio signal on one channel. In this case,
the signal from the left audio input BAL AF IN L  is transmitted.
Daisy chaining audio signals
The output sockets LOOP OUT BAL L  and/or LOOP OUT BAL R allow you to daisy chain a
signal that is to be transmitted to all receivers from the mixing console to one transmitter
and then to the other transmitters.
To daisy-chain an audio signal from one transmitter to the next:
왘Route a signal from the mixing console to the input socket (in this example:
BAL AF IN R ) of transmitter A.
왘Connect the output socket LOOP OUT BAL R of transmitter Ato the input socket
BAL AF IN R  of transmitter B.
왘Connect the output socket LOOP OUT BAL R of transmitter Bto the input socket
BAL AF IN R  of transmitter C.
왘Repeat for the other transmitters.
–To cancel the transfer:
왘Press the STANDBY button on the trans-
mitter.
“ ” appears on the display panel of the
transmitter. “ ” also appears if no suit-
able receiver was found.
During mono operation, you have to deactivate the pilot tone evaluation on the
EK 300 IEM G3 receiver in order to ensure that your receiver outputs the same signal
on channel I and II.
Easy Setup Sync Sync
L(I) R(II)
+22dBu
MAX
Loop Out
BAL
L(I) R(II)
BAL
AFIN
+22dBuMAX RFOUT
L(I) R(II)
+22dBu
MAX
Loop Out
BAL
L(I) R(II)
BAL
AFIN
+22dBuMAX RFOUT
L(I) R(II)
+22dBu
MAX
Loop Out
BAL
L(I) R(II)
BAL
AFIN
+22dBuMAX RFOUT
A
B
C
You can use the output sockets LOOP OUT BAL L(I) and/or LOOP OUT BAL R(II) 
only when the transmitter is switched on (see page 11).

Using the transmitter
18
Deactivating the lock mode temporarily
You can activate or deactivate the automatic lock mode via the “Auto Lock” menu item. If the
lock mode is activated, you have to temporarily deactivate it In order to be able to operate
the transmitter:
The lock mode icon flashes prior to the lock mode being activated again.
Activating/deactivating the RF signal
To deactivate the RF signal:
To activate the RF signal:
왘Press the jog dial.
“Locked” appears on the display panel.
왘Turn the jog dial.
“Unlock?” appears on the display panel.
왘Press the jog dial.
The lock mode is temporarily deactivated:
When you are in the operating menu
The lock mode remains deactivated until you exit the operating menu.
When the standard display is shown
The lock mode is automatically activated after 10 seconds.
왘When the standard display is shown on the display panel, press the STANDBY
button.
“RF Mute On?” appears on the display panel.
왘Press the jog dial.
The RF signal is deactivated. “RF Mute” flashes in alternation with the standard
display and the display is backlight in red.
왘Press the STANDBY button.
“RF Mute Off?” appears on the display panel.
왘Press the jog dial.
The RF signal is activated and the display backlighting changes from red to
orange.
You can also deactivate the RF signal on switch-on. For more information, refer to
the chapter “Switching the transmitter on/off” on page 13.
PEAK
-10
0
-20
-30
-40
PEAK
-10
0
-20
-30
-40
516.000
ew300IEM
B.Ch: 1 1
EQ
Standard -18dB
MHz

