ADTRAN 1181001L1 Instruction Manual

Total Access 3000 23-Inch Chassis
Installation and Maintenance Practice
Document Number: 61181001L1-5E
CLEI: M3M1BB0B_ _
November 2005
®

Total Access 3000 23-Inch Chassis Installation and Maintenance Practice
ii 61181001L1-5E
Front Matter
Trademarks
Any brand names and product names included in this manual are trademarks, registered
trademarks, or trade names of their respective holders.
To the Holder of the Manual
The contents of this publication are current as of the date of publication. ADTRAN®reserves
the right to change the contents without prior notice.
In no event will ADTRAN be liable for any special, incidental, or consequential damages or
for commercial losses even if ADTRAN has been advised thereof as a result of issue of this
publication.
901 Explorer Boulevard
P.O. Box 140000
Huntsville, AL 35814-4000
[phone]
©2005 ADTRAN, Inc.
All Rights Reserved.
®

61181001L1-5E iii
Revision History
Conventions
The following typographical conventions are used in this document:
This font indicates a cross-reference link. First-time references to tables and figures are
shown in this font.
This font indicates screen menus, fields, and parameters.
THIS FONT indicates keyboard keys (ENTER, ESC, ALT). Keys that are to be pressed simultaneously
are shown with a plus sign (ALT+Xindicates that the ALT key and Xkey should be pressed at the
same time).
This font indicates references to other documentation and is also used for emphasis.
This font indicates on-screen messages and prompts.
This font indicates text to be typed exactly as shown.
This font indicates silk-screen labels or other system label items.
This font is used for strong emphasis.
NOTE
Notes inform the user of additional, but essential, information or
features.
CAUTION
Cautions inform the user of potential damage, malfunction, or
disruption to equipment, software, or environment.
WARNING
Warnings inform the user of potential bodily pain, injury, or death.
Revision Date Description
ASeptember 1998 This is the first issue of this practice.
BSeptember 1999 This is the second revision to this practice. This revision
has been updated to include wiring to the MDF.
CMay 2001 This is the third revision of this practice. This revision
includes updated pin assignment tables and DSLAM
information.
DOctober 2003 This is the fourth issue of this practice. This issue
includes a note regarding DC-C grounding.
ENovember 2005 This is the fifth issue of this practice. Access mod-
ule specific wiring information has been removed.

Total Access 3000 23-Inch Chassis Installation and Maintenance Practice
iv 61181001L1-5E
Training
ADTRAN offers training courses on our products. These courses include overviews on product
features and functions while covering applications of ADTRAN product lines. ADTRAN
provides a variety of training options, including customized training and courses taught at our
facilities or at customer sites.
For inquiries concerning training, contact ADTRAN:
Training Phone: [phone], ext. 7500
Training Fax: [phone]
Training Email: [email protected]

61181001L1-5E v
Contents
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Unpacking and Inspecting the Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Mounting Bracket Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Flush-mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Mid-mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installing the Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Flush-mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Mid-mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Frame Ground Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Test Frame Ground Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Power Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Apply Power and Check Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Data Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Removing Rear Plastic Guards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wiring Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connect 64 kHz Composite Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connect BITS Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
MUX A Clock Output (A-OUT) - P19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
MUX B Clock Output (B-OUT) - P20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Wiring Test Access (T1 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connect Mechanical Loop Test (T1 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connect DLT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Wiring to DSX-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Wiring to MDF (TDM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Wiring to MDF (DSLAM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connecting the High-Speed Metallic Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Installing the High-Speed Connector Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connecting High-Speed Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Alarm Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connecting Alarm Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connecting Miscellaneous Alarm Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Total Access 3000 23-Inch Chassis Installation and Maintenance Practice
vi 61181001L1-5E
Network Management Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connecting the RS-485 Bus Between Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Replacing Rear Plastic Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connecting an External Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connecting the X.25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Connect 10Base-T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
SCU, Multiplexer, CSM, and Access Module Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Unpacking and Inspecting Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Installing Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Appendix A
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Warranty and Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
ADTRAN Sales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
ADTRAN Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
ADTRAN Repair/CAPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Repair and Return Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Figures
Figure 1. Total Access 3000 23-Inch Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 2. Total Access 3000 Backplane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

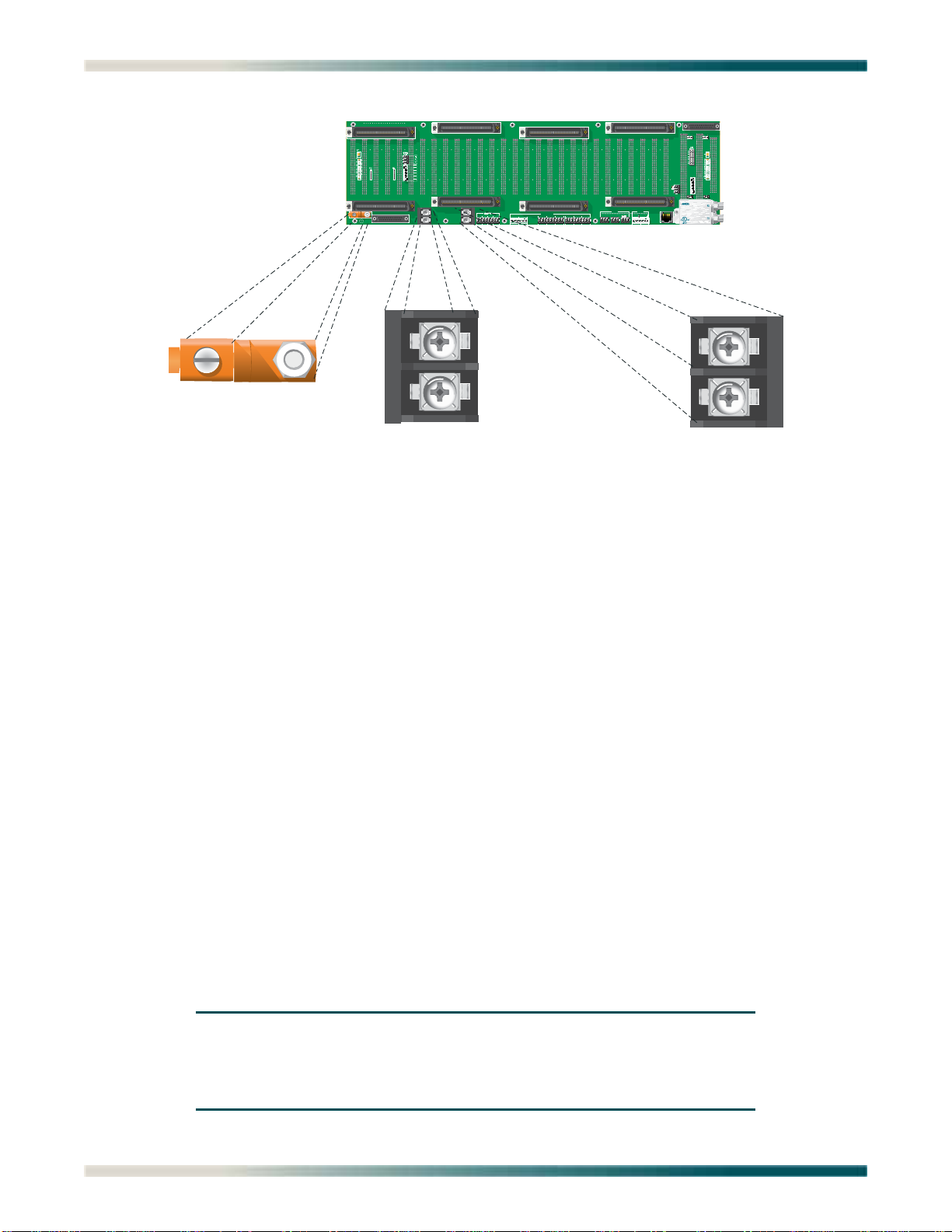

Figure 3. Total Access 3000 Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 4. Total Access 3000 Rack Powering Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 5. Total Access 3000 Composite Clock Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 6. Total Access 3000 BITS Clock Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 7. Total Access 3000 MLT Connections (T1 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 8. Total Access 3000 DLT Connections (T1 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 9. Total Access 3000 Alarm Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 10. Total Access 3000 Management Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Figure 11. Total Access 3000 Interbank Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Tables
Table 1. Compliance Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table 2. Total Access 3000 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

61181001L1-5E 1
Total Access 3000
23-Inch Chassis
GENERAL
This section provides installation and maintenance procedures for the ADTRAN Total Access®
3000 23-inch chassis (P/N 1181001L1), illustrated in Figure 1.
Figure 1. Total Access 3000 23-Inch Chassis
The Total Access 3000 system can function as either a DSLAM or as a TDM platform. When
used as a DSLAM, the Total Access 3000 can be used to provide services such as xDSL,
SHDSL, DSX-1, E1, DS3, and OC-3c. When used as a TDM platform, the Total Access 3000
Chassis can be used to provide a variety of digital services, including HDSL, HDSL2, HDSL4,
DSX, T1, and ISDN over copper lines as well as four T1s over optical fiber.

Total Access 3000 23-Inch Chassis Installation and Maintenance Practice
261181001L1-5E
The Total Access 3000 Chassis terminates up to 112 DSX-1/E1s and/or a single high speed
(DS3, STS-1, etc.) signal from the network and provides the necessary circuits to interface
with up to 224 2-wire loops to the customer’s equipment.
The Total Access 3000 Chassis mounts in a standard 23-inch wide rack. The chassis
measures 21.40 inches wide, 6 inches high, and 12 inches deep, and weighs 13.45 pounds.
The operating temperature range for the chassis is –40°C to 65°C for remote terminal
applications.
Compliance
Table 1 shows the Compliance Codes for the Total Access 3000 Chassis. The Total Access
3000 Chassis is NRTL listed to the applicable UL standards. The Total Access 3000 Chassis is
to be installed in a restricted access location and in a Type “B” or “E” enclosure only.
CAUTION
Per GR-1089-CORE October 2002, Section 9, the Total Access 3000
Chassis is designed and intended only for installation in a DC-C
(common) bonding and grounding system. The chassis ground wire
must be of equal or greater ampacity than the wire connected to
the –48 VDC return.
The Total Access 3000 Chassis is not intended or designed for
installation in a DC-I (isolated) bonding and grounding system.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by ADTRAN could void the user’s authority
to operate this equipment.
NOTE
Champ connectors should only be connected to intra-building
wiring and circuits.
Table 1. Compliance Codes
Code Input Output
Power Code (PC) F C
Telecommunication Code (TC) X X
Installation Code (IC) B –

Installation
61181001L1-5E 3
NOTE
10/100BaseT connections should only be connected to intra-
building wiring and circuits.
INSTALLATION
NOTE
This product is intended for installation in Restricted Access
Locations only.
NOTE
To prevent ESD events when handling this equipment, ESD shoes
or wrist straps should be utilized by all personnel, or an ESD
flooring must be present.
Tools Required
The required tools for the Total Access 3000 installation are as follows:
•Wire-wraptool
• #2 phillips-head screwdriver
• #1 phillips-head screwdriver
• Straight-slot-head screwdriver
• Multimeter
• Crimping tool for power lugs
• Wire strippers
• Side cutters
• 3/16-inch wrench
Material that should be on hand:
• Four screws for mounting each Total Access 3000 chassis to the Central Office (CO) rack
• Shielded 2-wire, twisted pair cross-connect wire with drain, such as AT&T P7 wire
C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.

Total Access 3000 23-Inch Chassis Installation and Maintenance Practice
461181001L1-5E
• Insulated 10-gauge wire for power connections, in colors dictated by the CO for battery to
the Total Access 3000 Chassis and return
• Insulated 8-gauge wire for frame ground
• Lugs for the 10-gauge power wire and Frame Ground connection
• Data cables terminated at the Total Access 3000 Chassis in 64-pin amphenol connectors,
and (depending on the mechanics of the MDF and DSX cross-connect panels) at the distant
end in either stubs or 64-pin amphenol connectors
• If required, coaxial cable appropriate for DS3 or STS-1 network input to the Total Access
3000 Chassis
WARNING
To prevent electrical shock, do not install equipment in a wet
location or during a lightning storm.
CAUTION
Electronic modules can be damaged by static electrical discharge.
Before handling modules, wear an antistatic discharge wrist strap
to prevent damage to electronic components. Place modules in
antistatic packing material when transporting or storing. When
working on modules, always place them on an approved antistatic
mat that is electrically grounded.
Unpacking and Inspecting the Chassis
Each Total Access 3000 chassis is shipped in its own cardboard shipping carton unless it was
ordered as a fully racked system. Open each carton carefully and avoid puncturing the carton
with sharp objects. After pulling the chassis out of the carton, remove the foam endcaps and
slip the chassis out of the cardboard shipping sleeve and protective plastic bag.
After unpacking the unit, inspect it for damage. If damage is found, file a claim with the
carrier, then contact ADTRAN Customer Service. For more information, refer to “Appendix A,
Warranty”.

Installation
61181001L1-5E 5
Mounting Bracket Orientation
The Total Access 3000 Chassis comes with mounting brackets that can be mounted with the
flanges facing forward or backward in two different locations on the chassis sides providing
either flush-mounting or mid-mounting. Attaching the mounting brackets to the chassis
requires four screws on each side, and are supplied with the unit.
NOTE
Before installing the chassis in the Central Office frame the paint
must be removed and an antioxidant applied to the surfaces of the
mounting brackets that come in contact with the frame. This will
ensure electrical continuity between the Total Access 3000 Chassis
and the CO frame.
Flush-mounting
For flush-mounting, use a #2 phillips-head screwdriver and attach the mounting brackets to
the Total Access 3000 Chassis with the flanges facing rearward on the front mounting holes.
Mid-mounting
For mid-mounting, use a #2 phillips-head screwdriver and attach the mounting brackets to
the Total Access 3000 Chassis with the flanges facing forward on the front mounting holes.
Installing the Chassis
After attaching the mounting brackets to the Total Access 3000 Chassis sides, use the appro-
priate screws for the Central Office rack type and mount the chassis in the rack as follows:
Flush-mounting
For flush-mount systems, the Total Access 3000 must be mounted from the rear of the rack,
with mounting bracket flanges facing rearward.
Mid-mounting
For mid-mounting the Total Access 3000 must be mounted from the front of the rack, with the
mounting bracket flanges facing forward.
NOTE
Other orientations will require either mounting from the front or
rear, and depend on the rack type installed in the CO and the
standard operating procedures established by the CO.
Once the orientation of the chassis has been determined, use the four appropriate screws for
the CO rack and an appropriate screwdriver and secure the Total Access 3000 Chassis in
place on the rack.

Total Access 3000 23-Inch Chassis Installation and Maintenance Practice
661181001L1-5E
POWER CONNECTIONS
The backplane contains all I/O connectors, control signal routing, and power routing, as well
as all necessary interconnections between access modules, the multiplexer cards and the
System Controller Unit (SCU). No wire wrapping for network or loop connections is necessary
for normal chassis operation. Additional wire-wrap terminals on the backplane accommodate
special modes, such as metallic loop testing and external alarm input. Detailed wiring
diagrams are provided later in this practice.
All permanent connections to Total Access 3000 Chassis are made on the backplane. Figure 2
illustrates the backplane and Figure 3 indicates the location of the power and ground connec-
tions.
Frame Ground Connection
The frame ground lug, located on the lower left corner of the backplane, can accommodate
from 8 to 14 AWG wire. When connecting the frame ground, use a wire gauge that is at least
as heavy as the power wiring.
NOTE
The ground wire exiting the chassis must be terminated with a UL
Listed grounding lug. The grounding lug must be a two-hole lug or
a one-hole lug that is used in conjunction with an anti-rotation
device. The surface of the lug that connects to the frame shall be
cleaned and an antioxidant applied. The same shall be done for the
surface of the frame or bus where the connection is to be made. An
approved thread-forming screw shall be used to connect the frame
ground connector to the frame or bus.

Power Connections
61181001L1-5E 7
Figure 2. Total Access 3000 Backplane
E D C B A
D C B A
F2
LOOP
TEST
ACCESS
33 1
64 32
33 1
64 32
33 1
64 32
33 1
64
64
32
ADMIN J31
PAIR 2P11
P12 P8
PAIR 3 PAIR 1
33 1
64 32
P10
PAIR 8
PAIR 6
PAIR 5 P9
P7
J33
EXTCLK
J23 J20J26
1
64
1 33 1 33
32
C B A C B A C B A C B A
C B A C B AC B AC B A C B A C B AC B A
J29
10
20
32
1
J28
10
20
32
1
J27
10
20
32
1
10
20
32
1
J25
10
20
32
1
J24
32
1
10
20
32
1
J22
10
20
32
1
J21
10
20
32
1
10
20
32
1
J19
10
20
32
J18 J16
10
C B A C B A C B A C B AC B A
C B A C B A C B AC B AC B A C B A C B AC B A
PAIR 7
1
10
20
32
1
J17
10
20
32
1
10
20
32
1
J15
10
20
32
1
J14
10
20
32
1
J13
10
32
1
J12
20
20
32
1
J11
10
32
1
J10
10
2020
32
1
J9
10
20
32
1
J8
10
20
32
1
J7
20
32
1
J6
10
10
20
32
C B A C B A C B A C B A
1
J5
20
32
1
J4
1010
20
32
1
J3
10
20
32 32
1
J2
10
20
1
10
20
32
1
64 32
33 1
NTWK MGMT
J30
-48 VDC PRI -48 VDC RET
P22
ACO RMT AUX1 AUX2
AAAAB BBB
-48 VDC SEC
-48 VDC RET
P3
NO NCCNONCC
AUX1 AUX2
P21
CRI-A
NO C NC NO C NC NO C NC
MAJ-A MIN-A
P1 P20
P2
J32
P19 P18
ALARM OUTPUTS
CRI-A B - OUT
NO C NC NO C NC NO C NC
MAJ-A MIN-A A - OUT B IN E - NETIN OUT
+ –+ – S + – S+ – S
RS485
AB AB
T
R
S
T1
R1
S
F1
10
30
20
40
48
E D C B A
P14P15
S S
30
40
48
1
6
T
R
T1
R1
P23
DSX1
TEST
ACCESS
F4 F3
PC2A 94V-0
2298
1
J1
S
1
R22
P24
EXTCLK
C-IN
1
10
20
8
+ –
R21
CUSTOM
TELECOM
E190349
1181004L1
PAIR 4P5

Total Access 3000 23-Inch Chassis Installation and Maintenance Practice
861181001L1-5E
Figure 3. Total Access 3000 Power Connections
To make the frame ground connection to Total Access 3000 Chassis, perform the following
steps:
1. Using an appropriate crimping tool and lug, fasten the lug to the ground wire.
2. Locate a nearby grounding screw on the equipment rack.
3. Secure the ground wire to Frame Ground using the lugged end of the grounding wire.
4. Cut the ground wire length to reach from the grounding lug on the rack to the Total
Access 3000 Chassis grounding terminal, located on the lower left corner of the
backplane. Leave enough slack to allow for tying to the rack, if required.
5. Using wire strippers, strip 5/8 inches of insulation from the grounding wire.
6. Insert stripped end of the ground wire into the copper Total Access 3000 grounding
terminal.
7. Tighten the ground connection securely with a straight-slot screwdriver.
Test Frame Ground Connection
To ensure a good ground, use a multimeter to check continuity between the frame grounding
lug and the rack grounding strap at the top of the rack. With the multimeter set to its lowest
resistance range, if applicable, place one lead on the rack’s ground strap and the other lead on
the Total Access 3000 Chassis frame ground terminal. The reading should be 1 or 2 ohms.
Greater readings should be investigated.
NOTE
The Ethernet port, Dual and Quad BNC ports, composite clock
ports, and any DSX-1 port must only be connected to intra-
building wiring.
TOTAL ACCESS CHASSIS
E D C B A
D C B A
F2
LOOP
TEST
ACCESS
33
1
64
32
33
1
64
32
33
1
64
32
33
1
64
64
32
ADMIN J31
PAIR 2P11
P12 P8
PAIR 3 PAIR 1
33
1
64
32
P10
PAIR 8
PAIR 6
PAIR 5 P9
P7
J33
EXTCLK
J23 J20J26
1
64
1
33
1
33
32
C B A C B A C B A C B A
C B A C B AC B AC B A C B A C B AC B A
J29
10
20
32
1
J28
10
20
32
1
J27
10
20
32
1
10
20
32
1
J25
10
20
32
1
J24
32
1
10
20
32
1
J22
10
20
32
1
J21
10
20
32
1
10
20
32
1
J19
10
20
32
J18 J16
10
C B A C B A C B A C B AC B A
C B A C B A C B AC B AC B A C B A C B AC B A
PAIR 7
1
10
20
32
1
J17
10
20
32
1
10
20
32
1
J15
10
20
32
1
J14
10
20
32
1
J13
10
32
1
J12
20 20
32
1
J11
10
32
1
J10
10
2020
32
1
J9
10
20
32
1
J8
10
20
32
1
J7
20
32
1
J6
10
10
20
32
C B A C B A C B A C B A
1
J5
20
32
1
J4
1010
20
32
1
J3
10
20
32 32
1
J2
10
20
1
10
20
32
1
64
32
33
1
NTWK MGMT
J30
-48 VDC PRI
-48 VDC
RET
P22
ACO RMT AUX1 AUX2
AAAABBBB
-48 VDC SEC
-48 VDC RET
P3
NO NCCNONCC
AUX1 AUX2
P21
CRI-A
NO C NC NO C NCNO C NC
MAJ-A MIN-A
P1 P20
P2
J32
P19 P18
ALARM OUTPUTS
CRI-A B - OUT
NO C NC NO C NCNO C NC
MAJ-A MIN-A A - OUT B IN E - NETIN OUT
+ –+ – S + – S+ – S
RS485
AB AB
T
R
S
T1
R1
S
F1
10
30
20
40
48
E D C B A
P14P15
S
S
30
40
48
1
6
T
R
T1
R1
P23
DSX1
TEST
ACCESS
F4 F3
PC2A 94V-0
2298
1
J1
S
1
R22
P24
EXTCLK
C-IN
1
10
20
8
+
–
R21
CUSTOM
TELECOM
E190349
1181004L1
PAIR 4P5
-48 VDC PRI
TS1
-48 VDC RET
TS2
-48 VDC SEC
-48 VDC RET
FR GND
J33

Power Connections
61181001L1-5E 9
Power Connection
NOTE
Connect to a reliably grounded –48 VDC source that is electrically
isolated from the AC source.
NOTE
A readily accessible disconnect device, such as a rack mount fuse
and alarm panel that is suitably approved and rated, should be
incorporated in the fixed wiring.
Dual power buses are provided with separate battery returns. Power connections use two
separate opposing blocks, labeled TS1 and TS2, located on the lower left side of the backplane
below the Pair 5 amphenol connector (see Figure 3). The terminals are on 0.4375 inch centers
and allow for wire gauges up to 10 AWG. There is a separate Frame Ground terminal, labeled
FR GND, located on the bottom left side of the backplane, and can accommodate up to 8 AWG
wire. The two power inputs, TS1 and TS2, are identical in function and can be used for
redundant power configurations. The Frame Ground terminal routes to mechanical contact
points and provides an electrical connection to the chassis metalwork. The two power buses
and Frame Ground route to all the cards in the chassis. Plug-in cards are responsible for any
necessary DC-DC conversion.
Figure 4 depicts how the Total Access 3000 Chassis can be powered from a typical dual-feed
fuse and alarm panel. Seven shelves are depicted. The number of shelves that can be placed in
a 7-foot central office rack depends on the type of service deployed, the number of access
modules in the chassis, and, in the case of HDSL or T1, the number of repeaters being
powered.
After connecting and checking the ground to the Total Access 3000 Chassis, connect power to
the chassis. Check to make sure the power source is providing the correct power and polarity
to the chassis. To connect power to the chassis, perform the following steps:
1. Determine which fuse pairs are to supply power to the Total Access 3000 chassis.
2. Remove the fuses from the Aand Bslots for the pair determined in the above.
3. Using a #1 phillips-head screwdriver, remove the Plexiglass cover to the power terminals,
labeled TS1 and TS2.
4. Cut four lengths of AWG 10 wire to reach from the terminals on the fuse and alarm panel
to the power terminals on the Total Access 3000 Chassis. Be sure to include enough
length to allow for tying the wire neatly to the frame as specified by CO SOP.
5. Using the crimping tool, connect an appropriate lug to each end of the wires.
6. Using a screwdriver appropriate for the fuse and alarm panel terminals, and a straight
slot screwdriver for the Total Access 3000 Chassis power terminal, connect the ends of
one wire between the “A” CO –48 VDC supply and the –48 VDC –48 PRI terminal on the Total
Access 3000 backplane. Secure the wire to the backplane with wire tie through the tie
anchor.

Total Access 3000 23-Inch Chassis Installation and Maintenance Practice
10 61181001L1-5E
Figure 4. Total Access 3000 Rack Powering Diagram
-48 VDC RET
RET
76
A A
(2-5)
DUAL-FEED FUSE AND ALARM PANEL
11 (2-5) 6 7
-48 VDC RET -48 VDC RET -48 VDC RET RET-48 VDC
RET-48 VDC
RET-48 VDC-48 VDC
SOURCE A SOURCE B
E D C B A
D C B A
F2
LOOP
TEST
ACCESS
33
1
64
32
33
1
64
32
33
1
64
32
33
1
64
64
32
ADMIN J31
PAIR2P11
P12 P8
PAIR3 PAIR1
33
1
64
32
P10
PAIR8
PAIR6
PAIR5 P9
P7
J33
EXTCLK
64
33
1
33
20 20 20
10
20
PAIR7
1
10
20
32
1
64
32
33
1
NTWKMGMT
J30
-48VDC PRI
-48VDC
RET
P22
ACO RMT AUX1 AUX2
AAAABBBB
-48VDC SEC
-48VDC RET
P3
NO NCCNONCC
AUX1 AUX2
P21
CRI-A
NO C NCNO C NCNO C NC
MAJ-A MIN-A
P1 P20
P2
J32
P19 P18
ALARMOUTPUTS
CRI-A B- OUT
NO C NCNO C NCNO C NC
MAJ-A MIN-A A- OUT B IN E- NETIN OUT
+ –+ – S + – S+ – S
RS485
AB AB
T
R
S
T1
R1
S
F1
10
30
20
40
48
E D C B A
P14P15
S
S
30
40
48
1
6
T
R
T1
R1
P23
DSX1
TEST
ACCESS
F4 F3
PC2A 94V-0
2298
1
J1
S
1
R22
P24
EXTCLK
C-IN
1
10
20
8
+
–
R21
CUSTOM
TELECOM
E190349
1181004L1
PAIR4P5
-48 VDC PRI
TS1
-48 VDC RET
TS2
-48 VDC SEC
-48 VDC RET
FR GND
J33
E D C B A
D C B A
F2
LOOP
TEST
ACCESS
33
1
64
32
33
1
64
32
33
1
64
32
33
1
64
64
32
ADMIN J31
PAIR2P11
P12 P8
PAIR3 PAIR1
33
1
64
32
P10
PAIR8
PAIR6
PAIR5 P9
P7
J33
EXTCLK
64
33
1
33
20 20 20
10
20
PAIR7
1
10
20
32
1
64
32
33
1
NTWKMGMT
J30
-48VDC PRI
-48VDC
RET
P22
ACO RMT AUX1 AUX2
AAAABBBB
-48VDC SEC
-48VDC RET
P3
NO NCCNONCC
AUX1 AUX2
P21
CRI-A
NO C NCNO C NCNO C NC
MAJ-A MIN-A
P1 P20
P2
J32
P19 P18
ALARMOUTPUTS
CRI-A B- OUT
NO C NCNO C NCNO C NC
MAJ-A MIN-A A- OUT B IN E- NETIN OUT
+ –+ – S + – S+ – S
RS485
AB AB
T
R
S
T1
R1
S
F1
10
30
20
40
48
E D C B A
P14P15
S
S
30
40
48
1
6
T
R
T1
R1
P23
DSX1
TEST
ACCESS
F4 F3
PC2A 94V-0
2298
1
J1
S
1
R22
P24
EXTCLK
C-IN
1
10
20
8
+
–
R21
CUSTOM
TELECOM
E190349
1181004L1
PAIR4P5
-48 VDC PRI
TS1
-48 VDC RET
TS2
-48 VDC SEC
-48 VDC RET
FR GND
J33
E D C B A
D C B A
F2
LOOP
TEST
ACCESS
33
1
64
32
33
1
64
32
33
1
64
32
33
1
64
64
32
ADMIN J31
PAIR2P11
P12 P8
PAIR3 PAIR1
33
1
64
32
P10
PAIR8
PAIR6
PAIR5 P9
P7
J33
EXTCLK
64
33
1
33
20 20 20
10
20
PAIR7
1
10
20
32
1
64
32
33
1
NTWKMGMT
J30
-48VDC PRI
-48VDC
RET
P22
ACO RMT AUX1 AUX2
AAAABBBB
-48VDC SEC
-48VDC RET
P3
NO NCCNONCC
AUX1 AUX2
P21
CRI-A
NO C NCNO C NCNO C NC
MAJ-A MIN-A
P1 P20
P2
J32
P19 P18
ALARMOUTPUTS
CRI-A B- OUT
NO C NCNO C NCNO C NC
MAJ-A MIN-A A- OUT B IN E- NETIN OUT
+ –+ – S + – S+ – S
RS485
AB AB
T
R
S
T1
R1
S
F1
10
30
20
40
48
E D C B A
P14P15
S
S
30
40
48
1
6
T
R
T1
R1
P23
DSX1
TEST
ACCESS
F4 F3
PC2A 94V-0
2298
1
J1
S
1
R22
P24
EXTCLK
C-IN
1
10
20
8
+
–
R21
CUSTOM
TELECOM
E190349
1181004L1
PAIR4P5
-48 VDC PRI
TS1
-48 VDC RET
TS2
-48 VDC SEC
-48 VDC RET
FR GND
J33
Total Access
Chassis 1
Total Access
Chassis 6
Total Access
Chassis 7

Power Connections
61181001L1-5E 11
7. Connect three more power wires, connecting the “A” CO –48 VDC return with TS1 –48 VDC
RET; “B” CO –48 VDC supply with TS2 –48 VDC –48 SEC; and “B” CO –48 VDC return with
TS1 –48 VDC RET. Secure the wires to the backplane with wire tie through the tie anchor.
NOTE
See Figure 4 for an example of multiple shelves powered by a single
equipment bay fuse panel.
Apply Power and Check Voltage
Before proceeding further, ensure that power has been correctly applied to the chassis. The
proper voltage to Total Access 3000 Chassis is –48 VDC, with an operating range of –42 VDC
to –56 VDC.
WARNING
Installing fuses in the fuse alarm panel at this stage will provide
power to the chassis. There will be power to pins on the backplane
and inside the chassis. Exercise caution to avoid electric shock.
NOTE
The branch circuit overcurrent protection shall be a fuse or circuit
breaker rated for –48 VDC at 20 amps. Include the appropriate
input current rating for the product.
1. Install the 20 amp fuses in the slots in the fuse and alarm panel that service the Total
Access 3000 Chassis.
2. Using a voltmeter, place the common (normally black) lead on the TS1 –48 VDC RET
terminal and the DC volts (normally red) lead on the TS1 –48 VDC –48 PRI terminal. The
reading should be in the operating range of –42 VDC to –56 VDC, with a nominal value of
–48 VDC. Note the “–” polarity.
3. Using a voltmeter, repeat step 2, using the TS2 –48 VDC RET terminal and the TS2 –48 VDC
–48 SEC terminal.
4. Remove the fuses from the fuse and alarm panel slots, securing power to the Total Access
3000 Chassis.

Total Access 3000 23-Inch Chassis Installation and Maintenance Practice
12 61181001L1-5E
DATA CONNECTIONS
Removing Rear Plastic Guards
The large rear Plexiglass guard covering the backplane is a safety feature of the Total Access
3000 designed to keep personnel and equipment from contacting potentially high voltage
exposed at some backplane locations. Following the sequence of steps outlined in this practice
will allow the service provider to remove the guards once, make all the necessary Total Access
3000 Chassis backplane connections, and then reinstall the guards. To remove the guards,
perform the following steps:
1. Using a #1 phillips-head screwdriver, remove the long, thin Plexiglass guard covering the
wire-wrap terminals at the bottom of the backplane. It is held in place with two screws.
2. Carefully remove the guard by pulling it straight from the backplane.
3. Using a #1 phillips-head screwdriver, remove the four screws holding the large guard in
place.
4. Carefully remove the large guard by pulling it straight back from the backplane.
NOTE
Wire tie anchors are pre-installed on the Total Access 3000 Chassis
backplane to secure the 64-pin amphenol connectors. It is easier to
thread the wire ties through the anchors while the backplane
guard is removed. ADTRAN recommends using the wire ties
provided to secure the amphenol connectors. Thread the wire ties
through the anchors at this time, with the guard removed.
Wiring Clocks
The Total Access 3000 Chassis accepts either BITS or composite clock inputs from an external
timing source. When deployed as a DSLAM system, an optional Stratum 3E Clock Module
(P/N 1181930L1) can be used as a timing source that provides a backup clock signal. The
module works in conjunction with the DS3 Cell Switch Module (CSM) to provide holdover
capability upon the loss of the primary timing source, typically an external DS1 BITS clock. As
an Office Repeater Bay deploying HDSL or T1, no clock input is required. As an Office
Repeater Bay deploying ISDN, a composite clock input may be used. Future services may
require these or other clock inputs; the Total Access 3000 Chassis can accommodate them.
Connect 64 kHz Composite Clock
An external composite clock input may be used when deploying ISDN from Total Access 3000
Chassis. To wire an external composite clock to a single Total Access 3000 Chassis, perform
the following steps:
1. Determine the “+”, “–” and drain or ground wires from the CO clock source.
2. Using wire strippers, strip 1 to 1-1/2 inches of the insulation from the end of the clock
source twisted pair, shielded, drop wire.

Data Connections
61181001L1-5E 13
3. Using the wire-wrap tool, wire wrap the “+” wire from the clock source to the pin marked
“+” on connector P10, EXTCLK A-IN.
4. Wire wrap the “–” wire from the clock source to the pin marked “–” on connector P4,
EXTCLK A-IN.
5. Wire wrap the drain or shield wire from the clock source to the pin marked Son connector
P4, EXTCLK A-IN.
NOTE
If the drain or shield is connected to the clock source, then the
drain or shield does not need to be connected to the Spin of P4.
6. Tie the clock source wire neatly to the frame.
7. On the daughterboard mounted to the left of, and slightly below, P4, move the jumper so
that the left two pins labeled TERM IN, are connected together.
Up to eight Total Access 3000 Chassis may be daisy chained to a single output from the
timing source, so only one wire run is required from the timing source for an installation of up
to eight Total Access 3000 Chassis. Use wire of the same type as was used for the wire run
from the CO clock source to the Total Access 3000 Chassis. To connect up to eight Total
Access 3000 Chassis to a single external timing source, perform the following steps:
1. Determine the length of wire required to run from the first chassis, connector P4, to the
second chassis, connector P4, that is to be wired in the same daisy chain. Leave approxi-
mately 1 to 1-1/2 inches for wire wrapping.
2. Using wire strippers, strip approximately 1 to 1 -1/2 inches from both ends of the wire
run.
3. Using a wire wrap tool, wire wrap the “+”, “–” and drain wires to the “+”, “–” and “S”
terminal pins of connector P4, A-IN, on the backplane.
4. Run the wire from P10 on the “source” shelf to connector P4, EXTCLK A-IN, on the receiving
shelf.
5. Wire wrap the “+”, “–” of the wire run to the “+”, “–” terminals of P4 on the receiving shelf.
6. On the daughterboard of the receiving shelf, mounted to the left of, and slightly below P4,
move the jumper so that the right two pins, labeled TERM OUT, are connected together.
7. Repeat steps 1-6 for each Total Access 3000 Chassis, up to a total of eight in the daisy
chain, that is to be interconnected on the single CO timing source.
NOTE
In any daisy chain of Total Access 3000 Chassis using a single
timing source, only the first shelf in the chain should have the
timing daughterboard jumpered to TERM IN. All the remaining
chassis in the chain should have the daughterboard jumpered to
TERM OUT.

Total Access 3000 23-Inch Chassis Installation and Maintenance Practice
14 61181001L1-5E
Figure 5 is an illustration of connecting composite clock to more than one Total Access 3000
Chassis.
Figure 5. Total Access 3000 Composite Clock Connections
E D C B A
D C B A
F2
LOOP
TEST
ACCESS
33
1
64
32
33
1
64
32
33
1
64
32
33
1
64
64
32
ADMIN J31
PAIR 2P11
P12 P8
PAIR 3 PAIR 1
33
1
64
32
P10
PAIR 8
PAIR 6
PAIR 5 P9
P7
J33
EXTCLK
64
33
1
33
20 20 20
10
20
PAIR 7
1
10
20
32
1
64
32
33
1
NTWK MGMT
J30
-48 VDC PRI
-48 VDC
RET
P22
ACO RMT AUX1 AUX2
A AAABBBB
-48 VDC SEC
-48 VDC RET
P3
NO NCCNONCC
AUX1 AUX2
P21
CRI-A
NO C NC NO C NCNO C NC
MAJ-A MIN-A
P1 P20
P2
J32
P19 P18
ALARM OUTPUTS
CRI-A B - OUT
NO C NC NO C NCNO C NC
MAJ-A MIN-A A - OUT B IN E - NETIN OUT
+ –+ – S + – S+ – S
RS485
AB AB
T
R
S
T1
R1
S
F1
10
30
20
40
48
E D C B A
P14P15
S
S
30
40
48
1
6
T
R
T1
R1
P23
DSX1
TEST
ACCESS
F4 F3
PC2A 94V-0
2298
1
J1
S
1
R22
P24
EXTCLK
C-IN
1
10
20
8
+
–
R21
CUSTOM
TELECOM
E190349
1181004L1
PAIR 4P5
P4
E D C B A
D C B A
F2
LOOP
TEST
ACCESS
33
1
64
32
33
1
64
32
33
1
64
32
33
1
64
64
32
ADMIN J31
PAIR 2P11
P12 P8
PAIR 3 PAIR 1
33
1
64
32
P10
PAIR 8
PAIR 6
PAIR 5 P9
P7
J33
EXTCLK
64
33
1
33
20 20 20
10
20
PAIR 7
1
10
20
32
1
64
32
33
1
NTWK MGMT
J30
-48 VDC PRI
-48 VDC
RET
P22
ACO RMT AUX1 AUX2
A AAABBBB
-48 VDC SEC
-48 VDC RET
P3
NO NCCNONCC
AUX1 AUX2
P21
CRI-A
NO C NC NO C NCNO C NC
MAJ-A MIN-A
P1 P20
P2
J32
P19 P18
ALARM OUTPUTS
CRI-A B - OUT
NO C NC NO C NCNO C NC
MAJ-A MIN-A A - OUT B IN E - NETIN OUT
+ –+ – S + – S+ – S
RS485
AB AB
T
R
S
T1
R1
S
F1
10
30
20
40
48
E D C B A
P14P15
S
S
30
40
48
1
6
T
R
T1
R1
P23
DSX1
TEST
ACCESS
F4 F3
PC2A 94V-0
2298
1
J1
S
1
R22
P24
EXTCLK
C-IN
1
10
20
8
+
–
R21
CUSTOM
TELECOM
E190349
1181004L1
PAIR 4P5
P4
CLOCK
SOURCE
Total Access
Chassis 1
Total Access
Chassis 2
NOTE: Only one end
of the shield drain wire
should be grounded on
any segment of the
daisy chain.
T(-)SR(+)
+
-
S
E D C B A
D C B A
F2
LOOP
TEST
ACCESS
33
1
64
32
33
1
64
32
33
1
64
32
33
1
64
64
32
ADMIN J31
PAIR 2P11
P12 P8
PAIR 3 PAIR 1
33
1
64
32
P10
PAIR 8
PAIR 6
PAIR 5 P9
P7
J33
EXTCLK
64
33
1
33
20 20 20
10
20
PAIR 7
1
10
20
32
1
64
32
33
1
NTWK MGMT
J30
-48 VDC PRI
-48 VDC
RET
P22
ACO RMT AUX1 AUX2
A AAABBBB
-48 VDC SEC
-48 VDC RET
P3
NO NCCNONCC
AUX1 AUX2
P21
CRI-A
NO C NC NO C NCNO C NC
MAJ-A MIN-A
P1 P20
P2
J32
P19 P18
ALARM OUTPUTS
CRI-A B - OUT
NO C NC NO C NCNO C NC
MAJ-A MIN-A A - OUT B IN E - NETIN OUT
+ –+ – S + – S+ – S
RS485
AB AB
T
R
S
T1
R1
S
F1
10
30
20
40
48
E D C B A
P14P15
S
S
30
40
48
1
6
T
R
T1
R1
P23
DSX1
TEST
ACCESS
F4 F3
PC2A 94V-0
2298
1
J1
S
1
R22
P24
EXTCLK
C-IN
1
10
20
8
+
–
R21
CUSTOM
TELECOM
E190349
1181004L1
PAIR 4P5
P4
Total Access
Chassis 8
