IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
Read the ELLIPTICAL GUIDE before using this OWNER’S MANUAL. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this elliptical. It is the responsibility of the
owner to ensure that all users of this elliptical are adequately informed of all warnings and precautions. If you have any questions
after reading this guide, contact Customer Tech Support at the number listed on the back panel.
This elliptical is intended for in-home use only. Do not use this elliptical in any commercial, rental, school or institutional setting.
Failure to comply will void the warranty.

4
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the elliptical from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or taking
off parts.
DANGER
•To reduce the risk of burns, fire, electrical shock or injury to persons:
•If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop
exercising immediately and consult your physician before continuing.
•When exercising, always maintain a comfortable pace. Do not sprint above 80 RPMs on this machine.
•To maintain balance, it is recommended to keep a grip on the handlebars while exercising, mounting or dismounting
the machine.
•Do not turn pedal arms by hand.
•Make sure handlebars are secure before each use.
•Keep the topside of the foot support clean and dry.
•Care should be taken when mounting or dismounting the equipment. Before mounting or dismounting, move the pedal on the
mounting or dismounting side to its lowest position and bring the machine to a complete stop.
•Do not wear clothes that might catch on any part of the elliptical.
•Always wear athletic shoes while using this equipment.
•Do not jump on the elliptical.
•At no time should more than one person be on the elliptical while in operation.
•This elliptical should not be used by persons weighing more than the specified user capacity in the OWNER’S MANUAL
WARRANTY SECTION. Failure to comply will void the warranty.
•This elliptical is intended for in-home use only. Do not use this elliptical in any commercial, rental, school or institutional setting.
Failure to comply will void the warranty.
•Do not use elliptical in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms,
bathrooms, car ports or outdoors. Failure to comply will void the warranty.
•To prevent electrical shock, never drop or insert any object into any opening.
•Connect this exercise product to a properly grounded outlet only.
WARNING

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
•Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
•Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
•Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
•Use the elliptical only as described in the elliptical guide and owner’s manual.
•Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth
only; never use solvents. (See MAINTENANCE)
•The elliptical should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or
taking off parts.
•Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
•At NO time should children under the age of 13 or pets be within 10 feet of the machine.
•At NO time should children under the age of 13 use the elliptical.
•Children over the age of 13 or disabled persons should not use the elliptical without adult supervision.
•Never operate the elliptical if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or
immersed in water. Contact tech support at the number on the back panel to schedule service.
•To disconnect, turn all controls to the off position, then remove plug from outlet.
•Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an authorized
service technician
It is essential that your elliptical is used only indoors, in a climate controlled room. If your elliptical has been exposed to colder
temperatures or high moisture climates, it is strongly recommended that the elliptical is warmed up to room temperature before
first time use. Failure to do so may cause premature electronic failure.
WARNING
WARNING
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

6
GROUNDING INSTRUCTIONS
If your elliptical has power incline with a 3-prong plug, you must follow these grounding instructions.
This product must be grounded. If a elliptical should malfunction or breakdown, grounding provides a path of least resistance for electrical current to
reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working properly. Never
operate any product if it appears damaged, or has been immersed in water. Contact
Customer Tech Support for replacement or repair.
3-POLE
GROUNDED
OUTLET
GROUNDING PIN
WARNING
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman
if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it will not fit the outlet,
have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 110-120 Volt circuit and has a grounding plug that looks like the plug in the illustration. Make sure that the
product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit and observe if any
other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets on one circuit. This elliptical should be used
with a minimum 15-amp circuit.

7
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly instructions
correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the elliptical could have frame parts
that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the elliptical, the assembly instructions must be
reviewed and corrective actions should be taken.
Before proceeding, find your elliptical’s serial number located on a white barcode sticker on the front
stabilizer tube and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
WARNING
SERIAL NUMBER:
EP

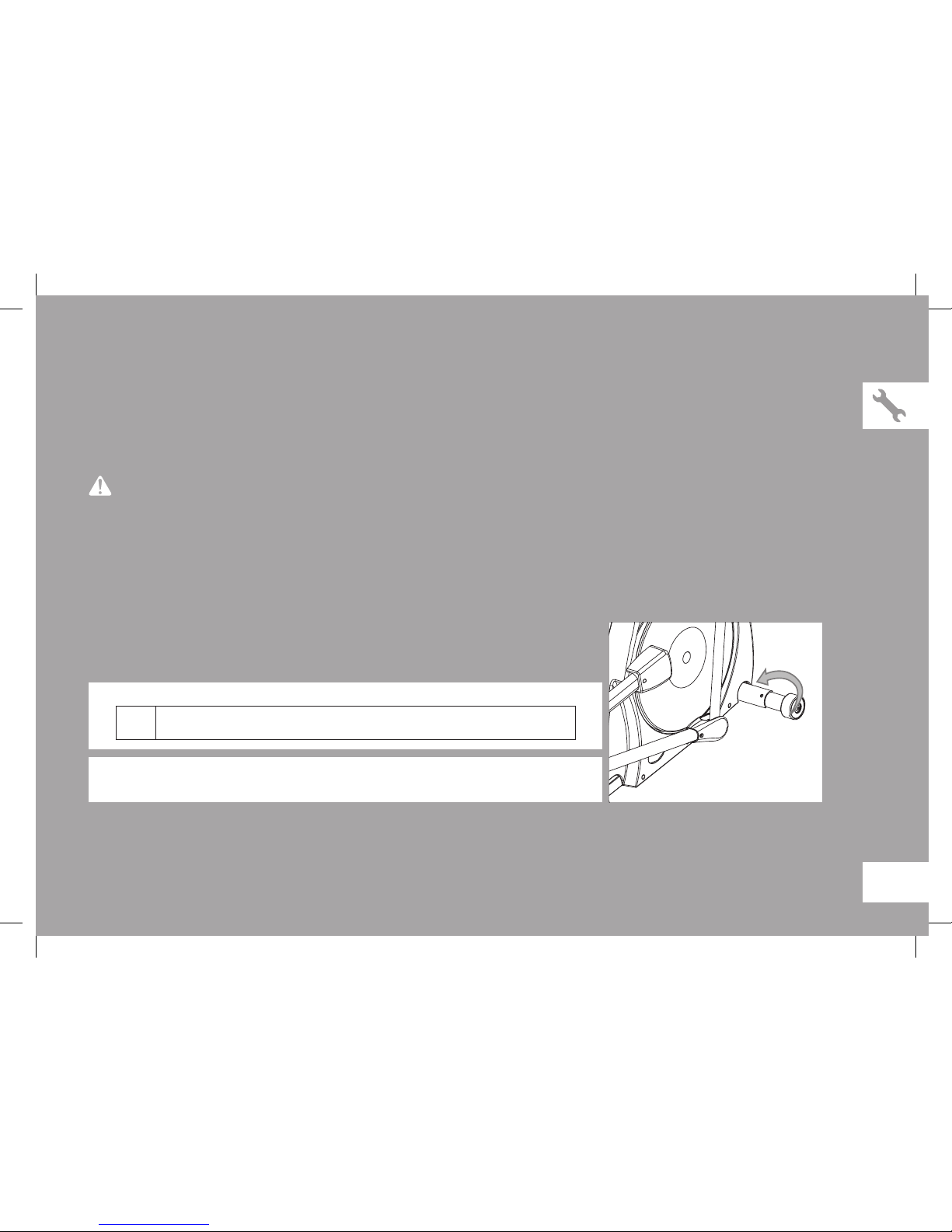

SERIAL NUMBER LOCATION
MODEL NAME: AFG SPORT 5.9AE ELLIPTICAL

8

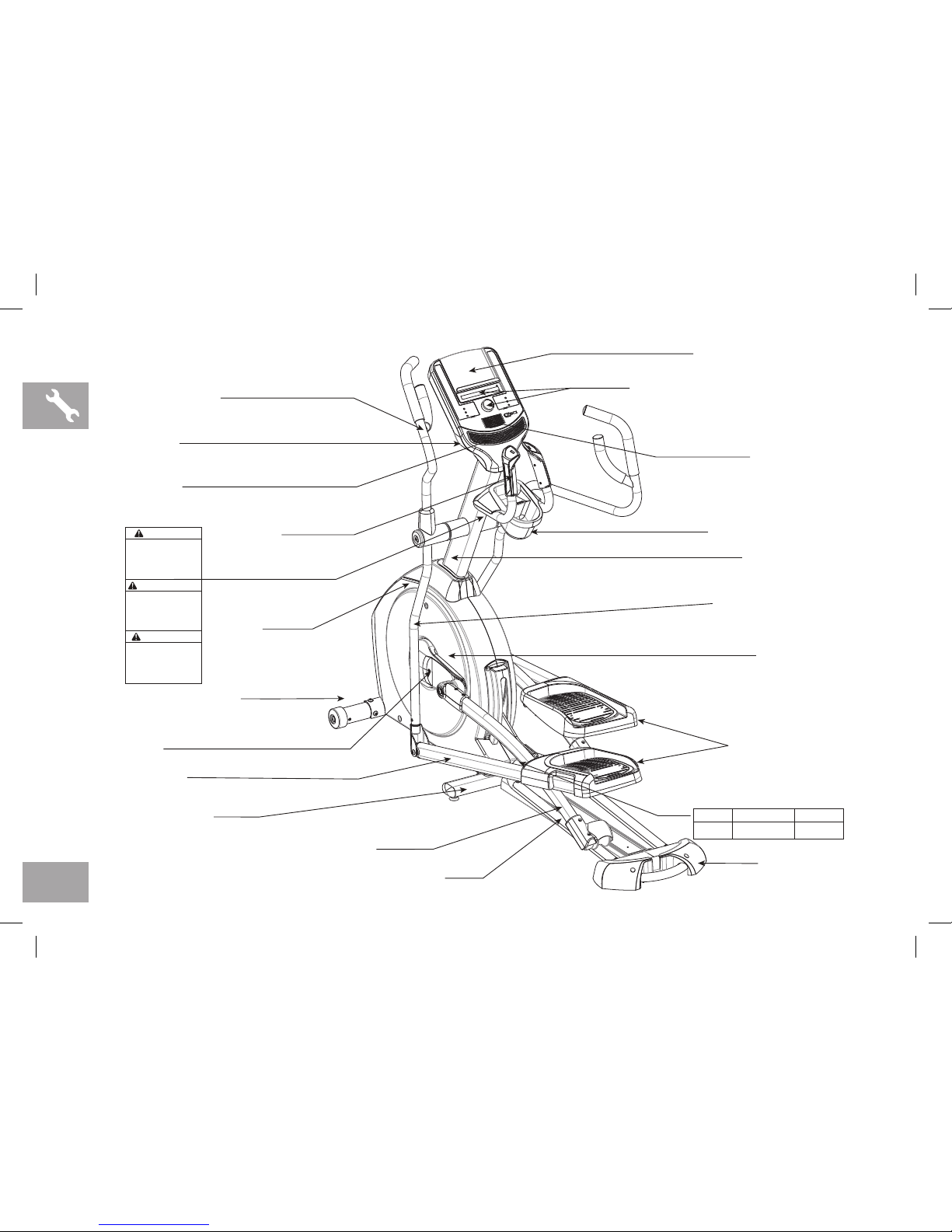

PIVOTING FOOT PADS
CRANK
TOP CAP
GUIDE RAIL SET
SPEAKERS
WATER BOTTLE HOLDER
UPPER HANDLEBAR
PULSE GRIPS
CONSOLE
STABILIZER TUBE
POWER CORD SOCKET
MAIN FRAME
PEDAL ARM
REAR COVER
TABLET/MAGAZINE POCKET
CONSOLE FAN
CONSOLE MAST
CONTROL KNOB AND DISPLAY WINDOWS
LOWER HANDLEBAR
LOWER LINK ARM
WARNING
CONSULT A PHYSICIAN PRIOR TO USING
ANY EXERCISE EQUIPMENT. POSSIBILITY
OF SERIOUS INJURY IF EQUIPMENT IS
USED IMPROPERLY. READ INSTRUCTION
MANUAL BEFORE USING. KEEP CHILDREN
OFF AND AWAY FROM THIS EQUIPMENT.
FOR CONSUMER USE ONLY.
AVERTISSEMENT
CONSULTEZ UN MÉDECIN AVANT
D’UTILISER CET ÉQUIPEMENT. POSSIBILITÉ
DE BLESSURES SÉRIEUSES SI
L’ÉQUIPEMENT EST UTILISÉ DE MANIÈRE
INCORRECTE. AVANT USAGE, LISEZ LE
GUIDE D’UTILISATEUR. NE LAISSEZ PAS CET
ÉQUIPEMENT À LA PORTÉE DES ENFANTS.
POUR USAGE DOMESTIQUE UNIQUEMENT.
PRECAUCIÓN
CONSULTAR CON UN MEDICO ANTES DE USAR
ESTE EQUIPO. POSIBILIDAD DE RESULTAR EN
HERIDAS GRAVES SI EL EQUIPO ESTÁ
UTILIZADO IMPROPIAMENTE. LEER LA GUÍA DE
INSTRUCCIONES ANTES DE USAR.MANTENER
NIÑOS PEQUEÑOS ALEJADOS DE LA MÁQUINA.
ESTE EQUIPO ES SÓLO PARA EL USO DEL
CONSUMIDOR.
CAUTION AVERTISSEMENT PRECAUCIÓN
KEEP HANDS AND
FEET AWAY FROM
THIS AREA.
GARDEZ LES MAINS ET LES
PIEDS LOIN DE CETTE
RÉGION.
MANTENGA LAS MANOS Y
LOS PIES LEJOS DE ESTA
AREA.

9
TOOLS INCLUDED:
FScrewdriver
F5 mm L-Wrench
F8 mm L-Wrench
F13/15 mm Flat Wrench
PARTS INCLUDED:
F1 Main Frame
F1 Stabilizer Tube
F1 Guide Rail Set
F2 Pedal Arms
F2 Lower Handlebars
F2 Upper Handlebars
F2 Lower Link Arms With Footpads
F1 Top Cap
F1 Console Mast
F1 Console Mast Boot
F1 Console
F2 Handlebar Caps
F1 Water Bottle Holder
F1 Audio Adapter Cable
F1 Power Cord
F1 Hardware Kit
UNPACKING
Unpack the product where you will be using it. Place the elliptical carton on a level flat surface. It
is recommended that you place a protective covering on your floor. Never open box when it is on
its side.
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially
threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease, such as
lithium bike grease is recommended.
If you have questions or if there
are any missing parts, contact
Customer Tech Support. Contact
information is located on the back
panel of this manual.
NEED HELP?
PRE ASSEMBLY

10

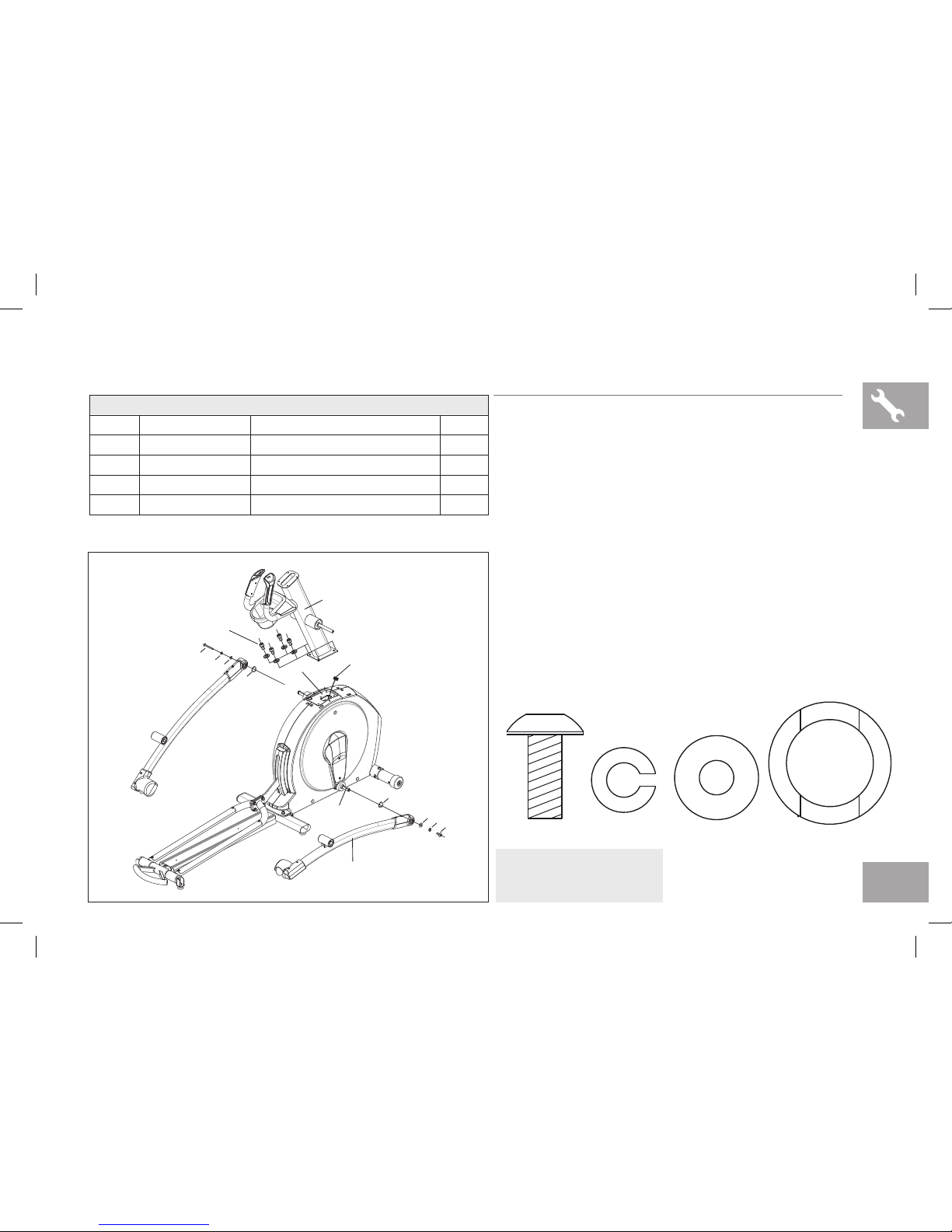

ASSEMBLY STEP 1
A
A
A Open HARDWARE FOR STEP 1.
B Attach the STABILIZER TUBE (1) to the MAIN FRAME
(2) using 2 BOLTS (A), 2 SPRING WASHERS (B) and 2
ARC WASHERS (C) on each side.
B
C
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
M8X1.25PX30L 4A BOLT
8.2X15.4X2T 4B SPRING WASHER
8.4X17X1T 4C ARC WASHER
BC
A
B
C
ABC
1
2

11

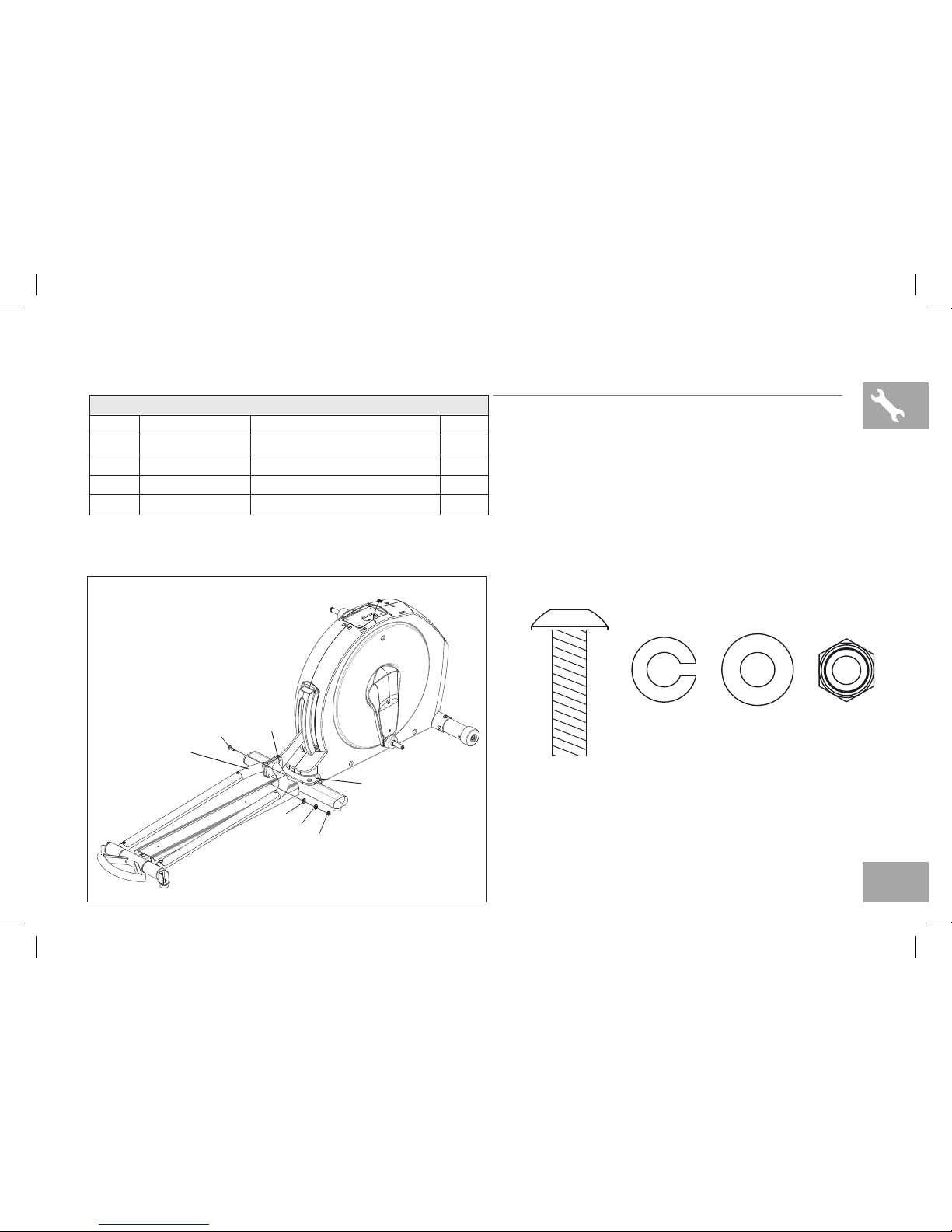

ASSEMBLY STEP 2
A Open HARDWARE FOR STEP 2.
B Align GUIDE RAIL SET (3) with MAIN FRAME (2)
asshown.
C Attach the GUIDE RAIL SET (3) to the INCLINE
BRACKET (4) using 4 BOLTS (D), 4 FLAT
WASHERS (F), 4 SPRING WASHERS (E) and
4 NUTS (G).
D
EFG
F
E
D
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
M8X1.25PX35L-20L 4D BOLT
8.2X15.4X2T 4E SPRING WASHER
8.2X16X2T 4F FLAT WASHER
M8X1.25P 4G NUT
G
4
3
2

12

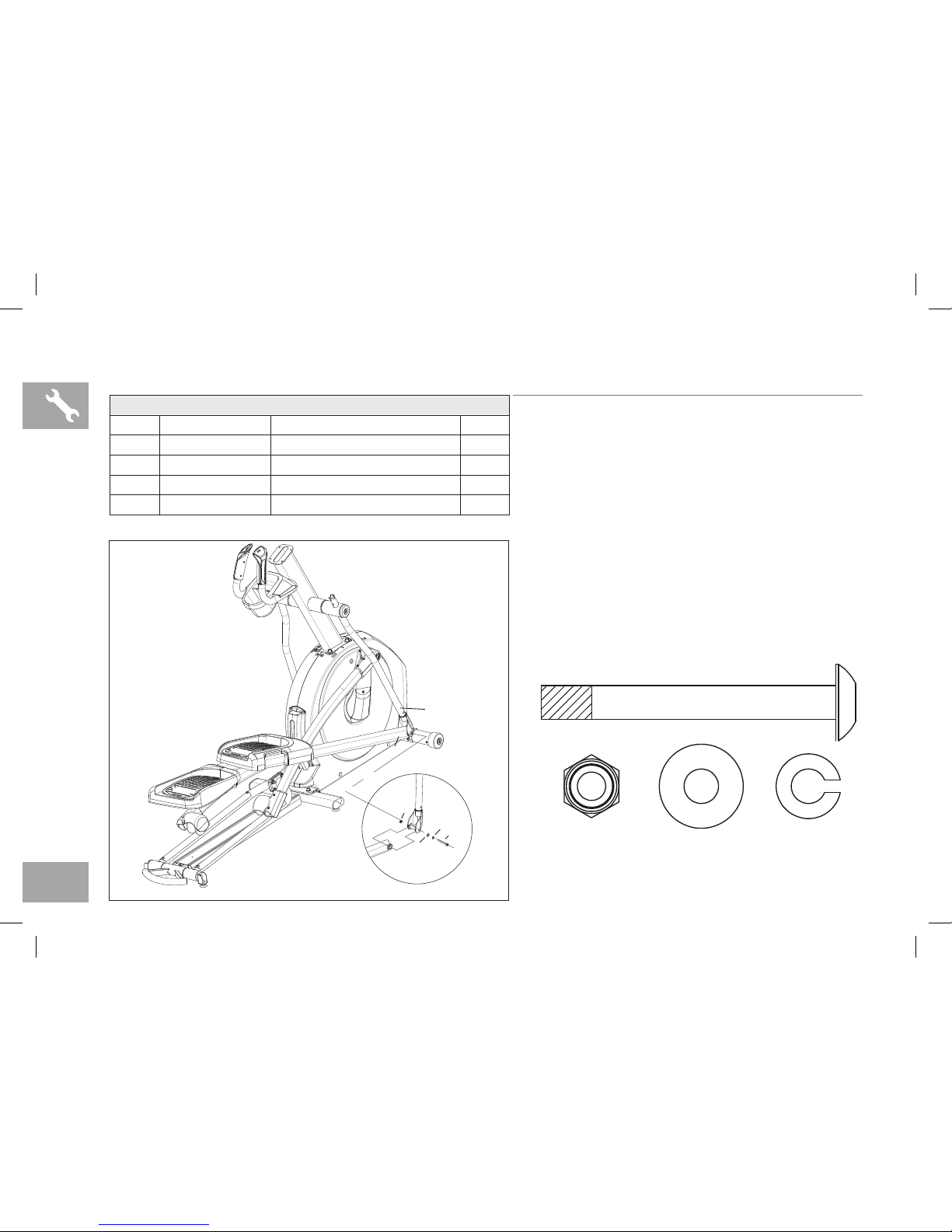

ASSEMBLY STEP 3
I
H
G
G
HI
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
M10X1.5PX20L 4G BOLT
10.2X18.4X2.5T 4H SPRING WASHER
10.2X20.0X1.5T 4I FLAT WASHER
A Open HARDWARE FOR STEP 3.
B Attach the GUIDE RAIL SET (3) to the MAIN FRAME
(2) using 4 BOLTS (G), 4 SPRING WASHERS (H) and
4 FLAT WASHERS (I).
I
H
G
2
3

13

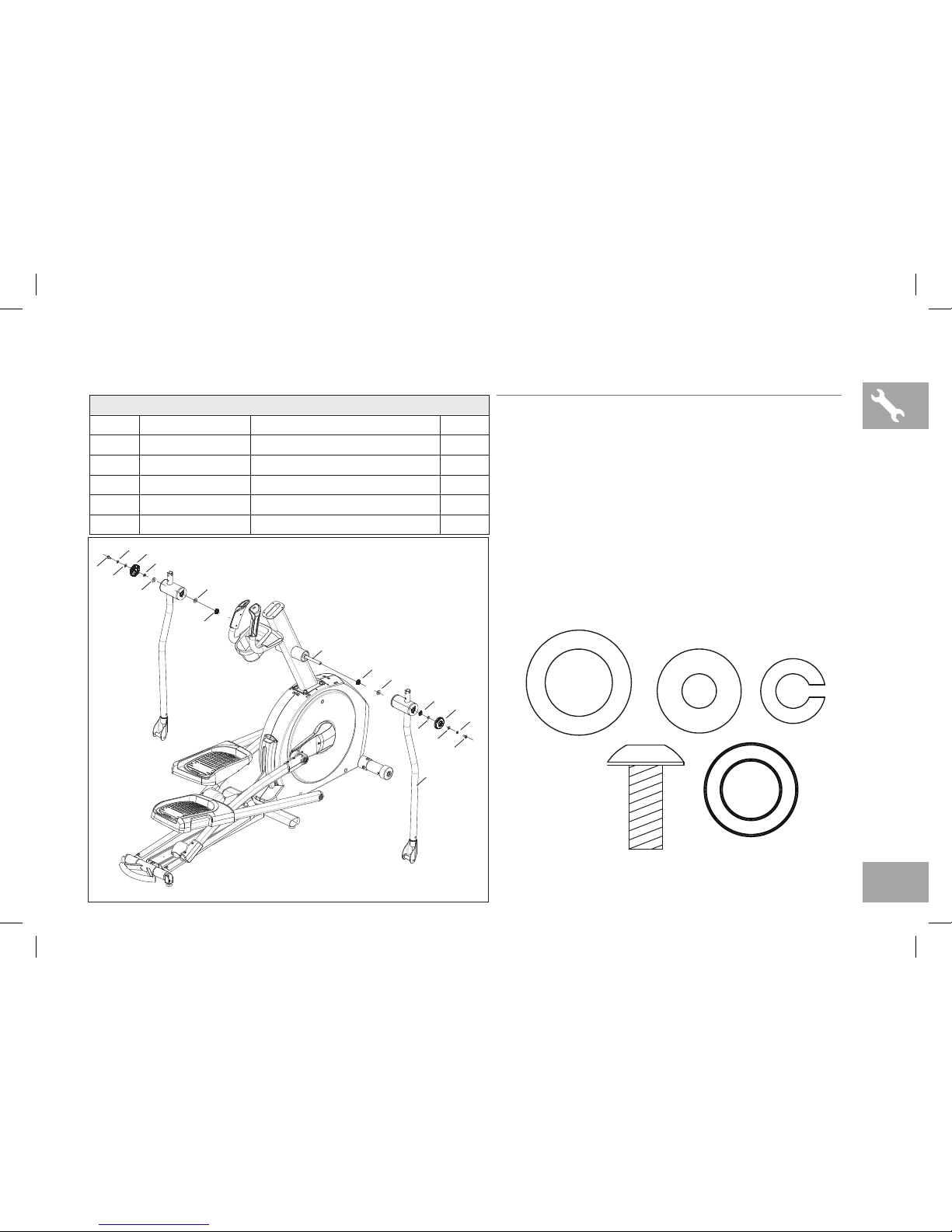

ASSEMBLY STEP 4
J
M
L
K
A Open HARDWARE FOR STEP 4.
B Carefully pull the CONSOLE CABLE (5) through the
CONSOLE MAST (6) using the twist tie located inside the
CONSOLE MAST (6).
C Attach CONSOLE MAST (6) to MAIN FRAME (2) using
PRE-INSTALLED BOLTS AND WASHERS (7).
D Slide WAVY WASHER (M) over CRANK (8) followed by
PEDAL ARM (9) as shown. Rest pedal arm wheel on guide rail.
E Attach the PEDAL ARM (9) to the CRANK (8) using 1FLAT
WASHER (L), 1SPRING WASHER (K) and 1 BOLT(J).
F Repeat steps D–E on the opposite side of the elliptical.
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
M8X1.25PX20L 2J BOLT
8.2X15.4X2T 2K SPRING WASHER
8.2X20.0X1.5T 2L FLAT WASHER
17.2X22.5X0.5T 2M WAVY WASHER
M
L KJ
M
L
K
J
6
2
NOTE: Be careful not to pinch
any wires while attaching the
console mast.
7
5
8
9

14
14,4
ASSEMBLY STEP 5
A Open HARDWARE FOR STEP 5.
B Slide 1 FLAT WASHER (R), 1WAVY WASHER(Q) and
another FLAT WASHER(R) onto the LOWER LINK ARM
(10).
C Slide the LOWER LINK ARM (10) into the PEDAL ARM
BRACKET (9).
D Attach the LOWER LINK ARM (10) to the PEDAL
ARM (9) using 1FLAT WASHER (P), 1SPRING
WASHER(O) and 1 BOLT(N).
E Repeat steps B–D on the opposite side of the elliptical.
N
HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
M8X1.25PX20L 2N BOLT
8.2X15.4X2T 2O SPRING WASHER
8.2X20.0X1.5T 2P FLAT WASHER
20.7X29.1X0.5T 2Q WAVY WASHER
20.2X27.2X1.5T 4R FLAT WASHER
Q RN
P
O
N
OPRQR
P
O
R
Q
R
Q
10
9

15

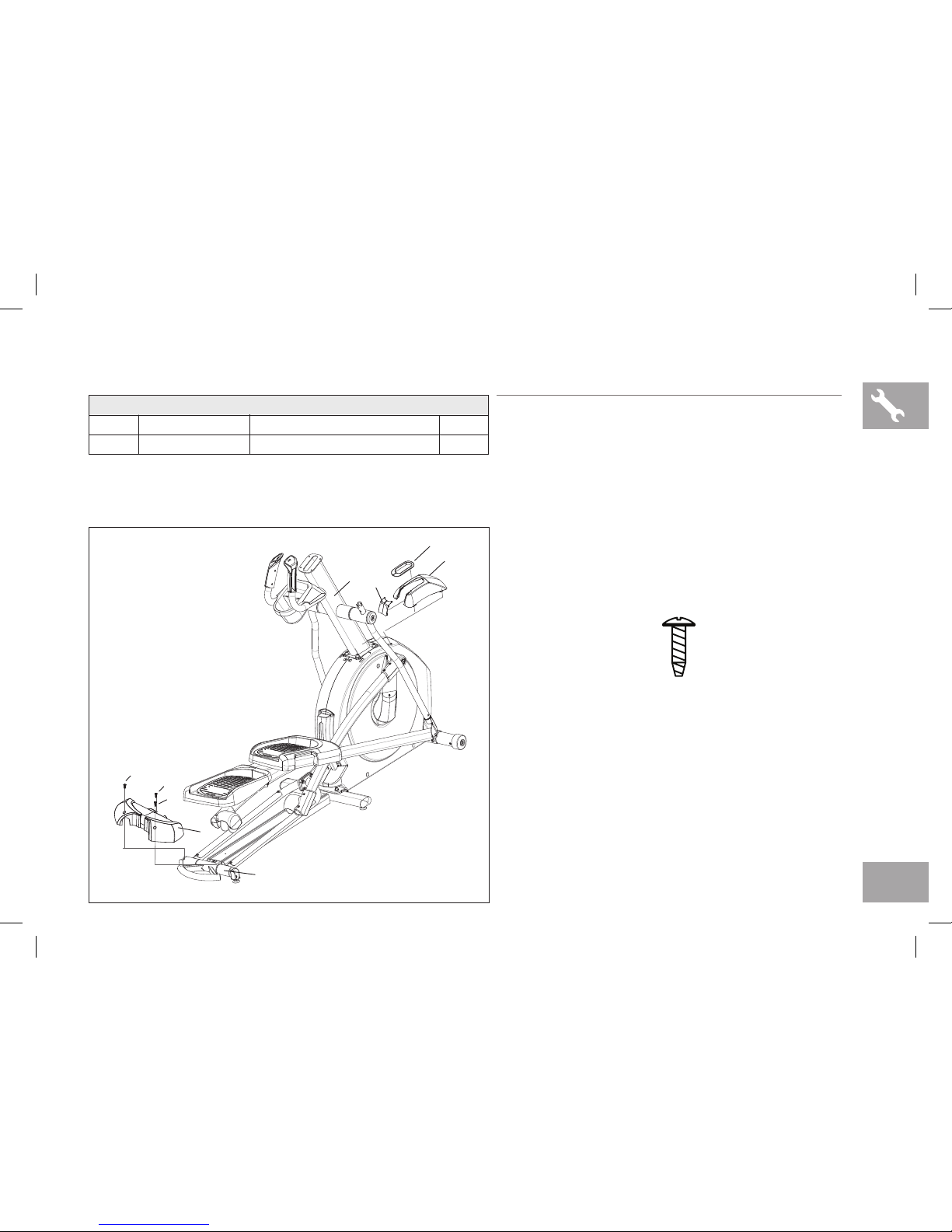

ASSEMBLY STEP 6
A Open HARDWARE FOR STEP 6.
B Slide 1 RUBBER WASHER (X) and 1 FLAT WASHER
(S) onto the CONSOLE MAST (6).
C Slide LOWER HANDLEBAR (11) onto CONSOLE
MAST (6) and attach using 1FLAT WASHER (S),
1FLAT WASHER (T) 1HANDLEBAR CAP (12), 1FLAT
WASHER (T), 1SPRING WASHER(U) and 1 BOLT(V).
D Repeat steps B–C on the other side.
S
T
U
V
HARDWARE FOR STEP 6
PART TYPE DESCRIPTION QTY
M8X1.25PX20L 2V BOLT
8.6X26.0X2.0T 4T FLAT WASHER
16.0X25.0X1.5T 4S FLAT WASHER
16.2X26.2X11.5T 2X RUBBER WASHER
8.2X15.4X2.0T 2U SPRING WASHER
X
V
X
S
T
TV
U
S
T
S
U
T
S
X
6
11
12
12

16
ASSEMBLY STEP 7
A Open HARDWARE FOR STEP 7.
B Slide LOWER LINK ARM (10) into bottom end of LOWER
HANDLEBAR (11).
C Secure the joint with 1 BOLT (Y), 1 SPRING WASHER (BB),
1 FLAT WASHER (AA) and 1 NUT (Z).
D Repeat steps B–C on the opposite side of
the elliptical.
ZAA
BB
Y
BB
AA
Y
HARDWARE FOR STEP 7
PART TYPE DESCRIPTION QTY
M8X1.25PX70L-12L 2Y BOLT
8.2X15.4X2T 2BB SPRING WASHER
8.2X20X1.5T 2AA FLAT WASHER
M8X1.25P 2Z NUT
Z
11
10

17
ASSEMBLY STEP 8
A Open HARDWARE FOR STEP 8.
B Slide FRONT TOP CAP PIECE (13) and MAST
SLEEVE (14) over CONSOLE MAST (6) and snap into
place. Snap REAR TOP CAP PIECE (15) into FRONT
TOP CAP PIECE (13).
C Slide REAR CAP (16) over REAR STABILIZER (3) and
attach using 3 SCREWS (CC).
HARDWARE FOR STEP 6
PART TYPE DESCRIPTION QTY
4X15L 3CC SCREW
CC
CC
CC
CC
6
6
16
13
14
15

18
ASSEMBLY STEP 9
NOTE: All hardware for this step is pre-installed.
A Remove 4 PRE-INSTALLED BOLTS (17) from the CONSOLE (18).
B Attach the CONSOLE CABLES to the CONSOLE (18).
C Carefully tuck the CONSOLE CABLES into the CONSOLE MAST
(6) before attaching the CONSOLE (18). Attach CONSOLE (18)
toCONSOLE MAST (6) using 4PRE-INSTALLED BOLTS (17).
D Slide the HANDLEBAR BOOT (19) halfway up the UPPER
HANDLEBAR (20). Slide the UPPER HANDLEBAR (20) onto
the LOWER HANDLEBAR (21) making sure handlebars are joined
together completely. Secure the UPPER HANDLEBAR (20) to
the LOWER HANDLEBAR (21) using PRE-ATTACHED SET
SCREWS(22).
E Repeat STEP D on other side.
NOTE: Make sure upper handlebars are as far down as possible.
Handlebars can be damaged If not secured correctly.
ASSEMBLY COMPLETE!
NOTE: Do not to pinch any wires while attaching the console.
17
18
6
19
19
20
20
21
22
22

19
ELLIPTICAL OPERATION
This section explains how to use your elliptical’s console and programming.
The BASIC OPERATION section in the ELLIPTICAL GUIDE has instructions for the following:
• LOCATION OF THE ELLIPTICAL
• POWER/GROUNDING INSRUCTIONS
• FOOT POSITIONING
• MOVING THE ELLIPTICAL
• LEVELING THE ELLIPTICAL
• POWER/MANUAL INCLINE OPERATION
• USING THE HEART RATE FUNCTION

20
G
H
D
E
N
C
L
A
I
M
B
O
P
F
K
G
J
H
