VIRTUFIT Elite FDR 2.5i Semi-Pro Crosstrainer User manual

User manual
EN
Elite FDR 2.5i Semi-Pro Crosstrainer

EN VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer
2
VEILIGHEIDSINSTRUCTIESVEILIGHEIDSINSTRUCTIES
CHECKLISTCHECKLIST
MONTAGE INSTRUCTIESMONTAGE INSTRUCTIES
AFSTELLEN EN VERSTELLENAFSTELLEN EN VERSTELLEN
VERPLAATSENVERPLAATSEN
ONDERHOUDONDERHOUD
PROBLEEMOPLOSSINGENPROBLEEMOPLOSSINGEN
BEDIENINGSGIDSBEDIENINGSGIDS
TECHNISCHE TEKENINGTECHNISCHE TEKENING
ONDERDELENLIJSTONDERDELENLIJST
APP INSTRUCTIESAPP INSTRUCTIES
TRAININGSRICHTLIJNENTRAININGSRICHTLIJNEN
3 - 4
5 - 6
7 - 10
11
12
13
14
15 - 22
23 - 24
25 - 26
27
28
INHOUD

EN
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer 3
– It is important to read this entire manual before assembling and using the device. Safe and
effective use can only be achieved if the device is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the device are informed of all warnings and
precautions.
– Before starting any exercise program, you should consult your doctor to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the device properly. Your doctor’s advice is essential if you are taking medication
that affects your heart rate, blood pressure or cholesterol level.
– Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions you should consult your doctor before continuing with your
exercise program.
– Keep children and pets away from the device. The device is designed for adult use only.
– Use the device on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the device should have at least 0.5 metres of free space all around it.
– Before using the device, check that the nuts and bolts are securely tightened.
– The safety of the device can only be maintained if it is regularly examined for damage and/or
wear and tear.
ATTENTION
WARNING:
Before beginning any exercise program consult your physician. This is especially
important for people who are over 35 years old or who have pre-existing health
problems. Read all instructions before using any fitness equipment. Do not operate this
device without properly fitted guards, as the moving parts can present a risk of serious
injury if exposed.
SAFETY INSTRUCTIONS

EN VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer
4
– Always use the device as indicated. If you find any defective components while assembling or
checking the device, or if you hear any unusual noises coming from the device during use,
stop immediately. Do not use the device until the problem has been rectified.
– Wear suitable clothing while using the device. Avoid wearing loose clothing that may get caught
in the device or that may restrict or prevent movement.
– The max user weight is 165 KGS. Braking ability is independent of speed.
– The device is not suitable for therapeutic use.
– Care must be taken when lifting or moving the device so as not to injure your back. Always use
proper lifting techniques and/or seek assistance if necessary.
– Please keep the space at least 1 to 2 meter at the end of base frame to escape any accidents!
– Place the device on a clean and flat surface. Do not place the device on a thick carpet.
– The device is for indoor use and not for outdoor use to prevent damage. Keep the storage location
dry, clean and flat. It is forbidden to use the device for purposes other than training.
– Only use the machine in an environment with an ambient temperature between 10 °C and 35 °C.
Only store the device at an ambient temperature between 5 °C and 45 °C.
Warranty claim is excluded if the cause of the defect is the result of:
– Maintenance assembly and repair work not carried out by an official dealer.
– In the event of improper use, neglect and / or poor maintenance.
– Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed
manual).
SAFETY INSTRUCTIONS

EN
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer 5
When you open the carton, and you will find the below parts in the carton.
TOOLKIT
CHECKLIST
33• •Φ9. 4×23. 5-M6/M6×12- 2
35• •M8×15- 4
× ×
83• •M5×10- 8
••••46• •ST4×20- 4 ••••118• •M5×15- 4
×
36• •M8×45×20- 6
32• •M8×55×20- 2

EN VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer
6
STEP 1
ASSEMBLY INSTRUCTIONS
Step 1:
1. Connect the motor communication wire (61) with Upright post communication wire
(76).
2. Attach the upright post (2) to the main frame (1) with Allen cylinder head full thread
screw (30), Flat washer (50) and Spring washer (53)
Step 2:
1. Attach the pulse circular tube (7) to the upright post (2) with Allen cylinder head full
thread screw (30), Flat washer (50).
2. Assemble the handlebar cover (104) with Philips pan head full thread screw (118)
50
53
30
30
76
61
1
2
A
A
30
50
83
7
2
104
• Connect the motor communication wire (61) with Upright post comunication wire (76).
• Attach the upright post (2) to the main frame (1) with Allen cylinder head full thread screw (30), Flat
washer (50) and Spring washer (53).
ASSEMBLY INSTRUCTIONS
Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoa and
the device. Some parts (bolts, screws, etc.) are already attached to/in the device.
Error message: Ensure that all cables are carefully attached. The aluminum legs are very sensitive and
must remain straight. Do you receive an error message after mounting your device? Then you have to
straighten these aluminum legs again, this may cause the error message to disappear.
Socket screws: The device contains socket screws, make sure that the allen key is firmly in the
bolt before you apply force to the key. In this way you prevent the head of the socket head screw from
being rotated.
NOTE! The transport wheels must be mounted on the front of the appliance.

EN
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer 7
STEP 2
• Attach the pulse circular tube (7) to the upright post (2) with Allen cylinder head full thread screw
(30), Flat washer (50).
• Assemble the handlebar cover (104) with Philips pan head full thread screw (118).
ASSEMBLY INSTRUCTIONS
Step 1:
1. Connect the motor communication wire (61) with Upright post communication wire
(76).
2. Attach the upright post (2) to the main frame (1) with Allen cylinder head full thread
screw (30), Flat washer (50) and Spring washer (53)
Step 2:
1. Attach the pulse circular tube (7) to the upright post (2) with Allen cylinder head full
thread screw (30), Flat washer (50).
2. Assemble the handlebar cover (104) with Philips pan head full thread screw (118)
50
53
30
30
76
61
1
2
A
A
30
50
83
7
2
104
ASSEMBLY INSTRUCTIONS

EN VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer
8

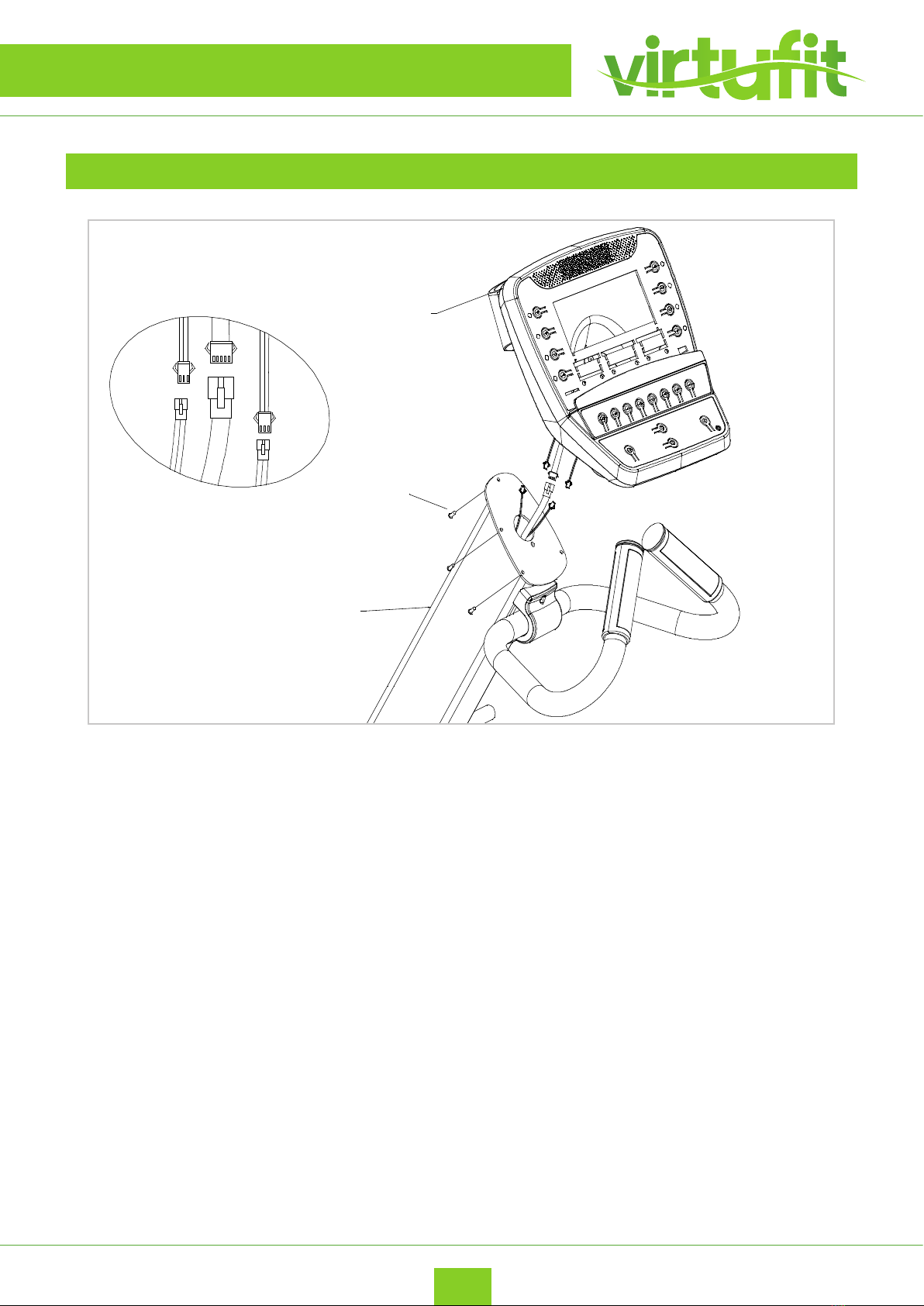

• Connect upright post (2) with console (87) communication wire.
• Attach the console (87) to upright post (2) with the Philips C.K.S. self-tapping screw (45).
STEP 3
Step 3:
1. Insert the grocery box (88) into the console (87)
Step 4:
1. Connect upright post (2) with console (87) communication wire .
2. Attach the console (87) to upright post (2) with the Philips C.K.S. self-tapping screw
(45).
8887
45
2
87
A
A
ASSEMBLY INSTRUCTIONS

EN
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer 9
• First apply the lubricating oil to the axis, Attach the left swing arm (8) to main frame (1) with Allen
pan head full thread screw (35), Flat washer (49) and decorative cover (108) with Philips pan head full
thread screw (83).
• Assemble the right swing arm in the same way.
STEP 4
Step 5:
1. First apply the lubricating oil to the axis, Attach the left swing arm (8) to main frame
(1) with Allen pan head full thread screw (35), Flat washer (49) and decorative cover
(108) with Philips pan head full thread screw (83).
2. Assemble the right swing arm in the same way.
Step 6:
1. Attach the Pulley limited sleeve(86) to the swing arm and lock with Allen C.K.S. full
thread screw (32).
35
49
108
83
8
11
1
Coated lubricate oil
32
86
5
ASSEMBLY INSTRUCTIONS

EN VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer
10

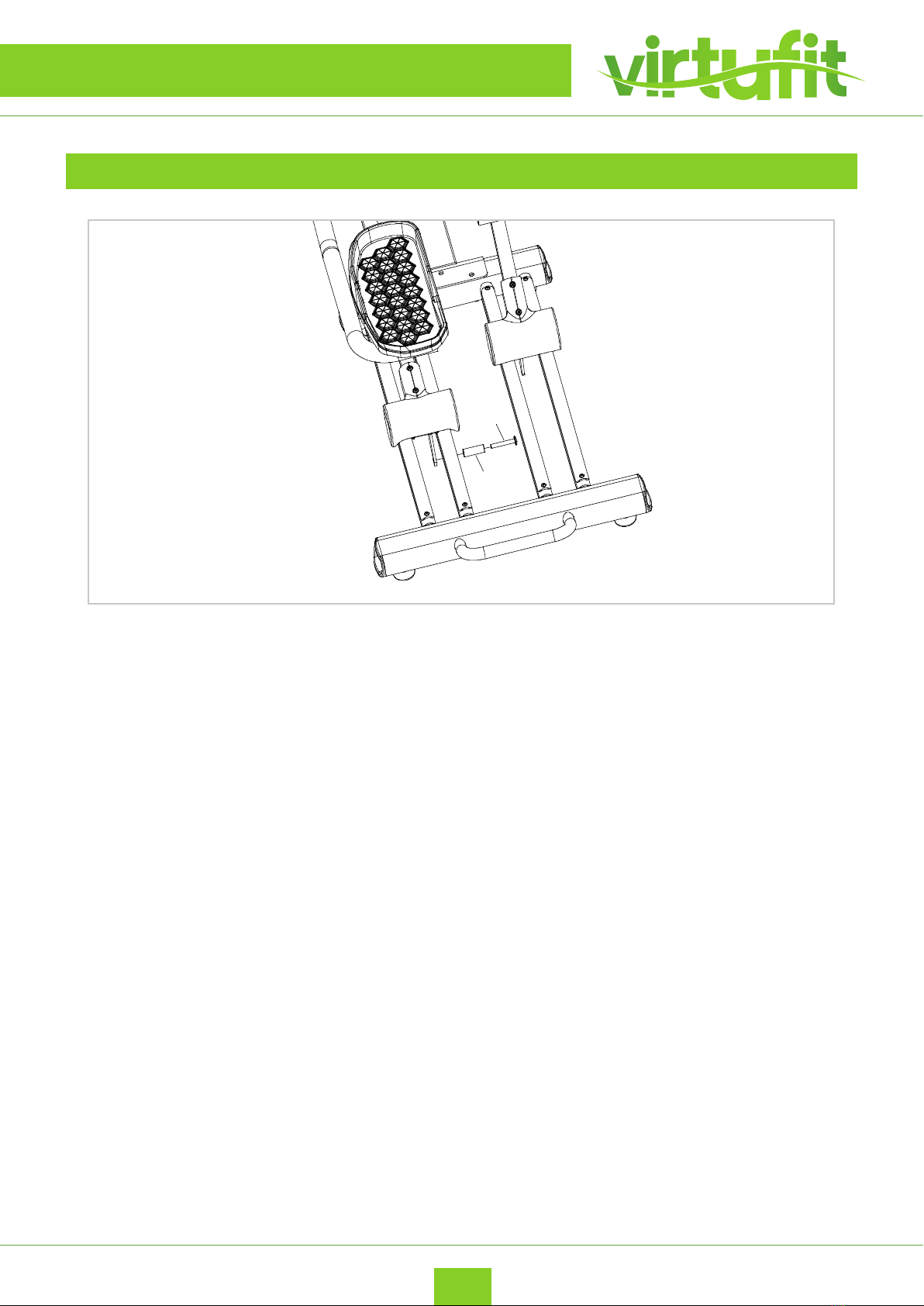

• Attach the Pulley limited sleeve(86) to the swing arm and lock with Allen C.K.S. full thread screw (32).
STEP 5
Step 5:
1. First apply the lubricating oil to the axis, Attach the left swing arm (8) to main frame
(1) with Allen pan head full thread screw (35), Flat washer (49) and decorative cover
(108) with Philips pan head full thread screw (83).
2. Assemble the right swing arm in the same way.
Step 6:
1. Attach the Pulley limited sleeve(86) to the swing arm and lock with Allen C.K.S. full
thread screw (32).
35
49
108
83
8
11
1
Coated lubricate oil
32
86
5
ASSEMBLY INSTRUCTIONS

EN
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer 11

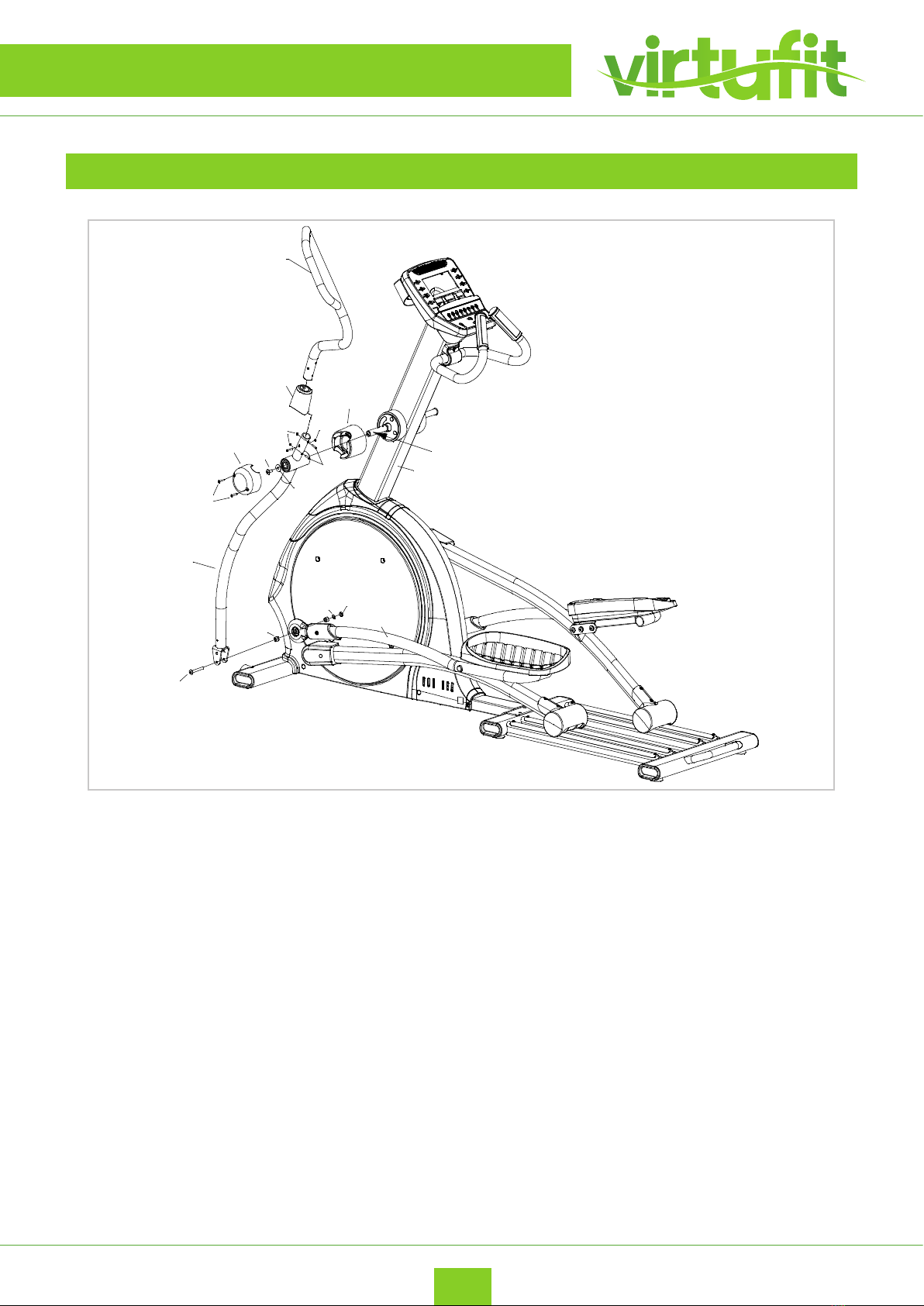

• Assemble left down handlebar (5). First apply the lubricating oil to the axis , then insert the decorative
cover (98) into the axis. Then attach the left down handlebar (5) to the axis of upright post (2) with
Allen C.K.S. Full thread screw (35), and at washer (49). NOTE: The convex side must go forward.
• Connect the left down handlebar (5) and left swing arm (11) with Allen C.K.S. Full thread screw (33),
powder metallurgy case (62), at washer (50) and Hex self-locking nut (58).
• Assemble the handlebar outer cover (97) with Philips C.K.S. self-locking screw (46).
• Insert the handlebar decorative cover (102) into left upper handlebar (14). Then attach left upper
handlebar (14) to left down handlebar (5) with Allen C.K.S. half thread screw (36) and Hex self-locking
nut (58).
• Assemble the right down handlebar in the same way.
STEP 6
Step 7:
1. Assemble left down handlebar (5). First apply the lubricating oil to the axis , then
insert the decorative cover (98) into the axis. Then attach the left down handlebar (5)
to the axis of upright post (2) with Allen C.K.S. Full thread screw (35), and flat
washer (49).
2. Connect the left down handlebar (5) and left swing arm (11) with Allen C.K.S. Full
thread screw (33), powder metallurgy case (62), flat washer (50) and Hex self-
locking nut (58)
3. Assemble the handlebar outer cover (97) with Philips C.K.S. self-locking screw (46).
4. Insert the handlebar decorative cover (102) into left upper handlebar (14). Then
attach left upper handlebar (14) to left down handlebar (5) with Allen C.K.S. half
thread screw (36) and Hex self-locking nut (58).
5. Assemble the right down handlebar in the same way.
14
102
97
98
46 49
36
58
58
35
33
5
62
58
50
11
2
Coated lubricate oil
ASSEMBLY INSTRUCTIONS

EN VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer
12
• Assemble left down handlebar cover A (90), B (91). Attach the down handlebar cover A, B to left
down handlebar (5) with Philips Pan head full thread screw (83).
• Assemble the right side in the same way.
STEP 7
Step 8:
1. Assemble left down handlebar cover A (90), B (91). Attach the down handlebar
cover A, B to left down handlebar (5) with Philips Pan head full thread screw (83).
2. Assemble the right side in the same way.
Step9:
1. Insert the power plug into the plug hole, assemble is finished.
83
91 83
90
5
ASSEMBLY INSTRUCTIONS

EN
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer 13

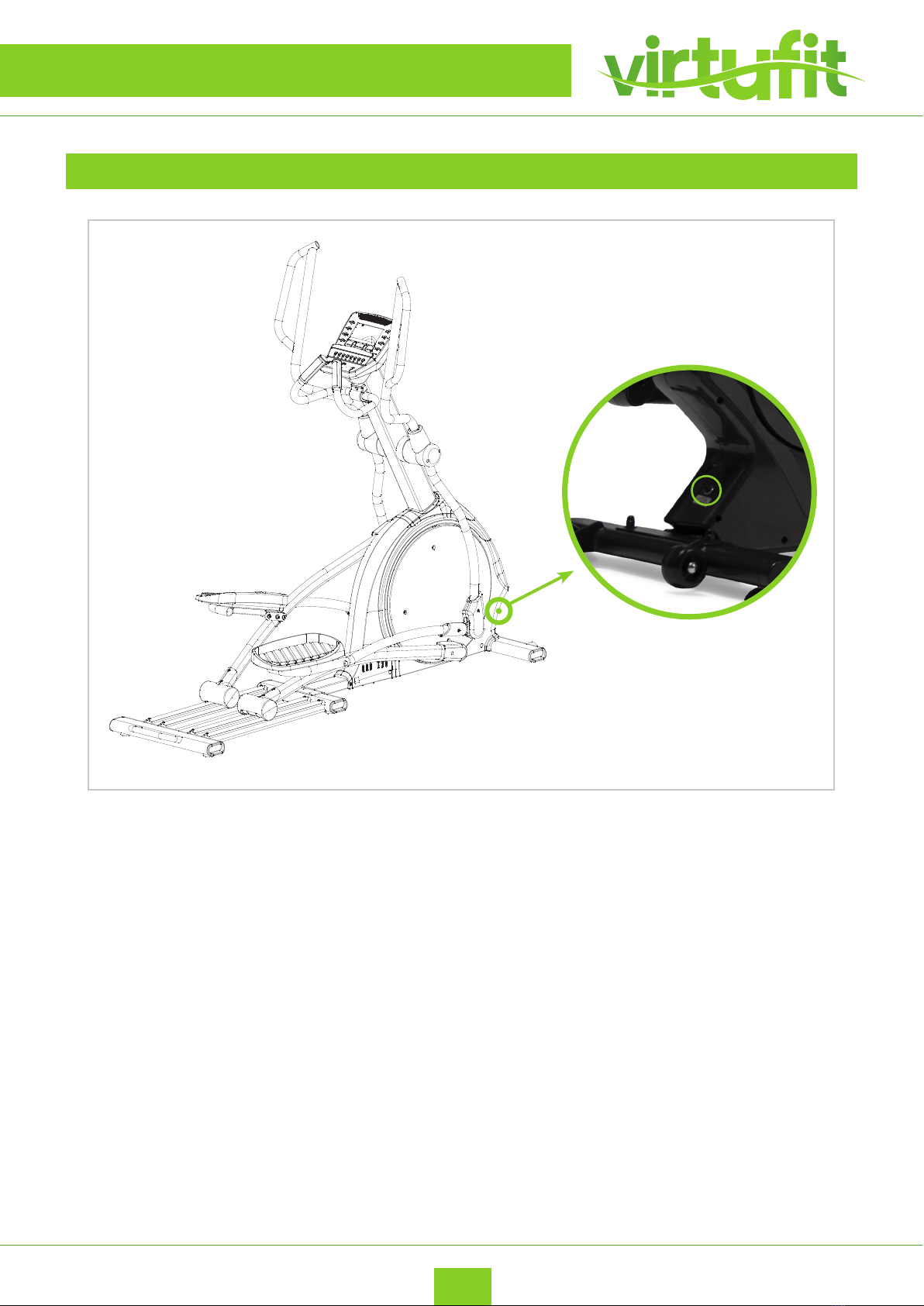

• The adapter connection is located on the back of the device (see illustration). Attach the adapter to
the adapter connection and connect to the power supply.
• You can now use the elliptical trainer.
ADAPTER CONNECTION
ASSEMBLY INSTRUCTIONS

EN VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer
14
MAINTENANCE
SEMI-ANNUAL MAINTENANCE
DAILY MAINTENANCE
• Clean and remove sweat after each use Do not use aggressive cleaning agents and ensure that
the device remains free of moisture.
• Check that the rail and the wheels under the seat are free from dust and dirt.
• Inspect all bolts and nuts in connection with moving parts of the device, tighten as required.
• Check the mobility of moving parts and components of the use equipment, silicone spray if
necessary.
Safeandeectiveusecanonlybeachievedifthedevicewillbeassembledandmaintained
well. It is your responsibility to ensure that the equipment is regularly maintained. Parts
that are already used and / or damaged must be replaced before continuing using. The
rower machine may only be used indoors and stored away, prolonged exposure to
weathering and changes in temperature / humidity can have a serious impact on the
electrical components and moving parts of the device.

EN
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer 15
TROUBLE SHOOTING
Display shows no values
If the display does not show any values, you can try to check the sensor cables and the cables in the back
of the display. If this still does not work, you can move the sensor slightly.
The device beeps
If necessary, lubricate parts with silicone spray. Check that all nuts and bolts are tightened. It may be that a
screw is too loose or too tight, this creates friction and makes the device appear to beep. If this is the case,
try to nd out exactly where the beep comes from and then tighten or loosen this screw. It must always be
possible to loosen the screws with your hands. If this is not possible, the screw is too tight.
No resistance
First check whether you can hear the motor running. You will hear the motor running briey when you
increase or decrease the resistance. If you hear the engine running, all electronics are in order, but the
V-belt is probably over. You can then open the housing and put the V-belt back on it. If you do not hear
the motor running, it is possible that the motor or the display is defective. First check whether the cable
running upwards in the pipe is still properly connected.
Ticking sound
It is possible that the ywheel (in the housing) comes against a cable with each
pedaling movement. This may be disturbing but will not permanently damage your crosstrainer.
To x this, open the housing and move the cable or x it with
for example a tie wrap.
Heart rate display is not functioning
There can be various reasons for this:
• The sensor cables that run from the heart rate sensor to the display are not properly installed or have
become detached during use.
• The sensors may become damp, dirty or greasy. So you have to clean them regularly.
The console is not working
If there is no signal when pedaling, check if the cable is properly attached.

EN VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer
16
CONSOLE
BUTTON FUNCTION
MODE/ENTER Conrm the setting of a training value.
UP/DOWN Increase or decrease the resistance level.
RESET
• Press the button for 2 seconds. The computer will restart at from the setting
of the user.
• Return to the main menu while setting one training value or during stop
mode.
START/STOP Start or stop the workout.
RECOVERY Test the heart rate.
BODYFAT Test body fat and BMI.
CONTROL PANEL

EN
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer 17
FUNCTIONS
FUNCTION DESCRIPTION
TIME Displays the training time. Range 0:00 ~ 99:59.
SPEED Displays the training speed. Range 0.0 ~ 99.9.
DISTANCE Displays the training distance. Range 0.0 ~ 99.9.
CALORIES The total calories from the beginning to the end of the workout are shown.
PULSE • Displays the pulse (BPM).
• Alarm sounds when the pulse is higher than the preset value.
RPM Rotation per minute. Range 0 ~ 999.
WATT Displays the wattage (energy consumption of the workout).
MANUAL Manual training mode.
PROGRAM BeginnerX4, AdvancedX4 and SportyX4, 12 programs for selection.
CARDIO Target HR training mode.
CONTROL PANEL

EN VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer
18

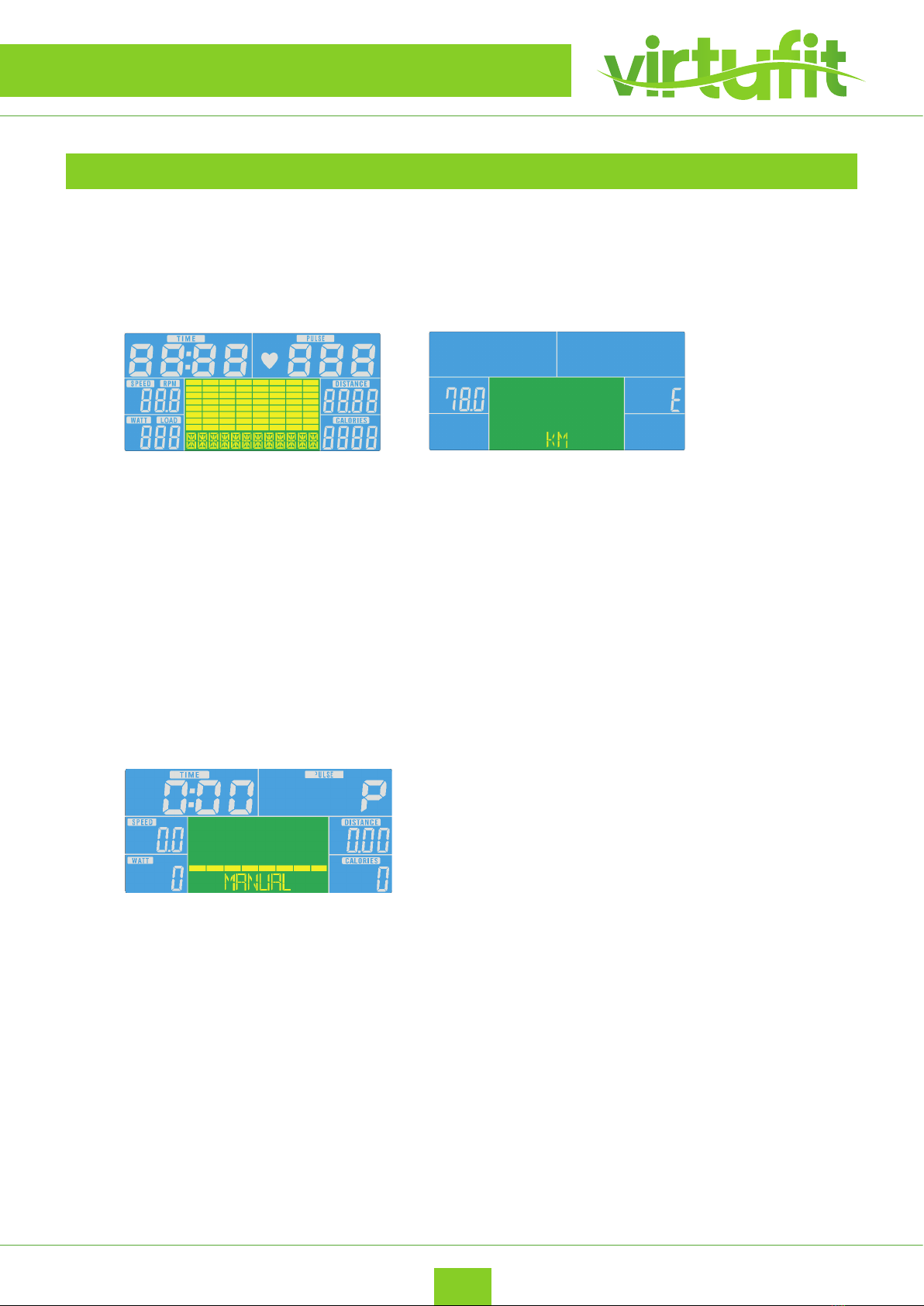

OPERATION
POWER ON
Plug in power supply, computer will power on and display all segments on LCD for 2 seconds. After 4
minutes without pedaling or pulse input, console will enter into power saving mode. Press any key may
wake the console up.
WORKOUT SELECTION
Press UP and Down to select workout Manual - Beginner - Advance - Sporty - Cardio - Watt.
MANUAL MODE
Press START in main menu may start workout in manual mode.
1. Press UP or DOWN to select workout program, choose Manual and press Mode to enter.
2. Press UP or DOWN to preset TIME, DISTANCE, CALORIES, PULSE and press MODE to confirm.
3. Press START/STOP keys to start workout. Press UP or DOWN to adjust load level.
4. Press START/STOP keys to pause workout. Press RESET to reverse to main menu.
1. Druk op UP of DOWN om het trainingsprogramma te selecteren, kies Manual en druk om Mode
CONTROL PANEL

EN
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer 19
BEGINNER MODE
1. Press UP or DOWN to select BEGINNER program, choose BEGINNER 1 ~ 4 and press Mode to enter.
2. Press UP or DOWN to preset TIME.
3. Press START/STOP key to start workout. Press UP or DOWN to adjust load level.
4. Press START/STOP key to pause workout. Press RESET to reverse to main menu.
ADVANCE MODE
1. Press UP or DOWN to select ADVANCE program, choose ADVANCE 1 ~ 4 and press Mode to enter.
2. Press UP or DOWN to preset TIME.
3. Press START/STOP key to start workout. Press UP or DOWN to adjust load level.
4. Press START/STOP key to pause workout. Press RESET to reverse to main menu.
SPORTY MODE
1. Press UP or DOWN to select SPORTY program, choose SPORTY 1 ~ 4 and press Mode to enter.
2. Press UP or DOWN to preset TIME.
3. Press START/STOP key to start workout. Press UP or DOWN to adjust load level.
4. Press START/STOP key to pause workout. Press RESET to reverse to main menu.
1. Druk op UP of DOWN om het BEGINNER-programma te selecteren, kies BEGINNER 1 ~ 4 en druk op
1. Druk op UP of DOWN om het ADVANCE-programma te selecteren, kies ADVANCE 1 ~ 4 en druk op
CONTROL PANEL
1. Druk op UP of DOWN om het SPORTY-programma te selecteren, kies SPORTY 1 ~ 4 en druk op

EN VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer
20
CARDIO MODUS
1. Press UP or DOWN to select workout program, choose CARDIO and press Mode to enter.
2. Press UP or DOWN to set user AGE.
3. Press UP or Down to select 55%.75%.90% or TAG (TARGET H.R.) (default: 100).
4. Press UP or DOWN to preset workout TIME.
5. Press START/STOP key to start or stop workout. Press RESET to reverse to main menu.
WATT MODUS
1. Press UP or DOWN to select workout program, choose WATT and press Mode to enter.
2. Press UP or DOWN to preset WATT target. (default: 120)
3. Press UP or DOWN to preset TIME.
4. Press START/STOP key to start workout. Press UP or DOWN to adjust Watt level.
5. Press START/STOP key to pause workout. Press RESET to reverse to main menu.
RECOVERY MODE
• After exercising for a period of time, keep holding on hand grips and press “RECOVERY” button. All
function display will stop except “TIME” starts counting down from 00:60 to 00:00.
• Screen will display your heart rate recovery status with the F1, F2….to F6. F1 is the best, F6 is the
worst. User may keep exercising to improve the heart rate recovery status. Press the RECOVERY
button again to return the main display.
1. Druk op UP of DOWN om het trainingsprogramma te selecteren, kies CARDIO en druk op
1. Druk op UP of DOWN om het trainingsprogramma te selecteren, kies WATT en druk op
CONTROL PANEL
