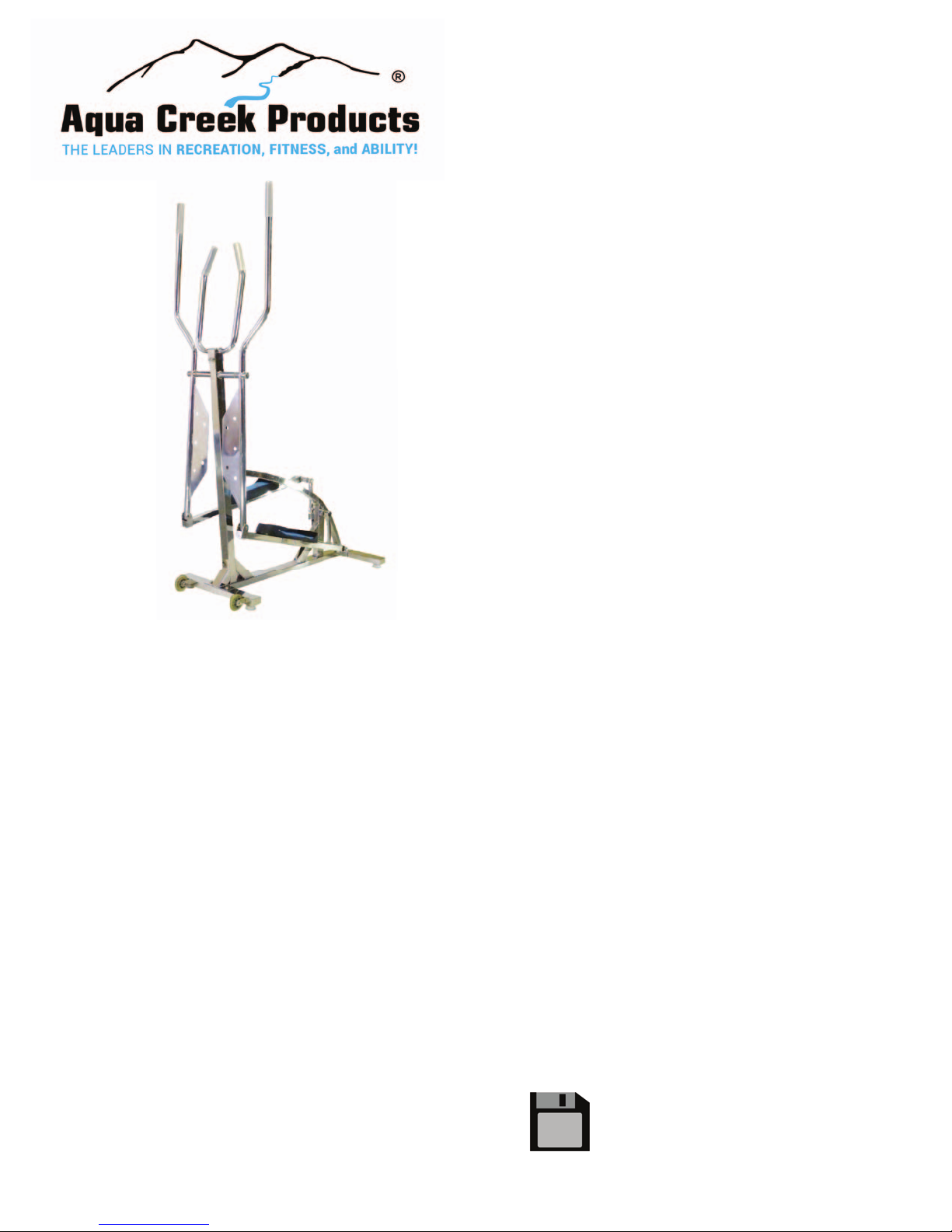

aqua greek products F-wxel User manual
Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 8/30/2016
PART #: F-WXEL
330 LB. [150 kg] MAXIMUM WEIGHT CAPACITY
MANDATORY – LEAVE THIS MANUAL
WITH ELLIPTICAL OWNER
Elly Elliptical
SAVE a copy of these instructions
9889 Garrymore Ln
Missoula, MT 59808
888-687-3552 | +1-406-549-0769
aquacreek.com
• To assemble your equipment read entire manual and follow all instructions.
• Consult your doctor before beginning any sports or exercise program. Patients with
hypertension use extreme caution and consult your doctor prior to using this equipment.
• It is important to stretch and warm up prior to using this equipment.
• Check contents of all packages against the parts diagrams and report any damaged and/or
missing parts immediately.
• This device is designed for individual, adult use only. Children using this device should be
supervised.
• This product is to be used in a pool environment where the pH level of the water is maintained
between 6.7ppm and 7.6ppm.
1
Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 8/30/2016
Elly Elliptical
PAGE DESCRIPTION
3 EXPLODED VIEW
4 PARTS LIST
4 TOOLS
5-6 ASSEMBLY
7 USING THE ELLIPTICAL
8 MAINTENANCE
9 WARRANTY
2
Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 8/30/2016

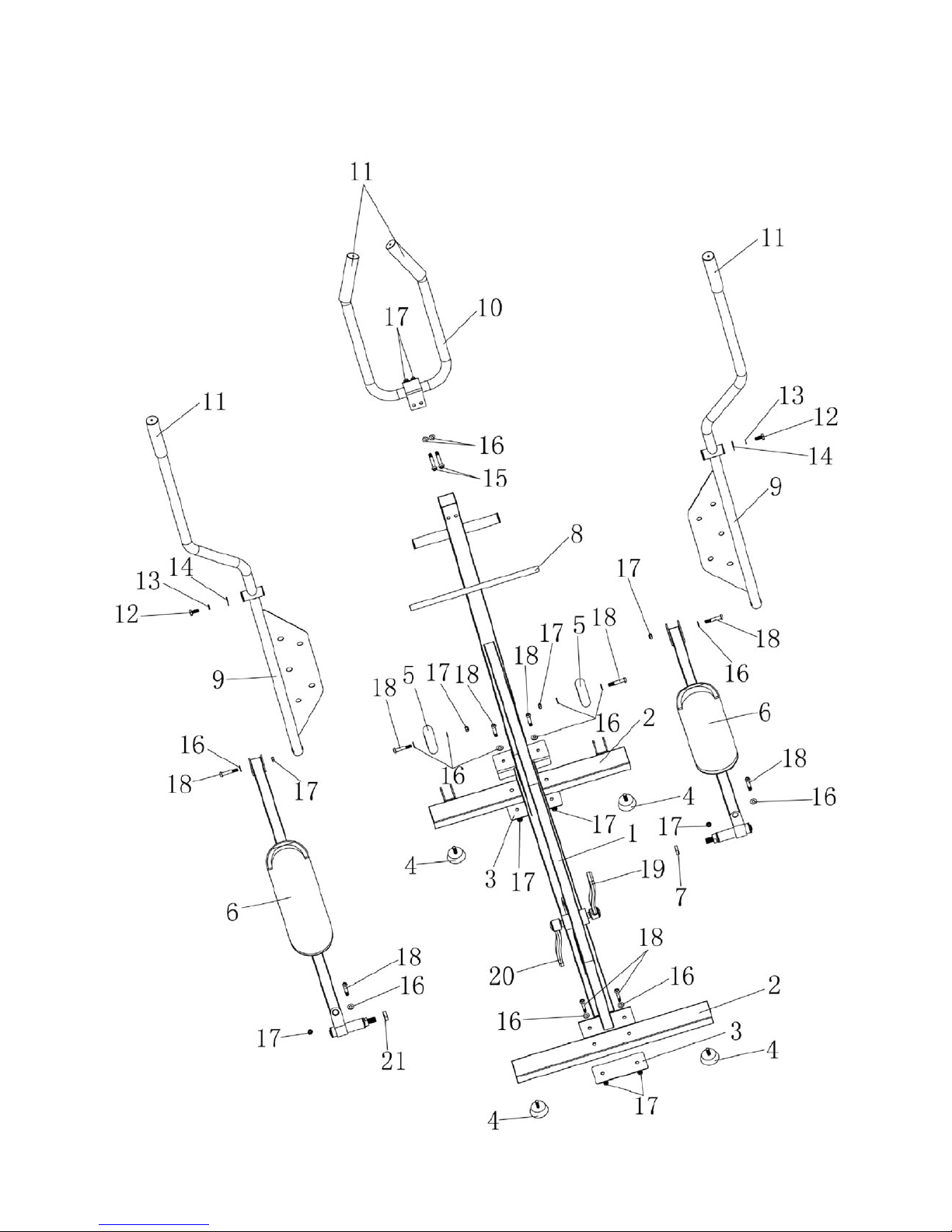

Exploded View
3
Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 8/30/2016

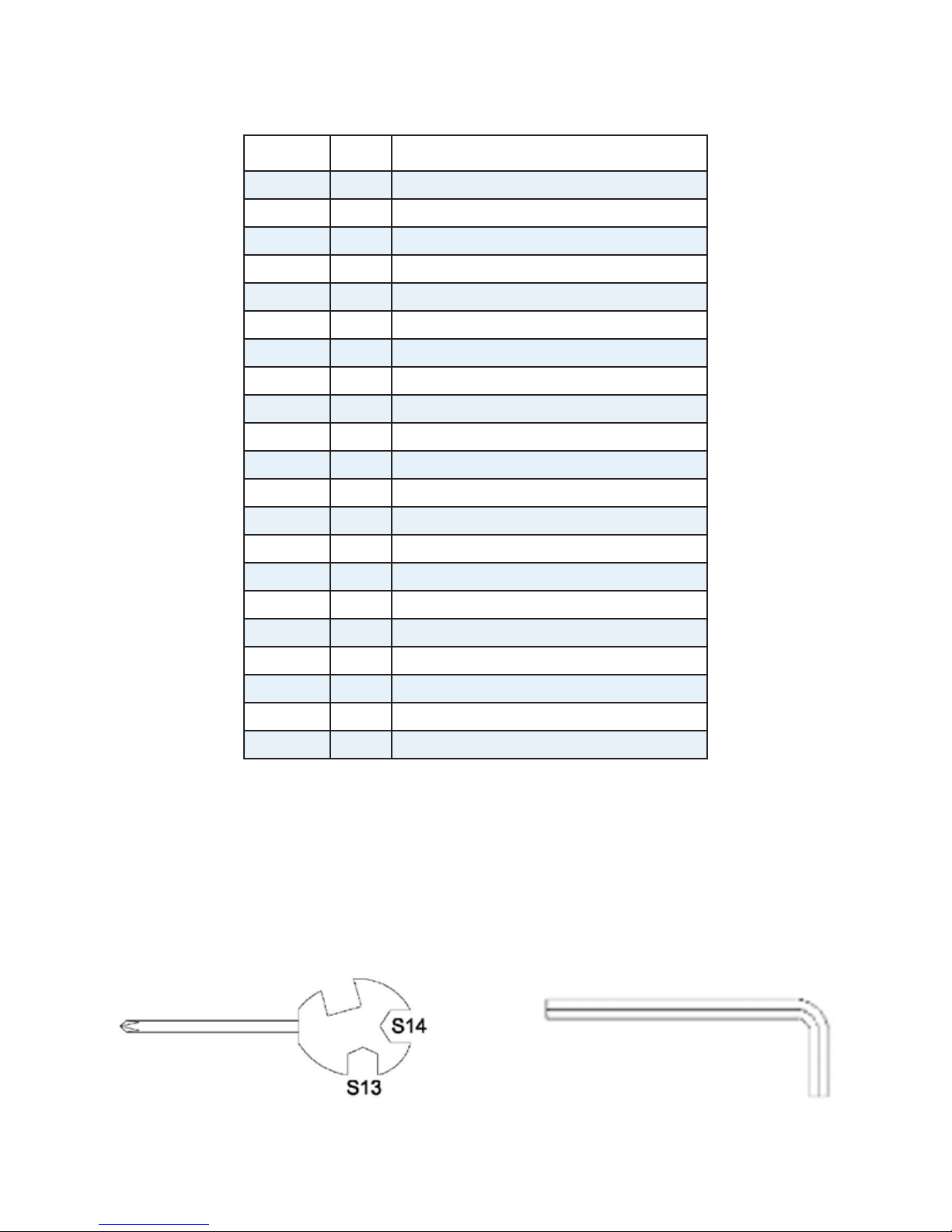

Parts List
Tools
• Note: The use of these tools is reserved for the assembly of the elliptical
• Warning: Keep tools out of reach of children
ITEM # QTY DESCRIPTION
11 MAIN FRAME
22FRONT/BACK FOOT TUBE
32 FOOT TUBE FLITCH
44 FOOT MAT
52 PU WHEEL
62 PEDAL WELDING
71LOCK NUT FOR PEDAL BEARING L
81 MOVE BEARING FOR SWING HANDLE
92 HIGH HANDLE BAR
10 1 SMALL HANDLE BAR
11 4 Ø27 TUBE COVER
12 2SCREW M8x20
13 1 WASHER M8
14 2 FLAT WASHER M8 Ø25*Ø8.5*2
15 2SCREW M8x60
16 14 FLAT WASHER M8 Ø17*Ø8.2*2
17 12 NYLOCK NUT M8
18 10 SCREW M8x45
19 1CRANK L
20 1CRANK R
21 1LOCK NUT FOR PEDAL BEARING R
4
Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 8/30/2016

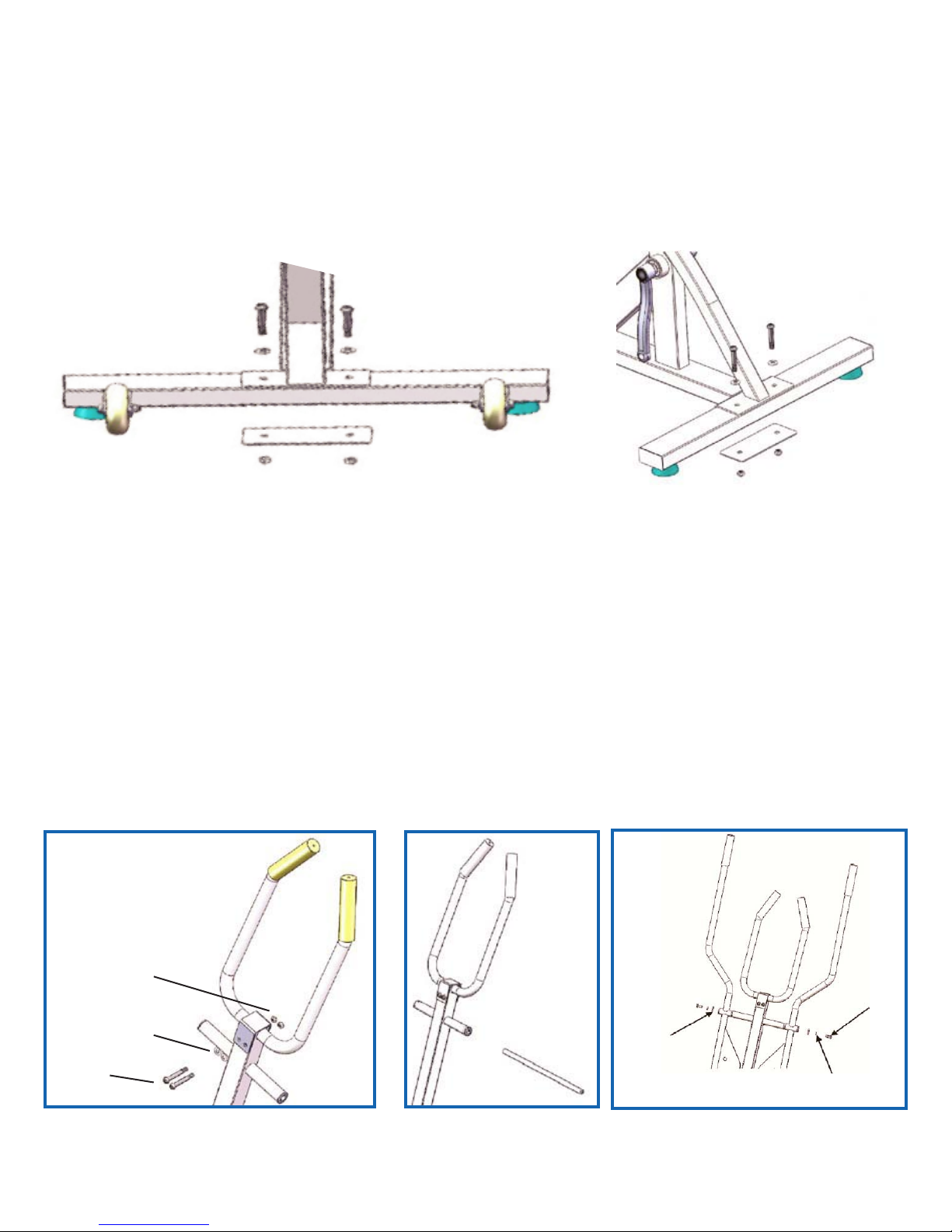

Front/Back Foot Tube Assembly
Connect the front foot tube to the foot tube itch using the two (2) M8*45 screws, M8
at washers and M8 nylock nuts.
Nylock nuts
Flat washers
Screws
Handlebar Assembly
1. Connect the small handle bar to the main frame using the two (2) M8*60 screws, M8
washers and M8 nylock nuts.
2. Move bearing for swing handle.
3. Connect the move bearing for swing handle with two (2) M8 screws, two (2) M8
washers and 2 at washers.
Flat
washer
Screw
Flat washer
STEP 3
STEP 1 STEP 2
5
Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 8/30/2016
Pedal to Handrail Assembly
Pedal Assembly
Loosen the nylock on the pedal bearing, lock the pedal welding on the crank, then
tighten it. Fix the pedal on the main frame.
Nylock
Crank
Attach pedals to handrail with M8*45 screws, washers and M8 nylock nuts.
Nylock
Flat washer
Screw
6
Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 8/30/2016
Using the Elliptical
Warm Up Phase:
Cool Down Phase:
The warm up phase is important because it helps your blood ow and will
reduce the risk of cramps and muscle injury. It is advisable to stretch during
this phase. Do not force your muscles. If you feel pain, stop exercising
immediately.
The cool down phase helps your cardiovascular system and muscles
relax. Repeat the movements performed during the warm up without
traumatizing your muscles. Be sure to reduce speed and resistance during
this phase. Once you have gained experience, increase the duration and
intensity of your regular workout.
Consult with a physician before starting any exercise regimen
7
Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 8/30/2016
Elliptical Maintenance
1. Remove the elliptical once a week and rinse it thoroughly with soft water,
not pool water.
2. Regularly check the pH of your swimming pool.
3. Remove the elliptical during manual dosages of chemical products or
chlorine stock treatments. Keep the elliptical away from chemicals to avoid
any splashing which can stain or cause deposits.
4. Deposits of powder, salt, and other corrosive products will speed up the
corrsion process.
5. When cleaning the surfaces of the swimming pool it is advised to remove
the elliptical from the pool in order to avoid any risk of stains or deposits.
6. When you are not using the elliptical, it must be rinsed thoroughly with
soft water, then dried and stored in a location away from chemical products.
7. If there are lime-scale deposits or stains, they can be removed with a
polishing cleaner for stainless steel and a non-abrasive soft cloth. Then wash
the elliptical with clean water and dry it completely.
EllyElliptical ismade ofmarinequality AISI 316L stainlesssteel. Itsanti-corrosion
treatment makes it suitable for chlorinated water, seawater and thermal waters.
It does not require any special care in pH-controlled water (6.7 / 7.6).
8
Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 8/30/2016
Revised: 8/26/2016
AQUA CREEK PRODUCTS, LLC LIMITED TWO (2) YEAR WARRANTY:
WATER RIDER AQUATIC EXERCISE EQUIPMENT
(ITEM #’s F-WXF, F-WX4S, F-WX5, F-WXEL, F-WXAQJG)
Aqua Creek Products, LLC (a.k.a. Aqua Creek) warrants to the original end user purchaser that products manufactured by Aqua Creek
when properly installed in accordance with assembly and installation instructions, and properly used and maintained, shall be free from
defects in material and workmanship for a period of two (2) years from the date of original purchase, provided that Aqua Creek receives
prompt notice in writing of any defect or failure and satisfactory proof thereof, with the following exception(s):
Exception(s):
• All non-frame components, i.e. plastic feet, etc… shall be warrantied for six (6) months from the date of original purchase.
IMPORTANT: User is not to exceed the rated weight capacity of this product. It is the responsibility of the product owner to verify the
weight of the patron for warranty claim purposes and to ensure that the product is not overloaded.
This warranty specically excludes reimbursement for labor to remove, repair, or install the product and any freight charges. These
warranties do not cover any damages due to accident, misuse, abuse, negligence or failure to properly maintain any products, or normal
wear and tear from day to day operations. In the event that any products are altered, repaired, or improperly installed or improperly used
by anyone without the prior written approval by Aqua Creek, all warranties are void. Non-payment for product to Aqua Creek may void
warranty.
To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing, with a full description
of the product, its serial number, the dates of purchase and installation, and the exact nature of the defect. Within thirty (30) days after
receipt of a written warranty claim by Aqua Creek, and barring any unforeseen delays, the place of purchase will be notied of Aqua
Creek’s decision regarding the claim.
If requested by Aqua Creek, any defective product must be returned, freight prepaid by customer, to Aqua Creek’s designated factory
location or duly appointed distributor for inspection and/or repair. Aqua Creek will, at its option, repair or replace the failed or defective
item, and deliver the repaired product or replacement to the customer. All freight charges are the responsibility of the customer.
Products returned to Aqua Creek for which Aqua Creek provides replacement under this limited warranty shall become the property of
Aqua Creek. A new warranty period shall NOT be established for the repaired or replaced products. Such products shall remain under
warranty only for the remainder of the original warranty period on the original products purchased.
This written limited warranty constitutes the nal, complete and exclusive statement of warranty terms. No person or organization is
authorized to make any other specic or implied warranties or representations on behalf of Aqua Creek.
THE WARRANTIES SET FORTH HEREIN ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, WHICH ARE HEREBY DISCLAIMED
AND EXCLUDED, INCLUDING WITHOUT LIMITATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR
USE.
THE SOLE AND EXCLUSIVE REMEDIES FOR BREACH OF ANY AND ALL WARRANTIES WITH RESPECT TO THE PRODUCTS SHALL BE LIMITED
TO REPAIR OR REPLACEMENT AT AQUA CREEK’S DESIGNATED FACTORY LOCATION, OR DULY APPOINTED DISTRIBUTOR, OR IN PLACE
AT AQUA CREEK’S OPTION. IN NO EVENT SHALL AQUA CREEK’S LIABILITY EXCEED THE ENTIRE AMOUNT PAID TO AQUA CREEK BY THE
ORIGINAL PURCHASER FOR THE FAILED OR DEFECTIVE PRODUCT.
IN NO EVENT SHALL AQUA CREEK PRODUCTS, LLC BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT, PUNITIVE OR
EXEMPLARY DAMAGES OR LOST PROFITS FROM ANY BREACH OF THIS LIMITED WARRANTY OR OTHERWISE.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY FROM STATE TO STATE.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, SO SOME OF
THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
Aqua Creek Products, LLC
9889 Garrymore Lane
Missoula, MT 59808
Toll Free: (888) 687-3552
Local/Intnl: (406) 549-0769
www.aquacreek.com
9
