Advantage Backyard Buddy User manual

Designed and Engineered in Warren, Ohio USA
33 Amy Way
Hanover, PA 17331
Phone: [phone]
[e-mail]
www.AdvantageLifts.com
Backyard Buddy
Installation and Operations Manual
IMPORTANT SAFETY INSTRUCTIONS. Please read the entire contents of this
manual prior to installation, operation, servicing or maintaining the lift. Reference
ANSI/ALI ALIS “Safety Requirements for Installation and Service of Automotive
Lifts” & ALI “Lifting it Right”. By proceeding you agree that you fully understand
and comprehend the full contents of this manual and other included materials
that came with your lift. Make this manual available to all operators. Failure to
operate this equipment as directed may cause injury or death. SAVE THESE
INSTRUCTIONS.

BYB User Manual Page i PN: 90020 Version: 1.4
When using your garage equipment, basic safety precautions should always be followed, including the
following:
1. Read all instructions.
2. Care must be taken as burns can occur from touching hot parts.
3. Do not operate equipment with a damaged cord or if the equipment has been dropped or damaged -
until it has been examined by a qualified service person.
4. Do not let a cord hang over the edge of the table, bench, or counter or come in contact with hot
manifolds or moving fan blades.
5. If an extension cord is necessary, a cord with a current rating equal to or more than that of the
equipment should be used. Cords rated for less current than the equipment may overheat. Care
should be taken to arrange the cord so that it will not be tripped over or pulled.
6. Always unplug equipment from electrical outlet when not in use. Never use the cord to pull the plug
from the outlet. Grasp plug and pull to disconnect.
7. Let equipment cool completely before putting away. Loop cord loosely around equipment when
storing.
8. To reduce the risk of fire, do not operate equipment in the vicinity of open containers of flammable
liquids (gasoline).
9. Adequate ventilation should be provided when working on operating internal combustion engines.
10. Keep hair, loose clothing, fingers, and all parts of body away from moving parts.
11. To reduce the risk of electric shock, do not use on wet surfaces or expose to rain.
12. Use only as described in this manual. Use only manufacturer's recommended attachments.
13. ALWAYS WEAR SAFETY GLASSES. Everyday eyeglasses only have impact resistant lenses, they
are not safety glasses.
14. To reduce the risk of injury, close supervision is necessary when this product will be used around
children. (Pertains to cabinets only.)
15. To reduce the risk of injury, never overload the drawers or shelves. Refer to loading instructions.
16. To reduce the risk of electric shock or fire, never overload receptacles. Refer to markings for the
proper load on receptacles.
SAVE THESE INSTRUCTIONS.
Make sure the owner and each user of this lift receives the lift specific operation, inspection, and
maintenance instructions along with any other provided or recommended safety materials.
Safety Placard Installation
This lift contains a safety placard which must be mounted to one of the mounting bolts on the power
unit. This placard must be positioned in a conspicuous location, easily visible to the lift operator.

BYB User Manual Page ii PN: 90020 Version: 1.4
Table of Contents
Warranty.............................................................................................................................................................1
Lift Information....................................................................................................................................................1
Safety ................................................................................................................................................................. 2
Owner’s Responsibilities ....................................................................................................................................4
Hazard Level Definitions ....................................................................................................................................4
Shipping Information .......................................................................................................................................... 5
Receiving your lift: ..........................................................................................................................................5
Tools for Assembly ......................................................................................................................................... 6
STEP 1: Selecting a Site....................................................................................................................................6
Overhead Obstructions:..................................................................................................................................6
Electrical Requirements:.................................................................................................................................6
Floor Requirements: .......................................................................................................................................7
Notes:..............................................................................................................................................................7
Power Unit Locations/Assembly View:........................................................................................................... 7
Site Planning...................................................................................................................................................8
Minimum Clearance .................................................................................................................................... 8
Calculate Ceiling Height..............................................................................................................................8
Specifications.................................................................................................................................................. 9
Elevation Drawings:...................................................................................................................................... 10
Classic (CL)............................................................................................................................................... 10
XT, WF, WB, BB, BT................................................................................................................................. 10
Overall Dimensions: .....................................................................................................................................11
Classic (CL) B-4P7CL............................................................................................................................... 11
Classic Extra Tall (XT) B-4P7XT .............................................................................................................. 12
Workforce (WF) B-4P8WF ........................................................................................................................ 13
Wide Buddy & Big Buddy (WB/BB) B-4P8WB and B-4P8BB .................................................................. 14
Boat/Trailer (BT) B-4P8BT........................................................................................................................ 15
STEP 2: Unloading and Unpacking: ................................................................................................................16
STEP 3: Legs, Crossmember & Guide Block Installation................................................................................. 19
Components in the lift................................................................................................................................... 20
Hardware Bag Contents ...............................................................................................................................21
Crossmember Preparation and Installation.................................................................................................. 21
Front and Back Locations.............................................................................................................................23
STEP 4: Runway Installation............................................................................................................................24
Automatic Wheel Stops ................................................................................................................................ 24
STEP 5: Lock Linkage Installation ................................................................................................................... 25
Square Rods................................................................................................................................................. 25

BYB User Manual Page iii PN: 90020 Version: 1.4
Lock Linkage Rod Installation ...................................................................................................................... 26
Primary lock adjustment ...............................................................................................................................27
Tips and Troubleshooting Lock Linkages..................................................................................................... 27
STEP 6: Installing Top Caps & Power Unit Mount........................................................................................... 28
STEP 7: Hydraulic Hose & Drain Kit ................................................................................................................ 28
Drain Kit ........................................................................................................................................................29
STEP 8: Installing Cables ................................................................................................................................30
STEP 9: Cable Keepers and Pulley Guard...................................................................................................... 32
STEP 10: Pre-Operation and Maintenance Checks ........................................................................................ 33
Maintenance Information.............................................................................................................................. 33
Replacement Parts ....................................................................................................................................... 33
Daily Checks.................................................................................................................................................34
Monthly Checks ............................................................................................................................................34
Yearly Checks............................................................................................................................................... 34
STEP 11: First Start Up (At Installation) .......................................................................................................... 35
Before Loading .............................................................................................................................................36
STEP 12: Operation ........................................................................................................................................ 36
Cable Inspection Guide ................................................................................................................................37
Anchoring Instructions .................................................................................................................................. 38
Troubleshooting Guide .................................................................................................................................40
Accessories ..................................................................................................................................................41
Rolling Jack Platform (ALI Certified)......................................................................................................... 41
Casters...................................................................................................................................................... 41
Ramps .......................................................................................................................................................42
Drip Pans ..................................................................................................................................................42
Solid Decks (ALI Certified)........................................................................................................................ 42
Rolling Jack Air Over Hydraulic ................................................................................................................ 43
Available Accessories ............................................................................................................................... 44
Replacement parts ........................................................................................................................................... 44
Maintenance Log:.............................................................................................................................................44
Parts List...........................................................................................................................................................47
Main Lift Overview ........................................................................................................................................ 47
Legs, Top Caps, Power Unit.........................................................................................................................48
Crossmembers ............................................................................................................................................. 50
Runways .......................................................................................................................................................52
Not all Lifts in this user manual are ALI certified. Please visit
AdvantageLifts.com for current listing of ALI Certified lifts.

BYB User Manual Page 1 of 55 PN: 90020 Version: 1.4
Warranty
Residential Use
Commercial Use
Structure (Ex. Runways Columns, Crossmembers)
5 Years
5 Years
Cylinder (Ex Cylinder & Seal Kits)
5 Years
2 Years
Power Unit (Ex. Motor, Capacitors & Switches)
5 Years
2 Years
Operational Components (Ex. Pulleys & Cables)
5 Years
2 Years
Free Shipping on Warranty Parts
1 Year
1 Years
Rolling Jacks (RJP & RJA) have a 2-year residential warranty, and a 1-year commercial warranty
Advantage Lifts warranty only applies to the original purchaser of the lift.
Advantage Lifts shall repair or replace at their option any defective part, as soon as the part
becomes available, during the warranty period. Part(s) in question may be required to be returned to
the factory freight prepaid for inspection prior to being considered defective.
This warranty does not extend to defects caused by outside use, ordinary wear, abuse, misuse,
overloading, improper installation, shipping damage, improper concrete floor, and lack of required
maintenance, or an Act of God.
This warranty also does not cover parts needed for normal maintenance, wear parts, which include
but are not limited to, cables, hoses, and slider blocks. On-site labor is not covered by this warranty.
No part will be replaced for cosmetic blemishes unless it affects the safety or functionality of the lift.
Advantage Lifts reserves the right to make product design changes or other improvements without
obligation to update previously sold equipment.
Advantage Lifts shall not be liable for loss of use, inconvenience, lost time, commercial loss or other
incidental or consequential damages. This warranty is governed by the laws of the State of
Pennsylvania.
Lift Information

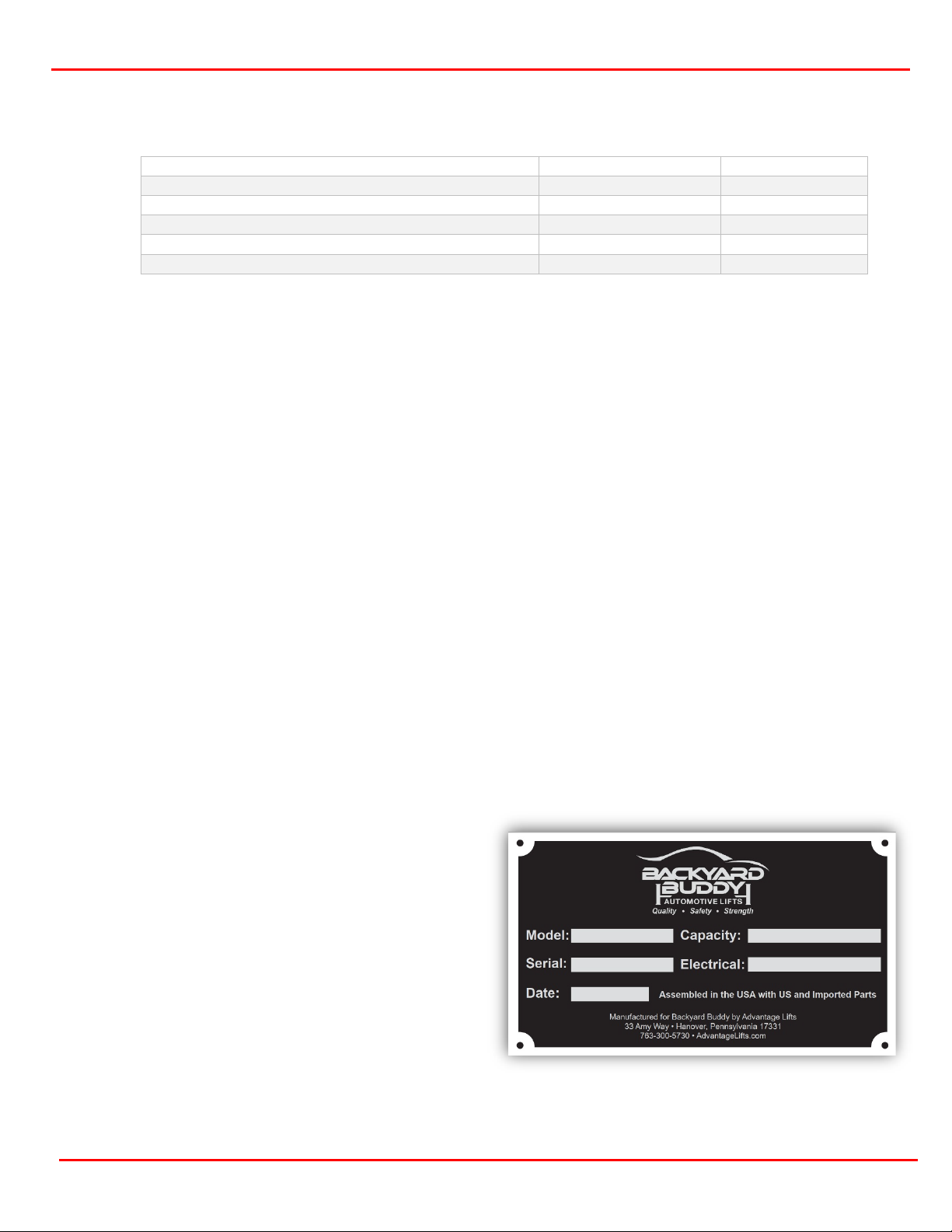

Record the information from the name plate
for your lift. This is required for warranty issues.
Model: _________________________
Serial: __________________________
Date Installed: ___________________

BYB User Manual Page 2 of 55 PN: 90020 Version: 1.4
Safety
Read these safety instructions entirely, Check advantagelifts.com for manual updates. Advantage
recommends reviewing the current version of the ANSI/ALI ALIS “Safety Requirements for
Installation and Service”to provide additional safety information for installing and using your lift.
Additionally, the ALI “Lifting it Right” and “Safety Tips” documents are recommended reading for
every lift operator (autolift.org). For installation reference ANSI/ALI ALOM, “Safety Requirements for
Operation, Inspection and Maintenance”.
Always keep the Installation & Owner’s Manual, ALI Lifting it Right safety manual, and any other
safety instruction accessible. Post these safety tips where they will be a constant reminder to an
authorized lift operator.
The Owner/Employer shall ensure that lift operators are qualified and that they are trained in the
safe use and operation of the lift using the manufacturer's operating instruction; ALI/SM, ALI Lifting it
Right safety manual; ALI/ST ALI Safety Tips card; ANSI/ALI ALOIM (current edition), American
National Standard for Automotive Lifts-Safety Requirements for Operation, Inspection and
Maintenance; ALI/WL Series, ALI Uniform Warning Label Decals/Placards. (autolift.org)
The Owner/Employer shall establish procedures to periodically inspect the lift in accordance with
the lift manufacturer's instructions or ANSI/ALI ALOIM (current edition), American National Standard
for Automotive Lifts-Safety Requirements for Operation, Inspection and Maintenance; and the
employer shall ensure that lift inspectors are qualified and that they are adequately trained in the
inspection of the lift. (pg. 33)
The Owner/Employer shall establish procedures to periodically maintain the lift in accordance with
the lift manufacturer's instructions or ANSI/ALI ALOIM (current edition), American National Standard
for Automotive Lifts-Safety Requirements for Operation, Inspection and Maintenance; and the
employer shall ensure that lift maintenance personnel are qualified and that they are adequately
trained in the maintenance of the lift. (pg. 33)
The Owner/Employer shall maintain the periodic inspection and maintenance records
recommended the manufacturer or ANI/ALI ALOIM (current edition), American National Standard for
Automotive Lifts-Safety Requirements for Operation, Inspection and Maintenance. (pg. 44)
The Owner/Employer shall display the lift manufacturer's operating instructions; ALI/SM, ALI Lifting
it Right safety manual; ALI/ST, ALI Safety Tips cards; ANSI/ALI ALOIM (current edition), American
National Standard for Automotive Lifts-Safety Requirements for Operation, Inspection and
Maintenance; and in the case of frame engaging lifts, ALI/LP- Guide, Vehicle Lifting Points/Quick
Reference Guide for Frame Engaging Lifts; in a conspicuous location in the lift area convenient to
the operator. (autolift.org)
The Owner/Employer shall provide necessary lockout/tagout means for energy sources per ANSI
Z244.1, Safety Requirements for the Lockout/Tagout of Energy Sources, before beginning any lift
repairs or maintenance.
The Owner/Employer shall ensure the lift is not modified in any manner without the prior written
consent of the manufacturer.

BYB User Manual Page 3 of 55 PN: 90020 Version: 1.4
The Owner/Employer shall ensure worn, damaged, or broken parts are replaced with parts
approved by the original equipment manufacturer or with parts meeting original manufacturer
specifications.
MAINTAIN your lift. Keep the lift clean for better and safe performance. Follow manual for proper
lubrication and maintenance instructions. Keep control handles and/or buttons dry, clean and free
from grease and oil. Always follow proper lockout/tagout procedures per ANSI Z244.1.
NEVER overload your lift. The manufacturer’s rated capacity is shown on the nameplate affixed to
the lift.
NEVER use the lift to raise one end or one side of vehicle.
NEVER raise vehicle with anyone inside it. No one should be in the lift area during operation.
NEVER operate the lift if it malfunctions or if there are broken, damaged or missing parts. Repairs
must be made with the manufacturer’s replacement parts and by authorized personnel only.
NEVER modify or remove components from the lift. Only use manufacturer’s recommended
attachments and replacement parts.
NEVER block open or override the operating controls. They are designed to close when released.
NEVER allow untrained or unauthorized individuals to operate the lift. Never allow children to
operate the lift.
ALWAYS have the lift setting on the locks before going under the lift. Never allow anyone to go
under the lift when raising or lowering.
ALWAYS have a spotter assist in aligning the vehicle. The vehicle must be centered on the runways
in both directions to maintain a stable, even load.
ALWAYS keep accessible the Installation & Owner’s Manual, and any other safety information.
ALWAYS know the gross weight of the vehicle you are lifting.
ALWAYS follow OSHA and ALI guidelines including but not limited to wearing safety glasses.
ALWAYS provide adequate ventilation when working on internal combustion engines.
STAY ALERT. Before lowering the lift be sure tool trays, stands, etc. are removed from under the
vehicle, and that any rolling jacks are in the lowered position. Release locking devices before
attempting to lower lift. Care must be taken as burns can occur from touching hot parts.
Note to Installers: Verify that all factory installed fittings are tight.
KEEP HANDS AND FEET CLEAR. Remove hands and feet from any moving parts. Keep your feet
clear of the lift when lowering. Avoid pinch points.
GUARD AGAINST ELECTRIC SHOCK. This lift must be grounded while in use to protect the
operator from electric shock. On 240V power units never connect the green power cord to a live
terminal. This is for ground only.

BYB User Manual Page 4 of 55 PN: 90020 Version: 1.4
WARNING! RISK OF EXPLOSION. This equipment has internal arcing or sparking parts which
should not be exposed to flammable vapors. This machine should not be located in a recessed area
or below floor level.
IMPORTANT NOTICE. Do not attempt to install this lift if you have not been trained in basic
automotive lift installation procedures. Never attempt to lift components without proper lifting tools
such as forklift or cranes. Stay clear of any moving parts that can fall and cause injury. These
instructions must be followed to ensure proper installation and operation of your lift. Failure to
comply with these instructions can result in serious bodily harm and void product warranty. The
manufacturer will assume no liability for loss or damage of any kind, expressed or implied resulting
from improper installation or use of this product.
Owner’s Responsibilities
To maintain the lift and user safety, the responsibility of the owner is to read and follow these
instructions:
•Follow all installation and operation instructions.
•Make sure installation conforms to all applicable local, state, and federal codes, rules, and
regulations, such as state and federal OSHA regulations and electrical code.
•Carefully check the lift for correct initial function.
•Read and follow the safety instructions. Keep them readily available for machine operators.
•Make certain all operators are properly trained and know how to operate the lift and any
accessories safely and correctly.
•Allow operation only with all parts in place and operating safely.
•Carefully inspect on a regular basis and perform all maintenance as required.
•Service and maintain the lift only with authorized or approved replacement parts.
•Keep all instructions permanently with the lift and all decals on the unit clean and visible.
Hazard Level Definitions
Immediate hazard which will result in severe injury or death.
Hazards or unsafe practices which could result in severe
personal injury or death.
Hazards or unsafe practices which mayresult in minor personal
injury, product, or property damage.
WARNING
DANGER

BYB User Manual Page 5 of 55 PN: 90020 Version: 1.4
Shipping Information
Receiving your lift:
Great care was taken in the preparation and packaging of your lift. Before receiving your lift inspect it
for any visible damage to the packaging. Any visible damage must be noted on the bill of lading.
All freight claims must be communicated to Advantage Lifts.
Advantage Lifts recommends picking up your lift at a local freight terminal with a trailer at least 18
feet long. Prior to arrival, communicate with the freight carriers and arrange for them to load the lift
directly on your trailer. Your lift may also be delivered to a commercial location with forklift
access.
As you are unpacking your lift make sure you have all components before beginning installation.
Ensure all required tools are available to complete the installation. Do not discard the cardboard
packing material until you have completed installing the lift. Cardboard can be used to protect lift
components while installing.
For detailed instructions on receiving, unloading, and unpacking the lift see page 16.
Freight Damage:
NOTIFY THE CARRIER AT ONCE if any hidden loss or damage is discovered after receipt.
Request that the carrier perform an inspection at the first available opportunity. If the carrier will not
do so, prepare a signed statement to the effect that you have notified the carrier (on a specific date)
and that the carrier has failed to comply with your request.
1) ACCEPTING AN ITEM WITH FREIGHT DAMAGE
Choose this option if you only have minor cosmetic damage or a part that needs replaced to
make the unit complete. Make note of the damage on the freight bill prior to signing and
accepting delivery. You will be responsible for contacting Advantage Lifts to file the freight
damage claim with the carrier; the driver can provide a number for you to call his terminal to
begin the process. Take pictures and document any damage that is found for future
reference. Once you have filed the claim, Advantage Lifts can provide any replacement parts
or touch up paint needed should you choose this option, and the carrier should reimburse
you for the cost of these items. If you have any questions or need further assistance, please
call our customer service department [phone].
2) REFUSE THE DAMAGED ITEM.
Choose this option if the carrier has severely damaged the freight beyond your judgment of a
simple repair. Advantage Lifts will file all freight claims if refused due to severe damage.
Make a copy of the freight bill email it to [e-mail] with a brief
explanation of the damage. Take pictures and document any damage that is found. If this is
not possible, call Advantage Lifts at [phone] to notify us of the damage so that we can
arrange to have a replacement lift shipped.

BYB User Manual Page 6 of 55 PN: 90020 Version: 1.4
Tools for Assembly
USE PROPER LIFTING TECHNIQUES
The Backyard Buddy Lifts have components that weigh beyond 300 lbs. At least one
assistant is required to assist with lifting heavy components. Three assistants (4 total
people) and/or material handling equipment is preferred.
Improper installation can accelerate wear, resulting catastrophic failure which may cause
property damage and/or bodily injury. Advantage Lifts assumes no liability for loss or damage of any
kind, expressed or implied, resulting from improper installation or use of this product. Read this
installation manual in its entirety before attempting to install or operate the lift.
STEP 1: Selecting a Site
Before installing your new lift, check for the following.
Overhead Obstructions:
The area where the lift will be located should be free of overhead obstructions such as heaters,
building supports, electrical lines, lighting, garage door rails/openers etc. Calculate the lift height
based on the full raised height of the lift plus the vehicle height. Measure and check for clearance.
Failure to do so may cause personal injury or property damage.
Electrical Requirements:
0This lift uses an electrically driven hydraulic Power Unit. Follow the manufacturer’s instructions
supplied in the Power Unit box. Wiring must be performed by a qualified electrician and meet local,
state, and national requirements. Disconnect power from the lift before performing maintenance.
Follow proper lockout/tagout procedures while servicing. The Power Unit requires a dedicated 120
VAC 60Hz 20-amp single phase circuit. Improper installation may damage the Power Unit which is
not covered under the warranty. Never expose the Power Unit to any water or damp environment,
this will void the warranty.
WARNING
WARNING
•Gloves
•Box knife
•Strap cutters/side cutters
•Vice grips
•Paper towels
•Dead blow hammer
•Allen wrench set (SAE)
•Tape measure (25’)
•Open end wrench set, must include:
o7/16”, 1/2", 9/16”, 3/4", 1 1/8”
•1/2” or 3/8” ratchet drive socket set:
o7/16”, 1/2", 9/16”, 3/4", 1 1/8”
•Flathead and Phillips screwdrivers
•Adjustable wrench
•Snap-ring pliers
•Cordless impact
•Step ladder
•Bottle of spray car wax
•1 Can of spray lube
•5 Gallons of AW-32 or AW-46
hydraulic oil
•Grease gun
•Wood blocks (Included)
•Bottle of spray car wax
•Optional - Car dollies
•Optional - Material handler
•Optional - Prybar/ratchet strap

BYB User Manual Page 7 of 55 PN: 90020 Version: 1.4
Floor Requirements:
Visually inspect the floor where the lift is to be installed and check for cracked or defective concrete.
This lift must be installed on a level concrete floor with no more than 3 degrees of slope and in good
condition. Consult a qualified person to address concrete conditions, seismic loads and local or state
requirements. This lift has been designed to be installed on a minimum of 4-inch thick, 3000 psi
concrete cured 28 days. Do not install this lift on asphalt, wood, or any other surface other than
described.
Notes:
DO NOT use this lift outdoors, doing so will void the warranty. The lift is not designed to be used in a
wet or damp environment or sit in standing water. Ensure drainage to keep water away from the lift.
DO NOT begin installation in a tight area; give yourself plenty of space to work safely. It is
recommended to leave at least 24 inches on each side of the lift and 24 inches behind the lift to
install the safety rod under the runway (figure 1.3 & 1.4). The minimum ceiling height required for
installation is 9-feet for XT, WF, WB/BB & BT lifts and 8-feet for CL lifts. Calculate clearance based
on your vehicle height plus the maximum lifting height.
It is NOT recommended to anchor this lift. If you must anchor the lift, follow the instructions on page
38. The owner is responsible for following any local or state seismic anchoring requirements. If the
concrete floor is a post-tensioned slab, contact the architect before drilling.
Power Unit Locations/Assembly View:
The Power Unit may be placed on one of two legs, either driver’s side front or passengers side rear
(figure 1.1). On the chosen leg, the Power Unit may be rotated to either the inside, next to the
runway or outside, next to the leg.
Figure 1.1 Lift Overview

BYB User Manual Page 8 of 55 PN: 90020 Version: 1.4
Site Planning
Minimum Clearance
Calculate Ceiling Height
Step 1: Measure the lower vehicle height.
Step 2: Round up to the next lock (see page 10).
Step 3: Measure the Upper vehicle height.
Minimum Ceiling Height = Clearance Lock Height + 4.5 + Upper Vehicle Height
Figure 1.2 Clearance Around the Lift
Figure 1.3 Lift Clearance (Height)

BYB User Manual Page 9 of 55 PN: 90020 Version: 1.4
Specifications
Specification
Imperial
Capacity
*Lifting Capacity CL, XT, BT
7,000 lbs.
*Lifting Capacity WB/BB, WF
8,000 lbs.
Max Capacity / Front Axel
50% of Lifting Capacity.
Max Capacity / Rear Axel
50% of Lifting Capacity.
Height
Leg Height CL
80.375 in.
Leg Height XT, WB/BB, WF, BT
102.375 in.
Top Lock Clearance CL
63 in.
Top Lock Clearance XT, WB/BB, WF, BT
82 in.
Width
Track Width CL, XT, WF, BT
19.25 in.
Track Width WB/BB
23.25 in.
Overall Width CL, XT
108.0 in
Overall Width WB/BB, WF
124.0 in
Overall Width BT
139.0 in.
Width Between Tracks CL, XT, WB/BB, WF
34.5 in.
Width Between Tracks BT
67.75 in.
Width Between Columns CL, XT
92.313 in.
Width Between Columns WB/BB, WF
108.313 in.
Width Between Columns BT
123.00 in.
Width Between Cables CL, XT
88.6 in.
Width Between Cables WB/BB, WF
104.6 in.
Width Between Cables BT
119.3 in.
Length
Track Length CL, XT
155.5 in.
Track Length WB/BB, WF, BT
195.75 in.
Overall Length CL, XT
168.0 in.
Overall Length WB/BB, WF, BT
208.0 in.
Locks
Locking Positions CL
10
Locking Positions XT, WB/BB, WF, BT
14
Lock Spacing CL
5.75 in.
Lock Spacing XT, WB/BB, WF, BT
5 in
General
Wheelbase
115 in.
Vehicle Ground Clearance
5.3 in.
**Standard Motor
120V 20-amp
Rise Time (120v) CL
124 up/ 106 down (seconds)
Rise Time (120v) XT
160 up/ 170 down (seconds)
Rise Time (120v) WB/BB, WF, BT
160 up/ 135 down (seconds)
s
Power Unit Operating Pressure (Max)
2150 PSI
**Optional 240v power unit is available
* Lifting capacity decreases by 25% for wheelbases shorter than 115 inches for each 15-inch increment.
With a minimum wheelbase of 70-inches having a lifting capacity of 75% less or 2,500 lbs. This is due to the
wheels moving closer to the center of the runway where there is less support.
This lift and ramps are designed around a 5.3-inch ground clearance. Longer, shallower ramps may be
needed for vehicles with less clearance.
Please refer to the user manual found in the Power Unit to review the duty cycle. Operating the Power Unit
outside the manufacturer’s specifications will void the Power Unit warranty.

BYB User Manual Page 10 of 55 PN: 90020 Version: 1.4
Elevation Drawings:
Classic (CL)
Note: Slot dimensions are the distance from
the ground to the bottom of the runway.
This is the vehicle clearance for each lock.
XT, WF, WB, BB, BT
Note: Slot dimensions are the distance from
the ground to the bottom of the runway.
This is the vehicle clearance for each lock.
Figure 1.4 Lift Elevation & Lock Holes
Figure 1.5 Lift Elevation & Lock Holes

BYB User Manual Page 11 of 55 PN: 90020 Version: 1.4
Overall Dimensions:
Classic (CL) B-4P7CL
Figure 1.6 Classic Lift Overview

BYB User Manual Page 12 of 55 PN: 90020 Version: 1.4
Classic Extra Tall (XT) B-4P7XT
Figure 1.7 Classic Extra Tall Lift Overview

BYB User Manual Page 13 of 55 PN: 90020 Version: 1.4
Workforce (WF) B-4P8WF
Figure 1.8 Workforce Lift Overview

BYB User Manual Page 14 of 55 PN: 90020 Version: 1.4

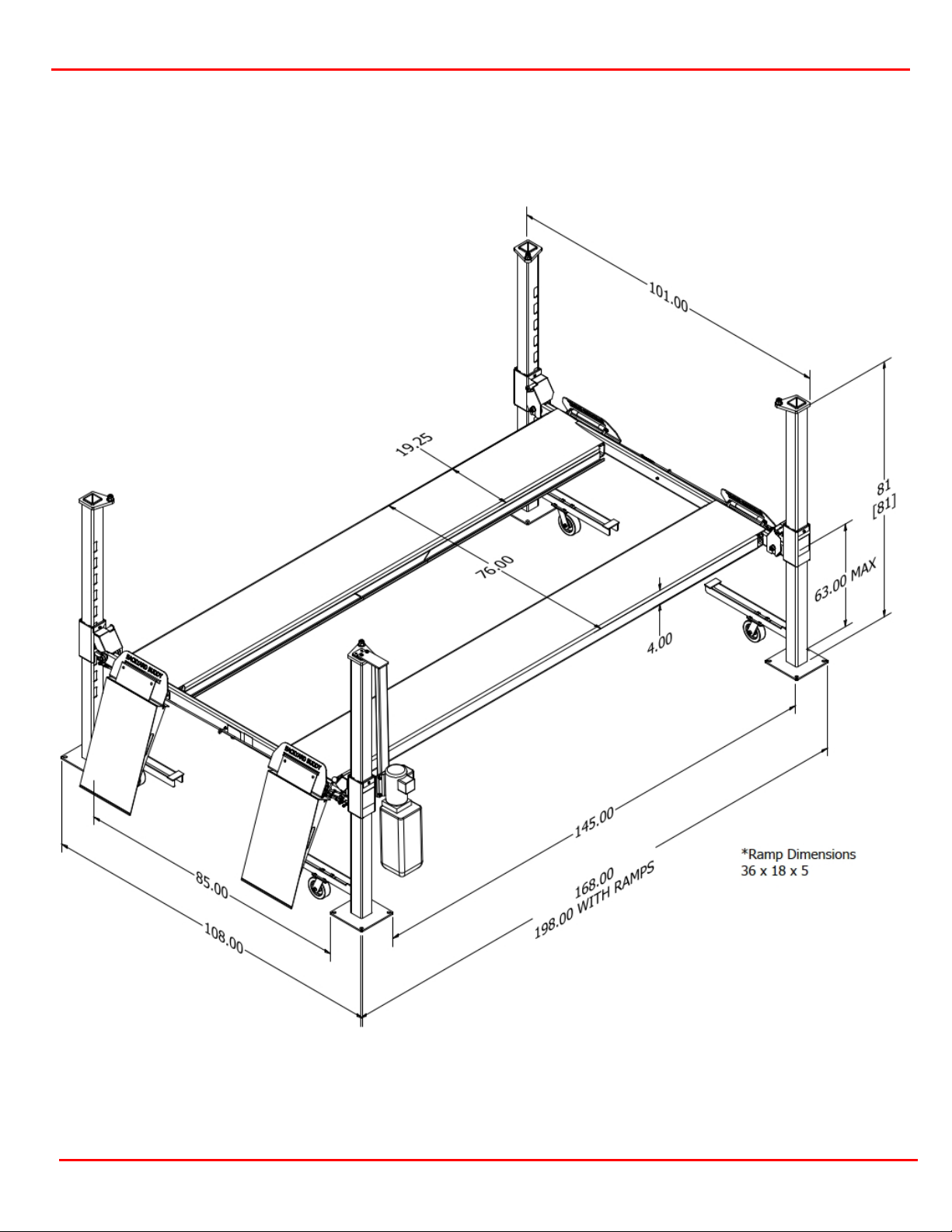

Wide Buddy & Big Buddy (WB/BB) B-4P8WB and B-4P8BB
Figure 1.9 Wide Buddy/ Big Buddy Lift

BYB User Manual Page 15 of 55 PN: 90020 Version: 1.4
Boat/Trailer (BT) B-4P8BT
Figure 1.10 Boat Trailer Lift Overview

BYB User Manual Page 16 of 55 PN: 90020 Version: 1.4
STEP 2: Unloading and Unpacking:
Freight carriers may have restrictions on delivering to residential addresses requiring freight terminal pick-
up. Please contact the freight carrier to coordinate delivery to a terminal where the terminal personnel will
load the lift onto the customer's trailer or truck. Lifts will not be shipped to an address without a fork-lift. Lifts
cannot be unloaded using a lift gate vehicle due to size restrictions.
Since many lift purchasers do not have access to a fork-lift, these instructions will highlight methods to
unload the lift from a trailer or truck using readily available components. It is the sole responsibility of the
owner to ensure that the methods employed and any equipment to be used are of the proper capacity and
type to ensure the safety of personnel performing the work.
The shipping brackets and protective packaging were engineered to provide safe shipping, unloading and
assembly. DO NOT REMOVE until the lift is at the installation site and when indicated in this document.
Exterior wrappings may be removed to inspect for shipping damage.
Links to assembly videos of our products can also be found at our website AdvantageLifts.com. The videos
can often provide additional details and updated information about any new features or assembly methods
that may have been adopted since this manual was printed.

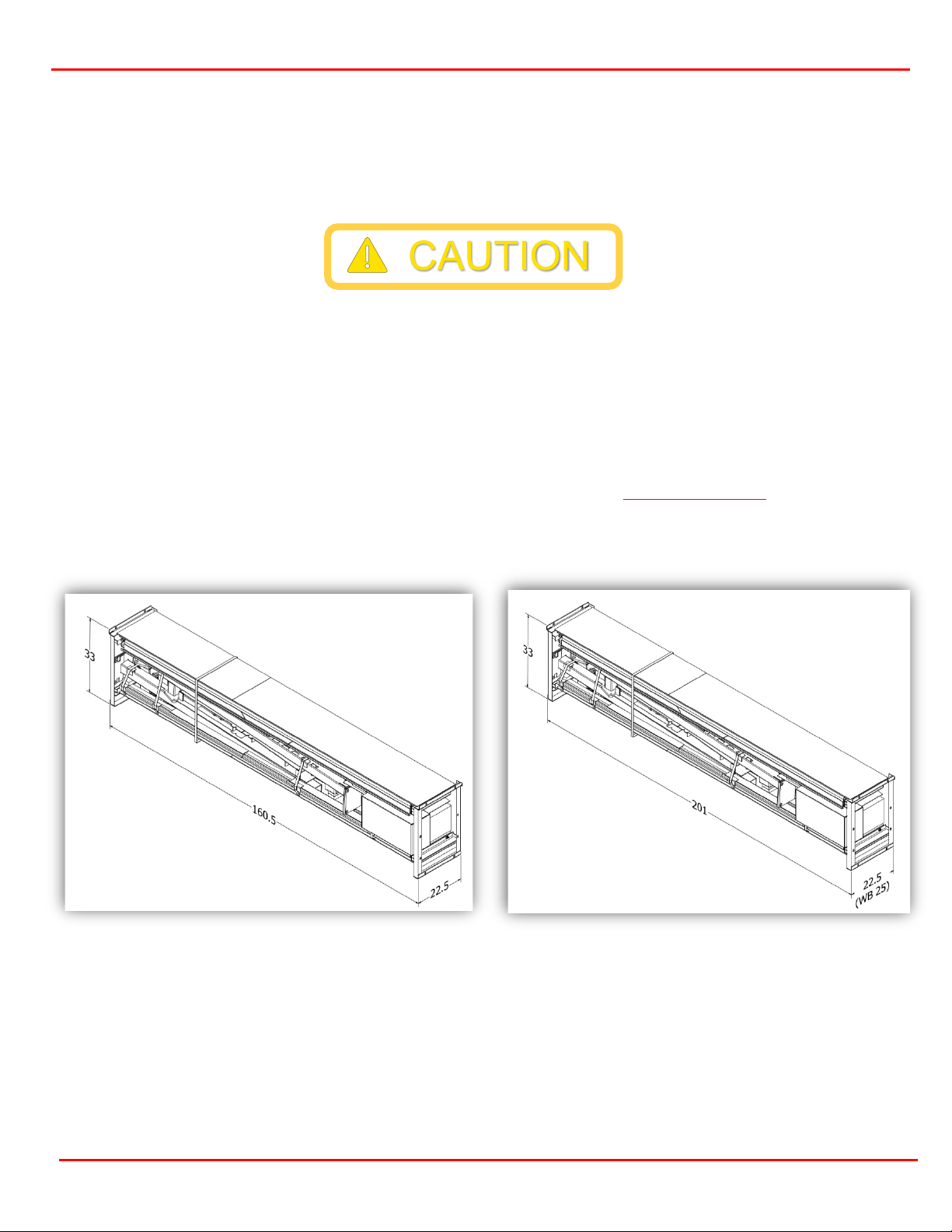

General Packaging dimensions and weights are shown in Figure 2.1 & Figure 2.2.
Figure 2.1: CL (1790 lbs.) & XT (1950 lbs.) Figure 2.2: WB/BB, WF, BT (2450 lbs.)
Maneuver the trailer so it is close to the installation site and position it so any lifting devices that will be used
to unload the packaged lift from the trailer are on a hard and smooth improved surface. For this installation,
a hand operated material handling lift was used. Confirm the material handler, strap and dollies are
sufficiently rated for the weight of each package.
