Braun NL955 Series User manual

Operator's Manual for:
DOT — Private Use Lift
DOT — Private Use Lift
Operator's Manual
W
ARNING
Read manual
before operating
lift. Failure to do
so may result in
serious bodily
injury and/or
property damage.
Keep manual in
lift storage pouch.
Oper
ual
Man
ator's
Operator's Manual
32244 Rev. B
January 2008
Braun NL955 Series
Braun NL955 Series
“DOT — Private Use Lift” verifies that this platform lift meets only
the “private use lift” requirements of FMVSS No. 403. This lift may
be installed on all vehicles appropriate for the size and weight of
the lift, except for buses, school buses, and multi-purpose
passenger vehicles other than motor homes with a gross vehicle
weight rating (GVWR) that exceeds 4,536 kg (10,000 lb).
Private Use Wheelchair Lifts
Patent #5,261,779
Patent #6,065,924
Patent #6,238,169
Patent #6,464,447
Patent #5,261,779
Patent #6,065,924
Patent #6,238,169
Patent #6,464,447
Patent #6,599,079
Patent #6,692,217
Patent #6,739,824
Patents Pending
Patent #6,599,079
Patent #6,692,217
Patent #6,739,824
Patents Pending
"Providing Access to the World"
International Corporate Hdqrs: P.O. Box 310 Winamac, IN 46996 USA
1-800-THE LIFT®[phone] FAX: [phone]
®
®

Congratulations
We at The Braun Corporation wish to express our fullest appreciation
on your new purchase. With you in mind, our skilled craftsmen have designed
and assembled the finest lift available.
This manual includes safety precautions, lift operating instructions, man-
ual operating instructions, and instructions for maintenance and lubrication
procedures.
Your lift is built for dependability, and will bring you years of pleasure
and independence, as long as maintenance is performed regularly and the lift
is operated by an instructed person.
Sincerely,
THE BRAUN CORPORATION
Ralph W. Braun
Chief Executive Officer

Page 1
Contents
Warranty and Registration Instructions ........... 2, 3
Lift Terminology
Lift Terminology Illustration ........................................ 4
Introduction ................................................................ 5
Direction .................................................................... 5
Lift Components .................................................... 6, 7
Vehicle and Lift Interlocks ......................................... 7
Lift Actions and Functions .......................................... 8
Lift Operation Safety
Safety Symbols ......................................................... 9
Lift Operation Safety Precautions ...................... 10-13
Operation Notes and Details
Introduction .............................................................. 14
General Safety .................................................. 14, 15

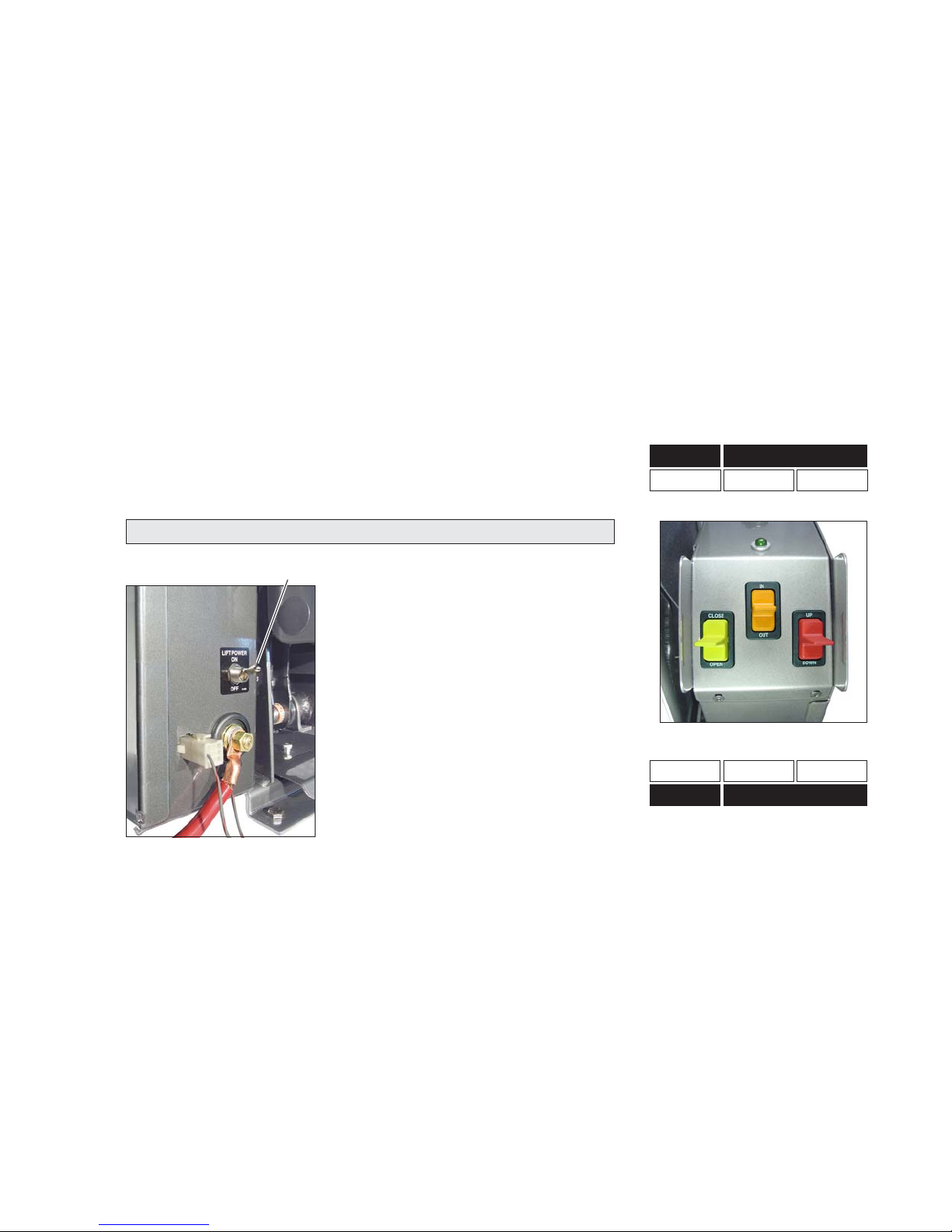

Control Switches ................................................ 15-17
Lift Features

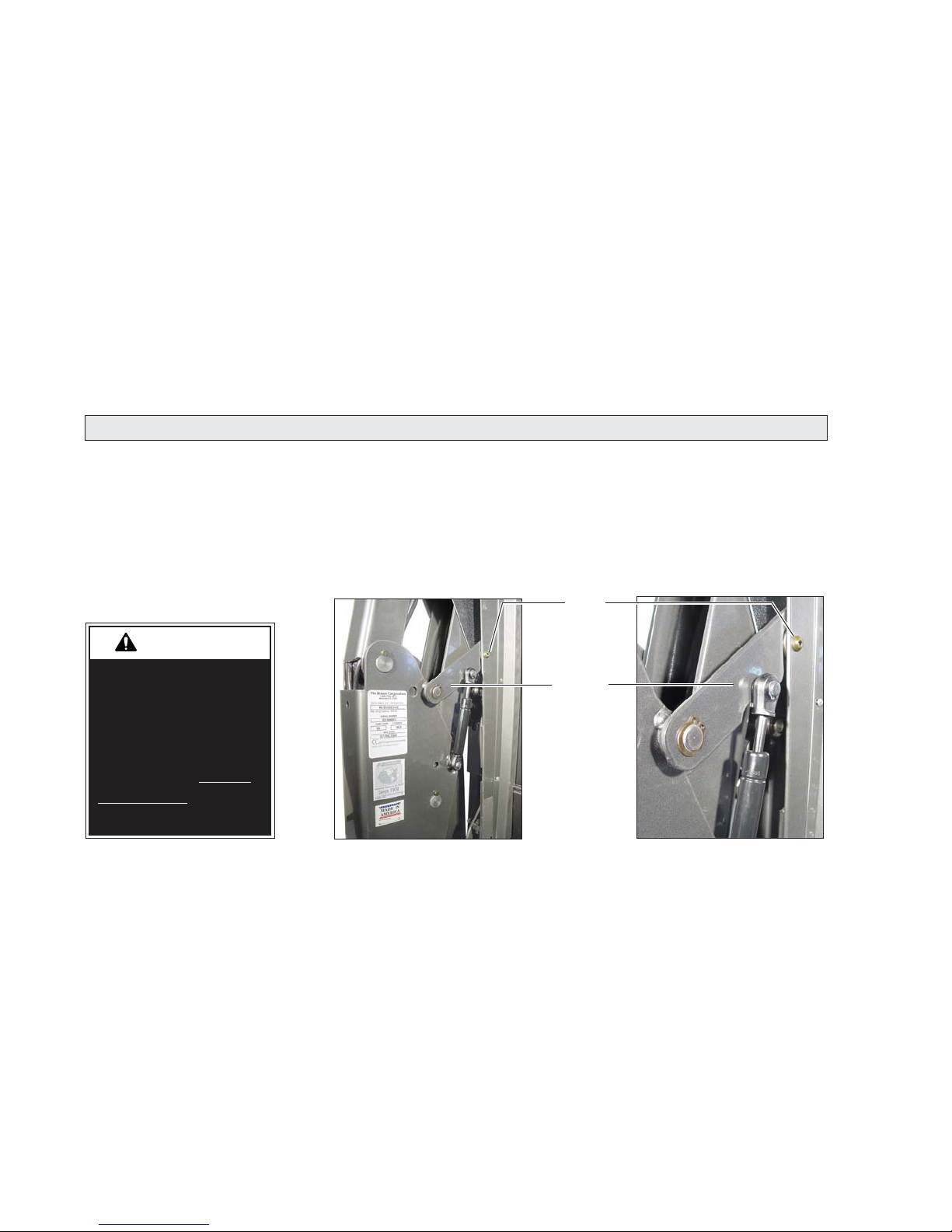

Lift-Tite™Latches........................................ 18, 19
Inboard Locator and Bridge Plate ............... 20, 21
Automatic Floor Level Switching ....................... 21
Outer Barrier and Side Entry ....................... 21-23
Outer Barrier Latch .......................................... 23
Outer Barrier and Latch Operation ................... 24
Lift Passengers
Passenger Orientation (Boarding Direction) ..... 25
Vehicle (Floor Level) Loading and
Unloading .......................................................... 25
Wheelchair-Equipped Occupant Seat Belts ........... 26
Operation Procedure Review ........................... 26, 27
Preventive Maintenance ................................... 27, 28
Lift Operating Instructions ............................. 29-35
NHTSA Operations Checklist .............................. 36
Manual Operating Instructions ....................... 37-39
Decals and Antiskid ........................................ 40-42
Maintenance and Lubrication ......................... 43-51

OWNER'S WARRANTY REGISTRATION
PURCHASED FROM
DATE INSTALLED
NAME
ADDRESS
CITY
TELEPHONE
TO VALIDATE WARRANTY
REGISTRATION CARDS MUST BE RETURNED TO THE BRAUN CORPORATION.
OWNER
STATE ZIP
Warranty and Registration Instructions

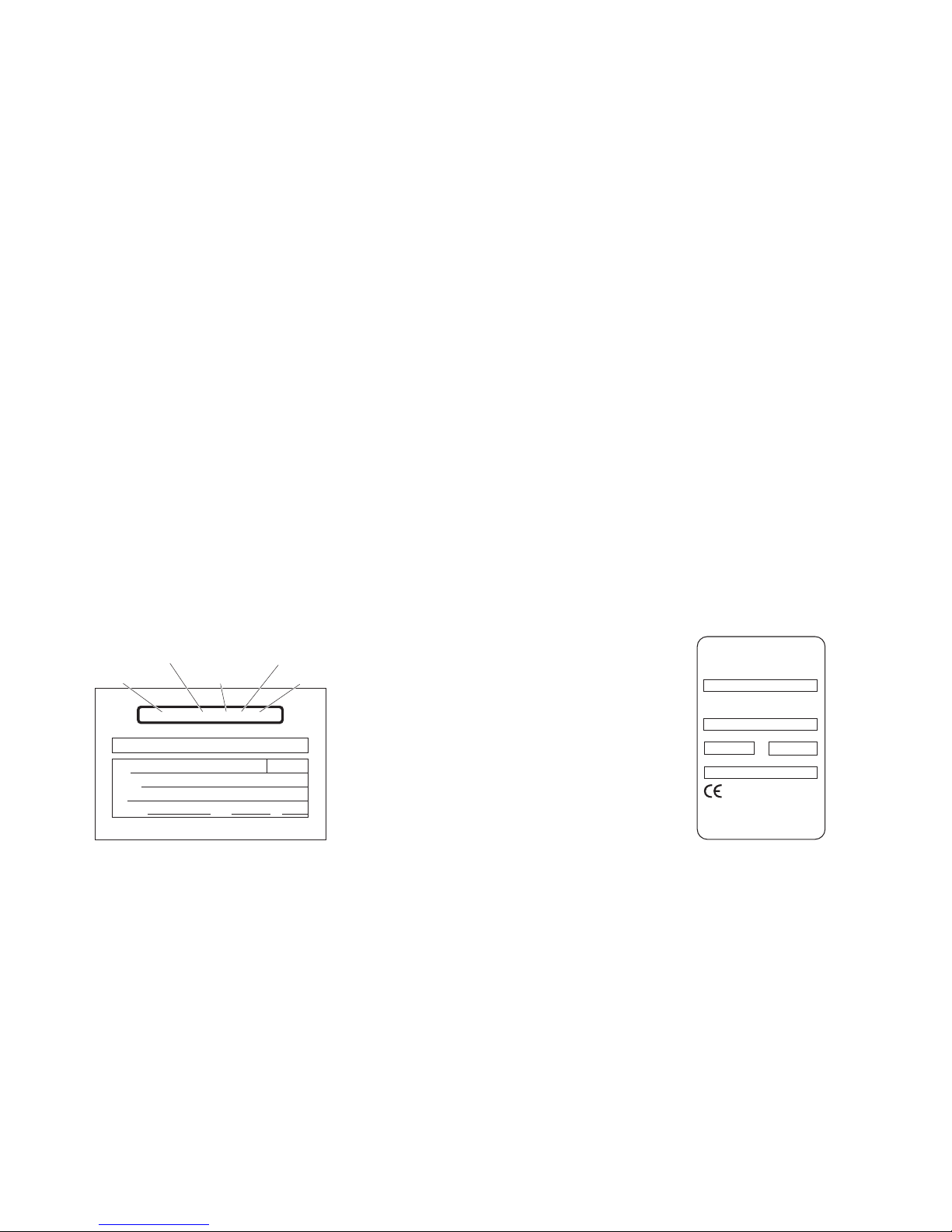

Sample
Warranty/Registration
Card
Serial No.Model No. Cylinder Code
Series No. Pump Code
Immediately upon receiving your
lift, examine the unit for any dam-
age. Notify the carrier at once
with any claims.
Two warranty/registration cards
(shown below) are located in
the lift-mounted owner’s manual
storage pouch. The sales repre-
sentative must process one of the
cards. The consumer must fill out
the other card and mail it to The
side tower. Both I.D. tags provide
the product identification informa-
tion appearing on the Warranty/
Registration card. Record the
information in the space provided
on the next page.
This information must be pro-
vided when filing a warranty
claim or ordering parts.
Braun Corporation. The warranty
is provided on the back cover of
this manual. The warranty cards
must be processed to activate
the warranty.
Two Braun Serial No./Series No.
Identification tags are posted on
the lift. One I.D. tag (shown be-
low) is posted on the pump side
vertical arm. A second I.D. tag
is located on the opposite pump
NL955E3143-03-00001-56-14CF
Sample
Serial No./Series No.
Identification Tag
The Braun Corporation
NL955SE3143
03-00001
56 14CF
07/08/2005
1-800-THE-LIFT
BRAUNLIFT.COM
TM
PUMP CODE CYLINDER
MFG DATE
SERIAL NUMBER
TM
DOT Private Use Lift MODEL#
Max. Lifting Capacity - 750Lbs.
U.S. PATENT 5261779-5806632-6692217
e5*72/245*95/54*0110*00
Page 2

Warranty and Registration Instructions
Model No.
Series No.
Serial No.
Pump Code
Cylinder Code
Date of Manufacture
Note: This information must
be provided when filing a
warranty claim or ordering
parts. Keep for future use.
Page 3

Page 4
Pump Module
Hand-Held
Pendant
Control
Base Plate
Top Parallel Arms (2)
Adjustable Quiet-Ride Stow Blocks (2)
Vertical Arm Covers (4)
Opposite Pump Side Vertical Arm
Outer Barrier Cylinder
(not visible -underside of platform)
Outer Barrier
Rotating Pivot Slide Arms (2)
Platform Pivot Arms (2)
Pump Side Vertical Arm
Main Cylinders (2)
Platform Lights
Outboard
Right

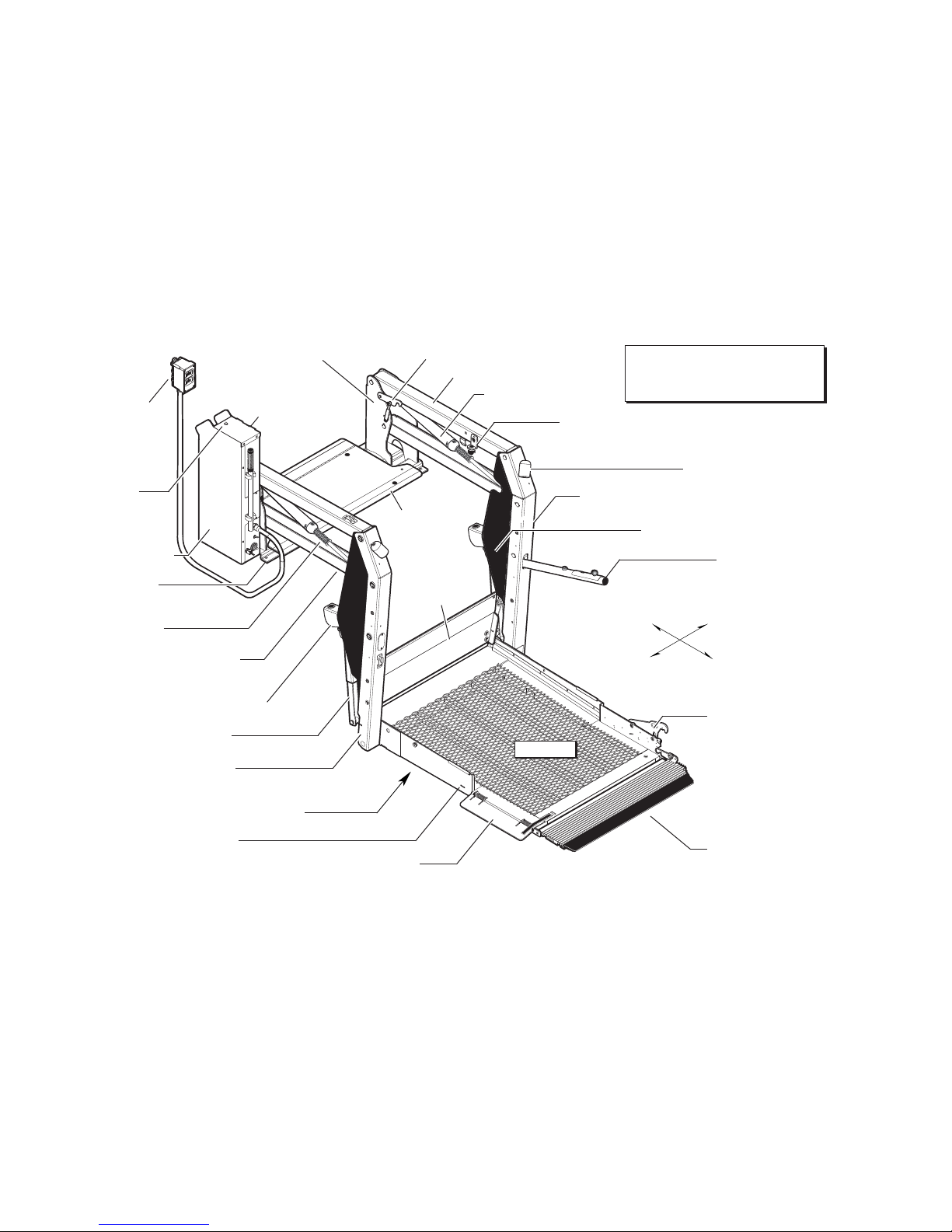

Lift Terminology
Illustration
Lift-Tite™Latches (2)
Platform Side Plates (2)
Platform
Left
Inboard
Towers (2)
Audible
Threshold
Warning
Power
Indicator
Light
Inboard
Locator
Side Entry
Bottom Parallel Arms (2)
Unfold Assist Compression
Springs (2)
Threshold
Warning
Plate
Outer Barrier
Latch
Switch Arm

Page 5
Lift Terminology
Introduction:
Braun NL955 Millennium Series
lifts comply fully with the National
Highway Traffic Safety Adminis-
tration (NHTSA) specifications.
The Braun NL955 is consumer
oriented (designed to allow op-
eration by the wheelchair passen-
ger). NL955 lift models provide
fully automatic operation of all
lift functions as well as optional
automatic door operators (if so
equipped).
Lift models vary per platform size
(lift model numbers indicate lift
dimensions). A standard NL955
lift model is depicted in the Lift
Terminology Illustration. Refer to
the Lift Terminology Illustration
for identification of lift compo-
nents.
Lift operation procedures are
identical for all NL955 Series
lift models. The operating
instructions contained in this
manual and appearing on lift-
posted operating instructions
decals address the lift control
switches and the correspond-
ing lift functions. Instructions
are provided for manual opera-
tion of the lift in event of power
or equipment failure.
Terminology: Become familiar
with the terminology that will be
used throughout this manual.
Become familiar with the identifi-
cation of lift components and their
functions. Contact your lift sales
representative or call The Braun
Corporation at 1-800-THE LIFT®
if any of this information is not
fully understood.
Direction: The terms “left,”
“right,” “inboard,” and “outboard”
will be used throughout this
manual to indicate direction (as
viewed from outside the vehicle
looking directly at the lift). Refer
to the Lift Terminology Illustration
for clarification of direction terms.

Page 6
Lift Terminology
FOLD, DOWN, and UP). The
momentary switches activate the
automatic lift functions. The lift
function labels illuminate to iden-
tify the function(s).
Lift Frame: The lift frame con-
sists of the base plate, threshold
warning plate, towers, parallel
arms, vertical arms, platform
pivot arms and switch arm. Two
main hydraulic cylinders are
housed in the parallel arms.
The electrical/hydraulic powered
lift frame components mechani-
cally unfold, lower, raise and fold
the lift platform assembly.
Switch Arm: An additional
UP/DOWN switch is provided on
the switch arm.
Platform Assembly: The plat-
form assembly consists of the
steel tubing frame with grating
surface upon which the wheel-
chair is positioned, the outer
barrier, outer barrier latch, the
inboard locator, side entry and the
hydraulic cylinder assembly that
powers the outer barrier.
Lift-Tite™Latches: The spring-
loaded latches prevent the
platform from unfolding from the
stowed position in the event of
platform drift. Further details
regarding Lift-Tite™latches are
provided on pages 18 and 19.
Outer Barrier: The cylinder-
powered automatic outer barrier
provides a ramp for wheelchair
loading and unloading at ground
Lift Components
Refer to the Lift Terminology Il-
lustration on page 4.
Pump Module: The lift-mounted
pump module consists of the
hydraulic pump, the manual
hand pump, the electronic
control board and electrical
components that power the lift
electric/hydraulic systems. The
pump module is equipped with
three function-labeled control
switches.
Hand-held Pendant Control:
The hand-held attendant's pen-
dant control is connected to the
pump module. The hand-held
pendant is equipped with four
push button switches, (UNFOLD,

Page 7
Lift Terminology
to the vertical position as the
lift lowers and raises. Further
details regarding the automatic
mechanical inboard locator are
provided on pages 18 and 19.
Vehicle and Lift Interlocks
Braun Corporation NL955
Series lifts comply fully with all
NHTSA vehicle and lift interlock
specifications. Vehicle move-
ment is prohibited unless the lift
door is closed, ensuring the lift
is stowed. The lift will not func-
tion unless the vehicle is parked
and secured.
The NL955 features an audible
threshold warning system that
will activate if the threshold area
is occupied when the platform
is one inch or more below floor
level.
The inboard locator and outer
barrier sense weight to prohibit
lift operation. The lift will not
function if the inboard locator or
the outer barrier are occupied.
The lift platform cannot be folded
(stowed) if occupied
level. The NL955 platform is
equipped with a side entry that
allows boarding and exiting in
tight parking situations. The
outer barrier and side entry func-
tion together in unison.
Outer Barrier Latch: The
spring-loaded latch locks the
outer barrier in the vertical posi-
tion when the platform raises
above ground level.
Inboard Locator: NL955 Series
lift models are equipped with an
automatic inboard locator that
also serves as the bridge plate.
The bridge plate bridges the gap
between the lift platform and the
vehicle floor. The inboard loca-
tor/bridge plate automatically ro-
tates from the horizontal position

Page 8
Lift Terminology
F. FOLD (In) - Platform Fold:
Fold is the action of the platform
rotating up and in from the floor
level (horizontal) position to fully-
stowed (vertical) position when
the FOLD switch is pressed.
Stowed Position: The lift is
stowed when the lift platform has
been fully raised and folded fully
(vertical position).
Floor Level: Floor level is the
position (height) the platform as-
sembly reaches in order for the
wheelchair passenger to enter
and exit the vehicle (fully raised).
The platform automatically stops
at floor level when unfolding from
the stowed position and when
raising from ground level.
Lift Actions and Functions
DEPLOY (A-C)
A. UNFOLD (Out) - Platform
Unfold: Unfold is the action
of the platform rotating out and
down from the fully-stowed
(vertical) position to floor level
(horizontal) position when the
UNFOLD switch is pressed.
B. DOWN - Platform Lower:
Down is the action of the platform
lowering from floor level position
to fully-lowered (ground level)
position when the DOWN switch
is pressed.
C. DOWN - Outer Barrier
Unfold (Deploy) - When the
platform reaches the fully-low-
ered (ground) position and the
DOWN switch is continued to be
pressed, the outer barrier rotates
downward from vertical position
to ramp position.
STOW (D-F)
D. UP - Outer Barrier Fold
(Raise): When the lift is fully
lowered and the outer barrier is
in the ramp position, pressing
the UP switch first rotates the
outer barrier upward from ramp
position to vertical position.
E. UP - Platform Raise: Up is
the action of the platform raising
from ground level to floor level
(fully-raised) position when the
UP switch is pressed.

Page 9
Safety Symbols
Lift Operation Safety
SAFETY FIRST! Know That ...
supplements (if included), is pro-
vided for your safety. Familiarity
with proper operation instructions
as well as proper maintenance
procedures are necessary to en-
sure safe, troublefree operation.
Safety precautions are provided
to identify potentially hazardous
situations and provide instruction
on how to avoid them.
All information contained
in this manual and
Note: Additional information provided to help clarify or detail a specific subject.
These symbols will appear throughout this manual as well as on the labels posted on your lift. Recognize
the seriousness of this information.
W
ARNING
This symbol indicates
important safety in-
formation regarding a
potentially hazardous
situation that could
result in serious
bodily injury and/or
property damage.
CAUTION
This symbol indi-
cates important in-
formation regarding
how to avoid a haz-
ardous situation that
could result in minor
personal injury or
property damage.
C
AB
D

Read manual and supplement(s) before operating lift. Read
and become familiar with all safety precautions, operation
notes and details, operating instructions and manual operat-
ing instructions before operating the lift. Note: Wheelchair
passengers and all transit agency personnel (drivers and
wheelchair lift attendants) must read and become familiar
with the contents of this manual and supplement(s) before
operation.
Load and unload on level surface only.
Engage vehicle parking brake before operating lift.
Provide adequate clearance outside the vehicle to accom-
modate the lift before opening lift door(s) or operating lift.
Page 10
Lift Operation Safety Precautions
W
ARNING
Lift Operation Safety
W
ARNING
W
ARNING
W
ARNING
Inspect lift before operation. Do not operate lift if you suspect lift damage, wear or any
abnormal condition.
Keep operator and bystanders clear of area in which the lift operates.
W
ARNING
W
ARNING
W
ARNING
If the lift operating
instructions, manual
operating instructions
and/or lift operation
safety precautions are
not fully understood,
contact The Braun
Corporation immedi-
ately. Failure to do so
may result in serious
bodily injury and/or
property damage.

Page 11
W
ARNING
Whenever a wheelchair passenger (or standee) is on the platform, the:
• Passenger must face outward.
• Wheelchair brakes must be locked.
• Inboard locator and outer barrier must be up (vertical).
• Outer barrier latch must be fully engaged.
Load and unload clear of vehicular traffic.
Do not overload or abuse. The load rating applies to both the raising and lowering functions
- continuous lifting capacity is 750 lbs.
Discontinue lift use immediately if any lift or vehicle interlock does not operate properly.
Do not operate or board the lift if you or your lift operator are intoxicated.
Do not raise front wheelchair wheels (pull wheelie) when loading (boarding) the platform.
Open lift door(s) fully and secure before operating lift.
Position and secure (buckle, engage, fasten, etc.) the wheelchair-equipped occupant seat
belt (torso restraint) before loading onto the wheelchair lift platform.
Lift attendants must ensure that lift occupants keep hands, arms and all other body parts
within the lift occupant area and clear of moving parts.
W
ARNING
W
ARNING
W
ARNING
Lift Operation Safety
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING

Page 12
Lift Operation Safety Precautions
Lift Operation Safety
Platform must be positioned at floor level (bridge plate
height) when loading or unloading in and out of vehicle.
Do not use platform inboard locator or outer barrier as a bar-
rier (brake). Stop and brake wheelchair when loading onto
the platform (manually stop and brake manual wheelchairs
— stop powered wheelchairs with the wheelchair controls).
Turn powered (electric) wheelchairs off when on lift platform.
Press the DOWN switch until the entire platform rests on
ground level (lowered fully) and the outer barrier is fully
unfolded (ramp position) before loading or unloading a pas-
senger at ground level.
Outer barrier must be fully unfolded (ramp position) until
the entire wheelchair crosses the barrier when loading or
unloading at ground level.
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING
Accidental activation of control switch(es) may cause unintended operation(s).
W
ARNING
If the lift operating
instructions, manual
operating instructions
and/or lift operation
safety precautions are
not fully understood,
contact The Braun
Corporation immedi-
ately. Failure to do so
may result in serious
bodily injury and/or
property damage.

Page 13
Lift Operation Safety
W
ARNING
Maintenance and lubrication procedures must be performed as specified in this manual by
authorized (certified) service personnel.
Replace missing, worn or illegible decals.
Keep this operator’s manual in lift-mounted manual storage pouch when not in use.
Never modify (alter) a Braun Corporation lift.
Do not use accessory devices not authorized by The Braun Corporation.
Do not remove any guards or covers.
Keep clear of any hydraulic leak.
Failure to follow these safety precautions may result in serious bodily injury and/or prop-
erty damage.
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING

Page 14
Operation Notes and Details
NL955 Series “Private Use” lift
models are designed to allow
operation by the wheelchair
passenger. NL955 Series lifts
are typically installed in vehicles
equipped with fully-automatic
door operators. The NL955
provides fully automatic opera-
tion of all lift functions as well as
optional automatic door opera-
tors (if so equipped).
Note: An attendant must
manually open and close lift
door(s) in applications where
power door operator(s) are not
provided.
It is the responsibility of
the lift operator (attendant
and/or wheelchair passenger)
to properly activate all power
(lift and door) functions. Read
and become familiar with all lift
operation safety precautions,
operation notes and details,
lift operating instructions and
manual operating instructions
before attempting lift operating
procedures.
General Safety: Before operat-
ing the lift, always engage the
vehicle transmission in Park “P”
and engage the vehicle parking
brake. Note: Lift and vehicle
interlocks prevent lift operation
until the vehicle is immobilized.
Lift operators (attendants),
wheelchair passengers and by-
standers must keep clear of the
area in which the power doors
(if equipped), and the lift oper-
ates (clear of all moving parts).
The lift occupant (passenger)
W
ARNING
Read and become
familiar with all lift
operation safety
precautions, opera-
tion notes and details,
operating instructions
and manual operat-
ing instructions prior
to operating the lift.
If this information is
not fully understood,
contact The Braun
Corporation immedi-
ately. Failure to do so
may result in serious
bodily injury and/or
property damage.

Page 15
Operation Notes and Details
Control Switches
Lift Power ON/OFF Switch: This
switch must be in the ON position in
order to activate the lift controls. The
green Power Indicator Light mounted
on top of the pump module illuminates
to signal power to the lift.
Lift-mounted Control Switches:
The lift-mounted control switches ac-
tivate the automatic lift functions and
optional door operators. The switches
are function labeled. Press the switch-
es in the direction of the function label
to activate the intended lift function.
Lift Power Switch
Door(s) Platform
Press switches upward
for these functions:
Press switches downward
for these functions:
CLOSE FOLD UP
OPEN UNFOLD DOWN
Door(s) Platform
Yellow Orange Red
Yellow Orange Red
must keep hands, arms and all
other body parts within the lift oc-
cupant area and clear of moving
parts. Follow all lift operation
and wheelchair passenger infor-
mation detailed in this manual.

Page 16
Operation Notes and Details
Control Switches (continued):
Hand-held Pendant Control: The hand-held
attendant's pendant control is equipped with four
push button switches, (UNFOLD, FOLD, DOWN,
and UP). The momentary switches activate the
automatic lift functions. Simply press the switch
labeled for the intended lift function.
DOWN
UP FOLD
UNFOLD
32525
32526
Switch Arm UP/DOWN Switch: A spring-loaded
horizontal-slide style switch is built in the switch
arm. The switch arm UP/DOWN switch activates
the platform, outer barrier and inboard locator
functions. Slide the switch knob out to the UP
position to raise the platform. Slide the knob in
to the DOWN position to lower the platform.
UP
DOWN
When there is power
to the lift, the lift func-
tion labels illuminate to
identify the function(s).

Page 17
Operation Notes and Details
Power Door Operator(s):
Optional power door operators
cannot be activated using the
hand-held pendant. Open and
close power doors using the
pump module OPEN/CLOSE
switch, optional remote control
or auxiliary 3rd Station control.
In the event the vehicle is not
equipped with power door
operator(s), manually open and
close the door(s).
Auxiliary Control Switches:
A six-touch remote control
system, a third station control
and an outside control station
are available as options. All
auxiliary controls activate lift
functions and automatic door
operators.
Do not press lift-mounted
switches and auxiliary control
station switches at the same
time. Do not attempt to in-
terface after-market control
systems.
Braun Corporation After-
market Control Systems
Policy:
The Braun Corporation
manufactures dedicated con-
trol systems for its products.
These control systems have
been designed and tested for
use in conjunction with spe-
cific Braun products. Braun
control systems are the only
control systems authorized
for use with Braun products.
Do not attempt to interface
aftermarket control systems
with Braun products. To do
so may result in serious
bodily injury and/or prop-
erty damage.
W
ARNING
Discontinue lift use
immediately if any
lift component does
not operate prop-
erly. Failure to do so
may result in serious
bodily injury and/or
property damage.

Page 18
Operation Notes and Details
Lift Features
W
ARNING
Discontinue lift use
immediately if any
lift component does
not operate prop-
erly. Failure to do so
may result in serious
bodily injury and/or
property damage.
Become familiar with all lift fea-
tures and the proper operation
of the lift components before
attempting lift operation. Refer
to the Lift Terminology section
Engaged
Lift-Tite™
Latch
Latch
Engagement
Pin (Roller)
for identification of and desrciption
of lift components. Contact The
Braun Corporation immediately if
any of this information is not fully
understood. Call 1-800-THE LIFT®.
Lift-Tite™Latches: NL955
Series lifts are equipped with Lift-
Tite™Latches. Lift-Tite™Latches
prevent the platform from unfold-
ing from the stowed position in
