Advantech FPM-3170 Series User manual

FPM-3170 Series
Industrial Flat Panel
Monitor with 17" LCD in
VGA/Video
User Manual

FPM-3170 Series User Manual ii
Copyright
This document is copyrighted by Advantech Co., Ltd. All rights are
reserved. Advantech Co., Ltd. reserves the right to make
improvements to the products described in this manual at any time. Spec-
ifications are thus subject to change without notice.
No part of this manual may be reproduced, copied, translated, or transmit-
ted in any form or by any means without the prior written permission of
Advantech Co., Ltd. Information provided in this manual is intended to
be accurate and reliable. However, Advantech Co., Ltd., assumes no
responsibility for its use, nor for any infringements upon the rights of
third parties which may result from its use.
All brand and product names mentioned herein are trademarks or regis-
tered trademarks of their respective holders.
This Manual Covers the Following Models
- FPM-3170G
- FPM-3170G-R
- FPM-3171GA
- FPM-3171GA-R
Part No 2003317000 1st Edition
Printed in Taiwan March 2005

FCC Class B
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence when the equipment is operated in a residential environment. This
equipment generates, uses and can radiate radio frequency energy. If not
installed and used in accordance with this user's manual, it may cause
harmful interference to radio communications. Note that even when this
equipment is installed and used in accordance with this user’s manual,
there is still no guarantee that interference will not occur. If this equip-
ment is believed to be causing harmful interference to radio or television
reception, this can be determined by turning the equipment on and off. If
the interference is occurring, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and the receiver
•Connect the equipment to a power outlet on a circuit different from that
to which the receiver is connected
•Consult the dealer or an experienced radio/TV technician for help

FPM-3170 Series User Manual iv
Additional Information and Assistance
1.Visit the Advantech web site at www.advantech.com where you can
find the latest information about the product.
2.Contact your distributor, sales representative, or Advantech's customer
service center for technical support if you need
additional assistance. Please have the following information ready before
you call:
•Product name and serial number
•Description of your peripheral attachments
•Description of your software (operating system, version, application
software, etc.)
•A complete description of the problem
•The exact wording of any error messages

Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User's Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp
cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equip-
ment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or let-
ting it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power
source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service
personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according to
the user's manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW
-20° C (-4° F) OR ABOVE 60° C (140° F). THIS MAY DAMAGE THE
EQUIPMENT.
The sound pressure level at the operator's position according to IEC 704-1:1982 is
no more than 70dB(A).
DISCLAIMER: This set of instructions is given according to IEC 704-1. Advan-
tech disclaims all responsibility for the accuracy of any statements contained
herein.

FPM-3170 Series User Manual vi
W i c h t i g e S i c h e r h e i s h i n w e i s e
1. Bitte lesen sie Sich diese Hinweise sorgfältig durch.
2. Heben Sie diese Anleitung für den späteren Gebrauch auf.
3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie
Keine Flüssig-oder Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch zur
Reinigung.
4. Die NetzanschluBsteckdose soll nahe dem Gerät angebracht und leicht
zugänglich sein.
5. Das Gerät ist vor Feuchtigkeit zu schützen.
6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen
oder Fallen könnte Verletzungen hervorrufen.
7. Die Belüftungsöffnungen dienen zur Luftzirkulation die das Gerät vor überhit-
zung schützt. Sorgen Sie dafür, daB diese Öffnungen nicht abgedeckt werden.
8. Beachten Sie beim. AnschluB an das Stromnetz die AnschluBwerte.
9. Verlegen Sie die NetzanschluBleitung so, daB niemand darüber fallen kann. Es
sollte auch nichts auf der Leitung abgestellt werden.
10. Alle Hinweise und Warnungen die sich am Geräten befinden sind zu
beachten.
11. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom
Stromnetz trennen. Somit wird im Falle einer Überspannung eine Beschädigung
vermieden.
12. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten
in das Gerät gelangen. Dies könnte einen Brand bzw. elektrischen Schlag aus-
lösen.
13. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen
Sicherheit nur von authorisiertem Servicepersonal geöffnet werden.
14. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen
und von einer qualifizierten Servicestelle zu überprüfen:
a - Netzkabel oder Netzstecker sind beschädigt.
b - Flüssigkeit ist in das Gerät eingedrungen.
c - Das Gerät war Feuchtigkeit ausgesetzt.
d - Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert oder
Sie mit Hilfe dieser Anleitung keine Verbesserung erzielen.
e - Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
f - Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.
Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt
70dB(A) oder weiger.
DISCLAIMER: This set of instructions is given according to IEC704-1. Advan-
tech disclaims all responsibility for the accuracy of any statements contained
herein.

Table of Contents
Contents
Chapter 1 Introduction ..................................................... 2
1.1 Introduction ....................................................................... 2
1.2 Specifications .................................................................... 2
1.2.1 General ........................................................................... 2
1.2.2 Touchscreen (Optional) ................................................. 3
1.3 LCD Specifications ........................................................... 3
1.4 Connectors......................................................................... 4
1.5 Dimensions........................................................................ 5
Figure 1.1:FPM-3170G Dimensions .............................. 5
Figure 1.2:FPM-3171GA Dimensions ........................... 6
Chapter 2 System Setup.................................................... 8
2.1 Mounting the Monitor ....................................................... 8
2.1.1 Wall Mounting ............................................................... 8
Figure 2.1:FPM-3170 with Brackets ............................. 8
Figure 2.2:Hook Bracket ................................................ 8
2.1.2 Panel Mounting .............................................................. 9
Figure 2.3:Panel Mnt. (cut out dim.: 451 x 340 mm) .... 9
Figure 2.4:Bracket Arranged for Panel Mounting ......... 9
2.1.3 Rack Mounting ............................................................ 10
Figure 2.5:Rack Mounting ........................................... 10
2.2 Desktop Mounting........................................................... 11
Figure 2.6:FPM-3170 Mounted on Desktop Stand ...... 11
Figure 2.7:A Complete Desktop Stand ........................ 11
2.3 Swing Arm Mounting...................................................... 12
Figure 2.8:Swing Arm for the FPM-3170 series ......... 12

Appendix A Touchscreen Driver Installation .................. 14
A.1 Introduction ..................................................................... 14
A.2 Touchscreen Specifications............................................. 14
A.2.1 Electrical ...................................................................... 14
A.2.2 Optical .......................................................................... 14
A.2.3 Mechanical ................................................................... 14
A.2.4 Durability ..................................................................... 14
A.2.5 Chemical Resistance .................................................... 15
A.3 Installation of Touchscreen Driver.................................. 15
A.4 Configuring PenMount Windows 2000/XP Driver......... 20
A.4.1 PenMount Control Panel ............................................. 20
A.4.2 PenMount Monitor Menu Icon .................................... 30
A.4.3 PenMount Rotating Functions ..................................... 31
Appendix B Supported Input Timing Modes .................. 34
B.1 Supported Input Timing Modes ...................................... 34
Appendix C OSD Operation .............................................. 36
C.1 OSD Operation Keypad .................................................. 36

1 Chapter1
Introduction
This chapter includes:
•Introduction
•Specifications
•LCD Specification
•Connectors
•Dimensions
CHAPTER
1

FPM-3170 Series User Manual 2
Chapter 1 Introduction
1.1 Introduction

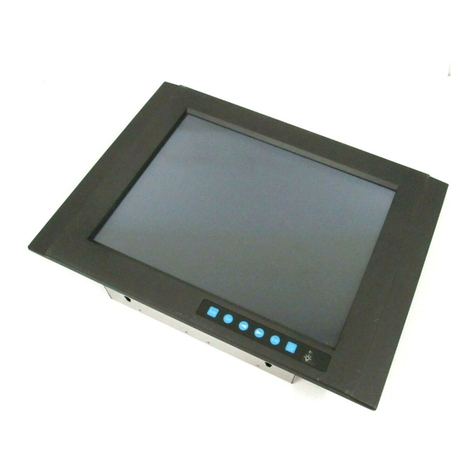

Advantech's FPM-3170 Series consist of 17" color TFT LCD flat panel
monitors built specifically for industrial applications. With the optional
touchscreen, FPM-3170 monitors are excellent and user-friendly system
control interfaces.
The FPM-3170 Series includes the FPM-3170G and FPM-3171GA.
FPM-3170G comes standard with Direct-VGA, DVI-D, Video, S-Video
ports, which not only can connect to popular PC VGA Cards, but also
devices with video output, like cameras.
FPM-3171GA provides an alternative solution for users that do not
require Video interface, and is equipped with a Direct-VGA port.
The whole chassis of FPM-3170G and FPM-3171GA is made of stainless
steel, and the front panel is of aluminum with NEMA4/IP65 compliance.
The FPM-3170 monitors provide optional touch screen versions (FPM-
3170G-R and FPM-3171GA-R). With an 8-wire resistive type touch-
screen, the monitors can be immediately transformed into a remote con-
trol system.
1.2 Specifications
1.2.1 General
• Control: OSD (On Screen Display) control pad on front side
• Mounting: Rackmount, panelmount, wallmount and VESA arm
mounting
• I/O port: VGA connector, DVI (FPM-3170G only), Video (FPM-
3170G only), S-Video (FPM-3170G only), DC power input, power
switch (FPM-3170G only), and RS-232 port (Touchscreen version
only)
• Power Adapter: External 48W power adapter, with AC 100~230V
input and DC +12V @ 4A output
• Operating temperature: 0 ~ 50 ° C
• Storage Temperature: -20 ~ 60 ° C
• Storage Humidity: 5 ~ 95% non-condensing

3 Chapter1
• Vibration (operating): 5 ~ 17 Hz, double-amplitude displacement
17 ~ 500 Hz, 1.0 G peak to peak
• Dimensions: (W x H x D):482 x 354 x 68 mm (19" x 13.9" x 2.7")
• Net Weight:12.7 kg (27.9 lb)
• Compliance: CE, FCC, BSMI, CCC compliant
1.2.2 Touchscreen (Optional)
• Type: 8 wire, analog resistive
• Resolution: 1024x1024
• Light transmission: 76%
• Operating Pressure:30~45 gram for stylus pen, contact bounce <10ms
• Controller: RS-232 interface (USB interface optional)
• Power Consumption: +5 V @ 200 mA
• OS support: Windows 2000/XP
• Life span: 1 million activations (typical) at a single point with a 5/8"
diameter silicone finger at 350g load at 2 touches per sec.
1.3 LCD Specifications
• Display Type: SXGA TFT LCD
• Display Size: 17"
• Max Colors: full color (16 million)
• Max Resolution: 1280 x 1024
• Dot Pitch: 0.264 x 0.264 mm
• Viewing Angle: FPM-3170G: 170° (H), 170° (V)
FPM-3171GA: 140° (H), 130° (V)
• Luminance: FPM-3170G: 250 cd/m²
FPM-3171GA: 300 cd/m²
• Storage Temperature: -20 ~ 60° C
• Operating Temperature: 0 ~ 50° C
• Backlight Lifetime: FPM-3170G: 50,000 hrs
FPM-3171GA: 40,000 hrs
• Contrast Ratio: 500:1

FPM-3170 Series User Manual 4
1.4 Connectors
The following connectors are situated on the left hand side of the FPM-
3170 Series:
VGA Port (DB-15)
This DB-15 connector can be connected to the system via the external 15-
pin DB-15 connector located on the left side of the system unit.
S-Video Port (Mini-DIN 4 pin) (Available for FPM-3170G only)
Supports NTSC and PAL.
DVI-D Port (Available for FPM-3170G only)
Touchscreen Connector (DB-9) (Touchscreen version only)
This connector will be present only if a touchscreen is installed. It must
be connected to the RS-232 port of the PC. The touchscreen cable is
included with all orders which include the touchscreen option.
Touchscreen Connector (USB B-type) (optional)
This connector will be an option for the touchscreen version. It must be
connected to the USB port of the PC. The touchscreen cable is included
with all orders which include the touchscreen option.
DC 12 V Power in
This connector will be connected to the DC 12V Switching Power Sup-
ply.

5 Chapter1
Cutout Dimensions: 451 x 340 mm (17.8" x 13.4")
1.5 Dimensions
Figure 1.1: FPM-3170G Dimensions

FPM-3170 Series User Manual 6
Figure 1.2: FPM-3171GA Dimensions

7 Chapter 2 System Setup
System Setup
This chapter includes:
•Mounting the Monitor
- Wall/Panel/Rack Mounting
- Desktop Stand/Swing-ARM Mounting
CHAPTER
2

FPM-3170 Series User Manual 8
Chapter 2 System Setup
2.1 Mounting the Monitor
Monitors of the FPM-3170 series can be placed as you require. The versa-
tility of the FPM-3170 mounts enable it to be mounted on your desk or
anywhere else.
2.1.1 Wall Mounting
With wall mounting brackets, the FPM-3170 monitors can be mounted
directly to a wall. The wall mounting brackets (named Fix brackets in the
packing list) can be found in the accessory box.
1. First mount the two brackets on the wall. Make sure the screw faces
in a direction that is accessible.
2. Hang the FPM-3170 by its keyholes onto the brackets.
Figure 2.1: FPM-3170 with Brackets
3. Attach a hook bracket on top to ensure that FPM-3170 does not
jump out of the keyholes during vibration.
Figure 2.2: Hook Bracket

9 Chapter 2 System Setup
2.1.2 Panel Mounting
If you need to install the FPM-3170 series on a panel mount, please
release the wall mounting brackets by detaching four screws on rear side
and fix them on top and bottom sides by screws.
Figure 2.3: Panel Mounting (cut out dimension: 451 x 340 mm)
Figure 2.4: Bracket Arranged for Panel Mounting

FPM-3170 Series User Manual 10
2.1.3 Rack Mounting
The FPM-3170G series of monitors can be directly mounted to an indus-
try standard 19" rack. There are four screw holes on each side of the
panel.
Figure 2.5: Rack Mounting

11 Chapter 2 System Setup
2.2 Desktop Mounting
You can place the desktop stand for desktop use or attach it on a swing-
arm bracket.
2.2.1 Desktop Stand
The desktop stand brackets (named mounting bracket in the packing list)
can be found in the accessory box.
Figure 2.6: FPM-3170 Mounted on Desktop Stand
Attach the fix bracket on the bottom part of the FPM-3170. Then use two
screws on each of the desktop mounting brackets. Place one on each side
of the fix bracket.
Figure 2.7: A Complete Desktop Stand

FPM-3170 Series User Manual 12
2.3 Swing Arm Mounting
Detach the mounting brackets on the rear side, then attach the FPM-3170
series onto the Swing-ARM mount (75 or 100 mm square bracket).
Figure 2.8: Swing Arm for the FPM-3170 series
