Advantech SIMB-982 User manual

User Manual
SIMB-982
Intel® Core™ i7/i5/i3 LGA1151, H110/
Q170, ATX with DVI-D/HDMI/DP/VGA,
DDR4 , PCIe Gen3x16, Multiple LANs,
10 COM, SATA III, USB 3.0, USB2.0

Chapter 1
1General Information

2
1.1 Introduction
SIMB-982 is designed with the Intel® H110/Q170 for industrial applications that
require both performance computing and enhanced power management capabilities.
The mother-board supports Intel 6/7th desktop Core i3 / i5 / i7 Pentium /Celeron TDP
65W processor up to 8 MB L3 cache and DDR4 DIMM up to 64 GB. A rich I/O
connectivity of 10 serial ports, Many USB ports, Multiple GbE LAN and up to 8 SATA
ports.
1.2 Features
Rich I/O connectivity: 10 x serial ports, 4(H110)/6(Q170) x USB 3.0,
5(H110)/7(Q170) xUSB 2.0, 4(H110)/8(Q170) x SATA3.0, 2(H110)/3(Q170) LAN
Standard ATX form factor with industrial feature: The SIMB-982 is a full-
featured ATX motherboard with balanced expandability and performance
Wide selection of storage devices: SATA HDD, M.2, customers benefit
from the flexibility of using the most suitable storage device for larger capacity.
Optimized integrated graphic solution: With Intel® Graphics Flexible, sup-
ports versatile display options and 32-bit 3D graphics engine
1.3 Specifications
1.3.1 System
1.3.2 Memory
RAM: Up to 32GB in 2 slots (H110) / Up to 64GB in 4 slots (Q170)DIMM sockets.
1.3.3 Input/Output
PCIE bus: 1 PCIe x16 slot, 2 PCIe x1 slot,
3 PCI slot
Serial ports: 8 x RS-232 , 1 x RS-232 with RI/5V/12V,
1 x RS-232/422/485 with RI/5V/12V
USB port: Supports up to 9 USB ports (H110) / 13 USB ports (Q170)
GPIO connector: 8-bit general purpose Input/Output
SIMB-982 User Manual
CPU: LGA1151 Intel 6/7th desktop Core i3 / i5 / i7
Pentium /Celeron TDP 65W processor
BIOS: AMI EFI 64 Mbit SPI BIOS
System chipset: Intel® H110/Q170
SATA hard disk drive interface:
–On-board SATA connectors with data transmission rate up to 600 MB
1 PCIe x4 slot (PCIEx2 signale for H110, PCIEx4 signale for Q170)

3SIMB-982 User Manual
Chapter 1 General Information
1.3.4 Graphics
Controller: Intel® HD graphics
Display memory: 512 MB maximum shared memory with 2GB and above system
memory installed
VGA: Supports VGA up to resolution 1920 x 1080
DVI-D: Supports DVI-D up to resolution 4096 x 2160
DP: Supports Display port up to resolution 4096 x 2304
HDMI: Supports HDMI up to resolution 4096 x 2160
1.3.5 Ethernet LAN
Supports dual (H110) / triple(Q170)10/100/1000 Mbps Ethernet port (s)
via PCI Express x1 bus which provides 500 MB/s data transmission rate
Controller: LAN1: i219LM; LAN2: RTL8111H; LAN3: i210
1.3.6 Industrial features
Watchdog timer: Can generate a system reset. The watchdog timer is pro-
grammable, with each unit equal to one second or one minute (255 levels)
1.3.7 Mechanical and environmental specifications
Operating temperature: 0 ~ 60° C (32 ~ 140° F, Depending on CPU)
Storage temperature: -40 ~ 85° C (-40 ~ 185° F)
Humidity: 5 ~ 95% non-condensing
Power supply voltage: ATX power supply (12V / 5V / 3.3V /5VSB)
Power consumption:
Board size: 304 mm x 244 mm (12" x 9.6")
Board weight: 0.8 kg

SIMB-982 User Manual 4
1.4 Jumpers and Connectors
Connectors on the SIMB-982 motherboard link it to devices such as hard disk drives
and a keyboard. In addition, the board has a number of jumpers used to configure
your system for your application.
The tables below list the function of each of the board jumpers and connectors. Later
sections in this chapter give instructions on setting jumpers. Chapter 2 gives instruc-
tions for connecting external devices to your motherboard.
Table 1.1: Connector and Header List
Description Part Reference
1VGA connector VGA1
2HDMI connector HDMI1
3 DisplayPort connector DP1
4LAN connector LAN12
5COM2 connector COM2
6DVI-D connector DVI-D1
7
9 HD Analog Audio Interface connector AUDIO1
11 SPDIF audio pin header SPDIF_1
12 Front panel audio pin header FP_AUDIO1
13 Audio amplifier output pin header JAMP1
14 PCIEx16 slot PCIE_SLOT1
15 PCEx1 slot PCIE_SLOT2
16 PCIEx4 slot PCIE_SLOT3
17 PCI slot PCI1
18 PCI slot PCI2
19 PCIEx1 slot PCIE_SLOT4
23 Dual port USB2.0 pin header (Q170) USB1314
24 USB3_56
25 Serial ATA interface connector SATA1
28 Serial ATA interface connector SATA4
29 Serial ATA interface connector (O170) SATA5
30
COM port3~6 box header COM345634
Serial ATA interface connector (Q170) SATA6
8USB3.0 connector USB3_1234
10 Case-open pin header JCASE1
20 PCI slot PCI3
21 USB2.0 type-A connector USB7
22 Dual port USB2.0 pin header (Q170) USB1112
26 Serial ATA interface connector SATA2
27 Serial ATA interface connector SATA3
31 Serial ATA interface connector (Q170) SATA7
32 Serial ATA interface connector (Q170) SATA8
COM1 box header COM133
RJ45+USB2.0 stack connector (Q170)
USB2.0 stack connector (H110)
LAN3_USB910
USB910
Dual port USB3.0 box header (Q170)
Dual port USB2.0 box header (H110) USB3_56

5SIMB-982 User Manual
Chapter 1 General Information
45 Voltage display box header VOLT1
46
57
58
LAN12 LED header LANLED12
47
48
49
LAN3 LED header (Q170) LANLED3
SPI programming header SPI_CN1
ATX 24pin main power for systen connector ATXPWR1
Table 1.2: Jumper List
Label Function
JCOM1PWR COM1_RI# Pin RI#/5V/12V selection
JCOM1MODE COM1 RS-232/422/485 selection
JCOM1TERM1 Enable/Disable COM1 term selection
JCOM2PWR COM2_RI# Pin RI#/5V/12V selection
JPSON1 AT/ATX Mode selection
JCMOS1 CMOS clean selection
JWDT1+JOBS1 Watchdog reset and OBS alarm selection
42 LPC header JLPC1
43 Keyboard Mouse header KBMS1
44 SMBUS pin header SMBUS1
39 CPU FAN header CPUFAN1
40 System FAN1 header SYSFAN1
41 System FAN2 header SYSFAN2
37 Mini Card slot MPCIE_CARD1
38 M.2 slot (Q170) NGFF1
COM port7~10 box header COM7891035
8-bits General Purpose I/O pin header GPIO136
50
ATX 8pin main power for CPU connector ATXPWR_12V1
51
LGA 1155 CPU socket CPU1
52
DDR4 DIMM socket DIMMA1
53
DDR4 DIMM socket (Q170)
54
DDR4 DIMM socket DIMMB1
55
DDR4 DIMM socket (Q170) DIMMB2
DIMMA2
Power Switch / Reset header
External buzzer / HDD LED / SM bus header
Keyboard lock and Power LED header JFP3
JFP1+JFP2
External SATA LED header (Q170) EXT_SATA_LED
56

SIMB-982 User Manual 6

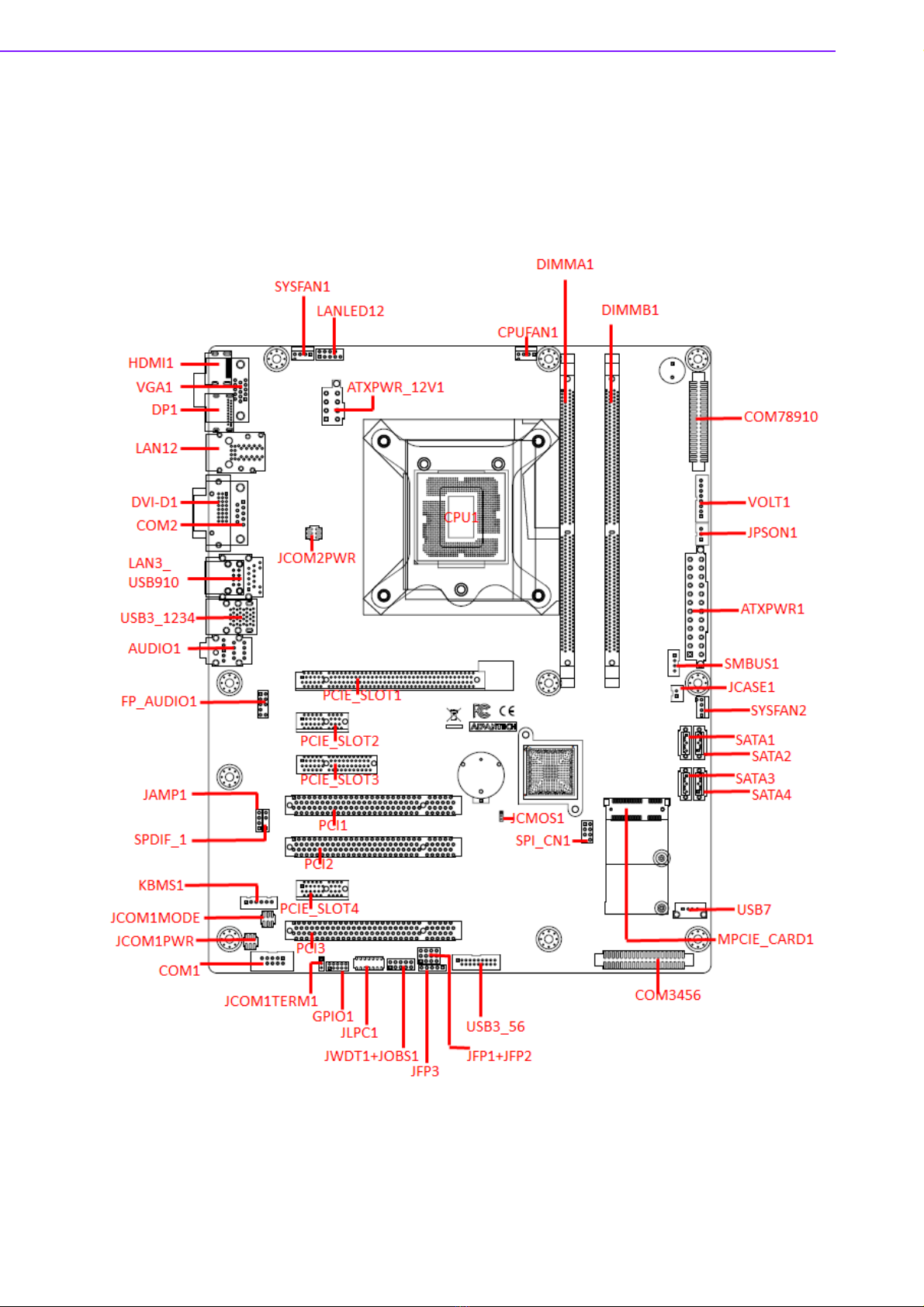

1.5.1 Board layout: Jumper and Connector Locations
(SIMB-982H H110 SKU)

7SIMB-982 User Manual
Chapter 1 General Information

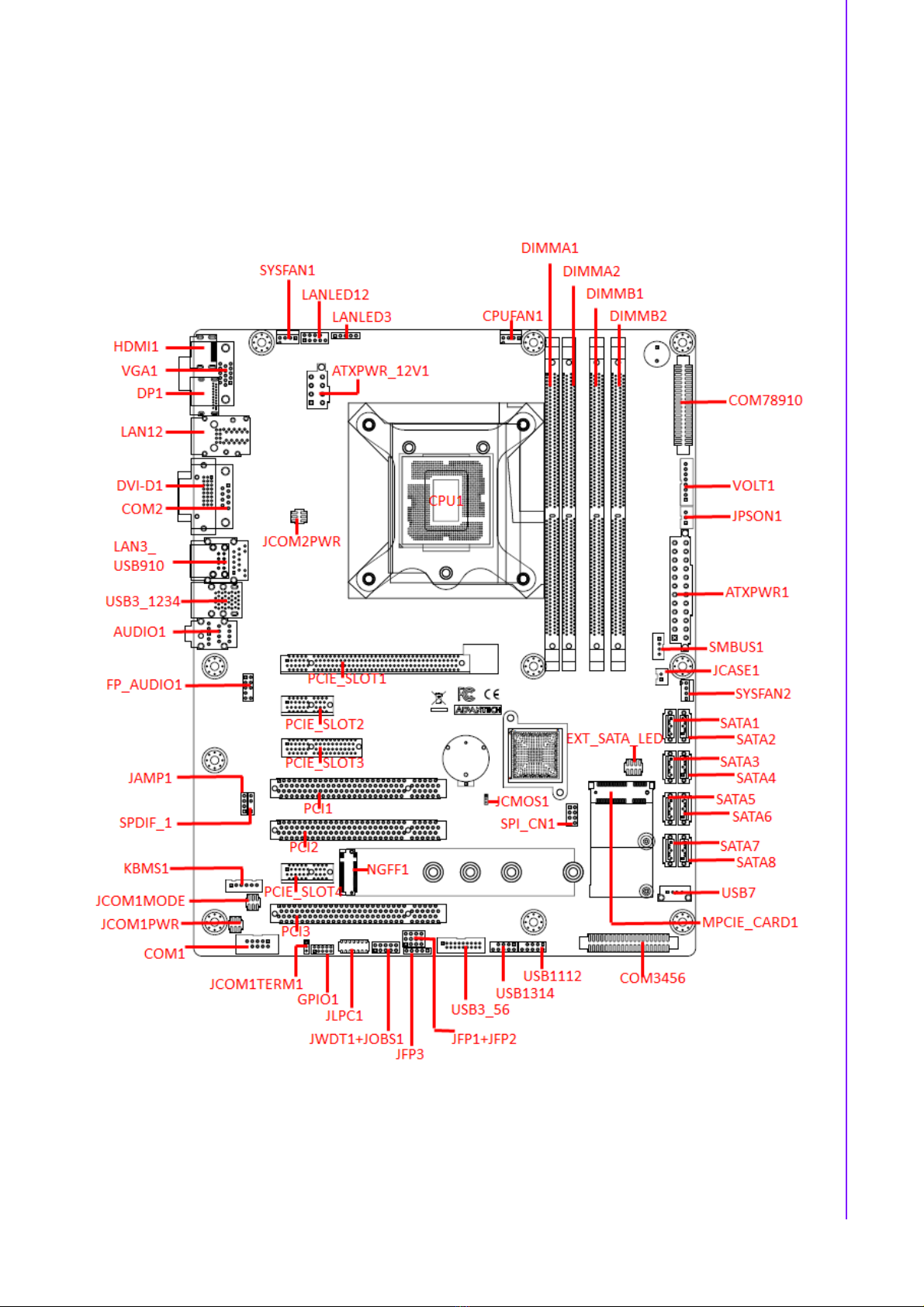

1.5.2 Board layout: Jumper and Connector Locations
(SIMB-982Q Q170 SKU)

SIMB-982 User Manual 8

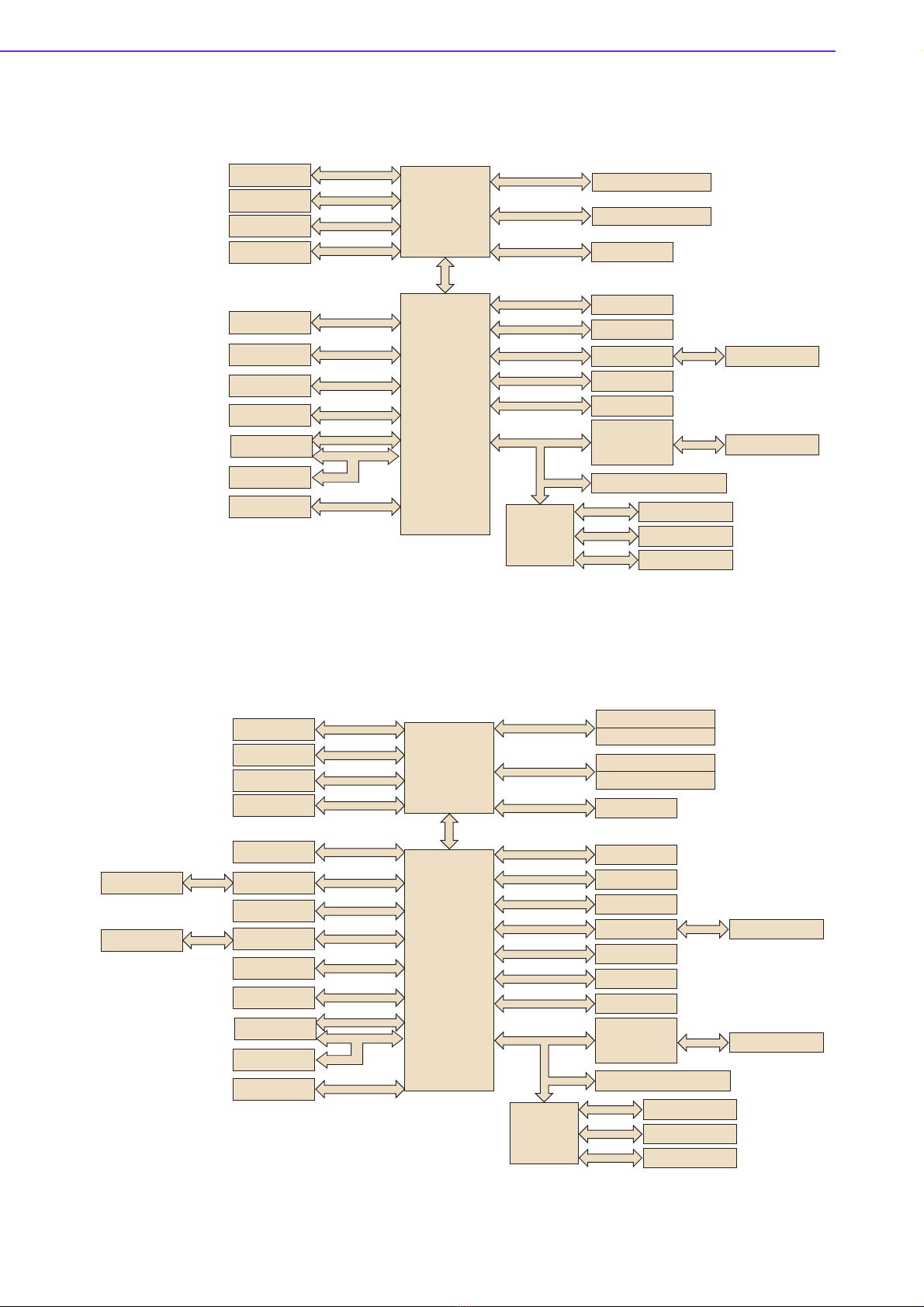

1.6.1 SIMB-982H (H110 SKU) Board Diagram
LGA1151
Processor
H110
DMI
DP Channel A DDR4 2133/2400 16GB
Channel B
1 PCIex16 slot
PCIex16 Gen3
LAN1: I219LM
TPM IC
LAN2: RTL8111H
PCIex1
2nd Super
IO Fintek
F81216AD
NuvoTon
NCT6106D
LPC
IT8892E 3 PCI slots
4 RS-232
5 RS-232
1 RS-232/422/485
8 bit GPIO
4 SATA III SATA III
4 USB3.0
DVI-D
USB3.0
1 USB2.0 Type A USB2.0
4 USB 2.0 USB2.0
Audio Module HD Audio interface
VGA
PCIex1
HDMI
1 PCIex1 slot
PCIex1
USB2.0
1 F/S Mini Card
1 PCIex4 slot
PCIex2
1 PCIex1 slot
PCIex1
DDR4 2133/2400 16GB
1.6.2 SIMB-982Q (Q170 SKU) Board Diagram
LGA1151
Processor
Q170
DMI
DP
DDR4 2133/2400 16GB
DDR4 2133/2400 16GB
Channel A
DDR4 2133/2400 16GB
DDR4 2133/2400 16GB
Channel B
1 PCIex16 slot
PCIex16 Gen3
LAN1: I219LM
TPM IC
LAN2: RTL8111H
LAN3: I210 AT
PCIex1
2nd Super
IO Fintek
F81216AD
NuvoTon
NCT6106D
LPC
IT8892E 3 PCI slots
4 RS-232
5 RS-232
1 RS-232/422/485
8 bit GPIO
4 SATA III SATA III
SATA IC PCIex2
4 USB3.0
DVI-D
USB3.0
1 USB2.0 Type A USB2.0
6 USB 2.0 USB2.0
Audio Module HD Audio interface
VGA
PCIex1
HDMI
USB3.0 IC PCIex1
2 USB3.0 USB3.0
1 PCIex1 slot
PCIex1
4 SATA III SATA III
PCIex1
USB2.0
1 F/S Mini Card
1 PCIex4 slot
PCIex4
1 M.2 slot (M-key)
PCIex4
1 PCIex1 slot
PCIex1

9 SIMB-982 User Manual
Chapter 1 General Information
1.7 Safety Precautions
Warning! Always completely disconnect the power cord from chassis whenever
you work with the hardware. Do not make connections while the power
is on. Sensitive electronic components can be damaged by sudden
power surges. Only experienced electronics personnel should open the
PC chassis.
Caution! Always ground yourself to remove any static charge before touching the
motherboard. Modern electronic devices are very sensitive to electro-
static discharges. As a safety precaution, use a grounding wrist strap at
all times. Place all electronic components on a static-dissipative surface
or in a static-shielded bag when they are not in the chassis.
Caution! The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace
only with same or equivalent type recommended by the manufacturer.
Discard used batteries according to manufacturer's instructions.
Caution! There is a danger of a new battery exploding if it is incorrectly installed.
Do not attempt to recharge, force open, or heat the battery. Replace the
battery only with the same or equivalent type recommended by the man-
ufacturer. Discard used batteries according to the manufacturer’s
instructions.

SIMB-982 User Manual 10
1.8 Jumper Settings
This section provides instructions on how to configure your motherboard by setting
the jumpers. It also includes the motherboards's default settings and your options for
each jumper.
1.8.1 How to Set Jumpers
You can configure your motherboard to match the needs of your application by set-
ting the jumpers. A jumper is a metal bridge that closes an electrical circuit. It consists
of two metal pins and a small metal clip (often protected by a plastic cover) that slides
over the pins to connect them. To “close” (or turn ON) a jumper, you connect the pins
with the clip. To “open” (or turn OFF) a jumper, you remove the clip. Sometimes a
jumper consists of a set of three pins, labeled 1, 2, and 3. In this case you connect
either pins 1 and 2, or 2 and 3. A pair of needle-nose pliers may be useful when set-
ting jumpers.
1.8.2 CMOS Clear (JCMOS1)
The SIMB-982 motherboard contains a jumper that can erase CMOS data and reset
the system BIOS information. Normally this jumper should be set with pins 1-2
closed. If you want to reset the CMOS data, set CMOS1 to 2-3 closed for just a few
seconds, and then move the jumper back to 1-2 closed. This procedure will reset the
CMOS to its default setting.

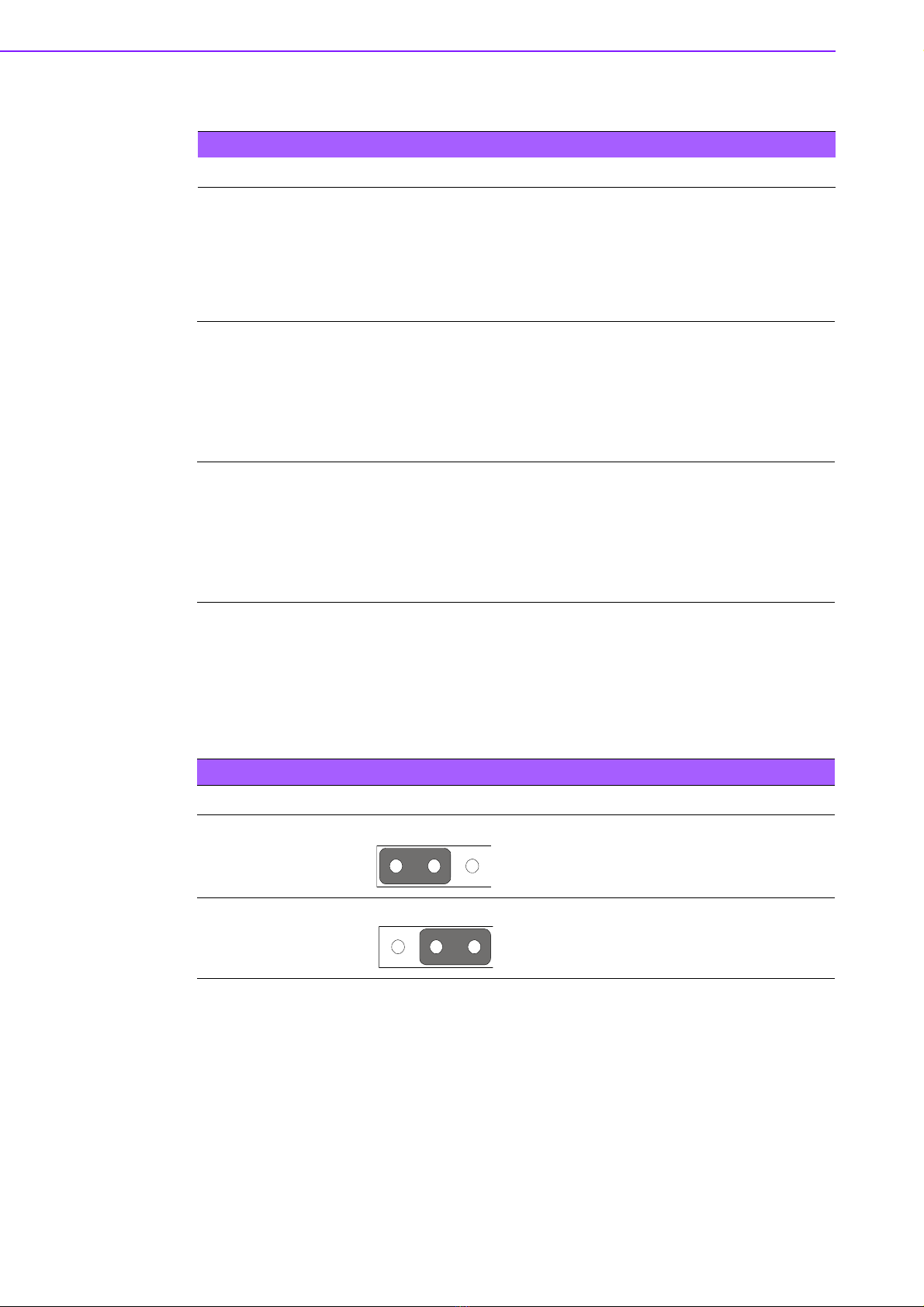

Table 1.3: JCMOS1
Function Setting
Normal (Default)
Clear CMOS
3
1
2
3
1
2

11 SIMB-982 User Manual
Chapter 1 General Information
1.8.3 COM1 / COM2_RI# Pin RI#/5V/12V selection
(JCOM1PWR / JCOM2PWR)
1.8.4 COM1 terminal enable/disable selection (JCOM1TERM1)
Table 1.4: COM_RI# Pin RI#/5V/12V selection(JCOM1PWR/JCOM2PWR)
Function Setting
Set COM_RI# as RI# (Default)
Set COM_RI# as 5V
Set COM_RI# as 12V
Table 1.5: COM terminal enable/disable selection (JCOM1TERM1)
Function Setting
COM1 terminal Enable (Default)
1 2 3
COM1 terminal Disable
1 2 3

SIMB-982 User Manual 12
1.8.5 COM1 RS232,RS422,RS485 selection pin header (JCOM1MODE)

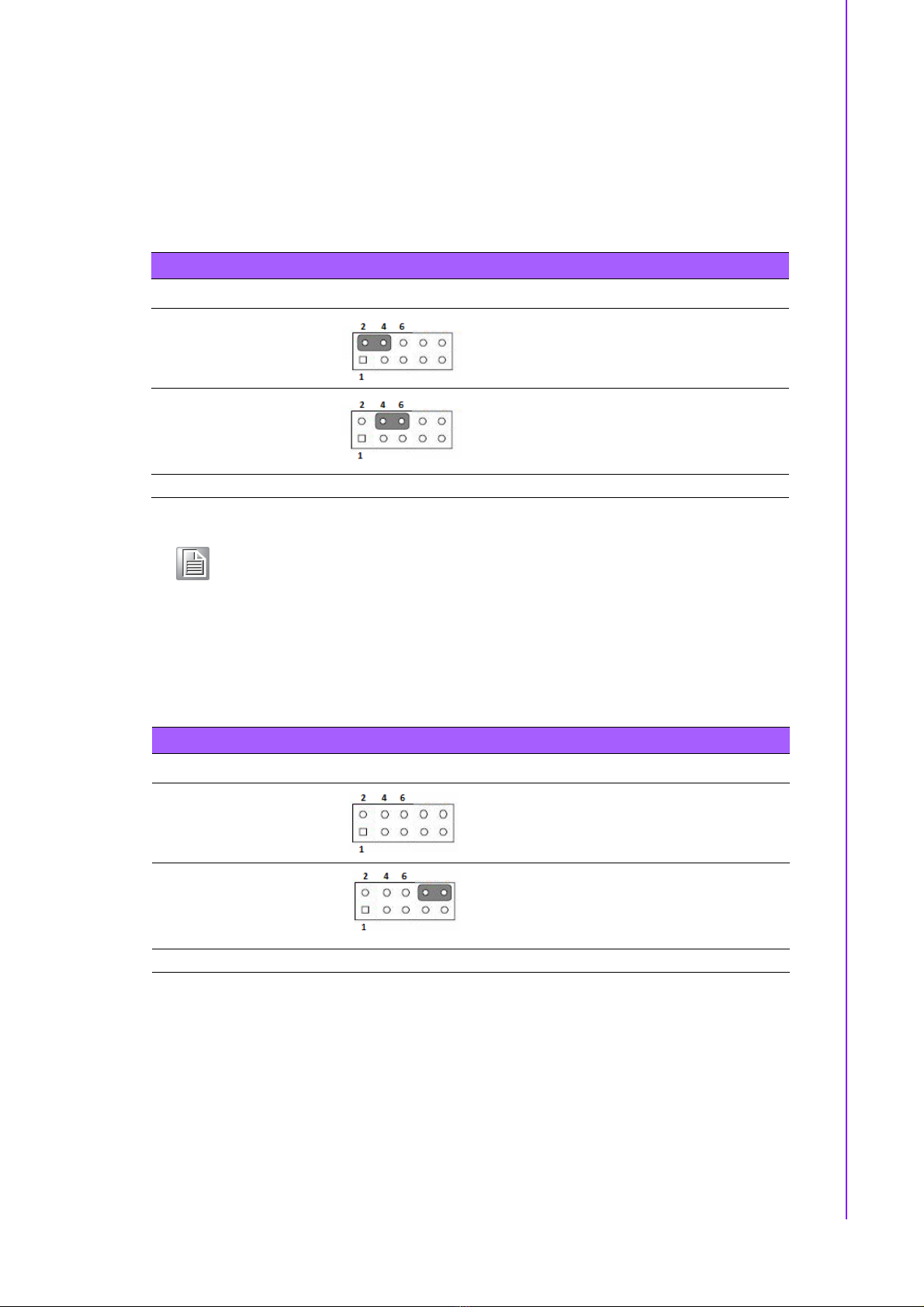

Table 1.6: COM1 RS232,RS422,RS485 selection (JCOM1MODE)
Function Setting
Set COM1 as RS-232 (Default)
Set COM1 as RS-485 half duplex
Set COM1 as RS-485/422 full duplex
1.8.6 ATX/AT Mode Selection (JPSON1)
Table 1.7: ATX/AT Mode Selection (JPSON1)
Function Jumper Setting
AT Mode
1 2 3
ATX Mode (Default)
1 2 3
1-2 closed
2-3 closed

13 SIMB-982 User Manual
Chapter 1 General Information
1.8.7 Watchdog timer output (JWDT1)
The SIMB-982 contains a watchdog timer that will reset the CPU. This feature means
the SIMB-982 will recover from a software failure or an EMI problem. The JWDT1
jumper settings control the outcome of what the computer will do in the event the
watchdog timer is tripped.
Table 1.8: Watchdog timer output (JWDT1)
Function Jumper Setting
NC
*Reset
*default setting
Note! The interrupt output of the watchdog timer is a low level signal. It will be
held low until the watchdog timer is reset.
2-4 closed
4-6 closed
1.8.8 HW Monitor Alarm (JOBS1)
Close: enable OBS alarm, Open: disable OBS alarm
Table 1.9: HW Monitor Alarm (JOBS1)
Function Jumper Setting
Disable OBS alarm
*Enable OBS alarm
*default setting
8-10 open
8-10 closed

SIMB-982 User Manual 14
1.9 System Memory
SIMB-982 has two 288-pin memory sockets for DDR4 1866/2133 MHz memory mod-
ules with maximum capacity of 32 GB (Maximum 16 GB for each DIMM). SIMB-982
only supports non-ECC DDR4 memory modules.
Please note that SIMB-982 does NOT support registered DIMMs (RDIMMs).
1.10 Memory Installation Procedures
To install DIMMs, first make sure the two handles of the DIMM socket are in the
“open” position. i.e. The handles lean outward. Slowly slide the DIMM module along
the plastic guides on both ends of the socket, and then press the DIMM module right
down into the socket, until you hear a click. This is when the two handles have auto-
matically locked the memory module into the correct position of the DIMM socket. To
remove the memory module, just push both handles outward, and the memory mod-
ule will be ejected by the mechanism in the socket.
1.11 Cache Memory
The SIMB-982 supports a CPU last Level Cache.
The built-in second-level cache in the processor yields much higher performance
than conventional external cache memories.
1.12 Processor Installation
The SIMB-982 is designed for LGA1151, Core i7/Core i5/Core i3, Pentium,
Celeron processor.

15 SIMB-982 User Manual
Chapter 1 General Information

Chapter 2
2Connecting
Peripherals

SIMB-982 User Manual 17
2.1 Introduction
You can access most of the connectors from the top of the board as it is being
installed in the chassis. If you have a number of cards installed or have a packed
chassis, you may need to partially remove the card to make all the connections.

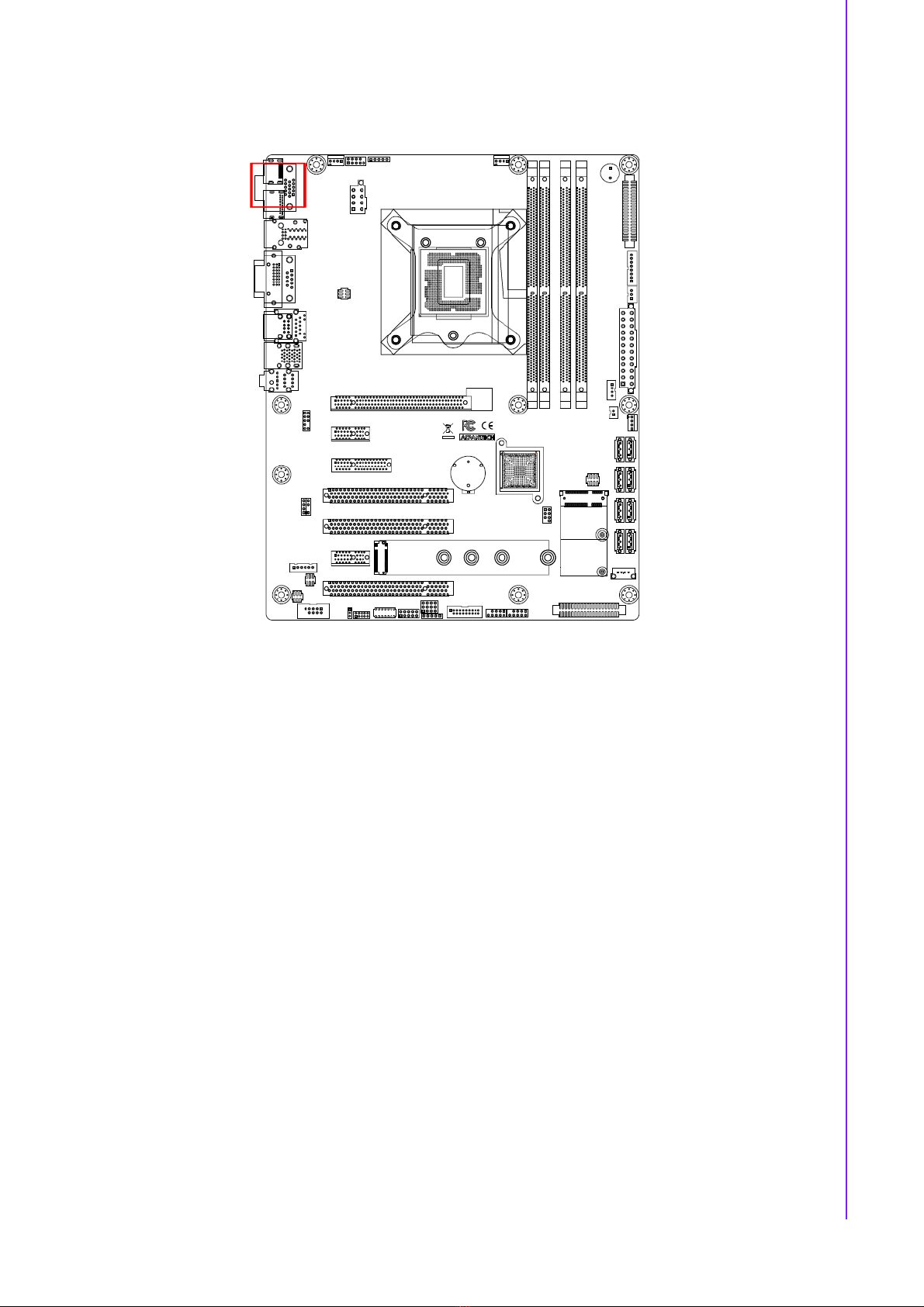

2.2 USB Ports (LAN12/LAN3_USB910/USB3_1234
/USB3_56/USB1112/USB1314)
SIMB-982 provides up to nine USB ports for H110 sku and thirteen USB ports for
Q170 Sku. The USB interface complies with USB Specifi-cation Rev. 2.0 and Rev.
3.0 supporting transmission rates up to 625 Mbps and is fuse protected. The USB
interface can be disabled in the system BIOS setup.
The SIMB-982 is equipped with two high-performance 1000 Mbps Ethernet LAN
adapter, which are supported by all major network operating systems. The RJ-45
jacks on the rear panel provides for convenient LAN connection.
Table 2.1: LAN LED Indicator
LAN Mode LAN Indicator
LAN1 indicator
LED1 (Left) off for mal-link; Link (On) / Active (Flash)
LED2 (Right) 100 Mbps (On) / 10 Mbps (Off)
LED2 (Right) 1000 Mbps (On)
LAN2 indicator
LED1 (Left) off for mal-link; Link (On) / Active (Flash)
LED2 (Right) 100 Mbps (On) / 10 Mbps (Off)
LED2 (Right) 1000 Mbps (On)
LAN3_USB910
LAN12
USB3_1234
USB1112
USB1314
USB3_56
USB7

18 SIMB-982 User Manual
Chapter 2 Connecting Peripherals
2.3 VGA connector (VGA1)
SIMB-982 includes VGA interfaces that can drive conventional VGA displays. VGA is
a standard 15-pin D-SUB connector commonly used for VGA.

SIMB-982 User Manual 19
2.4 Serial Ports and DVI-D Connector
(COM1~COM10/DVI-D1)
SIMB-982 supports 10 serial ports. COM1 supports RS-232/422/485 function and
RI/12V/5V switching by jumper selection. COM2 supports RS-232 function and
RI/12V/5V switching by jumper selection. COM3~10 supports RS-232.
The IRQ and address ranges for both ports are fixed. However, if you want to disable
the port or change these parameters later, you can do this in the system BIOS setup.
Different devices implement the RS-232 standards in different ways. If you have
problems with a serial device, be sure to check the pin assignments for the connec-
tor.
COM1
COM3~6
COM7~10
COM2
DVI-D1
SIMB-982 includes COM and DVI interfaces that can drive conventional COM and
DVI-D displays. COM2 is a standard 9-pin connector support RS-232. Pin
assignments for COM2 and DVI connectors are detailed in Appendix A.
