Advent DV1418A User manual

SERVICE MANUAL
15” TV+DVD COMBO
（MODEL：DV1418A）
CHASSIS :PHILIPS UOC TDA9377 + DS-C005B
DOCUMENT : SM-05PM
DATE :5/30/2004
This manual is the latest at the time of print, and does not include the modification
which may be made after the printing, by the constant improvement of product.

.
CONTENTS
1. Safety precautions……………………………………………………………..……………3
2. TV block diagram……………………………………………………………………..…….4
3. Replacement of memory IC………………………………………………………….……5
4. Service adjustment……………………………………………………………..…………...5
5. ICs functional description…………………………………………………………………8

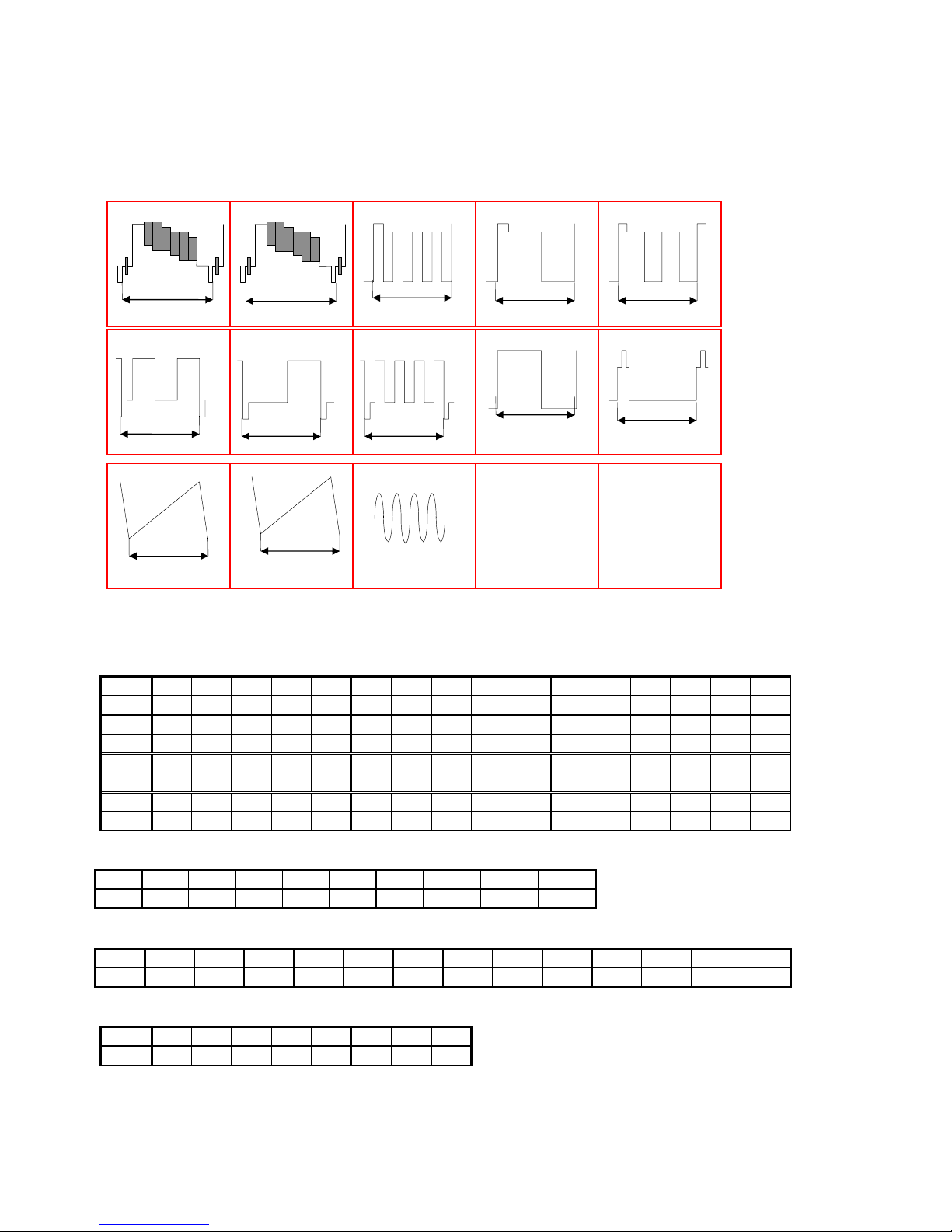

6. Test point waveform………………………………………………………………………10
7. All ICs voltages……………………………..……………………………………………….10
8. Purity / convergence adjustment………………………………………………………11
9. DVD maintenance…………………………………………………………………………13
10. List of Parts ………………………………………………………………………….…….14

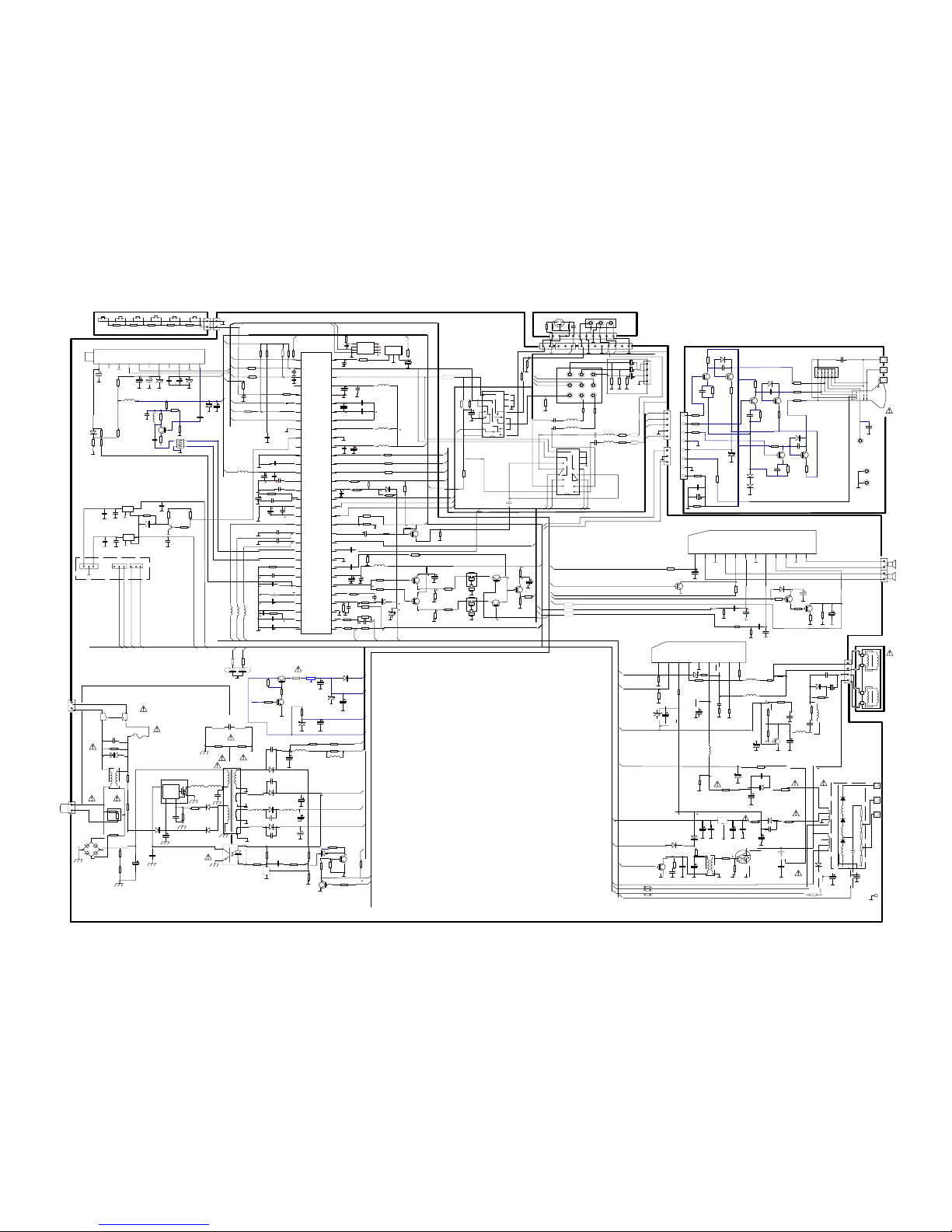

11. Circuit diagram………………………………………………………………………Attached
2

.
1. SAFETY PRECAUTIONS
1. The design of this product contains special hardware, many
circuits and components especially for safety purposes. For
continued protection, no changes should be made to the
original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to those
used in the original circuits. Service should be performed by
qualified personnel only.
2. Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void the
manufacturer’s warranty and will further relieve the
manufacturer of responsibility for personal injury or property
damage resulting therefrom.
3. Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics
are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by using
replacement components rated for higher voltage, wattage,
etc. Replacement parts which have these special safety
characteristics are identified in the parts list of Service
manual. Electrical components having such features are
identified by shading on the schematics and by ( ！) on
the parts list in Service manual. The use of a substitute
replacement which does not have the same safety
characteristics as the recommended replacement part
shown in the parts list of Service manual may cause shock,
fire, or other hazards
4. Don’t short between the LIVE side ground and
ISOLATED (NEUTRAL) side ground or EARTH side
ground when repairing. Some model’s power circuit is
partly different in the GND. The difference of the GND is
shown by the LIVE: ( ) side GND, ISOLATED
(NEUTRAL): ( ) side GND and EARTH: ( ) side GND.
Don’t short between the LIVE side GND and ISOLATED
(NEUTRAL) side GND or EARTH side GND and never
measure with a measuring apparatus (oscilloscope etc.) the
LIVE side GND and ISOLATED (NEUTRAL) side GND or
EARTH side GND at the same time. If above note will not be
kept, a fuse or any parts will be broken.
5. If any repair has been made to the chassis, it is
recommended that the B1 setting should be checked or
adjusted (See ADJUSTMENT OF B1 POWER SUPPLY).
6. The high voltage applied to the picture tube must conform to
that specified in Service manual. Excessive high voltage can
cause an increase in X-Ray emission, arcing and possible
component damage, therefore operation under excessive
high voltage conditions should be kept to a minimum, or
should be prevented. If severe arcing occurs, remove the AC
power immediately and determine the cause by visual
inspection (incorrect installation, cracked or melted high
voltage harness, poor soldering, etc.). To maintain the proper
minimum level of soft X-Ray emission, components in the
high voltage circuitry including the picture tube must be the
exact replacements or alternatives approved by the
manufacturer of the complete product.
7. Do not check high voltage by drawing an arc. Use a high
voltage meter or a high voltage probe with a VTVM.
Discharge the picture tube before attempting meter
connection, by connecting a clip lead to the ground frame
and connecting the other end of the lead through a 10kΩ2W
resistor to the anode button.
8. When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence of
overheating should be replaced. Always use the
manufacturer’s replacement components.
9. Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an isolation
check on the exposed metal parts of the cabinet (antenna
terminals, video/audio input and output terminals, Control
knobs, metal cabinet, screw heads, earphone jack, control
shafts, etc.) to be sure the product is safe to operate without
danger of electrical shock.
10. The surface of the TV screen is coated with a thin film which
can easily be damaged. Be very careful with it when handle
the TV. Should the TV screen become soiled, wipe it with a
soft dry cloth. Never rub it forcefully. Never use any cleaner
or detergent on it.
(1) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand a
voltage of 3000V AC (r.m.s.) for a period of one second.
(…Withstand a voltage of 1100V AC (r.m.s.) to an appliance
rated up to 120V, and 3000V AC (r.m.s.) to an appliance
rated 200V or more, for a period of one second.)
This method of test requires test equipment not generally
found in the service trade.
(2) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
line isolation transformers during this check). Using a
“Leakage Current Tester”, measure the leakage current from
each exposed metal part of the cabinet, particularly any
exposed metal part having a return path to the chassis, to a
known good earth ground (water pipe, etc.). Any leakage
current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
●Alternate Check Method
Plug the AC line cord directly into the AC outlet ( do not use
a line isolation transformer during this check.). Use an AC
voltmeter having 1000 ohms per volt or more sensitivity in
the following manner. Connect a 1500Ω10W resistor
paralleled by a 0.15µF AC-type capacitor between an
exposed metal part and a known good earth ground (water
pipe, etc.). Measure the AC voltage across the resistor with
the AC voltmeter. Move the resistor connection to each
exposed metal part, particularly any exposed metal part
having a return path to the chassis, and measure the AC
voltage across the resistor. Now, reverse the plug in the AC
outlet and repeat each measurement. Any voltage measured
must not exceed 0.75V AC (r.m.s.). This corresponds to
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.).
This corresponds to 0.2mA AC (r.m.s.)
3

.
4

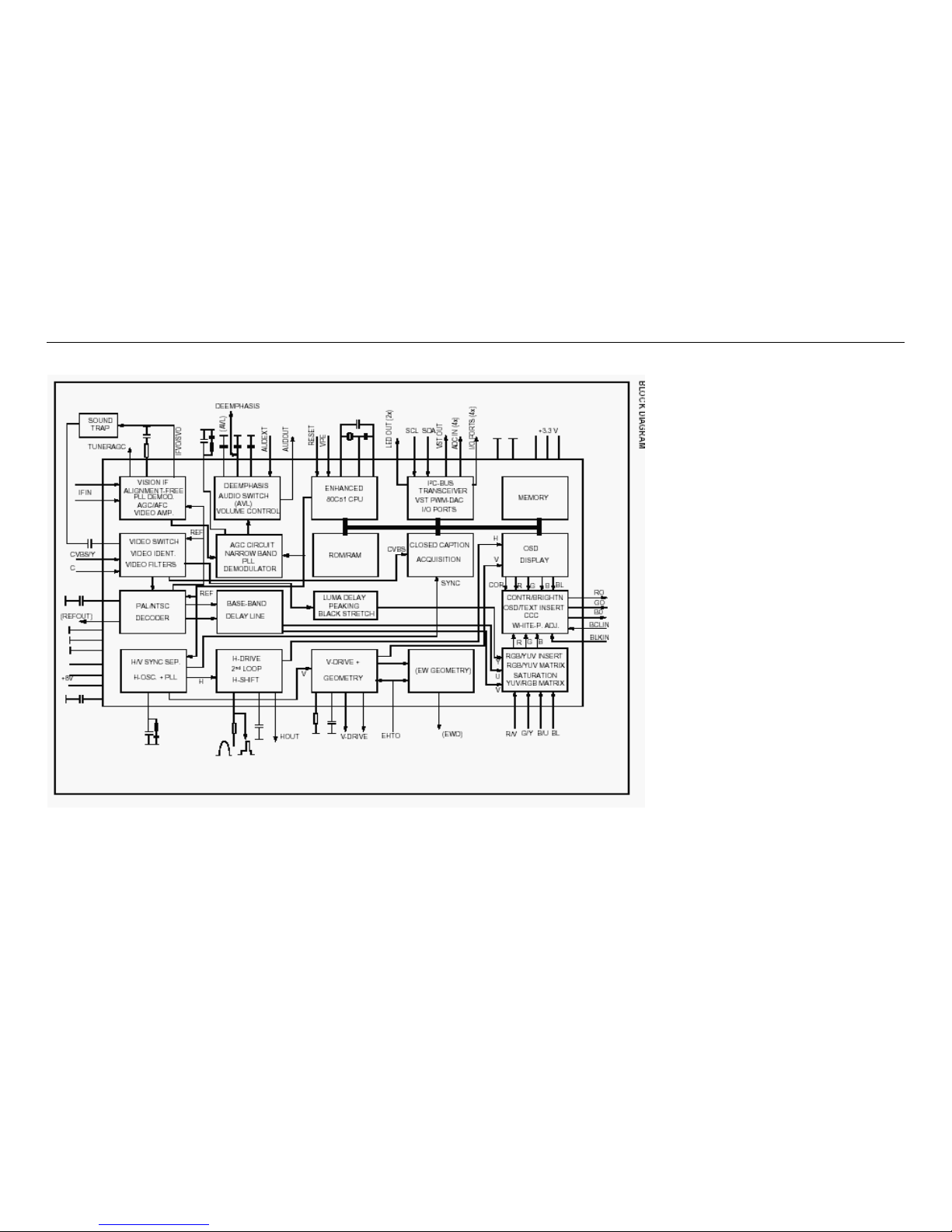

2. Block diagram TDA9377 PS/N2 series with mono intercarrier sound demodulator

5
3. REPLACEMENT OF MEMORY IC
1. MEMORY IC.
This TV uses memory IC. In the memory IC are memorized data for correctly operating the video and deflection
circuits.
2. PROCEDURE FOR REPLACING MEMORY IC
(1) Standby off
Switch the power off and unplug the power cord from AC outlet.
(2) Replace IC
Be sure to use memory IC written with the initial data values.
(3) Standby On
Plug the power cord into the AC outlet and switch the power on.
(4) Check and set SYSTEM default value:
1) Press “MUTE”
Æ“CALL” Æ“-\--“ Æ“CALL” Æ“MUTE” buttons in sequence to enter into factory
status.
2) If the memory IC haven’t been written with the initial data, press [Program+] / [Program-] to select item
INIT and press [VOLUME+] / [VOLUME-] to start initialize memory IC.
3) Check the setting value of the SYSTEM default value of Table below. If the value is different, select
items by [Program+] / [Program-] keys and set value by [VOLUME+] / [VOLUME-] keys.
4) Press “EXIT” button to return to the normal screen.
4. SERVICE ADJUSTMENT
Specific operation: use remote controller
Press “MUTE” Æ“CALL” Æ“-\--“ Æ“CALL” Æ“MUTE” buttons in sequence to enter into factory mode.
Press [Program+] / [Program-] to select items and press [VOLUME+] / [VOLUME-] key, to make data adjustment
of corresponding factory menus.
Press “EXIT” key to exit factory mode.
Focus adjustment
1. Receive a crosshatch signal.
2. While watching the screen, adjust the FOCUS VR on the FBT to make the vertical and horizontal lines as
fine and sharp as possible.
Geometrical adjustment
Receive NTSC standard complete pattern signal.
Adjustment steps：
a) Adjust VSL, to the centre horizontal line just appears from half bottom shadow.
b) Adjust VAM, to get 92% of vertical picture contents would be displayed on CRT.
c) Adjust VSH, the centre horizontal line corresponds to CRT vertical centre.
d) Adjust SCL, to the linearity of P card field is in proper condition.
e) Adjust HSH, to get the picture horizontal centre correspond to CRT horizontal centre.
Receive NTSC signal and repeat above adjustment.
AGC Adjustment
Receive 60dBµ (1mV) VH colour bar pattern signal.
Select TOP item.
Adjust value, to noise reduce gradually and just disappeared point.
CRT cut off and white balance adjustment
a) CRT cut off adjustment
1. Select item VG2B, then adjust value to 42.
2. PRESS “0” key, when the screen shows”VG2” adjust the SCREEN control on Fly back transformer to
make the screen show alternating flashing characters of “INSIDE HIGH INSIDE LOW”.
b) White balance adjustment
1. Receive a Black and White pattern.
2. Adjust WRP, WRG, WRB items to get colour temperature 9300K ±3 JND.

Adjustable Items
Direct access key Items Description Preset Remark
“1” 5/6HSH Horizontal shift ON A
“2” 5/6VSL Vertical slop 21 A
5/6VAM Vertical amplitude 45 A
5/6SCL S-correction 20 A
5/6VSH Vertical shift 38 A
5/6VOF OSD Vertical offset 38 A
HOF* OSD Horizontal offset 20 A
“3” RED Black level offset R 32 A
GRN Black level offset G 32 A
WPR White point R 30 A
WPG White point G 26 A
WPB White point B 38 A
YDAV Y-Delay for PAL 7
“4” TOP AGC Take-over point 32 A
VOL Volume 36
9874 Output level of TDA9874A 18
AVLT TDA9874A AVL delay time
0=OFF, 1=2s, 2=4s, 3=8s
1
9860 Sub-volume of TDA9860/59 59
IFFS IF 2 = 38.9MHz, 3 = 38MHz 2
HDOL Cathode drive level 5
AGC IF AGC speed 1
VG2B VG2 Brightness 42
“5” Picture preset 1
0CON Listen: Contrast 0 A
0BRI Listen: Brightness 0 A
0COL Listen: Colour 50 A
0SHP Listen: Sharpness 50 A
1CON Soft: Contrast 45 A
1BRI Soft: Brightness 45 A
1COL Soft: Colour 50 A
1SHP Soft: Sharpness 50 A
“6” Picture preset 2
2CON Standard: Contrast 75 A
2BRI Standard: Brightness 50 A
2COL Standard: Colour 50 A
2SHP Standard: Sharpness 60 A
3CON Dynamic: Contrast 85 A
3BRI Dynamic: Brightness 60 A
3COL Dynamic: Colour 60 A
3SHP Dynamic: Sharpness 80 A
NOTE: THE ITEMS WITH REMARK “A” IS ADJUSTABLE DATA.
6

Optional data
1. OP1
Bit Function Description Preset Remark
Bit 7 RESERVE 1 = Enable 0 EA
Bit 6 AV 2 1 = Enable 1 EA
Bit 5 Halftone 1 = Enable 1 EA
Bit 4 RGB 1 = Enable 0 EA
Bit 3 DVD 1 = Enable 1 EA
Bit 2 Comb filter 1 = Enable 0 EA
Bit 1 SVHS 1 = Enable 1 EA
Bit 0 AV 1 1 = Enable 1 EA
2. OP2
Bit Function Description Preset Remark
Bit 7 Ident sensitive PAL 1=21dBµV 0=26dBµV 0 EA
Bit 6 TILT 1=Enable 0 EA
Bit 5 OSO Translucence OSD manual 1 EA
Bit 4 FSL 1=Enable 0 EA
Bit 3 RESERVE 1=QD 0=HF 0 EA
Bit 2 FMWS 1=Enable 1 EA
Bit 1 RESERVE 1=Enable 0 EA
Bit 0 AVL 1=Enable 1 EA
3. OP3
Bit Function Description Preset Remark
Bit 7 TDA9377 1=TDA9377 0=TDA9378 1 EA
Bit 6 16:9 1=Enable 0 EA
Bit 5 RESERVE 0 EA
Bit 4 RESERVE 0 EA
Bit 3 YPbPr 1=YPbPr 0=Yuv 1 EA
Bit 2 Blue/Black back 1=Blue Back 0=Black Back 0 EA
Bit 1 RESERVE 0 EA
Bit 0 Woofer 1=Enable 0 EA
4. OP4
Bit Function Description Preset Remark
Bit 7 RESERVE 1 = Enable 0 EA
Bit 6 VCHIP 1 = Enable 1 EA
Bit 5 RESERVE 1=Enable 0 EA
Bit 4 Soft program change 1=Enable 0 EA
Bit 3 RESERVE 1=YPbPr 0=Yuv 0 EA
Bit 2 RESERVE 1=Blue Back 0=Black Back 0 EA
Bit 1 RESERVE 1=Enable 0 EA
Bit 0 RESERVE 1=Enable 0 EA
5. OP5
7
Bit Function Description Preset Remark
Bit 7 Auto character 1 = Enable 0 EA
Bit 6 FREQ display 1 = Enable 1 EA
Bit 5 AV 1=Enable 0 EA
Bit 4 PAL 1=Enable 0 EA
Bit 3 Portuguese 1= Enable 0 EA
Bit 2 Spanish 1=Enable 1 EA
Bit 1 French 1=Enable 1 EA
Bit 0 English 1=Enable 1 EA

6. OP6
Bit Function Description Preset Remark
Bit 7 RESERVE 0 EA
Bit 6 RESERVE 1 = Enable 1 EA
Bit 5 SOFT CHANGE AV 1 = Enable 1 EA
Bit 4 LISTEN 1 = Enable 1 EA
Bit 3 INNER DVD 1 = Enable 1 EA
Bit 2 ZOOM 1 = Enable 0 EA
Bit 1 9860 1 = Enable 0 EA
Bit 0 Menu manner 1 = caption in top 0 = caption in bottom 1 EA
Note：Don’t adjust any OPTION items, please inform the engineer about any change.
5. ICs functional description
1. N501 UOC TDA9377
8
SYMBOL PIN DESCRIPTION
STAND BY output. 1 In STAND BY mode, low level (Power OFF).
For Power ON this pin will be high.
SCL 2 I2C-bus clock line
SDA 3 I2C-bus data line
TUNING 4 tuning Voltage (Vt) PWM output
KEY 5 Control keys input
SYSTEM 6 TV system control
VOL 7 Sound Volume control PWM output
MUTE 8 Sound mute output
VSSC/P 9 Digit ground for µ-controller core and periphery
CTL 10 DVD power control
VACANT 11 Vacant
VSSA 12 Analog ground of digital ground of TV-processor
SECPLL 13 Internally connected
VP2 14 2nd supply voltage TV-processor(+8V)
DECDIG 15 decoupling digital supply of TV-processor
PH2LF 16 Phase-2 filter
PH1LF 17 Phase-1 filter
GND3 18 Ground 3 for TV-processor
DECBG 19 Band gap decoupling
AVL/EWD 20 Automatic volume levelling
VDRB 21 Vertical drive B output
VDRA 22 Vertical drive A output
IFIN1 23 IF input 1
IFIN2 24 IF input 2
IREF 25 Reference current input
VSC 26 Vertical sawtooth capacitor
TUNER AGC 27 Tuner AGC output
AUDEEM/SIFIN1 *1 28 Audio deemphasize or SIF input
DECSDEM/SIFIN2 29 Decoupling sound demodulator
GND2 30 Ground 2 for TV processor
SNDPLL/SIFAGC *1 31 Narrow band PLL filter
AVL 32 Automatic Volume Levelling
HOUT 33 Horizontal output
FBISO 34 Flyback input/sandcastle output
AUDEXT 35 External audio output
EHTO 36 EHT/over voltage protection input
PLL IF 37 IF-PLL loop filter
IFVO/SVO 38 IF video output / selected CVBS output
VP1 39 supply voltage TV processor
CVBS INT 40 internal CVBS input
GND1 41 ground for TV processor
CVBS/Y 42 CVBS/SVHS(Y) input

CHROMA 43 SVHS (C) input
AUDOUT 44 Audio output
INSSW2 45 YUV insertion input
R2/VIN 46 R input / V (R-Y) input / PR input
G2/YIN 47 G input / Y input
B2/UIN 48 B input / U (B-Y) input / PB input
BCLIN 49 Beam current limiter input
BLKIN 50 Black current input
RO 51 Red output
GO 52 Green output
BO 53 Blue output
VDDA 54 Analog supply of Closed Caption decoder and digital supply of TV-processor (3.3 V)
VPE 55 Ground
VDDC 56 Digital supply to core (3.3 V)
OSCGND 57 Oscillator ground supply
XTALIN 58 Crystal oscillator input
XTALOUT 59 Crystal oscillator output
RESET 60 Ground
VDDP 61 Digital supply to periphery (+3.3 V)
P1.0/INT1 62 AV1 / AV2 mode Output.
P1.1/T0 63 AV /S-VHS mode Output.
P1.2/INT0 64 Remote control signal input.
Note
Pin TV SVHS AV1 AV2
62 1 0 0 1
63 1 1 0 0
2. N902 24C08/PCF8598
PIN Function
1 GND
2 GND
3 Upper resistance
4 GND
5 SDA data wire
6 SCL clock wire
7 GND
8 +5V Power
3. N601: Sound power amplify (AN7522N)
Symbol PIN Function Symbol PIN Function
Vcc 1 Power supply GND 7 ground
Out 1 (+) 2 Ch 1 output (+) In 2 8 Ch 2 input
GND(out 1) 3 Ch 1Ground VOL 9 Volume Control
Out 1 (-) 4 Ch 1 output (-) Out 2 (-) 10 Ch 2 output (-)
Standby 5 Mute input GND(out 2) 11 Ch 2 Ground
In 1 6 Ch 1 input Out 2 (+) 12 Ch 2 output (+)
4. N301: Vertical output (TDA8357A)
Symbol PIN Function Symbol PIN Function
INV IN 1 Input PUMP UP 6 Pump up power
INV IN 2 Input V OUT 7 Vertical output
Vcc 3 Pump up power V PRO 8 Vertical protection
V OUT 4 Vertical output V FEEDBACK 9 Vertical feedback
GND 5 Ground
5. U101：Tuner
PIN Function PIN Function
1 AGC 7 +5V
2 vacant 8 vacant
3 Gnd 9 Vt 33V
4 SCL 10 Gnd
5 SDA 11 IF Out
6 +5V
9

6. Test point Waveforms
TDA9370 PIN38 TDA9370 PIN40
1.2Vpp
2.6Vpp
H
H
TDA9370 PIN34 TDA9370 PIN33
3.8Vpp 2.5Vpp 2.5Vpp
95Vpp
CRTKR
H
5Vpp
0.9Vpp
TDA9370 PIN53
TDA9370 PIN51 TDA9370 PIN52
H HH
1.3Vpp
H H
1Vpp
TDA9370 PIN59
0.8Vpp
V
TDA9370 PIN22
CRTKB
CRTKG
95Vpp
95Vpp
H H
V
TDA9370 PIN21
7. IC voltages
TDA9377
PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
V 0 3.8 3.6 3.3 3.5 4.4 5.1 1.8 0 0.18 0.17 0 2.3 8 5 3
PIN 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
V 4 0 4 0.5 0.7 0.8 1.9 1.9 3.9 3.8 1.6 3.2 2.3 0 2.3 0.2
PIN 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
V 0.5 0.3 0 1.7 2.4 3.4 8 3.9 0 3.3 0 3.6 1.4 2.5 2.5 2.5
PIN 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
V 1.9 5.0 2.4 2.4 2.4 3.1 0 3.2 0 1.8 1.7 0 3.2 5.1 3.3 5
TDA8357
PIN 1 2 3 4 5 6 7 8 9
V 0.8 0.7 16 6.9 0 43 7.2 0.3 7.2
AN 7522N
PIN 1 2 3 4 5 6 7 8 9 10 11 12
V 10 4.4 0 4.4 2.75 1.4 0 1.4 0.35 4.4 0 4.4
24C08/PCF8598
PIN 1 2 3 4 5 6 7 8
V 0 0 5.1 0 3.2 0 0 5.1
10

8. PURITY / CONVERGENCE ADJUSTMENT
PURITY ADJUSTMENT
1. Demagnetize CRT with the demagnetizer.
2. Loosen the retainer screw of the deflection yoke.
3. Remove the wedges.
4. Input a green raster signal from the signal generator,
and turn the screen to green raster.
5. Move the deflection yoke backward.
6. Bring the long lug of the purity magnets on the short
lug and position them horizontally. (Fig2)
7. Adjust the gap between two lugs so that the GREEN
RASTER will come into the centre of the screen.
(Fig. 3)
8. Move the deflection yoke forward, and fix the position
of the deflection yoke so that the whole screen will
become green.
9. Insert the wedge to the top side of the deflection yoke
so that it will not move.
10. Input a crosshatch signal.
11. Verify that the screen is horizontal.
12. Input red and blue raster signals, and make sure that
purity is properly adjusted.
CRT
WEDGE
DEFLECTION YOKE
P
4
6
P/C MAGNETS
P: PURITY MAGNET
4: 4-POLES (convergence magnets)
6: 6-POLES (convergence magnets)
Fig. 1
PURITY MAGNETS
Long lug
Short lug
Bring the long lug over the short lug an
d
p
osition them horizontally.
Fig. 2
CENTER
Fi
g
. 3
(FRONT VIEW)
GREEN RASTER
11

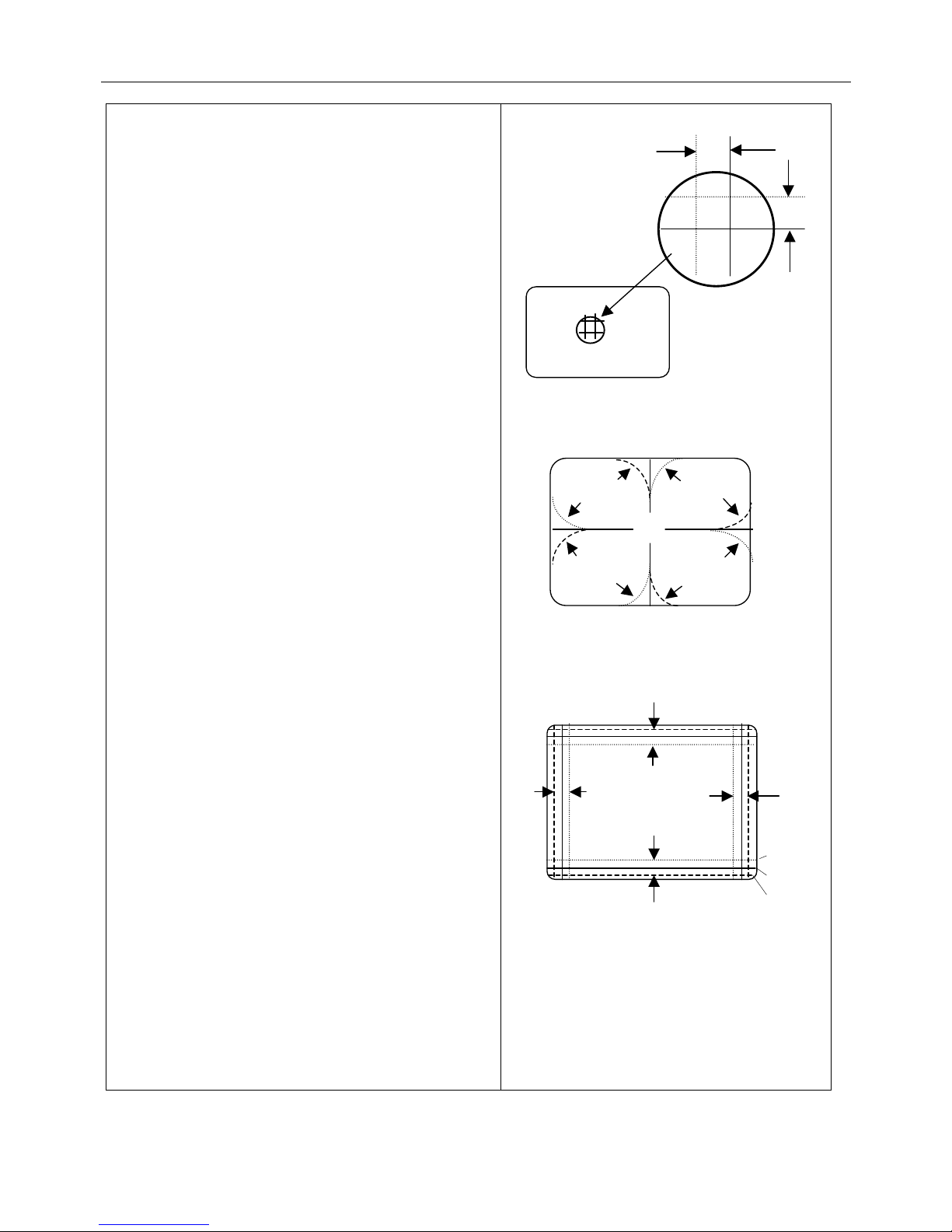

STATIC CONVERGENCE ADJUSTMENT
1. Input a crosshatch signal.
2. Using 4-pole convergence magnets overlap the red
and blue lines in the center of the screen (Fig. 1) and
turn them to magenta (red/blue).
3. Using 6-pole convergence magnets overlap the
magenta (red/blue) and green lines in the center of the
screen and turn them to white.
4. Repeat 2 and 3 above, and make the best
convergence.
DYNAMIC CONVERGENCE ADJUSTMENT
1. Move the deflection yoke up and down and overlap
lines in the periphery. (Fig. 2)
2. Move the deflection yoke left to right and overlap the
lines in the periphery. (Fig. 3)
3. Repeat 1 and 2 above, and make the best
convergence.
After adjustment, fix the wedge at the original position.
Fasten the retainer screw of the deflection yoke.
Fix the 6 magnets with glue.
(FRONT VIEW)
Fig. 1
(FRONT VIEW)
RED GREEN BLUE
BLUE
RED
GREEN GREEN
RED BLUE
BLUE GREEN RED
Fig.2
(FRONT VIEW)
RED GREEN BLUE BLUE GREEN RED
RED
GREEN
BLUE
BLUE
GREEN
RED
Fig. 3
12

13
9. DVD Part: Introduction of MTK1379 maintenance
1. Under normal power supply conditions, the maintenance plan for MT1379 mono-chip is: first the reset
circuit resets the MT1379, after the crystal oscillator circuit gave the clock signal to MT1379, MT1379 will
start the initialization check for Flash、E2PROM、SDRAM, after everything is checked to be normal, it will
start initialization check for 7Audio DAC, MT1336 and motor Driver.
2. If the all the a.m. parts are good, then MT1379 will send signal to motor Driver to drive the servo system，
pick up then to generate DVD light for collection, tracing the main shaft to check if there is any disc, and
confirm if it is CD format or DVD format disc. If the disc is in DVD format, the system will read the data
from the disc directly; if it is in CD format MT1336 will drive the CD laser to send out CD light and read the
data, the data then will be amplified through MT1336 and sent to MT1379 for data processing, released by
MPEG and resolved into video data and audio data, then they will be returned to analog signals through
VIDEO DAC、AUDIO DAC.
Decoder section
3. There is power supply, clock and reset, but the system does not work.
1）Check if all the address wires required for FLASH are exist, and if they are in normal status,
especially check if the A0~A15 of FLASH have normal signals, if there aren’t, then inspect MT1379
to see if there is faulty soldering. If there are normal signals at A0~A15, check if the address data
signal of MT1379 and SDRAM is normal. If it is normal, then check the signal at A16~A19 of
MT1379; if there are also signals, then check the 8 video data wires; it there is no signal, then
check the corresponding pins of MT1397 to see if there is any short circuit, break or faulty
soldering.
2）If all the a.m. conditions are good, but there is still no video signal output, then the filter circuit after
MT1379 shall be checked.
4. System in normal operation, but the audio has no sound.
1）Check if all the signals of DATA, MCLK, BCLK, LRCK and reset required by the Audio DAC are
exist, if there is signal missing, then check the signal line between MT1379 and Audio DAC. If the
line is connected properly, but there is no signal, then check if there is any welding problem at the
corresponding pins of MT1379. If it is still OK, it is probably the problem on MT1379 itself.
2）All the required signals are exist, while there is no audio output. Then you need to check the lower
passing amplifying circuit and the MUTE circuit at the back of Audio DAC. Also check if there is
any power supply to the Audio DAC.
3）Check if the power supply voltage required for playing is at normal level.
Servo Section
5. After the LOGO of the machine shows normally, there is no OSD display. This problem mainly is caused
by the abnormality between servo and MPEG, possible problems may be:
1）T1336 and its surrounding circuits have problems.
2) Servo part of MT1379 has problems.
6. OSD display is normal，while there is no action of servo part（feeding motor does not work, main shaft does
no turn, possible fault status are:
1) The corresponding signals giving by MT1379 to DMSO、FMSO are missing, the reason may be the
problem of MT1379 or the communication between MT1379 and motor Driver.
2) Not output from Motor Driver, the reason may be the problem on motor Driver or its corresponding
circuit.
7. Servo part in good status, while there is no pick up action（no light, no focus）
1）No light, check the power supply（power supply for pick up）, or the light producing driving circuit to see
if they are in normal status.
2）No focus, check MT1379 to see if there is signal output from FOSO、TRSO.
Secondly, check motor driver to see if there is F+、F-、T+、T-signal output.
Thirdly, check the external corresponding circuit of the motor driver to see if there is any problem.
8. All the servo part has action, while it cannot read out the disc
1）Check MT1336 if there is RF net picture output, if there isn’t, then it must be the problem of MT1336
and external surrounding circuits, it there is output, then it might the problem of MT1369 and its
surrounding circuits.
2）There is RF signal，but not in normal status，then check MT1336 and surrounding circuits.
3 ）Everything is normal, but the disc cannot be read out, check MT1369 and its surrounding circuit

4.7¦Ì
C233
331
C232
3.9K
R229
102
C231
223
C228
104
C227
10u
C230
39K
R228
222
C226
222
C225
104
C223
472
C221
15K
R226
222
C218
224
C217
224
C216
104
C220
V- P+ TV/AV
P-
V+ MENU
RB01
470
RB02
620
RB03
1K
RB05
1.8K
RB04
1.2K
C240
33
C239
33
X201
12M
OUT
GND
VCC
HS0038A
RM201
3.3K
R266
100
R210
100
R209
AV1/AV2
R208
100
A5-3.3V
B-OUT
G-OUT
IN4148
VD201
R-OUT
CUT-OFF
474
C247
Z203
4.5MHz
Z204
5.5/6.0/6.5MHz
L211
10uH
Z201
5.5MHz
Z202
5.5/6.0/6.5MHz
L210
5.6U
474
C253
IN4148
VD202
151
C249
BL
C-SVHS
V-OUT
SYSTEM
H-DRI
A7-8V
H-SYNC ABL
A5-3.3V
SYSTEM
EW-DRI
A7-8V
VD-N VD-P
HTRYG9208
LD901
180V
HEATER
CUT-OFF
B-OUT
G-OUT
3
2
1
CN503
H-DRI
C402
561
T401
AA26
C419
681
C409
622
C401
103
C408
47u
VD402
IN4004
B4-12V
A2-130V
H-SYNC
EW-DRI
VD-N
VD-P
VD402
IN4004
C422
104 C420
224
VD404
R5GU41
N401
KA7812A
C403
471
C421
100u
C426
100u
12
0.7V
C303
100u
DZ301
MTZJ22A
C402
103 C404
102
VD401
TR5GU41
C406
474
DZ402
MTZJ5.1B
VD403
ER24-06
C417 471
C418
100V 10u
HEATER
B1-185V VIDEO GT404
C414
104
VD405
TVR10G
ABL
C411
250V/22u
B2-46V
B3-18.5V
HEATER
H-OUT
V401
2SD2499
VD404
FMP-3FU
C403
22u
C404
470u
DZ401
MTZJ30D
V401 KSA614Y
C800
104
DV801
MYN15-471K
L801
SW801
5A-250V
RP803
PTC
¡£
¡£
¡£
L803
F/B
L807
F/B
C805
222
N801
VFB
VCC
4
35
1
2
SYNC
C804
392
VD809
IN4148
VD810
ERB4304
VD802
B1206
C803
473
C806
332
C801
150uF/450V
T801
4
8
9
10
12
14
15
16
17
1
N802
PC817C
C807
561
C808
100u
VD802
FFP10U60STU
A1-33V
A2-130V
C810
561
VD805
FFPF10U20STU
A3-15.7V
VD803
FFPF10U20STU
C845
561
C814
104
DZ803
KA431
A4-10.4V
¡£
¡£
C802
47u
BCK-07-DE7
R803
390
STANDBY
R848
6.2K
47
R943
C219
100u
C222
1u
C224
2.2u
1
2
3
4
5
6
7
8
16
9
10
11
12
13
14
15
R746
3.3K
16
9
10
11
12
R747
3.3K
13
14
15
A3-5V
A6-5V
C209
56
56
C208
A6-5V
A6-5V
C259
3.3K
10K
R279
.
104
C242
100uH
C241
22U
C236 104
C237
102
C234 100U
C922
100U
C255
223
C254
104
C256
104
C248
10UH
L209
47u
C252
47
R250
103
C207
22K
R274
A5-3.3V
A7-8V
ST-BY
TJC-5
CN502
TJC-3
GND
CNB01
TJC3-2Y
CNB02
TJC3-2Y
CN802
TJC1-2Y
DEGUSS
CN801
TJC1-2Y
CN401
TJC-4
2.2u
C405
10u
C250
A3-15.8V
A6-5V
4.7K
R710*
1K
R242
47u
C257
3.3K
R278 3.3K
R222 3.3K
R212 3.3K
R211 3.3K
R215
47
R216
10uH
L202
1K
R840 1K
R841
100
R230
100
R236
100
R235
100
R237
33K
R273
12K
R238
6.8K
R248
20K
R249
470
R256
470
R264
75
R265
390
R244
270K
R275
100K
R259
27K
R276
100
R245
200
R263
8.2K
R246
3.3K
R247
430
R255
180
R254
100
R252
200
R251
510
R253
47
R257
1K
R258 75
R258*
75
R718
100
R719
5.6K
R403
52.6K
R401
100
R402
3.9K
R407
390
R405
18K
R406
0.22
R409
33
R408
0.39
R407
43
R405
270
R403
10
R414
10KR810
7.5KR811
1K
R819
1.5K
R818
39K
R809
123K
R816
2.49K
R817
6.2K
R847
10K
R849
10K
R214
10K
R213
3.3M
R806 3.3M
R807
3.3M
Rx801
33K
R801
33K
R802
470K
R822
470K
R823
5
RP801
600
R805
250V/3.15A
F801
1uH
L203 1uH
L205
1uH
L204
LB3.5*6
L808 L806
LB.6*6
10uH
L208
10uH
L207
10uH
L206
TK116
L402
LX034
L401
KSC815
V803
KSC815
V206
KSC815
V209
KSC815
V208
KSR1010
V211
KSC815
V212
KSR2010
V210
KSC2331-Y
V402
21P-R
21P-G
21P-B
A7-8V
STANDBY
SCL
SDA
HEATER
B1-180V
NOTE:This diagram is onlyfor reference and subject to change without notice.
AV2-VIN
OUT
VIDEO
YCb Cr
10u
C001
10u
C002
10u
C003
CN001
TJC3-4Y
V-OUT
A0L
A0R
120
R001 120
R002
120
R003
AV1-VIN AV1-AL AV1- AR
YC
CNS01
CNT01
TJC3-10A
CN703
CN704
TJC-2A
CN200
102
CT01
75
RS01
Y-SVHS C-SVHS AV1-V AV1-AR
AV1-AL
CNS02
75
RS03
100
RT02
1
2
MUTE
1
4
5
8
1
2
3
4
VIDEO
16.5
A6-5V
SDA SCL
N702 HEF4053
V1
V2
H2
H1
1N4148
VD816
MTZ4.7B
DZ205
Wp
NC
A2
VSS
VDD
PTC
SCL
SDA
N202
24C08
MUTE
CN610
CN603
B+SCL SDA
AGC
9
GNDBT
11
IF
1083154672
TU101
TEDE9-280A
22U
C107
104
C202 C201
10u
KA33V
DZ201
A1-33V
220U
C102 MTZJ5.1B
DZ102
0.22U
C101
12K
R261
1N4148
VD217
9.1K
R260
100
R227
9.1K
R262
C214
104
33
R110
10uH
L102
SDA
SCL
SPEA
K
SPEA
K
L809 101 100R812
L809 101
INPUT
INPUT
2
VCC
3
OUT
4
GND
5
VFB
6
OUT
7
VO
8
VI
9
TDA8357
N301
1W 1
R415
22u
C304
10UH
L306
MTZJ15C
DZ303
A?
C306
1.5
R308
1W 10R302
12k
R311
12k
R314
1.8K
R313
1.8K
R312
1.3
R305
L305
10UH
1.5K
R310
1W 3.9
R315
2W 0.68
R306
100K
R303
22UH
L304
2W 390
R307
EWD
DEC.BG
PH1.LF
GND3
PH2.LF
DECD/G
SEC.PLL
VSSA
CTL
BAND
VSSC/P
VOL
MUTE
SYSTEM
KEY
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
47
48
49
50
51
52
53
54
55
56
57
58
59
60
VP2
46
23
24
25
26
27
28
29
30
31
32
45
33
34
39
40
41
42
35
36
37
38
43
44
H.OUT
F.B.L.SO
AUO.EXT
EHTO
PLL.IF
IF.VO/SVO
VP1
CVPS.INT
GND1
CVBS/Y
CHROMA
AUD.OUTV.D RB
V.BRA
IF.IN1
IF.IN2
I.REF
V.S.C.
AGC
AV.DEEM
DECS.DEM
GND2
SND.PLL
AVL
RESET
XTAL.OUT
XTAL.IN
OSC.GND
VDD.C
VPE
B.OUT
G.OUT
INSS.W2(BL)
R.OUT
BLK.IN
BCL.IN
B2/U.IN
G2/Y.IN
R2/V.IN
VDD.A
VT
SDA
SCL
STANDBY
1
2
3
461
62
63
64
INT.REM
AV/SVHS
AV1/AV2
VDDP
TDA9370N201
0.18
R815
1000u
C610
A4-10.4V
VCC
1
OUT2
2
GND
3
OUT2
4
MUTE
5
INPUT
6
GND
7
INPUT
8
VOL
9
OUT1
10
GND
11
OUT1
12
N601
AN7522N
539
V622
KSC815
V621
KSA539
v620
1.8K
R313
1.8K
R313
1.8K
R313
56K
C612
1U/50V
C604
1UF/50V
C611
472
C603
472
POWER
VD403
ER24-06
A3-15.7V
10K
R622 C403
22u
C403
22u
1W 18
R416
ABL
10U
C246
10K
R243
v213
100K
R277 R262*
4.7K
C740
1UF
224
C725
10u
L707
220
R707
A1R
v04
v03
VOL 12k
R606 2.2k
R606
2.2k
R611
12k
R610
220
R704
220
R703
10U
L703
10U
L704
224
C722
224
C727
A3-15.8
FO
SC
HV
TO CRT
TO CRT PCB SCREEN & FOCUS
8
9
6
7
1
4
5
3
10 11
B+
SC
FO
HV
46
BSC25-0284G
T444
AV1/AV2
C811
2200UF
C846
1000UF
18
19
¡£
VD806
FFPF10U20STU
C847
561
C848
1000UF
1
2
3
4
5
6
7
8
16
9
10
11
12
15
16
9
10
11
12
13
14
15
N703
HEF4052
AV/SVHS
2
R742
10
CVBS/Y
CVBS/Y
75
R715
224
C706
224
C705
10u
L708
220
R708 A1L
AV2-L
AV2-R
V03
V04
223
C229
DVD-5V
1
2
34
2
10K
R833
2
R830
3.3K
2
R832
10K
2
R831
10K
V807
KA815
DZ831
IN4148
C850
224
C853
104
C854
100UF
12
34
C849
224
C851
104
C852
1000UF
12V 5V CN810
CN706 JA702
DVD-5V A3-15.8V
DVD-AL
DVD-AR
CY
SL SR
78R12
78R05
N805
N804
R-OUT
8.2
R821
15K
R861
15K
R862
10K
R860
110
R820
MTZ5.1B
DZ802
815
V806
2SB764
V805
C819
100UF
C829
100UF
7809
L209
IN4004
A3-14.73V
B4-9V
A6-5V
POWER
N802 A7-8V
MTZJ9.1B
DZ101
C108
47u
LCL-207
MTZJ5.1B
DZ102
220UF
C102
103
C109
2SC2216
V101
B4-9V
47
R103
D2901C
SF101
10
R104
4.7K
R105
0.01
C111
2.2K
R102
470
R106
1uH
L101
C109
VD811~VD814
TRM11C
CN501
GT501 1P
GT502 1P
5
6
7
8
FO
SC
HV
C508
10u
C503
103
CRT
A34AGT13X53
C502
222
1.8K
R520
1.8K
R519
1.8K
R518
68
R526
33K
R527
2W 2.8
R525
10K
R502
10K
R503
68
R526
BF422
V506
BF421
V503
471
C505
C504
331 270
R513
7.5K
R517
VD505
IS133
10K
R512
SCREEN
C612
1U/50V
BF422
V503
BF423
v504
C503
471
C507
331 270
R510
7.5K
R516
VD503
ISS133
1K
R511
BF422
V501 BF423
V502
C502
471
C501
331 270
R506
7.5K
R515
VD502
ISS133
1K
R507
VD503
ERB4304
VD503
ERB4304
DZ502
MTZJ9.1B
G-OUT
B-OUT
R-OUT

LOCATION material code parts name specification QTY
DA0RF0E0100 FACTORY MODEL:HP-1586 MODEL: DV1418A
90805790 FRONT FRAME MODULE BJH3156-----Q 1
90205838 FRONT FRAME ASSEMBLY MTAA3191AC--Q 1
90205844 FRONT FRAME MTAA3197AC--Q 1
90401734 WIRING HARNESS TJC3-2A
90205861 LIGHT GUIDING COMPONET MTAA3214AC--Q 1
90600076 SCROW SJ2831-87 ST3x10F 1
90205860 touch switch MTAA3213AC--Q 1
90600200 SCROW SJ2825-87 ST3x12F 6
90205465 METAL LABEL MTAA3169AC--Q 1
90205859 cap of power switch 1
SPRING 1
94009173 SPEAKER YDT0313-8W-8Ω2
90600035 SCROW SJ2825-87 ST3X8F 8
90401336 FRONT AV WIRING HARNESS 1
90600013 SCROW SJ2825-87 ST3x12F 2
94008692 DVD MODULE MTZD7006AG--Q 1
90204545 DVD PLANK MTAC7014AA--Q 1
90100709 DVD screening cover(upper) 1
90100710 DVD screening cover(lower) 1
90600011 scrow 4
90204529 DVD COVER 1
94008041 DVD assembly C005B（32M）1
90203564 sponge piece 8
90805808 back cover module BJH3174-----Q 1
90205850 back cover assembly MTAA3203AC--Q 1
90205856 back cover MTAA3209AC--Q 1
90600076 scrow SJ2831-87 ST3x10F 1
90600037 scrow SJ2825-87 ST3X10F 2
90205866 AV brand MTAA3219AC--Q 1
90805791 SUBASSEMBLY BJH3157-----Q
90200008 HIGH VOLTAGE STRING TACH TEM101 1
90200047 round wire tach TMMOA411-1 2
90205871 DVD door MTAA3224AC--Q 1
90204560 power cord nip MTAH7005AA--Q 1
90600015 screw SJ2824-87 ST4X12F 6
90600023 screw SJ2824-87 SJ4X16F 6
90600023 screw SJ2824-87 SJ4X16F 1
90204751 laser mark 1
90100306 IRON NIP WIRE 60mm 1
90504852 upper pad MTEE3166AB--Q 1
90504853 lower pad MTEE3167AB--Q 1
CN002 90402176 wiring harness 1
90805792 BRACKET SUBASSEMBLY BJH3158-----Q
90205862 bracket MTAA3215AC--Q 1
10. List of Parts

90600037 screw SJ2825-87 ST3X10F 9
90201400 pad PS V-0 3
90200038 wire tach MTAJ1001AG--Q 1
90401101 power cord JPRVVZ202XDFQ 1
94501126 harmonic filter ECRK-513571 2
94008684 CRT module 1
94004185 PURE CRT 15' A36CPAA00X02 1
90401302 GROUDING WIRE JE215-0C3014Q 1
94500815 demagnetize winding HXC-38A 1
90100297 Screw SJ2824-87 ST5X25（φ20）4
90202438 CRT label 1
90200038 wire tach MTAJ1001AG--Q 2
90805480 packaging module 1
90204816 back cover brand 1
90505680 packaging box 1
94000105 battery 5# 2
90205727 plastic bag of manual 1
90805980 remote cotroller HTR-108（///ADVE\T）1
90205728 plastic bag of TV 1
90100027 nail 20
90500018 bag of power cord 1
90504600 service manual(english) 1
90205763 guarantee 1
90205764 label of power cord 1
90100306 iron nip wire 60mm 1
94006708 DVD module 1
94006709 DVD machine inserting assembly 1
91800930 PCB DVD0091800930 V1.0 1
R001 94100942 CARBON FILM RESISTOR RT13-1/6W-120-J------T 1
R002 94100133 CARBON FILM RESISTOR RT13-1/6W-200-J------T 1
R003 94100017 CARBON FILM RESISTOR RT13-1/6W-100-J------T 1
C001 94200008 Al ELECTROLYTIC CAPACITOR CD110-16V-10uF±20%------F 1
C002 94200008 Al ELECTROLYTIC CAPACITOR CD110-16V-10uF±20%------F 1
C003 94200008 Al ELECTROLYTIC CAPACITOR CD110-16V-10uF±20%------F 1
CN002 94300283 plug seat TJC3-4AW 1
CN001 94300384 plug seat TJC8-4AW 1
94008685 1
94008686 SUBASSEMBLY 1
91801472 PCB 1
W01 94101552 jumper wire φ0.58mm/5mm 1
SW02 94101552 jumper wire φ0.58mm/5mm 1
SW03 94101552 jumper wire φ0.58mm/7.5mm 1
RD03 94100017 CARBON FILM RESISTOR RT13-1/6W-100-J------T 1
RD05 94100033 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 1
RD06 94100017 CARBON FILM RESISTOR RT13-1/6W-100-J------T 1
CD01 94200747 Al ELECTROLYTIC CAPACITOR CD110X-16V-100µF-M-F05 1
CD02 94200988 Al ELECTROLYTIC CAPACITOR CD110X-16V-47µF-M-F05 1

CD03 94201040 ceramic capacitor CT1-F-63V-0.01µF-Z-F05 1
VD01 94400439 triode 2SA1015 1
SW10 94000480 touch switch K66T-1B-BL-6.5 1
LD01 94401957 LED TOL-30mRGdEHa 1
A1001 94004386 infrared receiver HS0038B 1
CNP01 90401317 wiring harness 450mm 1
XZ05 90402174 wiring harness 1
94008687 controller PCB module 1
94008688 machine inserting assembly 1
91801471 PCB 1
W01 94101552 jumper wire φ0.58mm/5.5mm 1
W02 94101552 jumper wire φ0.58mm/5.5mm 1
W03 94101552 jumper wire φ0.58mm/7.5mm 1
R01 94100020 CARBON FILM RESISTOR RT13-1/6W-470-J------T 1
R02 94100916 CARBON FILM RESISTOR RT13-1/6W-620-J------T 1
R03 94100023 CARBON FILM RESISTOR RT13-1/6W-1K-J------T 1
R04 94100753 CARBON FILM RESISTOR RT13-1/6W-1.2K-J------T 1
R05 94100722 CARBON FILM RESISTOR RT13-1/6W-1.8K-J------T 1
R06 94100033 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 1
R07 94100033 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 1
SW01 94000480 touch switch K66T-1B-BL-6.5 1
SW02 94000480 touch switch K66T-1B-BL-6.5 1
SW03 94000480 touch switch K66T-1B-BL-6.5 1
SW04 94000480 touch switch K66T-1B-BL-6.5 1
SW05 94000480 touch switch K66T-1B-BL-6.5 1
SW06 94000480 touch switch K66T-1B-BL-6.5 1
SW07 94000480 touch switch K66T-1B-BL-6.5 1
SW08 94000480 touch switch K66T-1B-BL-6.5 1
SW09 94000480 touch switch K66T-1B-BL-6.5 1
XZ01 90402175 wiring harness 230mm 1
94008689 AV board 1
91801470 PCB 1
R08 94101552 jumper wire φ0.58mm/7.5mm 1
R09 94101552 jumper wire φ0.58mm/7.5mm 1
ER01 94300021 earphone plug seat CKX3-3.5-2 1
AV01 94300018 AV plug seat AV3-B03 1
XZ02 94300107 plug seat TJC3-6A 1
XZ03 90402172 wiring harness TJC3-4Y（1
XZ04 90402173 wiring harness TJC3-4Y 1
94008737 coaxial module 1
CC2 94300460 coaxial jack 1
CC1 90401735 coaxial line TJC3-2A 1
91801448 PCB 1
94008690 main board module 1
94005570 preprocessing module 1314S 1
N301B 90100450 heat sink 1
N301C 94401409 IC TDA8357J 1
N301D 90600097 screw ST3X8F SJ2831-87 1

V401B 90600097 screw ST3X8F SJ2831-87 1
V401A 90100017 heat sink QHS-30184A 1
V401 94401401 triode 2SD2499 1
N801A 90100661 heat sink QHS-30184A 1
N801C 94401392 IC KA5Q0765RTH-YDTU 1
N801D 90600097 screw ST3X8F SJ2831-87 1
N802C 94400808 IC L7809CS 1
N802B 90600097 screw ST3X8F SJ2831-87 1
N802A 90100017 heat sink QHS-30184A 1
N601B 94401684 IC AN7522N 1
N601A 90100665 heat sink QHS-30184A 1
N601C 90600097 screw ST3X8F SJ2831-87 2
CN202 90401020 wiring harness TJC3-4A
N804B 94401923 IC KA278R05 1
N804A 90100443 heat sink MTBH4070BC--Q 1
N804C 90600097 screw ST3X8F SJ2831-87 2
94008691 machine inserting module 1
91801280 PCB 0091801280 V1.3 1
EY03 90100008 rivet φ1.6*3.0 1
EY04 90100008 rivet φ1.6*3.0 1
EY05 90100008 rivet φ1.6*3.0 1
EY06 90100008 rivet φ1.6*3.0 1
EY07 90100008 rivet φ1.6*3.0 1
EY08 90100008 rivet φ1.6*3.0 1
EY09 90100008 rivet φ1.6*3.0 1
EY10 90100008 rivet φ1.6*3.0 1
EY11 90100008 rivet φ1.6*3.0 1
EY12 90100008 rivet φ1.6*3.0 1
EY13 90100008 rivet φ1.6*3.0 1
EY14 90100008 rivet φ1.6*3.0 1
EY15 90100008 rivet φ1.6*3.0 1
EY16 90100008 rivet φ1.6*3.0 1
EY17 90100008 rivet φ1.6*3.0 1
EY18 90100008 rivet φ1.6*3.0 1
EY19 90100008 rivet φ1.6*3.0 1
EY20 90100008 rivet φ1.6*3.0 1
EY21 90100008 rivet φ1.6*3.0 1
EY22 90100008 rivet φ1.6*3.0 1
EY23 90100008 rivet φ1.6*3.0 1
EY24 90100008 rivet φ1.6*3.0 1
EY25 90100008 rivet φ1.6*3.0 1
EY26 90100008 rivet φ1.6*3.0 1
EY27 90100008 rivet φ1.6*3.0 1
EY28 90100008 rivet φ1.6*3.0 1
EY29 90100008 rivet φ1.6*3.0 1
EY30 90100008 rivet φ1.6*3.0 1
EY31 90100008 rivet φ1.6*3.0 1
EY32 90100008 rivet φ1.6*3.0 1
EY33 90100008 rivet φ1.6*3.0 1
EY34 90100008 rivet φ1.6*3.0 1
EY35 90100008 rivet φ1.6*3.0 1

EY36 90100008 rivet φ1.6*3.0 1
EY37 90100008 rivet φ1.6*3.0 1
EY38 90100008 rivet φ1.6*3.0 1
EY39 90100008 rivet φ1.6*3.0 1
EY40 90100008 rivet φ1.6*3.0 1
EY41 90100008 rivet φ1.6*3.0 1
EY42 90100008 rivet φ1.6*3.0 1
EY43 90100008 rivet φ1.6*3.0 1
EY44 90100008 rivet φ1.6*3.0 1
EY45 90100008 rivet φ1.6*3.0 1
EY46 90100008 rivet φ1.6*3.0 1
EY47 90100008 rivet φ1.6*3.0 1
EY48 90100008 rivet φ1.6*3.0 1
EY49 90100008 rivet φ1.6*3.0 1
EY50 90100008 rivet φ1.6*3.0 1
EY51 90100008 rivet φ1.6*3.0 1
EY52 90100008 rivet φ1.6*3.0 1
EY53 90100008 rivet φ1.6*3.0 1
EY54 90100008 rivet φ1.6*3.0 1
EY55 90100008 rivet φ1.6*3.0 1
EY56 90100008 rivet φ1.6*3.0 1
EY57 90100008 rivet φ1.6*3.0 1
EL01 90100009 rivet φ2.3*3.5 1
EL02 90100009 rivet φ2.3*3.5 1
EL03 90100009 rivet φ2.3*3.5 1
EL04 90100009 rivet φ2.3*3.5 1
EL05 90100009 rivet φ2.3*3.5 1
EL06 90100009 rivet φ2.3*3.5 1
EL07 90100009 rivet φ2.3*3.5 1
EL08 90100009 rivet φ2.3*3.5 1
EL09 90100009 rivet φ2.3*3.5 1
EL10 90100009 rivet φ2.3*3.5 1
EL11 90100009 rivet φ2.3*3.5 1
EL12 90100009 rivet φ2.3*3.5 1
EL501 90100009 rivet φ2.3*3.5 1
EL502 90100009 rivet φ2.3*3.5 1
W703 94101552 jumper wire φ0.58mm/4mm------B 1
W217 94101552 jumper wire φ0.58mm/5mm------B 1
R315 94101553 jumper wire φ0.58mm/5mm------B 1
W226 94101552 jumper wire φ0.58mm/5mm------B 1
W228 94101552 jumper wire φ0.58mm/5mm------B 1
W245 94101552 jumper wire φ0.58mm/5mm------B 1
W266 94101552 jumper wire φ0.58mm/5mm------B 1
W410 94101552 jumper wire φ0.58mm/5mm------B 1
W602 94101552 jumper wire φ0.58mm/5mm------B 1
W603 94101552 jumper wire φ0.58mm/5mm------B 1
W607 94101552 jumper wire φ0.58mm/5mm------B 1
W608 94101552 jumper wire φ0.58mm/5mm------B 1
W615 94101552 jumper wire φ0.58mm/5mm------B 1
W701 94101552 jumper wire φ0.58mm/5mm------B 1
W708 94101552 jumper wire φ0.58mm/5mm------B 2
W710 94101552 jumper wire φ0.58mm/5mm------B 1

W717 94101552 jumper wire φ0.58mm/5mm------B 1
W718 94101552 jumper wire φ0.58mm/5mm------B 1
W719 94101552 jumper wire φ0.58mm/5mm------B 1
W740 94101552 jumper wire φ0.58mm/5mm------B 1
W814 94101552 jumper wire φ0.58mm/5mm------B 1
W815 94101552 jumper wire φ0.58mm/5mm------B 1
W816 94101552 jumper wire φ0.58mm/5mm------B 1
W818 94101552 jumper wire φ0.58mm/5mm------B 1
W825 94101552 jumper wire φ0.58mm/5mm------B 1
W829 94101552 jumper wire φ0.58mm/5mm------B 1
W852 94101552 jumper wire φ0.58mm/5mm------B 1
W981 94101552 jumper wire φ0.58mm/5mm------B 1
W818A 94101552 jumper wire φ0.58mm/5mm------B 1
WSC2 94101552 jumper wire φ0.58mm/5mm------B 1
L805 94101552 jumper wire φ0.58mm/5mm------B 1
L807 94101552 jumper wire φ0.58mm/5mm------B 1
W304 94101552 jumper wire φ0.58mm/5mm------B 1
R101 94101552 jumper wire φ0.58mm/5mm------B 1
W808 94101552 jumper wire φ0.58mm/5mm------B 1
R820A 94101552 jumper wire φ0.58mm/5mm------B 1
W734 94101552 jumper wire φ0.58mm/6mm------B 1
W610A 94101552 jumper wire φ0.58mm/6mm------B 1
R232 94101552 jumper wire φ0.58mm/6mm------B 1
W720 94101552 jumper wire φ0.58mm/7.5mm------B 1
V210-V211 94101552 jumper wire φ0.58mm/7.5mm------B 1
W801 94101552 jumper wire φ0.58mm/7.5mm------B 1
W802 94101552 jumper wire φ0.58mm/7.5mm------B 1
C243 94101552 jumper wire φ0.58mm/7.5mm------B 1
C244 94101552 jumper wire φ0.58mm/7.5mm------B 1
C245 94101552 jumper wire φ0.58mm/7.5mm------B 1
C109 94101552 jumper wire φ0.58mm/7.5mm------B 1
W103 94101552 jumper wire φ0.58mm/7.5mm------B 1
W200 94101552 jumper wire φ0.58mm/7.5mm------B 1
W201 94101552 jumper wire φ0.58mm/7.5mm------B 1
W216 94101552 jumper wire φ0.58mm/7.5mm------B 1
W233 94101552 jumper wire φ0.58mm/7.5mm------B 1
W227 94101552 jumper wire φ0.58mm/7.5mm------B 1
W264 94101552 jumper wire φ0.58mm/7.5mm------B 1
W259 94101552 jumper wire φ0.58mm/7.5mm------B 1
W267 94101552 jumper wire φ0.58mm/7.5mm------B 1
W282 94101552 jumper wire φ0.58mm/7.5mm------B 1
W284 94101552 jumper wire φ0.58mm/7.5mm------B 1
W285 94101552 jumper wire φ0.58mm/7.5mm------B 1
W286 94101552 jumper wire φ0.58mm/7.5mm------B 1
W301 94101552 jumper wire φ0.58mm/7.5mm------B 1
W303 94101552 jumper wire φ0.58mm/7.5mm------B 1
W402 94101552 jumper wire φ0.58mm/7.5mm------B 1
W404 94101552 jumper wire φ0.58mm/7.5mm------B 1
W405 94101552 jumper wire φ0.58mm/7.5mm------B 1
W408 94101552 jumper wire φ0.58mm/7.5mm------B 1
W411 94101552 jumper wire φ0.58mm/7.5mm------B 1
W412 94101552 jumper wire φ0.58mm/7.5mm------B 1
