Aeffe KEELCRAB AQUAPOOL LIGHT-ONE User manual

Before the drone utilization read
carefully the informations
contained in this paper and
consult the tutorials on our
website.
Maintenance
Assistance
AQUAPOOL
LIGHT-ONE
User's Manual Tutorial
Features
DRONE
Keelcrab.com
© Aeffe srl
All the rights reserved 2022

Pads for sanitization
Read the section on page about the sanitizing pads replacement
Thank you for purchasing
AQUAPOOL LIGHT-ONE®
Automatic or Manual Cleaning
You can decide if start automatically the cleaning or driving the drone
manually using the App.
Disinfection
Brushes are efficient on every material, sanitizing pool surface.
Temperature - Water Control
The sensor constantly detects the temperature level in the pool water on the go,
favoring a constant and realistic control.
.
2
How to download application
Keelcrab APP is available on Play Store and Ios Store (free download)

INDEX
1.AQUAPOOL LIGHT-ONE®...................................................... 5
2.IMPORTANT MAINTENANCE NOTICE..................................... 6
3.USE OF KEELCRAB AQUAPOOL.................................................. 8
4.APP.................................................................................................. 9
5.HYDROSTATIC STRUCTURE.............................................................. 12
6.ORDINARY MAINTENANCE.................................................................13
6.1 Brush Replacement.................................................................................................. 14
6.2 Keelcrab Bag Cleaning ............................................................................................... 16
6.3 Keelcrab Bag Replacement........................................................................................... 18
3

INDEX
6.4 Propeller Cleaning................................................................................... 20
6.5 Rubber Brush Replacement...................................................................... 22
6.6 PVA-Wall Grip Sponges Replacement......................................................... 24
6.7 Sanitizing Pads Replacement........................................................................ 28
7.EXTRAORDINARY MAINTENANCE................................................. 29
4

1.AQUAPOOL LIGHT-ONE®
Input power: 110V / 230V (standard equipment - Schuko)
Power supply output: 24V (low voltage)
Power consumption: 320 W
Dimensions & weight: 42.5cm x 42.5cm x 32cm (h) weight 9kg
Electronics Power box dimensions: 31cm x 23cm x 13cm (h)
Cleaning capacity: 6,5 m² / min
Power cable: kevlar reinforced (120 kg traction) floating. 15 meters standard
lenght
Warranty: 500 hours or 2 years
TECHNICAL FEATURES
5
Optimal temperature for use: from 5 ° to 35 ° C.
Maximum depth of use tested by Aeffe ltd: up to 10 meters.
Suggested maintenance / ordinary service (suggested): 350 hours of use.
Second maintenance, extraordinary service (mandatory): 500 hours of
functioning.
INDICATIONS ON USE

2.IMPORTANT MAINTENANCE
NOTICE
Before each cleaning cycle: lay the cable completely (avoid knots or curls).
After the cleaning cycle: lay the drone cable before picking. Start picking it
up from the side of the drone.
During the cleaning cycle: all the cable completely in water.
Aeffe ltd is not responsible for any damage or injury that occurs at
any time and caused by poor maintenance.
To extend the life of the drone, the following maintenance operations
must be performed regularly:
1. Before and after each cleaning cycle, rinse the drone, brushes with fresh
water, the internal section, the wall grip sponges, the shaft and the propeller.
2. Store the drone in a dry and sheltered place.
3. Power cable
6

2.IMPORTANT MAINTENANCE
NOTICE
IMPORTANT:
In case of non-execution of the ordinary maintenance as
mentioned in the previous points, Aeffe ltd will not be held
responsible for any future damage or injury to consumables
as well as mechanical, electronic or power elements.
7

3.USE OF AQUAPOOL
LIGHT-ONE®
Lay the cable along its entire length.
Connect the electronics box to a 220/110v power source.
Turn on the robot by turning the on/off lever to “ON”.
Immerse the drone into the water using the handle on the back
of the body as far as possible. Address the drone using the hand
so that the brushes are facing towards the vertical wall of the
pool.
To prevent the cable from stopping cleaning process from one end of
the pool to the other, calculate the distance between the socket
and the point of the pool further away.
8

9
2) Control options
Switch between manual or automatic mode. In case of automatic mode
choose between 1,5 hour or 3 hours cleaning.
Name: KEELCRAB - Password: KEELCRAB
1) WI-FI
- Open Wifi settings and connect:
- Open App and tap on "Wifi Connect"
- Check IP server that must correspond to: 192.168.4.1
3) Joystick
Use it directly with the smartphone to control the drone in case you manual
control.
4) Water monitoring
Use the app to read temperature water indicator.
4.APP

Power Supply: Power supply is out of range
Overtemperature: motherboard is overheated
Pump Fault: generic error about pump
Traction Fault: generic error about traction
Reach 500h: you used the drone for 500 hours
Reach 300h: you used the drone 350 hours
5) Diagnostic indicator light
The following alarms are indicated by priority on the application:
NOTES: When a warning is activated, the robot continues to work correctly.
When an alarm is activated, the robot stops working.
4.APP 10

App connection and disconnection
Connection state: online indicates connected to <name_rete>
Errors state: NO Error indicates “- -"
Data collection (PH, Temperature and usage time)
Waterline function
Manual or automatic function
Time cleaning programme
Current settings
6) Functionalities
4.APP 11

5.HIDROSTATIC STRUCTURE 13
A kit of spare floating discs is supplied in order to be able to replace
or adjust the hydrostatic set-up of the drone.
If one realizes the lack of buoyancy thrust (with the engine off) of the
drone, you add to the individual rollers (in all 4 and in a balanced
way in order not to vary the buoyancy thrust on one side only) one
disc of floating material at a time.

6.ORDINARY MAINTENANCE 14
Brush
Bag
Propeller
Natural rubber brush
Wall-Grip
Sanitizing Pads
Read all the instructions carefully for correct periodic
maintenance of the following mechanical components:
IMPORTANT: In in each pdf manual you will find clickable images
with links to the video tutorial.

Note: a Φ4 mm hex wrench (Allen wrench) is required.

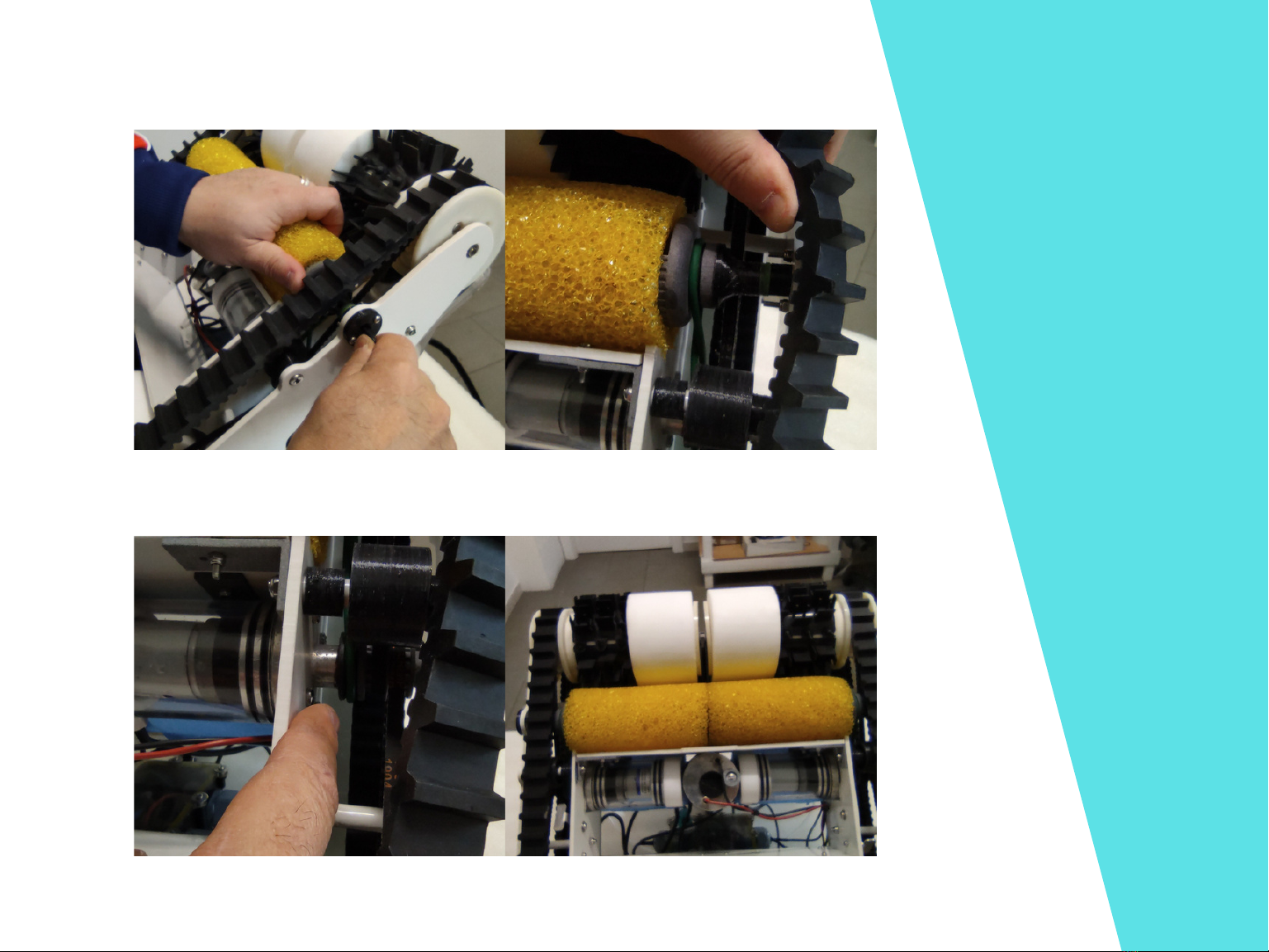

1) Completely loosen both screws (right and left side) and remove the
brush body.
2) Remove the belts connected to the ends of the brushes.
3) Before installing the new brush, return the toothed drive belt to the
pulley and then check that the device rotates correctly.
4) Insert the adjusting screws and tighten it completely with force.
6.1 Brush Replacement 15
WATCH BRUSHES REPLACEMENT
TUTORIAL

6.1 Brush Replacement 16
1 2
3 4

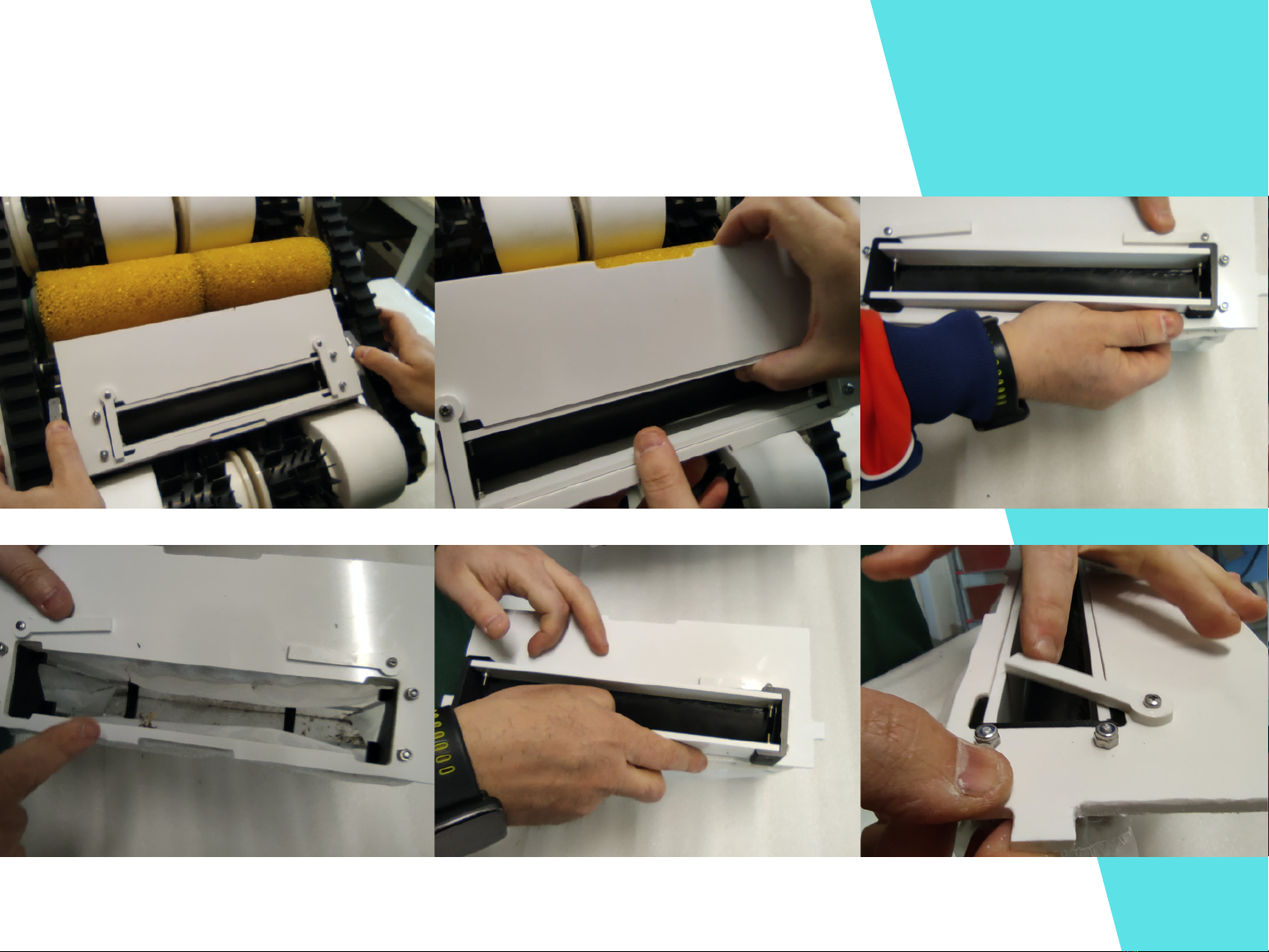

1. Open the two filter locks before removing the filter holder.
2. After placing the filter holder rods in a vertical position, remove the
valve (see figure 2).
3. Open the top of the valve putting the rods in horizontal position and
pulling up it.
4. Empty the bag and clean it.
5. Refit the top of the valve as in figure 5.
6. Close the valve putting the rods in vertical position as in figure 6.
6.2 Bag Cleaning 17
WATCH BAG CLEANING TUTORIAL

6.2 Bag Cleaning 18
1 2 3
5
4 5 6

1. Unscrew washer and self-blocking from inox T bracket.
2. Place the inox T bracket as in figure 2.
3. Screw manually washer and self-blocking.
4. Tighten self-blocking using 7/16 wrench and philips-drill bit as in
figure 4
6.3 Bag Replacement 19
WATCH BAG REPLACEMENT
TUTORIAL

6.3 Bag Replacement 20
1 2
3 4

1. Remove the propeller section cover after placing the latches in an
upright position.
2. Unscrew the screw at the head of the propeller (use a Phillips
screwdriver).
3. Remove the propeller by storing the direction of extraction (part
gleaned downwards).
4. After cleaning, reinsert the propeller (it is recommended to
memorize the way it was previously removed).
5. Tighten the screw at the head of the propeller.
6. Position the section cover and close it by turning the catches to the
horizontal position.
6.4 Propeller Cleaning 21
WATCH PROPELLER MAINTENANCE
TUTORIAL
