Dear customer,
Please read these operating instructions through carefully.
Above all, please take note of the «Safety» section on the first few pages.
Please keep these operating instructions for later reference. Pass them on
to any subsequent owner of the appliance.
The warning triangle and/or specific words (Warning!, Caution!,
Important!) are used to highlight instructions that are important for your
safety or for the function of the appliance. It is imperative that these in
structions are observed.
1. This symbol guides you step by step when operating the appliance.
2. ...
3. ...
Next to this symbol you receive additional information and practical tips on
using the appliance.
Tips and information about the economical and ecological use of the ma
chine are marked with a cloverleaf.
In the event of a malfunction, these operating instructions contain infor
mation on how to rectify faults yourself, see the «What to do, if...» section.
In the event of technical problems, our local FACTORY CUSTOMER SERVICE
CENTRE is always available to provide assistance (you will find addresses
and telephone numbers in the «Customer Service Centres» section).
Please also take note of the contents of the «Service» section.
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly ...

Content
3
CONTENT
OPERATING INSTRUCTIONS 5. . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disposal 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appliance Description 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Panel 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main "On/Off" button 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cooking zone selection 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
"Heat Setting/Residual Heat" display 9. . . . . . . . . . . . . . . . . . . . . . .
Heat setting selection and 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
"Lock" button and indicator 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Button/Indicators Triple Zone/Casserole Zone 10. . . . . . . . . . . . . . . .
"Timer" button and display field 10. . . . . . . . . . . . . . . . . . . . . . . . . .
Cooking zone safety switch 11. . . . . . . . . . . . . . . . . . . . . . . . . . .
Releasing the safety switch 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Prior to Using for the first Time 11. . . . . . . . . . . . . . . . . . . . . . .
Initial Cleaning 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation of the cooking surface 12. . . . . . . . . . . . . . . . . . . . . .
TOUCH CONTROL sensor buttons 12. . . . . . . . . . . . . . . . . . . . . . . . . .
Switching on the appliance 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching off the appliance 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cooking with the automatic warm up function 13. . . . . . . . . . . . . .
Cooking without the automatic warm up function 14. . . . . . . . . . . .
Locking/unlocking the control panel 14. . . . . . . . . . . . . . . . . . . . . . .
Switching the triple zone on and off 15. . . . . . . . . . . . . . . . . . . . . . .
Switching the casserole zone on and off 15. . . . . . . . . . . . . . . . . . . .
Setting/changing the cooking time 16. . . . . . . . . . . . . . . . . . . . . . . .
Ending the timer function early 17. . . . . . . . . . . . . . . . . . . . . . . . . . .

4
Tables and Tips 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pans 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips on Saving Energy 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for cooking with and without the automatic warm up function 19.
Cleaning and care 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ceramic Glass 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stainless steel surface 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What to do if ... 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remedial action in the case of malfunctions 23. . . . . . . . . . . . . . . . . . . .
INSTALLATION INSTRUCTIONS 25. . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Legal stipulations, standards, directives 26. . . . . . . . . . . . . . . . .
Safety Instructions for the Installer 27. . . . . . . . . . . . . . . . . . . .
Installing into a kitchen worksurface 28. . . . . . . . . . . . . . . . . . .
Electrical connection 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SERVICE 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Content

5
OPERATING INSTRUCTIONS
Safety
The safety aspects of this appliance comply with the accepted technical
standards and the German Appliance Safety Law. However, we also consider
it our obligation as a manufacturer to make you aware of the following
safety information.
Electrical Safety
The new appliance may only be installed and connected up by quali-
fied personnel, according to the manufacturers instructions and to the
relevant country standards.
Repairs to the appliance should only be carried out by approved service
engineers. Improper repairs can cause injury or significant malfunction. If
your appliance needs repairing, please contact your local AEG Service Force
Centre.
If your appliance malfunctions, or fractures, cracks or splits appear:
- switch off all cooking zones,
- Disconnect the hob from the electricity supply.
Child Safety
The cooking zones will become hot when the hob is in use. Therefore, al
ways keep small children away.
Safety During Use
This appliance is intended for domestic cooking only. It is not designed for
commercial or industrial purposes.
Do not use the hob to heat the room.
Take care when plugging electrical appliances into mains sockets near the
hob. Connecting leads must not come into contact with the hot surface.
Overheated fats and oils catch fire quickly. You should supervise cooking
when preparing foods in fat or oil (e.g. chips).
Switch the cooking zones off after use.
If a hot pan is placed on a cold cooking zone, and the cooking zone is hea
ted by the pan, no indication is given on the residual heat display.
Operating Instructions

6
Safety When Cleaning
For safety reasons do not clean the appliance with a steam jet or high pres
sure cleaner.
Clean the hob in accordance with the maintenance and cleaning instruc
tions in this manual.
How to Avoid Damage to Your Appliance
Do not use the hob as a work surface or for storage.
Do not use the cooking zones with empty pans, or without pans.
Ceramic glass is insensitive to temperature shock and very robust, however
it is not unbreakable. Hard and sharp objects, in particular, can damage the
cooking surface if they fall on it.
Do not use cast iron pans or pans with damaged bases that are rough or
burred. Scratching may occur when the pans are slid.
Do not place any pans on the hob frame. Scratching may occur or the paint
damaged.
Ensure that liquids containing acids, e.g. vinegar, lemon or scale remover do
not come into contact with the hob frame, otherwise matt spots will ap
pear.
If sugar or a dish containing sugar comes into contact with a hot cooking
zone and then melts, remove the soiling immediately whilst still hot using a
scraper. If it cools, damage to the surface may occur on removal.
Keep all items and materials that can melt away from the ceramic glass
surface, e.g. plastics, aluminium foil, or oven foils. If something of this na
ture should melt onto the ceramic glass surface, it must also be removed
immediately using the scraper.
If you wish to use special types of pan (e.g. a pressure cooker, simmering
pan, wok, etc.), please observe the manufacturer's instructions.
Avoid boiling pans dry. The bases could be irreparably damaged in the pro
cess and the glass ceramic cooking surface also damaged.
Operating Instructions

7
Disposal
Disposing of the packaging material
•All packaging can be recycled, sheet and hard foam parts are appropriately
marked. Please dispose of packaging material and any old appliance with
due regard to safety and the environment.
Information on disposal
•The appliance must not be disposed of in the household rubbish.
•You can obtain information about collection dates or public tips from your
local refuse department or council.
Warning! Before disposing of old appliances make them inoperable. Cut off
the mains cable.
Operating Instructions

8

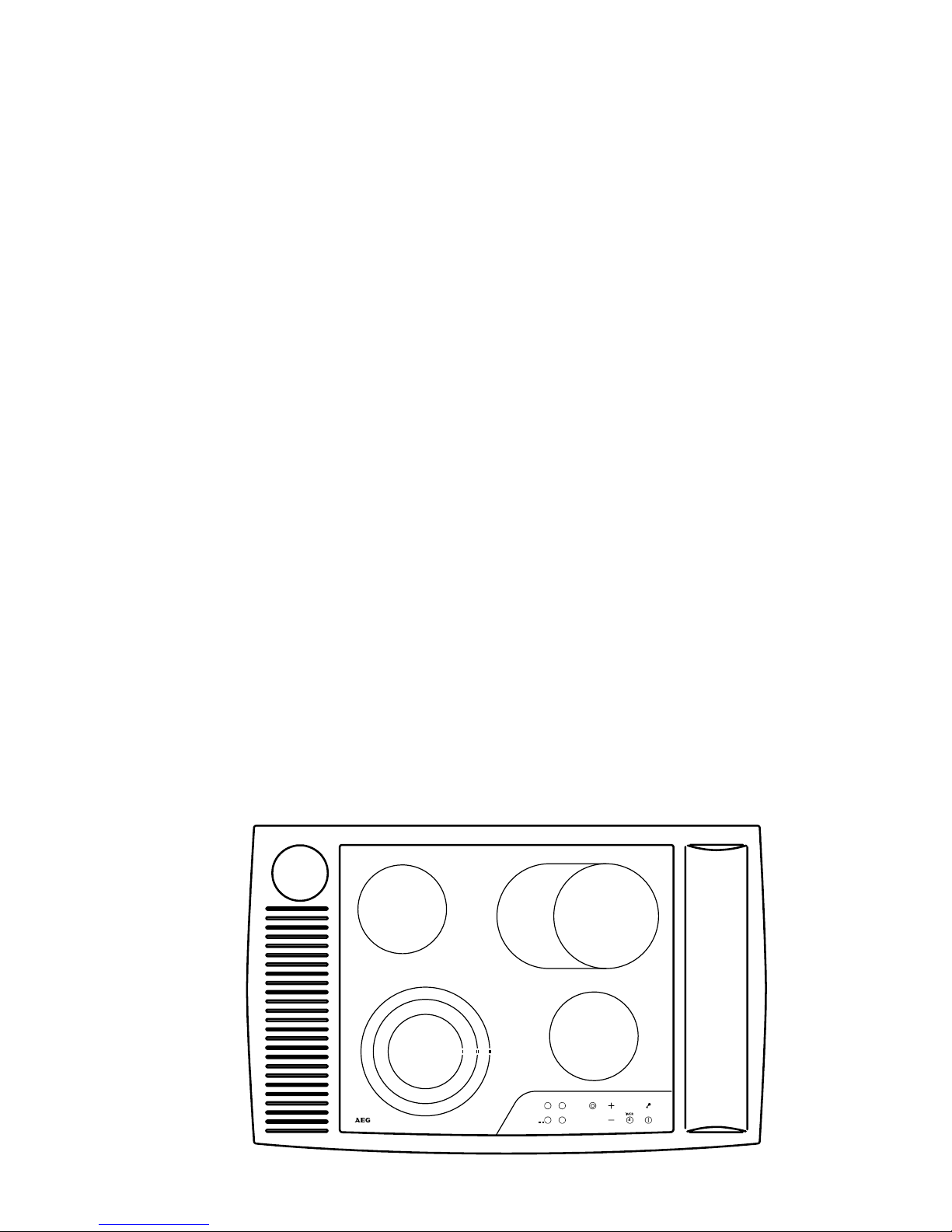

Appliance Description
Features of the hob
Cooking zone dimensions:
rear left: 145 mm
rear right: 170/265 mm
front left: 210/175/120 mm
front right: 145 mm
Operating Instructions

9

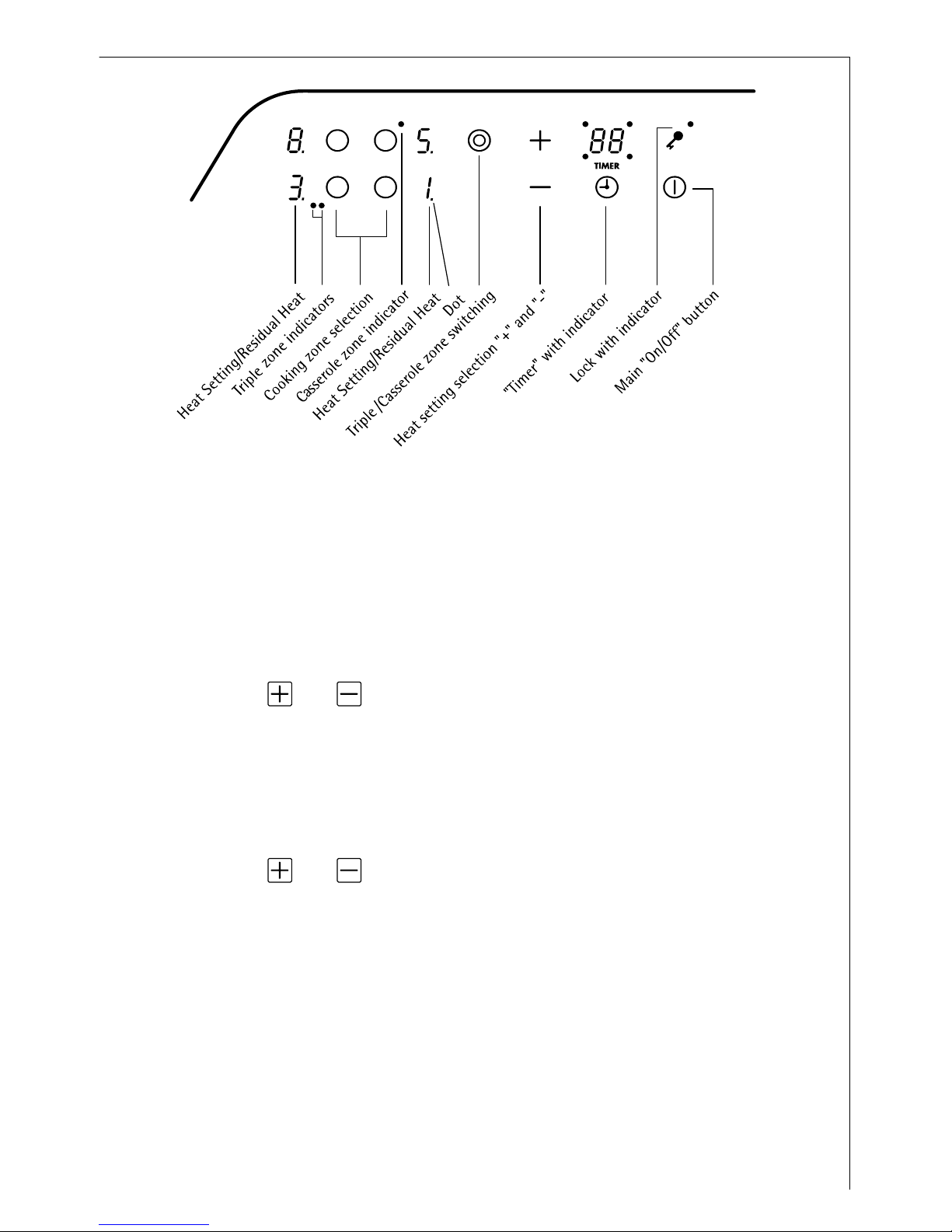

Control Panel
Main "On/Off" button
For switching on the entire appliance. The appliance is
- switched on when the button is touched for approx. one second,
- switched off when the button is touched again for one second.
When the appliance is switched on the "Heat Setting/Residual Heat"
displays are illuminated.
Cooking zone selection
Buttons for choosing the cooking zone for which the settings are to be
changed. The decimal point is illuminated in the display field of the coo
king zone just selected.
"Heat Setting/Residual Heat" display
The four display fields that are assigned to the four cooking zones display:
-, after switching on and when automatically switched off by the
safety function,
-to , depending on the heat setting chosen,
-, when the warm up function is active,
-, in the case of residual heat,
-, in the case of a fault.
-(Decimal point), which cooking zone is active.
Operating Instructions
III II

10
Heat setting selection and
For setting or changing the heat setting ( to ) for the selected coo
king zone, or when in timer mode, for setting or changing the required
cooking time.
- The heat setting or the cooking time is increased using the button
and the automatic warm up function activated.
- The heat setting or the cooking time is decreased using the button.
"Lock" button and indicator
For locking the control panel against accidental setting changes, touch the
button for approx. two seconds. The lock is lifted by touching the button
again for two seconds.
The lock can also be used as a child safety measure.
The indicator illuminates when the control panel is locked.
Button/Indicators Triple Zone/Casserole Zone
For switching on and off the larger cooking zone on the triple cooking zone
and the casserole zone.
To switch on, the relevant cooking zone must be selected using the cooking
zone selection buttons.
The indicators illuminate when the outer cooking zone on the triple coo
king zone or the casserole zone is switched on.
"Timer" button and display field
For activating the timer function for the selected cooking zone.
The display field shows the cooking time set or remaining for the selected
cooking zone.
The timer also be used as an "egg timer". Set the desired cooking time. The
timer counts the remaining time down back to zero. This function is not
assigned to any cooking zone and programming is not possible in this con
dition.
"Timer Active" Display: the four "Timer Active" indicators show the coo
king zones for which the timer is active. Each cooking zone has its own in
dicator.
It is not possible to use the timer functions "Timer" and "Egg Timer" simul
taneously.
Operating Instructions

11
Cooking zone safety switch
If, after a certain period of time, one of the zones is not switched off or the
heat setting not changed, then the cooking zone switches off automati
cally.
, or is appears in the displays of all the zones that were switched on.
The zones are switched off at:
•heat setting 1 - 2 after 6 hours
•heat setting 3 - 4 after 5 hours
•heat setting 5 after 4 hours
•heat setting 6 - 9 after 1.5 hours
Releasing the safety switch
To release the safety switch on all cooking zones switched on, switch the
appliance off and on again at the main button. The cooking zones are then
ready for use again.
appears in the zone display when there is residual heat remaining.
Prior to Using for the first Time
Initial Cleaning
Wipe the ceramic glass cooking surface with a damp cloth to remove any
traces left from manufacturing.
Important: Do not use any caustic or abrasive cleaners! The surface could
be damaged.
Operating Instructions


12
Operation of the cooking surface
TOUCH CONTROL sensor buttons
To operate the TOUCH CONTROL sensor buttons, place your finger flat, from
above, on the desired button until the corresponding indicator illuminates,
or extinguishes, or the desired function is performed.
For quicker adjustment leave your finger on the button until the desired
value is reached.
All entries are acknowledged by an acoustic signal.
Switching on the appliance
Switch on the appliance using the main "On/Off" button.
The "Heat Setting/Residual Heat" display fields show .
After the main "On/Off" button has been operated to switch on your ap
pliance, one of the cooking zones must be selected using the cooking zone
selection buttons within approx. 10 seconds. Otherwise the appliance swit
ches off again for safety reasons.
Switching off the appliance
Operate the main "On/Off" button to completely switch off the appliance.
After the individual cooking zones or the entire cooking surface have been
switched off, the presence of residual heat is indicated by (as in "Hot")
in the "Heat Setting/Residual Heat" display fields of the respective cooking
zones.
If all cooking zones are switched off, the appliance switches off automati
cally after a period of time.
Operating Instructions



13
Cooking with the automatic warm up function
All four zones have nine heat settings and are equipped with an automatic
warm up function.
-, lowest heat setting
-, highest heat setting
-, automatic warm up function.
When you select using the -button the cooking setting that you require
for cooking once the pan is hot, the cooking zone operates for a certain
period of time at full power ( = automatic warm up function) and then
switches back to the heat setting selected for further cooking.
The duration of the automatic warm up period is dependant on the setting
chosen for further cooking once the pan is hot! See page 52.
1. Select the desired cooking zone using the cooking zone buttons.
The decimal point in the corresponding display field illuminates.
2. Press the button for the desired cooking setting to . The cooking
setting chosen is then displayed. After 5 seconds, appears again in dis
play instead of the cooking setting.
The cooking setting is displayed again at the end of the automatic warm up
time.
If you select a higher setting when the automatic function is in operation,
e.g. from to , the previous warm up time is taken into account. If you
select a lower setting, then the automatic warm up function is brought to
an immediate end. If you start cooking again on a cooking zone that is still
Operating Instructions
III II

14
warm, the automatic warm up function uses the residual heat. This saves
time and energy.
Switching off a cooking zone
1. Select the desired cooking zone using the cooking zone buttons.
2. Press the and buttons simultaneously to switch off.
Cooking without the automatic warm up function
If you want to use the cooking zone in the same way as you are accusto
med, that is without the automatic warm up function, then select the desi
red heat setting with the -button.
Select a high setting for warming up. As soon as steam starts to form or
the oil is hot, switch back to the setting necessary for further cooking.
1. Switch on the appliance and select the desired cooking zone using the coo
king zone selection buttons.
The decimal point in the associated display field illuminates.
2. Press the button, to set the desired cooking setting to .
The "Heat Setting/Residual Heat" display field for the corresponding coo
king zone indicates the current setting.
3. You can adjust the heat setting at any time using the and buttons,
as long as the cooking zone is selected.
Switching off a cooking zone
1. Select the desired cooking zone using the cooking zone buttons.
2. Press the and buttons simultaneously to switch off.
Locking/unlocking the control panel
At any time during the cooking process, the control panel can be locked,
with the exception of the "On/Off" button. This means that changes to the
settings, e.g. from wiping with a cloth, can be prevented. This function is
also useful as a child safety measure.
1. Touch the button until the indicator illuminates.
2. To unlock, touch the lock button again until the indicator extinguishes.
Child Safety Measure! If, when the lock button is active, the cooking sur
face is completely switched off by touching the main button, when the
cooking surface is switched on again, the lock button remains active. This
means that the lock button must be operated first, before the zones can be
switched on again.
Operating Instructions

15
Switching the triple zone on and off
If a larger cooking zone is required, a larger ring on the triple cooking zone
can be switched in.
1. Select the triple cooking zone using the appropriate cooking zone selection
button and select the desired heat setting ( to ).
2. Press the triple zone/casserole zone button.
The middle ring is switched in. One of the triple cooking zone indicators
illuminates.
3. Press the triple zone/casserole zone button again.
The outermost zone is switched in. Both triple cooking zone indicators illu
minate.
4. To switch off the outer zones, press the triple ring zone/casserole zone but
ton again, the triple cooking zone must be selected when this is done.
Switching the casserole zone on and off
If a larger cooking zone is required, the outer zone on the casserole zone
can be switched in.
1. Select the casserole zone using the appropriate cooking zone selection but
ton and select the desired heat setting ( to ).
2. Press the triple zone/casserole zone button.
The outer zone is switched on. The casserole zone indicator illuminates.
3. To switch off the outer zone, press the triple zone/casserole zone button
again, the casserole zone must be selected when this is done.
Operating Instructions
III II

16
Setting/changing the cooking time
1. Select the desired cooking zone using the cooking zone selection buttons
and set the desired heat setting.
2. Press the "Timer" button to activate the timer function for this cooking
zone.
3. Using the or buttons, set or change the amount of time required
until the cooking zone is to switch off automatically (e.g. 20 minutes).
The timer starts after a few seconds and indicates the amount of time left.
The small "Timer Active" indicator is also illuminated for the respective coo
king zone, e.g. the upper left indicator corresponds to the rear left cooking
zone.
At the end of the cooking time set, the cooking zone switches off automa
tically and an acoustic signal sounds.
4. Touch the TIMER button to switch off the signal and the indicator.
For quicker adjustment, leave your finger on the or button until the
desired value is reached.
If the button is operated first, the time setting starts at 99 minutes. If
the button is operated, the time setting starts at 1 minute.
Displaying the remaining cooking time
Select the desired cooking zone using the cooking zone buttons.
If the selected cooking zone is in timer mode, the remaining cooking time
appears in the "Cooking Time" display field.
Use of the timer as an interval timer (egg timer)
Important! There must be no cooking zones programmed with the timer!
1. Press the "Timer" button to activate the timer function.
2. Set desired time using the or buttons (e.g. 20 minutes).
The timer starts after a few seconds and indicates the amount of time left.
When the time set is at an end, an acoustic signal sounds.
3. Touch the TIMER button to switch off the signal.
Operating Instructions



17
Ending the timer function early
There are two ways of switching off the timer early:
Switching off the cooking zone and timer simultaneously
1. Select the desired cooking zone using the cooking zone buttons.
If the selected cooking zone is in timer mode (TIMER indicator illumina
ted), the remaining cooking time appears in the timer display field.
2. Touch the and buttons simultaneously: the cooking zone and timer
switch off.
Switching off the timer - leaving the cooking zone active
1. Select the desired cooking zone using the cooking zone buttons.
2. Touch the "Timer" button again
3. Touch the and buttons simultaneously:
- only the timer switches off.
- The cooking zone is left on.
Operating Instructions
III II

18
Tables and Tips
Pans

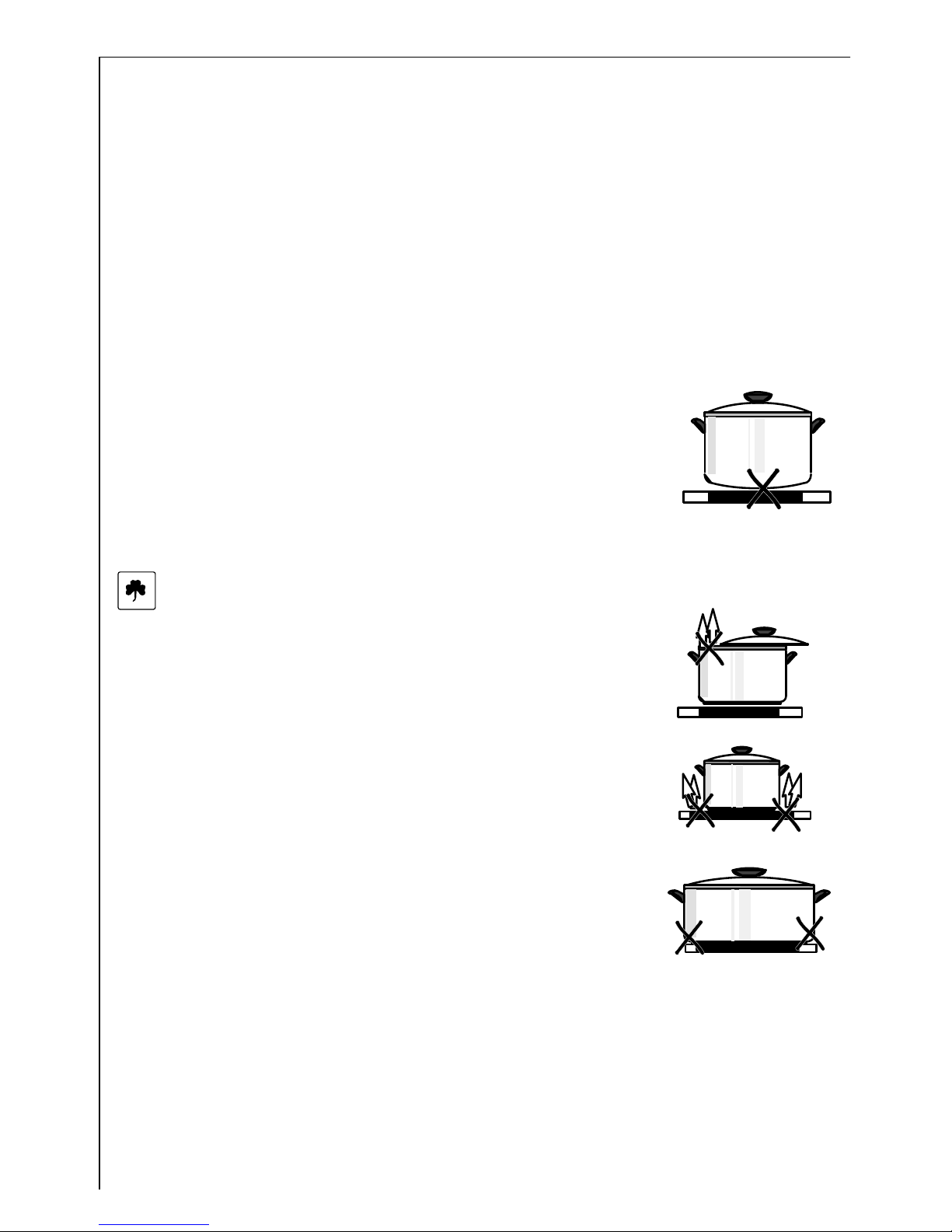

The better the pan, the better the results.
•You can recognise good pans by their bases. The base should be thick and
as flat as possible.
•Pans with aluminium or copper bases can leave metal discoloration on the
glass ceramic surface that is very difficult or impossible to remove.
•Do not use cast iron pans or pans with damaged bases that are rough or
burred. Permanent scratching may occur when the pans are slid.
•When cold, pan bases are normally bowed slightly in
wards (concave). They should under no circumstances
be bowed outwards (convex).
Tips on Saving Energy
You will save valuable energy if you observe the following tips:
•Always place pans on the cooking zone before
switching on.
•Soiled cooking zones and pan bases increase
the electricity consumption.
•If possible, always fit pans with a lid.
•Switch off the cooking zones before the end of
cooking to make use of the residual heat, e.g. to
keep food warm or for melting.
•The pan base and cooking zone should be the
same size. When purchasing pans, pay attention
to the diameter of the base. Manufacturers of
ten state the diameter of the top of the pan.
•Cooking times are reduced by up to 50% when
a pressure cooker is used.
Operating Instructions

19
Tips for cooking with and without the automatic warm up
function
The automatic warm up function is suitable for:
•dishes that start off cold, are heated up at a high setting and do not
need to be continually watched when cooking,
•dishes that are put in a hot frying pan.
The automatic warm up function is not suitable for:
•goulash and similar braised dishes that need continual turning until
browned correctly, liquid adding and then braising until cooked,
•dumplings, pasta dishes with large amounts of liquid,
•cooking with pressure cookers,
•very large quantities of soup/stew with more than 2 litres of liquid.
General Notes:
•When cooking without the automatic warm up function, we recom
mend the use of a high heat setting to warm up the food (using the
-button) and then leaving the dish to finish cooking at an appro
priate lower heat setting.
•The heat setting can be used to keep food warm.
•Take special note of the results when you use the appliance initially! You
can then decide which heat setting is the best for "your dishes" in the
"quantities you are accustomed to preparing" with "your pans". You will
then rapidly come to value the merits of the automatic function and
will feel at ease with your new cooking surface.
Operating Instructions

20
The figures given in the following tables are for guidance. Exactly which
heat setting needs to be used depends on the quality of the pans and the
type and quantity of the food.
Table: Cooking and Frying
Switch
setting
Automatic
warm up
time *
(Min.)
Cooking
process Examples of usage
9Warm Up
Brown
Fry
Warm up large amounts of liquid,
boil pasta,
brown meat,
(brown goulash, pot-roast)
8 4.5
Fry well
Steaks, pieces of loin,
p
otato fritters
,
7 3.5
Fry well
potato
fritters
,
fried sausages,
pancakes
6 2.5 Fry
cutlets,
liver, fish,
rissoles, fried eggs
58.5
Boil
Boil u
p
to 1.5 l of li
q
uid
,
4 6.5 Boil
Boil
up
to
1
.
5
l
of
liquid
,
potatoes, vegetables
3 4.8 Steam,
Sauté
Steam and sauté small quantities of
ve
g
etables
,
2 3.0
Sauté
Soften
vegetables
,
cooking rice and
milk based dishes
1 1.0 Keep warm
Melt
Keep food warm,
melt butter,
dissolve gelatine,
melt chocolate
*) when cooking without the automatic warm up function, the warm up time can be
selected as required.
Operating Instructions
