FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler –
features you might not find on ordinary appliances. Please spend a few minutes reading to get
the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.aeg.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2www.aeg.com

1. SAFETY INFORMATION
Before the installation and use of the appliance, careful-
ly read the supplied instructions. The manufacturer is
not responsible if an incorrect installation and use cau-
ses injuries and damages. Always keep the instructions
with the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they are supervised by an adult or a
person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance
when it operates or when it cools down. Accessible
parts are hot.
• If the appliance has a child safety device, we recom-
mend that you activate it.
• Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
• The appliance and its accessible parts become hot
during use. Do not touch the heating elements.
• Do not operate the appliance by means of an exter-
nal timer or separate remote-control system.
• Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.
ENGLISH 3

• Never try to extinguish a fire with water, but switch off
the appliance and then cover flame e.g. with a lid or a
fire blanket.
• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they
can get hot.
• If the glass ceramic surface is cracked, switch off the
appliance to avoid the possibility of electric shock.
• After use, switch off the hob element by its control
and do not rely on the pan detector.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must in-
stall this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction sup-
plied with the appliance.
• Keep the minimum distance from the
other appliances and units.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance
from steam and moisture.
• Do not install the appliance adjacent
to a door or under a window. This pre-
vents hot cookware to fall from the ap-
pliance when the door or the window
is opened.
• If the appliance is installed above
drawers make sure that the space, be-
tween the bottom of the appliance
and the upper drawer, is sufficient for
air circulation.
• Make sure that the ventilation space of
2 mm, between the worktop and the
front of the below unit, is free. The
warranty does not cover damages
caused by the lack of an adequate
ventilation space.
• The bottom of the appliance can get
hot. We recommend to install a non-
combustile separation panel under the
appliance to prevent access to the
bottom.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections must be
made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation
make sure that the appliance is dis-
connected from the power supply.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable
tangle.
• Make sure the mains cable or plug (if
applicable) does not touch the hot ap-
4www.aeg.com

pliance or hot cookware, when you
connect the appliance to the near
sockets
• Make sure the appliance is installed
correctly. Loose and incorrect electrici-
ty mains cable or plug (if applicable)
can make the terminal become too
hot.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on cable.
• Make sure not to cause damage to the
mains plug (if applicable) or to the
mains cable. Contact the Service or an
electrician to change a damaged
mains cable.
• The electrical installation must have an
isolation device which lets you discon-
nect the appliance from the mains at
all poles. The isolation device must
have a contact opening width of mini-
mum 3 mm.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
2.2 Use
WARNING!
Risk of injury, burns or electric
shock.
• Use this appliance in a household en-
vironment.
• Do not change the specification of this
appliance.
• Do not use an external timer or a sep-
arate remote-control system to oper-
ate the appliance.
• Do not let the appliance stay unatten-
ded during operation.
• Do not operate the appliance with wet
hands or when it has contact with wa-
ter.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.
• Set the cooking zone to “off” after
each use. Do not rely on the pan de-
tector.
• Do not use the appliance as a work
surface or as a storage surface.
• If there is a crack on the surface, dis-
connect power supply to prevent the
electrical shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the ap-
pliance is in operation.
WARNING!
Risk of fire or explosion.
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food rem-
nants, can cause fire at a lower tem-
perature than oil used for the first
time.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not try to extinguish a fire with wa-
ter. Disconnect the appliance and cov-
er the flame with a lid or a fire blanket.
WARNING!
Risk of damage to the appliance.
• Do not keep hot cookware on the con-
trol panel.
• Do not let cookware to boil dry.
• Be careful not let objects or cookware
fall on the appliance. The surface can
be damaged.
• Do not activate the cooking zones
with empty cookware or without cook-
ware.
• Do not put aluminium foil on the ap-
pliance.
• Cookware made of cast iron, alumini-
um or with a damaged bottom can
cause scratches on the glass ceramic.
Always lift these objects up when you
have to move them on the cooking
surface.
2.3 Care and Cleaning
WARNING!
Risk of damage to the appliance.
ENGLISH 5

• Clean regularly the appliance to pre-
vent the deterioration of the surface
material.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal ob-
jects.
2.4 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to discard the ap-
pliance correctly.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
3. PRODUCT DESCRIPTION
3.1 General overview
210 mm
180 mm 180 mm
145 mm
1 2
45
3
1Induction cooking zone
2Induction cooking zone
3Induction cooking zone
4Control panel
5Induction cooking zone
3.2 Control panel layout
51 2 34
10 89 7 6
6www.aeg.com

Use the sensor fields to operate the appliance. The displays, indicators and
sounds tell which functions operate.
Sensor field Function
1
To activate and deactivate the appli-
ance.
2
To lock / unlock the control panel.
3
Timer indicators of cooking
zones. To show for which of the cooking zones you set the time.
4
The timer display To show the time in minutes.
5
To activate the Power function.
6
A heat setting display To show the heat setting.
7
A control bar To set the heat setting.
8
/ To increase or decrease the time.
9
To set the cooking zone.
10
To activate and deactivate the STOP
+GO function.
3.3 Heat setting displays
Display Description
The cooking zone is deactivated.
- The cooking zone operates.
The function operates.
The Automatic Heat Up function operates.
Power function operates.
+ digit There is a malfunction.
/ / OptiHeat Control (3 step Residual heat indicator) : con-
tinue cook / stay warm / residual heat.
Lock / The Child Safety Device operates.
Not correct cookware or too small or no cookware on
the cooking zone.
The Automatic Switch Off function operates.
3.4 OptiHeat Control (3 step
Residual heat indicator)
WARNING!
\ \ The risk of burns
from residual heat!
OptiHeat Control shows the level of the
residual heat. The induction cooking
zones make the heat necessary for cook-
ing directly in the bottom of the cook-
ware. The glass ceramic is hot from the
heat of the cookware.
ENGLISH 7

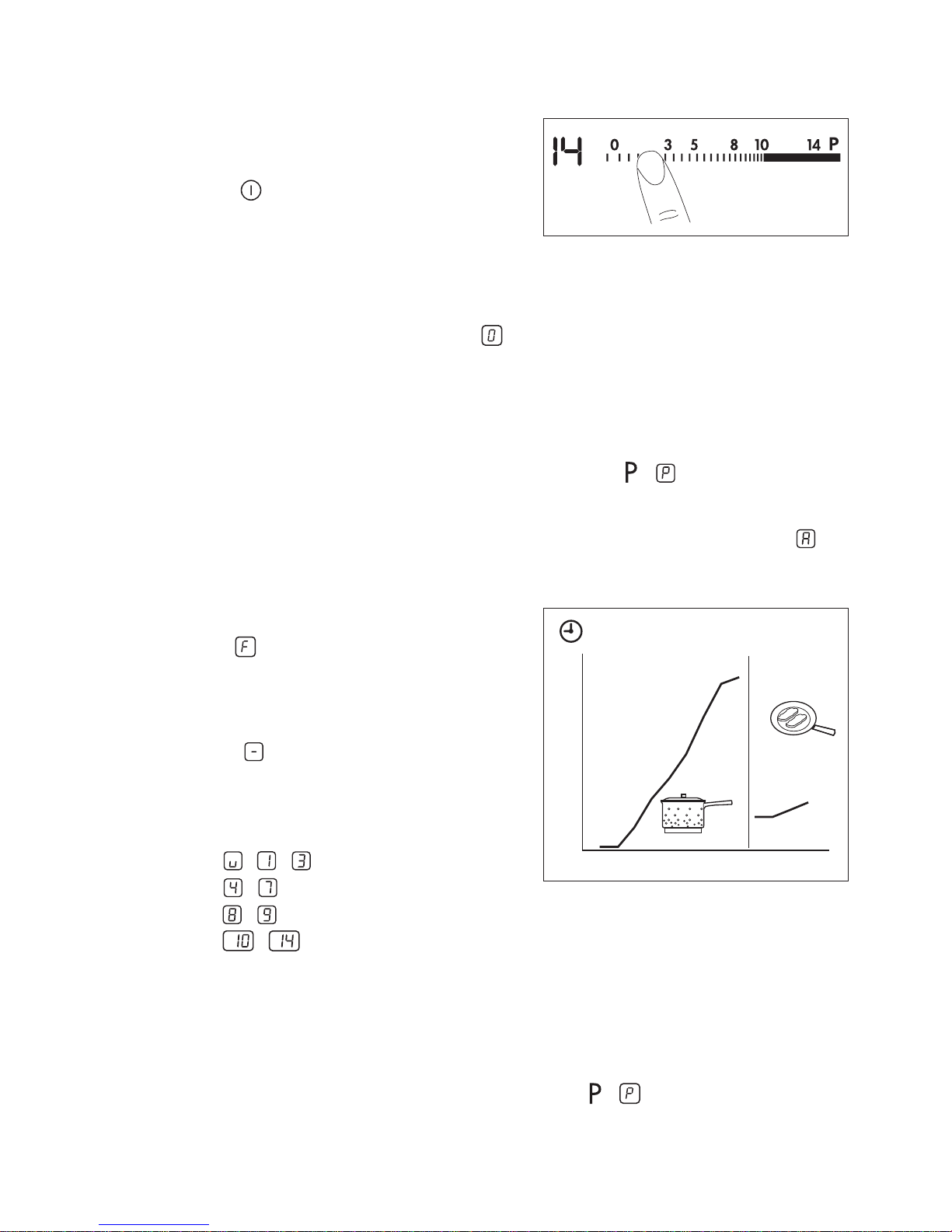

4. DAILY USE
4.1 Activation and
deactivation
Touch for 1 second to activate or de-
activate the appliance.
4.2 Automatic Switch Off
The function deactivates the appliance
automatically if:
•All cooking zones are deactivated (
).
• You do not set the heat setting after
you activate the appliance.
• You spill something or put something
on the control panel for more than 10
seconds, (a pan, a cloth, etc.). An
acoustic signal sounds some time and
the appliance deactivates. Remove the
object or clean the control panel.
• The appliance becomes too hot (e.g.
when, a saucepan boils dry). Before
you use the appliance again, wait for
the cooking zone to cool down.
• You use incorrect cookware. The sym-
bol comes on and the cooking
zone deactivates automatically after 2
minutes.
• You do not deactivate a cooking zone
or change the heat setting. After some
time comes on and the appliance
deactivates. See below.
• The relation between heat setting and
times of the Automatic Switch Off
function:
•, - — 6 hours
•- — 5 hours
•- — 4 hours
•- — 1.5 hours
4.3 The heat setting
Touch the control bar at the heat set-
ting. Move your finger along the control
bar to change the setting. Do not re-
lease before you have a correct heat set-
ting. The display shows the heat setting.
4.4 Automatic Heat Up
You can get a necessary heat setting in a
shorter time if you activate the Automat-
ic Heat Up function. This function sets
the highest heat setting for some time
(see the diagram), and then decreases to
the necessary heat setting.
To start the Automatic Heat Up function
for a cooking zone:
1. Touch ( comes on in the dis-
play).
2. Immediately touch the necessary
heat setting. After 3 seconds
comes on in the display.
To stop the function change the heat
setting.
1
2
3
4
5
6
7
8
9
10
11
12
0
1 2 3 4 5 6 7 8 9 101112 1314
4.5 Power function
The Power function makes more power
available to the induction cooking zones.
The Power function can be activated for
a limited period of time ( see Technical
Information chapter). After that, the in-
duction cooking zone automatically sets
back to highest heat setting. To activate,
touch , comes on. To deactivate,
change the heat setting.
8www.aeg.com

4.6 Power management
The power management divides the
power between two cooking zones in a
pair (see the illustration). The power
function increases the power to the max-
imum level for one cooking zone in the
pair. The power in the second cooking
zone automatically decreases. The heat
setting display for the reduced zone
changes between two levels.
4.7 Timer
Count Down Timer
Use the Count Down Timer to set how
long the cooking zone operates for only
this one time.
Set the Count Down Timer after the
selection of the cooking zone.
You can set the heat setting before or af-
ter you set the timer.
•To set the cooking zone: touch
again and again until the indicator of a
necessary cooking zone comes on.
•To activate the Count Down Timer:
touch of the timer to set the time (
00
-
99
minutes). When the indicator
of the cooking zone start to flash slow,
the time counts down.
•To see the remaining time: set the
cooking zone with . The indicator
of the cooking zone starts to flash
quickly. The display shows the remain-
ing time.
•To change the Count Down Timer:
set the cooking zone with . Touch
or .
•To deactivate the timer: set the
cooking zone with . Touch . The
remaining time counts back to
00
.
The indicator of the cooking zone
goes out. To deactivate you can also
touch and at the same time.
When the countdown comes to an
end, the sound operates and
00
flash-
es. The cooking zone deactivates.
•To stop the sound: touch
CountUp Timer ( The count up
timer)
Use the CountUp Timer to monitor how
long the cooking zone operates.
•To set the cooking zone (if more
than 1 cooking zone operate ) :
touch again and again until the in-
dicator of a necessary cooking zone
comes on.
•To activate the CountUp Timer:
touch of the timer comes on.
When the indicator of the cooking
zone starts to flash slow, the time
counts up. The display switches be-
tween and counted time (minutes).
•To see how long the cooking zone
operates: set the cooking zone with
. The indicator of the cooking zone
starts to flash quickly. The display
shows the time that the cooking zone
operates.
•To deactivate the CountUp Timer:
set the cooking zone with and
touch or to deactivate the timer.
The indicator of the cooking zone
goes out.
Minute Minder
You can use the timer as a Minute Mind-
er while the cooking zones do not oper-
ate. Touch . Touch or of the
timer to set the time. When the time
comes to an end, the sound operates
and
00
flashes.
•To stop the sound: touch
ENGLISH 9

4.8 STOP+GO
The function sets all cooking zones
that operate to the lowest heat setting (
).
When operates, you cannot change
the heat setting.
The function does not stop the timer
function.
•To activate this function touch .
The symbol comes on.
•To deactivate this function touch .
The heat setting that you set before
comes on.
4.9 Lock
When the cooking zones operate, you
can lock the control panel, but not . It
prevents an accidental change of the
heat setting.
First set the heat setting.
To start this function touch . The sym-
bol comes on for 4 seconds.
The Timer stays on.
To stop this function touch . The heat
setting that you set before comes on.
When you stop the appliance, you also
stop this function.
4.10 The Child Safety Device
This function prevents an accidental op-
eration of the appliance.
To activate The Child Safety Device
•Activate the appliance with . Do
not set the heat settings.
•Touch for 4 seconds. The symbol
comes on.
•Deactivate the appliance with .
To deactivate The Child Safety Device
•Activate the appliance with . Do
not set the heat settings. Touch
for 4 seconds. The symbol comes
on.
•Deactivate the appliance with .
To override The Child Safety Device
for only one cooking time
•Activate the appliance with . The
symbol comes on.
•Touch for 4 seconds. Set the heat
setting in 10 seconds. You can oper-
ate the appliance.
• When you deactivate the appliance
with , The Child Safety Device op-
erates again.
4.11 OffSound Control
(Deactivation and activation of
the sounds)
Deactivation of the sounds
Deactivate the appliance.
Touch for 3 seconds. The displays
come on and go out. Touch for 3 sec-
onds. comes on, the sound is on.
Touch , comes on, the sound is
off.
When this function operates, you can
hear the sounds only when:
•you touch
• the Minute Minder comes down
• the Count Down Timer comes down
• you put something on the control pan-
el.
Activation of the sounds
Deactivate the appliance.
Touch for 3 seconds. The displays
come on and go out. Touch for 3 sec-
onds. comes on, because the sound
is off. Touch , comes on. The
sound is on.
5. HELPFUL HINTS AND TIPS
INDUCTION COOKING ZONES For induction cooking zones a strong
electro-magnetic field creates the heat
in the cookware very quickly.
10 www.aeg.com

5.1 Cookware for induction
cooking zones
Use the induction cooking zones
with correct cookware.
Cookware material
•correct: cast iron, steel, enamelled
steel, stainless steel, the bottom made
of multi-layer (with correct mark from a
manufacturer).
•not correct: aluminium, copper, brass,
glass, ceramic, porcelain.
Cookware is correct for an induction
hob if …
• ... some water boils very quickly on a
zone set to the highest heat setting.
• ... a magnet pulls on to the bottom of
the cookware.
The bottom of the cookware
must be as thick and flat as possi-
ble.
Cookware dimensions: induction cook-
ing zones adapt to the dimension of the
bottom of the cookware automatically to
some limit.
5.2 The noises during
operation
If you can hear
• crack noise: cookware is made of dif-
ferent materials (Sandwich construc-
tion).
• whistle sound: you use one or more
cooking zones with high power levels
and the cookware is made of different
materials (Sandwich construction).
• humming: you use high power levels.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.
The noises are normal and do not re-
fer to appliance malfunction.
5.3 Energy saving
How to save energy
• If it is possible, always put the lids on
the cookware.
• Put cookware on a cooking zone be-
fore you start it.
• Use the residual heat to keep the food
warm or to melt it.
The cooking zone efficiency
The cooking zone efficiency is related to
the diameter of the cookware. The cook-
ware with a smaller diameter than the
minimum receives only a part of the
power generated by the cooking zone.
For the minimum diameters see the
Technical Information chapter.
5.4 Öko Timer (Eco Timer)
To save energy, the heater of the
cooking zone deactivates before
the count down timer sounds.
The difference in the operation
time depends on the heat setting
level and the length of the cook-
ing operation.
5.5 The Examples of cooking
applications
The relation between the heat setting
and the cooking zone consumption of
power is not linear.
When you increase the heat setting it is
not proportional to the increase of the
cooking zone consumption of power.
It means that the cooking zone with the
medium heat setting uses less than a
half of its power.
The data in the table is for guid-
ance only.
ENGLISH 11

He
at
set
tin
g
Use to: Time Hints Nominal
power con-
sumption
1
Keep warm the food
you cooked as required Put a lid on a cook- ware 3 %
1 -
3Hollandaise sauce, melt: butter, choco-
late, gelatine
5 - 25 min Mix from time to
time 3 – 8 %
1 -
3Solidify: fluffy ome- lettes, baked eggs 10 - 40 min Cook with a lid on 3 – 8 %
3 -
5Simmer rice and milk- based dishes, heating
up ready-cooked
meals
25 - 50 min Add the minimum
twice as much liquid
as rice, mix milk
dishes part proce-
dure through
8 – 13 %
5 -
7Steam vegetables, fish, meat 20 - 45 min Add some table- spoons of liquid 13 – 18 %
7 -
9Steam potatoes 20 - 60 min Use max. ¼ l water for 750 g of potatoes 18 – 25 %
7 -
9Cook larger quantities of food, stews and
soups
60 - 150
min Up to 3 l liquid plus ingredients 18 – 25 %
9 -
12 Gentle fry: escalope, veal cordon bleu, cut-
lets, rissoles, saus-
ages, liver, roux, eggs,
pancakes, doughnuts
as necessa-
ry Turn halfway through 25 – 45 %
12 -
13 Heavy fry, hash browns, loin steaks,
steaks
5 - 15 min Turn halfway through 45 – 64 %
14 Boil water, cook pasta, sear meat (goulash, pot roast),
deep-fry chips 100 %
Boil large quantities of water. Power management is activa-
ted.
6. CARE AND CLEANING
Clean the appliance after each use.
Always use cookware with clean bottom.
Scratches or dark stains on the
glass-ceramic cause no effect on
how the appliance operates.
To remove the dirt:
1. –Remove immediately: melted
plastic, plastic foil, and food with
sugar. If not, the dirt can cause
damage to the appliance. Use a
special scraper for the glass . Put
the scraper on the glass surface at
12 www.aeg.com

an acute angle and move the
blade on the surface .
–Remove after the appliance is
sufficiently cool: limescale rings ,
water rings, fat stains, shiny metal-
lic discolorations. Use a special
cleaning agent for glass ceramic
or stainless steel.
2. Clean the appliance with a moist
cloth and some detergent.
3. At the end rub the appliance dry
with a clean cloth.
7. TROUBLESHOOTING
Problem Possible cause Remedy
You cannot activate the
appliance or operate it. Activate the appliance again and set the heat
setting in less than 10
seconds.
You touched 2 or more
sensor fields at the same
time.
Touch only one sensor
field.
The STOP+GO function
operates. Refer to the chapter “Daily Use”.
There is water or fat
stains on the control
panel.
Clean the control panel.
An acoustic signal
sounds and the appli-
ance deactivates.
An acoustic signal
sounds when the appli-
ance is deactivated.
You put something on
one or more sensor
fields.
Remove the object from
the sensor fields.
The appliance deacti-
vates. You put something on
the sensor field .
Remove the object from
the sensor field.
The residual heat indica-
tor does not come on. The cooking zone is not hot because it operated
only for a short time.
If the cooking zone oper-
ated sufficiently long to
be hot, speak to the
service centre.
The Automatic Heat Up
function does not oper-
ate.
The cooking zone is hot. Let the cooking zone be-
come sufficiently cool.
The highest heat setting
is set. The highest heat setting has the same power as
the Automatic Heat Up
function.
The heat setting changes
between two levels. The Power management is activated. Refer to “Power man- agement”.
The sensor fields be-
come hot. The cookware is too large or you put it too
near to the controls.
Put large cookware on
the rear cooking zones if
necessary.
ENGLISH 13

Problem Possible cause Remedy
There is no signal when
you touch the panel sen-
sor fields.
The signals are deactiva-
ted. Activate the signals (refer to “OffSound control”).
comes on The Automatic Switch
Off operates. Deactivate the appliance and activate it again.
comes on The Child Safety Device
or the Lock function op-
erates.
Refer to the chapter
“Daily Use”.
comes on No cookware is on the
cooking zone. Put cookware on the cooking zone.
Incorrect cookware. Use the correct cook-
ware.
The diameter of the bot-
tom of the cookware is
too small for the cooking
zone.
Move cookware to a
smaller cooking zone.
and number comes
on.
There is an error in the
appliance. Disconnect the appli- ance from the electrical
supply for some time.
Disconnect the fuse from
the electrical system of
the house. Connect it
again. If comes on
again, speak to the serv-
ice centre.
comes on There is an error in the
appliance because a
cookware boils dry. The
overheating protection
for the cooking zones
and the Automatic
Switch Off operate.
Deactivate the appli-
ance. Remove the hot
cookware. After approxi-
mately 30 seconds, acti-
vate the cooking zone
again. If the cookware
was the problem, the er-
ror message goes out of
the display, but the re-
sidual heat indicator can
stay. Let the cookware
become sufficiently cool
and refer to “Cookware
for the induction cooking
zone” to see if your
cookware is compatible
with the appliance.
If you tried the above solutions and can-
not repair the problem, speak to your
dealer or the customer service. Give the
data from the rating plate, three digit
letter code for the glass ceramic (it is in
the corner of the glass surface) and an
error message that comes on.
Make sure, you operated the appliance
correctly. If not the servicing by a cus-
tomer service technician or dealer will
not be free of charge, also during the
warranty period. The instructions about
the customer service and conditions of
guarantee are in the guarantee booklet.
14 www.aeg.com

8. INSTALLATION
WARNING!
Refer to the Safety chapters.
Before the installation
Before the installation of the appliance,
record the information below from the
rating plate. The rating plate is on the
bottom of the appliance casing.
• Model ...........................
• PNC .............................
• Serial number ....................
8.1 Built-in appliances
• Only use the built-in appliances after
you assemble the appliance into cor-
rect built-in units and work surfaces
that align to the standards.
8.2 Connection cable
• Use the correct mains cable of type
H05BB-F Tmax 90°C (or higher) for a
single phase or two phase connection.
• Replace the damaged mains cable
with a special cable (type H05BB-F
Tmax 90°C or higher). Speak to your
local Service Centre.

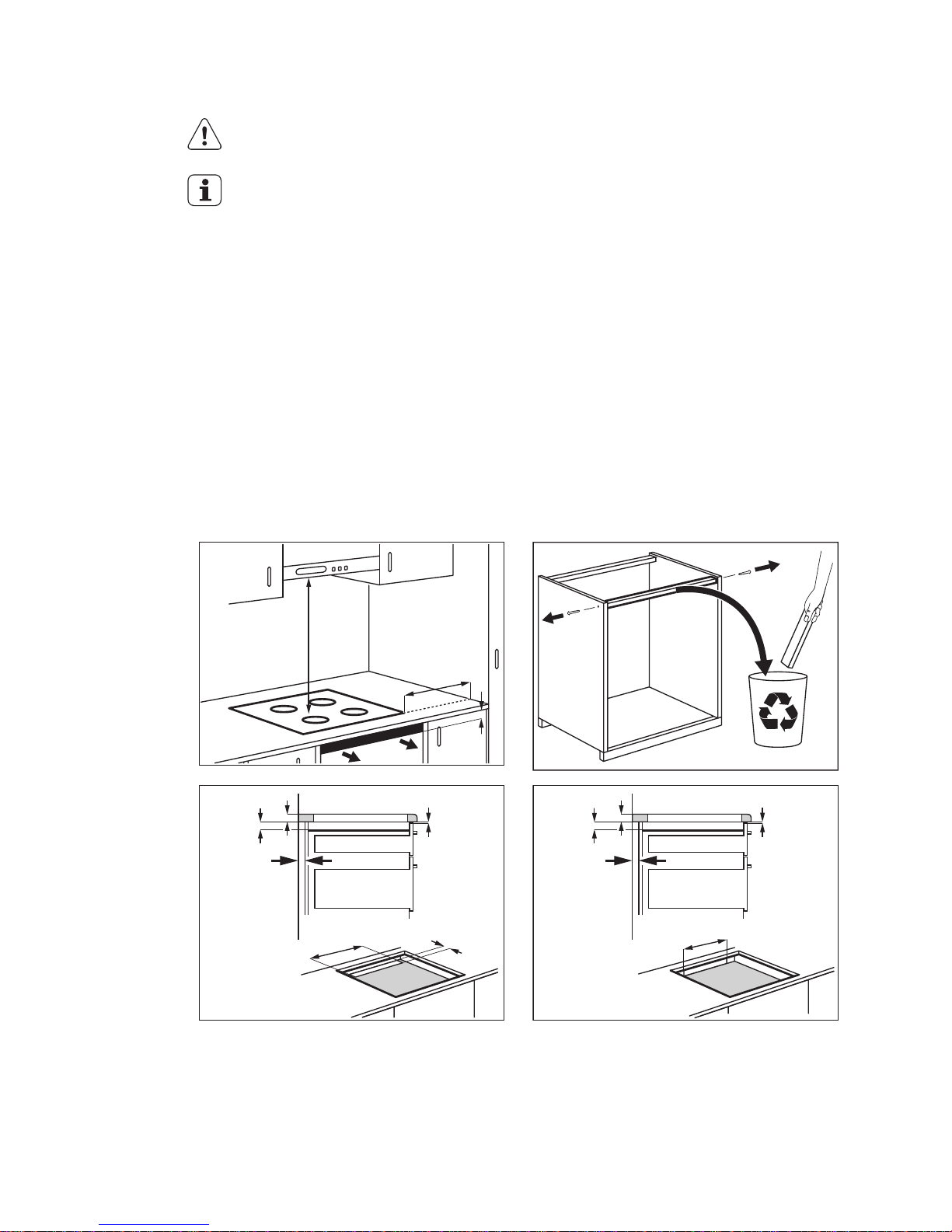

8.3 Assembly
min.
50mm
min.
500mm
min.
2mm
< 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min
30 mm
min. 500 mm
> 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min. 500 mm
ENGLISH 15

R 5mm
min.
55mm
490+1mm 560+1mm
min.
12 mm
min.
2 mm
min.
38 mm
min.
2 mm

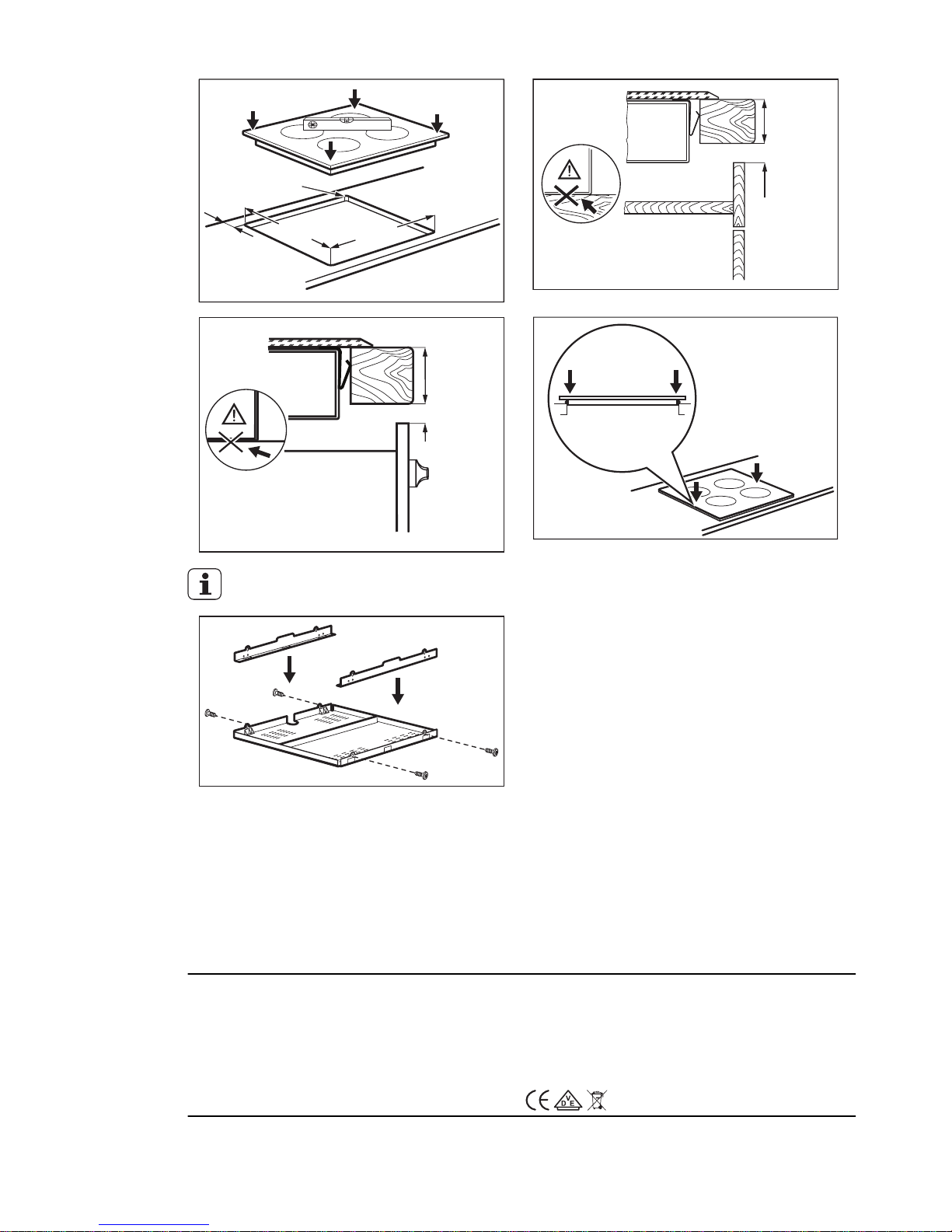

If you use a protection box (an additional
accessory1)), the front airflow space of 2
mm and protective floor directly below
the appliance are not necessary.
You can not use the protection box if
you install the appliance above an oven.
1) The protection box accessory may not be available in some countries. Please contact
your local supplier.
9. TECHNICAL INFORMATION
Modell HK654200FB Prod.Nr. 949 595 108 01
Typ 58 GAD D5 AU 220 - 240 V 50 - 60 Hz
Induction 7.4 kW Made in Germany
Ser.Nr. .......... 7.4 kW
AEG
16 www.aeg.com

Cooking zones power
Cooking
zone
Nominal
Power (Max
heat setting)
[W]
Power Func-
tion activa-
ted [W]
Power func-
tion maxi-
mum dura-
tion [min]
Minimum
cookware di-
ameter [mm]
Right rear —
180 mm 1800 W 2800 W 10 145
Right front —
145 mm 1400 W 2500 W 4125
Left rear —
180 mm 1800 W 2800 W 10 145
Left front —
210 mm 2300 W 3700 W 10 180
The power of the cooking zones can be
different in some small range from the data in the table. It changes with the ma- terial and dimensions of the cookware.
10.
GB
IE
GREAT BRITAIN & IRELAND - GUARANTEE/
CUSTOMER SERVICE
10.1 Standard guarantee
conditions:
We, Electrolux, undertake that if within
12 months of the date of the purchase
this Electrolux appliance or any part
thereof is proved to be defective by rea-
son only of faulty workmanship or mate-
rials, we will, at our option repair or re-
place the same FREE OF CHARGE for la-
bour, materials or carriage on condition
that:
• Appliance has been correctly installed
and used only on the electricity supply
stated on the rating plate.
• Appliance has been used for normal
domestic purposes only, in accord-
ance with manufacturer's instructions.
• Appliance hasn't been serviced, main-
tained, repaired, taken apart or tam-
pered with by person not authorised
by us.
• Electrolux Service Force Centre must
undertake all service work under this
guarantee
• Any appliance or defective part re-
placed shall become the Company's
property.
• This guarantee is in addition to your
statutory and other legal rights.
Exclusions
• Damage, calls resulting from trans-
port, improper use, neglect, light
bulbs, removable parts of glass, plas-
tic.
• Costs for calls to put right appliance
which is improperly installed, calls to
appliances outside United Kingdom.
• Appliances found to be in use within a
commercial environment, plus those
which are subject to rental agree-
ments.
• Products of Electrolux manufacturer
that are not marketed by Electrolux
Service and Spare Parts.Please contact
your local Service Force Centre: 08445
616 616(Call will be routed to Service
Force Centre covering your postcode
area). For address of local Service Force
Centre and further information, please
visit: www.serviceforce.co.uk Before
calling out an engineer, please ensure
you have read the details under the
heading "What to do if... / Trouble-
ENGLISH 17

shooting". When you contact the Service
Force Centre you will need to give the
following details: Your name, address
and postcode, your telephone number,
clear concise details of the fault, model
and serial number of the appliance
(found on the rating plate), the purchase
date. Please note a valid purchase re-
ceipt or guarantee documentation is re-
quired for in guarantee service calls.
Customer Care.Please contact our Cus-
tomer Care Department: Electrolux Ma-
jor Appliances, Addington Way, Luton,
Bedfordshire, LU4 9QQ or visit our web-
site at www.electrolux.co.uk
Custom-
er Care
Depart-
ment,
Tel: (Calls may be recor-
ded for training purpo-
ses)
Electro-
lux 08445 613 613
Custom-
er Care
Depart-
ment,
Tel: (Calls may be recor-
ded for training purpo-
ses)
AEG-
Electro-
lux
08445 611 611
Zanussi-
Electro-
lux
08445 612 612
For Customer Service in The
Republic of Ireland please
contact us at the address
below:
Electrolux Group (Irl) Ltd, Long Mile
Road, Dublin 12, Republic of Ireland
Tel: [phone], Email: serv-
[email protected]
11. EUROPEAN GUARANTEE
GB
This appliance is guaranteed by
Electrolux in each of the countries listed
at the back of this user manual, for the
period specified in the appliance guar-
antee or otherwise by law. If you move
from one of these countries to another
of the countries listed, the appliance
guarantee will move with you subject to
the following qualifications:-
• The appliance guarantee starts from
the date you first purchased the appli-
ance which will be evidenced by pro-
duction of a valid purchase document
issued by the seller of the appliance.
• The appliance guarantee is for the
same period and to the same extent
for labour and parts as exists in your
new country of residence for this par-
ticular model or range of appliances.
• The appliance guarantee is personal
to the original purchaser of the appli-
ance and cannot be transferred to an-
other user.
• The appliance is installed and used in
accordance with instructions issued by
Electrolux and is only used within the
home, i.e. is not used for commercial
purposes.
• The appliance is installed in accord-
ance with all relevant regulations in
force within your new country of resi-
dence.
The provisions of this European Guaran-
tee do not affect any of the rights gran-
ted to you by law.
18 www.aeg.com

12. WWW.ELECTROLUX.COM
Albania [phone] Rruga “Kavajës”, ish-parku auto-
buzëve, Tiranë
Belgique/België/Bel-
gien ++32 27162444 Raketstraat 40, 1130 Brussel/ Bruxelles
Česká republika [phone] Budějovická 3, Praha 4, 140 21
Danmark [phone] Strevelinsvej 38-40, 7000 Frederi-
cia
Deutschland [phone] Fürther Str. 246, 90429 Nürnberg
Eesti [phone] Pärnu mnt. 153, 11624 Tallinn
España [phone] Carretera M-300, Km. 29,900 Al-
calá de Henares Madrid
France 08 92 68 24 33
(0.34€/min) www.electrolux.fr
Great Britain [phone] Addington Way, Luton, Bedford-
shire LU4 9QQ
Hellas [phone], Limnou Str., 54627 Thessaloni-
ki
Hrvatska [phone] Slavonska avenija 3, 10000 Za‐
greb
Ireland [phone] Long Mile Road Dublin 12
Italia [phone] C.so Lino Zanussi, 26 - 33080
Porcia (PN)
Latvija [phone] Kr. Barona iela 130/2, LV-1012,
Riga
Lietuva [phone] Ozo 10a, LT-08200 Vilnius
Luxembourg [phone] Rue de Bitbourg, 7, L-1273
Hamm
Magyarország (06-1)467-3205
[phone] H-1142 Budapest XIV, Erzsébet
királyné útja 87
Nederland [phone] Vennootsweg 1, 2404 CG - Al-
phen aan den Rijn
Norge [phone] Risløkkvn. 2 , 0508 Oslo
Österreich 0810 955030 Herziggasse 9, 1230 Wien
Polska [phone] ul. Kolejowa 5/7, Warszawa
Portugal [phone] Quinta da Fonte - Edificio Gon-
çalves Zarco - Q 35 -2774-518
Paço de Arcos
Romania [phone] Str. Garii Progresului 2, S4,
040671 RO
ENGLISH 19

Schweiz - Suisse -
Svizzera [phone] Industriestrasse 10, CH-5506 Mä- genwil
Slovenija [phone] Gerbičeva ulica 110, 1000 Ljubl‐
jana
Slovensko [phone]
34-5 Electrolux Slovakia s.r.o., Elec‐ trolux Domáce spotrebiče SK,
Galvaniho 17/B, 821 04 Bratisla‐
va
Suomi 030 600 5200
Lankapuhelinverkosta 0,0828€/puhelu+0,032€/min Matkapuhelinver-
kosta 0,192€/min
Sverige [phone] Electrolux Service, S:t Göransga-
tan 143, S-105 45 Stockholm
Türkiye [phone] Tarlabaşı caddesi no : 35 Tak‐
sim İstanbul
Россия 8-800-200-3589 129090 Москва, Олимпийский
проспект, 16, БЦ "Олимпик"
Україна [phone] 04074 Київ,
вул.Автозаводська, 2а, БЦ
"Алкон"
13. ENVIRONMENT CONCERNS
Recycle the materials with the
symbol . Put the packaging in
applicable containers to recycle it.
Help protect the environment and
human health and to recycle waste
of electrical and electronic
appliances. Do not dispose
appliances marked with the symbol
with the household waste. Return the
product to your local recycling
facility or contact your municipal
office.
20 www.aeg.com
