AEG B9879-5 User manual

B9879-5
User manual Built-In Electric Oven

Contents2
Contents
Operating Instructions 3
Safety instructions 3
Description of the Appliance 5
General Overview 5
The electronic oven controls 6
Oven Features 8
Oven Accessories 8
Grill set 9
Oven Shelf Runner 10
Before using for the first time 10
Setting the language 10
Activating the smell filter YES/NO 10
Setting the clock 11
Initial cleaning 11
Operating the Oven 12
Menu operation in overview 12
Use of the oven functions 14
Switching the Oven On and Off 15
Inserting the Oven Shelf and Roasting Pan 17
Grill set 18
Non-stick accessories 19
Pizza stone 19
Meat Probe 20
Automatic programmes 22
Options 24
Clock Functions 32
Additional functions 36
Cleaning and care 38
Outside of the appliance 38
Oven interior 38
Accessories 38
Non-stick accessories 38
Performing Pyrolytic cleaning 39
Reminder function for pyrolytic cleaning 40
Shelf Support Rails 41
Oven Shelf Runner 42
Cleaning the Oven Shelf Runner 43
Oven Lighting 43
Oven door 44
Oven door glass 46
What to do if … 49
Electrical Connection 50
Disposal 51
Installation Instructions 52
Safety information for the installer 52
Guarantee/Customer Service 56
Service and Spare Parts 59
Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this instruc-
tion manual carefully. It will enable you to navigate all processes perfectly and most ef-
ficiently.
To refer to this manual any time you need to, we recommend you to keep it in a safe
place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on how to
avoid damaging the appliance.
3General information and tips
2Environmental information

3Operating Instructions
Operating Instructions
1Safety instructions
Electrical safety
•This appliance must be connected by a qualified electrician only.
•In the event of a fault or damage to the appliance: take the fuses out or switch off.
•Repairs to the appliance must only be carried out by qualified service engineers.
Considerable danger may result from improper repairs. If repairs become necessary,
please contact your local Service Force Centre.
Child Safety
•Never leave children unsupervised when the appliance is in use.
•The appliance is fitted with a child safety device.
Safety whilst Using
•People (including children) who, because of their physical, sensory or mental capabili-
ties or their inexperience or ignorance are not able to use the device safely, should not
use this device without supervision or instruction by a responsible person.
•This appliance is intended to be used for cooking, roasting and baking food in the
home.
•Take care when connecting electric appliances to sockets nearby. Do not allow con-
necting leads to come into contact with or to catch beneath the hot oven door.
•Warning: Risk of burns! The interior of the oven becomes hot during use.
•Using ingredients containing alcohol in the oven may create an alcohol-air mixture
that is easily ignited. In this case, open the door carefully. Do not have embers, sparks
or naked flames in the vicinity when opening the door.
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on
the oven floor, as the heat that builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you will not be able
to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could cause damage to the
enamel and discolouration.
•Rough handling, especially around the edges of the front panel, can cause the glass to
break.
•Do not store any flammable materials inside the oven. These could ignite when the
oven is switched on.
•Do not store any moist foods inside the oven. This could damage the oven enamel.
•After switching off the cooling fan, do not keep uncovered dishes in the oven. Mois-
ture may condense in the oven interior or on the glass doors and may get into the
units.

Safety instructions4
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not affect the
appliance’s suitability for normal and correct use. They therefore do not constitute a de-
fect in the sense of the warranty law.

5Description of the Appliance
Description of the Appliance
General Overview
Full glass door
Oven displays
and buttons
Door
handle

Description of the Appliance6
The electronic oven controls
Indicators
Menu status bar
In the menu status bar the current position within a menu is shown by a flashing bar.
When the menu status bar can no longer be seen in the display, the oven begins to heat
or the time set begins to count down.
If only every second bar in the menu status bar is lit, the smell filter is operating.
Symbol status bar
Symbol Function
Door lock Door is locked.
RAPID HEAT UP RAPID HEAT UP is in operation.
MEATPROBE MEATPROBE is plugged in.
TRUE FAN
150ûc 12.05 00.06
___________________
Symbol status bar Menu status bar Text line
Temperature Time
Meat core temperature
Time functions
Operating period
Heat indicator Shelf positions

7Description of the Appliance
Buttons
Button Function
w To select oven functions.
To move up and down in the menu.
m
¸To open the Options menu.
To close the Options menu (press and hold button).
¹To confirm, change to the submenu.
ºTo switch appliance on or off.
»Switch RAPID HEAT UP on or off.
¼To select between oven functions, clock functions and MEATPROBE.
-To set values (e.g. temperature, time, weight or degree of cooking).
+
wm¸¹º»¼-+

Description of the Appliance8
Oven Features
Inside of door
You will find the shelf position number on the
inside of the oven door.
Oven Accessories
Oven shelf for non-stick
For cookware, cake tins, roasts and grilled foods.
Top heat and heating elements
Oven lighting
Meat probe socket
Oven lighting
Fan heating element
Fan
Bottom heat
Shelf positions
Oven shelf runners, removable
SMELL FILTER

9Description of the Appliance

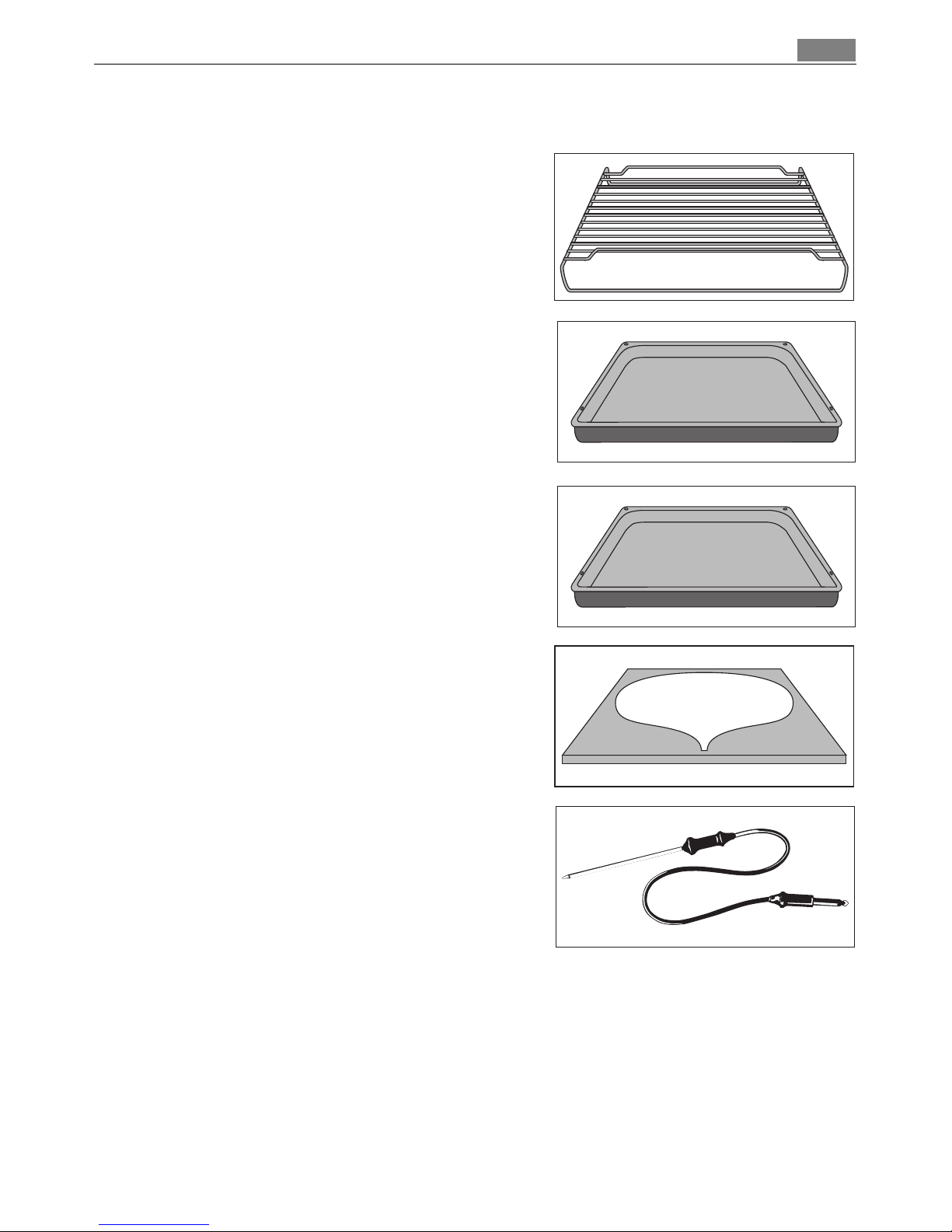

Grill set
Grill
Insert for the roasting pan for roasting and
grilling.
Roasting Pan
For baking and roasting or as a pan for collect-
ing fat.
Non-stick roasting tray
For baking and roasting or as a tray for collect-
ing fat.
Pizza stone
For cooking the perfect pizza base and crusty
bread
Meat probe
For determining exactly how far joints of meat
are cooked

Before using for the first time10
Oven Shelf Runner
Triple shelf runner for ovens
2 side rails with 3 telescopic runners.
Before using for the first time
Setting the language
1. When the appliance has been connect-
ed to the electrical supply, the
SPRACHE EINSTELLEN - LANGUAGE
MENU is shown in the display.
2. Using the arrow buttons or se-
lect the desired language.
3. Confirm selected language with the OK
button.
From now on the texts in the display
appear in the language set.
Activating the smell filter YES/NO
1. SMELL FILTER MENU lights up
2. Using the arrow buttons or select the desired setting.
3. Press the OK button.
In the display SAVED appears for a few seconds.
LANGUAGE MENU
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.0ü0 ý88.8ú8
wm¸¹º»¼-+
ENGLISH
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.0ü0 ý88.8ú8
wPmP¸¹º»¼-+
SMELL FILTER MENU
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.0ü0 ý88.8ú8
wm¸¹Pº»¼-+

11Before using for the first time
3The catalytic effect of the filter limits odours to a great extent.
If the smell filter is activated, it automatically switches itself on when a baking or roast-
ing process is started.
It switches itself off as soon as the baking or roasting cycle is finished.
Setting the clock
3The time only has to be set if the appliance is disconnected from the power supply for a
long time.
1. TIME OF DAY lights up
In the clock display you see 12.00.
2. Use the or button to set the
current time.
3. Confirm using the SELECTION but-
ton.
The appliance is now ready to use.
3If you would like to change one of these base settings at a later date, please refer to the
SETTINGS MENU section.
Initial cleaning
Clean the oven before using it for the first time.
1Important: Do not use caustic or abrasive cleaning agents! These can damage the oven
surfaces.
3For the metal surfaces, use commercially available cleaning agents.
1. Open the oven door.
The oven light is illuminated.
2. Remove all oven accessories, and clean them with warm water and a scouring agent.
3. Wash the oven in the same way, and wipe dry.
4. Wipe the front of the appliance with a damp cloth.
5. Insert the oven shelf runners supplied, as described in the chapter ”Cleaning and Care”.
TIME OF DAY
ý ý ý ýþ ýþ ý ý ý
ýý ý ò
888ûcþ þüþ1ü2.2ü5 ý88.8ú8
wm¸¹º»¼-P+P
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.2ü5 ý88.8ú8
wm¸¹º»¼P-+

Operating the Oven12
Operating the Oven
Menu operation in overview
3The display only offers setting options that are possible with the current function after
each operational step.
TRUE FAN
FAN BAKING
SLOW COOK ONE
CONVENTIONAL
ROTITHERM
DUAL GRILL
SINGLE GRILL
KEEP WARM
DEFROST
BASE HEAT
POULTRY
PORK
BEEF
VEAL
GAME
RECIPE MENU
MEMORY MENU
CLEANING MENU
SETTINGS MENU
SMELL FILTER MENU
HEAT+HOLD MENU
EXTRA TIME MENU
RAPID HEAT UP MENU
RESIDUAL HEAT MENU
SOUND MENU
LANGUAGE MENU
FACTORY SETTINGS
Oven functions
menu
¸
w
m
w
m
w
m
¹
Options
menu

13Operating the Oven
The Oven Functions menu
•When you switch the appliance on, you find yourself in the Oven Functions menu.
•Select the desired oven function using the arrow buttons or . In the menu sta-
tus bar, the current position within the menu is shown.
Setting an example oven function
1. Switch on the appliance using the ON/
OFF button.
2. Using the arrow buttons or se-
lect the oven function.
A suggested temperature appears in
the temperature display.
The oven starts to heat up.
3. With the or button, the tem-
perature can be raised or lowered.
3When the temperature set is reached,
an audible signal sounds.
The Options menu
•Using the OPTION button, enter the Options menu.
•Select the desired option using the arrow buttons or . In the menu status bar,
the current position within the menu is shown.
•Use the OK button to change to the menu of the selected option.
The sub-menus
•Select the desired setting using the arrow buttons or or change to other sub-
menus using the OK button.
3At the end of every menu there is the menu option BACK.
You use this to go back to the higher menu.
You can cancel a setting procedure by pressing and holding down the OPTION but-
ton.
You will then find yourself back in the Oven functions menu.
–—OVEN FUNCTIONS
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
280ûcþ þüþ1ü2.2ü5 ý88.8ú9
wm¸¹ºP»¼-+
____________________
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
200ûcþÝÜÜÜþ1ü2.2ü5 ý00.0ü0
wPm¸¹º»¼-+
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
180ûcþÝÜÜÜþ1ü2.2ü6 ý00.0ü1
wm¸¹º»¼-P+P

Operating the Oven14
Use of the oven functions
The oven has the following functions:
Meat programmes
Oven function Application
TRUE FAN For baking on up to three oven shelves at the same time.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
FAN BAKING For baking on one oven level dishes that require more inten-
sive browning and a crispy base.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
SLOW COOK For preparing especially tender, succulent roasts.
CONVENTIONAL For baking and roasting on one oven level.
ROTITHERM For roasting larger joints of meat or poultry on one oven shelf.
The function is also suitable for browning and gratinbaking.
DUAL GRILL For grilling flat food items in large quantities and for toast-
ing.
SINGLE GRILL For grilling flat food items arranged in the middle of the grill
and for toasting.
KEEP WARM To keep dishes warm.
DEFROST For defrosting e. g. gateaux and flans, butter, bread, fruit or
other frozen foods.
BASE HEAT For baking cakes with crispy or crusty bases.
Meat programmes
with weight input Application Weight range
POULTRY Chicken, duck, goose 0.9 to 4.7 kg
PORK Roast pork, shoulder of pork 1.0 to 3.0 kg
BEEF Roast beef, pot roast 1.0 to 3.0 kg
VEAL Roast veal 1.0 to 3.0 kg
GAME Vension, rabbit 1.0 to 3.0 kg

15Operating the Oven
or
Usage, Tables, Tips and Recipes
You will find practical information on the various oven functions, programmes and au-
tomatic recipes in the accompanying booklet.
Switching the Oven On and Off
Selecting an oven function
1. Switch on the appliance using the ON/OFF button.
2. Using the arrow buttons or se-
lect the desired oven function.
A suggested temperature appears in
the temperature display.
The oven starts to heat up.
Changing the oven
temperature
Press the or button to raise or
lower the temperature.
3When the selected temperature is
reached, a signal sounds.
Meat programmes with
meat probe plugged in Degree of cooking Notes
TOP SIDE BEEF TOP SIDE BEEF RARE
-TOP SIDE BEEF MED.
TOP SIDE BEEF WELL
BEEF SCAN BEEF SCAN RARE Roast beef Scandinavi-
an style (no browning)
BEEF SCAN MED.
BEEF SCAN WELL
PORK JOINT - -
VEAL - -
LAMB JOINT - -
GAME - -
BONED POULTRY - -
____________________
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
200ûcþÝÜÜÜþ1ü2.2ü5 ý00.0ü0
wPm¸¹º»¼-+
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
180ûcþÝÜÜÜþ1ü2.2ü6 ý00.0ü1
wm¸¹º»¼-P+P

Operating the Oven16
Switching off an oven function
Press the arrow buttons or re-
peatedly until OVEN FUNCTIONS ap-
pears in the display again.
Turning the appliance off com-
pletely
Switch appliance off by pressing
the ON/OFF button.
3Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool. When
the oven is switched off, the fan continues to run to cool the appliance down, then
switches itself off automatically.
Heat indicator
Heating Up indicator
When the oven function has been
switched on, the bars that slowly light
up one after the other indicate how far
the oven has heated up.
Rapid Heat Up indicator
When the RAPID HEAT UP function has
been switched on, the bars that flash
one after the other indicate that RAPID
HEAT UP is operating.
–—OVEN FUNCTIONS
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
280ûcþ þüþ1ü2.2ü5 ý88.8ú9
wPmP¸¹º»¼-+
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
280ûcþ þüþ1ü2.2ü5 ý88.8ú9
wm¸¹ºP»¼-+
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
180ûcþþÝÞÜÜþ1ü2.12 ý00.ü07
wm¸¹º»¼-+
CONVENTIONAL
ý ý ý é ýþ ýþ ý ý ý
ýý ý ý
180ûcþÝÜÜÜþ1ü2.1ü0 ý00.0ü5
wm¸¹º»P¼-+

17Operating the Oven
Residual heat indicator
After switching off the oven, the re-
sidual heat in the oven is displayed.
Checking the temperature to the
degree
Press the and buttons at the
same time.
The current oven temperature is dis-
played.
Inserting the Oven Shelf and Roasting
Pan
Inserting the roasting pan:
Insert the roasting pan on the telescopic run-
ners of the selected oven level so that the two
holes engage on the front retaining pins on the
telescopic runners.
Inserting the oven shelf:
Insert the oven shelf so that the feet point
downwards.
Insert the oven shelf on the telescopic runners
of the selected oven level.
3The high rim around the oven shelf is an addi-
tional device to prevent cookware from slip-
ping.
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
160ûcþÝÞßÜþ1ü3.2ü5 ý88.8ú9
wm¸¹º»¼-+
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
295ûcþ þüþ1ü3.2ü5 ý00.0ú2
wm¸¹º»¼-P+P

Operating the Oven18
Inserting the oven shelf and roasting pan
together:
Lay the oven shelf on the roasting pan.
Insert the oven shelf and the roasting pan on
the telescopic runners of the selected oven lev-
el so that the two holes of the roasting pan en-
gage on the front retaining pins on the
telescopic runners.
3To make it easier to insert the insertable component when runners are extended to dif-
ferent extents, lay the insertable component onto the runners at the back, push it in as
far as the stop and then lower it onto the retaining pins at the front.
Grill set
The grill set consists of grill and roasting pan. The grill can used on both sides.
1Warning: There is a risk of burning when removing the roasting pan from the hot oven!
Inserting the grill tray underneath:
The grill tray rests in the roasting pan.
Push the roasting pan between the guide bars
of the selected oven level.
3For roasting larger joints of meat or poultry on
one oven shelf.

19Operating the Oven
Inserting the grill tray on top:
The grill tray rests on the roasting pan.
Push the roasting pan between the guide bars
of the selected oven level.
3For grilling flat food items in large quantities
and for toasting.
Non-stick accessories
To ensure that this accessory remains stable and permanently easy to clean, you should
follow these instructions:
•Do not put accessories into the oven without any food.
•Do not place accessories on hot cooking surfaces, as the non-stick properties can be
damaged by overheating.
Pizza stone
Now you can cook pizzas just like those from the pizzeria in your oven at home. The se-
cret is the pizza stone. It is first heated up in the oven so that it can give off the stored
heat during the baking process. The porous surface can absorb moisture which results in
a particularly crusty pizza.
1Do not grease the surface of the pizza stone.
To get the right result, follow these steps carefully:
1. Prepare the pizza dough (e.g. as in our recipe suggestions, but you can also use ready-
made dough or pizza base mixtures).
2. Place the pizza stone on the oven shelf, insert them both into the 4th/5th oven position
from the top.
3. Pre-heat the oven until the temperature pilot light goes out. At the same time set:
4. Prepare the ingredients for the topping.
Oven functions Prea-heating Baking
CONVENTIONAL 275°C approx. 30 min. 275°C approx.12 min.
FAN BAKING 250°C approx. 30 min. 250°C approx.10 min.

Operating the Oven20
5. After the dough has risen, roll out the dough with a rolling pin into the desired shape
(no bigger than the size of the wooden board) and create an edge.
6. Flour the wooden board or cover it with baking paper (don’t let the baking paper go into
the oven with the pizza).
7. Lay the rolled out dough on the board.
8. Quickly top the pizza on the board with the prepared ingredients.
3Don’t leave the finished pizza lying on the wooden board for long, as otherwise
the dough can become soggy and can’t be slid off the board!
9. Now slide the pizza onto the pre-heated pizza stone:
–support the board on the pizza stone
–pull the board back sharply
10. Close the oven door, bake for approx. 8-15 minutes.
When the pizza is ready, use the wooden board again to take the pizza off the stone.
If you would like to bake several pizzas one after another, re-heat the pizza stone each
time until the temperature pilot light goes out (approx. 5-10 minutes).
Tips:
•If you like pizza with lots of topping, select a lower temperature and a slightly longer
time (e.g. 200°C and about 15 minutes).
•For pizza that doesn’t have so much topping, you can set a high temperature and a
short time (e.g. 250°C and about 8 minutes).
Meat Probe
3When the meat probe is plugged in, the OVEN FUNCTIONS menu offers a choice of suit-
able oven functions and additional programmes for the meat probe.
1Important: Only the meat probe supplied may be used. If replacing, please use only
original replacement parts.
Inserting the meat probe
1. Switch on the appliance using the ON/OFF button.
2. Push the tip of the meat probe into the meat as
fully as possible, so that the tip is in the centre
of the meat.
3. Insert the meat probe plug into the socket on
the side wall of the oven as far as it will go.
Setting meat probe core temperature
For switching off the oven when the temperature at the centre of a roast reaches the
exact temperature set by you.
