OVEN USER MANUAL

FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
ACCESSORIES AND CONSUMABLES
In the AEG webshop, you’ll find everything you need to keep all your AEG
appliances looking spotless and working perfectly. Along with a wide range of
accessories designed and built to the high quality standards you would expect,
from specialist cookware to cutlery baskets, from bottle holders to delicate
laundry bags…
Visit the webshop at:
www.aeg.com/shop
2

CONTENTS
4 Safety information
5 Safety instructions
8 Product description
9 Before first use
10 Daily use
12 Clock functions
14 Using the accessories
15 Additional functions
17 Helpful hints and tips
27 Care and cleaning
30 What to do if…
31 Installation
35 Environment concerns
35 Guarantee/Customer Service
Centres
The following symbols are used in this user
manual:
Important information concerning your
personal safety and information on how to
avoid damaging the appliance.
General information and tips
Environmental information
Subject to change without notice.
Contents 3

SAFETY INFORMATION
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an incor-
rect installation and use causes injuries and damages. Always keep the
instructions with the appliance for future reference.
Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they are supervised by an adult
or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates
or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you
activate it.
• Cleaning and user maintenance shall not be made by children with-
out supervision.
General Safety
• Internally the appliance becomes hot when in operation. Do not
touch the heating elements that are in the appliance. Always use
oven gloves to remove or put in accessories or ovenware.
• Do not use a steam cleaner to clean the appliance.
• Before maintenance cut the power supply.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean
the glass door since they can scratch the surface, which may result
in shattering of the glass.
• Excess spillage must be removed before the pyrolytic cleaning. Re-
move all parts from the oven.
4Safety information

• To remove the shelf supports first pull the front of the shelf support
and then the rear end away from the side walls. Install the shelf
supports in the opposite sequence.
SAFETY INSTRUCTIONS
Installation
WARNING!
Only a qualified person must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Always be careful when you move the appliance because it is heavy. Always wear safety
gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the other appliances and units.
• Make sure that the appliance is installed below and adjacent safe structures.
• The sides of the appliance must stay adjacent to appliances or to units with the same
height.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power sup-
ply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the
Service or an electrician to change a damaged mains cable.
• Do not let mains cables to come in touch with the appliance door, specially when the
door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make
sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
Safety instructions 5

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses re-
moved from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the
appliance from the mains at all poles. The isolation device must have a contact opening
width of minimum 3 mm.
Use
WARNING!
Risk of injury, burns or electric shock or explosion.
• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Internally the appliance becomes hot when in operation. Do not touch the heating ele-
ments that are in the appliance. Always use oven gloves to remove or put in accessories
or ovenware.
• Be careful, when you open the appliance door while the appliance is in operation. Hot air
can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Always keep the appliance door closed when the appliance is in operation.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mix-
ture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open
the door.
• Do not put flammable products or items that are wet with flammable products in, near
or on the appliance.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the enamel:
– Do not put ovenware or other objects in the appliance directly on the bottom.
– Do not put aluminium foil directly on the bottom of the appliance.
– do not put water directly into the hot appliance.
– do not keep moist dishes and food in the appliance after you finish the cooking.
– be careful when you remove or install the accessories.
• Discoloration of the enamel has no effect on the performance of the appliance. It is not
a defect in the sense of the warranty law.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
6Safety instructions

Care and Cleaning
WARNING!
Risk of injury, fire or damage to the appliance.
• Before maintenance, deactivate the appliance and disconnect the mains plug from the
mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Service.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Remaining fat or food in the appliance can cause fire.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety instructions on the packaging.
• Do not clean the catalytic enamel (if applicable) with any kind of detergent.
Pyrolytic cleaning
WARNING!
Risk of fire and burns.
• Read carefully all the instructions for Pyrolytic cleaning.
• Keep children away from the appliance while the Pyrolytic cleaning is in operation. The
appliance becomes very hot.
• Provide good ventilation during and after each Pyrolytic cleaning.
• Provide good ventilation during and after the first use at maximum temperature opera-
tion.
• Remove any pets (especially birds) from the vicinity of the appliance location during and
after the Pyrolytic cleaning and first use maximum temperature operation to a well ven-
tilated area.
• Some birds and reptiles can be extremely sensitive to potential fumes emitted during the
cleaning process of all Pyrolytic Ovens.
• Small pets can also be highly sensitive to the localized temperature changes in the vicini-
ty of all Pyrolytic Ovens when the Pyrolytic self cleaning program is in operation.
•Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high tem-
perature Pyrolytic cleaning operation of all Pyrolytic Ovens and can be also a source for
low level harmful fumes.
• Fumes released from all Pyrolytic Ovens / Cooking Residues as described are not harmful
to humans, including infants or persons with medical conditions.
Internal light
• The type of light bulb or halogen lamp used for this appliance, is only for household ap-
pliances. Do not use it for house lighting.
WARNING!
Risk of electrical shock.
Safety instructions 7

• Before replacing the lamp, disconnect the appliance from the power supply.
• Only use lamps with the same specifications.

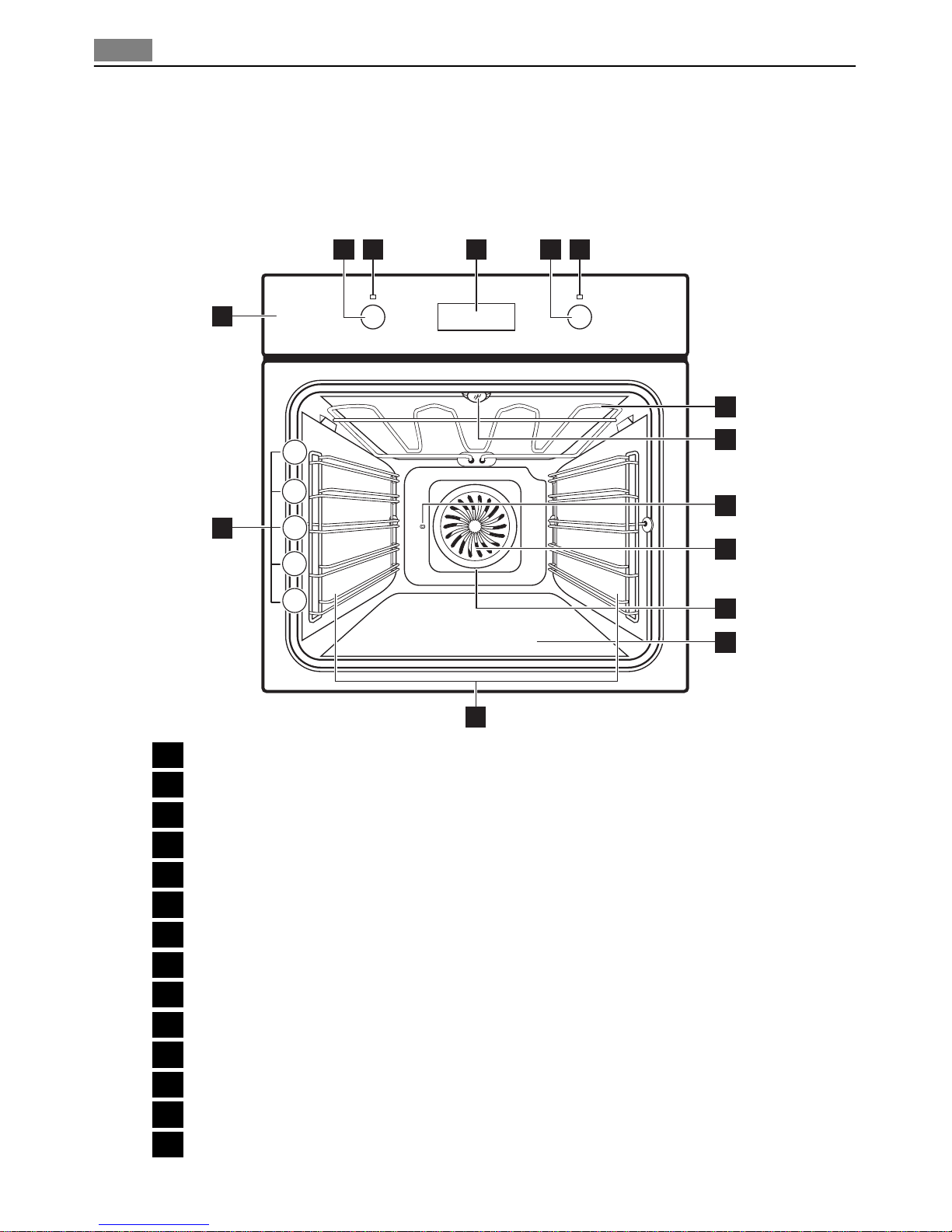

PRODUCT DESCRIPTION
4 632 5
1
14
7
8
9
10
11
12
13
5
4
3
2
1
1Control panel
2Control knob for oven functions
3Power lamp / symbol
4Electronic programmer
5Control knob for temperature
6Power lamp
7Heating element
8Oven lamp
9Turnspit hole
10 Fan
11 Rear wall heating element
12 Bottom heat
13 Shelf support, removable
14 Shelf positions
8Product description

Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
•Grill / roasting pan
To bake and roast or as pan to collect fat.
•Turnspit
For roasting larger joints of meat and poul-
try.
BEFORE FIRST USE
WARNING!
Refer to "Safety information" chapter.
Before first use 9

Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
Refer to chapter "Care and Cleaning".
First connection to the mains
After first connection to the mains all symbols in the display are on for some seconds. For
the subsequent few seconds the display shows software version.
Setting the time of day
After the software version goes off, the display shows and "12:00". "12" flashes.
1. Press or to set current hour.
2. Press to confirm (necessary only for the first setting, later new time will be saved
automatically after 5 seconds).
The display shows and set hour. "00" flashes.
3. Press or to set current minutes.
4. Press to confirm (necessary only for the first setting, later new time will be saved
automatically after 5 seconds) .
The Temperature/Time display shows new time.
Changing the time of day
You can change the time of day only if the oven is off.
Press . The set time and symbol flash in the display. To set new time use the proce-
dure "Setting the time of day".
DAILY USE
WARNING!
Refer to "Safety information" chapter.
To use the appliance, press the control knob. The control knob comes out.
Activating and deactivating the appliance
1. Turn the oven functions control knob to select an oven function.
2. Turn the temperature control knob / to set a temperature.
3. To deactivate the appliance turn the oven functions control knob to off position ("0") .
Knob symbol, indicator or lamp (depends on the model - refer to the appliance
overview):
• The indicator comes on when the oven heats up.
• The lamp comes on when the appliance operates.
• The symbol shows whether the knob controls one of the cooking zones, the oven func-
tions or the temperature.
10 Daily use

Oven Functions
Oven function Application
Fast Heat Up To decreases the heat up time.
True Fan Cooking To bake maximum on three oven levels at the same time.
Decrease the oven temperatures (70 -100 °F) compared
with Conventional. And to dry food.
Pizza Setting To bake on one oven level food with a more intensive
browning and a crispy base. Decrease the oven tempera-
tures (70 -100 °F) compared with Conventional
Conventional Cooking To bake and roast on one oven level.
Bottom Heat To bake cakes with crispy or crusty bases and to preserve
food
Defrost To defrost frozen food.
Grilling + Turnspit To grill flat food in the middle of the grill and to toast.
Fast Grilling + Turnspit To grill flat food in large quantities and to toast.
Turbo Grilling + Turnspit To roast larger joints of meat or poultry on one level. Al-
so to gratinate and brown.
Pyro Cleaning For automatic pyrolytic cleaning of the oven. It burns off
residual dirt in the oven. The oven heats up to approxi-
mately 930 °F.
Fast heat up function
The fast heat up function decreases the heat up time.
1. Set the fast heat up function. Refer to Oven function table.
2. Turn the temperature control knob / to set a temperature.
3. An acoustic signal sounds when the appliance is at the set temperature.
The fast heat up function does not deactivate after the acoustic signal. You must deactivate
the function manually.
4. Set an oven function.
Daily use 11

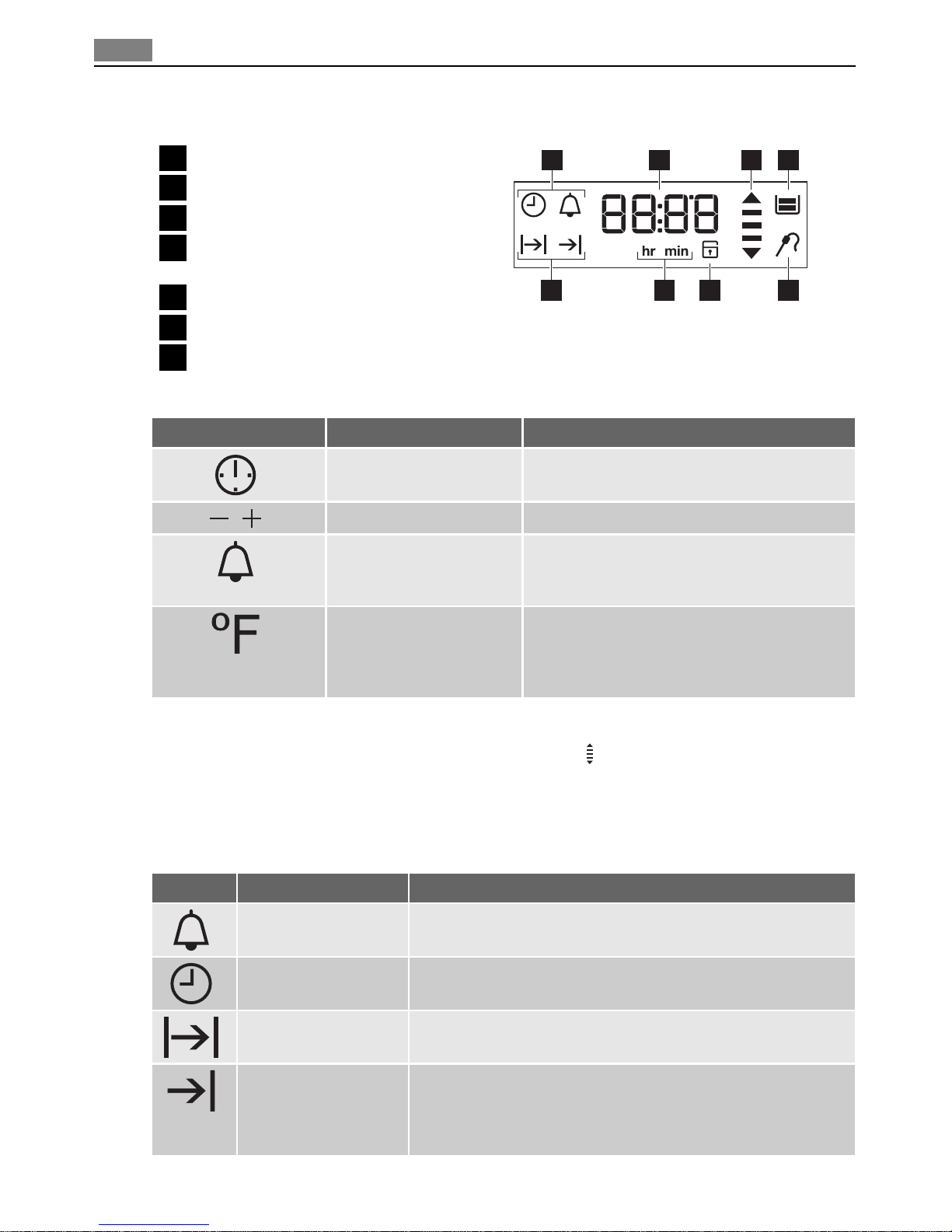

Display
1Timer
2Heating Up / Residual heat indicator
3Water tank (selected models only)
4Core temperature sensor (selected
models only)
5Door lock (selected models only)
6hr / min
7Clock functions
17 2 3
4567
Buttons
Button Function Description
CLOCK To set the clock function.
, MINUS, PLUS To set a value for time
MINUTE MINDER To set the minute minder. To switch ON/OFF
light in oven cavity, hold button more than 3
seconds
TEMPERATURE To check temperature inside the oven cavity.
To check the Core Core Temperature Sensor
temperature, when is connected (if applica-
ble). Use only when the oven function is set.
Heat-up / Residual heat indicator
If you activate an oven function, the bars in the display come on one by one. The bars
show that the oven temperature increases or decrease.
CLOCK FUNCTIONS
SYMBOL FUNCTION DESCRIPTION
MINUTE MINDER Use to set a countdown time. This function has no effect on
the operation of the oven.
TIME OF DAY To set, change or control the time of day. Refer to 'Setting the
time of day'.
DURATION Use only when the oven function is set to set how long the
oven operates.
END Use only when the oven function is set to set when the oven
stops. You can use Duration and End at the same time (Time
delay), if the appliance is to be activate and deactivate auto-
matically later.
12 Clock functions

Press again and again to switch between the clock functions.
To confirm settings of the clock functions use or wait 5 seconds for an automatic con-
firmation.
Setting the DURATION or END
1. Press again and again until the display shows or .
or flashes in the display.
2. Press or to set minutes.
3. Press to confirm.
4. Press or to set the necessary hour.
5. Press to confirm.
A sound operates after the time ends for 2 minutes. or symbol and time setting
flash in the display. The oven stops.
6. Press any button or open the oven door to stop the sound.
If you press button during setting hours for DURATION , the appliance goes to set-
ting of the END function.
Setting the MINUTE MINDER
Use to set a countdown (maximum 23 h 59 min). This function has no effect on the opera-
tion of the oven. You can set the MINUTE MINDER at any time, also if the appliance is off.
1. Press .
and "00" flash in the display.
2. Press or to set the MINUTE MINDER. At first the time is calculated in minutes
and seconds. When the time you set is longer than 60 minutes, the symbol comes
on the display. The appliance now calculates the time in hours and minutes.
3. The MINUTE MINDER starts automatically after five seconds.
After 90% of the set time, an acoustic signal sounds.
Press a button to stop the signal.
4. When the set time ends, an acoustic signal sounds for two minutes. "00:00" and
flash in the display.
Press a button to stop the signal.
If you set the MINUTE MINDER when the DURATION or END function operates, the symbol
comes on in the display.
Count Up Timer
Use the Count Up Timer to monitor how long the oven operates. It is on immediately when
the oven starts to heat.
Reset the Count Up Timer: press and hold and then the timer start to count up
again.
You can not use Count Up Timer when Duration or End is set.
Clock functions 13

USING THE ACCESSORIES
WARNING!
Refer to "Safety information" chapter.
Turnspit
WARNING!
Be careful when you use the turnspit. The forks and the spit are sharp. There is a risk of
injury.
WARNING!
Use oven gloves when you remove the turnspit. The turnspit is hot. There is a risk of burns.
A) Turnspit frame
B) Forks
C) Spit
D) Handle
AB C
D
1. Put the roasting pan on the lowest shelf
position.
2. Put the spit frame on the third shelf po-
sition from the bottom.
3. Install the first fork on the spit, then put
the meat on the turnspit and install the
second fork.
4. Use the screws to tighten the forks.
5. Put the tip of the spit into the turnspit
hole. Refer to "Product description".
6. Put the front part of the spit on the
turnspit frame.
7. Remove the turnspit handle.
8. Turn the knob for the oven functions to
the turnspit position. The turnspit ro-
tates.
9. Set the necessary temperature. Refer to the cooking tables or the recipe book.
14 Using the accessories

If you open the oven door, the turnspit stops.
If a clock function (Duration or End) ends and you do not deactivate the appliance, the
turnspit continues to operate for the next 10 minutes.

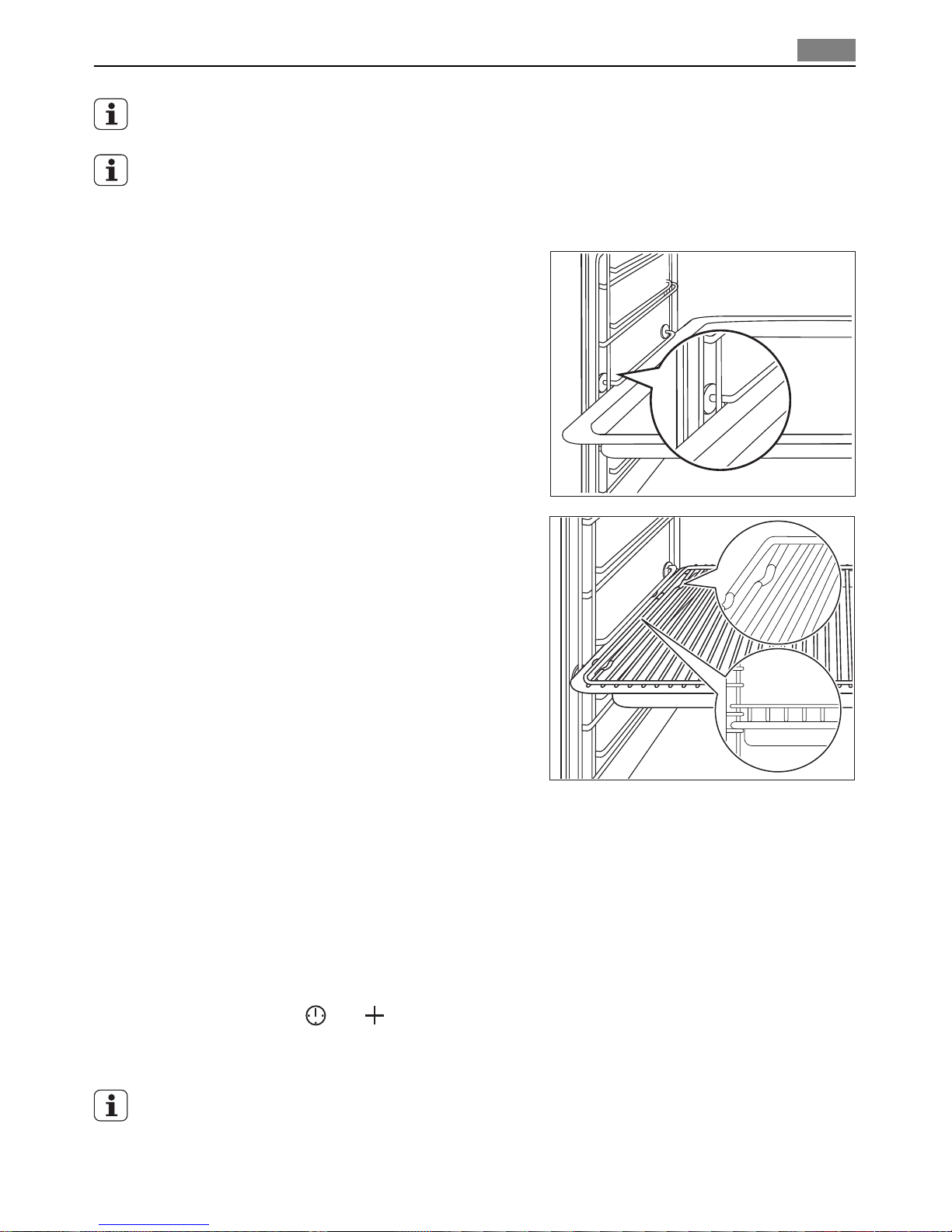

Installing the Oven Accessories
The deep pan and the wire shelf have side edges.
These edges and the shape of the guide-bars cau-
ses the anti-tilt safety for the oven accessories.
Installing the wire shelf and the deep pan to-
gether
Put the wire shelf on the deep pan. Push the deep
pan between the guide-bars of one of the oven
levels.
ADDITIONAL FUNCTIONS
Child Lock
The Child Lock prevents an accidental operation of the appliance.
Activating and deactivating the Child Lock function:
1. Do not set an oven function.
2. Press and hold and at the same time for 2 seconds.
3. An acoustic signal sounds. SAFE comes on/goes out in the display (when you activate
or deactivate the Child Lock).
If the oven has Pyro Cleaning function, the door is locked.
SAFE comes on in the display when you turn a knob or press a button.
Additional functions 15

Function Lock
Applicable to models with Pyro Cleaning function.
The Function Lock prevents an accidental change of the oven function. You can activate the
Function Lock function only when the appliance operates.
Activating and deactivating the Function Lock function:
1. Activate the appliance.
2. Activate an oven function or setting.
3. Press and hold and at the same time for 2 seconds.
4. An acoustic signal sounds. Loc comes on/goes out in the display (when you activate or
deactivate the Function Lock).
If the oven has Pyro Cleaning function, the door is locked.
You can deactivate the appliance when the Function Lock is on. When you deactivate the
appliance, the Function Lock deactivates.
Loc comes on in the display when you turn a knob or press a button.
Residual heat indicator
Display shows the residual heat indicator after end of every cooking sessions when the
temperature inside oven cavity is more then 100 °F. Use Temperature knob to show the
oven temperature on the display.
Cooling fan
When the appliance operates, the cooling fan activates automatically to keep the surfaces
of the appliance cool. If you deactivate the appliance, the cooling fan can continue to oper-
ate until the appliance cools down.
Automatic switch-off
For safety reasons the appliance deactivates itself after some time:
• if an oven function is running.
• if you do not change the oven temperature.
Oven temperature Switch-off time
80 °F -245 °F 12.5 h
250 °F -395 °F 8.5 h
400 °F -480 °F 5.5 h
485 °F -maximum °F 3.0 h
After an automatic switch-off, press a any button to operate the appliance again.
The Automatic switch-off works with all oven functions, except Light, Core Temperature
Sensor, Duration and End.
16 Additional functions

HELPFUL HINTS AND TIPS
Inner side of door
In some models on the inner side of the door you can find:
• the numbers of the shelf positions (selected models)
• information about the heating functions, recommended shelf positions and tempera-
tures for typical dishes (selected models).
The temperature and baking times in the tables are guidelines only. They depend on the
recipes, quality and quantity of the ingredients used.
Baking
General instructions
• Your new oven may bake or roast differently to the appliance you had before. Adapt your
usual settings (temperature, cooking times) and shelf positions to the values in the ta-
bles.
• With longer baking times, the oven can be switched off about 10 minutes before the end
of baking time, to use the residual heat.
When you use frozen food, the trays in the oven can twist during baking. When the
trays get cold again, the distortion will be gone.
How to use the Baking Tables
• We recommend to use the lower temperature the first time.
• If you cannot find the settings for a special recipe, look for the one that is almost the
same.
• Baking time can be extended by 10 -15 minutes, if you bake cakes on more than one
level.
• Cakes and pastries at different heights do not always brown equally at first. If this oc-
curs, do not change the temperature setting. The differences equalize during the baking
procedure.
Baking on one level:
Baking in tins
Type of baking Oven function Shelf position Temperature °F Time in min.
Ring cake or brio-
che
True Fan Cooking 1300 -320 50 -70
Madeira cake /
fruit cakes
True Fan Cooking 1280 -320 70 -90
Fatless sponge
cake / Fatless
sponge cake
True Fan Cooking 2280 -300 35 -50
Fatless sponge
cake / Fatless
sponge cake
Conventional
Cooking
2320 35 -50
Helpful hints and tips 17

Type of baking Oven function Shelf position Temperature °F Time in min.
Flan base -short
pastry
True Fan Cooking 2340 -360
1)
10 -25
Flan base -
sponge mixture
True Fan Cooking 2300 -340 20 -25
Apple pie / Apple
pie (2tins Ø20cm,
diagonally off set)
True Fan Cooking 2320 60 -90
Apple pie / Apple
pie (2tins Ø20cm,
diagonally off set)
Conventional
Cooking
1360 70 -90
Cheesecake Conventional
Cooking
1340 -380 60 -90
1) Preheat the oven
Cakes / pastries / breads on baking trays
Type of baking Oven function Shelf position Temperature °F Time in min.
Plaited bread /
bread crown
Conventional
Cooking 3340 -380 30 -40
Christmas stollen Conventional
Cooking 2320 -360
1)
50 -70
Bread (rye
bread):
1. First part of
baking proc-
ess.
2. Second part
of baking
process.
Conventional
Cooking 11. 450
1)
2. 320 -360
1. 20
2. 30 -60
Cream puffs /
eclairs
Conventional
Cooking 3380 -410
1)
20 -35
Swiss roll Conventional
Cooking 3360 -400
1)
10 -20
Cake with crum-
ble topping (dry) True Fan Cooking 3300 -320 20 -40
Buttered almond
cake / sugar cakes
Conventional
Cooking 3380 -410
1)
20 -30
Fruit flans (made
with yeast
dough / sponge
mixture)
2)
True Fan Cooking 3300 35 -55
18 Helpful hints and tips

Type of baking Oven function Shelf position Temperature °F Time in min.
Fruit flans (made
with yeast
dough / sponge
mixture)
2)
Conventional
Cooking 3340 35 -55
Fruit flans made
with short pastry True Fan Cooking 3320 -340 40 -80
Yeast cakes with
delicate toppings
(e.g, quark, cream,
custard)
Conventional
Cooking 3320 -360
1)
40 -80
1) Preheat the oven
2) Use deep pan
Biscuits
Type of baking Oven function Shelf position Temperature °F Time in min.
Short pastry bis-
cuits True Fan Cooking 3300 -320 10 -20
Short bread /
Short bread / Pas-
try Stripes
True Fan Cooking 3280 20 -35
Short bread /
Short bread / Pas-
try Stripes
Conventional
Cooking 3320
1)
20 -30
Biscuits made
with sponge mix-
ture
True Fan Cooking 3300 -320 15 -20
Pastries made
with egg white,
merungues
True Fan Cooking 3180 -210 120 -150
Macaroons True Fan Cooking 3210 -250 30 -50
Biscuits made
with yeast dough True Fan Cooking 3300 -320 20 -40
Puff pastries True Fan Cooking 3340 -360
1)
20 -30
Rolls True Fan Cooking 3320
1)
10 -25
Rolls Conventional
Cooking 3380 -410
1)
10 -25
Small cakes /
Small cakes (20
per tray)
True Fan Cooking 3300
1)
20 -35
Small cakes /
Small cakes (20
per tray)
Conventional
Cooking 3340
1)
20 -30
1) Preheat the oven
Helpful hints and tips 19

Multileveled Baking
Cakes / pastries / breads on baking trays
Type of baking
True Fan Cooking
Temperature in
°F Time in min.Shelf position
2 levels 3 levels
Cream puffs /
Eclairs 1 / 4 -320 -360
1)
25 -45
Dry streusel cake 1 / 4 -300 -320 30 -45
1) Preheat the oven
Biscuits / small cakes / small cakes / pastries / rolls
Type of baking
True Fan Cooking
Temperature in
°F Time in min.Shelf position
2 levels 3 levels
Short pastry bis-
cuits 1 / 4 1 /3 / 5 300 -320 20 -40
Short bread /
Short bread /
Pastry Stripes
1 / 4 1 / 3 / 5 280 25 -50
Biscuits made
with sponge mix-
ture
1 / 4 -320 -340 25 -40
Biscuits made
with egg white,
meringues
1 / 4 -180 -210 130 -170
Macaroons 1 / 4 -210 -250 40 -80
Biscuits made
with yeast dough 1 / 4 -320 -340 30 -60
Puff pastries 1 / 4 -340 -360
1)
30 -50
Rolls 1 / 4 -360 30 -55
Small cakes /
Small cakes (20
per tray)
1 / 4 -300
1)
25 -40
1) Preheat the oven
Tips on baking
Baking results Possible cause Remedy
The cake is not browned
enough underneath. Wrong shelf position. Place the cake lower.
20 Helpful hints and tips
