AEG KB9810EM User manual

KB9810E
User manual Electric built-in oven

Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best
performance and control - indeed we are setting the highest standards of
excellence.
In addition to this you find environmental and energy saving aspects as an integral
part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe place. And please pass it toany future owner ofthe appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
Important information concerning your personal safety and information on how
to avoid damaging the appliance.
General information and tips
Environmental information
2

Contents
Operating instructions 6
Safety information 6
Electrical safety 6
Children's safety 6
Safety during use 6
Microwave 7
How to avoid damage to the appliance 9
Do not use the appliance 10
Description of product 11
General view 11
Control panel 12
Oven layout 12
Accessories Oven 13
Before using for the first time 13
Setting and changing the time 13
Cleaning for the first time 14
Getting to know the appliance 15
Operating the oven 15
The electronic oven controls 15
The display field 15
The control panel 16
Selecting the oven function 17
Changing the oven temperature 17
Thermometer symbol 17
Switching the oven off 18
Fast Warm Up 18
Oven Functions 18
Microwave 19
Combi Function 21
Microwave Quick Start 22
Information on power settings 23
Inserting the oven shelf and baking tray 24
Additional functions 24
Microwave Programmes 24
Contents 3
315786713-00-16082007

Memory function 26
Clock functions 27
Countdown 28
Microwave Cook Time min. 29
Cook Time 30
End Time 31
Cook Time and End Time combined 32
Other functions 33
Switching off the display 33
Child safety device 34
Button Beep 35
Automatic switch-off 35
Uses, Tables and Tips 35
Baking 35
General instructions 36
Baking Table 37
Tips for baking 39
Bakes and Gratins Table 40
Frozen Ready Meals Table 40
Roasting 41
Roasting Table 41
Single economy grill 43
Grilling Table 43
Rotitherm Roasting 43
Oven functions: Rotitherm Roasting 43
Defrosting 44
Defrosting Table 45
Drying 45
Making preserves 46
Preserves table 46
Microwave 47
Information about operation 47
Suitable cookware and materials 48
Microwave Cooking Table 50
Combi-Function Table 53
Tips for the microwave 55
Test dishes in accordance with IEC 60705 55
Programmes 56
4Contents

POTATO GRATIN (serves 4-5) 58
CHICKEN 1200 G 58
Cleaning and care 59
The outside of the appliance 59
Oven interior 60
Accessories 60
Side rails 60
Removing the side rails 60
Replacing the side rails 61
Oven lighting 61
If something is wrong… 62
Electrical Connection 63
Installation instructions 64
Safety information for the installer 64
Disposal 69
Guarantee/Customer Service 69
GREAT BRITAIN & IRELAND 69
European Guarantee 71
www.electrolux.com 72
Service 74
Contents 5
315786713-00-16082007

Operating instructions
Safety information
Important safety instructions!
Read carefully and keep for future use!
Electrical safety
•This appliance must only be connected by a qualified installation engineer.
• In the event of a fault or damage to the appliance: Take the fuses out or switch
off.
• Should the door seal and the door seal surfaces be damaged, the appliance must
not be operated until they are repaired.
•Repairs to the appliance must only be carried out by qualified service
engineers. Considerable danger may result from improper repairs. If repairs
become necessary, please contact our Customer Care Department or your dealer.
Children's safety
• Small children must be kept away from the appliance. Make sure that children
do not touch the appliance when playing.
• Always heat baby food in jars or bottles with the lid or top off. After heating,
stir or shake well, so that the heat is equally distributed. Before you give the
baby food to the child, please be sure to test the temperature.
• When operating the grill (alone or in combination with the microwave) the
viewing window becomes hot. Therefore keep small children away from the door
of the appliance.
• Never leave children unsupervised while the appliance is operating.
• This appliance is fitted with a child safety device.
Safety during use
• This appliance should be used only for normal domestic cooking, roasting and
baking of food.
6Safety information

• Be careful if connecting electrical appliances to sockets near to this appliance.
Electrical leads must not be caught under the hot oven door.
•Warning: Risk of burns! The interior surfaces of the oven become very hot
during use.
• If you use ingredients containing alcohol in the oven, a slightly flammable mix-
ture of alcohol and air may ensue. In this case, be careful when opening the
door. Do not handle any sources of heat, sparks or naked flames when doing so.
• People (including children), who, because of their physical, sensory or mental
capabilities or their inexperience or ignorance, are not able to use the appliance
safely, should not use this appliance without supervision by or instruction from
a responsible person.
Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially
in products containing starch, can constitute a health risk due to acrylamides.
Therefore we recommend cooking at the lowest possible temperatures and not
browning foods too much.
Microwave
• Only switch the appliance on when there is food inside it. With no food in it, the
appliance could be overloaded.
•Only use microwave safe cookware (see section Uses, Tables and Tips: Suitable
cookware and materials).
• To protect the interior or the door of the appliance from corrosion through
escaping steam (condensed water), please dry the appliance thoroughly with a
cloth after each use.
• Do not leave the appliance unattended, if food is being heated or cooked in
disposable containers made of plastic, paper or other flammable materials.
• If smoke appears, keep the appliance closed. Switch off the appliance and dis-
connect from the power supply. Do not use the appliance under any circum-
stances, if it is no longer working correctly.
Safety information 7

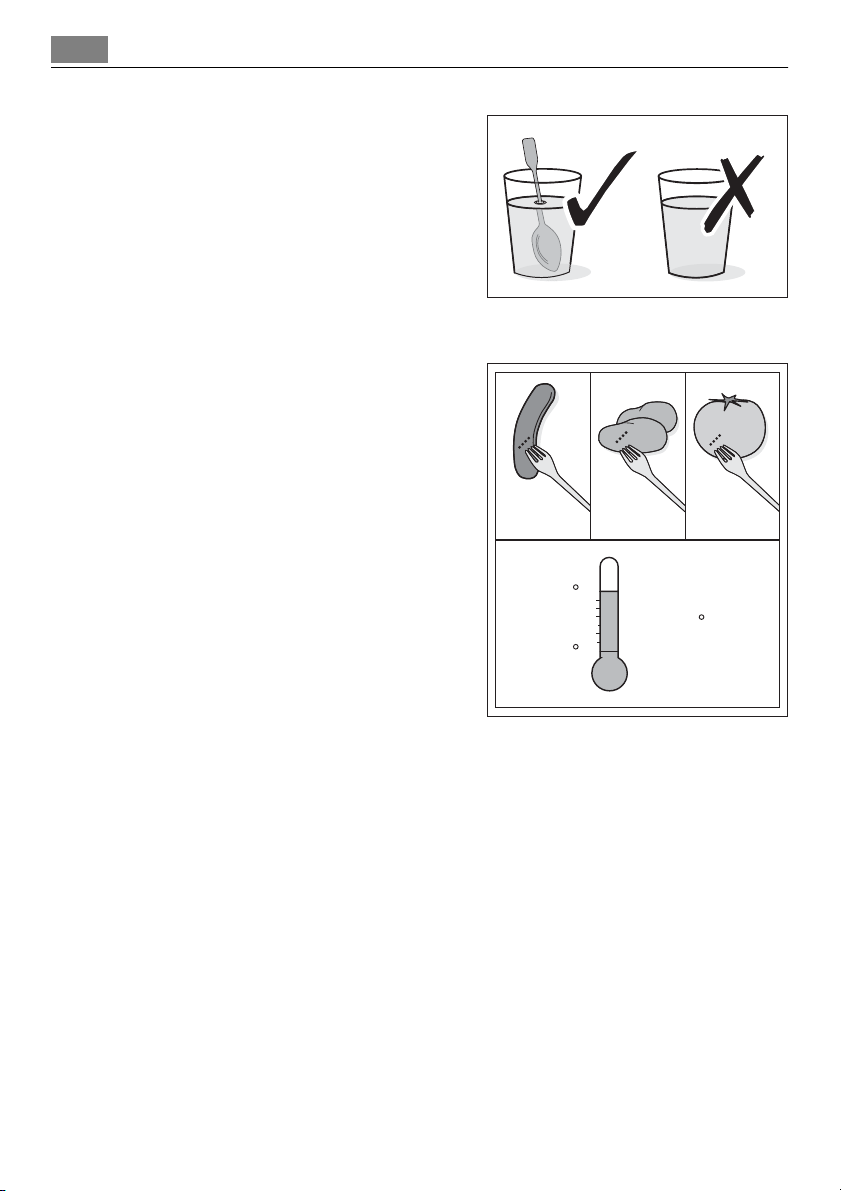

• When heating liquids always put a cof-
fee spoon or a glass rod in the container
to avoid boiling delay. With boiling de-
lay the boiling temperature is reached
without the typical steam bubbles ris-
ing.
If the container is shaken even slightly
the liquid can suddenly boil over or
spray violently. Risk of burns!
• Prick food with "skin" or "peel", such as
potatoes, tomatoes, sausages, with a
fork several times before cooking so
that the food does not burst.
• Ensure that a minimum temperature of
70°C is reached when cooking/heating
food. For this please refer to the power
and time data in the tables. Never use
mercury or liquid thermometers to
measure the temperature of the food.
• Foods heated with microwaves give off
heat to the cookware. Use oven gloves
or something similar!
• Do not overcook the dishes by using
powers and times that are too high. The food can dry out, burn or set itself alight
in certain places.
• The interior of the oven, the grill heating element and the accessories become
hot when the appliance is operating. Please be careful when handling them and
use oven gloves or similar for this reason. Risk of burns!
• Metal objects must be at least 2 cm from the walls of the oven interior and the
oven door. Otherwise spark discharges may be caused and the appliance can be
damaged
• If not advised otherwise, do not use aluminium foil.
• Do not get anything caught between the door and the door frame.
• Always keep the door seal, the door seal surfaces and the interior clean. Lack of
cleanliness in the appliance can lead to dangerous situations.
• Do not store any flammable materials inside the oven. These could ignite when
the oven is switched on.
min 70 C
70
0
8Safety information

How to avoid damage to the appliance
• Do not line the oven with aluminium foil and do not place a baking tray or
saucepan etc. on the floor, as otherwise the oven enamel will be damaged by
the heat build-up.
• Fruit juices dripping from the baking tray will leave stains, which you will not
be able to remove. For very moist cakes, use a deep tray.
• Do not put any strain on the oven door when open.
• Never pour water directly into the oven when it is hot. This could cause damage
to and discoloration of the enamel.
• Rough handling, especially around the edges of the front panel, can cause the
glass to break.
• Do not store any flammable materials inside the oven. These could ignite when
the oven is switched on.
• Do not store any moist foods inside the oven. This could cause damage to the
enamel.
• Do not leave dishes uncovered in the oven after switching off the cooling fan.
Moisture may form inside the oven or on the glass door and also get onto the
kitchen units.
Information on the oven enamel
Changes to the colour of the oven's enamel surface as a result of use do not affect
the appliance's suitability for normal and correct use. They therefore do not con-
stitute a defect in terms of warranty law.
Safety information 9

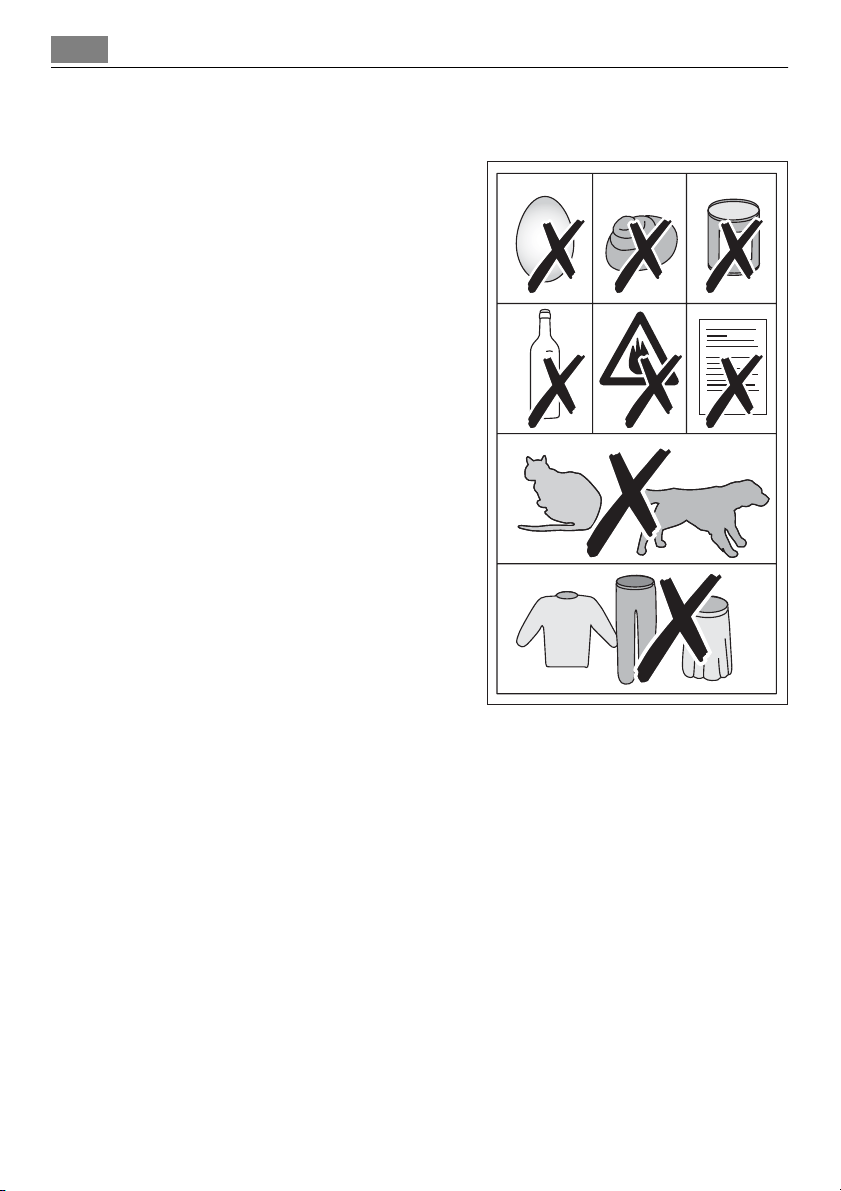

Do not use the appliance
... for cooking eggs in their shells (with fried
eggs, pierce the yolks first) and snails, as oth-
erwise these burst.
Cooking oil (fondue, deep frying) and drinks
with high alcohol content: Spontaneous ig-
nition! Risk of explosion!
... for heating tightly closed containers, e. g.
tins, bottles, screw top jars.
... for drying animals, textiles, grain pillows
and gel cushions and other flammable ma-
terials: Risk of fire!
... for cookware made of porcelain, ceramic
or earthenware that has small holes, e. g. on
handles or unglazed bottoms. Moisture
penetrating holes can cause the cookware to
crack when it is heated.
10 Safety information

Description of product
General view
1
2
3
1Control Panel
2Door handle
3Full glass door
Description of product 11

Control panel
1
2
1Oven displays
2Oven functions buttons
Oven layout
1
2
3
4
5
6
7
1
2
3
1Grill element
12 Description of product

2Microwave generator
3Light in the oven
4Rear heating panel Oven lighting
5Glass base, removable
6Side rails, removable
7Oven shelf levels

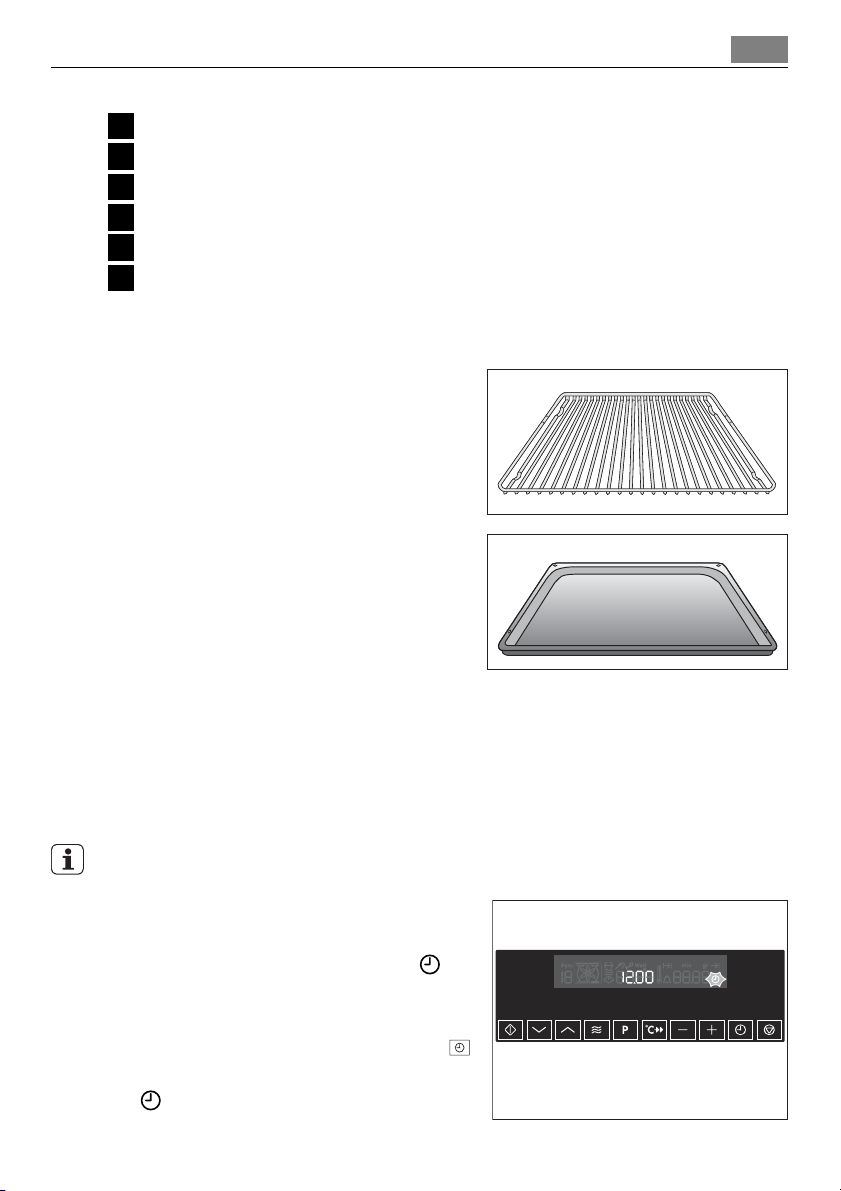

Accessories Oven
Oven shelf
For cookware, cake tins, roasts and grilling
food.
Baking tray
For cakes and biscuits.
(not suitable for microwave mode)
Before using for the first time
Setting and changing the time
The oven only operates when the time has been set.
When the appliance has been connected to
the electrical supply or when there has been
a power cut, the symbol for the time
automatically flashes.
1. To change a time that has already been
set, press the clock functions button
repeatedly until the symbol for the time
flashes.
Before using for the first time 13

2. Using the or button, set the
current time.
After approx. 5 seconds, the flashing stops
and the clock displays the time set.
The appliance is now ready to use.
The time can only be modified, if the child
safety device is deactivated, none of the clock
functions Countdown , Cook Time or
End Time and none of the oven functions
are set.
Cleaning for the first time
Before you use the oven for the first time, you should clean it thoroughly.
Do not use any sharp or abrasive cleaning tools or materials! These could damage
the surface.
For metal fronts, use normal commercially available cleaning agents.
1. Open the oven door.
The lighting in the oven is switched on.
2. Remove all accessories and side rails and clean with a warm solution of water
and washing-up liquid.
3. Also wipe the oven out with a warm solution of water and washing-up liquid
and then dry it.
4. Wipe the front of the appliance with a damp cloth.
14 Before using for the first time

Getting to know the appliance
The appliance can be operated in test mode to test or demonstrate all operating
steps. The oven does not heat up.
Test mode Switching on
1. Switch off the appliance using the Stop
button.
2. Press and hold the Baking/Roasting Pro-
grammes buttons and at the same
time until a signal sounds and "d" lights
up in the display.
Switching test mode off
1. Switch off the appliance using the Stop
button.
2. Press and hold the Baking/Roasting Programmes buttons and at the
same time until a signal sounds and "d" goes out in the display.
Operating the oven
The electronic oven controls

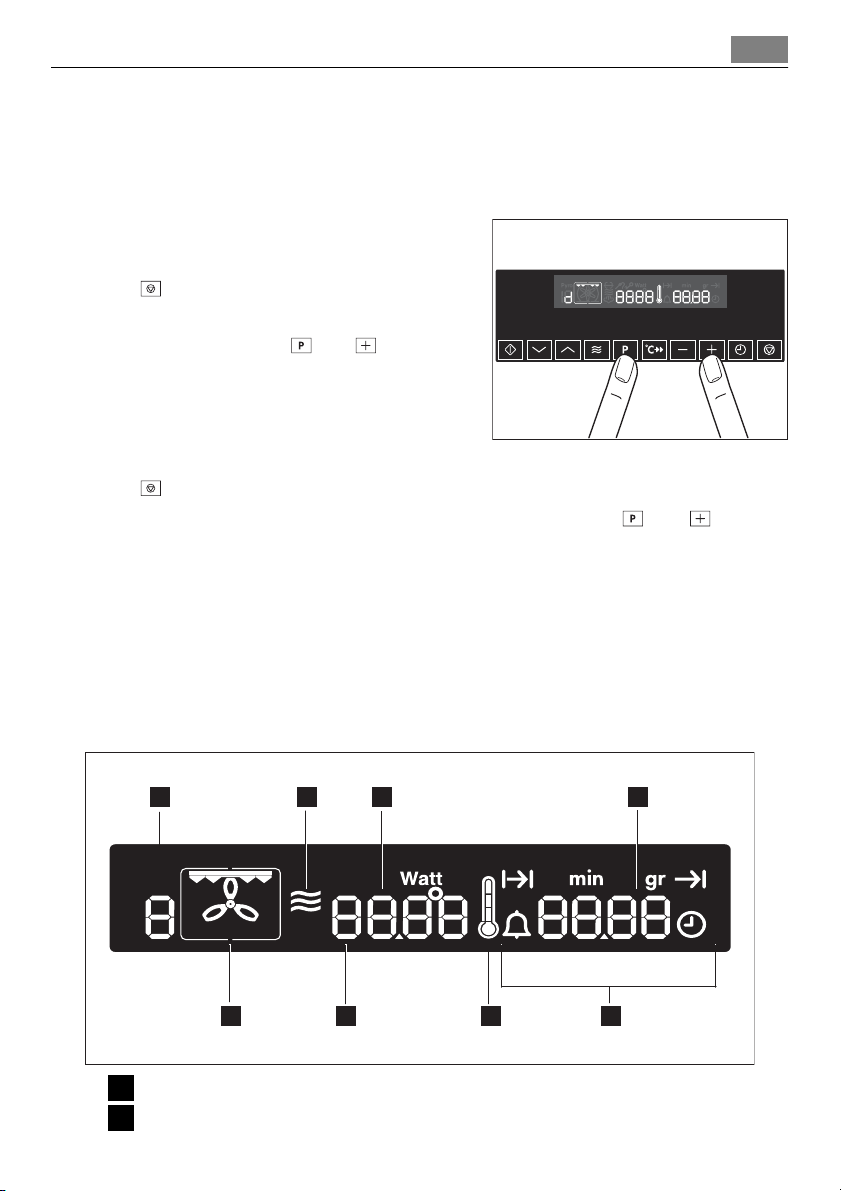

The display field
1 2 3 4
5678
1Memory: P / Test: d
2Microwave function
Operating the oven Oven Operation 15

3Temperature/Time/Microwave Power
4Weight display
5Time functions Length of operation
6Thermometer symbol
7Baking/Roasting Programmes
8Oven functions

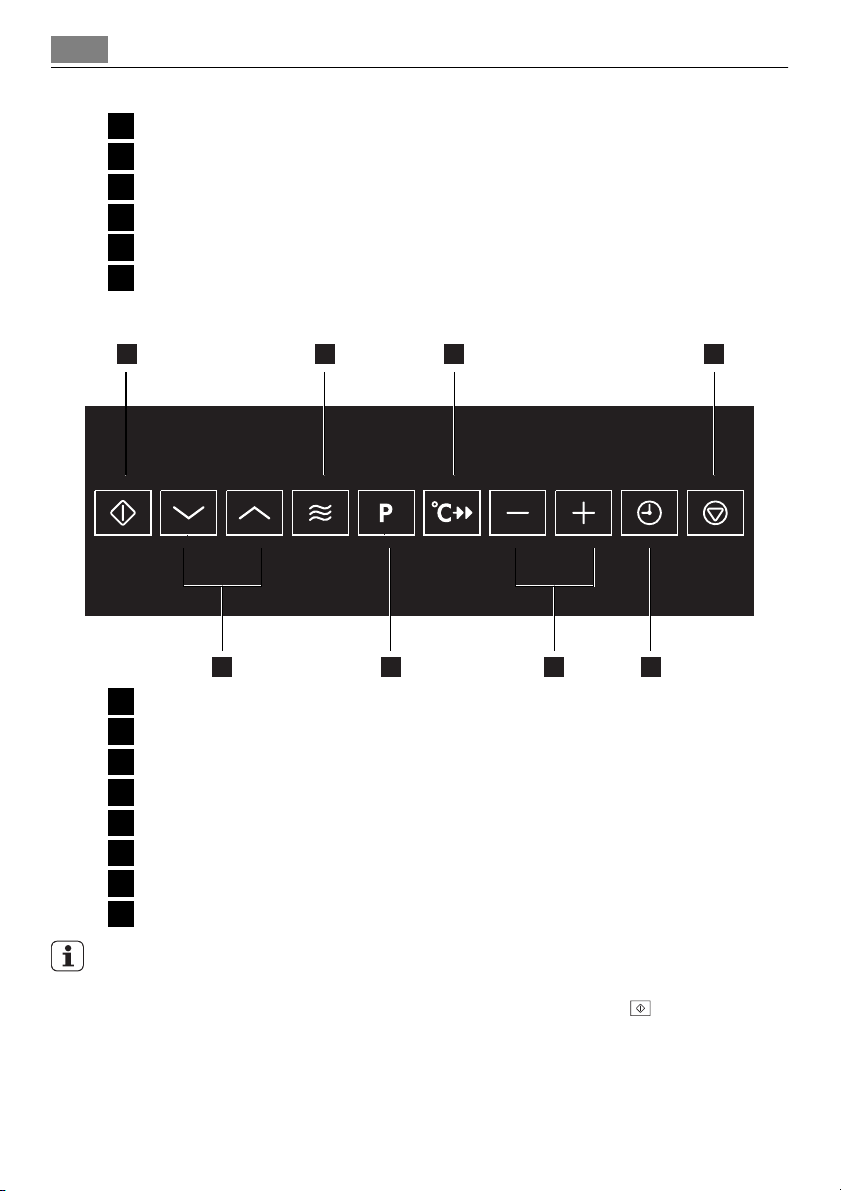

The control panel
12 3
756
4
8
1Start button
2Microwave button
3Fast Warm Up
4Stop button / Restore settings
5Clock functions
6Selector buttons
7Baking/Roasting Programmes
8Oven functions
General instructions
• Always confirm the selected function with the Start button . If the selected
function is not started within 30 seconds, the appliance switches itself off.
• When the selected function is started, the oven begins to heat up or the time
set begins to count down.
16 Operating the oven Oven Operation

• If the oven door is opened during operation, the function stops. After closing
the door continue with the Start button . If the Start button is not started
within 30 seconds, the appliance switches itself off.
• The oven light is switched on as soon as an oven function is started or the oven
door is opened. The oven light goes off after 10 minutes when the door is open
and the appliance switched off.
• Stop operation with the Stop button, continue operation with the Start
button . Switch the appliance off by pressing the Stop button again.

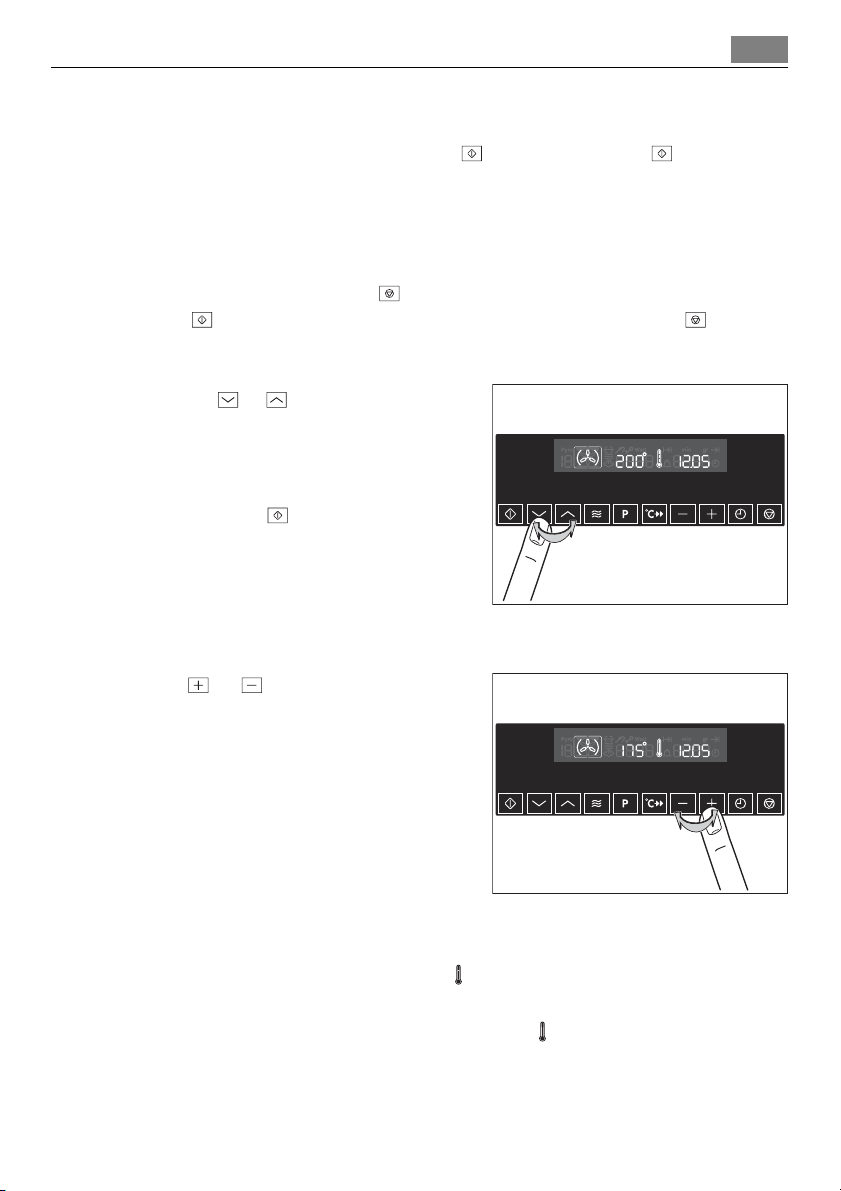

Selecting the oven function
1. Press the or button repeatedly until
the desired oven function appears.
– A suggested temperature appears in
the temperature display.
2. Press the Start button to start the
function that has been set.
Changing the oven temperature
Press the or button to raise or lower
the temperature.
The setting changes in 5 °C steps.
Thermometer symbol
• The slowly rising thermometer symbol indicates how far the oven has heated
up.
• The three segments of the thermometer symbol flashing one after the other
show that Fast Warm Up is on.
Operating the oven Oven Operation 17

Switching the oven off
To switch the oven off, press the Stop
button repeatedly until only the time and any
residual heat is displayed.
Cooling fan
The fan switches on automatically to keep the
appliance surfaces cool. When the oven is
switched off, the fan continues to run to cool
the appliance down and then switches itself
off.
Fast Warm Up
After an oven function has been selected, the empty oven can be pre-heated in a
relatively short time using the additional function Fast Warm Up.
CAUTION!
Please do not put the food to be cooked into the oven, until Fast Warm Up is
completed and the oven is operating using the desired function.
1. Set desired oven function. If necessary, change the suggested temperature.
2. Press the Fast Warm Up button . The symbol for lights up. When the bars
flash one after another this shows that Fast Warm Up is operating.
When the temperature set is reached, the bars of the heat indicator are lit. A signal
sounds. The symbol for goes out.
The oven now continues heating according to the pre-set oven function and
temperature. You can now place the food in the oven.
Oven Functions
Oven functions Use
Ventitherm ® Fan
Operated Cooking
For roasting and baking on up to two levels at the same
time.
Rotitherm Roasting For roasting larger pieces of meat or poultry on one level.
The function is suitable for gratinating and browning.
Single Economy Grill For grilling flat foodstuffs and for toasting
18 Operating the oven Oven Operation

Oven functions Use
Defrost/Drying For defrosting and drying herbs, fruit and vegetables.
Microwave
In microwave mode, the heat is created directly in the food. For heating ready meals
and drinks, for defrosting meat or fruit and for cooking vegetables and fish.
Combi Function
For the style of heating for the oven function(s), the Microwave function can
be switched on The dishes are cooked in the shortest time and browned at the same
time.
Microwave Quick Start
Quick Start of the maximum microwave power when the appliance is switched off
using the Start button .
Operating time from 30 seconds to 7 minutes. Each press of the button adds 30
seconds to the operating time displayed.
Microwave
1. Switch off the appliance using the Stop button, if necessary.
2. By repeatedly pressing the Micro-
wave button, set the desired mi-
crowave power.
– The settings options are in 100
Watt steps from 1,000 Watt to 100
Watt.
– Repeatedly pressing the Micro-
wave button makes the power
display begin again at 1,000 Watt.
Operating the oven Oven Operation 19

3. Using the or button, set the
desired cook time. The symbol for
Cook Time flashes.
– The cooking times can be set as
follows:
– from 0 to 2 min. in 5 second
steps,
– from 2 to 5 min. in 10 second
steps,
– from 5 to 10 min. in 20 second steps,
– from 10 to 20 min. in 30 second steps,
– from 20 min. onwards in 1 minute steps.
– The maximum length of operation that can be set is:
– At 700 Watt to 1,000 Watt 0 to 7 min. 40 seconds,
– at 100 Watt to 600 Watt 0 to 59 min.
4. When the Start button is pressed,
the time set begins to count down.
The symbol for Cook Time lights
up.
– While the time counts down, the
power can be changed using the
Microwave button.
– While the time counts down,
using the clock functions but-
tons and the cooking
time can be increased or re-
duced.
When the time has elapsed, a signal
sounds for 2 minutes. The microwave
switches itself off. The symbol for Cook
Time flashes and the time display
appears.
To turn off the signal: Press any button.
20 Operating the oven Oven Operation
