AEG 825 D User manual

825 D - 8259 D
Dunstabzugshaube
Cooker Hood
Hotte
Afzuigkap
Cappa aspirante
Montage- und Gebrauchsanweisung
Operating and Installation Instructions
Notice d utilisation et d installation
Installatie- en gebruiksaanwijzing
Istruzioni di montaggio e uso
Odhgije" sujndesh" kai crhjsh"
Aporrofhthjra"
All manuals and user guides at all-guides.com
all-guides.com

2

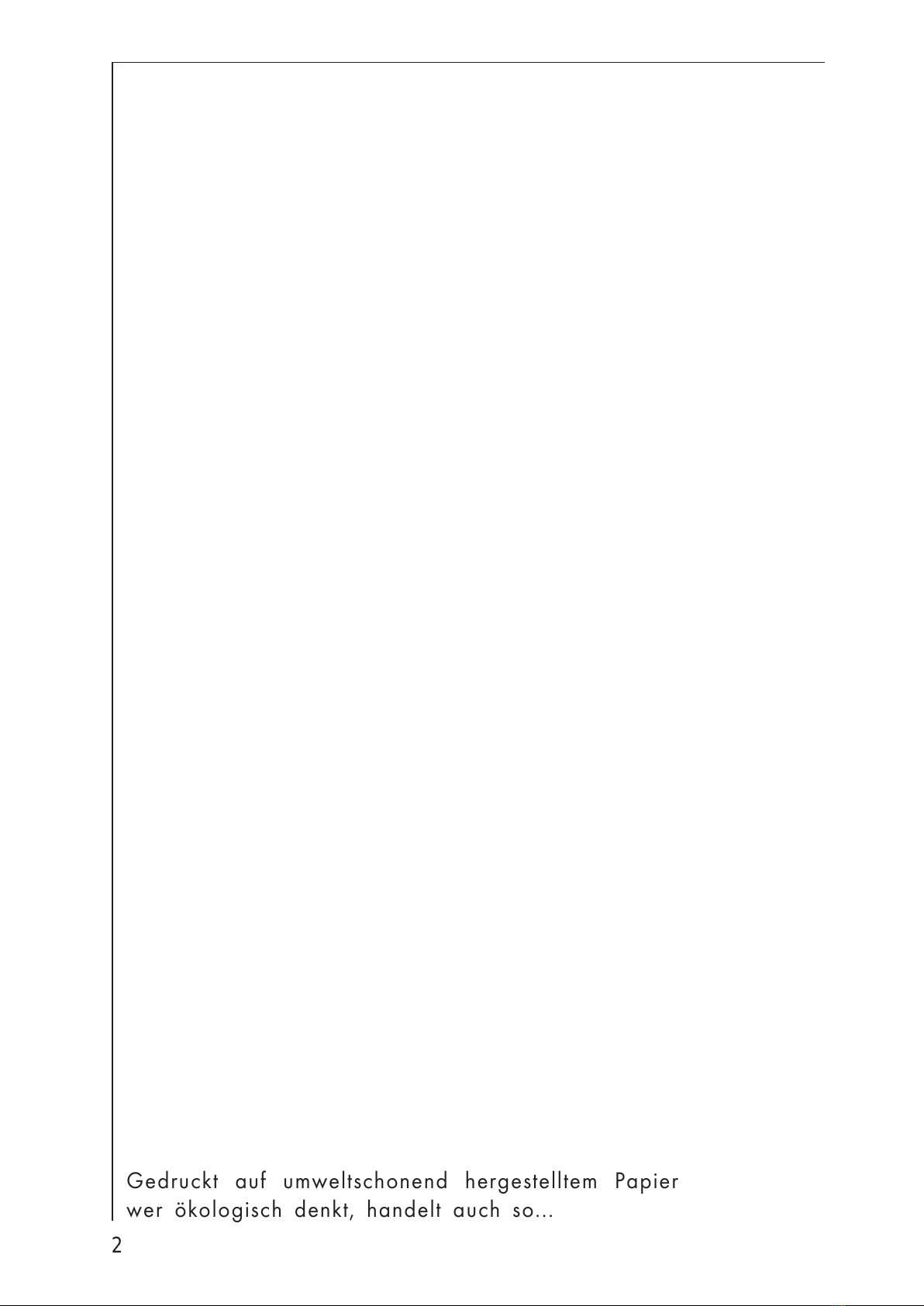

Gedruckt auf umweltschonend hergestelltem Papier
wer ökologisch denkt, handelt auch so...
All manuals and user guides at all-guides.com

18
Printed on recycled paper.
AEG  putting words into action.

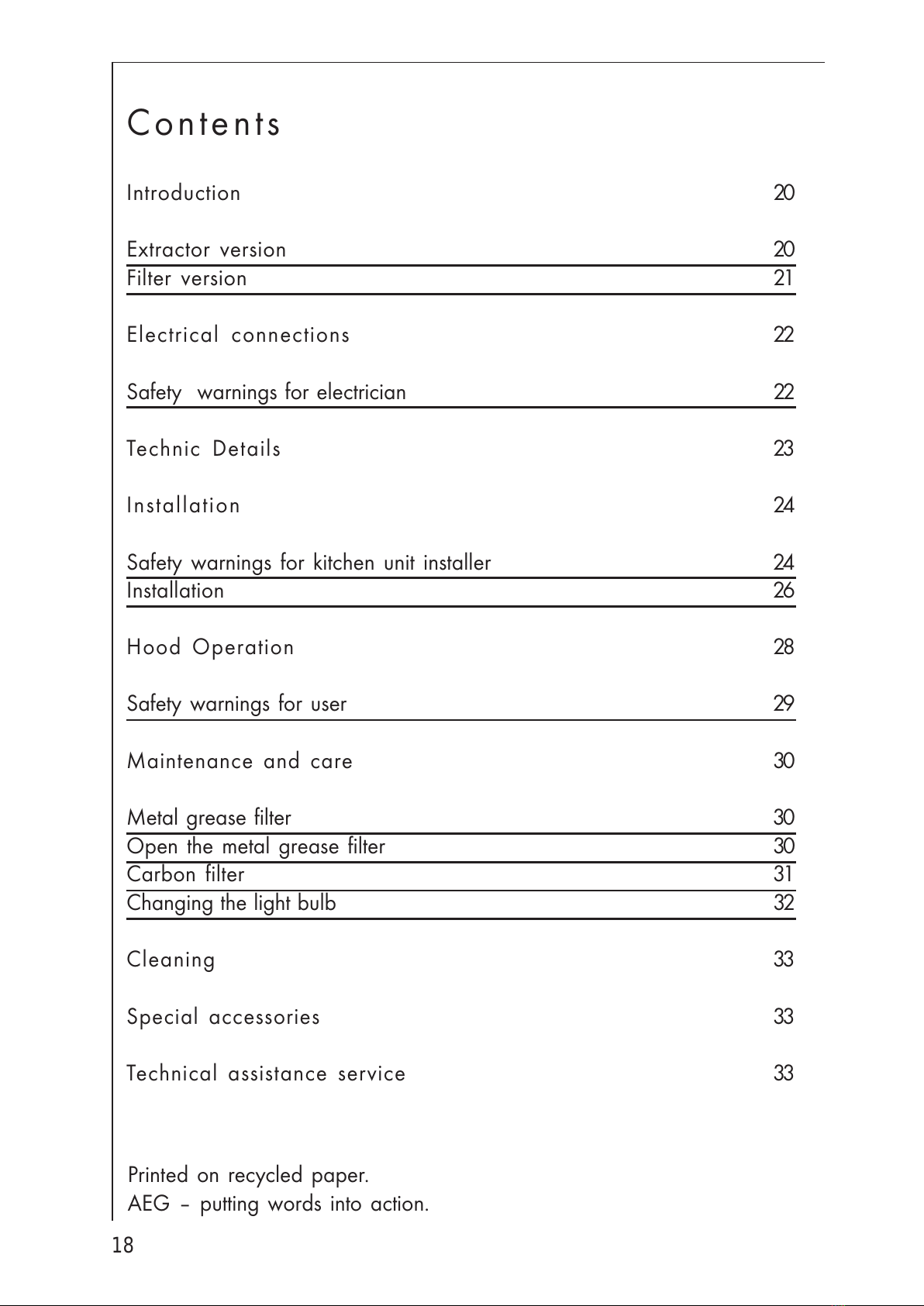

Contents
Introduction 20
Extractor version 20
Filter version 21

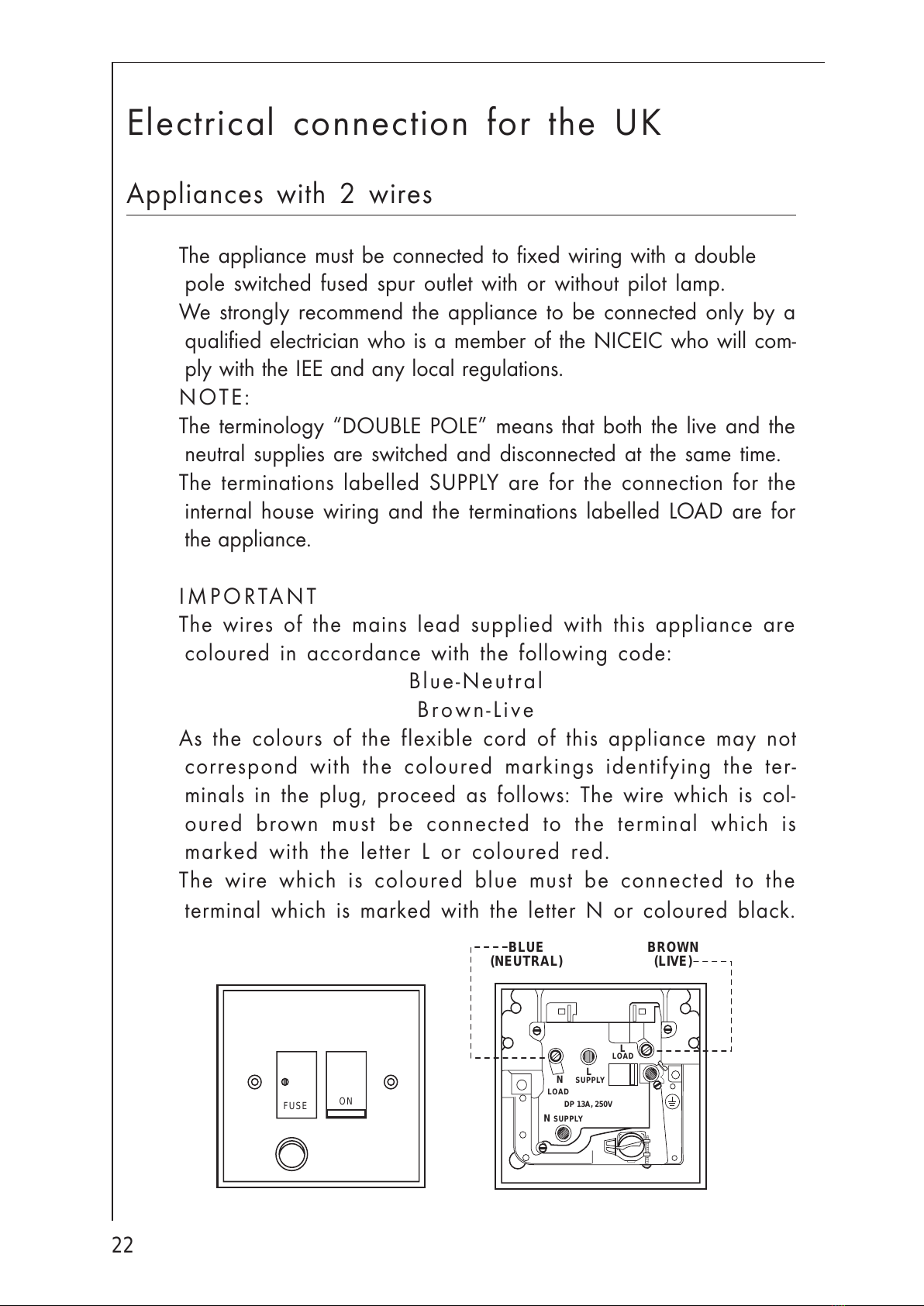

Electrical connections 22

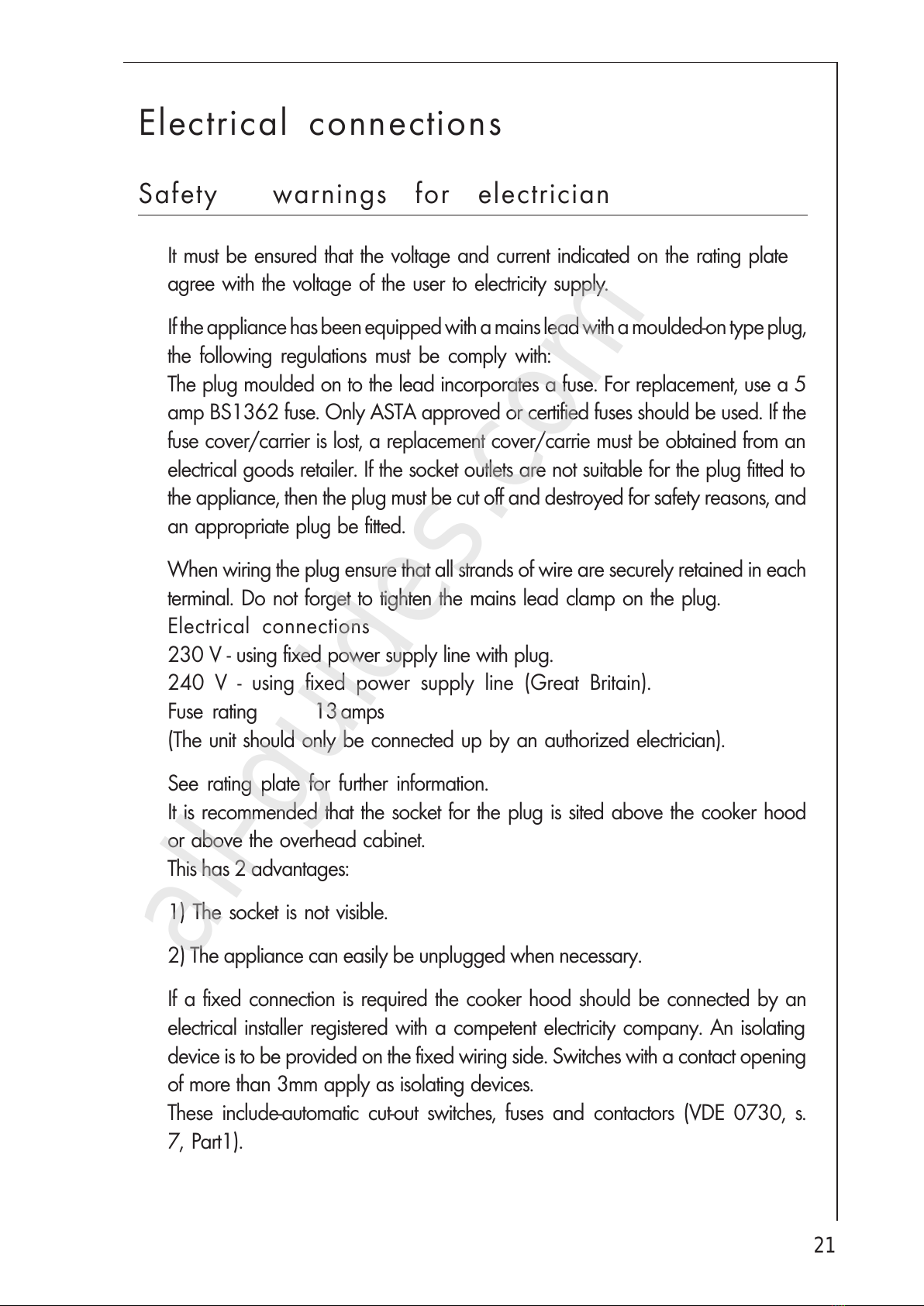

Safety warnings for electrician 22

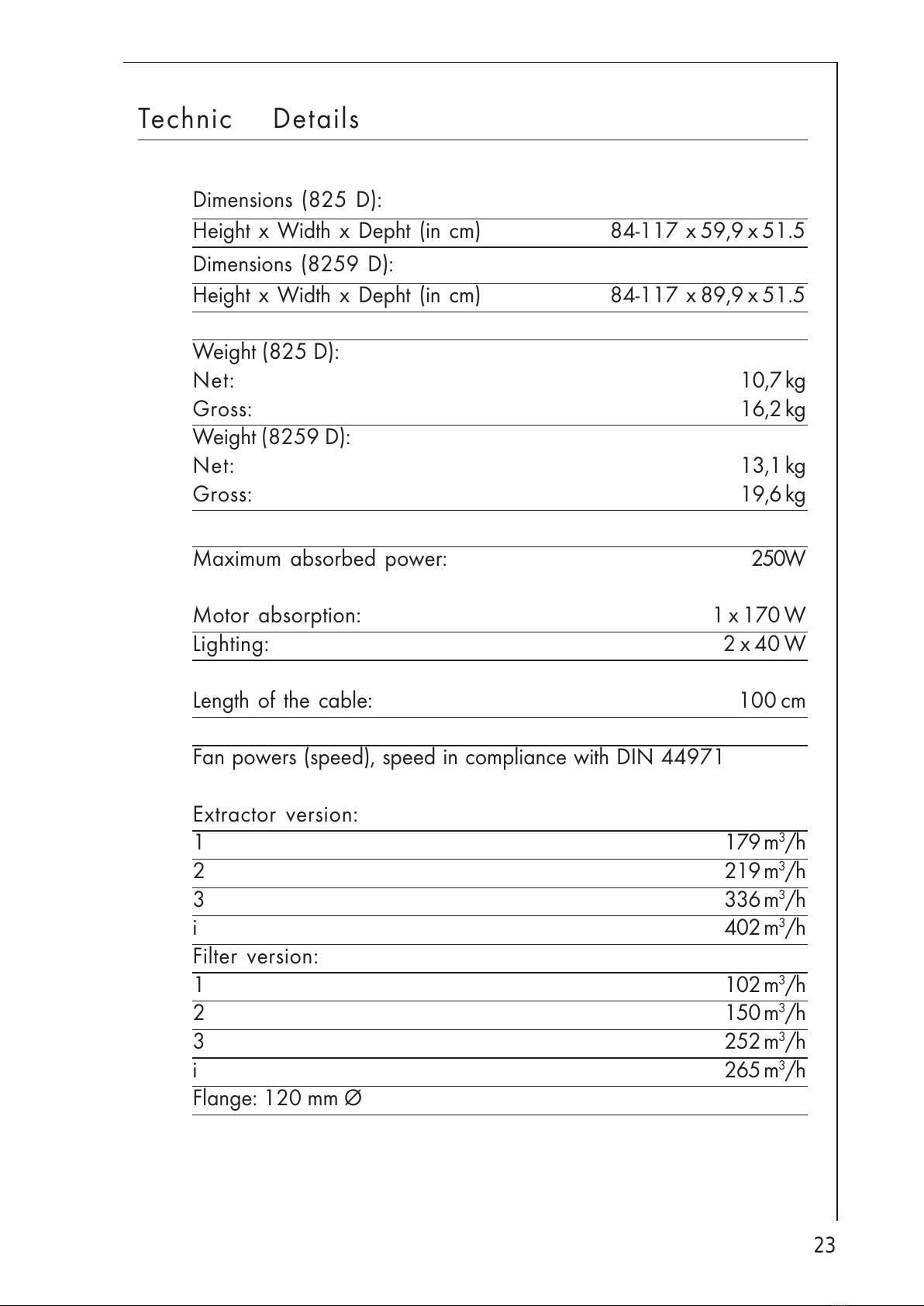

Technic Details 23
Installation 24
Safety warnings for kitchen unit installer 24

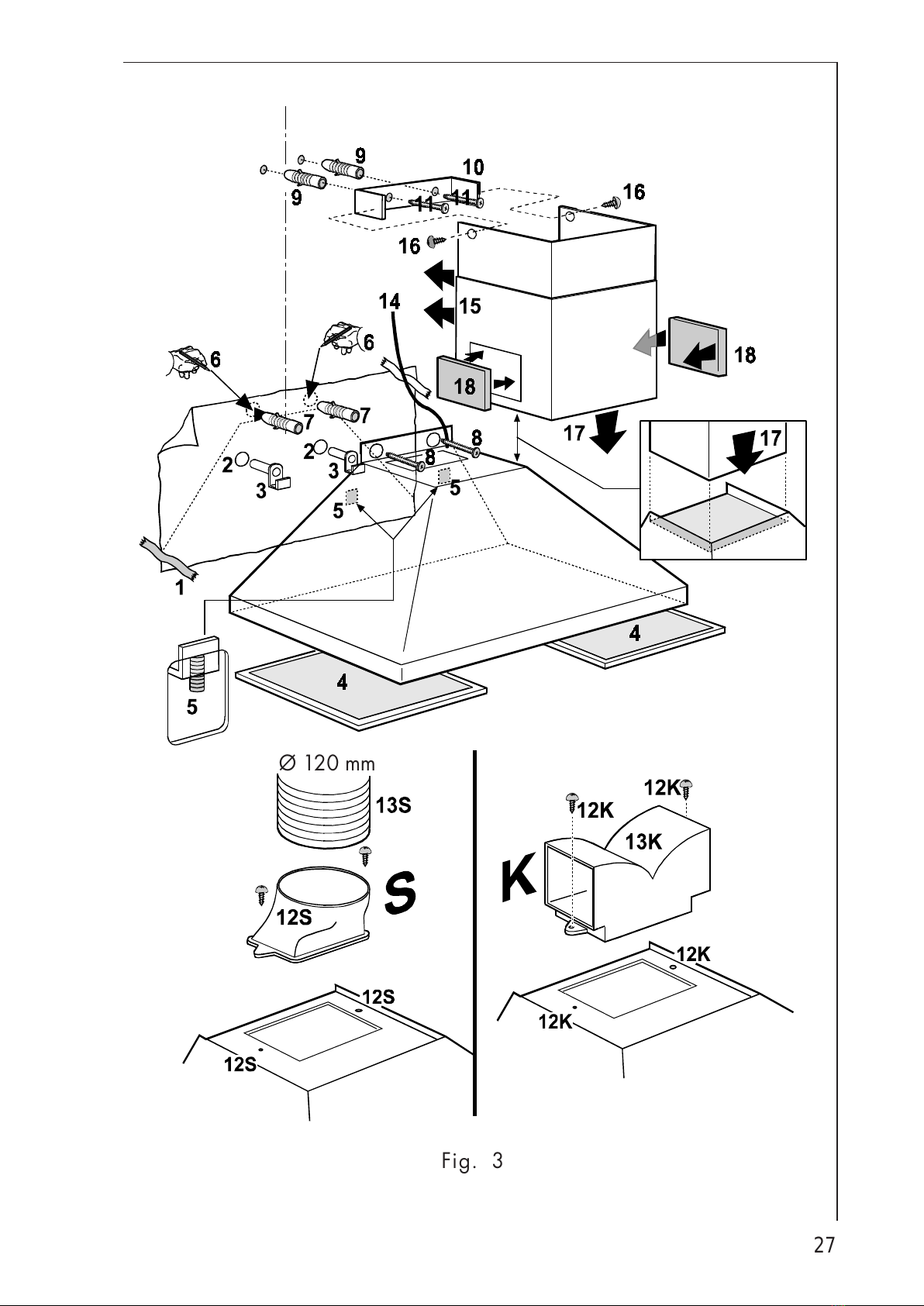

Installation 26
Hood Operation 28

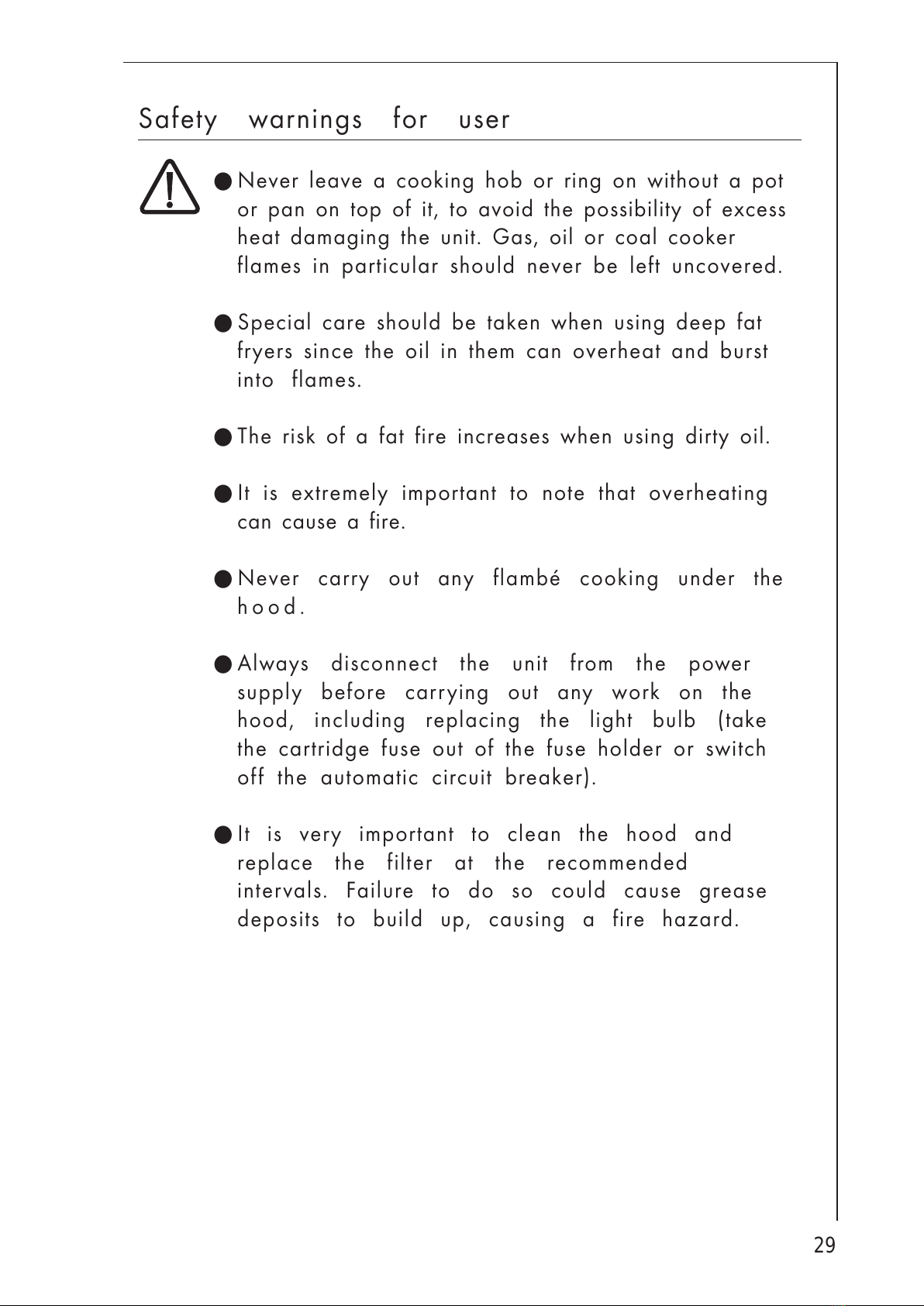

Safety warnings for user 29
Maintenance and care 30
Metal grease filter 30
Open the metal grease filter 30
Carbon filter 31

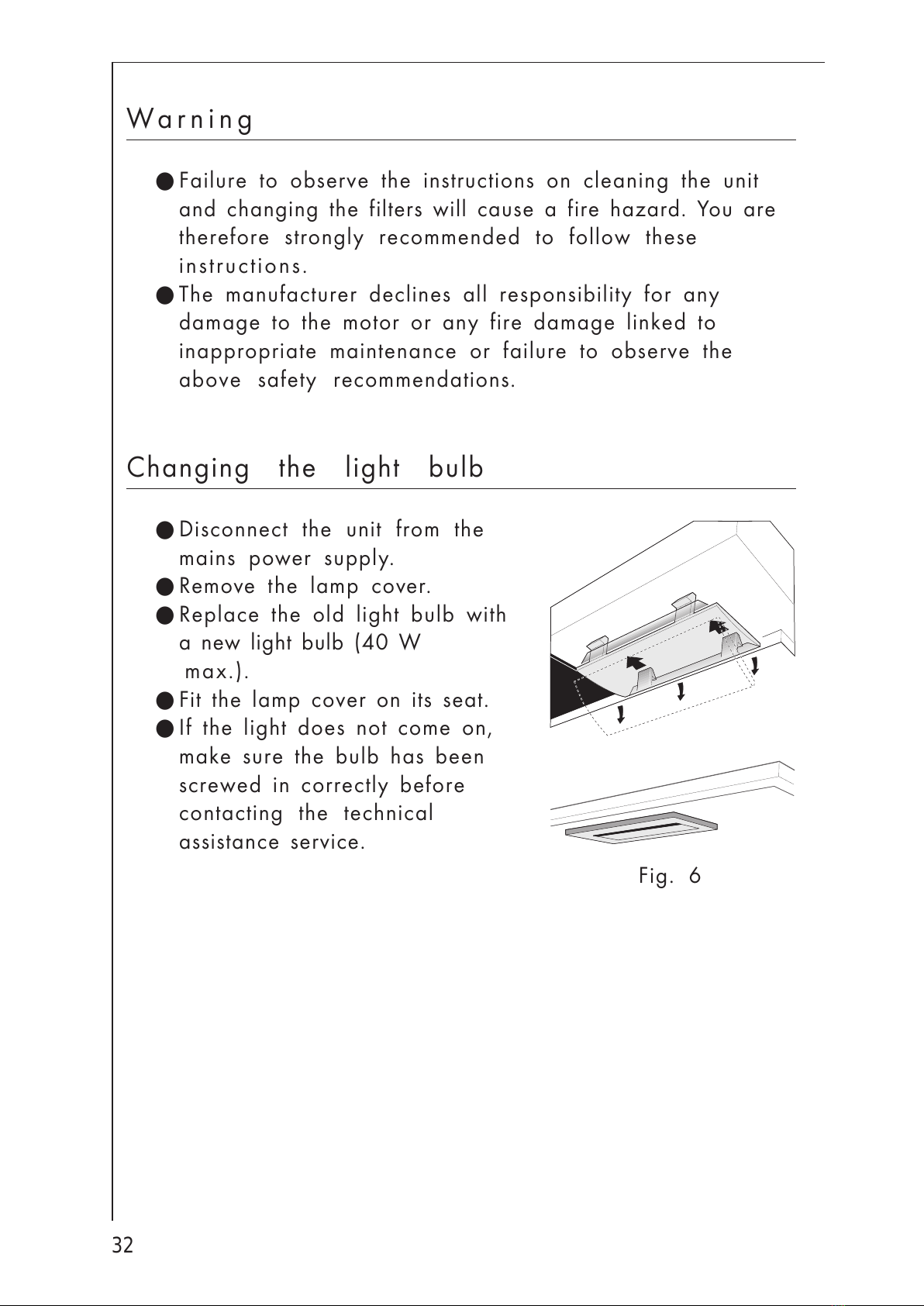

Changing the light bulb 32

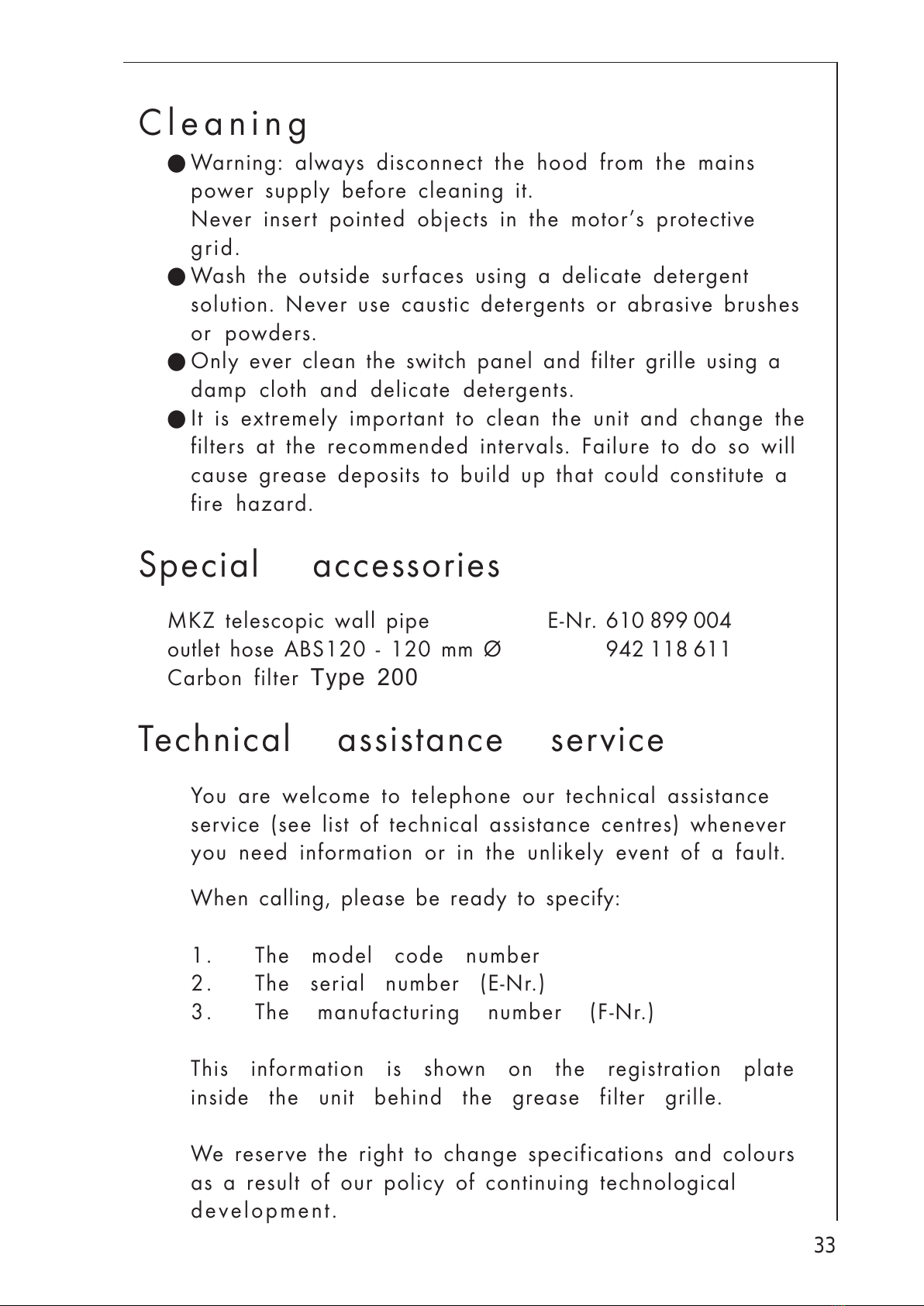

Cleaning 33
Special accessories 33
Technical assistance service 33
All manuals and user guides at all-guides.com

19
Introduction
Extractor version
●The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting activated carbon filters (special
accessory).
●You will need original AEG activated carbon filters for this function
(see Special Accessories).
●The air is forced out through a hose fitted to the top of the hood
A. Fig. 1.
●The outlet hose must have a diameter of 120 mm (special
accessory) for the filtering version.
●Fit the connection ring above the hood with two screws then fir an
exhausting pipe long enough to reach the outside. Fig. 1.
●If the cooking vapour is passed through an outside wall, you will
need an MKZ telescopic wall pipe (with intake and ventilation) E-
Nr.: 610 899 004 (120 mm Ø) from our range of special
accessories.
Fig. 1
A
All manuals and user guides at all-guides.com

20
Filter version
●The air is filtered through an activated carbon filter and passed back
into the kitchen through the top outlet duct grids.
●You will need an original AEG activated carbon filter for the
filtering function. (See Special Accessories).
●Fix the deflector with two screws Ø3,5x6,5. Fig. 2.
Fig. 2
