Contents
Safety warnings ..............................................................................64
For the user ......................................................................................64
For the installer ................................................................................. 65
Description of the Appliance .........................................................67
Extraction mode ...............................................................................67
Recirculation mode ...........................................................................67
Control Panel DD 8990 ............................................................68 71
Control Panel DD 8861 8891 8821 ..........................................70 71
Control Panel DD 8695 8665 8625 .........................................72 73
Maintenance and Care ...................................................................74
Cleaning the hood ............................................................................ 74
Metal grease filter .............................................................................74
Charcoal filter ...................................................................................75
Changing the light bulb .....................................................................76
What to do if ...................................................................................77
Special accessories........................................................................77
Technical assistance service .........................................................78
Service and Spare Parts ................................................................... 78
Customer Care Department .............................................................79
Technical Details ............................................................................79
Mounting accessories included.........................................................79
Electrical connection .....................................................................80
Wall unit mounting ............................................................................81

64
Safety warnings
For the user
 The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
 Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
 Also, when frying, keep the deep frying pan on the cooker top/
cooker under careful control.
 The hot oil in the frying pan might ignite due to overheating.
 The risk of self-ignition increases when the oil being used is dirty.
 It is extremely important to note that overheating can cause a fire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the light
bulb (take the cartridge fuse out of the fuse holder or switch off the
automatic circuit breaker).
It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
 The appliance is not intended for use by young children or infirm
persons without supervision.
 Older children must be supervised if using the appliance.
 Young children should be supervised to ensure that they do not play
with the appliance.
 WARNING Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.

65
For the insta er
 When used as an extractor unit, the hood must be fitted with a
150mm diameter hose.
 Should there already be a pipe of diameter 125 or 120 mm that
ducts to the outside through the walls, it is possible to use the 150/
125-120 mm reduction flange provided.
In this case the hood will be slightly noisier.
 When installing the hood, make sure you observe the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 500 mm
gas cookers 650 mm
If the instructions for installation for the gas hob specify a greater
distance, this must be adhered to.
 The national Standard on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
 The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
to ventilation ducts for rooms in which fuel-burning appliances are
installed.
 The air outlet installation must comply with the regulations laid down
by the relevant local authorities.
 When the unit is used in extraction mode, a sufficiently large
ventilation hole must be provided, with dimensions that are approxi-
mately the same as the outlet hole.
 National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected
to a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
 Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approxi-
mately 500-600 cm2 large to avoid the possibility of a depression
being created during operation of the hood.
 If you have any doubts, contact the relevant controlling authority or
building inspectors office.
 Since the rule for rooms with fuel burning appliances is outlet hole
of the same size as the ventilation hole, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the performance of the
extractor hood.
 If the hood is used in its recirculation mode, it will operate simply and
safely in the above conditions without the need for any of the
aforementioned measures.
 When the hood is used in its extraction mode, the following rules
must be followed to obtain optimal operation:
- short and straight outlet hose

66
- keep bends in outlet hose to a minimum
- never install the hoses with an acute angle, they must always
follow a gentle curve.
- keep the hose as large as possible (preferably the same diameter
as the outlet hole).
- the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the efficiency of the hood and
reduce the airflow.
 Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.

67
Fig. 1
A
Description of the Appliance
The cooker hood is designed to extract unpleasant odours from
the kitchen, it will not extract steam.
 The hood is supplied as an extractor unit and can also be used with
a recirculation mode by fitting a charcoal filter.
 In some models the charcoal filter is supplied. The hood, therefore,
can be used immediately in the recirculation mode. We advise
removing the charcoal filter to use the hood in the extraction mode.
Extraction mode
 In this mode fumes are extracted to the outside via a hose
connected to the coupling ring A. Fig. 1.
 In order to obtain the best performance the hose should have a
diameter equal to the outlet hole.
Should there already be a pipe of diameter 125 or 120 mm that
ducts to the outside through the walls, it is possible to use the 150/
125-120 mm reduction flange provided.
In this case the hood will be slightly noisier.
Recircu ation mode
 The air is filtered through a charcoal filter and returned to the
kitchen.
 You will need an original charcoal filter for the recirculation mode.
(See Special Accessories).

68
Control Panel - DD 8990
 Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or
until all the odours have disappeared.
The control switches are located on the hoods front panel:
1- ON (stand-by - illuminated key) / OFF switch.
Press once or more to obtain the function desired:
Stand-by (dot "b" on the display is illuminated): the hood is ready
to function, the safety procedure is activated (see next page 
Safety procedure).
OFF: all the functions are switched off except the illumination.
2- Light ON/OFF
3- Display
4-Manual(stand by)/Automatic (sensors Led S will illuminate).
Press once to switch ON the Automatic mode, press again to
switch OFF (stand-by / Manual mode).
Automatic function:
The hood switch ON (extraction) on the basis of the change in the
normal environmental conditions that the hood notices through
its sensors (see next page  Sensor test) .
The leds of the display will turn on alternatively in proportion to the
suction power setting.
Attention! The hood is equipped with an automatic system that
establishes what the normal environmental conditions are.
In the case of abnormal operation, calibration can be carried out
automatically or manually (see next page  Automatic
calibration and Manual calibration).
5- Start and choice of motor speed 1-2-3-1-2.........
6- Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood
will revert to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood
12 6
7
ab
5
4
Fig. 2
3

69
will automatically turn off after 5 minutes.
To interrupt the Intensive speed, press button 1 or 6.
The letter P appears on the display and the remaining time (the
point a is flashing), if interrupted an acoustic signal is heard.
7- Self-Timer: times all the speed levels (the point b is flashing),
and then the cooker hood switches off:
The self-timer is set as follows:
1st speed level 20 minutes
2nd speed level 15 minutes
3rd speed level 10 minutes
P (intensive) speed level: 5 minutes
The display shows the remaining operation time, at the end of the
time an acoustic signal is heard. Depressing the push-button
again exits the function.
Automatic Sensor calibration:
The automatic calibration is carried on by the hood itself every 30
minutes.
When the hood is installed for the first time or the power is cut off
for many hours or days, please wait 30 minutes before the use or
make a manual calibration.
Manual Sensor calibration
Carry out calibration with the hob off, at normal ambient room
temperature and in the absence of an appreciable amount of
steam:
- press switch 4 for about 3secs , then press switch 1, the hood
emits a sound signal to indicate calibration taking place.
Sensors test
When functioning in Automatic mode, the system continuously
tests the efficiency of the sensors. In case of a fault the display
shows 88. Contact your local Service Force Centre.
In this situation the hood can, in any case, be used in the manual
mode.
Safety procedure
Self-activation of Automatic (SAFETY) mode:
if the sensors reveal an excessive increase in temperature,
even if the hood is in Manual mode, the system self selects the
Automatic mode and the hood selects the necessary speed.
The hood can be turned off by pressing push switch 1.
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds.
After reconnecting the power supply wait 15 seconds and then check
that the cooker hood is now operating correctly.

70
Control Panel - DD 8861-8891-8821
 Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or
until all the odours have disappeared.
The control switches are located on the hoods front panel:
1- Mains switch, ON/OFF
Press for less than 1 1/2 seconds and the cooker hood goes into
the "stand by" position (point "b" is illuminated).
Press for more than 1 1/2 seconds and the cooker hood turns off,
ALL the controls (except the light push button) are disabled (the
display is off).
Press again for more than 1 1/2 seconds to reset the cooker
hood to "stand by".
2- Light ON/OFF
3- Display
4- Start and choice of motor speed 1-2-3-1-2.........
5- Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood
will revert to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood
will automatically turn off after 5 minutes.
To interrupt the Intensive speed, press button 1 or 5.
The letter P appears on the display and the remaining time (the
point a is flashing), if interrupted an acoustic signal is heard.
6- Self-Timer: times all the speed levels (the point b is flashing),
and then the cooker hood switches off:
The self-timer is set as follows: 1st speed level 20 minutes
2nd speed level 15 minutes
3rd speed level 10 minutes
The display shows the remaining operation time, at the end of the
time an acoustic signal is heard. Depressing the push-button
again exits the function.
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds. After reconnecting the power supply wait
15 seconds and then check that the cooker hood is now operating
correctly.
123 456
ab
Fig. 3

71

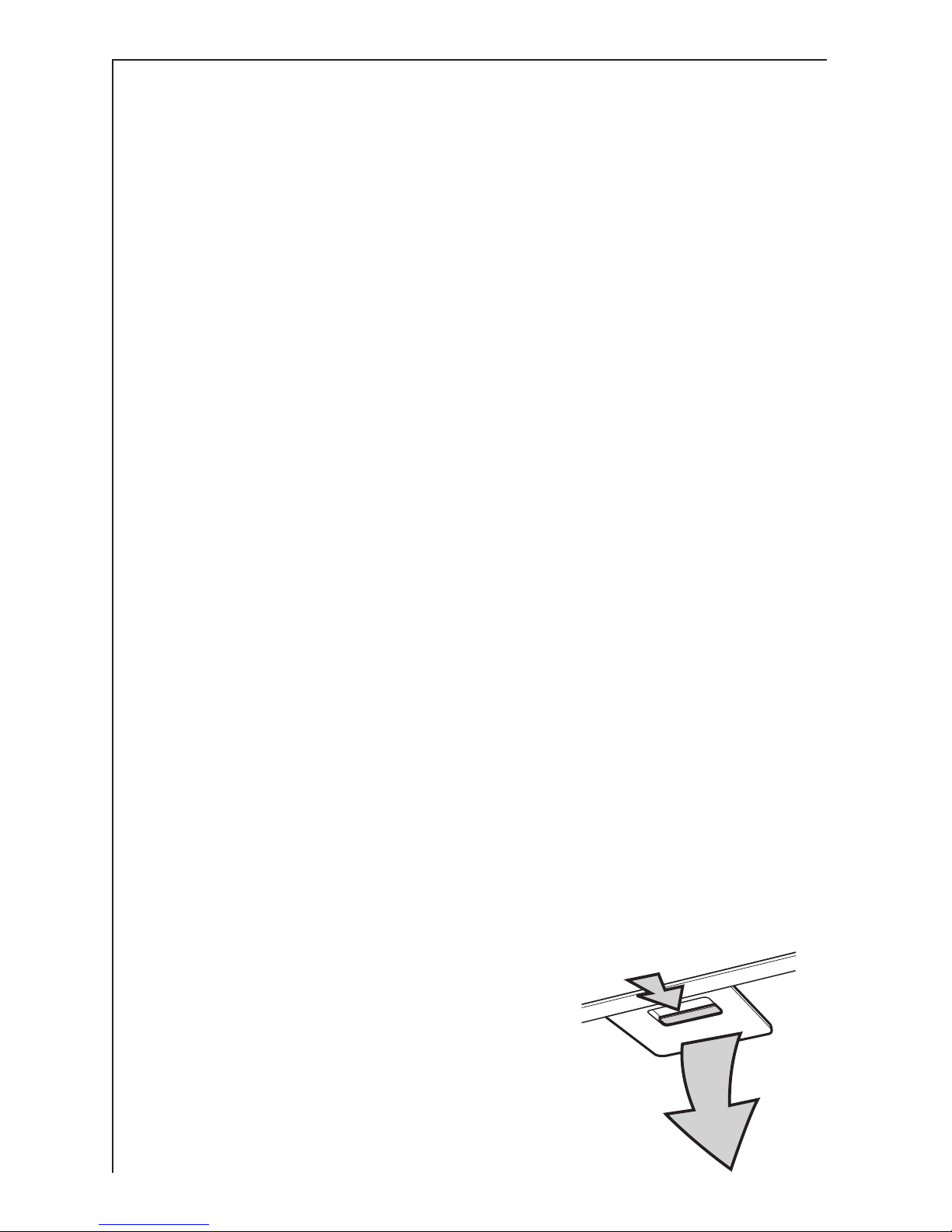

Grease and charcoa fi ter maintenance
indicator - DD 8990 - 8861 - 8891 - 8821
This hood is fitted with a device that indicates when it is necessary to
clean the grease filter or the charcoal filter (if the hood is used in the
recirculation version with a charcoal filter).
On delivery, the hood is not supplied with a charcoal filter, so the
saturation indicator will be disabled.
If the hood is to be used with a charcoal filter, the saturation
indicator light must be enabled as follows:
DD 8990 only: Set the hood in OFF.
Press buttons 4 and 5 simultaneously and hold them for 3 seconds. At
first only the grease filter LED F will light up, but when the charcoal
filter LED C lights up the saturation indicator will be enabled.
To disable it: Press buttons 4 and 5 again simultaneously and hold
them for 3 seconds, until the charcoal filter LED goes out.
Grease fi ter LED (F)
LED F will start to flash when it is time to clean the grease filter.
Cleaning will be necessary after 40 working hours. Always comply
with the maintenance instructions for the grease filter.
Charcoa fi ter LED (C)
The charcoal filter LED C will start to flash when the charcoal filter
needs to be replaced.
This operation is necessary after approximately 160 working hours.
Resetting the saturation indicator
After cleaning or replacing the filters, press button 1 for 3 seconds until
the grease filter LED F or the charcoal filter LED C stops flashing.
