Safety warnings
For the user
 The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
 Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
 Also, when frying, keep the deep frying pan on the cooker top/cooker
under careful control.
 The hot oil in the frying pan might ignite due to overheating.
 The risk of self-ignition increases when the oil being used is dirty.
 It is extremely important to note that overheating can cause a fire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch off
the automatic circuit breaker).
It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
 The appliance is not intended for use by young children or infirm
persons without supervision.
 Older children must be supervised if using the appliance.
 Young children should be supervised to ensure that they do not play
with the appliance.
 WARNING - Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of
this product.
The symbol on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.

55
For the insta er
 When used as an extractor unit, the hood must be fitted with a
150mm diameter hose.
Attention: The hose is not supplied and must be purchased
separately.
 Should there already be a pipe of diameter 125 or 120 mm that ducts
to the outside through the walls, it is possible to use the 150/125-120
mm reduction flange provided.
In this case the hood will be slightly noisier.
When installing the hood, make sure you observe the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 600 mm
gas cookers 700 mm
If the instructions for installation for the gas hob specify a greater
distance, this must be adhered to.
 The national Standard on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
 The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
to ventilation ducts for rooms in which fuel-burning appliances are
installed.
 The air outlet installation must comply with the regulations laid down
by the relevant local authorities.
 When the unit is used in extraction mode, a sufficiently large
ventilation hole must be provided, with dimensions that are approxi-
mately the same as the outlet hole.
 National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected to
a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
 Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approximately
500-600 cm2 large to avoid the possibility of a depression being
created during operation of the hood.
 If you have any doubts, contact the relevant controlling authority or
building inspectors office.
 Since the rule for rooms with fuel burning appliances is outlet hole of
the same size as the ventilation hole, a hole of 500-600 cm2, which
is to say a larger hole, could reduce the performance of the extractor
hood.
 If the hood is used in its recirculation mode, it will operate simply and
safely in the above conditions without the need for any of the
aforementioned measures.

56
 When the hood is used in its extraction mode, the following rules
must be followed to obtain optimal operation:
 short and straight outlet hose
 keep bends in outlet hose to a minimum
 never install the hoses with an acute angle, they must always
follow a gentle curve.
 keep the hose as large as possible (preferably the same diameter
as the outlet hole).
 the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the efficiency of the hood and
reduce the airflow.
 Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.

57
A
Fig. 1
Descri tion of the A liance
The cooker hood is designed to extract unpleasant odours from
the kitchen, it will not extract steam.
 The hood is supplied as an extractor unit and can also be used with a
recirculation mode by fitting a charcoal filter.
 You will need an original charcoal filter for this
function (Available from your local
Service Force Centre).

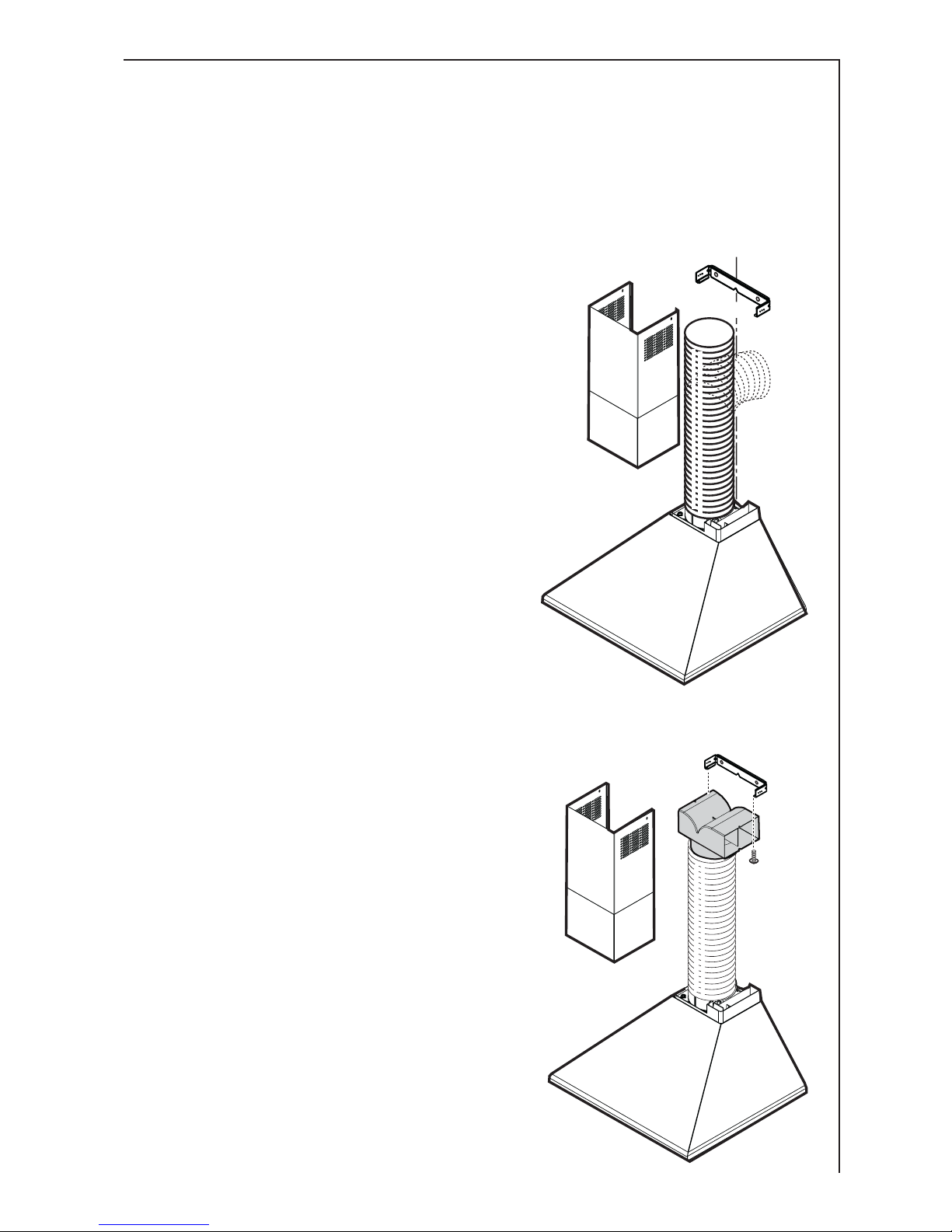

Extraction mode
 In this mode fumes are extracted to
the outside via a hose connected to
the coupling ring A. Fig. 1.
 In order to obtain the best performan-
ce the hose should have a diameter
equal to the outlet hole.
 Should there already be a pipe of
diameter 125 or 120 mm that ducts to
the outside through the walls, it is
possible to use the 150/125-120 mm
reduction flange provided.
In this case the hood will be slightly
noisier.
Recircu ation mode
 The air is filtered through a charcoal
filter and returned to the kitchen.
 You will need an original charcoal
filter for the recirculation mode. (See
Special Accessories).
 Fix the deflector using 2 screw
Ø3,5x9,5 mm. Fig. 2.
Fig. 2

58
Control Panel
 Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or until
all the odours have disappeared. The control switches are located on
the hoods front panel:
the light switch switches the hood lamp on and off
the motor switch switches the motor off
 Speed 1: Speed 1 push-button
 Speed 2: Speed 2 push-button
 Speed 3: Speed 3 push-button
Light switch
Motor switch Speed 1 Speed 2
Speed 3

59
Fig. 3
Maintenance and Care
The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
C eaning the hood
 Clean the outside of the hood using a damp cloth and a solution of
water and mild washing up liquid.
 Never use corrosive, abrasive or flammable cleaning products or
products containing bleach. .
 Never insert pointed objects in the motors protective grid.
 Only ever clean the switch panel and filter grill using a damp cloth
and mild washing up liquid.
 It is extremely important to clean the unit and change the filters at the
recommended intervals. Failure to do so will cause grease deposits
to build up that could constitute a fire hazard.
Meta grease fi ter
 The purpose of the grease filters is to absorb grease particles which
form during cooking and it must always be used, either in the
external extraction or internal re-circulation function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.

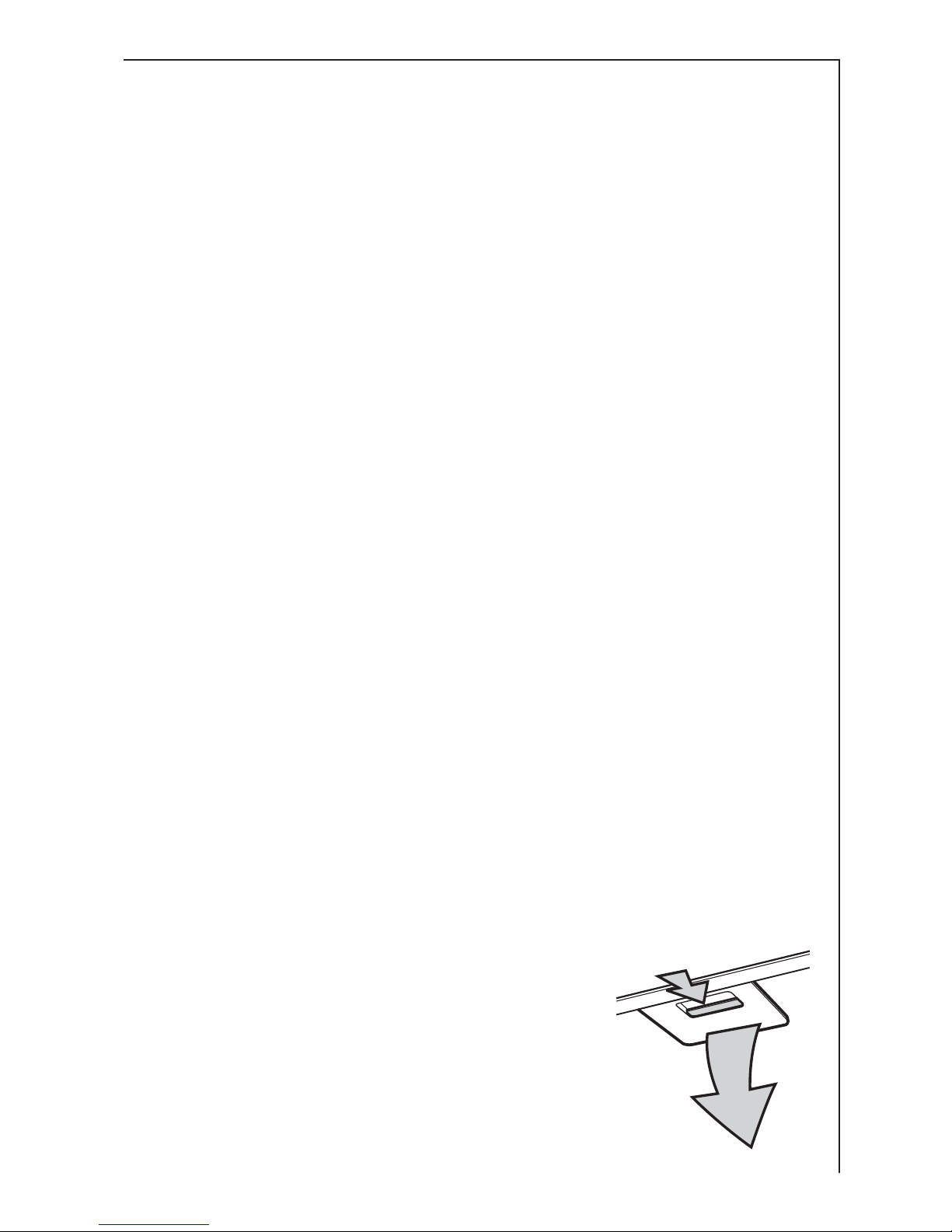

Removing the metal grease filter
 First, push the metal grease filter stop backwards, then extract the
filter, pulling downwards. Fig. 3.
Hand washing
Soak grease filters for about one hour in hot water with a grease-
loosening cleaner, then rinse off thoroughly with hot water. Repeat the
process if necessary. Refit the grease filters when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select
most powerful washing programme and
highest temperature, at least 65°C. Repeat
the process. Refit the grease filters when they
are dry. When washing the metal grease filter
in the dishwasher a slight discolouration of the
filter can occur, this does not have any impact
on its performance.
 Clean the inner housing using a hand hot
solution only(never use caustic detergents,
abrasive powders or brushes).

60
Charcoa fi ter
 The charcoal filter should only be used if you want to use the hood in
the recirculation function.
 To do this you will need an original charcoal filter (available from your
local Service Force Centre).
Replacing the charcoal filter
The charcoal filter cannot be washed nor regenerated.
The charcoal filter should be replaced every 4 months under normal
use.
Replacement filters are available from your local Service Force
Centre.
Fitting - Fig. 4
Fit the filter/s over the motor.
Align the pins R on the cowl with the slots S, then turn the filter
clockwise until it locks in place.
To remove proceed in the reverse order.
 Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
registration plate located on the inside of the unit.
 The charcoal filter can be ordered from your local Service Force
Centre.
Fig. 4
S
S
R
R

61
Fig. 5
Warning
 Failure to observe the instructions on cleaning the unit and changing
the filters will cause a fire hazard. You are therefore strongly
recommended to follow these instructions.
 The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or failure
to observe the above safety recommendations.
Changing the ight bu b
Disconnect the cooker hood from the mains supply.
 Remove the lamp cover carefully, use a screw driver as a lever. Fig. 5.
 Replace the old bulb with a new one of the same type.
 Refit the lamp cover.
 If the light does not come on, make sure the bulb has been inserted in
correctly before contacting your local Service Force Centre.

62
What to do if
If your appliance fails to work properly please carry out the following
checks.
Symptom Solution
The cooker hood will not start... Check that: The hood is
connected to the electricity supply.
Check that a fan speed has been
selected
The cooker hood is not working Check that: The fan speed is set
high enough for the task.
The grease filters are clean.
The kitchen is adequately vented to
allow the entry of fresh air.
If set up for recirculation, check
that the charcoal filter is still
effective.
If set up for extraction, check that
the ducting and outlets are not
blocked.
The cooker hood has The safety cut-out device has been
switched off during operation... tripped.
Turn off the hob and then wait for
the device to reset.
If the hood has been installed
below the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local Service
Force Centre, quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for any
in-guarantee service calls.
In-guarantee customers should ensure that the above checks have been
made as the engineer will make a charge if the fault is not a mechanical
or electrical breakdown.

63
S ecial accessories
Charcoal filter Type 20
Technical assistance service (not for UK)
You are welcome to telephone our technical assistance service (see list of technical
assistance centres) whenever you need information or in the unlikely event of a fault.
For service in Australia call 1300 6 0 020.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit behind the
grease filter.
We reserve the right to change specifications and colours as a result of our policy of
continuing technological development.
Service and S are Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts,
contact your local Service Force Centre by telephoning: 08705 929 929
Your call will be automatically routed to the Service Centre covering your post code area.
For the address of your local Service Force Centre and further information about
Service Force, please visit the website at www.serviceforce.co.uk
Please ensure that you have read the section What to do if.... as the engineer will make
a charge if the fault is not a mechanical or electrical breakdown even the appliance is
under warranty. Please note that proof of purchase is required for in-guarantee
service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
 Your name  Clear and concise details of the fault
 Address and post code  Name and model of the appliance*
 Telephone number  E number*
 Serial number*
* This information can be found on the rating plate, which can be seen when the grease
filters are removed.

64
If you require Customer Service in the Republic of Ireland please contact us at
the address below:
AEG
Electrolux Group (Ire) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: + 3 3 (0) 1 40907 1
Email: [email protected]
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your AEG appliance or for further information on AEG
products, please contact our Customer Care Department by letter or telephone at the
address below or visit our website at www.aeg.co.uk
Customer Care Department
AEG
-77 High Street
Slough, Berkshire
SL1 1DZ
0870 9 09 0 (*)
* calls to this number may be recorded for training purposes.

65
Technical Details
Model: DK 4370
Dimensions (in cm):
Height: 73,3 - 114,8
Width: 51,5
Depth: 69,9
Maximum absorbed power: 220 W
Motor absorption: 180 W
Lighting: 2 x 20 W
Length of the cable: 150 cm
Electrical connection: 220-240 V
Mounting accessories inc uded
1 plastic bag with screws, dowels and documentation
1 chimney support
1 deflector
1 reduction flange Ø 150-125 mm

66
Electrical connection (not for UK)
Safety warnings for the e ectrician
Before connecting the appliance to the power supply, check that the
voltage indicated on the rating plate corresponds to the mains power
supply available. Appliances fitted with a plug can be connected to any
standard power socket within easy access.
Should it be necessary to provide a fixed connection, the hood must
only be installed by an electrician authorised by the local electricity
board. When installing, an omnipolar disconnector with a distance of at
least 3 mm between contacts must be provided.
Fixed connection of the appliance must only be carried out by an
authorised electrician.
E ectrica connection for UK on y
Safety warnings for the electrician
Connect the hood to the mains supply via a double pole switch which
has 3 mm minimum separation between the contacts.
The switch must be accessible at all times.
The following is valid in the United Kingdom only:
- the wire which is coloured green and yellow must be connected to the
terminal which is marked with the letter E or by the earth symbol (
), or coloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black, -
- the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.

67
Wa unit mounting - Fig. 6-7-8-9-10
 Position the template on the wall, mark the position, and drill the
holes (Y).
 Mount the two rawl plugs with the hooks.
 Hang the hood on the hooks and level it with the adjustment screws.
 Remove the grease filters and mark for the 4 screws (T-R).
R
T
Y
Y
Y
Y
R
T
!
Template
Rawl plugs+hooks
djustment
screws
Fig. 6

68
 Remove the hood and drill the holes (4 x Ø 8 mm).
 Insert the rawl plugs and fit two screws on upper holes, do not tighten
completely, they will serve as additional hanging points.
 Mount the chimney holder close to the ceilingwith the rawl plugs and
the screws.
Warning! Be careful that it is centered over the hood and horizontally
aligned.
Fig. 7
Centre line
Chimney
holder
Fig.

69
 Hang the hood on the wall again.
Fig. 9

70
 Secure it with the 2 lower screws.
Fitting for ducting
 Connect a tube between the hood air outlet and the wall or roof
exhaust channel.
Fitting for recirculation
 Mount the recirculation spigot with the 2 screws supplied
Ø3,5x9,5mm.
Mounting the chimney
 Connect the supply cord to the mains.
 Place the chimney and fix it to the top chimney holder with the two
screws Ø 3x9mm supplied.
 Lower the bottom part of the chimney to the top of the hood.
Lower
screws
ir outlet
Tube
Fig. 10
Chimney
Chimney
fixing
points
Chimney holder
Recirculation
spigot
Supply cord

71
