AEG 2060 D Specification sheet

2060 D
Dunstabzugshaube
Hotte aspirante
Cappa aspirante
Cooker hood
Montage- und Gebrauchsanweisung
Notice d’utilisation et d’installation
Istruzioni di montaggio e uso
Operating and Installation Instructions

51
Contents
Safety warnings 52
for user 52
for kitchen unit installer 52
Introduction 54
Extractor version 54
Filter Version 54
Hood Operation 55
Filter checking device for the detection of grease and active carbon 56
Led –Indicator for grease filter C 56
Led - indicator for active carbon filter D 56
Resetting the saturation indicator 56
Maintenance and care 57
Metal grease filter 57
Open the metal grease filter 57
Carbon filter 58
Changing the light bulb 59
Cleaning 60
Special accessories 60
Technical assistance service 60
Technic Details 63
Mounting accessories included 63
Electrical connection 64
Safety warnings for the electrician 64
Wall unit mounting 65
Printed on recycled paper
AEG - putting words into action

52
Safety warnings
for user
•Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
•Also, when frying, keep the deep frying pan on the cooker top/
cooker under careful control.
•The hot oil in the frying pan might ignite due to overheating.
•The risk of self-ignition increases when the oil being used is dirty.
•It is extremely important to note that overheating can cause a fire.
•Never carry out any flambécooking under the hood.
•Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch
off the automatic circuit breaker).
•It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, causing a fire hazard.
for kitchen unit installer
•When used as an extractor unit, the hood must be fitted with a
150mm diameter hose.
•Should there already be a pipe of diameter 125 mm that ducts to
the outside through the walls or roof, it is possible to use the 150/
125 mm reduction flange provided. In this case the hood will be
slightly more noisy.
•When installing the hood, make sure you respect the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 600 mm
gas cookers 650 mm
coal and oil cookers 700 mm min.
•The national decree on fuel-burning systems specifies a maximum
depression of 0.04 bar in such rooms.
•The air outlet must not be connected to chimney flues or combus-
tion gas ducts. The air outlet must under no circumstances be
connected to ventilation ducts for rooms in which fuel-burning
appliances are installed.

53
•It is advisable to apply for authorization from the relevant controlling
authority when connecting the outlet to an unused chimney flue or
combustion gas duct.
The air outlet installation must comply with the regulations laid down
by the relevant authorities.
•When the unit is used in its extractor version, a sufficiently large
ventilation hole must be provided, with dimensions that are
approximately the same as the outlet hole.
•National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected
to a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
•Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approxi-
mately 500-600 cm2 large to avoid the possibility of a depression
being created during operation of the hood.
•If you have any doubts, contact the relevant controlling authority or
building inspector’s office.
•Since the rule for rooms with fuel burning appliances is “outlet hole
of the same size as the ventilation hole”, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the performance of the
extractor hood.
•If the hood is used in its filtering function, it will operate simply and
safely in the above conditions without the need for any of the
aforementioned measures.
•When the hood is used in its extractor function, the following rules
must be followed to obtain optimal operation:
—short and straight outlet hose
—keep bends in outlet hose to a minimum
—never install the hoses with an acute angle, they must
always follow a gentle curve only
—keep the hose as large as possible (preferably the same
diameter as the outlet hole).
•Failure to observe these basic rules will drastically reduce the
performance and increase the noise levels of the extractor hood.

54
Introduction
Extractor version
•The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting one activated carbon filter (special
accessory).
•You will need original AEG carbon filter for this function (see Special
Accessories).
•The air is discharged to the outside through a pipe, which must be
fitted to connection flange A. Fig. 1.
•In order to obtain the best performance the hose should have a
diameter equal to the outlet hole.
Should there already be a pipe of diameter 125 mm that ducts to
the outside through the walls or roof, it is possible to use the 150/
125 mm reduction flange provided. In this case the hood will be
slightly more noisy.
Fig. 1
Filter Version
•The air is filtered through an activated charcoal filter and returned to
the kitchen through the top grill of the outlet pipe.
•You will need an original AEG KF8 activated carbon filter for the
filtering function. (See Special Accessories).
•Fix the deflector using 2 screws Ø2,9 x 13 mm. Fig. 2.
•Optionally, the position of the chimney elements can be changed.
When using the hood in the filter version the chimney must be fixed
at the top, with the air outlet grill at the side.
A
Fig. 2

55

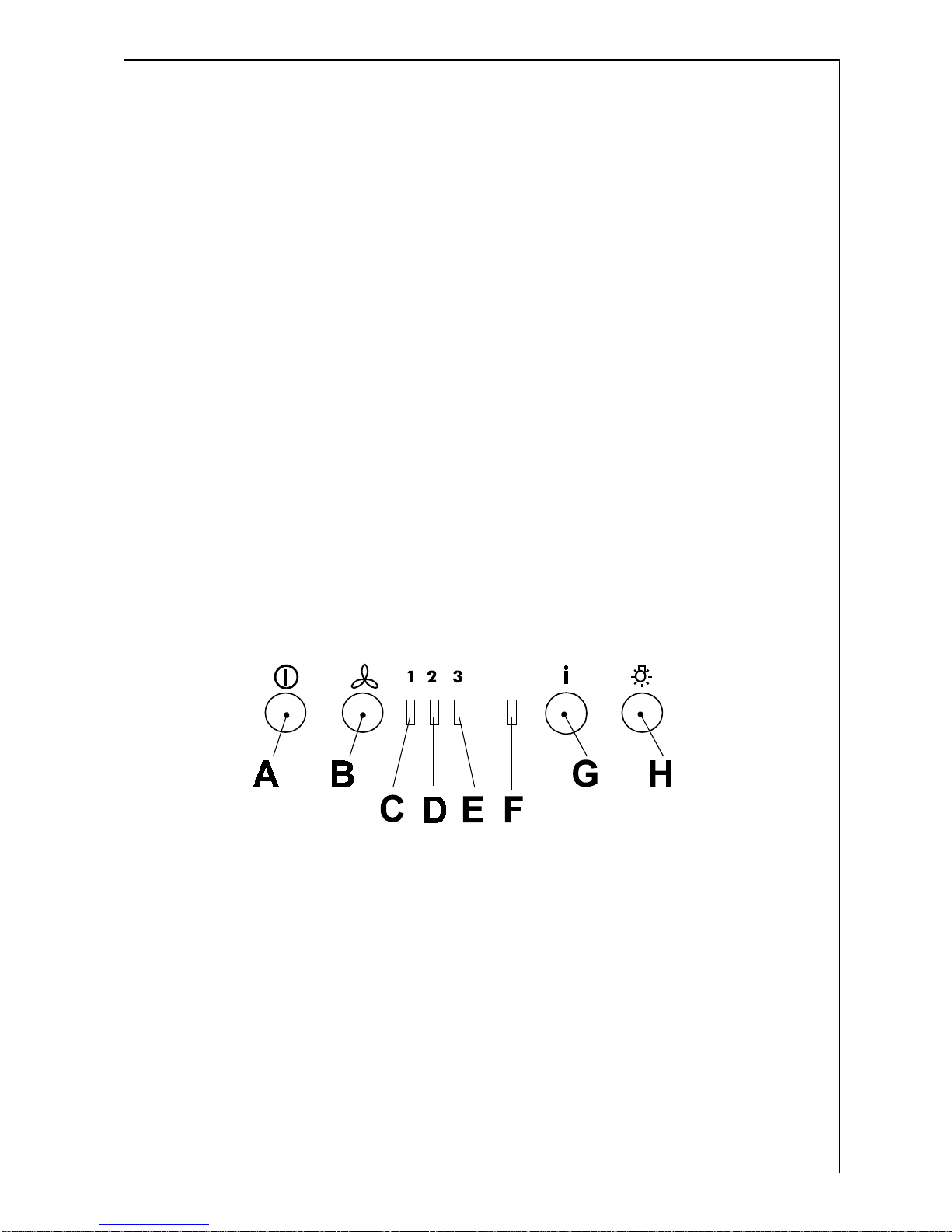

Hood Operation
•The hood is fitted with one motor having several speed. Turn the
hood on a few minutes before you start cooking then you will get an
underpressure in the kitchen. It should be left on after cooking for
about 15 minutes or until all odours have disappeared. The control
switches are located on the unit’s front panel:
A- Main switch, hood on/off.
B- Start and choice of motor speed 1-2-3-1-2.........
C- Indicates speed 1 (LED) and indication of the grease saturation
for the filter (flashing indicator).
D- Indicates speed 2 (LED) and indication of the active carbon
saturation for the filter (flashing indicator).
E- Indicates speed 3
F- Indicates Intensive speed (LED).
G- Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood
revert to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood
will automaticly be turned off after 5 minutes.
To interrupt the Intensive speed, press button A or B.
H- Light ON/OFF
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds, then turn the hood back on again.

56
Filter checking device for the detection of
grease and active carbon
This type of vapour hood is predisposed with a device that signals
when the grease or active carbon filter requires cleaning (sold with the
active carbon filter by the manufacturer specialized in ventilation
equipment).
This type of vapour hood is supplied by the manufacturer without the
active carbon filter, therefore the saturation signal is disabled.
The hood is purchased with active carbon filter included, and the
saturation signal is activated as follows:
Depress and hold the A and B buttons simultaneously for 3 seconds.
Initially only the LED indicator signal for the grease filter C is
activated, shortly after the LED indicator for the active carbon filter D
will activate, at this point the saturation detection has been enabled.
To switch off the saturation detection : depress and hold the A and B
buttons for 3 seconds until the LED indicator for the active carbon filter
is flashing.
Led –Indicator for grease filter C
The LED indicator for the grease filter will flash when it requires
cleaning.
Follow the maintenance instructions.
Led - indicator for active carbon filter D
The LED indicator for the active carbon filter illuminates when the filter
requires replacing.
This occurs after about 160 working hours from when the active
carbon filter was first put into operation.
Resetting the saturation indicator
After cleaning the filter depress and hold the G and H buttons again
for 3 seconds until the LED –grease filter indicator or the LED –active
carbon indicator D are no longer flashing.

57
Maintenance and care
•The hood must always be disconnected from the mains power
supply before beginning any maintenance work.
Metal grease filter
•The purpose of the grease filters is to aspirate grease particles
which form during cooking and it must always be used, either in the
external evacuation or internal recycling function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
Open the metal grease filter
•Pull the spring-lock and extract the grease filter. Fig. 3.
Hand washing
Soak grease filters for about one hour
in hot water with a grease-loosening
cleaner, then rinse off thoroughly with
hot water. Repeat the process if
necessary. Refit the grease filters
when it are dry.
Dishwasher machine
Place grease filters in dish washer.
Select most powerful washing
programme and highest temperature,
at least 65°C. Repeat the process.
Refit the grease filters when it are dry.
When washing the metal grease filter
in the dishwasher a slight
discoloration of the filter can occur,
this does not have any impact on its
performance.
•Clean the inner housing using a hot detergent solution only
(never use caustic detergents, abrasive powders or brushes).
Fig. 3

58
Carbon filter
•The carbon filter should only be used if you want to use the hood in
its filtering function.
•To do this you will need an original AEG activated carbon filter (see
special accessories).
•Cleaning/replacing the carbon filter
Unlike other carbon filters, the LONGLIFE carbon filter can be
cleaned and reactivated. At normal use the filter should be cleaned
every second month. The best way to clean the filter is in the
dishwasher. Use normal detergent and choose the highest tempera-
ture (65ºC). Wash the filter separately so that no food parts gets
stuck on the filter and later causes bad odours. To reactivate the
carbon, the filter should be dried in an oven for 10 minutes with a
temperature of maximum 100ºC.
After approximately three years of use, the carbon filter should be
replaced with a new, as the odour reduction capacity will be
reduced.
•Mounting
Fit the carbon filter first rearward on the long supporting tongue,
then rotate it to close the motor housing and fix it using its two red
keys A. Fig. 4.
•To dismount proceed in reverse order.
•Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
registration plate located on the inside of the unit.
•The activated carbon filter can be ordered from the AEG technical
assistance service.
Fig. 4
AA

59
Warning
•Failure to observe the instructions on cleaning the unit and
changing the filters will cause a fire hazard. You are therefore
strongly recommended to follow these instructions.
•The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.

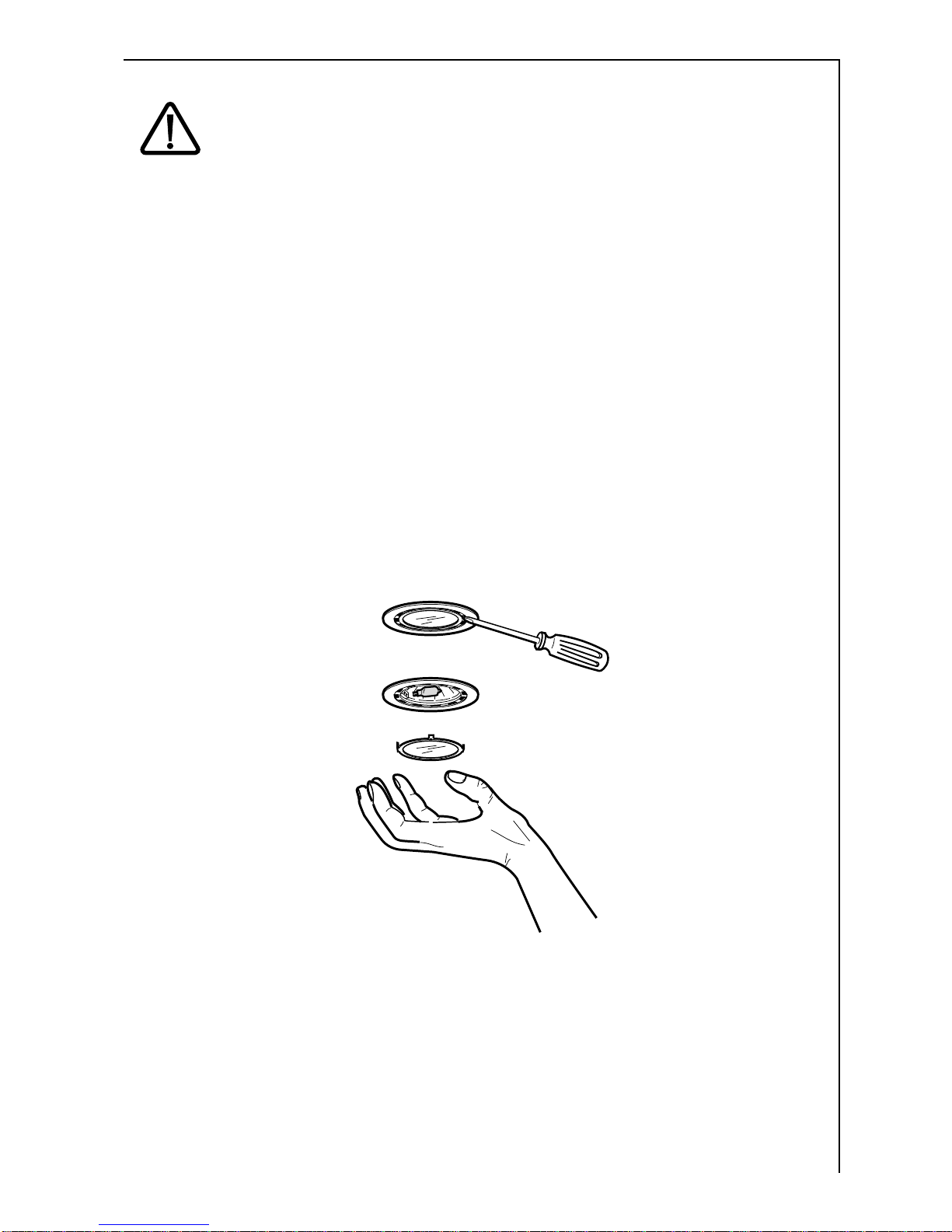

Changing the light bulb
•Disconnect the cooker hood from the main supply.
•Remove the lamp cover, use a screw driver as a lever. Fig. 5.
•Replace the old bulb with a new one of the same type.
•Remount the lamp cover.
•If the light does not come on, make sure the bulb has been inserted
in correctly before contacting the technical assistance service.
Fig. 5

60
Cleaning
•Warning: always disconnect the hood from the mains power supply
before cleaning it.
Never insert pointed objects in the motor’s protective grid.
•Wash the outside surfaces using a delicate detergent solution.
Never use caustic detergents or abrasive brushes or powders.
•Only ever clean the switch panel and filter grille using a damp cloth
and delicate detergents.
•It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Special accessories
Carbon filter KF 8 E-Nr. 942 118 648
Technical assistance service
You are welcome to telephone our technical assistance service (see list
of technical assistance centres) whenever you need information or in
the unlikely event of a fault.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit
behind the grease filter.
We reserve the right to change specifications and colours as a result of
our policy of continuing technological development.

61
Guarantee conditions
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this appliance.
1. The guarantee is valid for 12 months commencing when the appliance
is handed over to the first retail purchaser, which must be verified by
purchase invoice or similar documentation.The guarantee does not
cover commercial use.
2. The guarantee covers all parts or components which fail due to faulty
workmanship or faulty materials. The guarantee does not cover
appliances where defects or poor performance are due to misuse,
accidental damage, neglect, faulty installation, unauthorised
modification or attempted repair, commercial use or failure to observe
requirements and recommendations set out in the instruction
book.This guarantee does not cover such parts as light bulbs,
removable glass-ware or plastic.
3. Should guarantee repairs be necessary the purchaser must inform the
nearest customer service office (manufacturer`s service or authorised
agent). AEG reserves the right to stipulate the place of the repair
(i.e.the customer`s home, place of installation or AEG workshop).
4. The guarantee or free replacement includes both labour and materials.
5. Repairs carried out under guarantee do not extend the guarantee
period for the appliance. Parts removed during guarantee repairs
become the property of AEG.
6. The purchaser`s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee
moves with you to your new home subject to the following qualifications:
- The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour
and parts as exist in the new country of use for this brand or range of
products.
- This guarantee relates to you an cannot be transferred to another user.
- Your new home is within the European Community (EC) or European
Free Trade Area.
- The product is installed and used in accordance with our instructions
and is only used domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new
country.

62
BeforeyoumovepleasecontactyournearestCustomerCareCentre,listed
below,togivethemdetailsofyournewhome.Theywillthenensurethatthe
local Service Organisation is aware of your move and able to look after you
and your appliances.
France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

63
Technic Details
Dimensions - extractor ver (in cm):
Height x Width x Depht 81-126.5 x 89,8 x 51
Dimensions - filter version (in cm):
Height x Width x Depht 81-136 x 89,8 x 51
Maximum absorbed power: 215 W
Motor absorption: 1 x 130 W
Lighting: 4 x 20W
Lenght of the cable:150 cm
Mounting accessories included
2 hooks
1 chimney support
6 wall plugs Ø8 mm
6 wood-screws 5 x 45 mm
2 metal screws 2,9 x 13
4 metal screws 3 x 9
1 deflector
1 reduction flange 150/125 mm

64
Electrical connection
Safety warnings for the electrician
Before connecting the appliance to the power supply, check that the
voltage indicated on the rating plate corresponds to the mains power
supply available. Appliances fitted with a plug can be connected to any
standard power socket within easy access.
Shouldit be necessarytoprovide a fixedconnection,the hood must only
be installed by an electrician authorised by the local electricity board.
When installing, an omnipolar disconnector with a distance of at least 3
mm between contacts must be provided.
This disconnector may be for example a switch, fuses (plug fuses must
beremovedfromthefusebox,faultcurrentswitchesandremoteswitches
with a distance of over 3 mm between contacts.
Themanufacturedeclinesallresponsibilityformalfunctionsresultingfrom
failure to comply with the above instructions.
If the power socket is applied directly above the hood this gives two
advantages:
1. the socket is not visible.
2. the appliance can be disconnected at need merely be removing the
plug.
Electrical connection
220-240 V –by means of fixed power cable with plug.
(Fixed connection of the appliance must only be carried out by an au-
thorised electrician.)

65

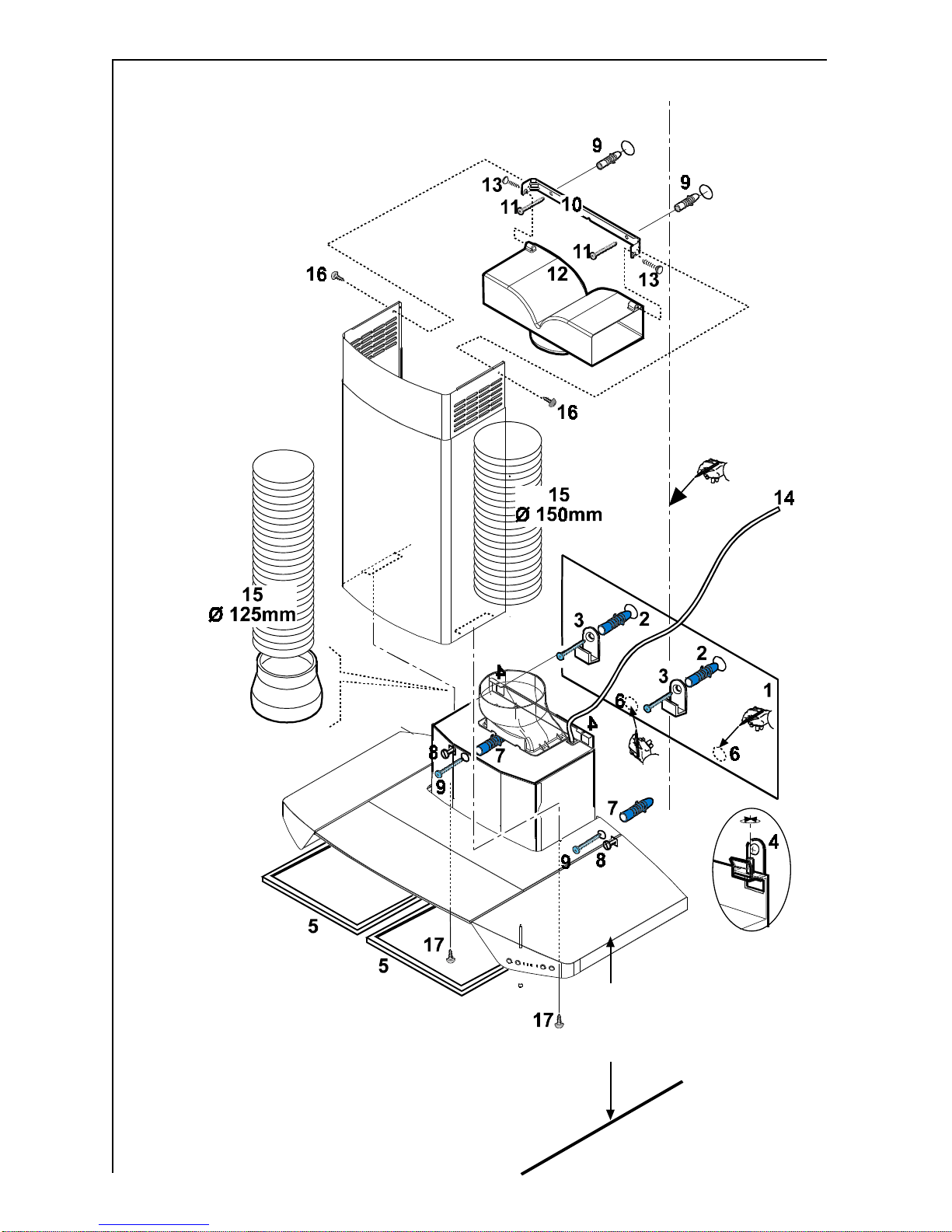

Wall unit mounting - Fig. 6
•Position the template (1) on the wall and mark the position, and drill
(2) the holes (2 x Ø8 mm).
•Mount the two rawl plugs with the hooks (3).
•Hang the hood on the hooks and level it with the adjustment screws
(4).
•Remove the grease filters (5) and mark for the two screws (6).
Remove the hood and drill the holes (2 x Ø8 mm).
•Insert the rawl plugs (7) and hang the hood on the wall again. Adjust
it horizontally with the screws (8) and secure it with the screws (9).
•Mount the chimney holder (10) with the rawl plugs (9) and the
screws (11).
Be careful that it is centered over the hood and horizontally aligned.
•Fitting for extractor version (S): Connect a tube between the
hood air outlet and the wall or roof exhaust channel. Note that the
top part of the chimney can be mounted with the side grids up or
down. For use as an extractor version hood it must be mounted with
the grids downwards.
Fitting for filter version (K): Mount the deflector (12) with the two
screws (13 - 2,9 x 13)supplied.
•Make electrical connection (14) (see paragraph “Electrical
connection”)
•Place the chimney (15) and fix it to the top chimney holder with the
two screws (16 - 3 x 9)supplied.
Lower the bottom part of the chimney and fasten it to the top of the
hood with two screws (17 - 3 x 9), supplied.

66
Fig. 6
K-S
S
K
Electric hob 600 mm
Gas hob 650 mm
Charcoal and oil 700 mm

67
Exhaust tube
Ø150mm
Power outlet
Wall bracket
Electric hob 600 mm
Gas hob 650 mm
Charcoal and oil 700 mm
Electric hob 600 mm
Gas hob 650 mm
Charcoal and oil 700 mm

AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
LI1VLA Ed. 01/02
