AERF WIRELESSBAND 2 OSE User manual

Instruction Manual
1. GENERAL
2. TRANSMITTER AND RECEIVER TERMINAL CONNECTIONS
3. TRANSMITTER - REGULAR CONFIGURATION FOR OSE
1 2 3 4 5 6
INPUT 1 COM 1 INHIBITOR COM 2 INPUT 2 VCC
1 2 3 4 5 6 7 8 9 10 11 12
VCC1 OUTPUT 1 VCC2 OUTPUT 2 TEST
RELAY 1
TEST RELAY 2 /
INHIBITOR
+/~-/~
12/24V
AC/DC
TRANSMITTER
RECEIVER
1 2 3 4 5 6
INPUT 1 COM 1 Inhibitor COM 2 INPUT 2 VCC
GND / 0V
OUTPUT SIGNAL
Optical Low Power Safety Edge
WHITE
BROWN
GREEN
5 VDC
TRANSMITTER
EN
1 - 8
See point 11.1 for other
transmitter connections.
- Two channel wireless system communication for either optical, resistive or mechanical safety edges.
Translation of the original instructions
1.1 SAFETY INSTRUCTIONS
- Reaction time < 60ms. (according TÜV test report AV86368T Certificate nº M6A 0908000001 Rev. 01)
- A Relay test should be done before any operation in order to fulfill EN13849-1-2015 Cat2 PL-C.
ACTIVATED BY
TRANSMITTER
INPUT 1
ACTIVATED BY
TRANSMITTER
INPUT 2
IP55 2 yrs
Battery 100m 2 Ch
Output 7Tx RoHS
1234
ON
5
Optical sensor power
supply from receiver (ON)
Optical sensor power
supply from receiver (OFF)
Sleeping mode
in receiver (ON)
Receiver options configuration
for Optical Safety Edge
123
ON +
SAFETY
(KIT WIRELESSBAND 2 OSE)
SAFETY Safe configuration
Fullfil EN13849-1 Cat 2 PL-C Non-Safe configuration
x
KIT WIRELESSBAND 2 OSE
18/11/20

2 - 8
EN

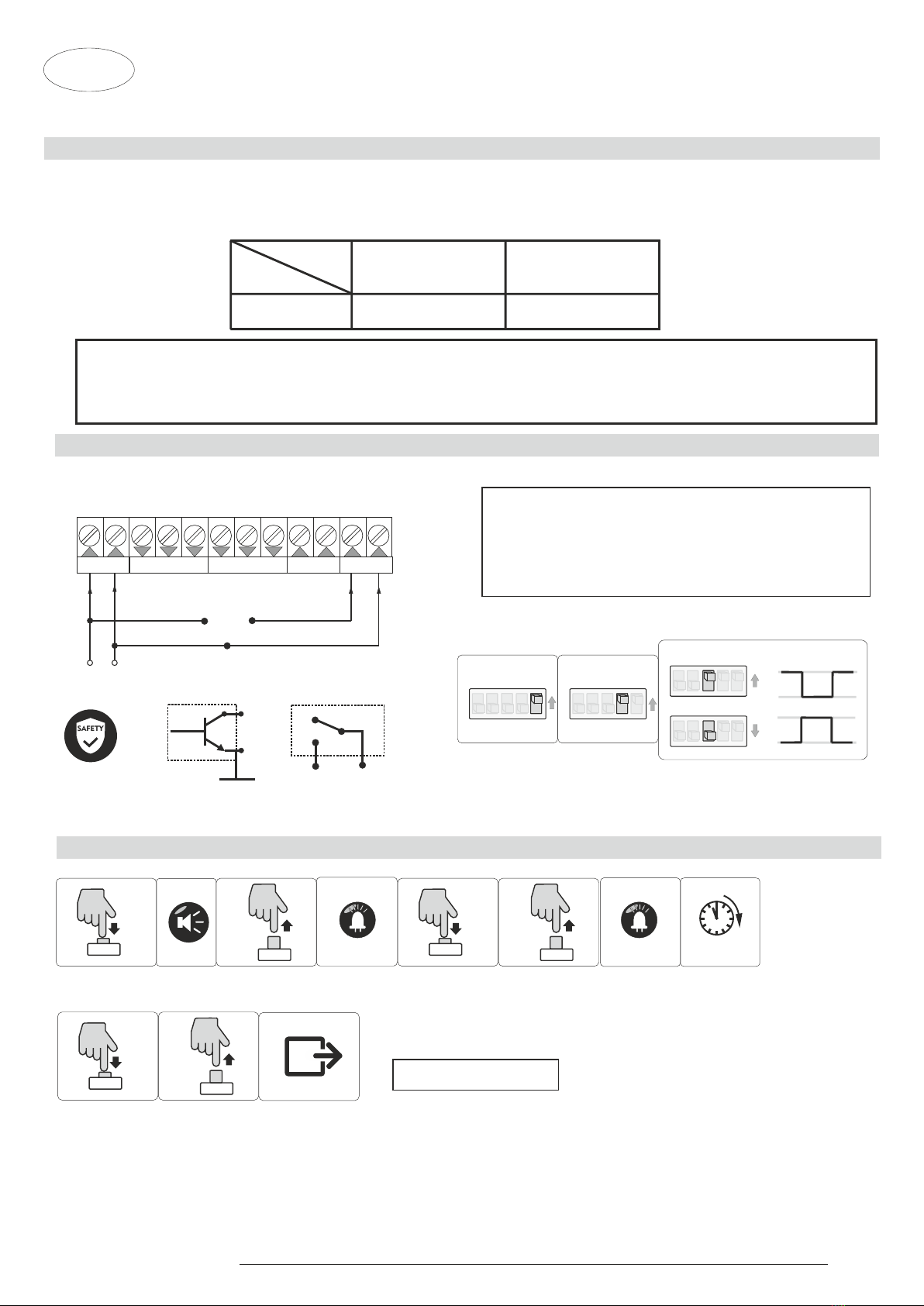

4. SLEEPING MODE SETTING UP FOR OPTICAL LOW POWER SAFETY EDGE
WARNING!!
*Sleeping mode is highly recommended due to optimize energy consumption when using an optical safety edge.
If skip sleeping mode, battery life will decrease to 6 months.
Desired transmitter and receiver options must be set before code memorisation for proper use.
Sleeping mode disconnects the Optical Safety Edge (OSE) power supply from transmitter when no signal is received in 11-12 input.
When signal is detected, connects the power supply during the door manouvre. There are 2 sleeping mode configurations
dependinig on control unit output (Pulse or level signal) and without* sleeping mode.
Receiver
Signal
type
point 4.1 point 4.2
Pulse Level
1 2 3 4 5 6 7 8 9 10 11 12
VCC1 OUTPUT 1 VCC2 OUTPUT 2 TEST
RELAY 1
TEST RELAY 2 /
INHIBITOR
+/~-/~
4.1 PULSE FROM CONTROL UNIT
4.1.1 OSE POWER SUPPLY TIME PROGRAMMING PROCESS (only with OPTION 4 & 5 - ON)
PROG.
1.5s
PROG.
SAVE & QUIT
1 X
BEEP
RELEASE
RECEIVER
PRESS
RECEIVER
RECORD TIME*
LED ON
TRANSMITTERS
PROG. MODE
PROG.
1.5s
PRESS
RECEIVER
LED FLASHES
PROG. MODE
POWER SUPPLY
TIME
FLASH
PROG.
1.5s
PRESS
RECEIVER
PROG.
RELEASE
RECEIVER
PROG.
RELEASE
RECEIVER
30" by default
* Record the optical
safety edge power
supply time. (Equal
or more than door
operation time).
- Pulse signal before each maneuvres is needed.
- For the control unit pulse output, must program
the optical safety edge power supply time (equal
or more than door manoeuver time)(follow point
4.1.1).
SAFETY
1 1
1
1
2 2
2
2
3 3
45
5
5
4
4
54
3
3
ON ON
ON
ON
55
5
5
OPTION 5 ON OPTION 4 ON
OPTION 3
ENABLE
SLEEPING
MODE
SELECT
SLEEPING MODE
TYPE = PULSE SELECT PULSE TYPE
FROM CONTROL UNIT
Transistor output
Ground
a
a
c
c
b
b
b
Relay output
KIT WIRELESSBAND 2 OSE
18/11/20

3 - 8
EN
4.2 LEVEL SIGNAL FROM CONTROL UNIT (POSITIONING CONTACT N.O. or N.C.)
5.1 TEST RELAY INPUT 1 CONFIGURATION (9-10)
5.2 TEST RELAY INPUT 2 CONFIGURATION (11-12)
Before each maneuver there must be a signal that
must be active during the manouver to wake up the
power supply of the optical safety edge.
5. TEST SETTING UP
SAFETY
1
1
1
1
1
1
1
2
2
2
2
2
2
2
3
3
3
3
3
4
4
4
4
5
5
5
4
4
5
5
5
5
4
3
3
ON
ON
ON
ON
ON
ON
ON
5
5
5
5
5
5
5
OPTION 5 ON
OPTION 5 OFF
OPTION 4 OFF
OPTION 3
ENABLE
SLEEPING
MODE
DISABLE SLEEP MODE
SELECT
SLEEPING MODE
TYPE = LEVEL SELECT LEVEL TYPE
FROM CONTROL UNIT
N.C.
N.O.
- Pulse signal before each maneuvres is needed.
- Pulse signal before each maneuvres is needed.
1
1
1
1
2
2
2
2
5
5
5
5
4
4
4
4
3
3
3
3
ON
ON
ON
ON
5
5
5
5
OPTION 3
OPTION 5
OPTION 3
SELECT PULSE TYPE
FROM CONTROL UNIT
SLEEP MODE
SELECT PULSE TYPE
FROM CONTROL UNIT
1 2 3 4 5 6 7 8 9 10 11 12
VCC1 OUTPUT 1 VCC2 OUTPUT 2 TEST
RELAY 1
TEST RELAY 2 /
INHIBITOR
1 2 3 4 5 6 7 8 9 10 11 12
VCC1 OUTPUT 1 VCC2 OUTPUT 2 TEST
RELAY 1
TEST RELAY 2 /
INHIBITOR
+/~
+/~
-/~
-/~
Transistor output
Transistor output
Ground
Ground
a
a
a
a
c
c
c
c
b
b
b
b
b
b
Relay output
Relay output
x
Test output 1 & 2
Test output 1
Test output 2
1 2 3 4 5 6 7 8 9 10 11 12
VCC1 OUTPUT 1 VCC2 OUTPUT 2 TEST
RELAY 1
TEST RELAY 2 /
INHIBITOR
+/~-/~
SAFETY
Transistor output
Ground
a
a
c
c
b
b
b
Relay output
KIT WIRELESSBAND 2 OSE
18/11/20

4 - 8
EN
LED OFF - Obstacle detected
LED ON - Security OK

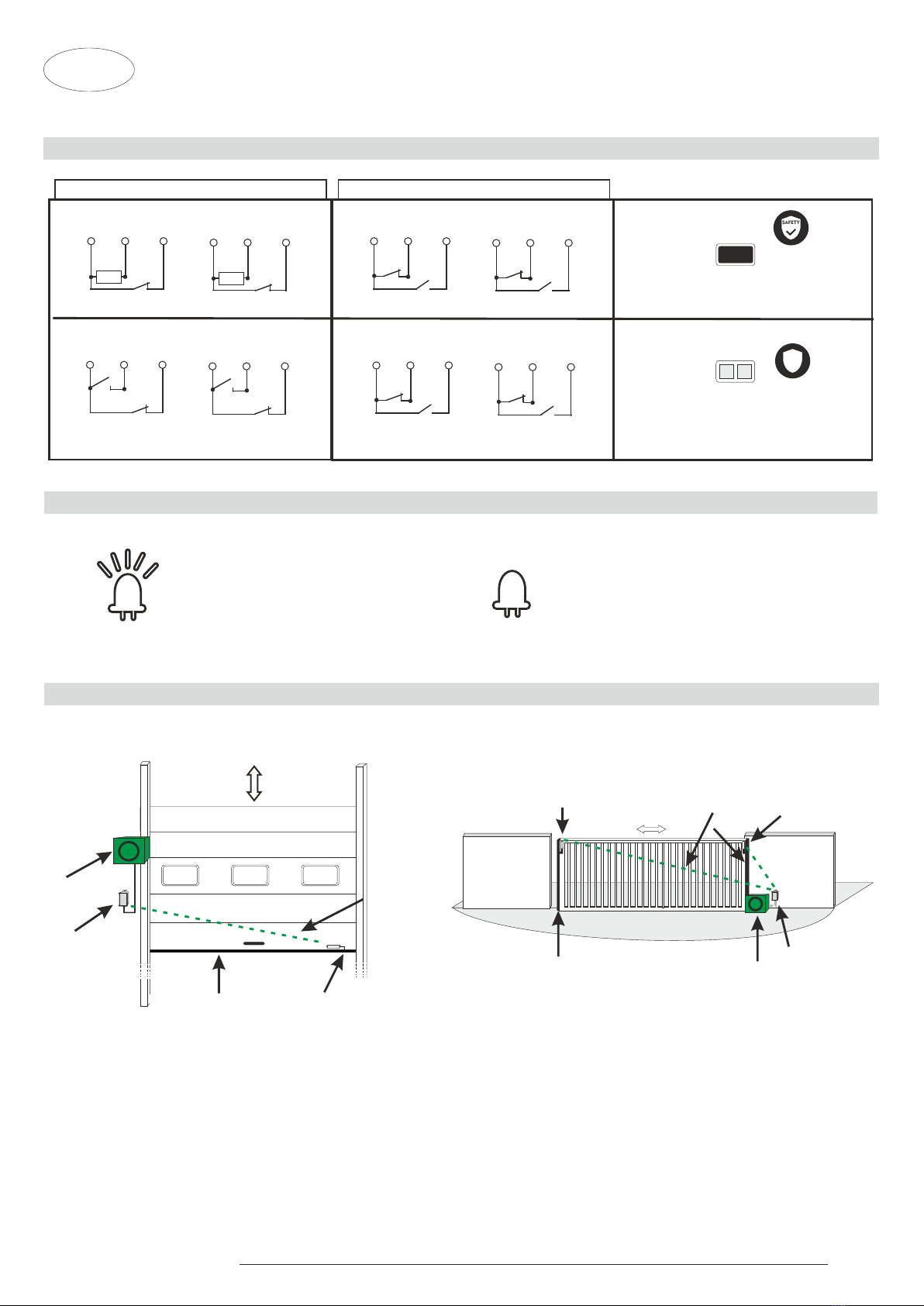

7. RECEIVER LED INDICATOR
FLASH
8. MOUNTING
M
Safety Edge
Safety Edge
INDUSTRIAL SECTIONAL DOOR SLIDING DOOR
Motor
Motor
Wirelessband
Receiver
Wireless
Communication
Wireless
Communication
Wirelessband
Transmitter 1
Wirelessband
Transmitter
Wirelessband
Receiver
Wirelessband
Transmitter 2
M
6. RECEIVER OUTPUTS CONNECTIONS
WITH BRIDGE SELECTOR
WITHOUT BRIDGE SELECTOR
8K2
8K2
3 4 5 6 7 8 3 4 5
3 4 5
6 7 8
6 7 8
6 7 8
3 4 5
Normal conditions, safety edge deactivated. Fail / Sensor active / Sensor not memorized
x
*
*Only 3-4 & 6-7 outputs
SAFETY
KIT WIRELESSBAND 2 OSE
18/11/20

5 - 8
EN

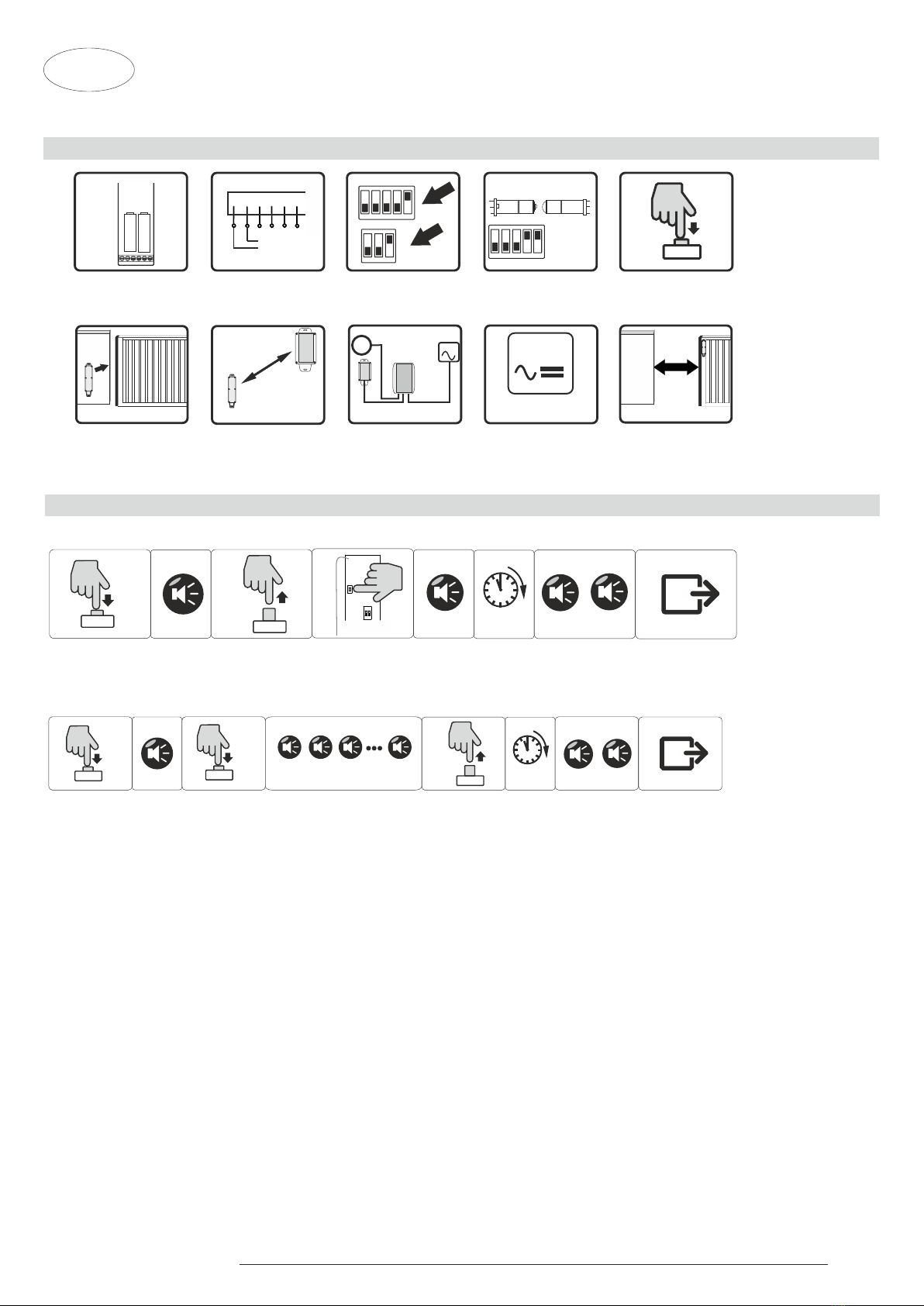

10. PROGRAMMING PROCESS
TRANSMITTER MANUAL PROGRAMMING (up to 7 transmitters per receiver)
PROG.
1.5s
PROG. 10s
SAVE & QUIT
2 X BEEPS
1 X
BEEP
1 X
BEEP
RELEASE
RECEIVER
PRESS
RECEIVER
PRESS
TRANSMITTER WAIT
MEMORY RESET
PROG.
10s
PROG. PROG.
1.5s 3s
SAVE & QUIT
2 X BEEPS
WAIT
RELEASE
RECEIVER
1 X
BEEP # BEEPS
PRESS
RECEIVER
KEEP IT
PRESSED
MEMORY FULL INDICATOR
Several beeps for 10 seconds when trying to memorize a new transmitter.
The system can store 7 transmitters per channel.
LOW BATTERY INDICATOR
4 beeps each time a message is received from a programmed transmitter. Both, warning LED and buzzer are activated simultaneously.
9. START-UP
PROG.
TRANSMITTER
RECEIVER
>1m
+-
12/24V 0V
AC/DC
VCC1 VCC2
OPTICAL EDGE?
ONLY WITH
OPTION 4
ON
12/24V
ON
CONTROL
UNIT
220V
M
++
--
OK?
1. INSERT BATTERIES 2. CONNECT RECEIVER 3. CHECK SWITCH
SETTINGS
5. CARRY OUT
PROGRAMMING PROCESS
(SEE POINT 10.)
7. MINIMUM DISTANCE
1 m.
8. INSTALL WIRE
RECEIVER
9. TURN ON
POWER SUPPLY
10. TEST SAFETY EDGE
ON DOOR.
6. INSTALL WIRE
TRANSMITTER
4. SAFETY EDGE TYPE
CONFIGURATION
(SEE POINT 11.2)
*In kits, transmitter and
r e c e i v e r a r e a l r e a d y
paired.
KIT WIRELESSBAND 2 OSE
18/11/20

6 - 8
EN
11.2 Input 2 LOW POWER OPTICAL SAFETY EDGE or RESISTIVE PROGRAMMING PROCESS
3. STATUS INDICATION 4. PRESS TRANSMITTER
PROG. BUTTON FOR
CHANGE STATUS
5. STATUS CHANGE
1. CONNECT OPTICAL
EDGE TO TRANSMITTER
4 5 6
COM2
VCC1
IN2
FLASH
2X
OPTICAL
RESISTIVE/
MECHANICAL
4-5X FLASH
PROG.
1.5s OPTICAL
RESISTIVE /
MECHANICAL
6. LED FLASH 7. SAVE & EXIT
FLASH
Default optical configuration.
You have 5 seconds after battery connection to make the change of safety edge status.
If you want to change again the status, please remove and connect batteries again.
2. CONNECT BATTERIES
++
--
1 2 3 4 5 6
INPUT 1 COM 1 Inhibitor COM 2 INPUT 2 VCC
Input 2 Mechanical or Resistive 8K2
Safety Edge
Safety Edge
(Mechanical or Resistive 8K2)
1234
ON
5
Mechanical (OFF)
Resistive (ON)
Transmitter and receiver options configuration
for Mechanical or Resistive Safety Edge
123
ON
++
(see point 11.2)
Optical sensor power
supply from receiver (ON)
Optical sensor power
supply from receiver (OFF)
11. OTHER CONFIGURATIONS
11.1 TRANSMITTER
1 2 3 4 5 6
INPUT 1 COM 1 Inhibitor COM 2 INPUT 2 VCC
Safety Edge (Mechanical or Resistive 8K2)*
*Choose the Safety Edge type
with transmitter option 1
Resistive
Mechanical
123
ON
Input 1 Safety Edge (Mechanical or Resistive 8K2 )
x
x
SAFETY
SAFETY
KIT WIRELESSBAND 2 OSE
18/11/20

7 - 8
EN
13. TRANSMITTER OPTIONS SELECTOR
SAFETY EDGE
TYPE (INPUT 2)
TRANSMITTER
FREQUENCY
SAFETY EDGE
TYPE (INPUT 1)
Optical sensor power
supply from receiver (ON)
1
1
2
2
3
3
4
4
ON
ON
5
5
FLASH
FLASH
4-5X
2X
(see point 11.2)
IN2 - Resistive
Safety Edge
transmitter
IN2 - Optical
Safety Edge
transmitter
(default)
(see point 11.2)
Input 2
Resistive
Input 2 Optical
Sleeping mode from
Receiver
Input 2
Mechanical
Not used
123
ON
123
ON 1
1
2
2
3
3
ON
ON
1
1
2
2
3
3
ON
ON
123
ON
ON
Resistive (8k2Ω)
Mechanical (0Ω)
869,85 Mhz (same as
receiver)
868,95 Mhz (same as
receiver)
1
2
3
+
+
+
+
RECEIVER
TRANSMITTER
TRANSMITTER
RECEIVER
Optical sensor power
supply from receiver (OFF)
Resistive
configuration
Optical
configuration
x
x
SAFETY
SAFETY
SAFETY
12. RECEIVER OPTION SELECTOR
1234
ON
1234
ON
1234
ON
1234
ON
1234
ON
1234
ON
1234
ON
1234
ON
TRANSMITTER
FREQUENCY***
SLEEPING
MODE TYPE
RELAY TEST/
SLEEPING
MODE TYPE
CLASS 2
Enabled (Conforms
UNE-EN 13849-1-2015)
Disabled*
N.C. Contact
N.O. Contact*
Pulse (Autotest
contact).**
Level (Positioning
contact).*
869,85 MHz
868,95 Mhz*
5
5
5
5
5
5
5
5
1234
ON
1234
ON
SLEEPING
MODE
Enabled.
Disabled.*
5
5
WARNING:
* Default options
**With Option 4 ON, you must program the Optical Safety
Edge power supply time (equal or more than the door
operating time), following point 4.1.1.
***Receiver and transmitter configuration must be the same.
2
1
3
4
5
x
x
SAFETY
SAFETY
KIT WIRELESSBAND 2 OSE
18/11/20

- Installation, start-up, modification and updating of the
system may only be carried out by a qualified person.
- Switch off the operating voltage before working on the system.
- The sys tem d oes n’t have fus e protection. Is
recommended to include exterior protection from 100mA
to 250mA.
- In case of any hypothetical issue, please do a memory
reset (point 10.).
WARNING!!
Receiver supply voltage
Transmitter supply voltage
Batteries life
Transmitter inputs
Transmitter Inhibition input type
Receiver memory
Receiver Output
Receiver test inputs
Type
Receiver Power consumption
Ball pressure test (IEC 695-10-2)
Pollution degree
Protection class (IEC 60529)
Frequency Channels
Range
Working temperature
Rated transient over voltage
Transmitter power consumption
Maximum screw force
Machine Safety Normative
Reaction time
12/24 AC/DC SELV/PELV
2x AA lithium battery 3.6V
Optical: 2 years (with sleeping mode)
Resistive: >8 years
Selectable by dip-switch and prog.
1 Resistive / contact /optical
1 Resistive / contact
Power free contact
7 transmitters per channel
2 Relay, micro disconnection 1B
or power free contact
2
- 12/24V AC/DC , contact, open collect.
0.5 W - 12 V / 1,2 W - 24 V
PCB (125ºC) WRAP (75ºC)
2
Ip55
868.95MHz & 869.85MHz
100m
-20ºC to +55ºC
330V
Transmitting 17mA / stand by 16uA
0,4 Ncm
13849-1:2015 PL-C Categ. 2, with TEST
before every manoeuvre
<60 ms
TECHNICAL SPECIFICATIONS
CE DECLARATION OF CONFORMITY
For more information visit the website www.aerf.eu
8 - 8
EN
KIT WIRELESSBAND 2 OSE
18/11/20
