aeropur ecomax 100 User manual

Tel. [phone]
Web
www.aeropur.de
Mail [e-mail]
aeropur GmbH
Bauhofring 8
71732 Tamm
Original Operating Instructions
ecomax 100
Jan. 2018, Version 02.00

Dedusting unit ecomax 100
V02.00 Page 2 of 40
R
evision
Date Version Chapters Reason Responsible
18.08.2016 01.00 All New creation Thomas Nuber
tomtrailer UG (limited liability)
30.08.2017 01.01 6 Filter status display Thomas Nuber
tomtrailer UG (limited liability)
19.10.2017 01.02 7 Filter change, Anne Federer
development
tomtrailer UG (limited liability)
operating unit
3 superstructure
07.11.2017
01.03
3
Data, Design Filter
Anne Federer
7.5 Design control unit
tomtrailer UG (limited liability)
29.01.2018 02.00 1,3,4,6,7 Reengineering Anne Federer
tomtrailer UG (limited liability)
All information and drawings were up to date at the time of printing.
These operating instructions have been compiled by us to the best of our knowledge.
Should you find any errors or ambiguities, please inform us. We would be grateful for
any further information and suggestions.
Subject to technical changes without notice.
These operating instructions are the property of:
aeropur GmbH
Bauhofring 8
71732 Tamm
Reproduction, duplication and translation - even in extracts - of the operating instructions of aeropur
GmbH is only permitted with our prior consent and the indication of the source.
Tamm, 29 Jan 2018

Dedusting unit ecomax 100
V02.00 Page 3 of 40
Table of contents
1Notes............................................................................................................ 5
1.1 Purpose.................................................................................................................5
1.2 Liability .................................................................................................................5
1.3 Target audience....................................................................................................6
1.4 Presentation of information................................................................................ 6
1.5 Structure of the security and warning signs........................................................ 6
1.6 Storage of the manual......................................................................................... 7
1.7 Validity of the manual ......................................................................................... 7
2Safety ............................................................................................................8
2.1 Classification of operational warning signs......................................................... 8
2.2 Machine stickers, warning, prohibition and instruction signs ............................ 9
2.3 General safety tips............................................................................................. 10
2.4 General protection measures............................................................................ 11
2.5 Personal protection ........................................................................................... 12
2.6 Obligations of the operators ............................................................................. 12
2.7 Instruction of the operators.............................................................................. 13
3Functional description ................................................................................. 14
3.1 Intended use...................................................................................................... 14
3.2 Reasonably foreseeable misuse ........................................................................ 14
3.3 Subsequently installed components ................................................................. 15
3.4 Makeup of the devices ...................................................................................... 15
3.5 Specifications..................................................................................................... 16
3.6 Operating unit ....................................................................................................17
3.7 Typeplate............................................................................................................17
3.8 Safety devices.....................................................................................................18
3.9 Technical Data ................................................................................................... 19
4Storage, transport and installation ............................................................. 20
4.1 General information on storage, transport and installation............................. 20
4.2 Assembly of the caster rolls .............................................................................. 21
4.3 Electrical installation ......................................................................................... 22
5Operation .................................................................................................... 23
6Faults .......................................................................................................... 24
7Maintenance and checks ............................................................................ 26
7.1 Checklist for maintenance work........................................................................ 26
7.2 Filter change.......................................................................................................27
7.3 Cleaning of the filter covers .............................................................................. 32

Dedusting unit ecomax 100
V02.00 Page 4 of 40
7.4 Cleaning and inspection of the interior............................................................. 32
7.5 Filter change of the damper.............................................................................. 33
7.6 Removal and installation of the operating unit ................................................ 35
7.7 Repairs................................................................................................................36
8Dismantling and decommissioning ............................................................. 37
8.1 Decommissioning ...............................................................................................37
8.2 Final decommissioning .......................................................................................37
9Recycling and disposal ................................................................................ 38
9.1 Packaging material .............................................................................................38
9.2 Filters..................................................................................................................38
9.3 Device .................................................................................................................38
10 Warranty ..................................................................................................... 39
11 Declaration of conformity............................................................................ 40
List of illustrations
1 Mobile dedusting device, overall view............................................................. 15
Fig.2 Operating unit and rear view ........................................................................... 17
Fig.3 Name plate...................................................................................................... 17
Fig.4 Protective grille fan ......................................................................................... 18
Fig.5 Mounting the floor casters ............................................................................. 21
Fig.6 Loosening the side filter cover ........................................................................ 29
Fig.7 Loosening the upper filter cover..................................................................... 29
Fig.8 Detaching the filter cover ............................................................................... 29
Fig.9 Detaching the side prefilter ............................................................................ 30
Fig. 10 Detaching the upper prefilter.......................................................................... 30
Fig. 11 Detaching the main filter................................................................................. 30
Fig. 12 Inserting the main filter................................................................................... 31
Fig. 13 Inserting the side prefilter............................................................................... 31
Fig. 14 Inserting the upper prefilter............................................................................ 32
Fig. 15 Detaching the cover......................................................................................... 33
Fig. 16 Removing the fine dust filter........................................................................... 34
Fig. 17 Inserting the fine dust filter............................................................................. 34
Fig. 18 Loosening the operating unit .......................................................................... 35
Fig. 19 Detaching the operating unit .......................................................................... 35
Fig. 20 Disconnecting cables and hoses ...................................................................... 35

Dedusting unit ecomax 100
V02.00 Page 5 of 40
Chapter 1 Notes on documentation
1Notes on documentation
1.1 Purpose
These operating instructions are intended to help you become familiar with the
machine and to make full use of its high performance.
The operating instructions contain important information for the safe, proper and
effective use of the machine. The instructions must be followed carefully in order to
avoid safety hazards, reduce repair costs and downtime and increase the reliability
and service life of the machine.
The operating instructions must be read, understood and observed by all persons
responsible for the installation, commissioning, operation or maintenance of the
machine. For this reason, it must always be kept at the place where the machine is
operated. The local safety and accident prevention regulations and the chapter on
"Safety" (see chapter 2) must be observed.
1.2 Liability
aeropur GmbH assumes no liability for damages and malfunctions caused by non-
observance of the operating instructions.
For safety reasons, unauthorised modifications and conversions to the machine are
strictly forbidden. If aeropur GmbH has not given its explicit approval for
modifications and alterations to the machine, aeropur GmbH shall not be liable for
any resulting damage.
Such changes include, for example:
•Remove protective devices
aeropur GmbH does not assume any liability for damages which can be attributed
to such interventions. The risk is borne solely by the user!
We reserve the right to make technical changes which serve the further development
and improvement of the machine as well as technical progress.

Dedusting unit ecomax 100
V02.00 Page 6 of 40
Chapter 1 Notes on documentation
1.3 Target audience
These operating instructions are intended for the following target groups:
•Instructed operators
•Instructed maintenance personnel
•Technically competent cleaning and testing personnel
1.4 Presentation of information
To enable you to work quickly and safely with this manual, uniform formatting,
figures, symbols, safety instructions (see Chapter 2.1), terms and abbreviations are
used.
Instructions for action are indicated by an arrow.
•You can recognize enumerations by a preceding point.
NOTE
Here you will find information on how to avoid possible damage to
property.
INFORMATION
Here you will find helpful information on the product in general or on
handling.
1.5 Structure of the safety and warning notices
The safety instructions in these operating instructions are structured according to a
uniform scheme. They describe residual hazards which can cause personal injury or
damage to property.
General structure
SIGNAL
WORD
Nature and source of danger.
Consequences of non-compliance
Security measures
(Warning Sign)
The rule is:
Warning sign: Draws attention to the danger
Signal word: Indicates the severity of the danger.

Dedusting unit ecomax 100
V02.00 Page 7 of 40
Chapter 1 Notes on documentation
The safety instructions are followed by instructions for action. The instructions for
action must be adhered to in order to avert danger.
1.6 Retention of records
These operating instructions and all other related documents must always be kept at
hand for all persons working on the machine. The location of the documents must be
clearly visible to these persons.
1.7 Validity of the manual
These operating instructions are only valid for the ecomax 100 dedusting device.

Dedusting unit ecomax 100
V02.00 Page 8 of 40
Chapter 2 Safety
2Safety and security
When using, troubleshooting and servicing the machine, observe the warnings that
precede each action and all safety labels attached to the machine.
2.1 Classification of action-related warnings
DANGER Indicates an immediately hazardous situation which, if not avoided, will result in
death or serious injury.
Consequences of non-compliance
Security measures
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
Consequences of non-compliance
Security measures
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in
minor or light injury.
Consequences of non-compliance
Security measures

Dedusting unit ecomax 100
V02.00 Page 9 of 40
Chapter 2 Safety
2.2 Machine stickers, warnings, prohibitions and mandatory signs used
The information and safety labels attached to the machine must be observed. They
may not be altered or removed. Damaged signs must be replaced immediately. The
following list explains the symbols in this manual or on the machine.
Information and warning signs
Warning of danger
point
Warning of dangerous
electrical voltage
Suspended load
warning
Warning of danger of being
drawn in
Warning of danger of
falling
Warning of danger of crushing
Warning of hot
surfaces
Warning of biohazard
(infection)
Mandatory signs
Activate before working! Eye protection must be
used!
Mask (or respiratory
protection) must be
worn!
Protective gloves must be
worn!
Safety shoes must be worn! Follow the instructions!

Dedusting unit ecomax 100
V02.00 Page 10 of 40
Chapter 2 Safety
2.3 General safety instructions
The basic prerequisite for safe handling and trouble-free operation of the mobile
dedusting device is knowledge of the basic safety instructions and occupational safety
regulations.
These operating instructions contain all important information for safe operation of
the mobile dust extractor.
Although the use of the dedusting unit is mobile thanks to the caster rollers, the
device must nevertheless be assigned a fixed destination and possibly also protected
depending on local conditions (e.g. forklift traffic). The intake and exhaust grilles must
be kept clear.
The on-site work safety regulations must be observed.
DANGER
Danger of explosion if used in dust explosive areas of zones 21 and 22.
Do not use the devices under any circumstances in dust explosive areas (zones
21 and 22 in accordance with Directive 1999/92/EC) or underground!
DANGER Danger to life from touching parts that have become live in the event of a fault.
All work on the electrical control system must be carried out in accordance
with the statutory regulations and those of the employers' liability insurance
association.
NOTE
Corrosion, failure of machine parts, material damage.
Only operate the mobile dust collector in closed, dry rooms.
Only dry and non-explosive substances may be filtered.
Operation in damp or explosive areas is not permitted.
NOTE
The operation of the mobile dedusting device without safety systems is
negligent action! Operating the mobile dedusting device without safe
ty systems does
not qualify as "foreseeable misuse"!
For this reason, these operating instructions do not explicitly draw attention to
dangers that may arise from operating the mobile dedusting device without safety
systems.

Dedusting unit ecomax 100
V02.00 Page 11 of 40
Chapter 2 Safety
Residual hazards
NOTE
Residual hazards are hazards which, despite a safe design and technical protective
devices, represent an unavoidable, non-obvious risk due to the use of the product.
All safety instructions in this operating manual must be observed in order to avert
residual hazards.
All work on the mobile dedusting device must comply with the statutory and
employers' liability insurance association regulations.
Unauthorized changes
Unauthorized modifications can cause dangers for the mobile dust removal unit.
Modifications, additions or conversions that may compromise safety must not be
made to the mobile dust collector.
2.4 General protective measures
Everyone who works on the mobile dedusting device must make sure that there is
never any danger to people. This is especially important if there are several people
in the vicinity of the mobile dust collector.
Safety devices, protective devices and protective equipment must be used and
maintained appropriately. Misuse, unauthorized removal and damage are prohibited.
Children must always be denied access to the equipment. In case of disregard aeropur
GmbH cannot be held liable.
The measures taken against unauthorised starting and unauthorised operation
of the mobile dedusting device must not be bypassed.
Repairs to working machines during operation as well as the cleaning of running
parts are prohibited.
The following accident prevention regulations have been complied with for the
mobile dedusting device.
General regulations DGUV V1 (former BGV A1 or VBG 1)
Electrical machinery DGUV V3 (prev. BGV A3 resp. VBG 4)

Dedusting unit ecomax 100
V02.00 Page 12 of 40
Chapter 2 Safety
2.5 Personal protective equipment
During operation, maintenance, set-up or troubleshooting, personal protective
equipment must be used, including, but not limited to
•Eye protection
•Respiratory protection
•Hand protection
•Foot protection
2.6 Obligations of the operator
The operator of the mobile dedusting device must ensure that
•The commissioning and operation of the machine is carried out exclusively by
trained personnel.
•The cleaning and tests according to VDI 6022 are carried out by trained specialist
personnel.
•These operating instructions must always be available. They are a part of the product.
•The operating instructions and particularly the safety instructions have been read
and understood by the assigned personnel prior to operation, maintenance and
repair.
•The permissible operating conditions are complied with.
•In case of replacement only original parts, parts approved by the manufacturer or
parts with corresponding specifications are being used. Other spare parts may
only be used after consultation with the manufacturer of the mobile dust
collector.
•The mobile dedusting device is only operated in a perfect and safe condition. The
technical condition must always comply with the country-specific legal
requirements and regulations.
•The mobile dedusting device is only used as intended.
•All safety regulations are complied with.
•All maintenance tasks are carried out on schedule and professionally.
•All maintenance tasks are carried out exclusively by trained personnel.
•All maintenance work is carried out exclusively by qualified personnel.

Dedusting unit ecomax 100
V02.00 Page 13 of 40
Chapter 2 Safety
2.7 Staff training
The personnel must be comprehensively instructed before commissioning the
mobile dedusting device about:
•The signs of an impending filter change
•Carrying out the filter replacement in a professional manner
The operator must ensure that the instruction is repeated at appropriate intervals.

Dedusting unit ecomax 100
V02.00 Page 14 of 40
Chapter 3 Functional
3Functional description
3.1 Intended Use
The mobile dedusting device of aeropur GmbH is designed for the improvement of
breathing air quality in closed rooms. It works according to the recirculation process,
which means that the different air layers are circulated with simultaneous filtering of
the air particles.
The unit is designed exclusively for conveying and filtering of air.
Any other use or use beyond that is considered improper and constitutes misuse of
the equipment.
Customer equipment must be able to withstand the mechanical and thermal stresses
that may be caused by this equipment.
Intended use also includes:
•Use the device only in networks earthed to the outer conductor.
•Connect the unit to a residual current circuit breaker (RCD).
•Use the device at an ambient air pressure of 750 mbar to 1050 mbar.
•Use the device according to the permissible ambient temperature (see chapter
3.8 Safety systems).
•Only operate the device with all protective systems.
•Observe the operating instructions.
3.2 Reasonably foreseeable misuse
Any use other than that described above may result in hazards and damage and is not
intended. This includes in particular:
•Conveying air without filters or guards
•Operation with fully or partially dismantled or manipulated protective
devices
•The conveyance of air which has a highly corrosive effect, e.g. salt spray
•Operation in the vicinity of flammable substances or components
•The operation of the device in an explosive atmosphere
•The use of the device as a safety-related component or for the assumption of
safety-relevant functions

Dedusting unit ecomax 100
V02.00 Page 15 of 40
Chapter 3 Functional
•The use of non-tested air filters
•The use of air filters of a class other than the specified one
•Operation, maintenance and servicing by untrained personnel
•All other application possibilities not mentioned in the intended use
3.3 Subsequently installed components
•For subsequently installed components and conversions, the operator must
carry out a corresponding assessment of the hazards.
3.4 Structure of the mobile dedusting device
Fig. 1 Mobile dedusting unit, overview
Pos. Description Pos. Description
1 Air inlet, protected by a filter cover 5 Fan
2 Prefilter G4 6 Air outlet, protected by grille
3 Hexagon socket screws filter cover 7 Control unit (see chapter 3.6)
4 Main filter (filter cell F8) 8 Floor casters

Dedusting unit ecomax 100
V02.00 Page 16 of 40
Chapter 3 Functional
3.5 Specifications of the device
Housing
Housing made of galvanized steel.
We recommend a neutral cleaner with a pH value of 5-8 for cleaning.
Fan
Low-noise centrifugal fan with highly efficient EC motor. SFP
Class 1, (< 500 Watt/m³/s)
Filters
The standard equipment of the mobile dust collector includes class G4 pre-filters and
class F8 or F9 main filters. These allow a high indoor air quality according to EN
13779.
The air filters used are certified in accordance with DIN EN 779:2012.
For the filtration of hazardous substances, suspended matter filters such as Hepa or
ULPA filters are required. Further information on hazardous substances can be found
in TRGS900 (Technical Rules for Hazardous Substances).
Spare parts
Damaged parts and filters must be replaced immediately. Only if original spare parts
are used aeropur GmbH guarantees the full performance of the mobile dust collector
according to the technical data as well as an optimal service life and durability of all
components.

Dedusting unit ecomax 100
V02.00 Page 17 of 40
Chapter 3 Functional
3.6 Operating unit
Fig.2 Operating unit and rear view
Pos. Description Function
1 Main switch Lights up green when "ON”
2 Filter status display LED off: The filters work perfectly.
LED flashes: The filters must be replaced, starting with the
prefilter.
If the LED still flashes afterwards, the main filter must also be
replaced.
See chapter 7.2 Filter change
3 Operation and fault
message display (green
LED)
LED off: Fan malfunction
LED on: Faultless function
4 Plug connection 230V AC
5 Fine-wire fuse / Slow 10 A
NOTE: Always disconnect the device plug from the mains before
changing the fuse.
3.7 Typeplate
Fig.3 Nameplate

Dedusting unit ecomax 100
V02.00 Page 18 of 40
Chapter 3 Functional
3.8 Safety Systems
Protective grille fan
The fan is protected from the top by a protective grille.

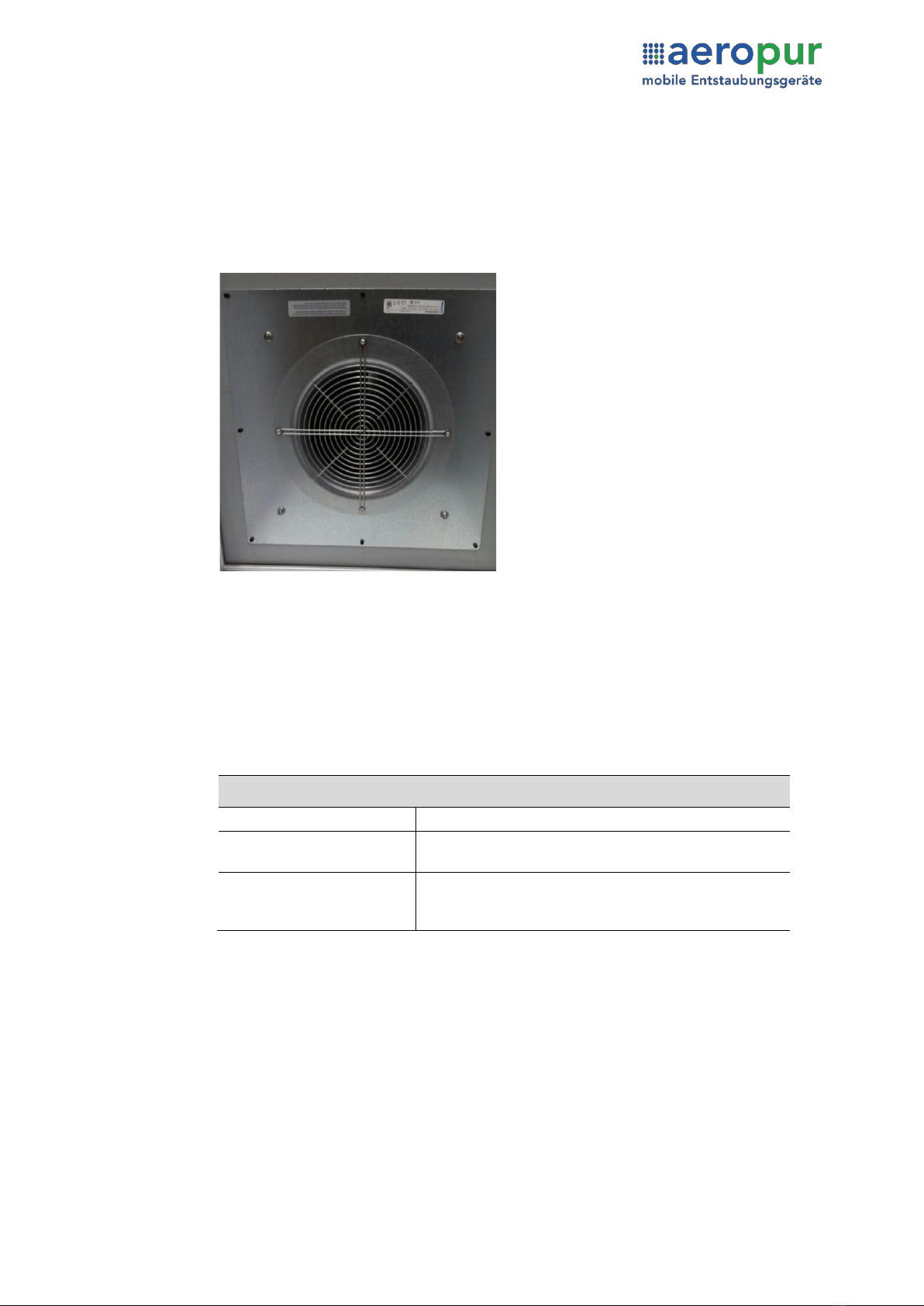

Fig.4 Protective grille fan
Fault monitoring for radial fan
Integrated protection functions
In the event of the following faults, the motor is automatically switched off by
integrated protective functions.
Fault Description / Protective function
Rotor position detection error The motor restarts automatically.
Blocked rotor When the blockage is removed, the motor restarts
automatically.
Mains undervoltage (mains
voltage is outside the
permissible nominal voltage)
When the mains voltage has returned to permissible
values, the motor restarts automatically.

Dedusting unit ecomax 100
V02.00 Page 19 of 40
Chapter 3 Functional
3.9 Technical data
ecomax 100
Voltage 230 V / 50/60 Hz
Power consumption 750 W
Current consumption 3,3 A
Weight 230 kg
Dimensions L x W x H 90 x 90 x 182 cm
Noise level 69 dB (A)
Housing material Galvanised steel
Degree of protection IP50
Filter steps 2 (3 suction sides)
Filter class according to EN 779 G4 / F8 Standard
Nominal volume flow 12.000 m³/h
Filter capacity G4+F8 10.000 m³/h
Filter change (pressure controlled) LED red / flashing
Operating and fault message LED green / without malfunction
Ambient temperature -20 °C to +40 °C
EC centrifugal fan Backward curved
Speed control yes
Installation category A
Efficiency category Static
Efficiency class N 74,4
Further technical equipment:
•Power limit
•Motor current limitation
•Soft start
•Overheating protection
•Motor protection: anti-lock protection
•Motor protection: internal temperature sensor

Dedusting unit ecomax 100
V02.00 Page 20 of 40
Chapter 4 Storage, Transport and Installation
4Storage, transport and installation
4.1 General information on storage, transport and installation
•During storage, completely protect the product against the effects of weather,
humidity, temperature fluctuations and other influences that may cause damage.
•To protect against soiling, cover the product with a protective film for storage.
•The permissible ambient temperature for transport and storage is
-40 to +80 degrees.
When setting up the machine, the following safety instructions must be observed -
this will prevent fatal injuries, machine damage and other material damage.
WARNING Risk of impact and crushing during loading.
If the machine as an entire unit falls during loading, severe injuries may occur if
someone is standing under the machine.
When lifting by crane, use sufficiently dimensioned hoisting and slinging gear.
When lifting with a forklift, ensure horizontal transport.
Nobody must be standing under a lifted load.
Wear PPE: head protection, gloves, foot protection.
Before first use, remove all packaging material (disposal of packaging material: see
chapter 9.1).
When unpacking, check whether the dedusting device has been damaged during
transport.
To prevent personal and material damage, place the unit on a firm surface so that it
cannot tip over.
Observe the regulations of the statutory accident prevention regulations.
Make sure at all times that the air supply to the air intake panel is not covered or
otherwise interrupted. In this case, the device no longer provides any power and a
device defect cannot be ruled out.
Please also read the chapter "General safety instructions".
