Aerus HF 500 User manual

Operation Manual
HF 500 • IRON, HYDROGEN SULFIDE & MANGANESE FILTER

System Installation
CAUTION:
Do not use systems on untreated well water that
is microbiologically unsafe.
Do not exceed 125 psi water pressure.
Do not exceed 110F water temperature.
Do not subject unit to freezing conditions.
All plumbing must be in compliance with local
and state plumbing codes.
Determine a suitable location for the system.
The chosen location should provide you
adequate access to service the unit. Ensure
that the location is after the main water supply
control valve with access to the water line that
feeds the home (prior to hot water heater).

OVERVIEW
•Plumbing connections
oShut off main
oRelease water pressure
oMake pipe connections
•Level I valve programming
(Initial settings)
oCurrent Time
oCurrent Date
•Level II programming
(settings made at factory)
•Drain line connection
•System start-up (in backwash)

1. Shut off main water supply to the home.
2. Release water pressure by opening a faucet
at the kitchen sink or other location.
Important! -Be sure to lubricate the o-rings on
the quick connect fittings prior to installation.
3. Make final main water connections to the
valve, using quick connect fittings.
Optional supplied fittings:
(2) 3/4 “ male threaded 90 quick connect fitting
(2) 1” male threaded straight quick connect fitting

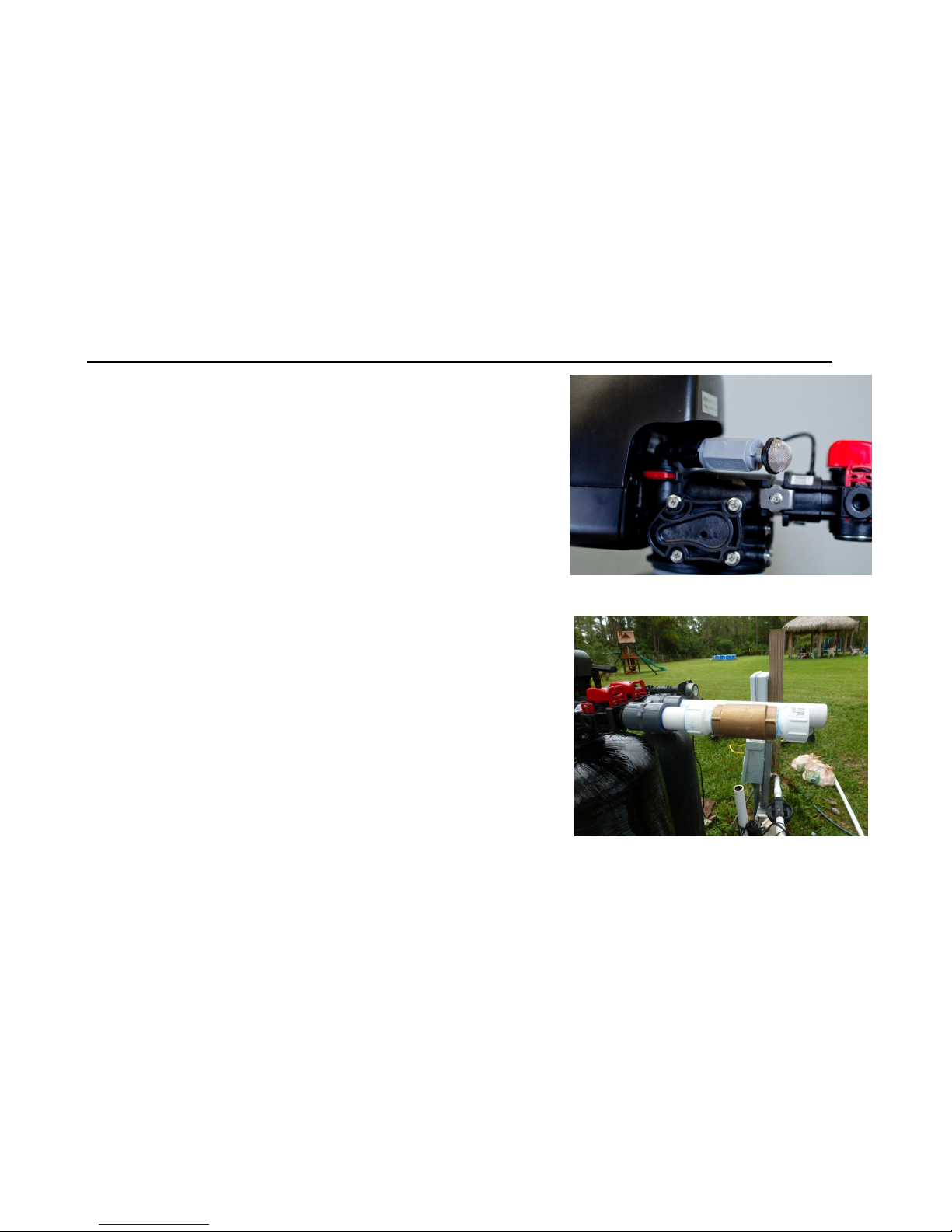

a) Install fittings to the by-pass by removing
the red locking clips.
b) Insert fitting.
c) Return the red locking clips to secure the
fitting.
Plumbing Connections
Be sure to comply with all required plumbing codes.
Fig. 1
!

1850 Valve
(Metered for demand regeneration)
•By-pass valve is included and comes
with ¾” and 1” quick connect pipe
fittings
•Metered for demand regeneration
•Ideal for softeners, iron, sulfur,
carbon and sediment filters
•For tanks to 16” (softeners)
•For tanks to 10” (filters)
•Easy to program
•Operational data shown on LED,
including flow rate, last regeneration
date, gallons remaining and more

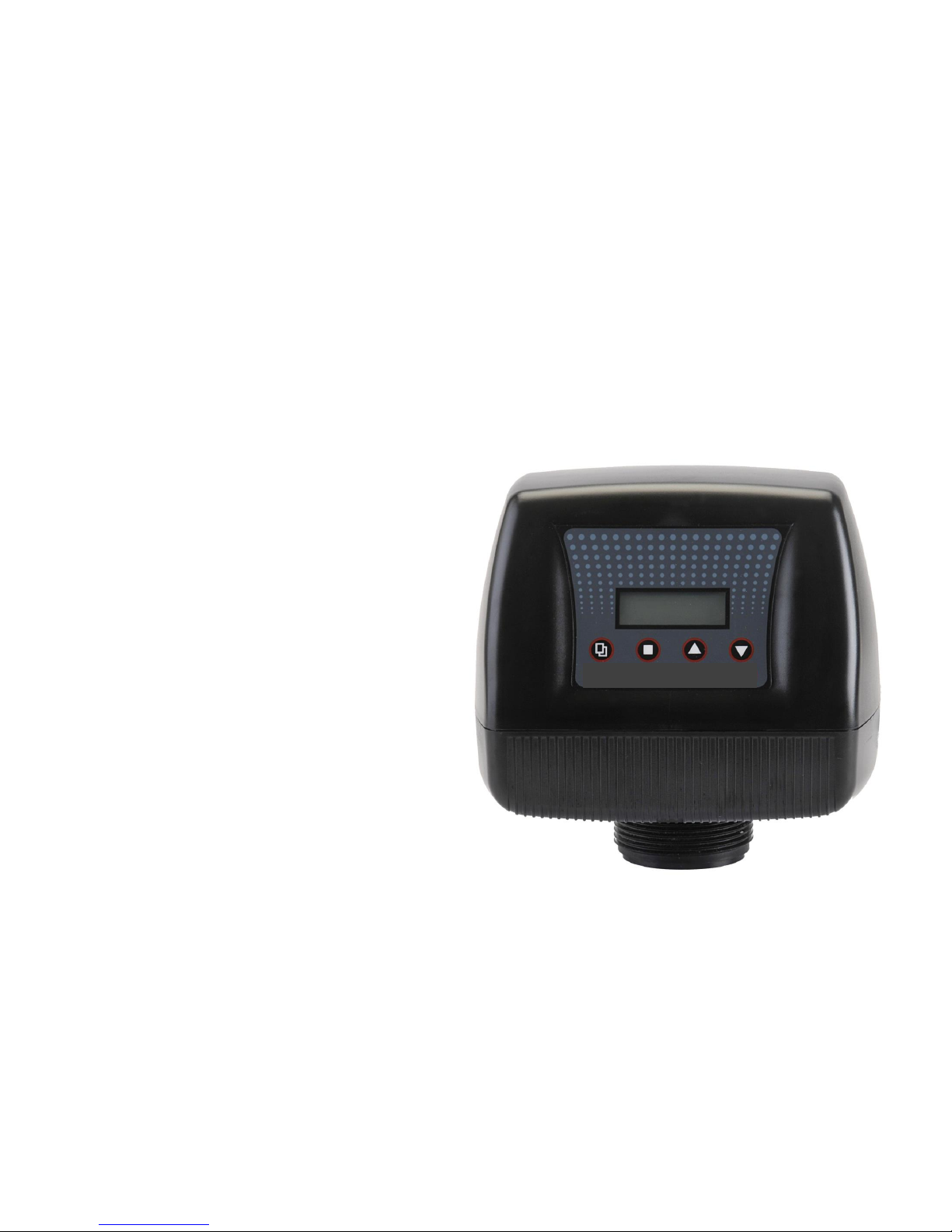

HF 500
Features

Valve Programming
Press and hold for 3 seconds to unlock the valve for programing.
FIRST - UNLOCK VALVE

1) Menu Key
Press this key to enters or exit menu
Settings
Valve button programing control definitions
2) Set / Save Regen Key
Press this key to select a program
or to save a setting
3) Up arrow Key
Press these keys to go to the
previous menu
4) Down arrow Key
Press these keys to go to
the next menu
HF 500

Level-I Set up Parameters
(Required for initial set-up)
Level-1
Time –Enter the time of valve set up.
Date - Enter today’s date at time of valve set up.
Number of People –Enter # of full-time residence (default 4).
Water Hardness - Enter grains of hardness (default 20).
Vacation Mode –Default is no, changing this setting will
change the valve operation to a calendar cycle.

Time
1) Press * to enter menu (hour display will be highlighted)
2) Press to enter hour setting (must be flashing to edit)
3) Press or to adjust hour
4) Press to save and move to minute setting (flashing)
5) Press or to adjust minute
6) Press to save and move to AM/PM setting (flashing)
7) Press or to adjust AM/PM
8) Press to save and move to hour spot (not flashing)
9) Press to go to current date set up or to cycle through level I
settings (continue to set all level I setting)
10) Press * to exit menu and return to main screen
Making Adjustments –Level I
All programing is adjusted using the methods described in the programing method.
Setting level I programing
*Note: if valve is “locked” you will need to press and hold menu for 3 seconds. Valve will “beep” when
changing menu’s or parameters. Highlighted parameter must flash to be able to adjust setting.

Reasons to change Level-II setting (examples)
1) Initial start up configurations
2) Using tanks other than 9X48
3) Using Valve for Carbon or Iron Filter
4) Setting valve up for use in in Iron Filter
5) Adjusting any cycle or setting to enhance performance
Level-II Programming
(Settings have been pre-set at the factory)
These settings have been made at the factory and are held in memory. Level-II settings will
not be lost during a power outage. However, if adjustments are desired, follow the
directions below.
Level-II
•Language
•Valve operation
•Regen Mode
•Regen Time
•Capacity Calc.
•Resin Volume (FT3)
•Salt Settings (lbs./FT3)
•Refill Flow Rate (GPM)
•Unit Capacity (grains)
•Reserve Capacity
•Backwash (min)
•Brine/Rinse (min)
•Rapid Rinse (min)
•Refill (min)

Backwash
1) Press and together to enter menu (5 sec.)
2) Press or scroll to backwash setting
3) Press to enter menu (flashing)
4) Press or to adjust minutes (flashing)
5) Press to save setting and advance to tenths of minute
6) Press or to adjust tenths of minute for backwash
7) Press to save
8) Press or to move to another menu
9) Press to exit menu and return to main screen
Making Adjustments –Level II
All programing is adjusted using the same methods as for Level-I programming.
Setting level II programing
*Note: If the valve is “locked” you will need to press and hold menu for 3 seconds. Valve will “beep” when
changing menus or parameters. Highlighted parameter will flash when you are able to adjust setting.
Note: Valve must be in manual mode to adjust and save capacity and refill duration.

AIR DRAW INSTALLATION
Air check with screen (included)
Water check installed prior to unit (Included)
Aerus Origins® control valves are highly effective for Iron,
Hydrogen Sulfide and Manganese reduction by using our
unique “air draw” installation to introduce fresh air to the
filter tank for added oxidation.
Air draw is not required in many installations (depending on
Iron, Sulfur and Manganese concentrations), so testing is
advisable.
Factory settings for air draw installation:
•Valve is programmed for SOFTENER operation
•YELLOW injector is installed
•Regeneration is set using CALANDAR CLOCK
•Regeneration is set for 11:00 PM (may be adjusted)
•Capacity calculation is set as MANUAL
•Regen days set at “1” (to backwash every night)
•Backwash set at 30 MINUTES (may be adjusted)
•Brine rinse (air draw) set at 30 MINUTES
•Rapid rinse set at TWO MINUTES
•Refill set at ZERO
IMPORTANT: Well pump must be able to provide 7 gpm for
proper backwash. Evaluation required PRIOR to installation.
IMPORTANT: Disinfection (chemical treatment) is
required if water contains bacteria, iron bacteria or
sulfur bacteria. Site evaluation and testing is advised.

Connect Drain Line

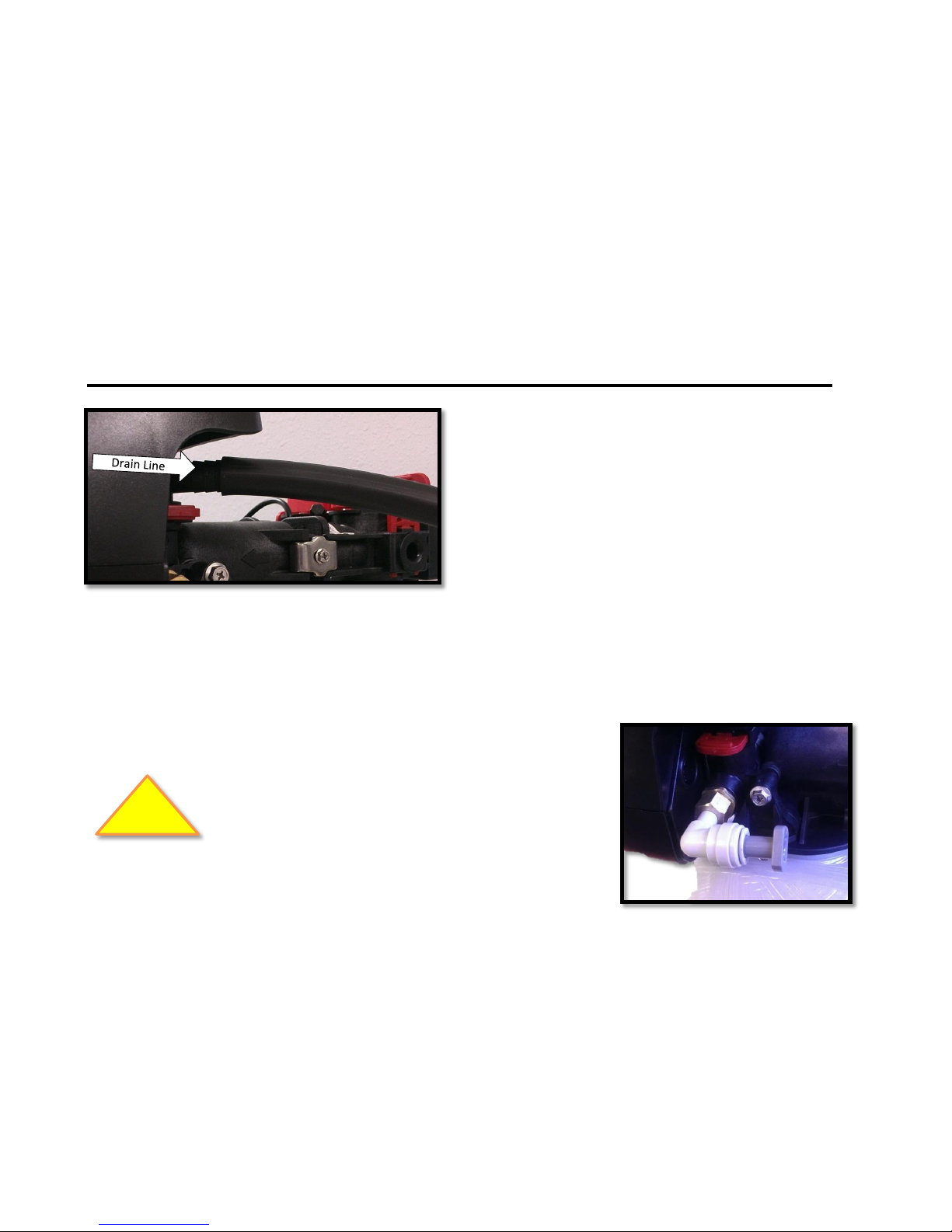

Connect drain line to the valve
Slide drain line tube over barbed drain line
connection fitting until secured.
IMPORTANT
Proper backwash is critical for Iron/Sulfur filters Therefore, do not tee-off
drain line or use ½” drain tubing longer than 20’. (Use ¾” or 1” drain line for
longer runs).
CAUTION: Inspect valve for “brine plug” or air
draw valve installed at the factory. (Plug
is required to prevent water leaking
when valve advances)
!
Non-air draw plug shown

System Installation
OUT
Turn the by-pass valves to the “OFF” position
(red valves) pointing “across” the valve as
shown.
With the faucet still on, open the main water
supply valve.
IN
Off Position
CAUTION: Inspect all plumbing connections. Check for leaks and make repairs as needed.
!

System Start Up

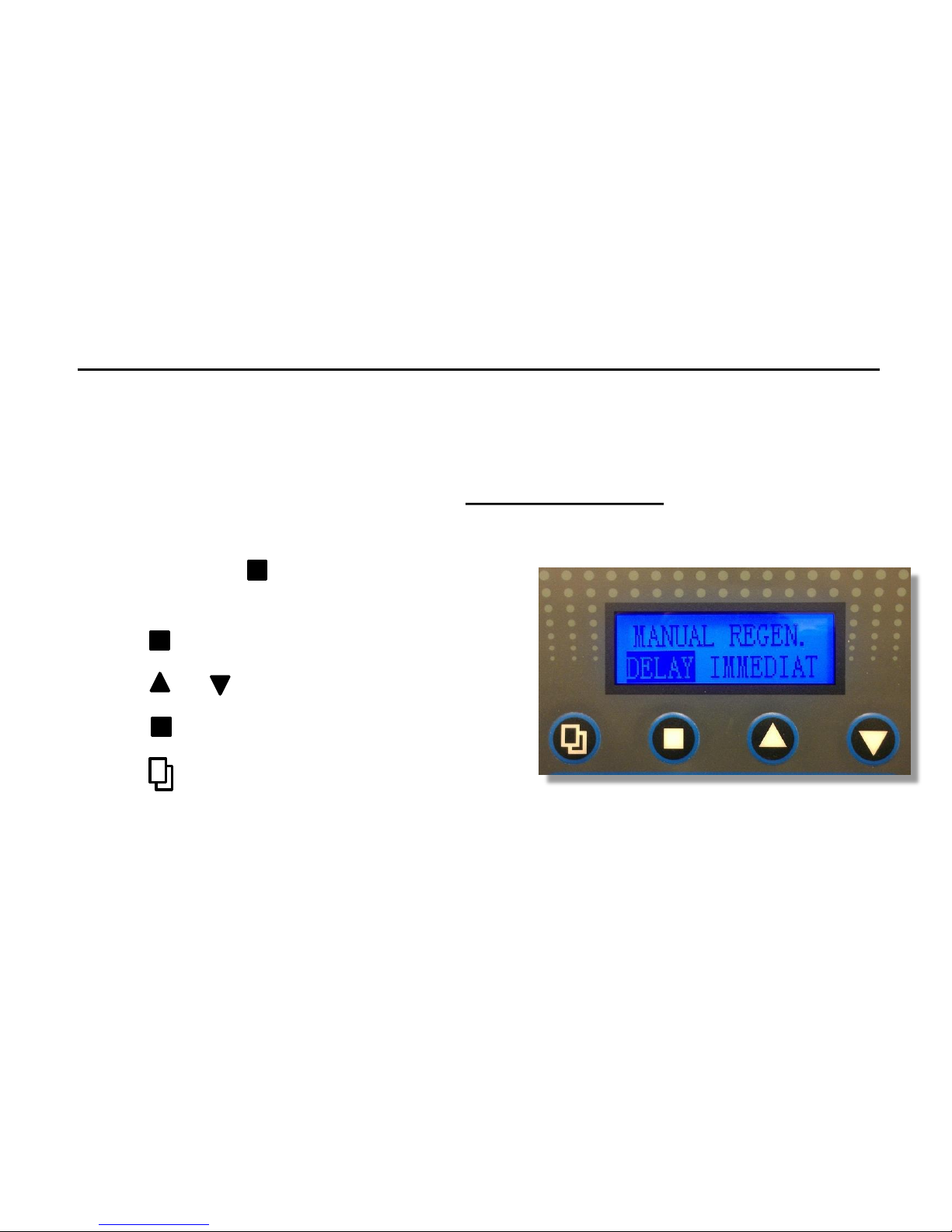

1) Press and hold to enter Manual Regen
Mode (press for 3-5 seconds)
2) Press to enter edit mode (flashing)
3) Press or to select immediate (flashing)
4) Press to save
5) Press to show “Advancing to Backwash”
Note: Valve will reset backwash cycle to delay after manual regen. cycle has finished.
Notice:
For initial start-up, the Inlet and Outlet valves on the bypass
should be in the closed position.

Start-Up In Backwash
1) Screen will now display
“Backwash” and flash
“Remaining XX min”
2) You will need to run
Backwash cycle until
drain line runs clear
NOTE: When advancing to another cycle, valve will show “advancing to”. Once the
valve is “in” a subsequent cycle, you may press any button to advance to
another cycle. Valve cannot be advanced while in the “advancing to” position.

Fill the Mineral Tank
1) With bypass valves in the
“OFF” position turn on the
main water supply.
2) Open “Inlet” valve slowly ¼
turn clockwise to fill the media
tank.
3) Slowly continue to open inlet
all the way once water is
flowing from the drain line.
If the mineral tank was not filled, do so at this time following the directions below:
CAUTION: Allow time for glued connections to cure before proceeding.
!
CAUTION: Inspect all plumbing connections. Check for leaks and make repairs as needed.
!
NOTE: Watch to see if the backwash flow rate is proper –do not obstruct
drain line. This is particularly important for Iron and Sulfur filters.

Press to advance to the next cycle
REPEAT of the initial backwash cycle may be required should the backwash
discharge water does not run “clear” after unit has finished the first cycle.
NOTE: It’s common to run multiple backwash cycles with carbon and Iron
filters due to the amount of “fines” in the media.
System Installation
Leave the system in backwash for a minimum
of ten to fifteen minutes or until the water
runs clear. This will flush loose particles and
preservatives from the media.

Ready for Service
1) Slowly open outlet to supply
water to the house.
2) Open faucet in the house to
remove debris and air to flush
system.

Weather Cover
(For outdoor installations)
WARNING
If the water treatment system is to be installed
outside, exposed to the weather and/or UV
Rays, it is necessary to install a weather cover
over the valve. The weather cover will protect
the valve from the damaging effects of UV
Rays on the LCD Screen and is required to
submit a warranty claim.
!
