AETEK M30-022-91-V2 User manual

1. Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use ber optic cables nd transceiver compliant with the following: Multi-mode: 50/125um, 62.5/25um, 850nm;
Single-mode : 9/125um ,1310nm.
4. DC input: 48V~56VDC. for 30W 802.3 at/af. DC Input:52~56VDC for 90W PoH / 90W bt.
Follow the printed polarity for V+, V-, and Ground.
1. Pull out the 4-pin terminal block.
2. Connect wires to V+ and Ground.
3. Connect SFP ransceiver to the ber port.
4. install the 4-pin terminal block. You can connect redundant power line pairs for fault tolerance.
1.Solid or stranded (AWG): 12-24/14-22.
Wire strip length: 7-8mm
Torque: 5lb-In/0.5Nm/0.56Nm.
2.WARNING
- Always ground the power source to maintain a clean power input.
- Always shut o󰀨 power source before connecting power wires.
IMPORTANT:
* 1x PoE Media Converter * 1x Quick Installation Guide * 1x 4-pin terminal block
* 1x DIN rail bracket (M31 No include)
PACKAGE CONTENTS
Quick Installation Guide
PoE Media Converter P/N: A625011603G
Model Description
M30-011-01 1xGbE RJ45 + 1xGbE SFP
M30-011-30 1xGbE 30W PoE + 1xGbE SFP
M30-022-01 2xGbE RJ45 + 2xGbE SFP
Model Description
M30-022-90 2xGbE 90W PoH PoE + 2xGbE SFP
M30-022-91-V2 2xGbE 90W bt PoE + 2xGbE SFP
M31-011-01 1xGbE 30W PoE PD + 1xGbE SFP

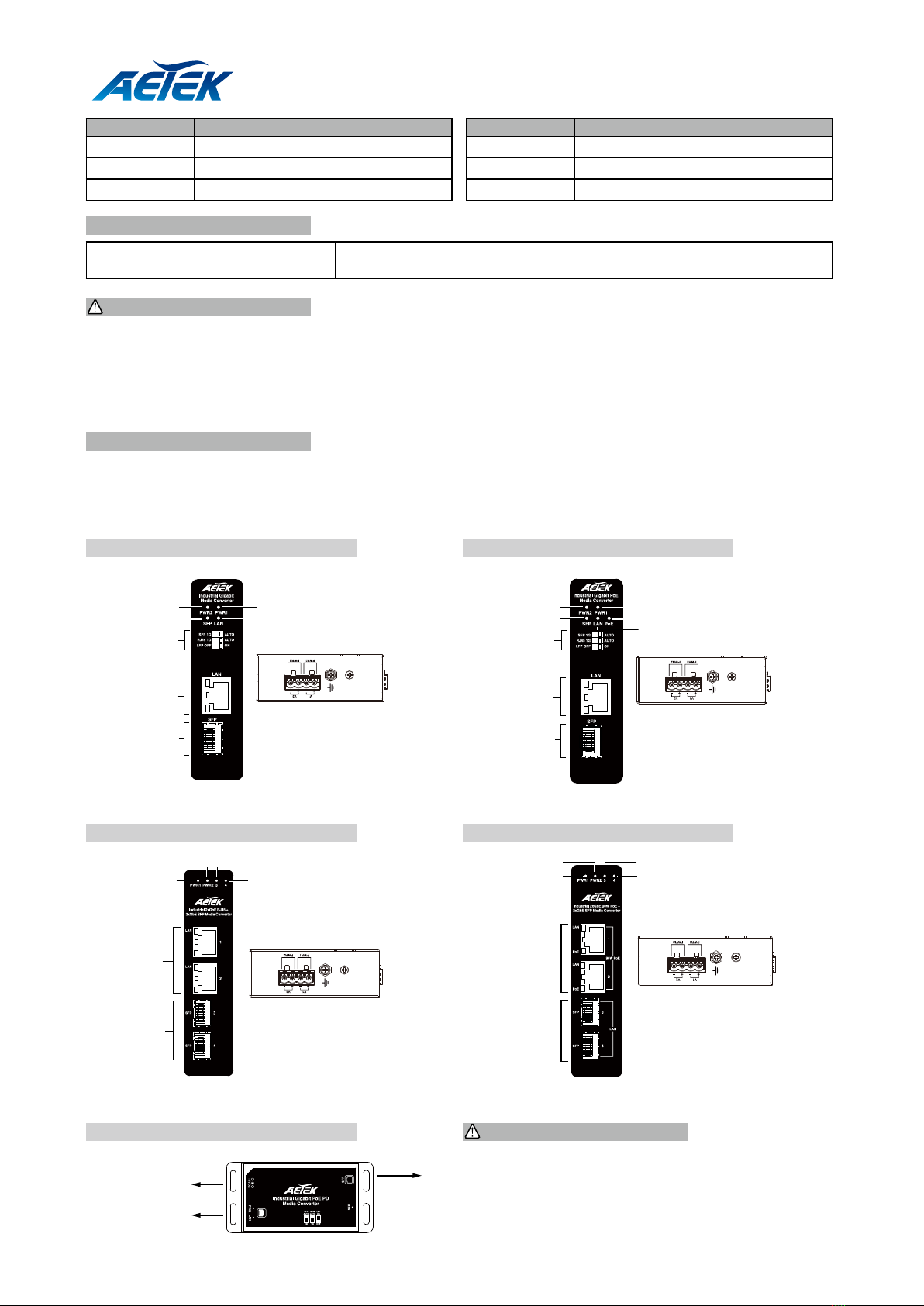

CONNECTION
M30-011-01 M30-011-30
M30-022-01 M30-022-90 / M30-022-91-V2
M31-011-01
GbE PoE
LAN ports
Power input 1Power input 2
GbE SFP ports
SFP status LED
DIP Switch
VDC or VAC
VDC: 12V ~ 56V
VAC: 18V ~ 36V
LAN status LED
VDC: 12V ~ 56V
GbE PoE
LAN ports
Power input 1
Power input 2
GbE SFP ports
SFP status LED 4
SFP status LED 3
Connect to PoE Switch
Connect 12V/2W
Power Adapter(Option)
SFP Slot
DC: 48V ~ 56V for 30W at/af
DC: 52 ~ 56VDC for 90W PoH / 90W bt
GbE 90W PoH/
90W bt PoE
LAN ports
Power input 1
Power input 2
GbE SFP ports
SFP status LED 4
SFP status LED 3
VDC: 48V ~ 56V
Power input 1
Power input 2
SFP status LED
GbE PoE
LAN ports
GbE SFP ports
DIP Switch
PoE status LED
LAN status LED
IMPORTANT:

LED DEFINITIONS
AETEK INC.
6F, No.192-1, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
|T:[phone]|W: www.aetektec.com|E:[email protected]
All specications are subject to change without noice.
Copyright © 2022 AETEK INC. All rights reserved.
M30-011-01 / M30-022-01 / M31-011-01
M30-011-30 / M30-022-90 / M30-022-91-V2
POWER PW1/PW2 Green ON Power is on and normal.
SFP Port Green ON Fiber is attached.
Green Flashing Data is being transmitted / received.
LAN port Green ON TX link is detected.
Green Flashing Data is being transmitted or received.
POWER PW1/PW2 Green ON Power is on and normal.
SFP Port Green ON Fiber is attached.
Green Flashing Data is being transmitted / received.
LAN port Green ON TX link is detected.
Green Flashing Data is being transmitted or received.
PoE port Amber Amber ON PSE is activated and PD is detected.
Amber OFF PoE OFF
M30-11-01 / M30-011-30 / M31-011-01 DIP Switch:
3
OFF
ON
21
DIP 1 ON SFP speed Auto (default)
OFF SFP speed 1000Mbps
DIP 2 ON RJ45 speed Auto (default)
OFF RJ45 speed 1000Mbps
DIP 3 ON Enable LFP function
OFF Disable LFP (Link Fault Pass through) (default)
234
TB2
1
DC OK
+V ADJ.
TB1
123
+Turn the rotary switch
to the right
