Aether Biomedical Zeus Hand User manual

ZEUS
The Power In Your Hand
Zeus Hand Distributeur
User’s Guide -
for Users

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users 3
Contents
1. Zeus .............................................................................................................................................. 5
2. Intended Use ............................................................................................................................. 6
Indications ............................................................................................................................... 6
3. Patient Population ................................................................................................................... 7
Contraindication ..................................................................................................................... 7
4. Safe Usage .................................................................................................................................. 8
5. Technical Specication ........................................................................................................... 9
Key Features .......................................................................................................................... 10
Operating Range ................................................................................................................... 11
Storage Range ....................................................................................................................... 11
6. Zeus Grips ................................................................................................................................ 12
Opposed Grips ...................................................................................................................... 13
Non-Opposed Grips .............................................................................................................. 16
Moving the Thumb ................................................................................................................ 19
Changing Grips ...................................................................................................................... 20
7. Interface Web Application ................................................................................................... 22
8. Control Methods .................................................................................................................... 23
9. Warranty ................................................................................................................................... 25
Cleaning ................................................................................................................................. 26
Maintenance ......................................................................................................................... 26
10. Safety and Warnings ............................................................................................................. 27
Hand ....................................................................................................................................... 27
Troubleshooting ................................................................................................................... 28
Regulatory Compliance ........................................................................................................ 28
11. Symbols .................................................................................................................................... 29
12. EMC Labelling Information ................................................................................................. 32
13. Reporting ................................................................................................................................. 37

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users4
Warning!
»We highly recommend reading this document carefully before using
the prosthesis.
»This document contains information about the proper and safe use
of the prosthesis.
»We highly recommend keeping this document for the whole period
of using prosthesis.
»If you have any questions about the product please contact us on
[email protected]

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users 5
Zeus
1
Zeus is a multi-articulating myoelectric hand combining ease of control with an
elegant, robust design. The ngers and thumb provide a rm grasp to perform
everyday tasks with ease. The ngers stall individually, allowing them to conform
to the shape of the object, regardless of shape or size.
Read this document carfully before tting Zeus.

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users6
Intended Use
2
Zeus is an external prosthetic hand intended to be used alone or with other
appropriate upper limb components to form a complete arm prosthesis, to
be tted only by qualied and certied clinicians. It should be used only by
upper limb amputees and by people with congenital absence of an upper limb.
Zeus is suitable for 3 amputation levels: below-elbow, above-elbow and shoulder
disarticulation, but the nal decision whether Zeus should be used belongs to
qualied medical personnel. Its functionality covers most hand movements.
Zeus including the socket (made by CPO) is designed for only one person during
the whole lifetime of the prosthesis.
Fitting of the product to the patient’s upper limb may be exclusively done by a
qualied and certied CPO.
Zeus is designed for mild to moderate activities.
Indications
Amputation level below-elbow, above-elbow and shoulder disartiqulation
For unilateral or bilateral amputation
Congenital limb deciency of the forearm or upper arm
The patient must be able to understand usage and safety messages and put
them into practice

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users 7
Zeus is recommended for:
Adults only
All genders
Age 18-65 while starting to use the prosthesis - Age >65 already using bionic
limb are in the target group
The final decision of fitting Zeus to a patient is taken by a qualified healthcare
professional.
Patient Population
3
Contraindication
Zeus is not recommended for:
Children under age 18
People with cognitive deficits

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users8
Safe Usage
4
Please avoid use in situations with heavy loads, vibrations or impacts
Zeus is developed for everyday use and must not be used for unusual
activities. These unusual activities include, for example, sports with excessive
strain and/or shocks to the wrist unit (pushups, downhill. mountain biking) or
extreme sports (free climbing, paragliding, etc.).
Furthermore, the Zeus should not be used for the operation of motor vehicles,
heavy equipment (e.g. construction machines), industrial machines or motor-
driven equipment.
The prosthesis is intended exclusively for use on one patient. Use of the
product by another person is not approved by the manufacturer.

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users 9

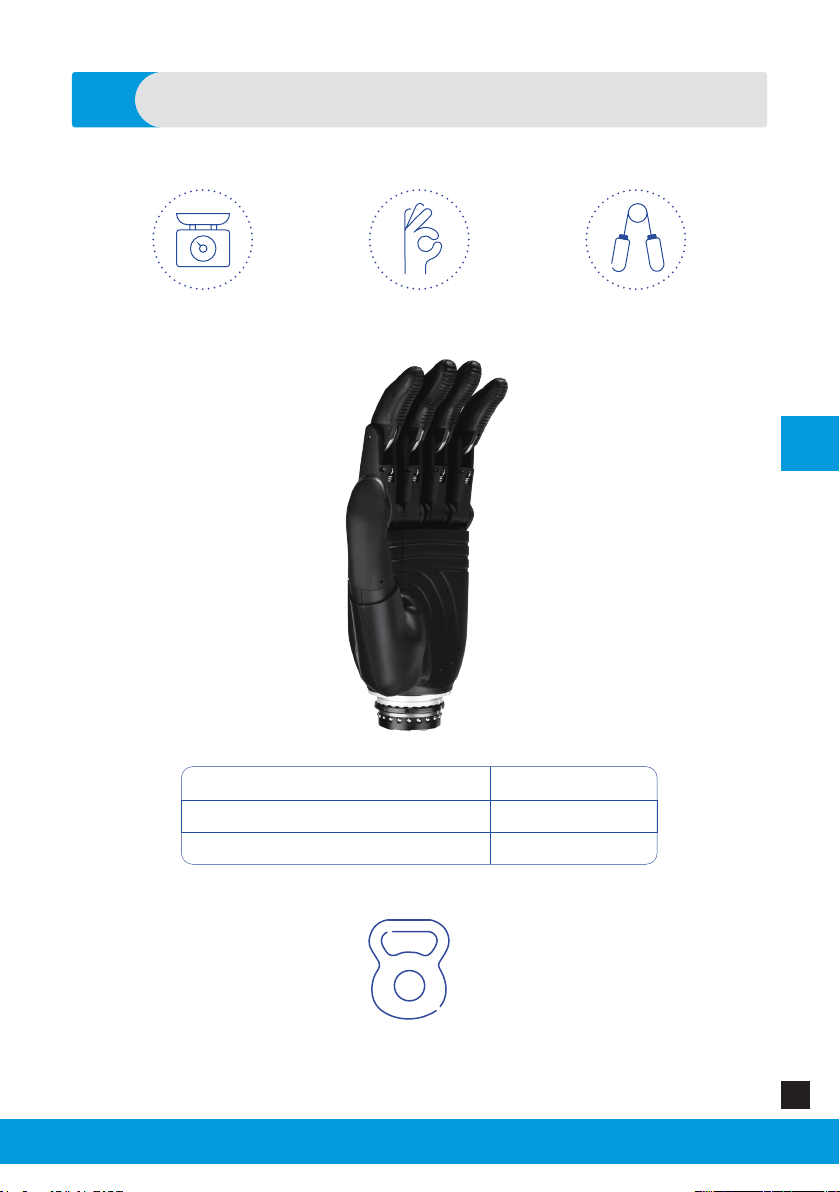

Technical Specication
5
560g 1.2sec 152N
500N 350N
Device weight
QWD
Closing time Grip force
Force on chassis (static,
supporting the hand)
Force with closed hand
(static, carrying a bag)
NN
N
Height (nger tip to wrist base)
Palm Width
Thickness
182.7mm
80.6mm
29.9mm

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users10
Closed loop motor control
sensing nger position
and applied force for
proportional control
Compliant ngers to
prevent breaking of
nger units
5 Individually motorized articulating
digits allowing for dexterity in
movement
Opposable thumb
12 Selectable grip patterns
The strongest bionic hand
(152N grip force)
Modular design
all repairs can be
done in under
60 minutes
Closing speed 1.2 seconds
Key Features
Technical Specication
5

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users 11
Technical Specication
5
Operating Range
Temperature: -5ºC to +45ºC
Humidity: 15% to 93% RH (non-condensing)
Pressure: 700 hPa to 1060 hPa
Storage Range (at home - between uses)
Temperature: -25ºC to +70ºC
Humidity: Up to 93%

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users12
Zeus Grips
6
You can choose from 12 grip modes. The hand has two selectable thumb positions:
opposed and non-opposed.
Opposed thumb in opposition to the ngers on the hand allows choosing grips
like Tripod and Power.
Non-Opposed thumb parallel with the ngers of the hand allows grips like Key
and Finger Point
The speed and force applied by the fingers can be modulated on the basis of
EMG signal

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users 13
Opposed Grips
Zeus Grips
6
Power Grip
Trigger Grip
This grip is useful for operating
appliances which require trigger
mechanisms like sprays. The hand
grasps the object and conforms
to the shape of the object. The
index nger and middle nger
are controlled proportionatally to
operate the trigger mechanism.
The speed and force applied by
the index nger can be modulated
on the basis of EMG signal.
In this grip, the thumb is opposed,
while all of the ngers can be closed
until they meet the object or no
further close signal is given. The stong
grip provides 152N of force spread
over all four ngers and thumb. This
multi-purpose grip allows you to open
a door or shake hands.
Individual nger stalling means the
grip conforms to the shape of the
object so that you can lift things such
as a wine glass. Thanks to advanced
sensors, the hand optimizes the force
spplied to the object.

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users14
Zeus Grips
6
Precision Open Grip
In this grip, the thumb moves
to a mid-point and stops. The
index nger can be controlled
proportionally to form a pinch.
Middle, ring and little ngers
remain open. This grip can
be used for picking up small
delicate objects and various
delicate activities.
In this grip, the thumb
moves to a mid-point and
stops. The index nger can
be controlled proportional-
ly to form a pinch. Middle,
ring and little ngers close
fully. This grip can be used
for picking up small objects
from a table.
Precision Closed Grip

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users 15
Zeus Grips
6

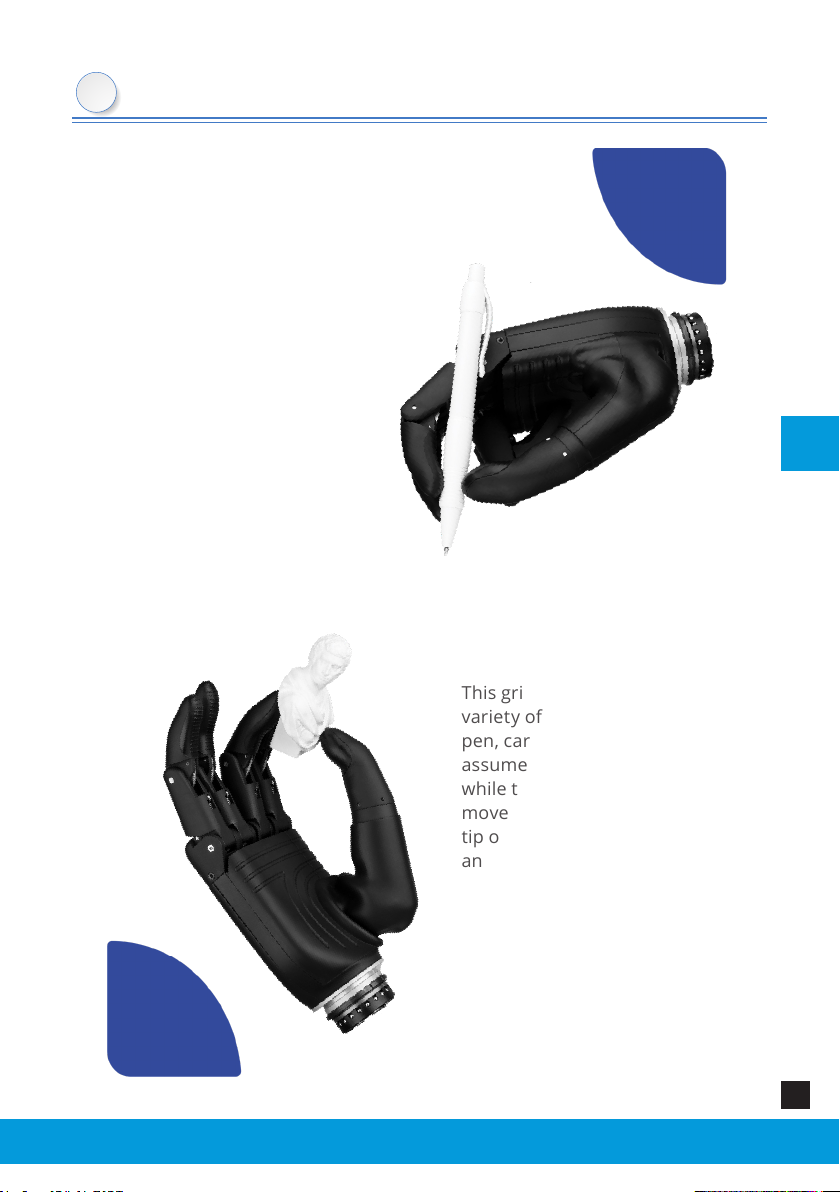

Tripod Closed Grip
The grip allows you to
hold medium sized objects
such as a pen, car keys and
eggs. The thumb assumes
a mid-point position while
the index and middle
nger move proportionally
to reach the tip of the
thumb. The ring nger and
little nger close fully.
Tripod Open Grip
This grip allows you to hold a
variety of daily life objects like a
pen, car keys and eggs. The thumb
assumes a mid-point position
while the index and middle nger
move proportionally to reach the
tip of the thumb. The ring nger
and little nger remain open.

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users16
Zeus Grips
6
Non-Opposed Grips
Finger Point
The index nger is
active and in a pointing
position with the rest
of the ngers closed.
This can be used for
pushing switches and
buttons.
The index nger
is active and in a
pointing position with
the rest of the ngers
open. This can be
used for working on
computer keyboard,
typing.
Active Index

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users 17
Zeus Grips
6
Hook Grip
This grip is used for lifting
up heavy objects like
briefcases, shopping bags
and gym equipment.
Because of the self-locking
nature of Zeus, the ngers
have a static grip capacity
of 77lbs / 35kgs, allowing
you to lift heavy objects
with ease. This grip can
also be used to provide
support when getting up
from a seated position.
Open Palm
The hand opens to the
extent where it provides
a slight curvature to
support plates, bowls
and books. The rubber-
ized palm provides a at,
non- slippery surface to
condently carry objects
in this grip

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users18
Zeus Grips
6
Key Grip
This is a commonly used
grip for picking up thin
at objects, holding a
key or turning a page.
The four ngers assume
a position to provide
a at platform for the
thumb. The thumb can
be controlled
proportionally to open
and close.
This grip is used to
operate a comput-
er mouse. The hand
assumes the position of
the mouse. The index
nger and the middle
nger can be controlled
to push left and right
buttons respectively.
Mouse Grip

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users 19
Zeus Grips
6
Moving the Thumb
To move the thumb from the non-opposed to the opposed position, please hold the
thumb at its base with your free hand and push it steadily inwards in a controlled
manner.
Non-opposed > > Opposed
Opposed > > Non-opposed
To move the thumb from the opposed to the non-opposed position, please hold
the thumb at its base with your free hand and push it steadily outwards in a
controlled manner.

Zeus Hand van Aether Biomedical, distributeur Loth Fabenim B.V.
EN
Zeus Hand User’s Guide - For Users20
Zeus Grips
6
Changing Grips
There are 2 dierent modes to change grip.
Sequential mode
In the sequential mode you can cycle between the grips in the loop. Using the
Change Signal (CS) you go forward in the loop; using the Secondary Change Signal
(SCS), you go back. The grips are split into two groups: with the thumb opposed
and non-opposed. To switch between the groups, you need to manually adjust the
thumb position and a Change Signal or a Secondary Change Signal.
Pairing mode
In the pairing mode, the grips are arranged in a hierarchical manner, allowing for
quick access. The rst level of division is based on the position of the thumb. When
the thumb is in the opposed position, the opposed group of grips is active and when
the thumb is in the non-opposed position, the non-opposed group of grips is active.
To switch between the opposed group of grips and the non-opposed group
of grips, the user has to move the thumb in the desired position and then
provide a Change Signal.
Within each group of grip, there are two subgroups - the primary group and
the secondary group. Each subgroup has two grips within it, the default
grip and the alternate grip.
To switch between the default grip and the alternate grip, provide a Change
Signal.
To switch between the subgroups, primary group and the secondary group,
provide a Secondary Change Signal.
When you change the position of the thumb, provide a Change Signal
to allow the prosthesis to change between the opposed and non-opposed
group of grips.
