Aether Biomedical Zeus User manual

Instruction
for Use
Version 1.0
For Qualied Personnel
THE POWER IN YOUR HAND

Aether BiomedicalZeus Brochure
1
INTRODUCTION............................................................................................4
Aether Biomedical......................................................................................4
Zeus.........................................................................................................................4
INTENDED USE.............................................................................................5
SCHEME OF ZEUS WITH DIMENSIONS.............................................7
BOX CHECKLIST............................................................................................9
ZEUS GRIPS....................................................................................................9
Opposed Grips..............................................................................................10
Non-opposed Grips..................................................................................13
Moving the thumb....................................................................................16
Changing grips.............................................................................................17
THE FIRST USE OF THE HAND.............................................................19
Power Switch Button.............................................................................19
Charging the battery..............................................................................20
Checking battery status.......................................................................22
INTERFACE SOFTWARE.........................................................................23
CONTROL METHODS...............................................................................24
TAKING CARE OF YOUR PROSTHESIS.............................................25
Warranty and customizability.........................................................25
Cleaning............................................................................................................26
Table of Contents

Aether Biomedical Zeus Brochure
21
Maintenance................................................................................................26
SAFETYANDWARNINGS.....................................................................27
Hand...................................................................................................................27
Battery...............................................................................................................28
TECHNICALINFORMATIONS..............................................................30
Electrodes......................................................................................................30
Batteries...........................................................................................................31
Power Button.............................................................................................32
ADDITIONALINFORMATIONS...........................................................32
Warranty..........................................................................................................32
Other information...................................................................................33
Troubleshooting........................................................................................34
Regulatory Compliance.....................................................................35
SYMBOLS.....................................................................................................36
EMCLABELLINGINFORMATION.......................................................38
Date of the last update of this
Instruction for user: 01-06-2020
»We highly recommend reading this document carefully before
using the prosthesis.
»This document contains information about the proper and
safe use of the prosthesis.
»We highly recommend keeping this document for the whole
period of using prosthesis.
»If you have any questions about the product please contact us
on [e-mail]
2

Aether BiomedicalZeus Brochure
3
Introduction
Aether Biomedical
Zeus
Aether Biomedical is a medical robotics company focused on biosi-
gnal processing and bionic limbs for upper limb amputees. Since
our founding, our team has expanded to represent diverse specialties
such as engineering, medicine, design and strategy. We want to shake
up the world of medical technology.
Our products are engineered with precision, designed to exceed
global standards and are fundamentally driven by human need. Our
solutions are conceived and developed in house and scaled externally
with the help of manufacturers and distributors.
Zeus is a multi action bionic limb combining ease of control with an
elegant, robust design. The ngers and thumb provide a rm grasp
to perform everyday tasks with ease. The ngers stall individually,
allowing them to conform to the shape of the object, regardless of
shape or size.
This document will give you important information for the correct use
of and how to look after your prosthesis. Read this document carefully
before tting Zeus.
Zeus is designed for mild to moderate activities. Please avoid use in
situations with heavy loads, vibrations or impacts.

Aether Biomedical Zeus Brochure
43
Intended Use
Zeus is recommended for:
»Adults only,
»Both genders,
»Age 18-65 while starting to use the prosthesis - older people
already using bionic limb are in the target group,
»People with circulation or respiratory problems after consulting
their physician.
Zeus is not recommended for:
»Children,
»women during pregnancy, unless they were already wearing a
similar device.
»People with serious mental disorders.
Zeus is an external prosthetic hand intended to be used with other
appropriate upper limb components to form a complete arm
prosthesis, to be tted only by qualied and certied clinicians. It
should be used only by upper limb amputees and by people with
congenital absence of an upper limb (forearm). Zeus is suitable for 3
amputation levels: below-elbow, above-elbow and shoulder disarti-
culation, but the nal decision whether Zeus should be used belongs
to qualied medical personnel. Its functionality covers most hand
movements.
Zeus including the socket (made by CPO) is designed for only one
person during the whole lifetime of the prosthesis.
Fitting of the product to the patient’s upper limb may be exclusively
done by a qualied and certied CPO.

Aether BiomedicalZeus Brochure
5
Zeus is developed for everyday use and must not be used for unusual
activities. These unusual activities include, for example, sports with
excessive strain and/or shocks to the wrist unit (pushups, downhill.
mountain biking) or extreme sports (free climbing, paragliding, etc.).
Furthermore, the Zeus should not be used for the operation of motor
vehicles, heavy equipment (e.g. construction machines), industrial
machines or motor-driven equipment.
The prosthesis is intended exclusively for use on one patient. Use of
the product by another person is not approved by the manufacturer.
Fitting a patient with Zeus may only be carried out by a prosthetist
who has been authorized by Aether Biomedical after completion of a
corresponding training course.

Aether Biomedical Zeus Brochure
65

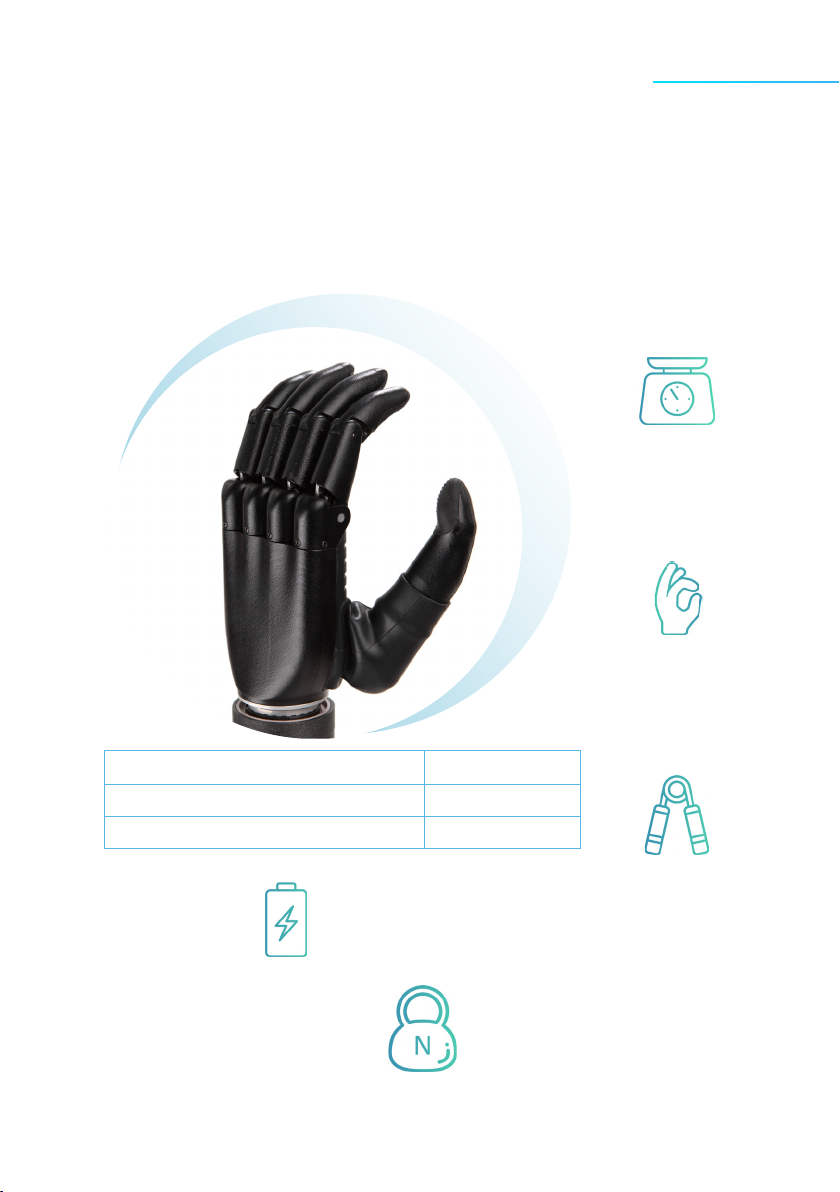

Technical
Specication
7.4V, 2200mAh
560g
1.5sec
152N
500N 350N
182.7mm
80.6mm
29.9mm
Flexible battery pack
with magnetic charging
Device weight
QWD
Max. closing
time
Grip force
Force on chassis (static,
supporting the hand)
Force with closed hand
(static, carrying a bag)
Height (nger tip to wrist base)
Palm Width
Thickness

Aether BiomedicalZeus Brochure
7
7
Operating Range Storage range

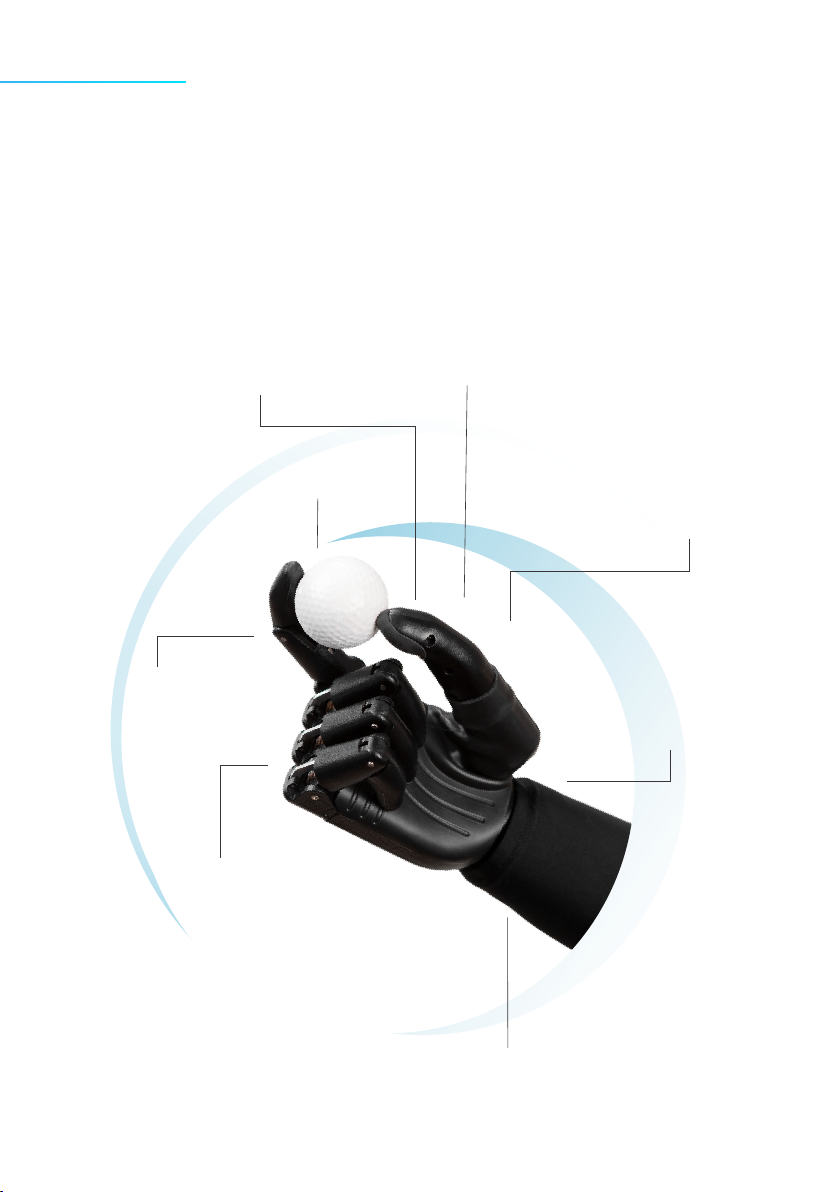

Product Features
7
-5°C to +45°C
-25°C to +70°C
(at home – between uses)
15% to 93% RH (non-condensing)
Up to 93%
700 hPa to 1060 hPa
Temperature:
Temperature:
Humidity:
Humidity:
Pressure:
Closed loop motor control
sensing nger position and
applied force for
proportional
control
Compliant ngers to prevent
breaking of nger units
5 Individually motorized articulating digits
allowing for dexterity in movement
Opposable thumb
design with inbuilt
sensor for position
detection
100% customizability
for perfect aesthetic
appearance
Innovative
palm design
using hard & soft
material for reduced weight
and lateral shock absorption
12 Selectable + 2 User
congurable grip patterns
The strongest bionic
hand (152N grip force)

Aether Biomedical Zeus Brochure
87
Box Checklist
Zeus Grips
You can choose from 12 grip modes with an added option of 2 custom
grips. The hand has two selectable thumb positions: opposed and
non-opposed.
»Opposed thumb in opposition to the ngers on the hand allows
choosing grips like Tripod and Power.
»Non-Opposed thumb parallel with the ngers of the hand al-
lows grips like Key and Finger Point
The Zeus V1 is available in both left hand and right hand
congurations.
The system consists of the following:
1. Zeus Hand - Available in Left (A-01-L) and Right (A-01-R)
2. Flex Cell (1027204 OB)
3. Element electrode system (80101-1)
4. Quick Disconnect wrist lamination package (QDAWA-50)
5. Battery Charger (VEP24US09)
6. Accessories kit (AC-01)
7. Instructions for use
8. Zeus hand software
7
Model No.
Zeus V1 - L
Zeus V1 - R
Description
Zeus Prosthetic hand - Left
Zeus Prosthetic hand - Right
7
-25°C to +70°C
Up to 93%

Aether BiomedicalZeus Brochure
9

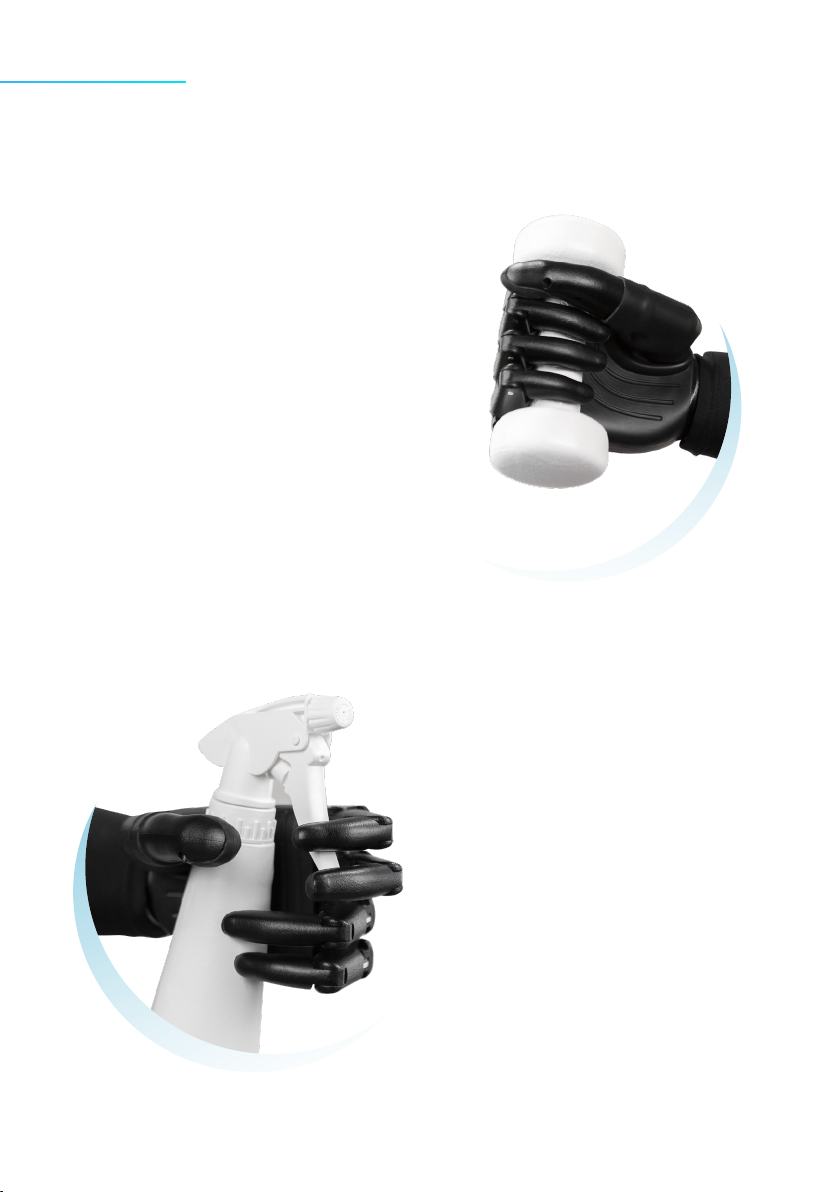

Opposed Grips
Power Grip
Active Index Grip
This grip is useful for operat-
ing appliances which
requiretrigger mechanisms
like power tools, sprays and
hairdryers. The hand grasps
the object and conforms to
the shape of the object. The
index nger is controlled
proportionately to operate
the trigger mechanism. The
speed and force applied
by the index nger can be
modulated on the basis of
EMG signal.
In this grip, the thumb is opposed,
while all of the other four ngers close
until they meet the object or receive
a closing signal. The strong grip
provides 152N of force spread over
all four ngers and thumb. This grip
is useful for lifting large objects,
shaking hands or crushing empty
cans. Individual nger stalling means
the grip conforms to the shape of the
object so that you can lift things such
as a wine glass. Thanks to advanced
sensors, the hand optimizes the force
applied to the object.

Aether Biomedical Zeus Brochure
109

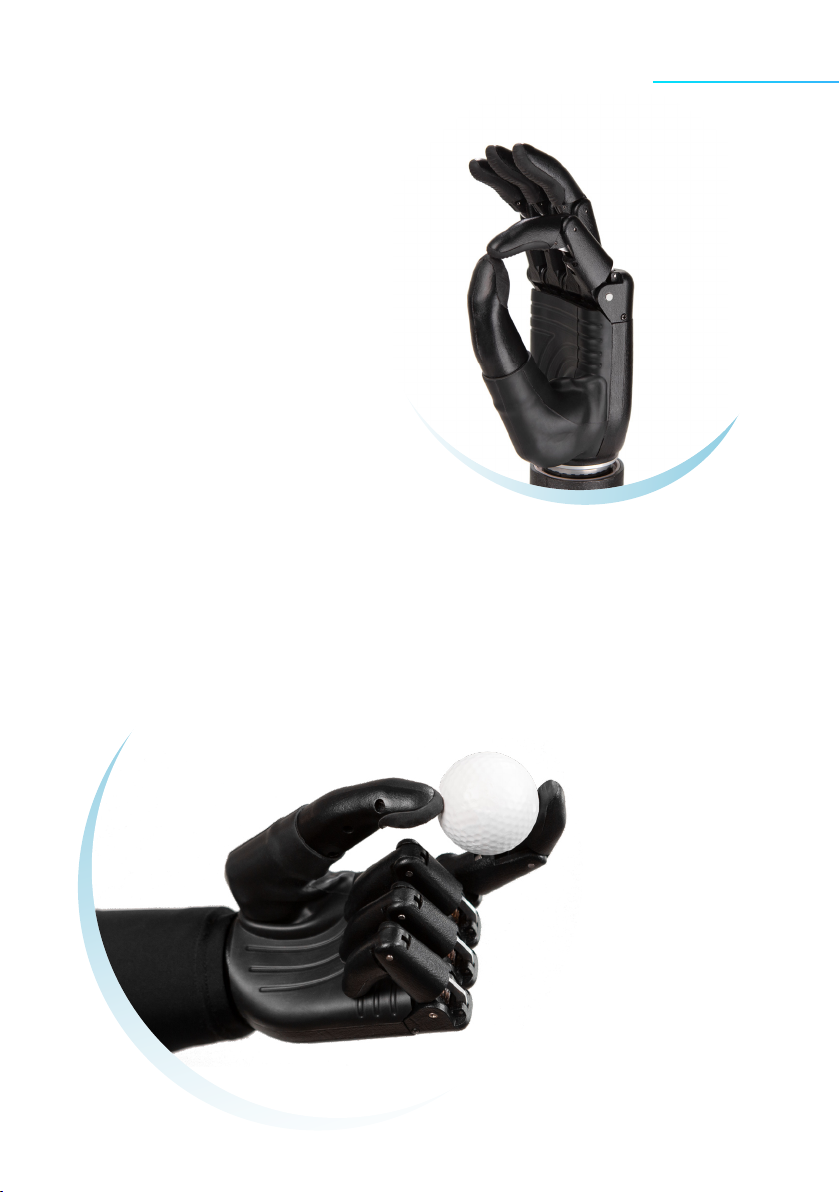

Precision Open Grip
In this grip, the thumb moves to a mid-point and stops. The index
nger can be controlled proportionately to form a pinch. Middle, ring
and little ngers close fully. This grip can be used for picking up small
objects from a table or holding a pencil.
In this grip, the thumb moves
to a mid-point and stops. The
index nger can be controlled
proportionately to form a pinch.
Middle, ring and little ngers
remain open. This grip can be
used for picking up delicate
objects and reaching between
small gaps.
Precision Closed Grip

Aether BiomedicalZeus Brochure
11
Tripod Closed Grip
This grip allows you to hold a variety of daily life
objects like a pen, car keys, eggs or jar lids. The
thumb assumes a mid-point position while the
index and middle nger move
proportionately to reach the tip of the
thumb. The ring nger and little
nger remain open.
The grip a l l o w s
you to hold medium
sized objects. The thumb
assumes a mid-point
position while the index
and middle nger move
proportionately to reach
the tip of the thumb. The
ring nger and little nger
close fully.
Tripod Open Grip

Aether Biomedical Zeus Brochure
1211
Non-Opposed Grips

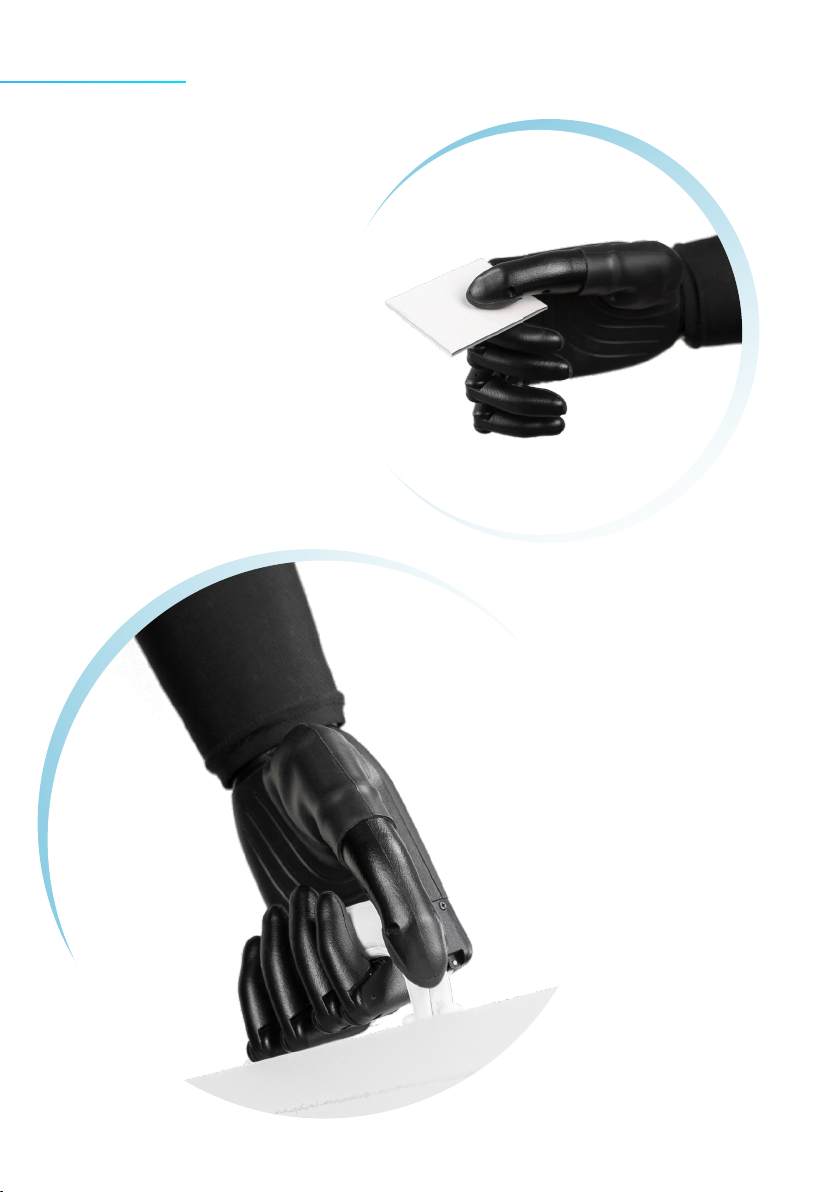

Finger Point
The hand opens to the extent where it provides a slight curvature to
support plates, bowls and books. The rubberized palm provides a at,
non- slippery surface to condently hold objects in this grip
Open Palm
This is a static grip,
where the index nger
remains in a pointing
position and the rest
of the ngers close.
This can be used
for typing, operating
a mobile phone or
pushing switches and
buttons.

Aether BiomedicalZeus Brochure
13
Hook Grip
Key Grip
This is a commonly
used grip for picking
up thin at objects,
holding a spoon or
turning a page. The
four ngers assume a
position to provide a at
platform for the thumb.
The thumb can be
controlled proportion-
ately to open and close.
This grip is used for lifting
up heav y objects like brief-
cases, shopping bags and
gym equipment. Because
of the self-locking nature
of Zeus, the ngers have
a static grip capacity of
35kgs, allowing you to lift
heavy objects with ease.
This grip can also be used
to provide support when
getting up from a seated
position.

Aether Biomedical Zeus Brochure
1413
This grip gives a natural
and lifelike appearance
to the hand. The thumb
is in a non -opposed
position and closed.
The ngers are closed
slightly. This type of
grip is the ideal state
for the hand during
periods of inactivity.
This grip is used to operate a computer mouse. The hand assumes the
position of the mouse. The index nger and the middle nger can be
controlled proportionately to push left and right buttons respectively.
Mouse Grip
Resting Hand

Aether BiomedicalZeus Brochure
15
Moving the thumb
To move the thumb from the non-opposed to the opposed position,
please hold the thumb at its base with your free hand and push it
steadily inwards in a controlled manner. When the thumb reaches
the opposed position, you will hear the click.
To move the thumb from the opposed to the non-opposed position,
please hold the thumb at its base with your free hand and push it
steadily outwards in a controlled manner until you hear the click.
Non-opposed >
Opposed >
> Opposed
> Non-opposed

Aether Biomedical Zeus Brochure
1615
Changing grips
There are 2 different modes to change grip.
»The rst one is „IndividualMode” in which all grips programmed for
the hand are sequenced in default order. To switch between each grips
the user has to make a single co-contraction. This mode is more basic
than the other one because there is no option to undo the previous grip.
Therefore, the user must go through all grips to reach the previous one.
»The second one is „Paring Mode” in which the main po-
int is to choose the 8 most important grips for the user. This
can only done in the software by by qualied and certied
personnel. In this mode, the 8 chosen grips are divided in 2 gro-
ups -the opposed and non-opposed. Each of the groups are
also divided into another 2 groups - primary and secondary.
▶ The primary part means that with one co-contraction signal
a user can have one chosen grip as a default which can change
into another alternate grip with another co-contraction signal.
▶ Default and alternate grips can’t be the same.
▶ To go through secondary grips, a user needs to make a do-
uble co-contraction signal.
▶The secondary part means that with one co-contraction si-
gnal a user can have one chosen grip as a default which can
change into another alternate version of grip with another co-
-contraction signal.
▶The secondary grips can’t be the same as the primary grips.
▶To go back to primary grips, a patient needs once again a
double co-contraction signal.

Aether BiomedicalZeus Brochure
17
To switch between opposed and non-opposed grips, it is necessary
to change the thumb positon accordingly; The grip pairings can be
represented as follows:
Grip Pairs
Opposed
Non-Opposed
Primary
Primary
Alternate
Alternate
Alternate
Alternate
2 x CC
2 x CC
CC
CC
CC - Co contraction
2 x CC - Double co contraction
CC
CC
Default
Default
Default
Default
Secondary
Secondary

Aether Biomedical Zeus Brochure
1817
First Use of the Hand
A. Power Switch Button
The Power Button is placed on the forearm. You can use it:
1. To turn the hand ON and OFF - a single long press for approximately
three seconds is required. It will switch the hand ON or OFF - depen-
ding on its power status.
»While turning the device ON - the seven LEDs will illuminate
around the button in a clockwise direction and ash twice.
»While turning the device OFF - the seven LEDs will illuminate
around the button in a counter-clockwise direction.
On/Off Button
Charging Pads

Aether BiomedicalZeus Brochure
19
B. Charging the Battery
»The battery and charge will be in the box if your prosthetist has
ordered them along with the hand
»The battery life of the prosthesis will vary - it depends on inten-
sity of use.
»We highly recommend charging the battery every night to avoid
daytime discharge.
For your safety only ever
charge your battery using
the charger provided
with your arm.
