Aeware in.p3-110 User manual

in.p3-110™
Waterproof protection, docking, connectivity
& remote control for iPod on a spa!
Owner’s manual
Control your iPod from your spa keypad
Seamless integration of your iPod to the waterproof audio
and control systems of your spa!

1
in.p3-110™
Table of contents
features ........................................................................................... 3
warnings .......................................................................................... 4
overview.......................................................................................... 6
installation .......................................................................................7
connections
in.chant™ ............................................................................9
in.tune-110™ ......................................................................10
placing iPod on the dock station .................................................11
specifications ................................................................................ 12
table of contents

2
in.p3-110™

3
in.p3-110™
in.p3-110™
Inner waterproof protection, docking,
connectivity and remote control for iPod on a spa

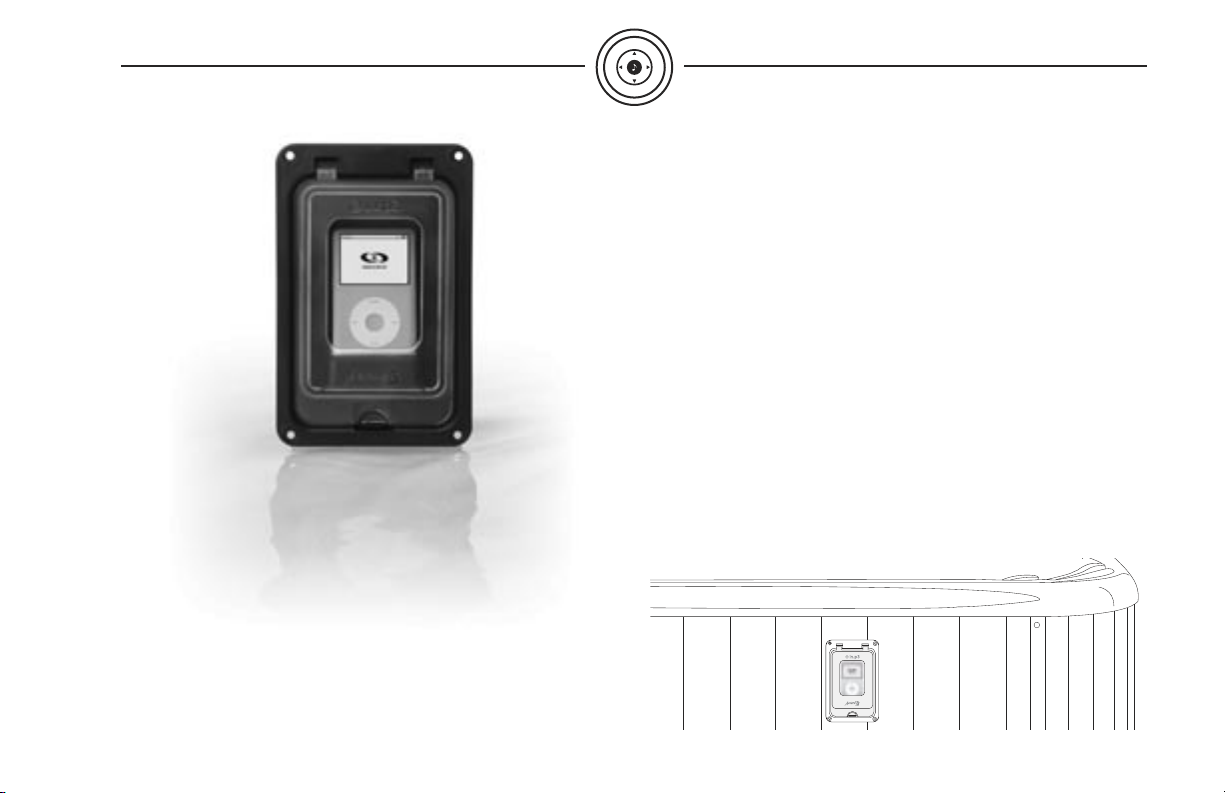

The in.p3-110™ is a waterproof enclosure installed on a spa side
panel that provides inner protection for your iPod. Besides pro-
tection against water, it docks, connects and enables remote control
of your iPod. The in.p3-110™ is the perfect solution to safely integrate
your iPod to the waterproof audio system of your spa.
Used with our digital media player in.chant™, you can control your
music from the edge of the spa while being in the water with our
sleek in.k455™ waterproof keypad.
Used with our AM-FM receiver/CD player in.tune-110™, you can
control your music from our in.k600™ multi-function keypad, dedi-
cated wired remotes such as in.k175™ or in.k455™, IRMT-4 wireless
remote, or again directly from the faceplate of your in.tune-110™.
features

4
in.p3-110™
WARNINGS:
Important safety instructions
FAILURE TO COMPLY WITH THE FOLLOWING WARNINGS MAY
SIGNIFICANTLY SHORTEN PRODUCT’S LIFE, AND LEAD TO
FAILURES.
• The PRODUCT (including cables) cannot be modified or altered
in any way without prior written approval from the manufacturer.
Such alterations or modifications will void warranty and relieve
Gecko Alliance Group from any liability.
• Use of this PRODUCT outside of its technical specification will
void the warranty and Gecko Alliance Group liability.
• The PRODUCT should be serviced by qualified personnel only.
There are no user serviceable parts inside.
• Always install the PRODUCT according to the instructions
provided.
• This PRODUCT must ONLY be used with Portable Battery
Powered iPod device.
• This PRODUCT must always be connected to an audio system
protected by an approved ground-fault circuit interrupter (GFCI)
or residual current detector (RCD.) Always check local electrical
codes for approved GFCI and RCD types.
warnings
• This PRODUCT must be installed in a location that will force the
spa user to exit the spa to use this product.
• Always keep the door closed between connection or
disconnection of the iPod device.
• If the PRODUCT is physically damaged, the user must not use the
PRODUCT. Professional servicing is required.
• Do not let water pour on the docking connector while connecting
or disconnecting the iPod device.
• Never immerse the PRODUCT.
• This control is certified as a component only. The finished product
which will incorporate this control should be certified by the
proper agency as a finished product. In no circumstances should
the fact that the control is certified as component be considered
sufficient for the finished product to comply with certification
requirements. The manufacturer is solely responsible for ensuring
that the finished product complies with all applicable laws and
regulations.

5
in.p3-110™
WARNINGS:
Important safety instructions
• This PRODUCT must be connected only to suitable audio system
approved by Gecko Alliance Group.
• The low-voltage cables of this PRODUCT should be routed
separately from high-voltage wires/cables and accessories.
• By nature, electronic devices are sensitive to Electromagnetic
Interference (EMI). This PRODUCT and its cables should be
located away from high voltage wire/cable and accessories
(such as Ozone Generator, Pump and the like).
• This control should always be installed with the proper orienta-
tion as per the specifications provided by Gecko Alliance Group.
• The PRODUCT is made of polymeric material. The PRODUCT
must not be exposed to chemical substance such as (but not
limited to) oils, greases, solvents, rust inhibitors, etc. For example,
WD-40 and Loctite are not considered compatible.
• Beware, the application of some commonly used Cleaning
Products that contain Ammoniac, Alcohols or Sodium
hypochlorite could damage the PRODUCT, due to a negative
chemical reaction between these ingredients and its plastic
parts. Any other materials which may come in contact with the
PRODUCT must be carefully evaluated under end use conditions
for compatibility.
warnings
• This PRODUCT should be disposed of in accordance with the
local waste disposal legislation in force.
• The iPod battery must be charged at least at a minimum battery
charge level in order to be detected by the in.p3-110™ docking
station. If the battery is fully discharged, the iPod will not be
detected.
• The spa wall structure must be strong enough and provide firm
support for this PRODUCT. Reinforce spa panel structure if
necessary before installing this PRODUCT.
• iPod is a trademark of Apple Inc., registered in the U.S. and other
countries.
• Gecko Alliance Group shall not be liable for any incidental,
special or consequential cost or damages incurred by the
purchaser or others, including without limitation, damages for
lost profits, goodwill, interruption of business, or any other injury
or damage not expressly covered under this limited warranty,
including any device connected to this PRODUCT. However, this
limitation on consequential damages shall not apply to damages
for injury to the person.

6
in.p3-110™
overview
Din connect
to in.tune-110™
iPod
Spa wall
Enclosure
Door
Docking connector
Side view in.p3-110™ Front view in.p3-110™
Gasket
Latch

7
in.p3-110™ installation

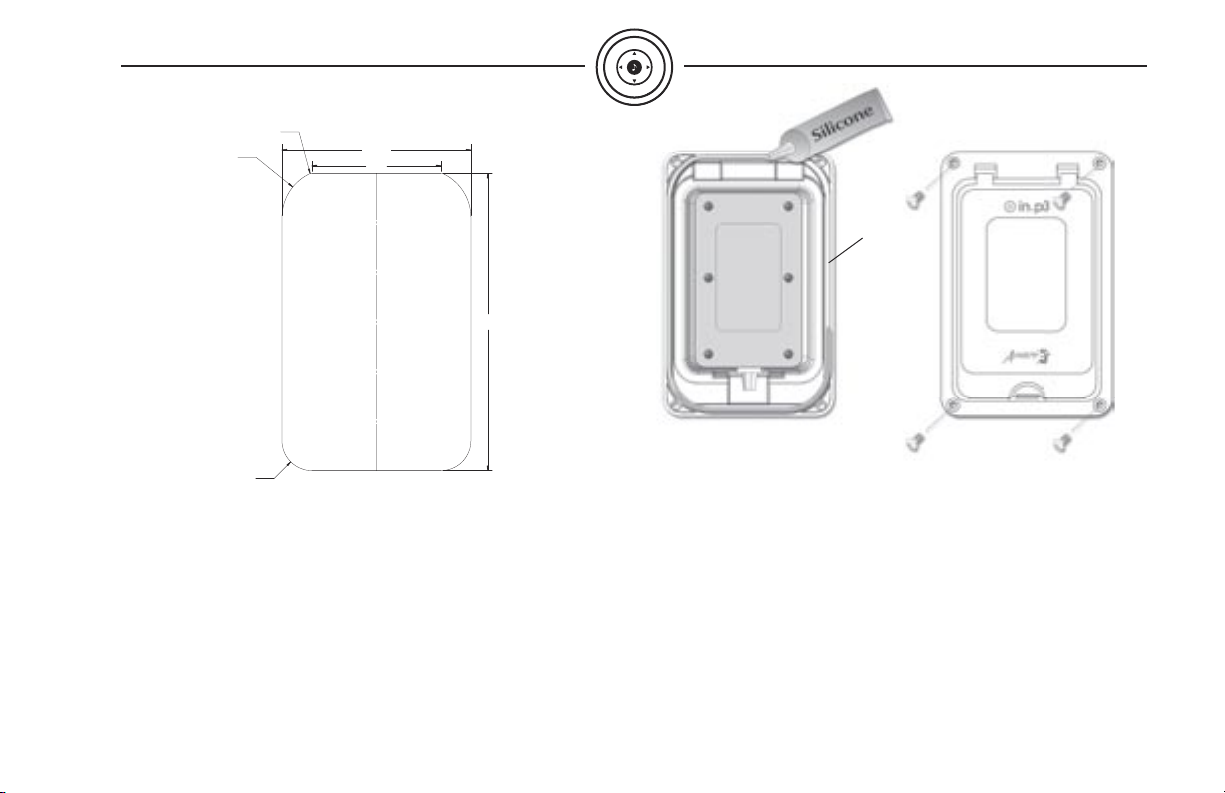

Step 1
Using the drilling template supplied with the unit, determine the
mounting location and then stick the template on the location.
Once the desired location is established, cut and remove the inside
area on the template.
R 15/16"
23.8 mm
R 13/16"
20.6 mm
R 3/16"
4.8 mm
5 1/8"
130.2 mm
3 1/2"
88.9 mm
8 1/16"
204.8 mm
UP
DOWN
Groove
Step 2
If the installation location is
not perfectly even (e.g. wood
surface), make a silicone
joint between the installation
location and the unit (fi ll the
groove on the back of the unit
with silicone).
Insert unit into the installation
opening.
Step 3
Then drill four 1/8” (3 mm)
mounting holes in the exact
position according to the
drilling template.
Use 4 - # 10 screws of the
appropriate lenght with round,
truss or pan head.

8
in.p3-110™
8 3/4 "
(222 mm)
5 11/16"
(144 mm)
3 7/8"
(99 mm)
3/16" (4 mm)
8 1/16"
(205 mm)

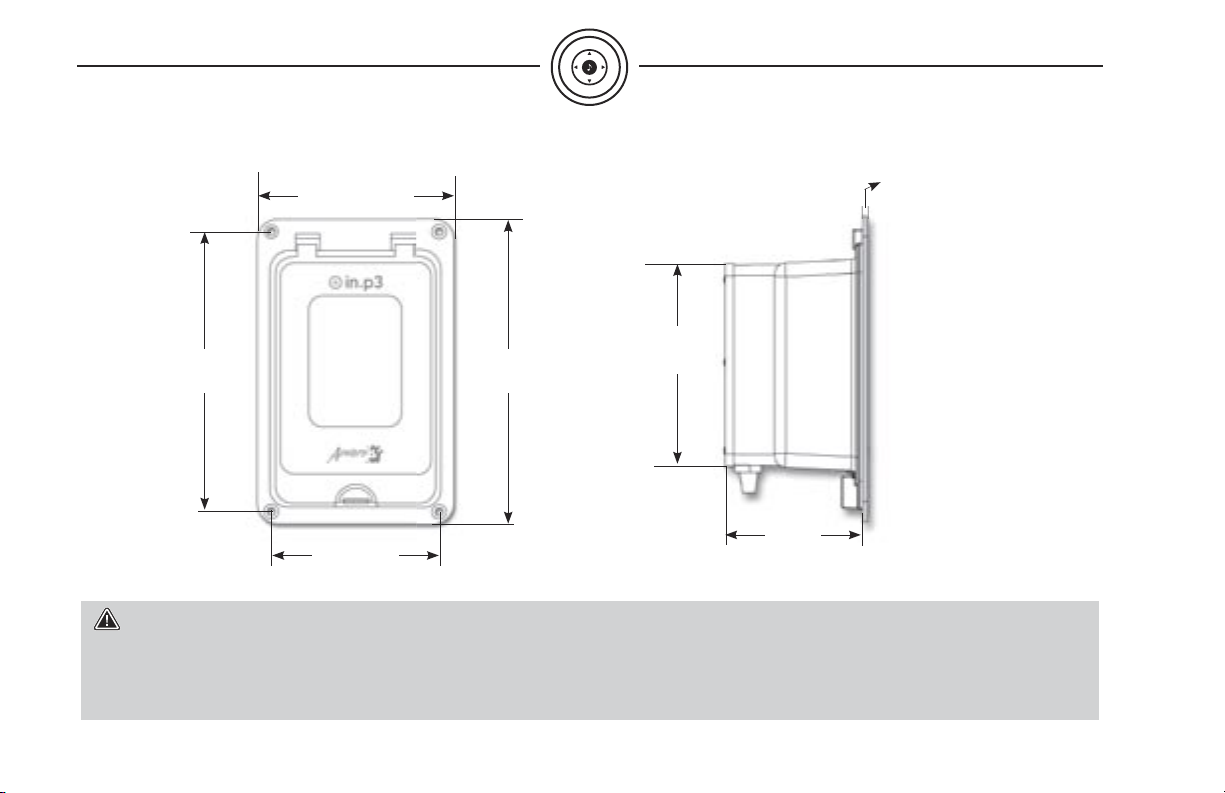

in.p3-110™ dimensions
Warning! The minimum recommended height to install the in.p3-110™ unit is at least 4" above the fl ooding zone.
It's strongly recommended to install the in.p3-110™ unit as high as possible to facilitate user accessibility.
Carefully select the installation location making sure to avoid pipes, electrical wiring and other
equipment when installing the in.p3-110™ unit.
installation
8 1/32 "
(204 mm)
4 13/16"
(122 mm)

9
in.p3-110™
The in.p3-110™ dock station
comes with a 10 ft cable
terminated with a 9-pin mini
din connector.
To connect the dock station
simply insert the 9-pin mini
din male connector into the
9-pin mini din receptable as
illustrated.
Model supported:
iPod 5TH generation
iPod nano (2G - 5G)
iPod mini
iPod classic
iPod touch, iPod touch 2G
iPhone, iPhone (3G) recent
models
Note: It's not possible to directly control the iPod
once connected to the in.p3-110™ docking connector.
connections
Male 9-pin mini din connector
in.p3-110TM
Female 9-pin
mini din connector White
in.chantTM
Connecting in.p3-110™ to in.chant™

10
in.p3-110™
Connecting in.p3-110™ to in.tune-110™
Female 9-pin
Mini-Din connector Male 9-pin
Mini-Din connector
in.p3-110™
The in.p3-110™ dock station
comes with a 10 ft cable
terminated with a 9-pin mini
din connector.
To connect the dock station
simply insert the 9-pin mini
din male connector into the
9-pin mini din receptable as
illustrated.
Model supported:
iPod 4th generation (firmware
2.2 and up)
iPod 5th generation
iPod nano (2G to 5G)
iPod mini
iPod classic
iPod touch, iPod touch 2G
connections
Note: It's not possible to directly control the iPod
once connected to the in.p3-110™ docking connector.
in.tune-110™

11
in.p3-110™

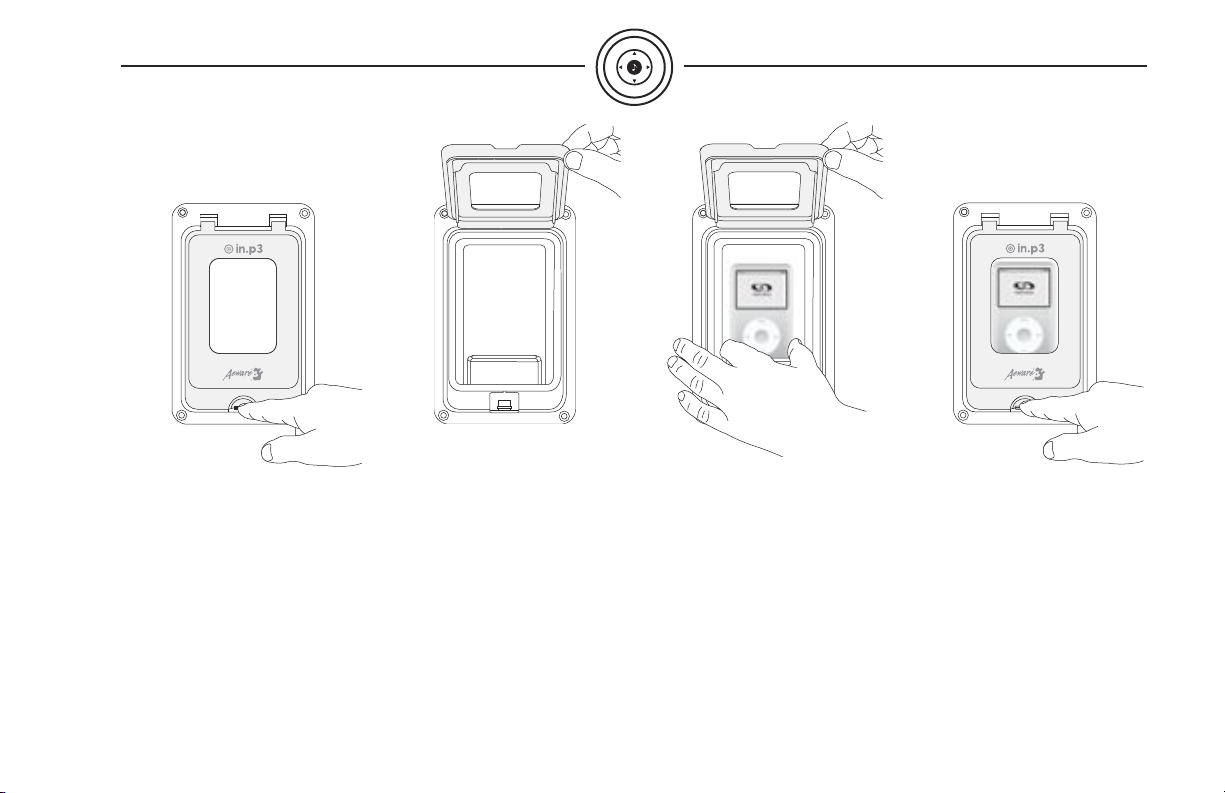

• Press downwards on
bottom latch to release
the door open.
• Open door compartment.
• Place your iPod inside and
insert it on the docking
connector.
• Close door.
Battery charge
The in.p3-110™ unit also acts
as an automatic recharging
docking station for your iPod,
it allows the owner/spa user to
attach the iPod to the charging
station and recharge the
batteries while enjoying the
music.
The iPod turns on automatically as soon as it's connected to in.p3-
110™ docking connector*. Power to the iPod is turned off when
the iPod is removed from the docking connector. Gecko Alliance’s
logo and the note “Ok to disconnect” will be displayed on the
iPod display when it's connected to the docking connector (the
message displayed may vary depending on the model).
* A minimum battery charge level is required. Refer to page 5
for more details.
placing iPod on the dock station

12
in.p3-110™
General specifications:
Environmental:
Operating temperature: -20°C (-4°F) to 50°C (122°F)
Storage temperature: -30°C (-22°F) to 60°C (140°F)
Humidity: up to 80% RH, non condensing
Mechanical:
Weight: 0.7 kg (1.6 lbs)
Dimensions (W x H x D):
144mm x 222mm x 99mm (5-11 ⁄ 16" x 8-3/4" x 3-7/8")
Standards:
UL 1563 Fifth Ed.
CSA No. 22.2 - 218.1-M89
EN/IEC 60335-2/A1=2004
EN/IEC 60335-1/A2=2006
EN 55014-1
EN55014-2
EN61000-3-2
EN 61000-3-3
specifications

Advanced electronics! Water resistance!
Gecko Alliance
450 des Canetons, Quebec City (QC) G2E 5W6 Canada, 1.800.78.GECKO
9225 Stellar Court, Corona, CA 92883 USA , 951.667.2000
www.geckoalliance.com
9919-100811
Rev. 06/10 iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
