SAFETY INFORMATION
Please read and understand this entire manual before attempting to
assemble, operate or install the product. Before beginning the assembly of
this product, compare the parts with the package contents and list. If any
part is missing or damaged do not attempt to assemble the product and
contact AFA Stainless customer service for assistance.
WARNING
• Follow the installation instructions carefully. Proper installation is the
installer’s responsibility.
CAUTION
• Check local building codes before beginning installation to ensure
compliance.
This unit meets or exceeds the following:
• ASME A112.18.1
• CSA B125.1
• Listed by CUPC for use in the US and Canada
• Listed by California Energy Commission
California Title 20 Water-Efficiency Standards
2
Flow rate Showerhead max. 2.0 GPM
Flow rate Handshower max. 2.0 GPM
MULTI-FUNCTION HAND HELD & RAIN HEAD SHOWER SYSTEM
Owners Manual
AFLZ01

3
AFLZ01

4
DIMENSIONS:
(H)30.5" ×(W)13.75"
Hand shower hose: 59.05"
DRAWING
4"
8"
8"
23-5/8"
8-7/8"
30-1/2"
13-3/4"
6-1/3"
6-1/4"
25-1/5"
2-3/4"
2"

5
3
11
10
4
678910
1
2
1. 3-1/8" Supply Adapter
2. 4" Supply Adapter
3. Shower Arm
4. Shower Pipe
5. Adjustable Hand Shower Holder
6. Mounting Face Plate
7. Anchors
8. Screws
9. Bottom Mounting Bracket
10. Filter Gasket (Pre-installed)
11. Rain Shower Head
12. Hand Shower
13. Diverter Valve
SUPPLIES INCLUDED
T-1 Plumber’s Tape
T-2 1/2" Allen Wrench
T-3 3/32" Allen Wrench
T-4 Double Sided Tape ×2
PARTSLIST
5
13
12

6
BEFORE AFTER
min. 26"
Installation of this product requires the following:
1. Minimum distance of 6" between the middle of the supply adapter and the ceiling.
2. Minimum distance of 26" between the supply adapter and the top of the mixing valve trim.
Ceiling Ceiling
min.6"
BEFORE YOU BEGIN
IMPORTANT: please review before installation
Supply Adapter
Mixing Valve Trim

7
Recommended Tools for Installation:
Silicone SealantLevel
1/4 Inch Bit
Drill Bit
Electric Drill
T-5 T-6 T-7 T-8
Plumber’s Tape
Double Sided Tape ×2
T-1 (Included) T-2(Included) T-3(Included) T-4(Included)
Important Note for Installation
·Before and during installation, please read and familiarize yourself with all installation
instructions for this product.
·Please keep all components, parts and accessories of this product away from small
children and minors. During installation, all screws, tools and small parts should be
supervised so that they do not fall into the hands of children.
·Use caution at all times when installing this product. Please ensure that you are physically
able to perform all parts of the installation and that you have the correct tools and
equipment needed. Before beginning, remove all wrappers and packing materials
including staples and packing straps.
·Please check to ensure that all components and parts are complete.
·NOTE: The Filter Gasket parts #10 must be installed to protect against incoming
sediment as well as water leakage. It is recommended these gaskets be cleaned from
time to time. Please refer to page 19 & 20 “CLEANING AND CARE OF FILTER GASKET”.
Pencil Channel Lock Wrench
T-9 T-10 T-11 T-12
T-13 T-14
Adjustable Wrench
Tape Measure Phillips Screwdriver
1/2" Allen Wrench 3/32" Allen Wrench
Needle-nose Pliers
T-15
Denatured Alcohol
Cloth
T-16
Hammer

min 1-3/8"
Shower wall surface
3
21
21
T-7
INSTALLATION
CAUTION — TIPS FOR REMOVAL OF OLD SHOWER:
Always turn off water supply before removing existing diverter or disassembling the valve.
Open shower handle to relieve water pressure and ensure all water has been drained.
Option 1: Easy Install（No drilling required）
Measurethedistancebetweenthe
1/2”-14 NPT (National Pipe Thread)
in wall water supply elbow (not included)
and the nished wall surface.
If measurement is between 1-7/8”- 4”
then use supply adapter #2. If distance
is less than 1-3/8” choose 3-1/8”
supply adapter #1.
21
T-1
23
Wrap 1 (one) layer of Plumber’s Tape
T-1(Included) on the threaded side of
the Supply Adapter (1) or (2).
Insert one end of Shower Arm (3) into
Supply Adaptor (1) or (2).
Seal the wall around the elbow using
Silicon Sealant T-7 (Not included).
CAUTION: Failure to seal the wall
may result in water damage.
Connect the Supply Adapter (1) or (2)
and turn clockwise with 1/2" Allen
Wrench T-2 (Included).
56
4
8
1/2"
T-2
T-12
1
Remove the existing showerhead arm
by turning it in a counter clockwise
direction.
Note: A channel lock wrench T-12
(Not included) may be required.

Attach Bottom Mounting Bracket (9)
to the back of Diverter Valve (13).
Insert the Mounting Face Plate (6) into
the Bottom Mounting Bracket (9) and
tighten set screw using the 3/32” Allen
Wrench T-3 (Included).
Remove backing from Double Sided
Tape T-4 (Included) and attach to the
at side of Mounting Face Plate (6).
CAUTION: Do not touch the
adhesive side of tape.
3/32"
9
6
T-3
double sided tape
6
T-4
double sided tape
9
4
13
10 11 12
Slide shower arm ange so its ush
to wall.

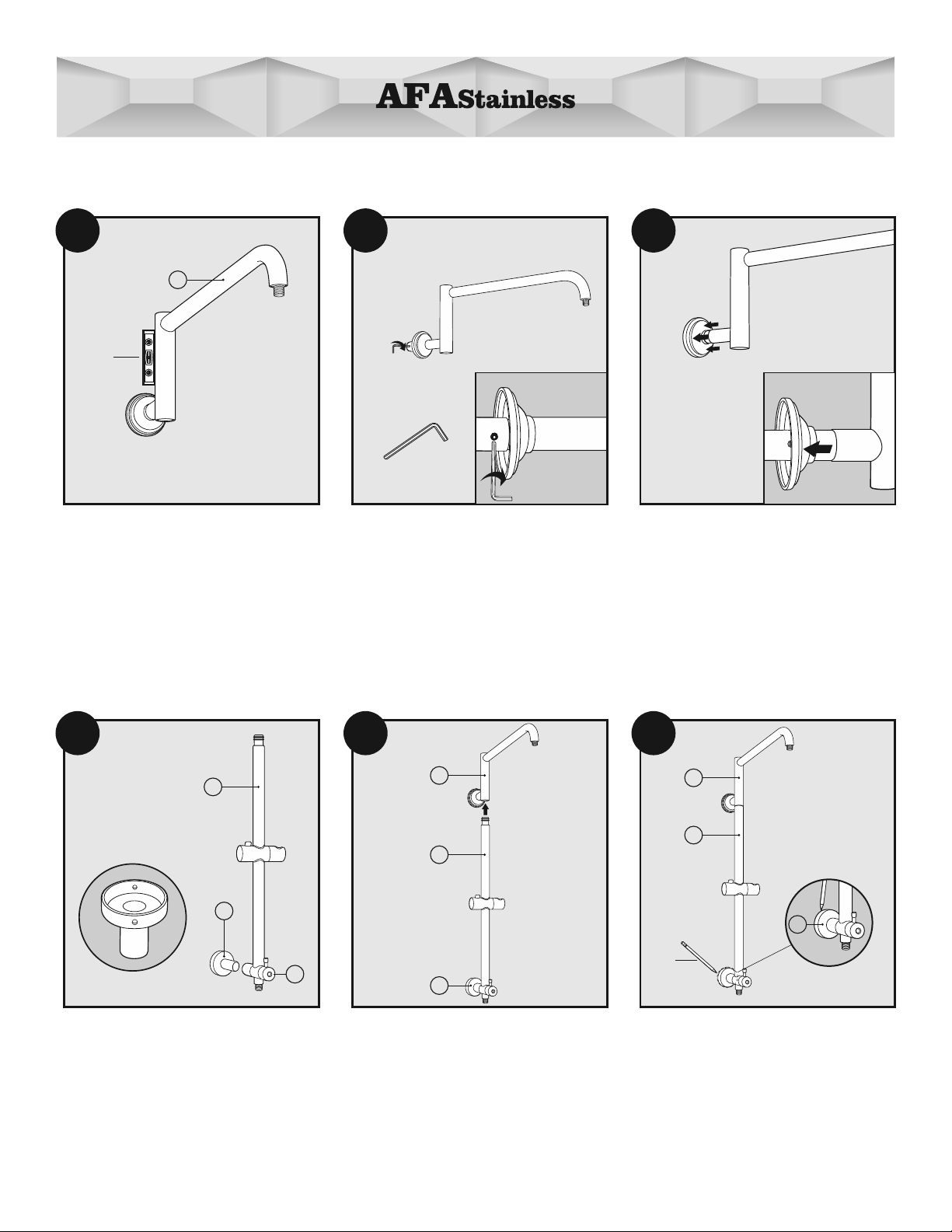

Tighten Supply Adapter (1) or (2)with
set screw using 3/32" Allen Wrench
T-3 (Included).
3
T-6
7
3/32"
T-3
89
Use Level T-6 (Not included) to adjust
Shower Arm (3) to 90 degree.
9

13
4
9
3
4
14
4
3
15

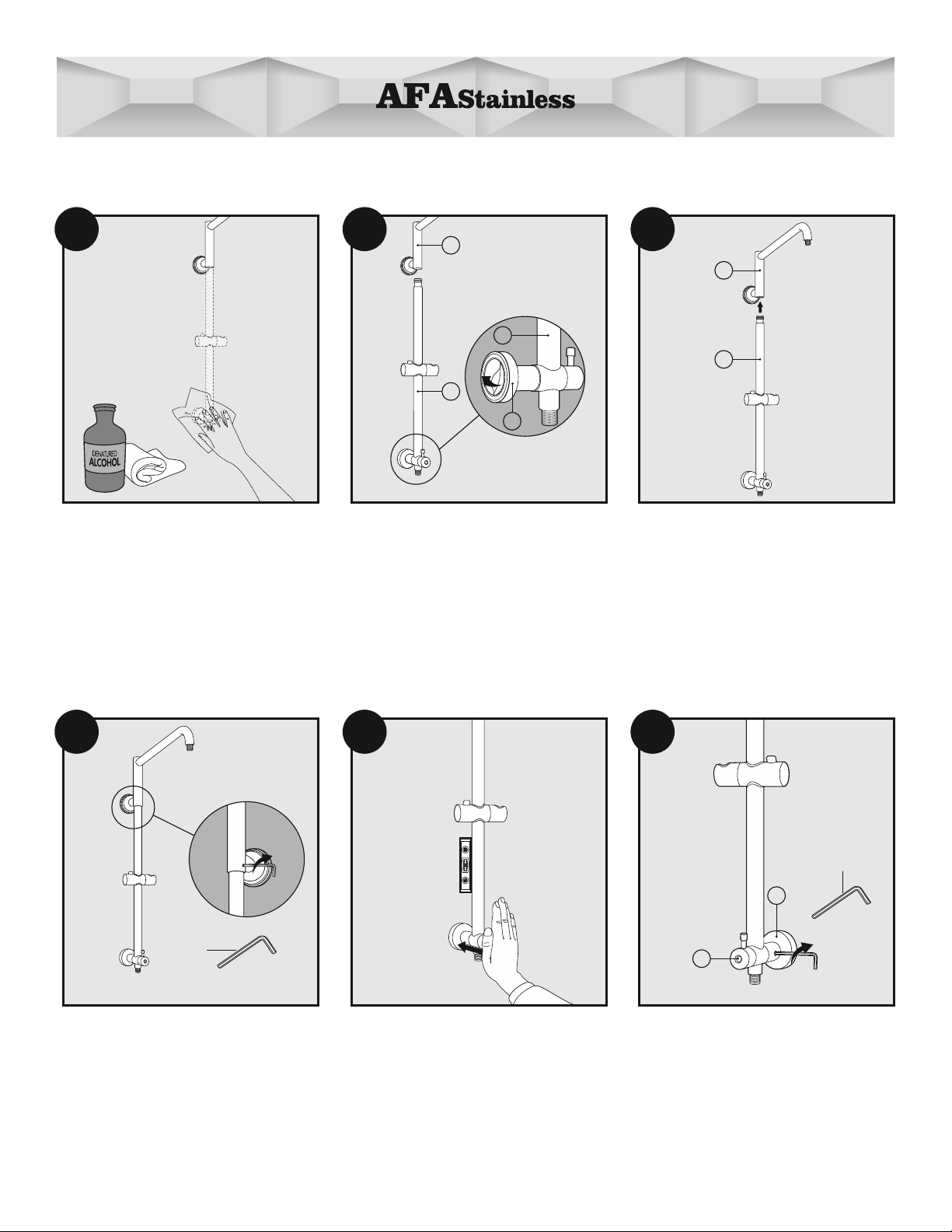

Clean wall with Denatured Alcohol T-5
(Not included) and allow to fully dry. Insert Shower Pipe (4) into bottom of
Shower Arm (3).
Remove backing from Double Sided
Tape T-4 (Included).
CAUTION: Do not touch the adhesive
side.
3/32"
T-3
16 17
Use Level T-6 (Not included) to adjust
the bottom of diverter in a 90 degree
vertical position and press rmly to the
wall. Allow minimum of 4 hours for
proper adhesion.
Tighten set screw on the side of
Diverter Valve with 3/32" Allen Wrench
T-3 (Included).
Tighten set screw on the Shower
Arm (3) using the 3/32" Allen Wrench
T-3 (Included).
3/32"
9
13
T-3
18
10

12
10
11
Tighten Rain Shower Head into
Shower Arm (3).
Place Hand Shower into Hand Shower
Holder (5). Press the button and adjust
holder to a convenient height.
5
19
22
11
20 21
Turn on water and test rain head and
hand shower to ensure there are no
connection leaks.
23
Remove the protective cap from the
bottom of diverter, and connect the end
of hand shower hose to it.
Remove the protective cap from Rain
Shower Head (11).

3
21
21
T-7
min 1-3/8"
21
T-1
INSTALLATION
Option 2 Permanent Installation（Drilling required）
23
Wrap 1 (one) layer of Plumber’s Tape
T-1(Included) on the threaded side of
the Supply Adapter (1) or (2).
Insert one end of Shower Arm (3) into
Supply Adaptor (1) or (2).
1/2"
T-2
56
4
12
Shower wall surface
Remove the existing showerhead arm
by turning it in a counter clockwise
direction.
Note: A channel lock wrench T-12
(Not included) may be required.
Connect the Supply Adapter (1) or (2)
and turn clockwise with 1/2" Allen
Wrench T-2 (Included).
Seal the wall around the elbow using
Silicon Sealant T-7 (Not included).
CAUTION: Failure to seal the wall
may result in water damage.
T-12
1
Measurethedistancebetweenthe
1/2”-14 NPT (National Pipe Thread)
in wall water supply elbow (Not included)
and the nished wall surface.
If measurement is between 1-7/8”- 4”
then use supply adapter #2. If distance
is less than 1-3/8” choose 3-1/8”
supply adapter #1.

3
T-6
Use Level T-6 (Not included) to adjust
Shower Arm (3) to 90 degree.
9
7
3/32"
8
Connect Bottom Mounting Bracket
(9) into the back of Diverter Valve (13). Insert Shower Pipe (4) into the Shower
Arm (3). Do not tighten set screw found
in bottom of Shower Arm (3).
Draw circle around Bottom Mounting
Bracket (9) with Soft Pencil T-11
(Not included).
4
9
13
3
4
9
9
4
3
T-11
10 11 12
13
Tighten Supply Adapter (1) or (2)with
set screw using 3/32" Allen Wrench
T-3 (Included).
Slide shower arm ange so its ush
to wall.

Remove the Shower Pipe (4). Place Mounting Face Plate (6) on wall
and use Pencil T-11 (Not included) to
mark center screw holes on wall.
CAUTION: Before marking holes,
apply duct or masking tape over the
surface area of the tile where the hole
is to be drilled. This helps to prevent
the drill bit from slipping when starting
to drill the hole.
Place tip of the drill bit (1/4") against
the mounting hole mark on the wall or
the masking tape. Drive the drill bit
through each mounting hole mark.
CAUTION: Do not drill into a water line!
4
2
1
6
1/4”
(6mm)
13 14 15
Insert Screw Anchors (7). And gently
tap anchors into hole with Hammer
T-14 (Not included).
Use Philips Screwdriver T-10
(Not included) to gently secure bracket
to wall with 2 screws (8).
Insert Shower Pipe (4) into the bottom
of Shower Arm (3).
6
8
T-10
×2
7
T-14
3
4
6
9
16 17 18
14

11
Remove the protective cap from Rain
Shower Head (11).
Tighten set screw on the Shower
Arm (3) using the 3/32"Allen Wrench
T-3 (Included).
Tighten set screw on the side of
Diverter Valve with 3/32" Allen Wrench
T-3 (Included).
Place Mounting Face Plate (6) into
Bottom Mounting Bracket (9).
9
6
3/32"
T-3
3/32"
9
14
T-3
2019 21
Tighten Rain Shower Head into
Shower Arm (3) with Adjustable Wrench
T-13(Not included).
T-13
23 24
Use Allen Wrench 3/32" to tighten set
screw on Bottom Mounting Bracket
(9) .
1
2
3/32"
T-3
22
15

12
10
Place Hand Shower into Hand Shower
Holder (5). Press the button and adjust
holder to a convenient height.
5
16
26
25 27
Remove the protective cap from the
bottom of diverter, and connect the end
of hand shower hose to it.
Turn on water and test rain head and
hand shower to ensure there are no
connection leaks.

INSTRUCTIONS
handle handle
Flow to
Hand shower OFF Flow to Showerhead
MULTI-FUNCTION HAND SHOWER
Adjustable spray patterns Wide Rain/Power Massage/Stay-Warm Mist
DIVERTER
• To use the rain showerhead, turn the handle to the right position.
• To use the hand shower, turn the handle to the left position.
function lever
Wide Rain
Power Massage
Stay-Warm Mist
17
handle

Adjust Rain Shower Head
NOTE: Adjust shower head down to desired angle with adjustable wrench.
1 2
Adjust Hand Held Shower
4
3
Press button on hand shower holder (5) and then
slide up or down the shower pipe (4) to the desired
height.
To adjust the angle of hand held shower, simply turn
the hand shower in either direction.
18

Filter
gasket
1 2 3
4 5
Remove the showerhead from the
shower arm by unscrewing the ball
joint in a counter-clockwise direction.
The lter gasket is located at the
opening of the showerhead ball
joint.
Remove the lter gasket from the ball
joint. If necessary, use needle-nose
pliers (not provided) and set aside.
Flush the lter gasket with water. Reinstall the lter gasket into the ball
joint threads.
CLEANING AND CARE OF FILTER GASKET
19
Clean the left over Plumber’s Tape from
shower spout threads and apply a new
single layer of plumber’s tape. Reattach
the showerhead by screwing the ball
joint clockwise into the shower spout
threads.
6
12

1 2 3
Remove the hand shower hose from
the bottom of diverter valve in a
counter-clockwise direction.
The lter gasket is located in the
bottom of the hose.Remove the lter
gasket from the hose. If necessary,
use needle-nose pliers (not provided).
Take care not to use excessive force
when grasping the lter gasket to
avoid potential damage.
Flush the lter gasket with water.
4
Reinstall the lter gasket into the
hose.
20
5
Connect this end of the hose to
the bottom of diverter valve.
