AGA DC3G User manual

1
AGA DUAL CONTROL
Model No’s: DC3G
02/16 EINS 516911
For use in USA/Canada
Installation
Guide
PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING SITE SURVEY
OR INSTALLING THIS APPLIANCE.
IMPORTANT :SAVE INSTRUCTIONS FOR FUTURE REFERENCE
REMEMBER: when replacing a part on this appliance, use only replacement parts
that you can be assured conform to the safety and performance specification that
we require. Do not use reconditioned or copy parts that have not been clearly
authorized by AGA.

2
SECTION PAGE
PRODUCT SAFETY 3
GENERAL NOTES 4
DELIVERY REQUIREMENTS 4
GENERAL INSTALLATION REQUIREMENTS 4
APPLIANCE DIMENSIONS - AGA DC3G 5
TECHNICAL DATA 6
INSTALLATION 6 - 9
CONNECTION TO THE POWER SUPPLY - AGA DC3G 10
MAINS CABLE ROUTING - AGA DC3G 11
FLUE SYSTEM 12 - 15
WIRING DIAGRAM - AGA DC3G 16
GAS SUPPLY - U.S. PIPE THREADS 17
AIR SUPPLY 17
AGA DC3G P/F HANDRAIL CONNECTION 18 - 19
COMMISSIONING 20 - 21
YEARLY SERVICE 21 - 22
REPLACEMENT PARTS 22
INSTRUCTIONS 22
BURNER CONTROLS 23
CONTENTS LIST (LOOSE ITEMS) 24
CONTENTS

3
PRODUCT SAFETY
MEANING/DESCRIPTION SIGNIFICATION/DESCRIPTIONSYMBOL
WARNING/CAUTION
An appropriate safety instruction
should be followed or caution to a
potential hazard exists.
AVERTISSEMENT
Une consigne de sécurité
appropriée doivent être suivies ou
garde d’un danger potentiel
exists.
DANGEROUS VOLTAGE
To indicate hazards arising from
dangerous voltages.
TENSION DANGEREUSE
Pour indiquer les dangers
résultant des tensions
dangereuses.
PROTECTIVE EARTH (GROUND)
To identify any terminal which is
intended for connection to an
external conductor for protection
against electric shock in case of a
fault, or the terminal of a
protective earth (ground)
electrode.
TERRE DE PROTECTION
Pour marquer bornes destin ées à
être raccordées à un conducteur
de protection extérieur contre les
chocs éclectiques en cas de
défaut d’isolement, ou pour
marquer la borne de la terre de
protection.
HEAVY
This product is heavy and
reference should be made to the
safety instructions for provisions
of lifting and moving.
LOURD
Ce produit est lourd et doit être
fait référence auc consignes de
sécurité relatives aux dispositions
de soulever et déplacer.
DISCONNECT MAINS SUPPLY
Disconnect incoming supply
before inspection or maintenance.
APPAREIL À LASER DE
CLASSE 2
Alimentation d’entr ée Débrancher
avant inspection ou d’entretien.
REFER TO MANUAL
Refer to relevant instructions
detailed within the product
manual.
ATTENTION, SURFACE TRÉS
CHAUDE
Reportez-vous aux instructions
applicables, indiquées dans le
manuel du produit.

4
GENERAL NOTES
NOTE: THESE INSTALLATION INSTRUCTIONS SHOULD BE LEFT WITH THE RANGE AND THE USER TO
RETAIN FOR FUTURE REFERENCE.
DELIVERY REQUIREMENTS
The AGA DC3 arrives on 1 pallet.
Vent Pipe Installation kit (AG1M212542) arrives in a separate carton.
There must be access to the kitchen to manipulate a foot print of 39 9/16”(1005mm) x 29 1/8” (740mm). A
wooden template (skate with castor wheels) of dimensions 39 9/16” (1005mm) x 29 1/8” (740mm) could be
used to check if the AGA Dual Control fully built appliance is able to fit through the property grounds and
doors into its installation position in the kitchen. It must also be considered that the height of the appliance is
37 3/4” (960mm) off pallet and 43 1/4 ” (1100mm) on the pallet, so high level obstacles/restrictions must not be
overlooked.
GENERAL INSTALLATION REQUIREMENTS
The installation of the range must be in accordance with the relevant requirements of the local Wiring and
Building Regulations. It should be in accordance also with any relevant requirements of the local or state codes.
In your own interest and that of safety to comply with the law, all appliances should be installed by an authorized
AGA distributor in accordance with the relevant regulations.
CAUTION:
THIS UNIT IS HEAVY, PROPER EQUIPMENT AND ADEQUATE
MANPOWER MUST BE USED IN MOVING THE RANGE TO
AVOID DAMAGE TO THE UNIT OR THE FLOOR

5
APPLIANCE DIMENSIONS - AGA DC3G
Fig. 1 DESN 516847 A
Range Dimensions
When surveying for a range installation the actual clearance required for the ‘body’ of the appliance should
be increased by 3/8” beyond the figures quoted above. This allows safe margin to take into account the
natural dimensional variations found in major castings. In particular the width across the appliance recess
could be critical.
APPLIANCE WEIGHT (Excludes Packaging)
Model: AGA Dual Control (DC3G) - 996lb (452kg)
GAS CONNECTION - AGA DC3G ONLY
1/4” NPT MALE AT LEFT REAR OF APPLIANCE
NOTE: GAS CONNECTION POINT PROTRUDES
A B C D E F G H J K
mm 987 951 913 680 1388 760 1145 698 116 10
inch
38
7/837 1/236 26 3/454 5/829 7/845 1/827 1/24 9/16 3/8
L M N P Q R S T U V W
mm 565 689 43 118 55 634 330 760 996 75 9
inch
22
1/427 1/81 3/44 5/82 1/825 13 30 39 3/16 33/8
OVERHEAD
CUPBOARDS

6
Side Clearances
A 1/8” (3mm) gap is required each side between the range top plate and adjoining work surfaces that may be
fitted, this is to allow for the safe removal of the top plate should this be required at a later date.
Where ranges are to be fitted against a side wall a 4 9/16” (116mm) clearance is required on the right and left
hand side for oven door access.
If the AGA is to be installed in a brick recess, then the minimum clearance should be increased by at least
3/8” (10mm), to allow for the walls not being square.
In addition a minimum clearance of 39 3/8” (1000mm) must be available at the front of the range to enable the
range to be serviced.
NATURAL GAS
MAXIMUM HEAT INPUT 6,800 Btu/hr
Thermostat Bypass 70
Main Burner Injector 112
Gas Supervision Injector 4212
Minimum Inlet Pressure 5” w.g.
Burner Pressure 4” w.g.
Models AGA DC3G and DC5G
TECHNICAL DATA
INSTALLATION
Range Base or Hearth
It is essential that the base or hearth on which the range stands should be level and be capable of supporting
the total weight of the range. The base of the built-in AGA plinth must be level and sit above the finished
height for service access.
Plinth
The front plinth cover is removable and must not be obstructed by flooring or tiles. If necessary the range
must be raised by the thickness of the tiles to ensure the plinth can be removed.
Rear Wall
Since this appliance runs continuously, please take note of these IMPORTANT instructions:
Combustible Walls
Houses constructed of combustible materials (such as all-timber or stud wall partitions and batoned
plasterboarded walls) require special wall heat protection features.
Non-combustible material behind a range must be of at least 1” (25mm) thick insulation board (Monolux or
equivalent), up to hotplate level.
SPECIAL NOTE: Ensure electric cabling or plastic services do not pass within or on the outside of the wall,
behind or directly above the range.
This type of material can age prematurely when exposed to continuous higher ambient temperature.
Alternatively the range can be spaced 1 1/2” (38mm) away from the wall to create an air gap.
The air gap must be left open and NOT blocked off across the top edge.

7
Tiling
When the range is to stand in a recess or against a wall which is to be tiled, under no circumstances should
the tiles overlap the range top plate, access to remove the hotplate must be allowed for servicing at a later
date.
A gap of at least 3/8” (10mm) must be observed from the rear of the top plate and the wall behind the range.
Overhead Cabinets
To eliminate the risk of burns or fires by reaching over hot surface units, cabinet storage space located
above the surface units should be avoided.

8
NOTE:ANY OVERHEAD FITTED
CABINETS MUST NOT EXCEED 13” PROJECTED DEPTH ABOVE THE RANGE. DIM ‘D’ TO BE NOT LESS THAN THE NORMAL WIDTH OF THE RANGE.
Fig. 2 DESN 516668

9
Top Plate Adjustment - AGA DC3 (See Fig. 4)
In general, adjustment of the top plate is to be avoided. However minimum use of the top plate adjusters can
be used to improve the alignment of the top plate.
Fig. 3 DESN 516751

10
CONNECTION TO THE POWER SUPPLY - AGA DC3G
Electric Shock Hazard
Rating Plate is located behind removable plinth, see Fig. 4A, Page 11
Electrical Grounding is required on this appliance.
DO NOT connect to the electrical supply until the appliance is permanently
grounded.
This appliance must be connected to a grounded metallic permanent supply or
a grounding connector should be connected to the grounding terminal or wire
lead on the appliance.
Failure to follow these instructions could result in death or serious injury.
This range must be supplied with a 240V, 60Hz power supply and connected to an individual, properly
grounded branch circuit protected by a circuit breaker. At 240V, it has a maximum load of 30 amps. Electric
hook-up must be done by a licensed electrician. This unit must be installed according to regional codes, or in
the absence of codes, the National Electrical Code.
lProduct installation requires a separate (not shared) 240V/40 amp circuit protected by an
appropriate branch circuit supply.
lThe service cord on your range is fitted with a standard four (4) prong type 14-50P plug
(matching receptacle 14-50R).
The method of connection to the mains electricity supply must facilitate complete electrical isolation of the
appliance.
The mains connection and isolation should not be positioned above the range and must be positioned within
the area defined in Fig. 4A, Page 11.
THIS RANGE MUST BE COMPLETELY ISOLATED FROM THE ELECTRICITY SUPPLY BEFORE
SERVICING. THE RANGE IS DESIGNED FOR THE VOLTAGE STATED ON THE RATING PLATE,
WHICH IS SITUATED BEHIND THE PLINTH COVER.

11
MAINS CABLE ROUTING - AGA DC3G
Fig. 4 DESN 516643
MAINS CABLE FED FROM
CONTROL TRAY LEFT OR
RIGHT EXIT THROUGH
DUCTING DEPENDENT UPON
POSITION OF SUPPLY SOCKET
Fig. 4A DESN 516295
THE MAINS SUPPLY CONNECTION AND ISOLATION POINT MUST BE WITHIN
THE ZONE SHOWN
RATING LABEL LOCATED
BEHIND PLINTH, PULL
TO REMOVE

12

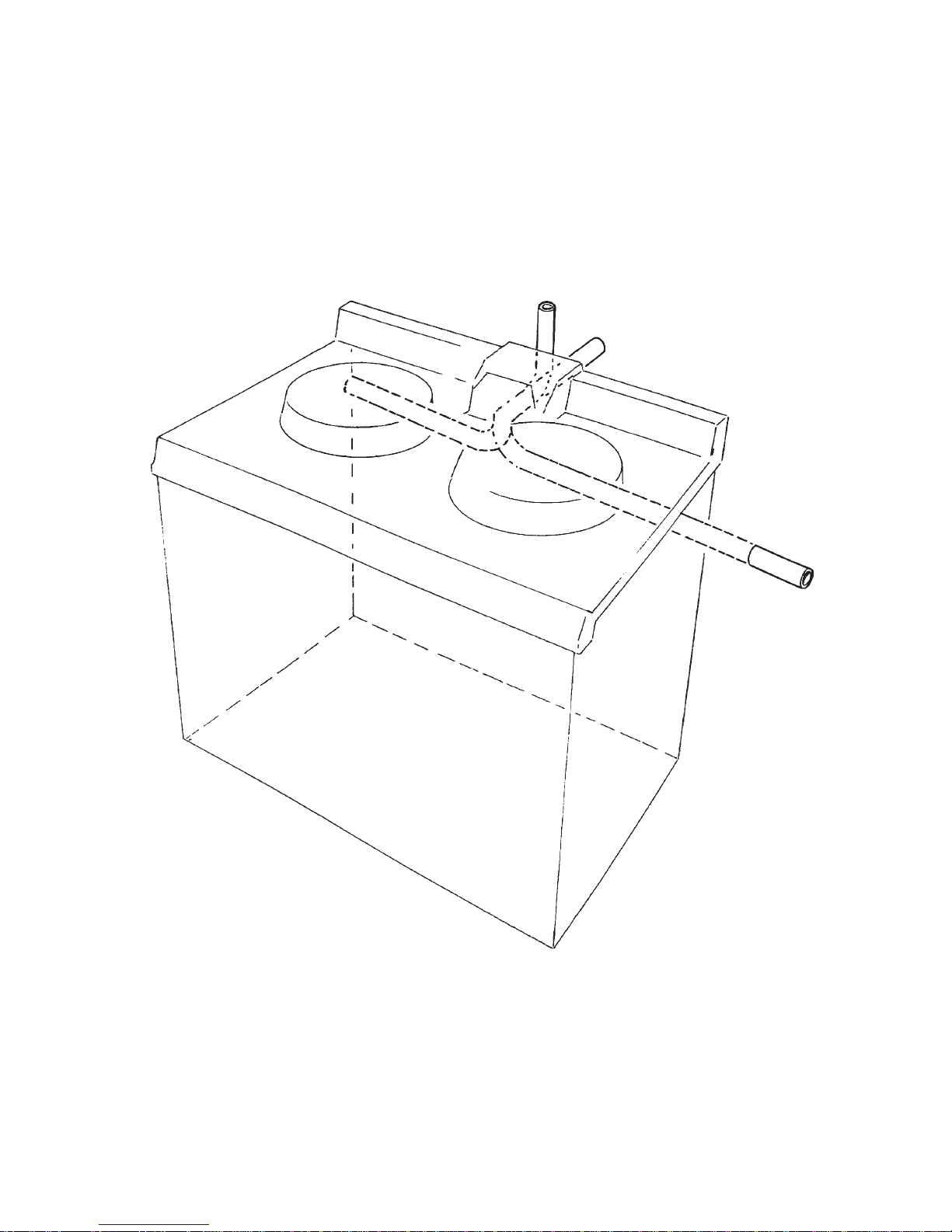

FLUE SYSTEM
SEE FIGS. 5, 6, 7, 8 & 9
The flue system must be installed in accordance with the federal, state and local codes.
Only genuine AGA approved flue pipe is to be used.
Maximum permitted flue length run including bends is 13 ft.
Products of combustion discharge is by a fan powered flue pipe of 2” (50mm) diameter which can reach up
to 13’ (4 metres) in length through a maximum of 4 x 90° bend. Exits from the appliance can be from rear, LH
or RH sides. (See Figs. 6 and 7).
The flue pipe should protrude through the outside wall fixing plate by 1” (25mm) (See Fig. 5).
Terminal Position
The minimum acceptable spacings from the terminal to obstructions and ventilation openings are as shown
in Fig. 7.
Where the terminal is fitted within 23 5/8” (600mm) below plastic guttering an aluminium shield 39 3/8”
(1000mm)
long should be fitted to the underside and immediately beneath the guttering or eaves.
Where the terminal is fitted within 17 3/4” (450mm) below eaves or painted guttering an aluminium shield 29
1/2(750mm) long should be fitted to the underside and immediately beneath the guttering or eaves.
Terminal Protection
A terminal guard is supplied with the range and must be fitted, if flue termination is less than 78 3/4” (2
metres) above ground level, or subject to damage.
When fitted, it must be positioned to provide a minimum of 2” (50mm) clearance from any part of the terminal
and be central over the terminal.
Fig. 5 DESN 511196
EXTERNAL
WALL
1”
(25mm)
Fig. 6 DESN 517038
COMBUSTIBLE
WALL
VENT PIPE
1 1/2”
(38mm)
5” (137mm)
NOTE: A 5” hole clearance is required through
combustible material, to allow 1 1/2” clearance
around flue pipe, (See Fig. 6).

13
DESN 511052
Fig. 7 DESN 511053
AROUND THE HOUSE
UNDER THE CAR PORT, ETC.
Minimum siting dimensions for flue terminals
Position Spacing Minimum
inch/mm
A Directly below an openable
window, air vent, or any other
ventilation opening 11
3/4”/ 300
B Below gutter, drain/soil pipe 3
”/ 75
C Below eaves 7
7/8”/ 200
D Below a balcony or car port roof 7
7/8”/ 200
E From vertical drain pipes and soil
pipes 5
7/8”/ 150
F From internal or external corners 11
3/4”/ 300
G Above adjacent ground or bacony
level 11
3/4”/ 300
H From surface facing the terminal 23
5/8”/ 600
I Facing terminals 47
1/4”/ 1200
J From opening (door/window) in
car port into dwelling 47
1/4”/ 1200
K Vertical from a terminal 59
”/ 1500
L Horizontally from a terminal 11
3/4”/ 300

14
Fig. 8 DESN 516850

15
DOWNWARD RUNS UP TO 11 3/4”(300mm) BELOW THE APPLIANCE ARE ALLOWED, PROVIDED ONLY
ONE BEND IS USED.
DOWNWARD RUNS USING 2 BENDS ARE NOT ALLOWED.
MAXIMUM VERTICAL RISE = 59 1/16” (1500mm)
VERTICAL RISE MUST BE AT LEAST 11 3/4” (300mm) FROM PRODUCT BUT NO MORE THAN
31 1/2” (800mm) BEFORE VERTICAL.
Fig. 9 DESN 517112 A
157 1/2”
(4m) MAX.
11 3/4”
(300mm) MAX.
157 1/2”
(4m) MAX.
11 3/4” (300mm) MIN.
31 1/2” (800mm) MAX. 11 3/4” (300mm) MIN.
31 1/2” (800mm) MAX.

16
WIRING DIAGRAM - AGA DC3G
Fig. 10

17
GAS SUPPLY - U.S. PIPE THREADS
NOTE: A MANUAL SHUT-OFF VALVE MUST BE INSTALLED IN AN ACCESSIBLE LOCATION IN THE
GAS PIPE EXTERNAL TO THE APPLIANCE FOR THE PURPOSE OF TURNING ON OR SHUTTING OF
GAS TO THE APPLIANCE.
ALL GAS CONTROLS MUST BE U.S. PIPE THREADS.
Maximum Heat Input 2 kW (6,800 Btu/h).
Gas Inlet Pipe: 1/4” NPT male at left rear of appliance.
The maximum gas inlet pressure at the range must not exceed 10 inches w.g. for Natural Gas. The minimum
gas inlet pressure at the appliance must be 5 inches w.g. Natural Gas to enable the correct manifold
pressure to be obtained.
The range and its individual shut-off valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of 1/2psig (3.5 kPa). The range must be
isolated from the gas supply piping system by closing its i manual shut-off valve during any pressure testing
of the gas supply piping system at test pressure equal to or less than 1/2psi (3.5 kPa).
On completion test the gas installation for soundness and purge. Leak testing of the range shall be
conducted according to the manufacturer’s instructions.
NOTE: Use soapy water solution on new gas connections to ensure there are no gas leaks.
On DC5 models, the gas inlet pipe and the vent pipe run behind the hotcupboard, (See Fig. 11)
AIR SUPPLY
Kitchen or Internal Air Supply
The appliance can only be installed in a room which meets ventilation regulations in force but in any event the
room must have a permanent vent of minimum free air area 36cm2(14in2).
In the event of an extractor fan being fitted in the vicinity of the range, compensatory ventilation will be required
to satisfy the demands of the fan without influencing combustion efficiency and flue conditions.
Fig. 11 DESN 517039
VENT PIPE AND GAS INLET PIPE RUN
BEHIND THE HOTCUPBOARD

18
1. Fit the handrail bracket over the fixing stud located on the top plate. Lock into position by tightening the grub
screw nearest the appliance. (See Fig. 12).
Fig. 12 DESN 516883
AGA DC3G P/F HANDRAIL CONNECTION
Fig. 13 DESN 516880
2. Next the handrail, endcaps and handrail require assembly.
Slide the handrail through the handrail brackets.
AGA DC3 HANDRAIL CONNECTION

19
3. Once the handrail assembly is located squarely, lock the handrail in position by winding in the grub
screws on the underside of each handrail bracket.
4. Once the handrails are locked in position, fit the handrail endcaps. The endcaps should be carefully
pushed into place until they sit flush with the outside face of each bracket (a light smear of lubricant such
as, hand or dish soap on the end cap ‘O’ rings may ease fitment.
5. Finally, fit the plinth facia to the magnets on the front of the plinth. Make sure that the plinth facia is
centrally located and does not overhang the range.
Commission the AGA Dual Control, as stated in the relevant Installation Instructions and carry out functional
test on each of the features of the AGA Dual Control.

20
Fig. 14 DESN 516966
Inlet Pressure Testing
1. Turn off control knob (A) and turn off electrical supply to range.
2. Remove facia by pulling off hotplate control knob and removing four fixing screws.
3. Remove inlet pressure test nipple sealing screw (D) and fit rubber tube over the nipple.
4. Turn on gas cock (C) and refit facia making sure the rubber pressure test tube is routed through the
hotplate control knob hole within the facia.
5. Attach tube to manometer.
6. Turn on electricity supply.
7. Follow paragraphs 1-4 of ‘LIGHTING PROCEDURE’ on page 21, and check inlet pressure, 8” w.g.
Burner Pressure Testing
1. Turn off control knob (A) and turn off electrical supply to range.
2. Remove facia by pulling off hotplate control knob and removing four fixing screws.
3. Remove inlet pressure test nipple sealing screw (E) and fit rubber tube over the nipple.
4. Turn on gas cock (C) and refit facia making sure the rubber pressure test tube is routed through the
hotplate control knob hole within the facia.
5. Fit manometer tube to test nipple (E).
6. Turn on electricity supply.
7. Follow paragraphs 1-4 of ‘LIGHTING PROCEDURE’, and check burner pressure 4” w.g.
NOTE: Burner pressure adjustment screw is located behind valve cover.
Check for leaks around pressure test nipple after refitting.
Leak testing of the appliance shall be conducted according to the manufacturers instructions.
(See ‘YEARLY SERVICE’)
COMMISSIONING
