AGA DC5G User manual

AGA DUAL CO TROL
Model o’s: DC3G & DC5G
Installation
Guide
06/15 EINS 516911
PLEASE READ THESE I STRUCTIO S BEFORE COMME CI G SITE SURVEY
OR I STALLI G THIS APPLIA CE.
I PORTANT : SAVE INSTRUCTIONS FOR FUTURE REFERENCE
I PORTANT : CONSERVER CES INSTRUCTIONS POUR REFERENCE FUTURE
For use in USA/Canada

SECTIO PAGE
PRODUCT SAFETY 3
GENERAL NOTES 4
DELIVERY REQUIRE ENTS 4
GENERAL INSTALLATION REQUIRE ENTS 4
APPLIANCE DI ENSIONS - AGA DC3G 5
APPLIANCE DI ENSIONS - AGA DC5G 6
TECHNICAL DATA 7
INSTALLATION 7 - 10
CONNECTION TO THE POWER SUPPLY - AGA DC3G 11
POWER SUPPLY - HOTCUPBOARD DC5G 12
AINS CABLE ROUTING - AGA DC3G 13
AINS SUPPLY LOCATION - AGA DC5 14
(HOTCUPBOARD OPTION)
FLUE SYSTE 15 - 18
WIRING DIAGRA - AGA DC3G 19
GAS SUPPLY - U.S. PIPE THREADS 20
AIR SUPPLY 20
HOTCUPBOARD INSTALLATION 21 - 27
WIRING DIAGRA - AGA DC5G (HOTCUPBOARD OPTION) 27
CO ISSIONING 28 - 29
YEARLY SERVICE 29 - 30
REPLACE ENT PARTS 30
INSTRUCTIONS 30
BURNER CONTROLS 31
CONTENTS LIST (LOOSE ITE S) 32
CO TE TS
2

3
PRODUCT SAFETY
MEA I G/DESCRIPTIO SIG IFICATIO /DESCRIPTIOSYMBOL
WAR I G/CAUTIO
An appropriate safety instruction
should be followed or caution to a
potential hazard exists.
AVERTISSEME T
Une consigne de sécurité
appropriée doivent être suivies ou
garde d’un danger potentiel
exists.
DA GEROUS VOLTAGE
To indicate hazards arising from
dangerous voltages.
TE SIO DA GEREUSE
Pour indiquer les dangers
résultant des tensions
dangereuses.
PROTECTIVE EARTH (GROU D)
To identify any terminal which is
intended for connection to an
external conductor for protection
against electric shock in case of a
fault, or the terminal of a
protective earth (ground)
electrode.
TERRE DE PROTECTIO
Pour marquer bornes destin ées à
être raccordées à un conducteur
de protection extérieur contre les
chocs éclectiques en cas de
défaut d’isolement, ou pour
marquer la borne de la terre de
protection.
HEAVY
This product is heavy and
reference should be made to the
safety instructions for provisions
of lifting and moving.
LOURD
Ce produit est lourd et doit être
fait référence auc consignes de
sécurité relatives aux dispositions
de soulever et déplacer.
DISCO ECT MAI S SUPPLY
Disconnect incoming supply be-
fore inspection or maintenance.
APPAREIL À LASER DE
CLASSE 2
Alimentation d’entr ée Débrancher
avant inspection ou d’entretien.
REFER TO MA UAL
Refer to relevant instructions
detailed within the product
manual.
ATTE TIO , SURFACE TRÉS
CHAUDE
Reportez-vous aux instructions
applicables, indiquées dans le
manuel du produit.

GE ERAL OTES
OTE: THESE INSTALLATION INSTRUCTIONS SHOULD BE LEFT WITH THE RANGE AND THE USER TO RETAIN
FOR FUTURE REFERENCE.
DELIVERY REQUIREME TS
The AGA DC3 arrives on 1 pallet.
The AGA DC5 (Hotcupboard Option) arrives on 2 pallets.
Vent Pipe Installation kit (AG1 212542) arrives in a separate carton.
There must be access to the kitchen to manipulate a foot print of 39 9/16” (1005mm) x 29 1/8” (740mm). A wooden
template (skate with castor wheels) of dimensions 39 9/16” (1005mm) x 29 1/8” (740mm) could be used to check if the
AGA Dual Control fully built appliance is able to fit through the property grounds and doors into its installation position in
the kitchen. It must also be considered that the height of the appliance is 37 3/4” (960mm) off pallet and 43 1/4 ” (1100mm)
on the pallet, so high level obstacles/restrictions must not be overlooked.
If this skate/template can be manipulated through the property grounds and doorsinto position, then the AGA Dual
Control can be installed as intended with no re-work.
GE ERAL I STALLATIO REQUIREME TS
The installation of the range must be in accordance with the relevant requirements of the local Wiring and Building
Regulations. It should be in accordance also with any relevant requirements of the local or state codes.
In your own interest and that of safety to comply with the law, all appliances should be installed by an authorized AGA
distributor in accordance with the relevant regulations.
CAUTIO :
THIS U IT IS HEAVY, PROPER EQUIPME T A D ADEQUATE
MA POWER MUST BE USED I MOVI G THE RA GE TO
AVOID DAMAGE TO THE U IT OR THE FLOOR
4

5
APPLIA CE DIME SIO S - AGA DC3G
Fig. 1 DESN 516847 A
Range Dimensions
When surveying for a range installation the actual clearance required for the ‘body’ of the appliance should be increased by
3/8” beyond the figures quoted above. This allows safe margin to take into account the natural dimensional variations found
in major castings. In particular the width across the appliance recess could be critical.
APPLIA CE WEIGHT (Excludes Packaging)
odel: AGA Dual Control (DC3G) - 996lb (452kg)
GAS CO ECTIO - AGA DC3G O LY
1/4” NPT ALE AT LEFT REAR OF APPLIANCE
OTE: GAS CONNECTION POINT PROTRUDES
A B C D E F G H J K L N P Q R S T U V W
mm 987 951 913 680 1388 760 1145 698 116 10 565 689 43 118 55 634 330 760 996 75 9
inch 38 7/837 1/236 26 3/454 5/829 7/845 1/827 1/249/16 3/822 1/427 1/813/445/821/825 13 30 39 3/16 33/8
OVERHEAD
CUPBOARDS

6
APPLIA CE DIME SIO S - AGA DC5G
Fig. 2 DESN 516848 A
Range Dimensions
When surveying for a range installation the actual clearance required for the ‘body’ of the appliance should be increased by
3/8” beyond the figures quoted above. This allows safe margin to take into account the natural dimensional variations found
in major castings. In particular the width across the appliance recess could be critical.
APPLIA CE WEIGHT (Excludes Packaging)
odel: AGA Dual Control (DC3) - 996lb (452kg)
Hotcupboard - 242lb (110kg)
Data plate located behind plinth.
* OTE: A 5” CLEARANCE HOLE IS REQUIRED THROUGH CO BUSTIBLE ATERIAL, TO ALLOW 1 1/2” CLEARANCE
AROUND THE FLUE PIPE, (See Fig. 8), Page 15.
A B C D E F G H J K L N P Q R S T U
mm 1478 951 913 680 1388 760 1145 698 116 10 565 689 43 118 55 634 75 760 330
inch 58 1/437 1/236 26 3/454 5/829 7/845 1/827 1/24 9/16 3/822 1/427 1/81 3/44 5/82 1/8 25 3 30 13
OVERHEAD
CUPBOARD

Side Clearances
A 1/8” (3mm) gap is required each side between the range top plate and adjoining work surfaces that may be fitted, this is to
allow for the safe removal of the top plate should this be required at a later date.
Where ranges are to be fitted against a side wall a 4 9/16” (116mm) clearance is required on the right and left hand side for
oven door access.
If the AGA is to be installed in a brick recess, then the minimum clearance should be increased by at least 3/8” (10mm), to
allow for the walls not being square.
In addition a minimum clearance of 39 3/8” (1000mm) must be available at the front of the range to enable the range to be
serviced.
NATURAL GAS
AXI U HEAT INPUT 6,800 Btu/hr
Thermostat Bypass 70
ain Burner Injector 112
Gas Supervision Injector 4212
inimum Inlet Pressure 5” w.g.
Burner Pressure 4” w.g.
Models AGA DC3G and DC5G
TECH ICAL DATA
I STALLATIO
Range Base or Hearth
It is essential that the base or hearth on which the range stands should be level and be capable of supporting the total
weight of the range 8.9 cwt. The base of the built-in AGA plinth must be level and sit above the finished height for service
access.
Plinth
The front plinth cover is removable and must not be obstructed by flooring or tiles. If necessary the range must be raised
by the thickness of the tiles to ensure the plinth can be removed.
Rear Wall
7
Since this appliance runs continuously, please take note of these IMPORTA T instructions:
Combustible Walls
Houses constructed of combustible materials (such as all-timber or stud wall partitions and batoned plasterboarded
walls) require special wall heat protection features.
Non-combustible material behind a range must be of at least 1” (25mm) thick insulation board ( onolux or equivalent),
up to hotplate level.
SPECIAL OTE: Ensure electric cabling or plastic services do not pass within or on the outside of the wall, behind
or directly above the range.
This type of material can age prematurely when exposed to continuous higher ambient temperature.
Alternatively the range can be spaced 1 1/2” (38mm) away from the wall to create an air gap.
The air gap must be left open and OT blocked off across the top edge.

8
Tiling
When the range is to stand in a recess or against a wall which is to be tiled, under no circumstances should the tiles overlap
the range top plate, access to remove the hotplate must be allowed for servicing at a later date.
A gap of at least 3/8” (10mm) must be observed from the rear of the top plate and the wall behind the range.
Overhead Cabinets
To eliminate the risk of burns or fires by reaching over hot surface units, cabinet storage space located above the surface
units should be avoided.

9
NOTE: ANY OVERHEAD FITTED CABINETS UST NOT EXCEED 13” PROJECTED DEPTH ABOVE THE RANGE. DI ‘D’ TO BE NOT LESS THAN THE NOR AL WIDTH OF THE RANGE.
Fig. 3 DESN 516668

Top Plate Adjustment - AGA DC3 (See Fig. 4)
In general, adjustment of the top plate is to be avoided. However minimum use of the top plate adjusters can be used to
improve the alignment of the top plate.
Fig. 4 DESN 516751
10

11
CO ECTIO TO THE POWER SUPPLY - AGA DC3G
Electric Shock Hazard
Rating Plate is located behind removable plinth, see Fig. 5, Page 13
Electrical Grounding is required on this appliance.
DO OT connect to the electrical supply until the appliance is permanently grounded.
This appliance must be connected to a grounded metallic permanent supply or a grounding
connector should be connected to the grounding terminal or wire lead on the appliance.
Failure to follow these instructions could result in death or serious injury.
This range must be supplied with a 240V, 60Hz power supply and connected to an individual, properly grounded branch
circuit protected by a circuit breaker. At 240V, it has a maximum load of 30 amps. Electric hook-up must be done by a
licensed electrician. This unit must be installed according to regional codes, or in the absence of codes, the National
Electrical Code.
lProduct installation requires a separate (not shared) 240V/40 amp circuit protected by an appropriate branch circuit
supply.
lThe service cord on your range is fitted with a standard four (4) prong type 14-50P plug (matching receptacle
14-50R).
The method of connection to the mains electricity supply must facilitate complete electrical isolation of the appliance.
The mains connection and isolation should not be positioned above the range and must be positioned within the area
defined in Fig. 5A, Page 13.
THIS RA GE MUST BE COMPLETELY ISOLATED FROM THE ELECTRICITY SUPPLY BEFORE SERVICI G. THE
RA GE IS DESIG ED FOR THE VOLTAGE STATED O THE RATI G PLATE, WHICH IS SITUATED BEHI D THE
PLI TH COVER.

12
POWER SUPPLY - HOTCUPBOARD (AGA DC5)
The hotcupboard attachment requires an independent single phase supply. It has a maximum load of 6 amps,
protected by an appropriate branch circuit supply.
110/120V FLEXIBLE CORD and PLUG PARALLEL TYPE (NE A 5-15P). The appliance when installed must be electrically
grounded with local or state codes.
An electrical socket must be provided within 5 feet of the LH side of the appliance and easily accessible for the user to
disconnect. Do not position the socket above the appliance. See Fig. 6A, Page 14.
Take special care when cutting holes in wall or floor. Electrical wires may be behind the wall or floor covering and could
cause an electrical shock if you touch them.
Locate any electrical circuits that could be affected by the installation of this product and disconnect power circuit.
WAR I G
Electrical Grounding Instructions
This appliance is equipped with a NE A 5-15P grounded plug for your protection against a shock hazard and should be
plugged directly into a proper receptacle. Do not cut or remove the grounding prong from this plug.
Do not have a fuse in the neutral or grounding circuit. A fuse in the neutral or grounding circuit could result in electrical
shock.
Do not use an extension cord with this appliance.
Check with a qualified electrician, if you are not sure the appliance is properly grounded.
Failure to follow these instructions could result in death or serious injury.

MAI S CABLE ROUTI G - AGA DC3G
Fig. 5 DESN 516643
AINS CABLE FED FRO
CONTROL TRAY LEFT OR RIGHT
EXIT THROUGH DUCTING
DEPENDENT UPON POSITION
OF SUPPLY SOCKET
13
Fig. 5A DESN 516295
THE AINS SUPPLY CONNECTION AND ISOLATION POINT UST BE WITHIN
THE ZONE SHOWN
RATING LABEL LOCATED
BEHIND PLINTH, PULL
TO RE OVE

14

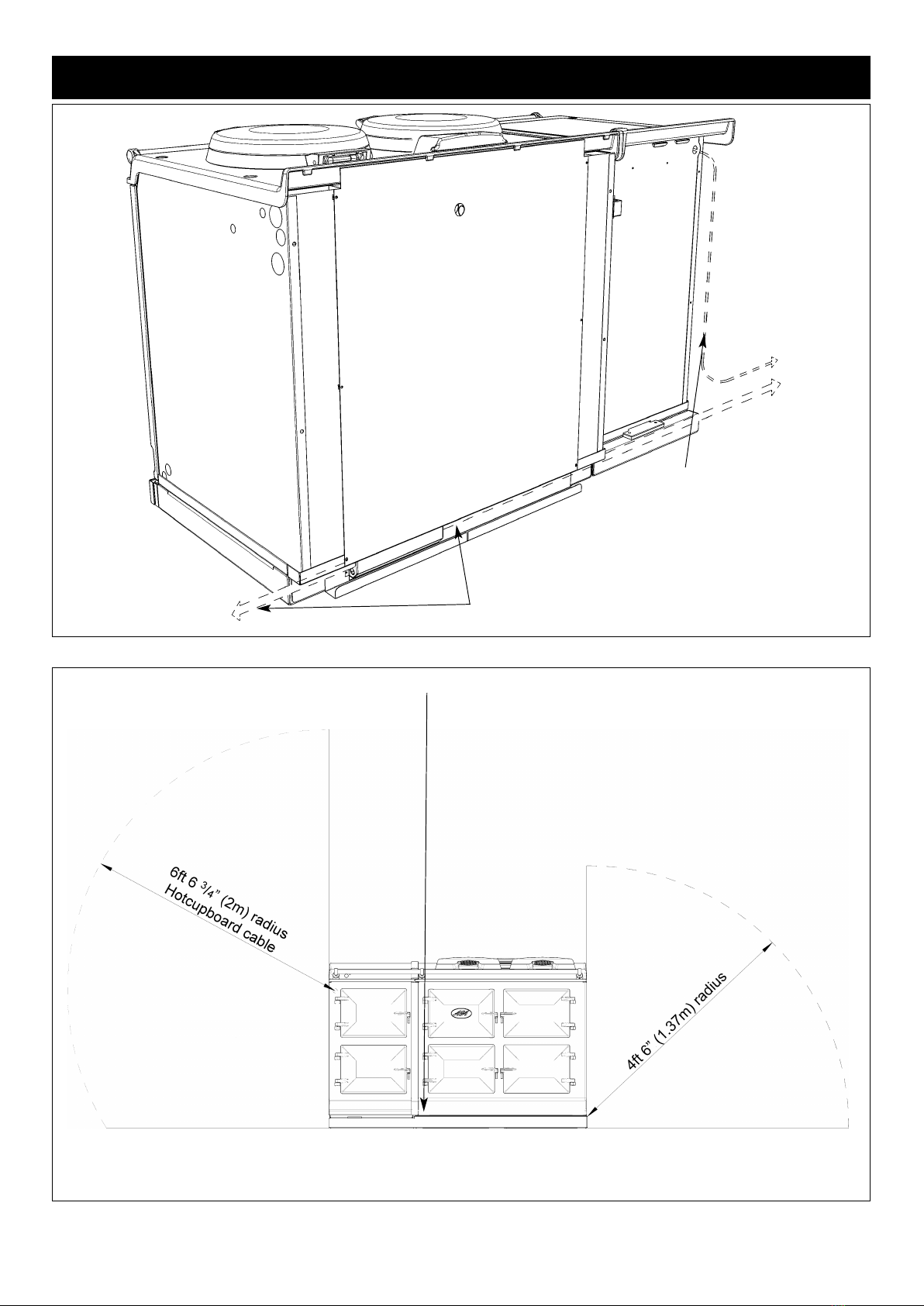

MAI S SUPPLY LOCATIO - AGA DC5 (HOTCUPBOARD OPTIO )
Fig. 6 DESN 516562
AINS CABLE FED FRO CONTROL
TRAY LEFT OR RIGHT EXIT
THROUGH DUCTING DEPENDENT
UPON POSITION OF SUPPLY SOCKET
Fig. 6A DESN 516590 A
THE AINS SUPPLY CONNECT POINT UST BE WITHIN THE ZONES SHOWN
HOTCUPBOARD
POWER SUPPLY
RATING LABEL LOCATED BEHIND PLINTH, PULL TO RE OVE,

FLUE SYSTEM
SEE FIGS. 7, 8, 9, 10 & 11
The flue system must be installed in accordance with the federal, state and local codes.
Only genuine AGA approved flue pipe is to be used.
Maximum permitted flue length run including bends is 13 ft.
Products of combustion discharge is by a fan powered flue pipe of 2” (50mm) diameter which can reach up to 13’ (4 metres)
in length through a maximum of 4 x 90° bend. Exits from the appliance can be from rear, LH or RH sides. (See Figs. 8 and
9).
The flue pipe should protrude through the outside wall fixing plate by 1” (25mm) (See Fig. 7).
Terminal Position
The minimum acceptable spacings from the terminal to obstructions and ventilation openings are as shown in Fig. 9.
Where the terminal is fitted within 23 5/8” (600mm) below plastic guttering an aluminium shield 39 3/8” (1000mm) long should
be fitted to the underside and immediately beneath the guttering or eaves.
Where the terminal is fitted within 17 3/4” (450mm) below eaves or painted guttering an aluminium shield 29 1/2(750mm)
long should be fitted to the underside and immediately beneath the guttering or eaves.
Terminal Protection
A terminal guard is supplied with the range and must be fitted, if flue termination is less than 78 3/4” (2 metres) above ground
level, or subject to damage.
When fitted, it must be positioned to provide a minimum of 2” (50mm) clearance from any part of the terminal and be central
over the terminal.
Fig. 7 DESN 511196
EXTERNAL
WALL
15
1”
(25mm)
Fig. 8 DESN 517038
CO BUSTIBLE
WALL
VENT PIPE
1 1/2”
(38mm)
5” (137mm)
OTE: A 5” hole clearance is required through combustible
material, to allow 1 1/2” clearance around flue pipe, (See
Fig. 8).

DESN 511052
Fig. 9 DESN 511053
AROUND THE HOUSE
UNDER THE CAR PORT, ETC.
16
inimum siting dimensions for flue terminals
Position Spacing inimum
inch/mm
A Directly below an openable
window, air vent, or any other
ventilation opening
11
3/4”/
300
B Below gutter, drain/soil pipe 3 ”/ 75
C Below eaves 7
7/8”/
200
D Below a balcony or car port roof 7
7/8”/
200
E From vertical drain pipes and soil
pipes 5
7/8”/
150
F From internal or external corners 11
3/4”/
300
G Above adjacent ground or balcony
level 11
3/4”/
300
H From surface facing the terminal 23
5/8”/
600
I Facing terminals 47
1/4”/
1200
J From opening (door/window) in
car port into dwelling 47
1/4”/
1200
K Vertical from a terminal 59 ”/ 1500
L Horizontally from a terminal 11
3/4”/
300

Fig. 10 DESN 516850
17

DOWNWARD RUNS UP TO 11 3/4”(300mm) BELOW THE APPLIANCE ARE ALLOWED, PROVIDED ONLY
ONE BEND IS USED.
DOWNWARD RUNS USING 2 BENDS ARE OT ALLOWED.
Fig. 11 DESN 516849
18
157 1/2”
(4m) AX.
11 3/4”
(300mm) AX.
157 1/2”
(4m) AX.

WIRI G DIAGRAM - AGA DC3G
Fig. 12
19

GAS SUPPLY - U.S. PIPE THREADS
OTE: A ANUAL SHUT-OFF VALVE UST BE INSTALLED IN AN ACCESSIBLE LOCATION IN THE GAS PIPE EX-
TERNAL TO THE APPLIANCE FOR THE PURPOSE OF TURNING ON OR SHUTTING OF GAS TO THE APPLIANCE.
ALL GAS CO TROLS MUST BE U.S. PIPE THREADS.
aximum Heat Input 2 kW (6,800 Btu/h).
Gas Inlet Pipe: 1/4” NPT male at left rear of appliance.
The maximum gas inlet pressure at the range must not exceed 10 inches w.g. for Natural Gas . The minimum gas inlet
pressure at the appliance must be 5 inches w.g. Natural Gas to enable the correct manifold pressure to be obtained.
The range and its individual shut-off valve must be disconnected from the gas supply piping system during any pressure
testing of that system at test pressures in excess of 1/2psig (3.5 kPa). The range must be isolated from the gas supply
piping system by closing its i manual shut-off valve during any pressure testing of the gas supply piping system at test
pressure equal to or less than 1/2psi (3.5 kPa).
On completion test the gas installation for soundness and purge. Leak testing of the range shall be conducted according to
the manufacturer’s instructions.
OTE: Use soapy water solution on new gas connections to ensure there are no gas leaks.
On DC5 models, the gas inlet pipe and the vent pipe run behind the hotcupboard, (See Fig. 13)
AIR SUPPLY
Kitchen or Internal Air Supply
The appliance can only be installed in a room which meets ventilation regulations in force but in any event the room must
have a permanent vent of minimum free air area 36cm2(14in2).
In the event of an extractor fan being fitted in the vicinity of the range, compensatory ventilation will be required to satisfy
the demands of the fan without influencing combustion efficiency and flue conditions.
20
Fig. 13 DESN 517039
VENT PIPE AND GAS INLET PIPE RUN
BEHIND THE HOTCUPBOARD
