AGM Global Vision RATTLER TS25-384 User manual

USER MANUAL
RATTLER TS25-384
RATTLER TS35-384
THERMAL IMAGING RIFLESCOPE

© 2021 AGM Global Vision, LLC. All rights reserved.
This documentation is subject to change without notice.
No parts of this manual, in whole or in part, may be copied, photocopied, translated,
or transmitted by any electronic medium or in machine-readable form without the
prior written permission of AGM Global Vision, LLC.
Approved for public release, distribution unlimited.
If you have questions that are not covered in this manual, or need service, contact
AGM Global Vision customer support for additional information prior to returning a
product.
AGM Global Vision, LLC
173 West Main Street
PO Box 962
Springerville, AZ 85938
Tel. [phone]
[e-mail]
www.agmglobalvision.com
EXPORT INFORMATION
Buyer acknowledgesthatall productssupplied by AGM GlobalVision,LLCare subject
to U.S. export control laws, including, but not limited to, the Export Administration
Regulations, the International Economic Emergency Powers Act, and various U.S.
embargoes and sanctions. AGM Global Vision products may not be exported,
re-exported, or transferred contrary to U.S. export control laws. In particular,
AGM Global Vision products may not be exported, re-exported, or transferred to
prohibited countries, individuals, organizations, or entities, including but not limited
to those individuals and entities listed on the List of Specially Designated Nationals
and Blocked Persons administered or maintained by the U.S. Office of Foreign
Assets Control (“OFAC”), the various lists maintained by the Bureau of Industry
and Security of the Department of Commerce, and the U.S. State Department and
Buyer represents and warrants that neither Buyer nor any of its officers, directors,
or employees are on such lists. Distribution or resale by Buyer to such countries,
individuals, organizations, or entities is expressly prohibited. Buyer has and will
maintain a positive process to ensure compliance with this Section.
2021.06.22

RATTLER TS USER MANUAL 3
FCC INFORMATION
Please take attention that changes or modification not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
This equipment complies with FCC/IC RSS-102 radiation exposure
limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20 cm
between the radiator & your body.
FCC compliance: This product has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference
in a residential installation. This product generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this product
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
EU CONFORMITY STATEMENT
This product and - if applicable - the supplied accessories too
are marked with “CE” and comply therefore with the applicable
harmonized European standards listed under the EMC Directive
2014/30/EU, the RoHS Directive 2011/65/EU
2012/19/EU (WEEE directive): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the
European Union. For proper recycling, return this product to your
local supplier upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more information
see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that
cannot be disposed of as unsorted municipal waste in the European
Union. See the product documentation for specific battery
information. The battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the battery to your supplier
or to a designated collection point. For more information see:
www.recyclethis.info
INDUSTRY CANADA ICES-003 COMPLIANCE
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.

AGM Global Vision4
LIST OF CONTENTS
TITLE PAGE
Safety Summary 5
1. GENERAL INFORMATION 7
1.1System Description 7
1.2 Key Features 8
2. OPERATING INSTRUCTIONS 9
2.1. Basic Operations 9
2.2 Main Function 15
2.3 Client Software Introduction 22
3. MAINTENANCE 23
3.1 Maintenance 23
3.2 Troubleshooting 24
4. WARRANTY INFORMATION 25
4.1 Warranty Information and Registration 25
5. SPECIFICATIONS 27
5.1 Specifications 27

RATTLER TS USER MANUAL 5
SAFETY SUMMARY
• Read and follow all instructions
• Read all warnings
• Only use the attachments/accessories specified by the manufacturer
• All service must be provided by the manufacturer
WARNING:
This product contains natural rubber latex, which may cause potentially fatal
allergic reactions! If you are allergic to latex, it is important that you strictly
avoid exposure to products that contain it.
WARNING:
Always make sure your firearm is unloaded before you place the scope on the
firearm. Reconfirm that the chamber is empty if you stop the procedure then
resume later. Safe handling rules should be followed at all times.
WARNING:
If a scope is mounted too far to the rear, the eyepiece can injure the shooter’s
brow. Shooting at an uphill angle also increases this hazard because it
shortens the distance between the brow and the rear of the scope. For this
reason, AGM scopes are engineered to provide generous eye relief. Therefore,
when mounting your scope, we recommend positioning it as far forward in the
mounts as possible to take full advantage of this generous eye relief. With hard-
recoiling rifles, serious injury or even death can result from eyepiece impact
with the shooter during the recoil process when discharging the firearm.
Be certain that your installation provides sufficient eye relief for the recoil
generated by your rifle before shooting the firearm.
NOTE: Give special attention to this warning when shooting uphill and/or from
a prone position. These shooting conditions can dramatically reduce eye
relief. PLEASE maintain maximum eye relief when shooting heavy recoiling
and/or magnum firearms. THE USER ASSUMES ALL RESPONSIBILITY AND
LIABILITY FOR HAVING THE AGM RIFLESCOPE PROPERLY MOUNTED TO A
FIREARM AND USING THE AGM RIFLESCOPE PROPERLY. ALWAYS CHECK THE
CONDITION OF YOUR MOUNTING SYSTEM PRIOR TO USING YOUR FIREARM.
WARNING:
The proper usage of the device is important for safe operation!
Therefore carefully read this manual!
WARNING:
If the device was left in storage for a longer period of time, before use, check
its functionality.
WARNING:
Disassembling of the device is prohibited, except in authorized repair centers.
WARNING:
Please remove the batteries from the battery compartment before connecting
the device to your PC, or it may cause computer damage.

AGM Global Vision6
WARNING:
The external optical surfaces should be clean at all times. Touching the optical
surfaces with bare hands is not recommended.
WARNING:
Sand and sea water can damage the optical coatings!
WARNING:
Do not point the device directly at the sun!
WARNING:
Image performance is dependent on scenery and atmosphere conditions.
Contrast in the same image may vary as a function of the time of day due to the
effect of the sun. For example, at sunset objects will have absorbed different
levels of heat resulting in greater temperature differences and better contrast.
WARNING:
When left in storage for a longer period of time, batteries have to be
removed and stored in polyethylene bags to prevent contact with metal.
(It is recommended to recharge the batteries every two to three months.)
WARNING:
When carrying or transporting the device, put the protective lens cap on!
WARNING:
Condensation can cause fogging of the optical surfaces! Condensation occurs
when the temperature or humidity changes as follows:
– When moving the device from cold to warm place or vice versa;
– In places with high humidity.
When equalizing the temperature of the device with the environmental, the
condensation disappears. Use the towel to remove moisture.
NOTES:
• The detector spectral band provides better visibility through smoke, dust,
rain, smog, etc.
• Infrared radiation does not travel through glass. As a result, the riflescope
does not detect objects if they are behind glass windows or other barriers.
WARNING:
Clean the lens surfaces with the lens tissue or a dry cloth!
LEGAL NOTICE
Before attaching to weapons, check the regional legal regulations in the area
of application. The attachment to a weapon is always the sole responsibility
of the user.

RATTLER TS USER MANUAL 7
1 GENERAL INFORMATION
1.1 SYSTEM DESCRIPTION
The AGM Rattler TS25-384 and Rattler TS35-384 are the compact thermal
imaging scopes developed for 24 hours operation under any weather and
environmental conditions. Two objective lens options allow the customer to
choose perfect unit for your needs where 25 mm lens designed for short range
shooting, while the 35 mm lens model will be great for medium range missions.
Thermal image riflescope has 384×288 thermal detector and 1024×768 OLED
monitor, which provides clear image under harsh environment conditions like
darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is
used as a thermal rifle scope or handheld monocular. The scope is mainly
applied to scenarios such as patrolling, and hunting, etc.
TABLE 1-1. MAIN PARTS
ITEM DESCRIPTION ITEM DESCRIPTION
1 Objective Lens 8 Battery Compartment
2Objective Lens Сover 9Eyecup
3 Objective Focus Ring 10 Mount
4 Power Button 11 USB Cable
5Operation Buttons 12 Lens Tissue
6Eyepiece Focus Ring 13 User Manual
7 USB Type-C Interface 14 Carrying Bag
FIGURE 1-1. MAIN PARTS AND COMPONENTS
USER MANUAL
10
11
13
14
12
1
2
3456
7
8
9

AGM Global Vision8
1.2 KEY FEATURES
• 384×288 thermal resolution, high sensitivity detector
• Image processing technology: Adaptive AGC, DDE, 3D DNR
• 1024×768 resolution 0.39-inch OLED display
• 8x digital zoom
• Lightweight and compact design
• Easy to operate control panel
• Automatic or manual (silent) calibration
• Video recording and snapshot
• Built-in EMMC memory (16 GB)
• Supports distance measurement
• Adjustable color palettes
• Wi-Fi data transmission
• Waterproof, shockproof
• Powered by two standard CR123A or RCR123A rechargeable batteries
• Up to 4.5 hours continuous working
• External power supply capability
• Limited 3-year warranty

RATTLER TS USER MANUAL 9
2 OPERATING INSTRUCTIONS
2.1. BASIC OPERATIONS
2.1.1 UNPACKING
The following steps must be completed prior to each mission.
1. Open the carrying case, remove the device, and verify that all components
are included.
2. Inspect the device for any obvious evidence of damage to the optical
surfaces, body, eyecup, operation buttons, etc. Ensure that all optical
surfaces are clean and ready for use. Clean all optical surfaces with a lens
tissue.
2.1.2 BATTERIES INSTALLATION
CAUTION:
Verify that the equipment is OFF before remove the batteries.
To install the batteries (refer to Figure 2-1):
1. Turn the battery cover knob (A) counter clockwise and then open the battery
cover (B).
2. Install two CR123A or RCR123A batteries (C) into the battery compartment.
Align the polarity symbols on the batteries as shown below.
3. Close the battery cover. Turn the battery cover knob clockwise until stop.
When the device is on a battery charge level is displayed on the status bar.
FIGURE 2-1. BATTERY INSTALLATION
AB
C

AGM Global Vision10
2.1.3 SELECT BATTERY TYPE
You can change the battery type according to your need. Select the correct
battery voltage in the device menu.
1. In the view mode, hold button to show the menu.
2. Select Battery Voltage menu item, and press button to switch the
voltage.
2.1.4 CONNECTING THE DEVICE
WARNING:
Please remove the batteries from the battery compartment before connecting
the device to your PC, or it may cause computer damage.
1. Open the cable interface cover.
2. Connect the device and power adapter with a Type-C cable to power on the
device. Alternatively, connect the device and PC to copy/delete files.
2.1.5 CONTROL BUTTONS
The Rattler controls are shown in Figure 2-2 and are defined in Table 2-2.
Each button is responsible for some functions selected by short press or long
press of the button. Pushing a button for 3+ second is considered “long press/
hold.”
FIGURE 2-2. CABLE INTERFACE
FIGURE 2-2. CONTROL BUTTONS
POWER ZOOM
CAPTURE SHUTTER
MODEMENU

RATTLER TS USER MANUAL 11
TABLE 2-2. BUTTON FUNCTIONS
BUTTON FUNCTIONS
POWER Press: Sleep Mode/Wake Up Device
Hold: Power On/Off
MENU Press: Enable/Disable OSD
Hold: Menu Operation
MODE Press: Switch Palettes
CAPTURE Press: Capture
Hold: Start/Stop Record Video
SHUTTER Press: Correct Non-uniformity of Display
ZOOM Press: Switch Digital Zoom
Hold: Enable/Disable Reticle
2.1.6 POWER ON AND OFF
Power On
Hold the POWER button for 4 seconds to power on the device. An image will
appear on the display.
Refer to the figure below for the main view of the riflescope display.
Power Off
When the device is turned on, hold button for 4 seconds to power off the
device.
In the “Auto Power Off” menu you can set the time for the automatic shutdown
of the device as required (OFF / 30 min / 45 min).
2.1.7 SLEEP MODE
In the view mode, press the button. After a few seconds, the display will turn
off. Press the button again to exit the Sleep Mode.
HOT SPOT BATTERY
DIGITAL ZOOM STORAGE
FIGURE 2-3. THE DISPLAY MAIN VIEW

AGM Global Vision12
2.1.8 THERMAL VIEW OBSERVATION
1. Power on the riflescope.
2. Hold the riflescope and make sure the eyepiece covers your eye.
3. Adjust the diopter adjustment ring until the OSD text or image is clear.
4. Point the riflescope towards the target of the view. Bring the object into focus
by rotate the objective focus ring.
NOTE:
You must perform the focus adjustment before any further use of the
riflescope.
5. Set palette, brightness, contrast, scene mode and FFC (Flat Field Correction),
to display the best image effect.
2.1.9 PALETTE SETTINGS
You can select different palettes to display the same scene in different effects.
Press button in the view mode to switch palettes.
TABLE 2-3. PALETTE SETTINGS
PALETTE DESCRIPTION
WHITE HOT The hot part is white-colored in view. The higher the
temperature is, the lighter the color is.
BLACK HOT The hot part is black-colored in view. The higher the
temperature is, the darker the color is.
FUSION The hot part is white-colored. From high temperature to low temperature, the image is colored in from white,
yellow, red, pink to purple.
RED HOT The hot part is red-colored in view. The higher the
temperature is, the redder the color is.
2.1.10 DIGITAL ZOOM
Press button in the view mode, the live view will switch between 1×, 2×, 4×
and 8× digital zoom.
2.1.11 ON-SCREEN DISPLAY
Press button in the view mode to display or hide the OSD (On-Screen
Display) information.
When OSD is on, the information of Wi-Fi hotspot activation, digital zoom,
storage memory status, and battery status displays in top right corner of
viewfinder.
2.1.12 DISPLAY OF THE RETICLE
Hold button in the view mode for 4 seconds, to display or hide the reticle.
The crosshair helps you to aim at the target fast and accurately.

RATTLER TS USER MANUAL 13
2.1.13 SHUTTER RELEASE
Press button in the view mode to release the shutter once for correction of
the non-uniformity of display.
2.1.14 RECORD/CAPTURE
Video Recording
Hold button in the view mode and start recording. In the upper left corner,
the recording time displays.
Hold button again to stop recording.
Snapshot Capturing
Press button in the view mode, to capture picture.
NOTE:
• When captured, the image freezes for 1 second and a prompt shows on the
display.
• For exporting captured pictures, refer to File Export.
2.1.15 FILE EXPORT
WARNING:
Please remove the batteries from the battery compartment before connecting
the device to your PC, or it may cause computer damage.
1. Before connecting the thermal riflescope to a computer, please make sure
that the Wi-Fi function of the riflescope is disabled.
2. Connect the thermal riflescope to your PC with USB cable and open the
detected disk.
3. Enter DCIM>100EZVIZ to view the videos and snapshots.
- Select and copy the videos to PC and play the file with the player.
- Select and copy the snapshots to PC and view the files.
4. Disconnect the device from your PC.
NOTE:
• The device displays images when you connect it to PC. But functions such as
recording, capturing and hot spot are disabled.
• When you connect the device to PC for the first time, it installs the driver
automatically.
FIGURE 2-4. VIDEO RECORDING

AGM Global Vision14
2.1.16 INSTALLING THE RATTLER ON A PICATINNY/WEAVER RAIL
WARNING:
Always make sure your firearm is unloaded before you place the scope on the
firearm. Reconfirm that the chamber is empty if you stop the procedure then
resume later. Safe firearms handling rules should be followed at all times.
The Rattler comes fully-assembled with a Picatinny/Weaver mount. The mount
is attached to the scope with two screws.
To install the Rattler on a Picatinny/Weaver rail, perform the following
(Figure 2-5):
1. Unlock the clamping device of the scope mount by pushing down on the lever
holder (A) and unlocking the lever (B).
2. Install the scope on the Picatinny/ Weaver rail so that the stop (C) slides into
the transverse slot on the rail.
3. Affix the scope to the rail by locking the lever (B).
4. Verify that the clamping device is firmly holding the Rattler. If necessary,
adjust the clamping device’s lever-cam lock as detailed in part 2.1.17
(Clamping Device Adjustment).
2.1.17 CLAMPING DEVICE ADJUSTMENT
To adjust the mount’s clamping device, do the following:
1. Remove the Rattler from the weapon.
2. With the clamping device unlocked (as shown in Figure 2-5), push the cam
(E) towards the arrow, which will cause the nut (D) to slide out of its hole.
3. To tighten/ loosen the clamping device, push down on the cam (E) and turn
the nut (D) CW/ CCW respectively, in one-two increments (see note below).
Much like when the cam (E) is released, backward-moving spring will cause
the nut (D) to slide back into its hole.
NOTE:
The eight-sided nut of the mount lever-cam lock will only fit into their hole if
turned in one of the discrete positions, using increments equal to 360°/8.
4. Verify that the adjusted lever-cam lock securely holds the weapon mounting
rail.
FIGURE 2-5. MOUNT
LOCKED MOUNT
UNLOCKED MOUNT
(UNDERSIDE VIEW)
UNLOCK
TURN
PUSH
B
A
C
E
D

RATTLER TS USER MANUAL 15
2.2 MAIN FUNCTIONS
2.2.1 MENU OPERATION
When the device powers on, hold button in the view mode for 4 seconds to
display the menu.
Press and buttons to move between menu items. The active element
is highlighted in orange. Press button to select menu item or change an
option.
Hold button to save settings and exit the menu.

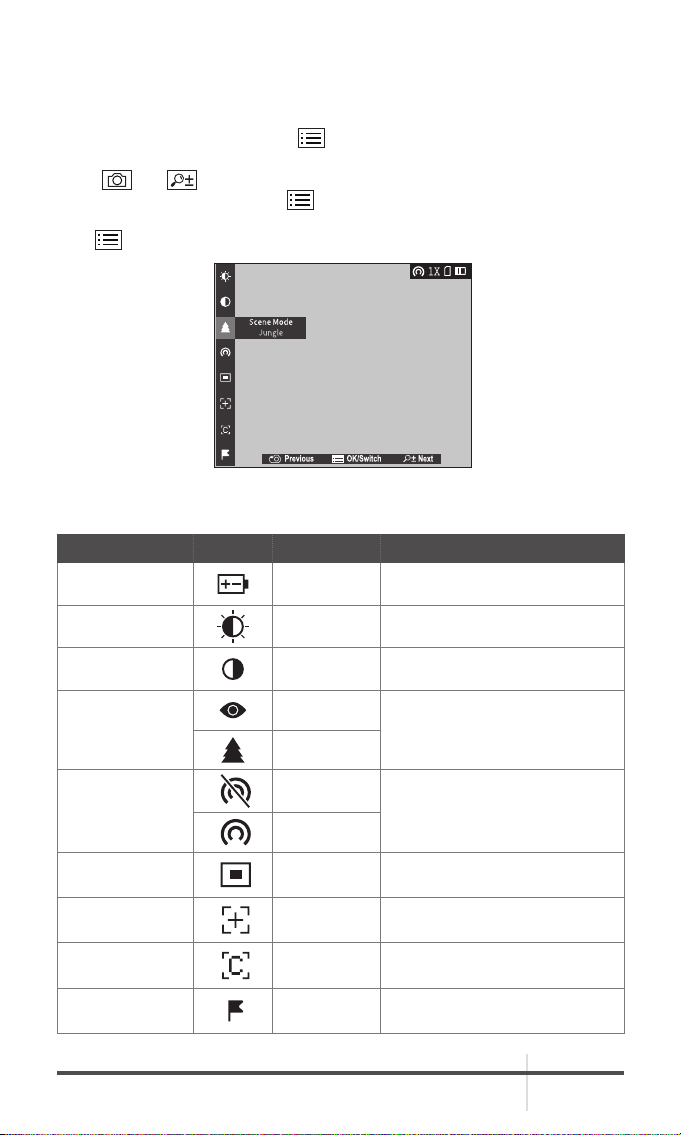

TABLE 2-4. MENU FUNCTION
MENU ITEM SYMBOL OPTION FUNCTION
BATTERY
VOLTAGE 3.0 V / 3.7 V Select the battery voltage.
BRIGHTNESS 5 Levels of
brightness Adjust the image brightness.
CONTRAST 5 Levels of
contrast Adjust the image contrast.
SCENE MODE Recognition Switch between the
Recognition mode and Jungle
mode.
Jungle
NETWORK OFF Enable or disable the Wi-Fi
hotspot.
Hotspot
PIP ON/OFF Enable or disable the PIP
function.
RETICLE 5 Types of
reticle Select the reticle type. Set the
center of the reticle.
COLOR White/
Green/ Red Select the reticle color.
TRAJECTORY 5 Profiles One shot zero correction.
FIGURE 2-6. MAIN MENU

AGM Global Vision16
MENU ITEM SYMBOL OPTION FUNCTION
FFC Auto /
Manual /
External Select the FFC mode.
MEASURE
0.8m/1.2m/
1.8m/3.0m
Target
Height
Enter distance measurement
mode.
HOT TRACKING
OFF Enable/disable hot spot mark
(marking the spot of highest
temperature).
ON
DPC --- Correct dead pixel manually.
CVBS
OFF Turn on and off the CVBS
Output function.
ON
LANGUAGE 17
Languages Select the language of
interface.
VERSION --- View the firmware version
number and serial number.
RESTORE --- Restore the device to defaults.
AUTO POWER
OFF OFF/30 min/
45 min Set the automatic shutdown
time.
2.2.2 BATTERY TYPE
You can change the battery type according to your need. Select the correct
battery voltage in the device menu.
1. Hold button in the view mode to show the menu.
2. Select Battery Voltage menu item, and press button to switch the
battery voltage.
2.2.3 BRIGHTNESS ADJUSTMENT
1. Hold button to show the menu.
2. Select Brightness menu item and press button to adjust the
brightness.
In White Hot mode, you can select one of five levels of the brightness to adjust
the image lighter or darker.
In Black Hot mode, the brightness of the image turns in the opposite way.
2.2.4 CONTRAST ADJUSTMENT
1. Hold button to go to the menu.

RATTLER TS USER MANUAL 17
2. Select Contrast menu item and press button to adjust the image
contrast. You can select one of five levels of the contrast.
2.2.5 SCENE MODE
You can select proper Scene Mode according to environment temperature to
improve the display effect.
1. Hold button to show the menu.
2. Select / Scene Mode menu item ( is default option) and press
button to switch scene.
- Recognition mode ( ) improves an image so that the object edge is more
distinct.
- Jungle mode ( ) is more suitable for hunting environment because of the
highlight function of small objects.
3. Hold for 4 seconds to save settings and exit.
2.2.6 NETWORK CONFIGURATION
Connect your phone to the Wi-Fi hotspot of the riflescope, you can configure
the parameters and realize functions of the device.
1. Hold button to show the menu.
2. Select menu item to enable Wi-Fi hotspot function.
3. Turn on the WLAN and connect to the Wi-Fi hotspot.
- Hotspot Name: Wlan-IPTS Serial No.
- Hotspot Password: Last 9 digits of Serial No.
4. Search the client software on App Store (iOS System) or Google PlayTM
(Android System) to download and install the app. T-Vision APP is
recommend.
5. Open the APP and connect your phone with the device. You can view the
interface of riflescope on your phone.
NOTE:
When the power is less than 15%, the Wi-Fi hotspot function will be turned off
automatically.
2.2.7 PICTURE IN PICTURE MODE
1. Hold button to show the menu.
2. Select PIP menu item and enter PIP mode. The details show in the upper
part of screen.
NOTE:
When Reticle is enabled, the PIP view is the detail of crosshair.
When Reticle is not enabled, the PIP view is the detail of central part.
3. Press button to activate or desabled PIP mode.
4. Hold button to exit.
If digital zoom is enabled, the PIP view also zooms. If the digital zoom ratio
exceeds 4, the PIP does not zoom.

AGM Global Vision18
2.2.8 BORESIGHTING
Enable the reticle to aim at the target. Hold button in the view mode for 4
seconds, to display or hide the reticle.
1. Hold button to show the menu.
2. Select Reticle menu item. A reticle shows in the center of the view.
3. Press or buttons to select one of 5 reticle type. Then press
button to confirm.
NOTE:
The scale intervals of the Reticle 4 changes synchronously under the current
digital zoom. The value of one scale interval of the Reticle 4 is 6.75 MOA.
You can boresight the scope by moving the reticle on screen:
1. In Reticle menu press , , and buttons to move the reticle
position. The coordinate shows the current position of the reticle.
2. Hold button to save and exit.
TABLE 2-5. BORESIGHT CORRECTIONS
MODEL ADJUSTMENT
VALUE RETICLE OFFSET BORESIGHT INCREMENT
RATTLER TS25 1 click 1 pixel 0.26 mil / 0.89 MOA /
2.54 cm on 100m distance /
0.91 in on 100 yd distance
RATTLER TS35 1 click 1 pixel 0.18 mil / 0.63 MOA /
1.82 cm on 100m distance /
0.66 in on 100 yd distance
FIGURE 2-7. RETICLE PATTERNS
RETICLE 1 RETICLE 2 RETICLE 3 RETICLE 4 RETICLE 5
FIGURE 2-8. BORESIGHT CORRECTION
Cursor Type : Reticle 1

RATTLER TS USER MANUAL 19
2.2.9 RETICLE COLOR
You can change the color of the reticle.
Enable reticle first.
1. Hold button to show the menu.
2. Select Color menu item and press button to switch the color of
reticle. White, Green, and Red colors are selectable.
3. Hold button to save and exit.
2.2.10 TRAJECTORY CORRECTION
Enable the trajectory correction to shot the target with high accuracy by
marking the offset between the big crosshair and small crosshair.
Trajectory correction available only with Reticle 1 type. Select Reticle 1 in the
Boresighting menu.
1. Hold button to show the menu.
2. Select Trajectory menu item. Two crosshairs show in the view. The big one
is reticle crosshair, and the small one is trajectory correction crosshair.
3. Set the distance.
1) Press button, and then press or buttons to adjust the
distance between the target and the device.
2) Press button to save the distance settings.
4. Set the crosshair position of trajectory correction.
1) Aim the big crosshair at the target.
2) Shot and mark the actual drop point of the bullet.
3) Press , , and buttons to move the small cursor to the
position of the actual drop point. You can view the coordinate of the cursor
in the view.
5. Press button to switch to the next distance.
6. Repeat step 3 to 4 to set another trajectory correction position.
You can save up to five corrections for different distances. Corrective aiming
points will be displayed with short lines on the reticle.
7. Hold button to exit.
NOTE:
The scale of the Reticle 1 with trajectory correction marks changes
synchronously under the digital zoom.

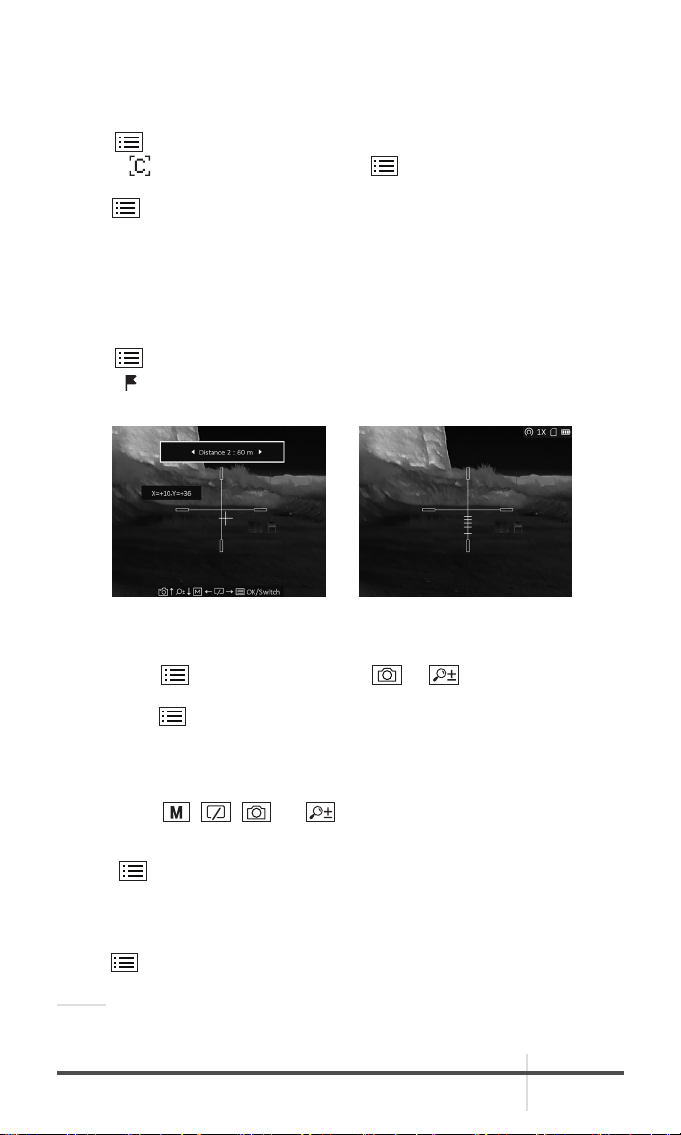

FIGURE 2-9. TRAJECTORY CORRECTION

AGM Global Vision20
2.2.11 FLAT FIELD CORRECTION
Flat Field Correction (FFC) function can correct non-uniformity of display.
1. Hold button to show the menu.
2. Select FFC menu item and press button to switch the FFC mode.
Auto: The riflescope performs FFC automatically when switching on or
rebooting the camera.
Manual: Hold button in live view to correct the non-uniformity of display.
External: Cover the lens cap, then hold button in live view to correct the
non-uniformity of display.
3. Hold button to confirm the setting and exit.
2.2.12 DISTANCE MEASUREMENT
The device can detect the distance between the target and the observation
position.
NOTE:
When measuring the distance, keep your hand and the position steady.
Otherwise, the accuracy may be affected.
1. Hold button to show the menu.
2. Select menuitemandpress buttontoenter theDistanceMeasurement
mode.
3. Press button to go to the target setting interface.
1) Press or to select the target from Wolf (0.8m), Bear (3.0m),
Deer (1.2m), and Custom (1.8m). Each target preset can be modified from
0.1 to 9.9m.
2) Set the target and press button to confirm.
4. Align the center of top mark with the edge of target top. Press button.
The cursor blinks on the top edge of the target.
5. Align the center of bottom mark with the edge of target bottom. Press .
The left top of the image displays the distance measurement result and the
height of the target.
NOTE:
Go to distance measurement interface, and press button to view the result
of the previous measuring target.
2.2.13 HOT TRACKING
The device can detect the highest temperature spot in the scene and mark it
on display.
1. Hold button to show the menu.
2. Select / and press button to enable/disable hot spot mark
(marking the spot of highest temperature).
When the hot spot mark is enabled, the mark displays in the spot of the
highest temperature. When the scene changes, the mark moves.
