Agri-Fab MOW-N-VAC 501887 User manual

OWNERS
MANUAL
Model No's.
501887
501888
551887
551888
190-217D-100
190-217E-100
Includes Deck
Adapter #62468
CAUTION:
Read Rules for
Safe Operation
and Instructions
Carefully
PRINTED IN U.S.A. FORM NO 49942 (02/16/12)
MOW-N-VAC
• Safety
• Assembly
• Operating
• Maintenance
• RepairParts
the fastest way to purchase parts
www.speedepart.com
™
IMPORTANT:The engine is shipped without oil. Add oil
before starting the engine.
Call 1-800-448-9282 for missing parts or assembly help.
IMPORTANT: The wheel bearings are not prelubricated.
Fill the wheel hubs with grease after assembling the wheels
to the axle.
Want more information or assembly tips?
Scan with free ShowUHow Mobile App
available at iTunes Store or Android Market.
Or visit www.agri-fab.com for product
assembly instructions.

2
TABLE OF CONTENTS
SAFETY RULES....................................................... 3,4
FULL SIZE HARDWARE CHART...........................5,13
CARTON CONTENTS................................................. 6
ASSEMBLY.................................................................. 7
OPERATION..............................................................15
MAINTENANCE ........................................................16
STORAGE ................................................................. 16
TROUBLESHOOTING............................................... 17

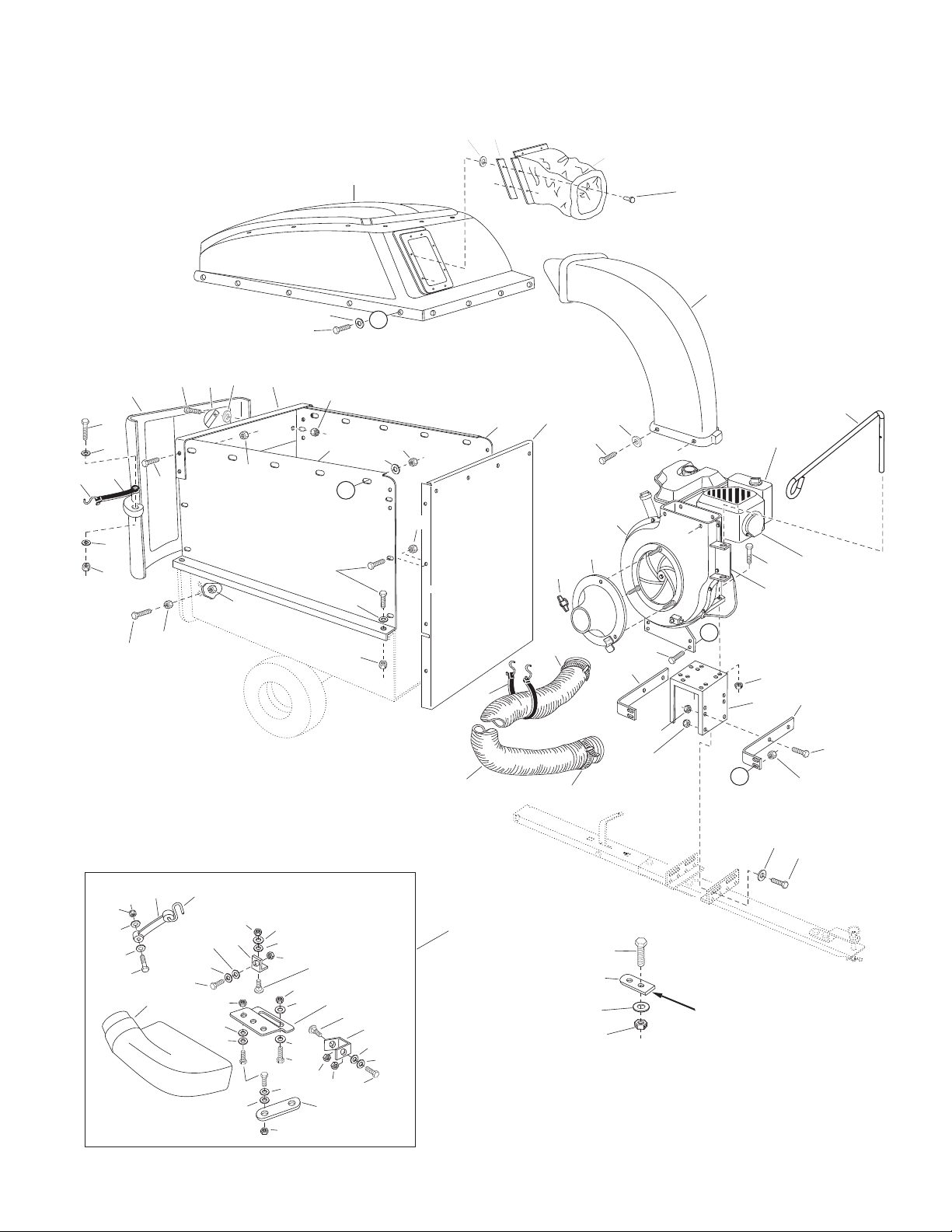

REPAIR PARTS ILLUSTRATIONS .................19,20,22
REPAIR PARTS LISTS ....................................19,21,22
SLOPE GUIDE ..........................................................23
PARTS ORDERING................................................... 24
OPTIONALACCESSORY
MODEL NO. 45-0253
12 FT. REMOTE HOSE KIT
The Remote Hose Kit, Model 45-0253, provides
12' x 5" diameter hose to clean around shrubs,
patios, window wells and other areas not
accessible to the tractor.
WARNING
This unit is equipped with an internal combustion engine and should not be used on or near unimproved forest-covered, or
grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state
laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states
may have similar laws. Federal laws apply on federal lands. A spark arrester mufer is available at you nearest engine
authorized service center.

3
SAFETY
Any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise
caution at all times, when using power equipment.
•Read and follow all instructions in this manual before attempting
to assemble or operate this equipment. Failure to comply
with these instructions may result in personal injury. Keep this
manual in a safe place for future reference and for ordering
replacement parts.
•Read this operating and service instruction manual carefully.
Be thoroughly familiar with the controls and proper use of this
power vacuum.
• Read the vehicle owners manual and vehicle safe operation
rules before using this equipment.
• Never allow children under 16 to operate this Mow-N-Vac.
Children 16 years and older should only operate under close
parental supervision.
• Do not allow anyone to operate this equipment without proper
instructions.
• Do not allow passengers to ride on this equipment or on the
towing vehicle.
• Keep the area of operation clear of all persons, particularly
small children. Also keep area clear of pets.
• Check fuel before starting engine. Do not ll fuel tank indoors,
or when engine is running, or while engine is hot. Wipe off
any spilled fuel before starting engine.
• Engine and mufer get hot. Do not touch! To avoid re hazard,
keep clean of debris and other accumulations.
• Never store Mow-N-Vac with fuel in tank. Allow engine to cool
before storing in any enclosure.
• Do not change engine governor settings.
• Do not operate engine if air cleaner or cover is removed,
except for adjustment. Removal of these parts could create a
re hazard.
• Keep hands, feet, face, long hair and clothing out of inlet and
discharge area. There are ROTATING BLADES inside these
openings.
• Before cleaning, repairing or inspecting, make certain all moving
parts come to a complete stop. Disconnect spark plug wire
and keep wire away from plug to prevent accidental starting.
Keep throttle control lever in stop position.
• If the Mow-N-Vac should become blocked with debris at any
point, shut engine off and wait until the impeller comes to a
complete stop before attempting to remove the obstruction.
Disconnect spark plug wire to prevent accidental starting.
• If the cutting mechanism strikes a foreign object, or if your
Mow-N-Vac should start to vibrate abnormally, stop the engine
immediately, disconnect the spark plug wire and move the wire
away from the spark plug. Allow the machine to stop and take
the following steps.
a. Inspect for damage.
b. Repair or replace any damaged parts.
c. Check for loose parts and tighten to assure
continued safe operation.
• Check all bolts for tightness at frequent intervals to help insure
safe operation.
• Check vinyl hard top boot frequently for wear. Replace if worn
or damaged.
• Never operate Mow-N-Vac unless deck adapter, hose, hose
adapter (nozzle), discharge chute (elbow), and top cover are
properly attached in their place.
• Do not remove top cover or attempt to empty contents of cart
while engine is running.
• Never attempt to change hose adapter (nozzle) or to install
remote hose attachment when engine is running.
• Keep all shields and guards (e.g. discharge chute (elbow) and
hose adapter (nozzle) in place and securely attached.
• Always wear safety glasses or other suitable eye protection
when operating or maintaining this equipment.
• Do not stand behind cart in exhaust discharge area while
engine is running.
• Do not operate this equipment while intoxicated or while taking
drugs or medication that impairs the senses and reactions.
• When using this equipment, start with the vehicle transmission
in rst (low) gear and then gradually increase speed only as
conditions permit.
• Operate this equipment at reduced speed on rough terrain,
along creeks and ditches and on slopes to prevent tipping or
loss of control. Do not drive too close to a creek or ditch.
• Vehicle braking and stability are affected by the addition of
this equipment. Do not ll the Mow-N-Vac to its full capacity
without checking the capability of the towing vehicle to safely
pull and stop with the Mow-N-Vac attached.
• Before operating on any grade (hill) refer to the safety rules
in the vehicle owner's manual concerning safe operation on
slopes. Also refer to the SLOPE GUIDE on page 23 of this
owner's manual. Do not operate on slopes in excess of 10
degrees. STAYOFFSTEEPSLOPES.
•Follow the maintenance instructions outlined in this manual.
Look for this symbol to point out important safety precautions. It means — Attention!! Becomealert!!Your
safetyisinvolved.
DANGER: This Mow-N-Vac was built to be operated according to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This unit is capable of amputating ngers and hands and throwing objects.
Failure to observe the following safety instructions could result in serious injury or death.

4

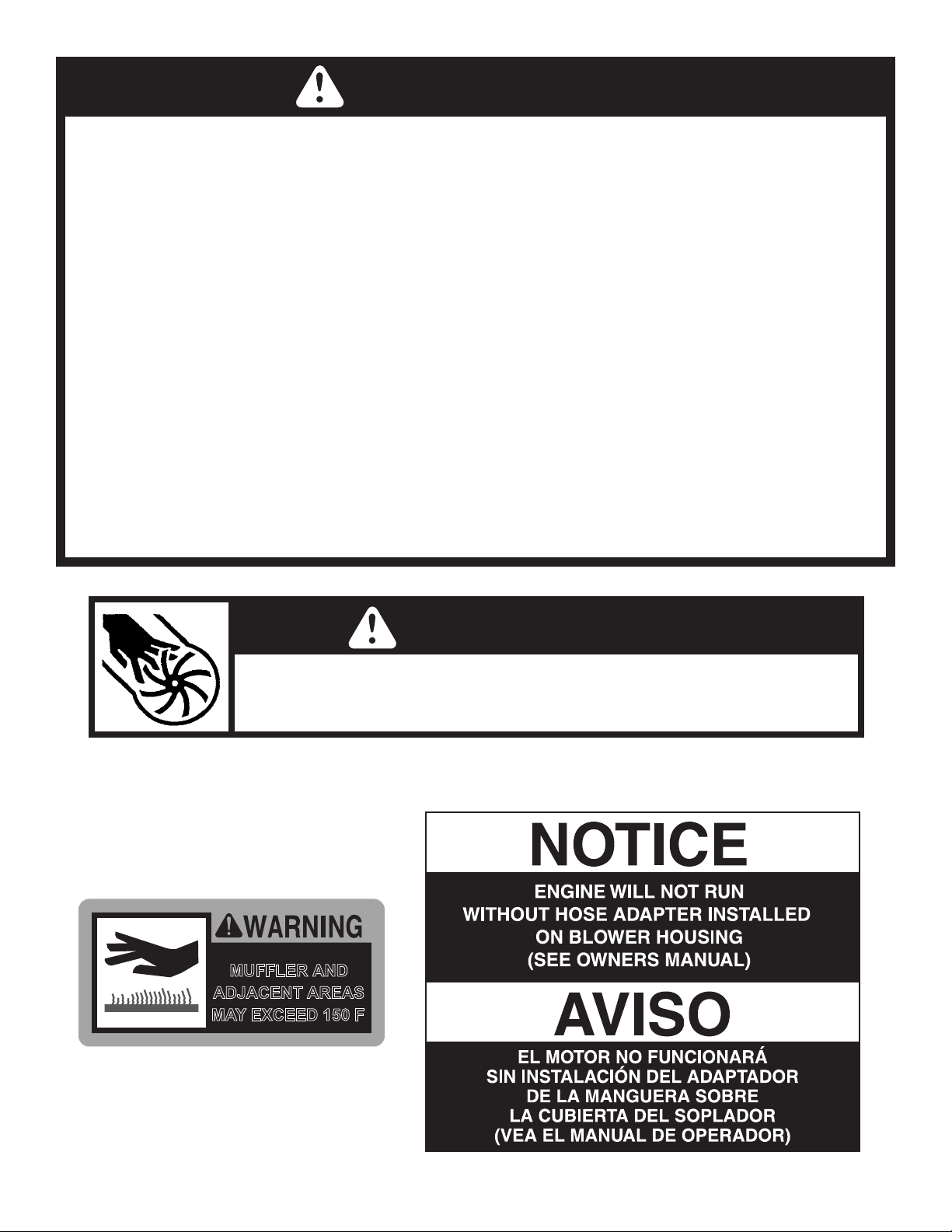

WARNING
• ReadOwner'sManualandallsafetylabelsonmachinebeforestartingandusingmachine.
• DoNotremovetopcoverorattempttoemptycontentsofcartwhileengineisrunning.
• DoNotstandbehindcartinexhaustdischargeareawhileengineisrunning.
• Keephands,feet,face,longhairandclothingoutofchipperinlet,vacinlet,anddischarge 
 area.ThereareROTATINGBLADESinsidetheseopenings.
• Wearapprovedsafetyglassesandgloves.Avoidloosettingclothes.
• Keeptheareaofoperationclearofallpersons,particularlysmallchildrenandpets.
• Keepallshieldsandguards(e.g.upperchipperchuteextension,dischargechute,nozzle 
 assembly)inplaceandsecurelyattached.
• Checkdischargebootfrequentlyforwear.Replaceifwornordamaged.
• Ifunitbecomescloggedorjammed,shutoffenginerightaway.DoNotattempttoclear 
 clogorjamwithenginerunning.
• Muferandenginegethotandcancauseburns.DoNotTouch.Toavoidarehazard, 
 keepleaves,grassandothercombustibledebrisoffhotmuferandengine.
• DoNotattempttoremoveorattachvacnozzleoroptionalHoseKitwithenginerunning.
• DoNotoperateunitunlessnozzleoroptionalHoseKitissecuredinplace.
• DoNotllgastankwhileengineisrunning.Allowenginetocoolatleast2minutes
 beforerefueling.
DANGER
HAZARDOUSROTATINGBLADESINSIDE.KEEPHANDSAWAYFROMALL
OPENINGS.DONOTREMOVEORATTACHHOSE,HOSEADAPTER,ELBOWOR
OPTIONALHOSEKITWHENENGINEISRUNNING!
DANGER
MUFFLER AND
ADJACENT AREAS
MAY EXCEED 150 F
777-5863
TOAVOIDSERIOUSINJURY

5

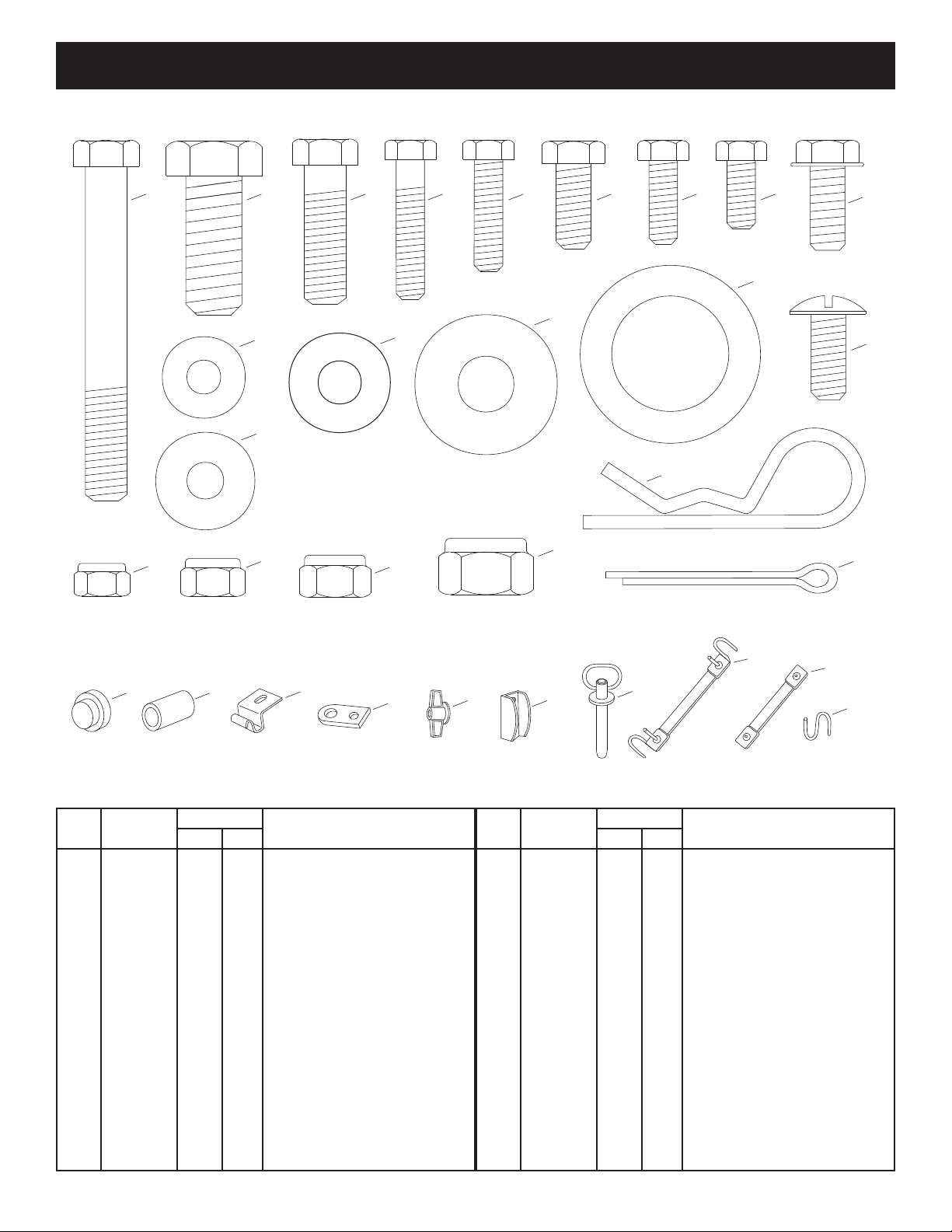

HARDWAREPACKAGECONTENTS
Seepage13forcontentsofDeckAdapterhardwarepackage.(Contentsnotincludedhere.)
K
H
P
N
L
I
J
GFEDCBA
S
R
T
U
VWXYZAA
Q
SHOWN FULL SIZE
O
NOT SHOWN FULL SIZE
BB
CC
EE
DD
M
REF. PART
NO.
QTY. DESCRIPTION
Cart Vac
A 43574 3 — Bolt, Hex 3/8" x 3"
B 43351 — 1 Bolt, Hex 1/2" x 1-1/4"
C 43087 2 — Bolt, Hex 3/8" x 1-1/4"
D 1509-90 — 5 Bolt, Hex 1/4" x 1-1/4"
E 43661 — 2 Bolt, Hex 1/4" x 1"
F 43182 — 6 Bolt, Hex 5/16" x 3/4"
G 43012 — 14 Bolt, Hex 1/4" x 3/4"
H 43866 9 20 Bolt, Hex 1/4" x 5/8"
I 47630 — 4 Bolt, Hex 5/16" x 3/4" (ST)
J 43814 12 — Bolt, Truss Head 5/16" x 3/4"
K 43088 2 36 Washer, Flat 1/4"
L 1543-69 — 6 Washer, Nylon
M 43081 — 4 Washer, Flat 5/16"
N 43352 — 1 Washer, Flat 7/16"
O 43601 4 — Washer, Flat 1"
P 47189 9 40 Nylock Hex Nut, 1/4"
REF. PART
NO.
QTY. DESCRIPTION
Cart Vac
Q 47810 12 6 Nylock Hex Nut, 5/16"
R HA21362 5 — Nylock Hex Nut, 3/8"
S 712-3083 — 1 Nylock Hex Nut, 1/2"
T 43343 1 — Pin, Hair Cotter 1/8"
U 43093 2 — Pin, Cotter 1/8" x 1-1/2"
V43014 2 — Hub Cap
W 44678 2 — Spacer Tube
X 23838 2 — Door Support
Y 23540 — 1 Hitch Plate
Z 712-0421 — 3 Knob
AA 23789 — 2 Door Latch
BB 43884 1 — Hitch Pin
CC 43790 — 1 Tarp Strap, 25"
DD 44850 — 4 Tarp Strap (Less Hooks)
EE 44849 — 4 "S" Hooks

6

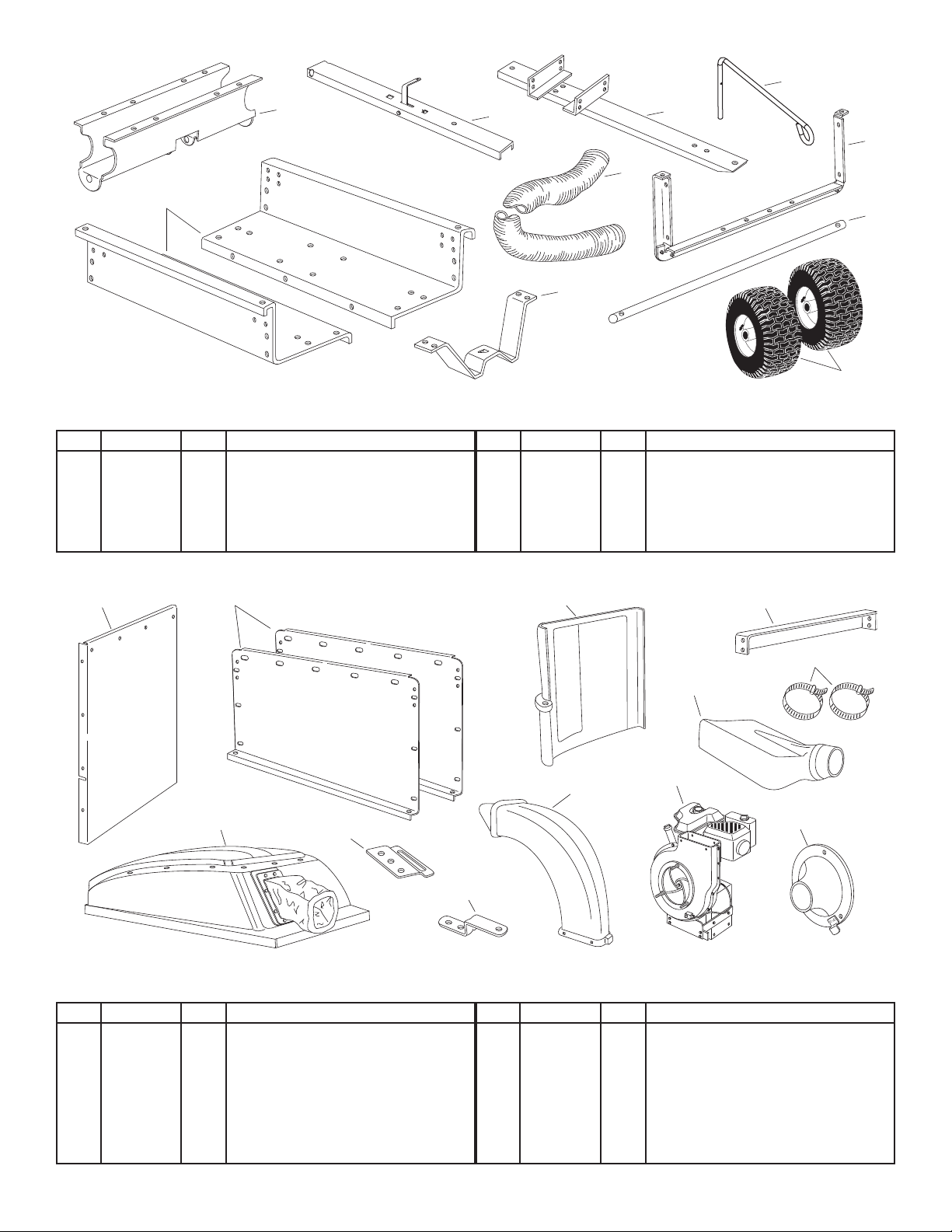

CARTON CONTENTS (Mow-N-Vac Carton)
CARTON CONTENTS (Cart Body Carton)
3
1 2 4
7
5
9
8
10
6
11
12
10
5 8
1
7
23
4
6
9
REF. PARTNO. QTY. DESCRIPTION
1 23507 1 Wheel Support
2 ----- 1 Rear Tongue w/Latch
3 63155 1 Front Tongue
4 49974 1 Hose Hanger Rod
5 23985 2 Cart Body
REF. PARTNO. QTY. DESCRIPTION
6 41882 1 Hose
7 62458 1 Tailgate Reinforcement Bracket
8 24897 1 Axle
9 24497 1 Latch Stand Bracket
10 42159 2 Wheels
REF. PARTNO. QTY. DESCRIPTION
1 24679 1 Front Panel
2 24678 2 Side Panels
3 44790 1 Rear Door
4 23836 1 Cross Brace
5 64244 1 Poly Hard Top
6 23560 1 Adapter Bracket
7 23475 1 Hitch Bracket
REF. PARTNO. QTY. DESCRIPTION
8 46420 1 Elbow
9 ----- 1 Engine Base Assembly
10 43830 1 Deck Adapter
11 43793 2 Hose Clamp
12 43791 1 Hose Adapter (Nozzle)

7
ASSEMBLY
FIGURE 3
FIGURE 1

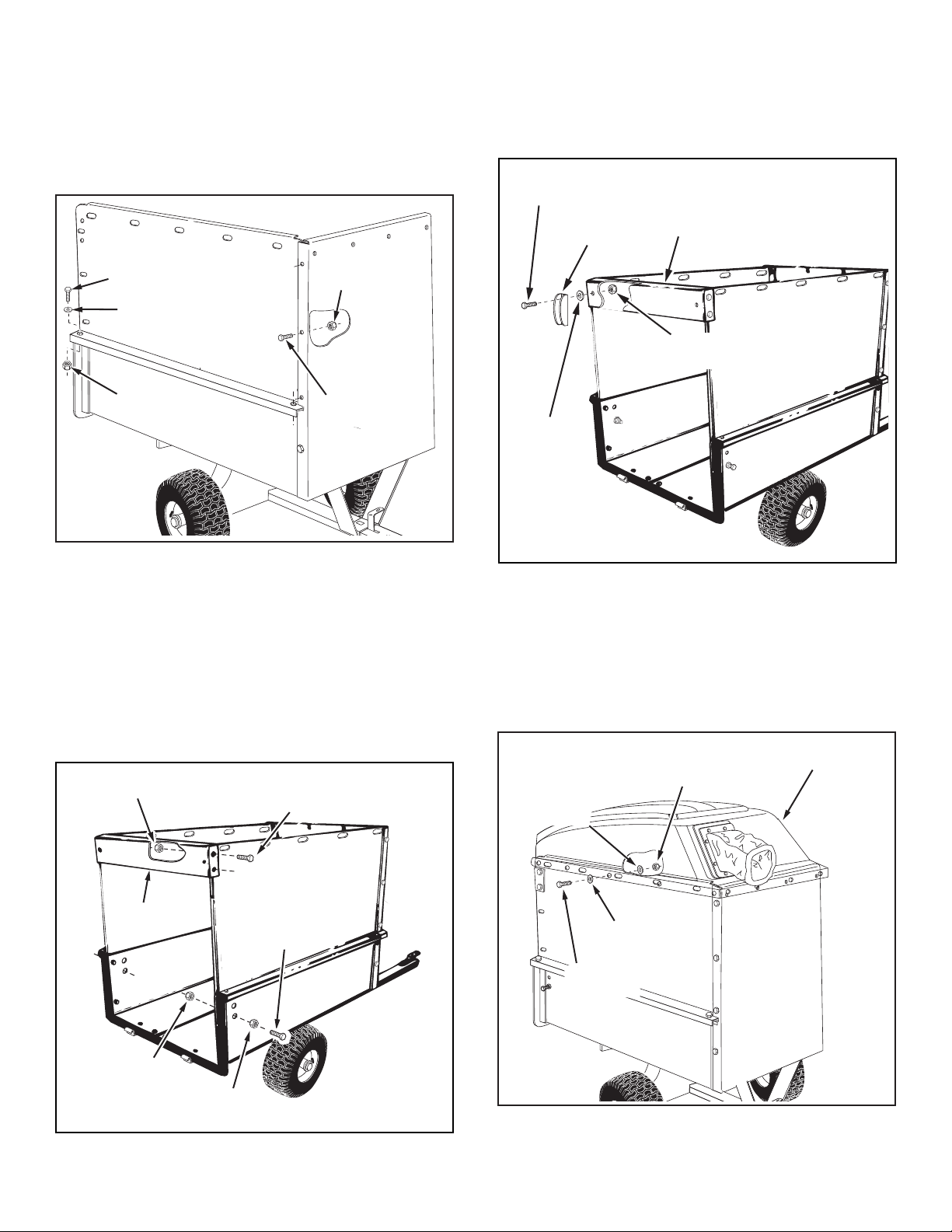

2. Assemble cart body halves together using three 1/4"
x 5/8" hex bolts and 1/4" Nylock hex nuts as shown in
gure 1. Donottightenyet.
This unit is shipped WITHOUT GASOLINE or OIL. After
assembly, see separate engine manual for proper fuel and
engine oil recommendations.
CAUTION: Do not leave the cart unattended
in upright position during assembly. A falling
cart can cause personal injury! Pay close
attention to the stability of the cart while it
remains in an upright position.For best stability,
assemble on a smooth level surface.

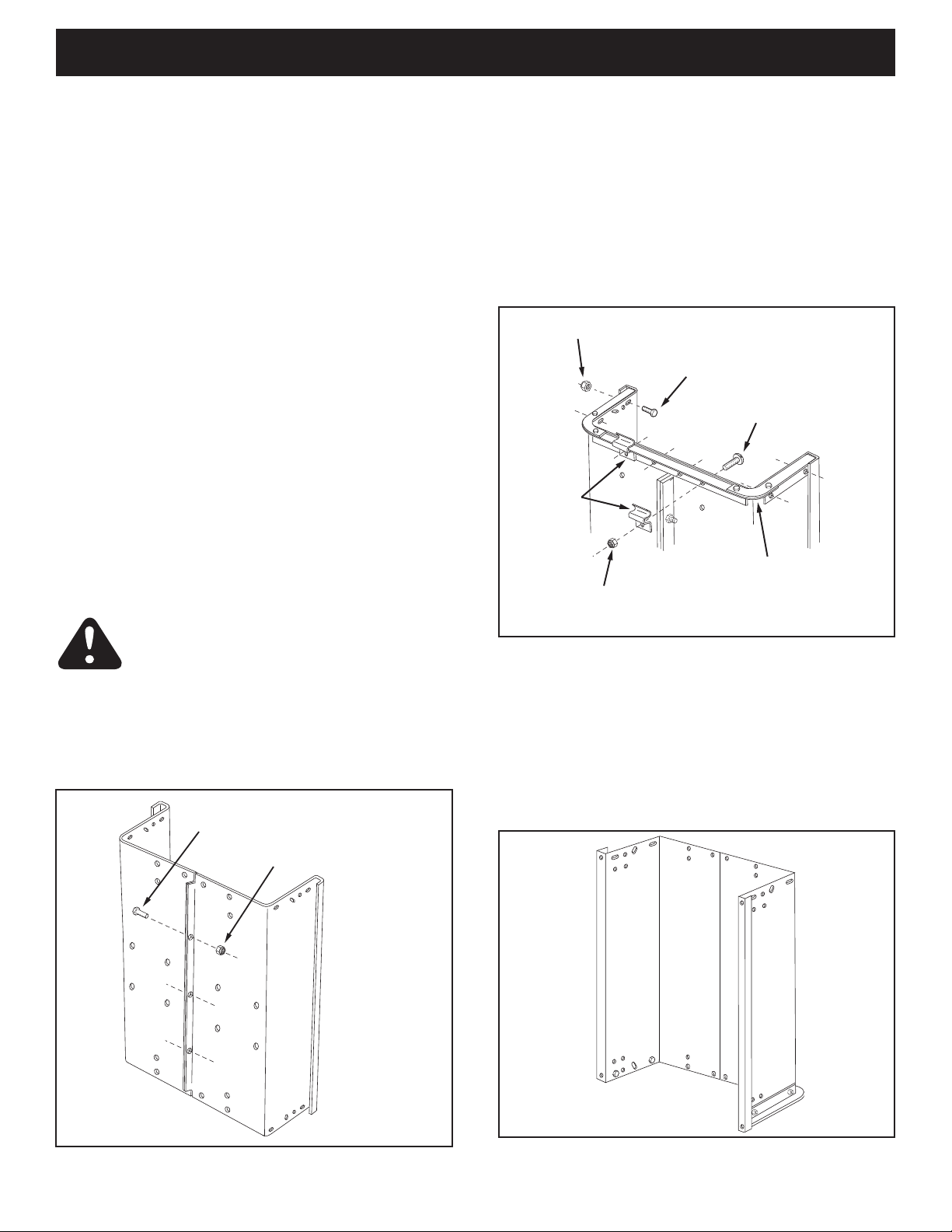

1. Place cart body halves upright on a smooth level surface
such as a garage oor or a paved driveway. See gure
1.
ASSEMBLINGCARTBODY
TOOLSREQUIREDFORASSEMBLY
(1) Screwdriver
(1) Pliers
(2) 7/16" Wrenches
(2) 1/2" Wrench
(2) 9/16" Wrenches
(2) 3/4" Wrenches (only if gure 22 on page 12 is used)
3. Fit the tailgate reinforcement bracket over the end of the
cart bed. Position the two door support brackets on the
bottom of the reinforcement bracket as shown in gure 2.
Fasten the reinforcement bracket and the door supports
to the bottom of the cart using four 5/16" x 3/4" truss
head bolts and 5/16" Nylock hex nuts. Donottighten
yet.See gure 2.
4. Fasten the tailgate reinforcement bracket to the sides of
the cart body using four 1/4" x 5/8" hex bolts and 1/4"
Nylock hex nuts as shown in gure 2. Donottighten
yet.
FIGURE 2
REMOVALOFPARTSFROMCARTONS
1. Remove the hardware packs and all loose parts from
the cartons.
2. Lay out and identify parts shown in carton contents.
3. Lay out and identify parts in the hardware packs. Keep
contents of each hardware package separate.
1/4" x 5/8" HEX BOLT
1/4" NYLOCK HEX NUT
5/16" NYLOCK
HEX NUT
1/4" NYLOCK HEX NUT
1/4" x 5/8"
HEX BOLT
5/16" x 3/4" TRUSS
HEAD BOLT
DOOR
SUPPORT
TAILGATE
REINFORCEMENT
BRACKET
5. Pull the cart body halves together.
 Tighten the four truss head bolts in gure 2.
 Tightenthe four hex bolts in gure 2.
Tighten the three hex bolts in gure 1, keeping the
bottom aligned and pulled together.
6. Carefully ip the cart end for end so that it rests on the
tailgate reinforcement bracket. See gure 3.

8
FIGURE 4
8. To prevent accidental tipping during the following
assembly procedures, lower the cart to rest upside down,
with the wheel support facing up, as shown in gure 5.
9. Align the latch stand bracket so that the tab is at the rear.
Fasten the bracket to the rear set of holes at the front of
the cart using two 1/4" x 5/8" hex bolts, 1/4" at washers
and 1/4" Nylock hex nuts. Use the 1/4" at washers as
shims between the bracket and the cart bed.Makenger
tight. See gure 5.
FIGURE 6
FIGURE 7
10. Position the rear tongue on the wheel support and the
latch stand bracket.Assemble the axle through the wheel
support and the tongue. See gure 6.
IMPORTANT: Make sure the tongue is securely locked
to the latch stand bracket by the latch lock lever.

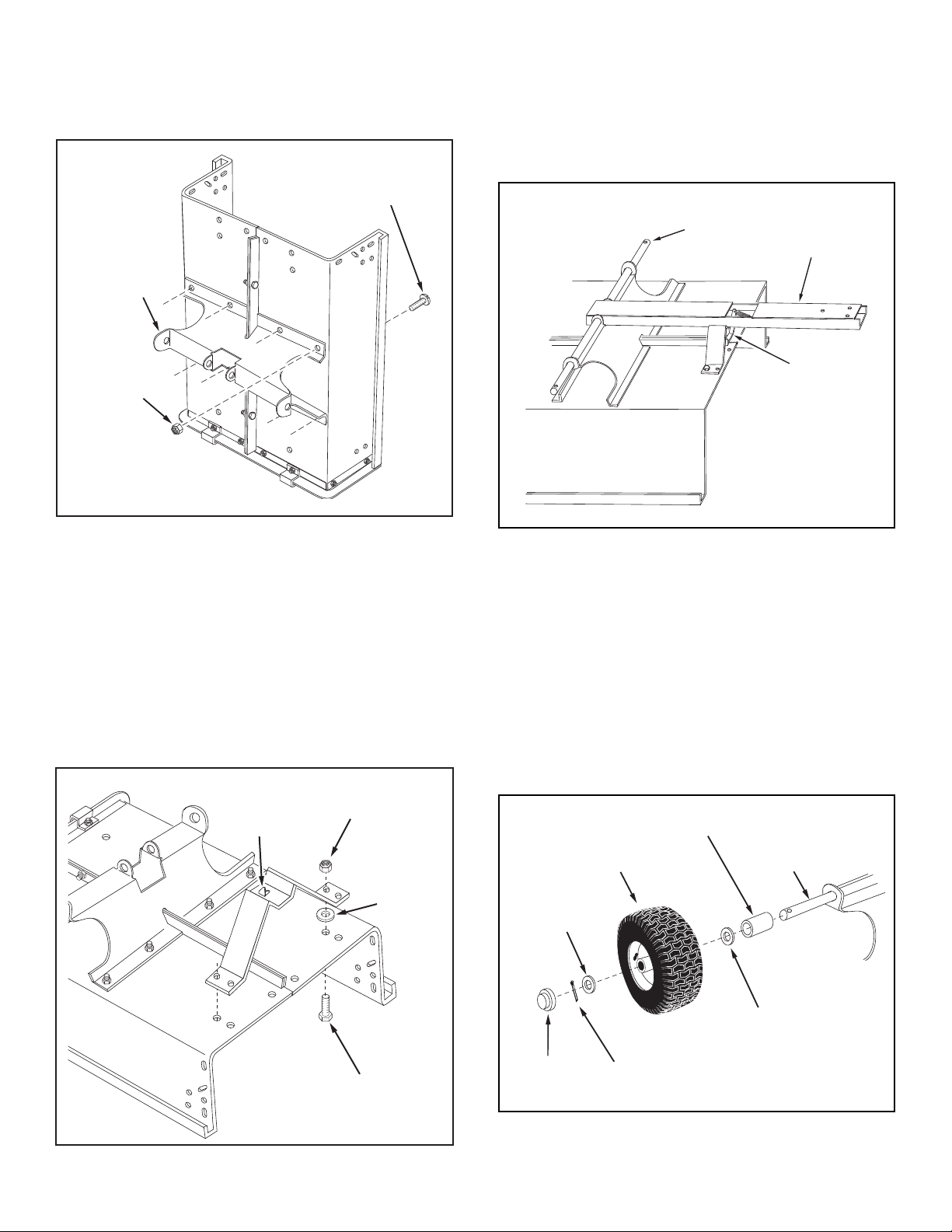

7. Assemble the wheel support to the bottom of the cart
using eight 5/16" x 3/4" truss head bolts and 5/16" Nylock
hex nuts as shown in gure 4. Heads of bolts go on the
inside of cart. Tighten.
LATCH STAND
BRACKET
(Tab at rear)
1/4" x 5/8"
HEX BOLT
1/4" NYLOCK
HEX NUT
1/4" FLAT
WASHER
AXLE TONGUE
(REAR)
LATCH
LOCK
LEVER
COTTER PIN
WHEEL
HUB CAP
1" FLAT
WASHER
1" FLAT
WASHER
AXLE
SPACER TUBE
FIGURE 5
5/16" NYLOCK
HEX NUT
WHEEL
SUPPORT
5/16" x 3/4"
TRUSS HEAD BOLT
11. Assemble a spacer tube, a 1" at washer, a wheel
(valve stem facing out), and another 1" at washer
onto the axle as shown in gure 7. Secure the wheel
with a cotter pin, spreading the ends so that a hub
cap can t over the pin. Assemble the hub cap by
pressing it onto the at washer. Repeat on other end
of axle.
12. Pump grease into grease ttings on wheels until
grease is forced out through ends of hubs.

9
FIGURE 8
13. Flip the cart over so that it rests on its wheels.
14. Assemble the front tongue on top of the rear tongue
using three 3/8" x 3" hex bolts and 3/8" Nylock hex nuts.
See gure 8.
HINT: For easier assembly, support the rear tongue
with a block of wood.
15. Assemble the hitch bracket to the front tongue using two
3/8" x 1-1/4" hex bolts, 3/8" and 3/8" Nylock hex nuts.
Tighten. See gure 9.
16. Secure the hitch pin to the hitch bracket and tongue with
the hair cotter pin. See gure 9.
FIGURE 10
HITCH BRACKET
3/8" x 1-1/4"
HEX BOLT
3/8" NYLOCK
HEX NUT
TONGUE
HITCH
PIN
HAIR
COTTER
PIN
FIGURE 9
17. Release the latch lock lever and tilt the cart bed back.
See gure 10.
18. Assemble the front panel to the cart bed, sliding the
bottom lip of the panel in between the cart bed and the
latch stand bracket. Fasten the panel to the bottom and
sides of the cart bed using six 1/4" x 5/8" hex bolts and
1/4" Nylock hex nuts. Tighten. See gure 10.
19. Tighten the two bolts that you assembled to the latch
stand bracket in gure 5.
TONGUE
(FRONT)
3/8" x 3"
HEX BOLT
BLOCK
3/8" NYLOCK
HEX NUT
ASSEMBLINGVACPARTS
1/4" x 5/8"
HEX BOLT
FRONT
PANEL
1/4" NYLOCK
HEX NUT
1/4" x 5/8"
HEX BOLT
1/4" NYLOCK HEX NUT
LATCH
STAND
BRACKET

10
FIGURE 11
20. Place a side panel on top of the cart bed ange, inside
the lip of the front panel.Fasten the side panel to the front
panel using three 1/4" x 5/8" hex bolts and 1/4" Nylock
hex nuts. Fasten the side panel to the cart bed ange
using two 1/4" x 5/8" hex bolts, 1/4" at washers, and
1/4" Nylock hex nuts. Tighten.See gure 11. Repeat on
other side.
FIGURE 12
21. Screw a 1/4" Nylock hex nut approximately half an inch
onto a 1/4" x 1" hex bolt. Insert the bolt into the hole
shown in gure 12, in the side of the cart. Fasten the
bolt to the cart using a 1/4" Nylock hex nut. Tightenso
that the nut is ush with the end of the bolt. Repeat on
the other side. See gure 12.
22. Assemble the cross brace to the top rear holes in the
side panels using four 1/4" x 5/8" hex bolts and 1/4"
Nylock hex nuts. See gure 12.
23. Assemble a door latch at each end of the cross brace
using a 5/16" x 3/4" hex bolt, a nylon washer and a
5/16" Nylock hex nut. Place the nylon washer between
the door latch and cross brace. Tighten so that latch is
snug but will still rotate. See gure 13.
FIGURE 13
5/16" x 3/4"
HEX BOLT
CROSS
BRACE
DOOR
LATCH
NYLON
WASHER
5/16" NYLOCK
HEX NUT
24. Install the poly hard top using fourteen 1/4" x 3/4" hex
bolts and 1/4" at washers on the outside and fourteen
1/4" at washers and 1/4" Nylock hex nuts on the inside.
Tighten. See gure 14.
FIGURE 14
1/4" x 5/8"
HEX BOLT
1/4" NYLOCK
HEX NUT
1/4" NYLOCK
HEX NUT
1/4" x 5/8"
HEX BOLT
1/4" FLAT WASHER
1/4" x 3/4"
HEX BOLT
1/4" FLAT
WASHER
1/4" NYLOCK
HEX NUT
POLY HARD TOP
1/4" FLAT
WASHER
1/4" NYLOCK
HEX NUT
1/4" NYLOCK
HEX NUT
1/4" x 5/8"
HEX BOLT
CROSS
BRACE
1/4" NYLOCK
HEX NUT
1/4" x 1"
HEX BOLT

11
25. Assemble a short tarp strap to rear door using one 1/4" x
1-1/4" hex bolt, two 1/4" at washers and one 1/4" Nylock
hex nut. Assemble an "S" hook through loose end of
strap. See gure 15. Repeat on other side of door.
26. Assemble door to rear of cart by resting bottom of door
on door supports and pushing top of door in against
cross brace. Secure top of door using door latches on
each side. See gure 15.
27. Hook both the tarp straps onto the 1/4" x 1" hex bolts in
the sides of the cart. See gure 15.
FIGURE 16
FIGURE 15
5/16"
NYLOCK
NUT
5/16" x 3/4"
HEX BOLT
WELDED
ANGLES
FRONT
TONGUE
5/16" FLAT
WASHER
FIGURE 17
Center elbow between
sides of opening
Loosen (4) bolts
1/4 turn each
5/16" x 3/4"
HEX BOLT
(Thread Forming)
NYLON
WASHER
1/4" x 1-1/4" HEX BOLT
1/4" FLAT WASHER
1/4" NYLOCK
HEX NUT
TARP STRAP (SHORT)
DOOR
SUPPORTS
DOOR LATCH
1/4" FLAT
WASHER
"S" HOOK
1/4" x 1"
HEX BOLT
28. Attach the engine/impeller housing assembly to the
upper slots in the angles welded to the tongue. Use
four 5/16" x 3/4" hex bolts, 5/16" at washers and 5/16"
nylock nuts. Washers go between bolt heads and slots
in welded angles. Tighten. See gure 16.
29. Assemble the elbow to the impeller housing using
four 5/16" x 3/4" self tapping hex bolts and four nylon
washers. Push while turning to help start the bolts into
the unthreaded holes. Tighten. See gure 17.
30. To center the elbow with the opening in the hard top:
a. Push the vinyl boot back inside the opening.
b. Loosen by approximately 1/2 turn each, the four
bolts that you assembled in gure 16.
c. Slide the engine in the slots until the elbow is
centered with the opening in the hardtop.
d. Retighten the four bolts that you loosened.
31. Pull the vinyl boot onto the end of the elbow.

12

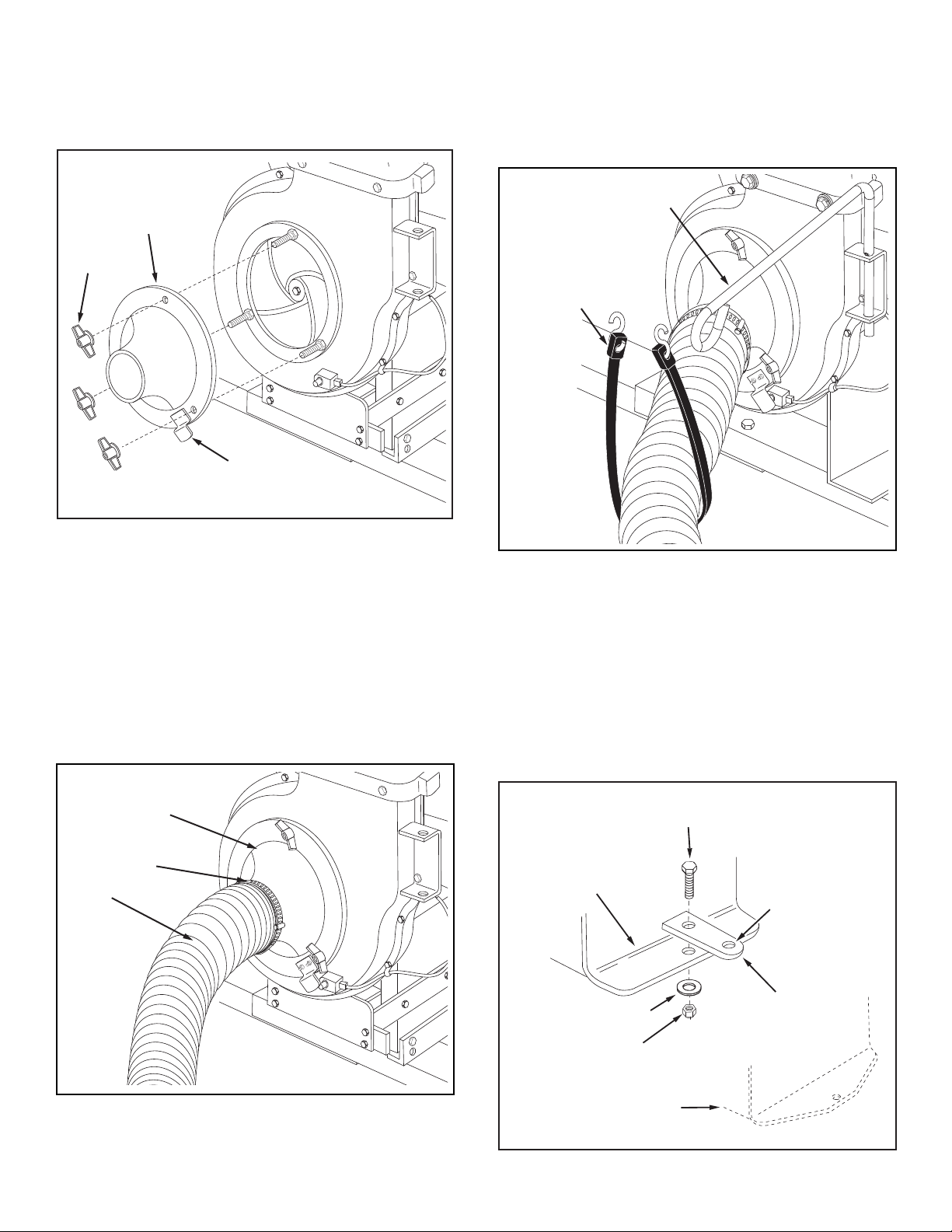

32. Assemble the hose adapter (nozzle) to the front of
the impeller housing and secure with the three knobs.
Make sure that the switch actuator bracket contacts
the switch on the housing. See gure 18.
FIGURE 21
35. Place the hose hanger rod assembly into the hose
hanger bracket on the impeller housing assembly. See
gure 20.
36. Loop the 25" tarp strap under the hose. Fasten the
hooks to the hose hanger rod. See gure 20.
FIGURE 19
33. Place a hose clamp onto end of hose. Push hose onto
hose adapter (nozzle). Tighten hose clamp onto hose
and hose adapter. Donotcollapsehoseadapter
whentighteningclamp. See gure 19.
34. The remaining hose clamp will later be used to fasten
the other end of the hose to the deck adapter.
FIGURE 18
HOSE ADAPTER
(NOZZLE)
KNOB
SWITCH
ACTUATOR
BRACKET
37. Assemble the hitch plate to the tractor hitch if:
a. Your tractor has a square (straight) hitch frame,
to help prevent binding.
b. Your tractor has a lightweight hitch frame that
needs reinforcing for towing the Mow-N-Vac.
Use a 1/2" x 1-1/4" hex bolt, a 7/16" at washer and a
1/2" Nylock hex nut. See gure 21.
FIGURE 20
HOSE ADAPTER
(NOZZLE)
CLAMP
HOSE
25" TARP
STRAP
HOSE HANGER ROD
TRACTOR
HITCH FRAME
(SQUARE)
HITCH
PLATE
TRACTOR
HITCH FRAME
(TAPERED)
1/2" x 1-1/4"
HEX BOLT
7/16" FLAT WASHER
1/2" NYLOCK HEX NUT
ATTACH
MOW-N-VAC
HERE

13
ASSEMBLINGTHEDECKADAPTER(#62468)
TO THE MOWER DECK
ContentsofHardwarePackforDeckAdapter:
NOTE: Not all of the hardware will be used for any one
particular t up.
FIGURE 23
FIGURE 22
1/4" DOWN
Keep cut-off as close to
the top edge as possible.
IMPORTANT:
1/2" FROM FRONT
I J K
A B C
E
D
HG
F
NOT SHOWN FULL SIZE
SHOWN FULL SIZE
BEFOREPROCEEDING,look in the fold-out sheets to nd the template for
your mower deck. If written instructions are printed on the template, follow those
instructions instead of the instructions in this manual.
STOP
CAUTION: Mower deector must be
replaced when Vac System deck adapter
is removed. Do Not operate mower
unless adapter or deector is in place
and properly mounted.
1. Identify and cut out the template for your brandand
size mower deck. If there is no template included for
your deck size, you can make your own template by
marking around a piece of cardboard held against the
edge of the deck's discharge opening.
2. FOLLOWTHEINSTRUCTIONSPRINTEDONTHE
TEMPLATE. If there are no instructions, use the
following instructions as a general guide.
3. Tape the template to the face of the adapter, about
1/2" from front and 1/4" down from top for deeper
decks. For shallow decks, position template low
enough that adapter will not extend below bottom
of deck. Mark outline of template on face of adapter
using white crayon, nail or scriber. Drill a starting hole
inside the outline, then use a saber saw or key hole
saw to cut out the opening. See gure 23.
PERFORMTHISSTEPONLYIFNECESSARY.
4. Remove the mower discharge deector from your
mower deck if necessary to attach deck adapter. Save
the deector and hardware for remounting deector.
REF. PARTNO. QTY. DESCRIPTION
A 43840 2 Hex Bolt, 5/16" x 1-1/4"
B 43661 4 Hex Bolt, 1/4" x 1"
C 43080 2 Carriage Bolt, 5/16" x 3/4"
D 47810 3 Hex Nylock Nut, 5/16"
E 47189 5 Hex Nylock Nut, 1/4"
F 43088 9 Flat Steel Washer, 1/4" Std.
G 43081 12 Flat Washer, 5/16" Std.
H 1543-69 5 Nylon Washer
I 23825 1 Mounting Strap
J 23826 1 Angle Bracket
K 23827 1 Mounting Bracket
Need more help cutting out and assembling the deck
adapter? Scan the QR Code below with free ShowUHow
Mobile App available at iTunes Store or Android Market
and refer to Segment 6.
Or visit www.agri-fab.com for product assembly instructions.

14
FIGURE 24
6. Holding the adapter bracket and the deck adapter
together, position the deck adapter on the mower
deck. Keeping the edge of deck adapter as close as
possible to the offset in the adapter bracket, see if the
slot in the adapter bracket can be aligned with one
or two of the deector holes in your mower deck's
discharge opening. If the bracket can not be located
correctly using existing holes, it will be necessary to
drill one or two 5/16" diameter holes in the deck. See
gure 25.
5. Position the adapter over the deck opening, and check
for t of cutout as shown in gure 24. Trim cutout, if
necessary, to allow tilting of adapter, keeping the t as
close as possible for best vacuum suction.
7. Assemble the adapter bracket to the deck using two
5/16" x 1" hex bolts, 5/16" at washers and 5/16"
Nylock hex nuts. See gure 26.
NOTE: It may be necessary to use extra 5/16" at
washers to shim under the bracket next to the deck
surface. Ten extra washers have been furnished as
shims. See gure 26.
FIGURE 26
FIGURE 27
10. Assemble end of hose and a hose clamp over the
round opening of deck adapter and tighten clamp. GO
DIRECTLYTOTHEOPERATIONINSTRUCTIONS
ONPAGE15.
8. With deck adapter positioned correctly over the
discharge opening, use the adapter bracket as a
template and drill three 9/32" diameter holes in the top
of the deck adapter. See gure 27.
9. Bolt deck adapter to bracket using three 1/4" x 1"
bolts, nylon washers, 1/4" at washers and 1/4"
Nylock hex nuts. Nylon washers should be against
the inside of the deck adapter. See gure 27.
FIGURE 25
MOWER DECK
DECK ADAPTER
NOTE: Make sure adapter clears gauge
wheels on mower deck
Curl on deck may be located outside of
adapter or inside depending on deck
opening design
DECK ADAPTER MOWER DECK
ADAPTER BRACKET
Keep edge of adapter as close
as possible to offset in bracket
Use existing holes or drill 5/16"
diameter hole or holes.
ADAPTER BRACKET
5/16" flat washers
used as needed for
shims to adjust for
variations in decks.
(2) 5/16" NYLOCK
HEX NUTS
5/16" x 1" HEX BOLT
(2) 5/16" FLAT
WASHERS
(3) 1/4" NYLOCK
HEX NUTS
(3) NYLON
WASHERS
(3) 1/4" STEEL WASHERS
(3) 1/4" x 1" HEX BOLTS
ADAPTER
BRACKET
MOWER DECK
DECK ADAPTER

15

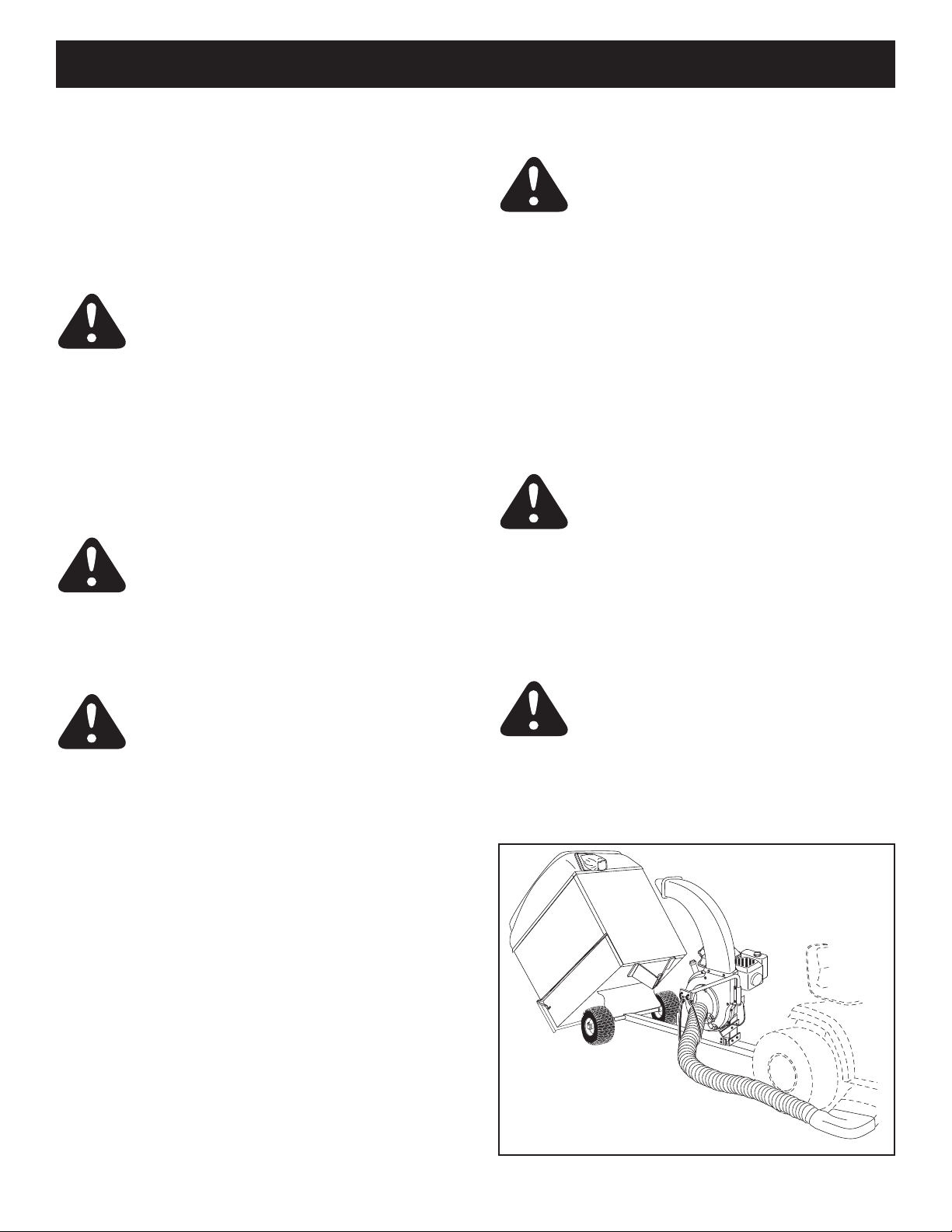

FIGURE 28
10. Using a rake or suitable tool, pull the grass clippings
and/or leaves out of cart.
11. After cart is emptied, secure cart to tongue with latch
and reattach the rear door and vinyl boot.
HOWTOUSEYOURMOW-N-VAC
BEFORE STARTING
1. Your Mow-N-Vac engine is shipped without oil or gasoline.
Service the Mow-N-Vac engine with oil and gas as
instructed in the separate engine manual.
2. Inspect the Mow-N-Vac to make sure all covers (rear
door, vinyl boot, elbow, hose adapter, hose and deck
adapter are properly attached.
3. Check tires for proper ination (12 - 14 lbs).
WARNING:Never ll fuel tank indoors, or
with the engine running, or while the engine
is hot. Do not smoke while lling tank.
HOWTOSTOPYOURMOW-N-VAC
1. To stop engine, move the throttle control lever to the
OFF position.
2. Disconnect spark plug wire from plug to prevent accidental
starting while equipment is unattended or is being worked
on.
CAUTION: The mufer and adjacent
areas are hot!
HOWTOSTARTYOURMOW-N-VAC
OPERATION
1. Check oil and gas in Mow-N-Vac engine.
2. Attach spark plug wire to spark plug.
3. Move choke lever on engine to CHOKE position.
(A warm engine may not require choking.)
4. Move throttle control lever on engine to FAST position.
5. Grasp starter handle and pull rope out slowly until engine
reaches start of compression cycle (rope will pull slightly
harder at this point). Let the rope rewind slowly.
6. Pull rope with a rapid, continuous, full arm stroke. Keep
a rm grip on starter handle. Let rope rewind slowly. Do
not let starter handle snap back against starter.
7. Repeat instructions in two preceding paragraphs until
engine res. When engine starts, move choke control
gradually to RUN position.
WARNING:Never start or run the engine
without all covers being properly attached to
the blower housing and cart.
CAUTION: Vehicle braking and stability
may be affected with the addition of an
accessory or an attachment. Be aware of
changing conditions on slopes.
1. Inspect the Mow-N-Vac to make sure all covers (rear
door, vinyl boot, elbow, hose adapter (nozzle), hose and
deck adapter are properly attached.
2. Check tires for proper ination (12 - 14 lbs).
3. Check oil and gas in Mow-N-Vac engine.
4. Begin operation at low speed, adjusting forward speed to
match grass height and/or moisture condition to prevent
clogging.
5. Do not attempt to vacuum up any material other than
vegetation found in a normal yard, such as light branches,
leaves, twigs, etc.
6. To empty cart, shut off tractor engine and set brake.
7. Shut off Mow-N-Vac engine.
8. Remove rear door from cart.
9. Release the latch holding cart down to the tongue by
pulling up on the latch lever. See gure 28.
WARNING: Should your Mow-N-Vac
become clogged, shut off tractor and
Mow-N-Vac engines. Before attempting
to unclog, remove wire from spark plug to
prevent accidental starting.
CAUTION: To avoid possible injury, be
sure that no one is near the cart before
releasing the latch.

16
MAINTENANCE
Service Dates
Check for loose fasteners X
Check soft vinyl boot X
Check tire pressure X
Check engine oil level X
Lubricate X
Clean X X
Maintain engine per instructions below and in engine manual.
Before each use
After each use
Every season
Before storage
CUSTOMERRESPONSIBILITIES
• Read and follow the maintenance schedule and the maintenance procedures listed in this section.
MAINTENANCE SCHEDULE
Fill in dates as you
complete regular service.
BEFORE EACH USE
CHECK FOR LOOSE FASTENERS
1. Make a thorough visual check of the Mow-N- Vac for any
bolts and nuts which may have loosened. Retighten any
loose bolts and nuts.
CHECKVINYLBOOT
2. Check the soft vinyl boot (on front of hard top) for wear.
Replace if worn or damaged.
CHECKTIREPRESSURE
3. Check tire pressure regularly. Recommended tire
pressure is 12-14 Lbs.
CHECK ENGINE OIL LEVEL
4. Check oil level before each use. Maintain engine oil as
instructed in the separate engine manual.
LUBRICATION
1. At the beginning of each season, lubricate the latch, latch
pivot bolt, and the axle where the hitch tongue pivots,
with a light machine oil.
2. At least once a season, grease or oil the wheel bearings.
Use automotive wheel bearing type grease or 20 weight
oil.
WARNING: Always stop engine and
disconnect spark plug wire before
cleaning, lubricating or before performing
any repairs or maintenance.
ENGINE MAINTENANCE
1. Check oillevel before each use. Maintain engine oil as
instructed in the separate engine manual.
2. Service air cleaner every 25 hours under normal
conditions. Clean every few hours under extremely
dusty conditions. Poor engine performance and ooding
usually indicates that the air cleaner should be serviced.
To service the air cleaner, refer to the separate engine
manual.
3. The sparkplug should be cleaned and the gap reset
once a season.Spark plug replacement is recommended
at the start of each season. Check the engine manual
for correct plug type and gap specications.
CLEANING
1. Make sure the cart, the side and front panels and top are
cleaned after each use. Grass clippings and leaves left
in the cart will mildew and cause damage if not cleaned
out.
2. Cleantheengine regularly with a cloth or brush.Keep the
cooling ns on the engine housing clean to permit proper
air circulation which is essential to engine performance
and life. Be sure to remove all dirt and debris from mufer
area.
STORAGE
3. If storing in an unventilated or metal storage shed, coat
metal parts with light oil or silicone to prevent rust.
4. Store unit in a clean, dry area.
1. Clean the engine and the entire unit thoroughly.
2. Refer to engine manual for correct engine storage
instructions.

17
PROBLEM POSSIBLE CAUSE(S) CORRECTIVE ACTION
Engine fails to start 1. Spark plug wire disconnected. 1. Connect wire to spark plug.
2. Safety switch not contacted. 2. Correctly install hose adapter nozzle.
3. Fuel tank empty, or stale fuel. 3. Fill tank with clean, fresh fuel.
4. Fuel shut-off valve closed 4. Open fuel shut-off valve.
(if so equipped).
5. Faulty spark plug. 5. Clean, adjust gap or replace.
Loss of power; 1. Spark plug wire loose 1. Connect and tighten spark plug wire.
operation erratic. 2. Unit running on CHOKE. 2. Move choke lever to OFF position.
3. Blocked fuel line or stale fuel. 3. Clean fuel line; ll tank with clean
fresh gasoline.
4. Water or dirt in fuel system. 4. Disconnect fuel line at carburetor to drain
fuel tank. Rell with fresh fuel.
5. Carburetor out of adjustment. 5. Adjust carburetor.*
6. Dirty air cleaner. 6. Service air cleaner.*
Engine overheats 1. Carburetor not adjusted 1. Adjust carburetor.*
properly.
2. Engine oil level low. 2. Fill crankcase with proper oil.
Too much vibration Loose parts or damaged Stop engine immediately and disconnect
impeller. spark plug wire. Tighten all bolts and nuts.
Make all necessary repairs. If vibration
continues, have unit serviced by an
authorized service dealer.
Unit does not 1. Discharge chute (elbow) 1. Stop engine immediately and disconnect
discharge clogged. spark plug wire. Clean inside of housing
and discharge chute (elbow).
2. Foreign object lodged in 2. Stop engine immediately and disconnect
impeller. spark plug wire. Remove lodged object.
3. Mow-N-Vac cart is full. 3. Empty cart.
TROUBLESHOOTING
*Refer to the engine manual packed with your unit.
NOTE: For repairs beyond the minor adjustments listed above, please contact your nearest authorized service dealer.

18
NOTES

19
PARTS
REF. PARTNO. QTY. DESCRIPTION
1 23985 2 Cart Body
2 62458 1 Tailgate Reinforcement Bracket
3 23507 1 Wheel Support
4 24497 1 Latch Stand Bracket
5 24897 1 Axle, Wheel 1" Dia.
6 42159 2 Wheel w/Tire, 15 x 6.00
7 43093 2 Cotter Pin, 1/8" Dia. x 1-1/2"
8 43601 4 Washer, Flat 1"
9 44678 2 Spacer Tube, 1-1/4" x 2" Lg.
10 43014 2 Hub Cap
11 43866 9 Hex Bolt, 1/4-20 x 5/8"
12 47189 9 Hex Nut, 1/4-20 Nylock
13 43814 12 Truss Hd. Bolt, 5/16-18 x 3/4"
14 41076 2 Spacer
15 43088 2 Washer, Flat 1/4"
REF. PARTNO. QTY. DESCRIPTION
16 63917 1 Tongue Weldment Ass'y. (Rear)
17 63155 1 Tongue Weldment Ass'y. (Front)
18 24614 1 Latch Lock Lever
19 23475 1 Hitch Bracket
20 43884 1 Hitch Pin
21 43343 1 Pin, Hair Cotter 1/8"
22 43087 2 Hex Bolt, 3/8-16 x 1-1/4"
23 23838 2 Door Support
24 HA21362 5 Nut, Hex Nylock 3/8-16
25 47407 1 Hex Bolt, 5/16-18 x 3-3/4"
26 47408 1 Spring, Extension
27 43574 3 Hex Bolt, 3/8-16 x 3"
28 47810 13 Hex Nut, 5/16-18 Nylock
29 43081 2 Washer, 3/8"
11
11
4
1
2
11
1
3 5
A
5
8
6
8
7
10
9
12
12
12
13
13
28
28
15
20
27
23
A
16
17
18
19
21
22
24
25
26
28
24
14
29
REPAIRPARTSFORMOW-N-VACCARTBODY
MODELS501887,501888,551887,551888,190-217D-100&190-217E-100

20
41
42
32
40
TO
TRACTOR
26
24
25
27
23
4 39 7
8
12
35
37
21
20
28
33
37
33
35
34 37
37
37
36
35
31
35
37
1 2
2
3
4
4
6
8
8
8
9
14
16
17
19
19
18
29
30
7
38
11
10
A
A
22
20 35
B
B
4
37
15
5
8
37
8
37
37
8
7
7
7
7
7
35
35
35
35
43
43
43
34
34
34
13
44 45
13
46
48
47
ADAPTER #62468
37
49
8
43
31 30
36
35
35
37
REPAIRPARTSFORMOW-N-VAC
MODELS501887,501888,551887,551888,190-217D-100&190-217E-100
