OWNERS
MANUAL
175# BROADCAST SPREADER
Model No.
45-01872
FORM NO 48315 (4/02)
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxx
xxxxx
xxxxxx
xxx
xxxxx
xxxxx
xxxxxx
xxx
xxxxxxxxxxxxxxxx
xxxxx xxxxxx
xxxxxx xxxxx
xxx xxxxxx
APPLICATION TIPS

2
RULES FOR SAFE OPERATION
Any power equipment can cause injury if operated improperly or if the user does not understand how to operate
the equipment Exercise caution at all times when operating equipment
LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS IT
MEANS -- ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED
CARTON CONTENTS
LOOSE PARTS IN CARTON
•Read the towing vehicle owners manual and tow-
ing vehicle safety rules Know how to operate your
tractor before using the broadcast spreader at-
tachment
•Read the chemical label instructions and cautions
for handling and applying the chemicals purchased
for spreading
•Wear eye and hand protection when handling and
when applying lawn or garden chemicals
•Never operate tractor and spreader attachment
without wearing substantial footwear, and do not
allow anyone to ride or sit on spreader attachment
frame
•Never allow children to operate the tractor or
spreader attachment, and do not allow adults to
operate without proper instructions
•Always begin with the transmission in first (low)
gear and with the engine at low speed, and gradu-
ally increase speed as conditions permit Maxi-
mum towing speed - 10 M P H
•When towing broadcast spreader do not drive too
close to a creek or ditch and be alert for holes and
other hazards which could cause you to loose
control of the broadcast spreader and tractor
•Before operating vehicle on any grade (hill) refer
to the safety rules in the vehicle owner's manual
concerning safe operation on slopes Stay off
steep slopes!
•Follow maintenance and lubrication instructions
as outlined in this manual

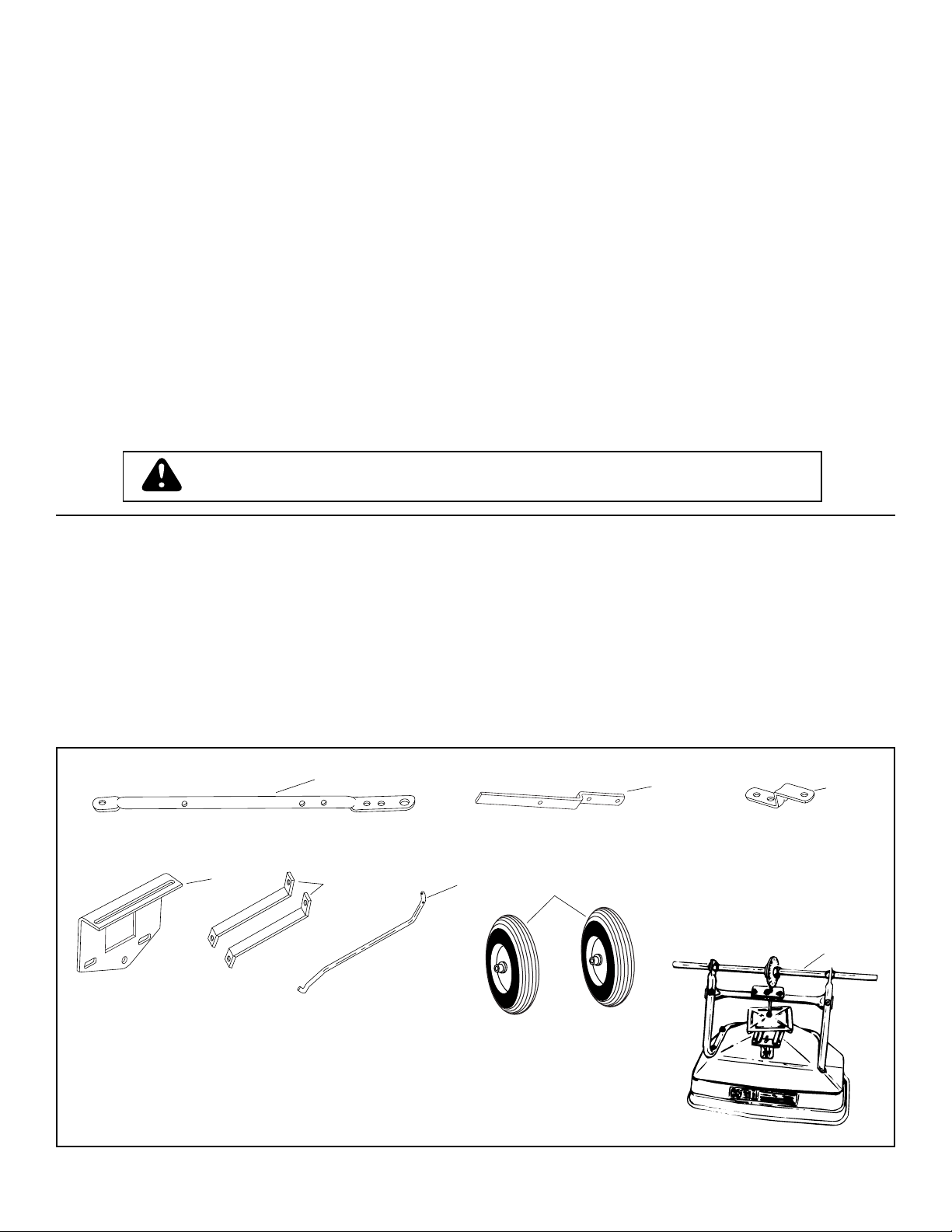

1 Hitch Tube
2 Flow Control Arm
3 Hitch Bracket
4 Flow Control Mount Bracket
5 Braces (2)
6 Flow Control Rod
7 Wheels (Drive and Idler)
8 Hopper Assembly
Hardware Package (see page 3)
567
1
4
8
23

3
J 4 Flat Washers 1-5/8"
K 1 Cotter Pin, 3/32" x 3/4"
L 1 Cotter Pin, 1/8 x 1-1/2"
M 1 Hair Cotter Pin, 1/8"
N 1 Hitch Pin
O 2 Spacers
P 1 Nylon Wing Nut
Q 1 Adjustable Stop
R 1 Flow Control Link
S 1 Grip

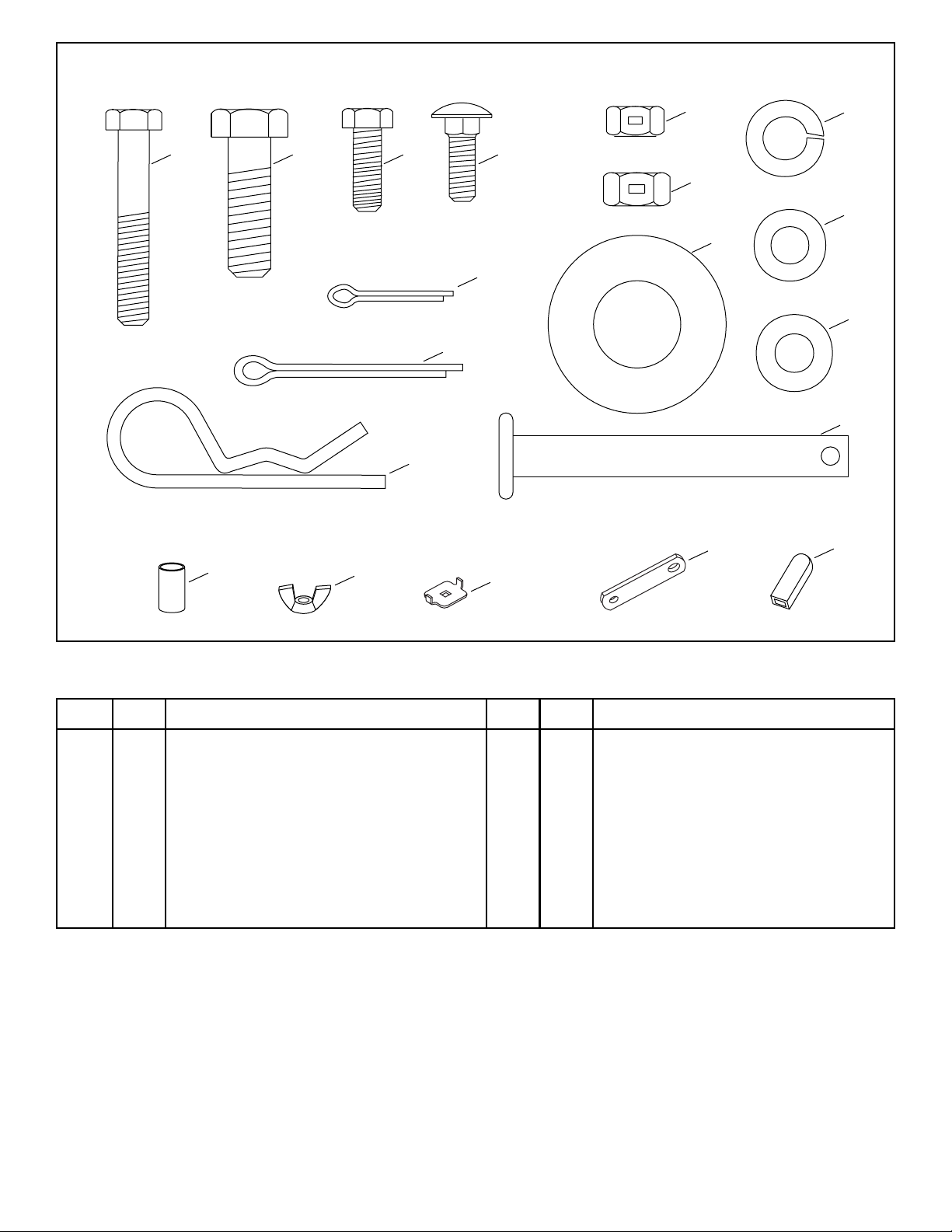

KEY QTY. DESCRIPTION
A 6 Hex Bolt, 1/4-20 x 1-3/4"
B 2 Hex Bolts, 3/8-16 x 1-1/4"
C 2 Hex Bolt, 1/4-20 x 3/4"
D 1 Carriage Bolt, 1/4-20 x 3/4"
E 8 Hex Lock Nuts, 1/4-20 Thread
F 2 Hex Lock Nuts, 3/8-16 Thread
G 2 Lock Washers, 3/8" I D
H 4 Nylon Washer
I 8 Flat Washer, 5/16"
KEY QTY. DESCRIPTION
E
F
DCBA
K
L
M
G
H
I
J
N
OPQ
RS
NOT SHOWN FULL SIZE
SHOWN FULL SIZE

4
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED FOR ASSEMBLY
(1) Pliers
(2) 7/16" Wrenches
(2) 1/2" Wrenches
(2) 9/16" Wrenches
REMOVAL OF PARTS FROM CARTON
Remove all parts and hardware packages from the carton
Lay out all parts and hardware and identify using the
illustrations on pages 2 and 3
1 Turn the spreader upside down as shown in figure 1,
so that it rests on the hopper
2 Remove the 3/8" hex bolt, flat washer and hex lock nut
from the center of the crossover tube and shaft support
plate See figure 1
FIGURE 1
3 Assemble the two hitch braces to the inside of the
hopper frame, one on each side, using two 1/4" x 1-3/4"
hex bolts and two 1/4" hex lock nuts See figure 2 DO
NOT TIGHTEN AT THIS TIME.
4 Assemble short end of hitch tube to the crossover tube
(on opposite side from shaft support plate) Fasten to
the center hole in the crossover tube using the 3/8" hex
bolt, flat washer and hex lock nut removed in figure 1
See figure 2 DO NOT TIGHTEN AT THIS TIME.
FIGURE 2
6 Tighten all hex nuts and bolts, following the same
sequence as assembled in figures 1 and 2 DO NOT
COLLAPSE TUBE WHEN TIGHTENING.
7 Assemble a spacer and a 1-5/8" flat washer onto the
end of the axle that has the small hole See figure 3
8 Turn the idler wheel (no hole in hub) so that the air valve
faces out Place onto the axle and secure with a 1-5/8"
dia flat washer and a 1/8" x 1-1/2" cotter pin Use the
extra washer if needed to take up play See figure 3
5 Align the holes in the ends of the two hitch braces with
the nearest hole in the hitch tube Fasten with a 1/4" x
1-3/4" hex bolt and a 1/4" hex lock nut See figure 2 DO
NOT TIGHTEN AT THIS TIME.
3/8" HEX
LOCK NUT
3/8" FLAT
WASHER
1/4" x 1-3/4"
HEX BOLT
1/4" HEX
LOCK NUT
3/8" HEX
BOLT
CROSSOVER
TUBE
HITCH BRACES
HITCH
TUBE
HOPPER
FRAME
SHAFT SUPPORT
PLATE
SMALL HOLE
SPACER
1-5/8" DIA.
FLAT WASHER
1-5/8" DIA.
FLAT WASHER
1/8" x 1-1/2"
COTTER PIN
AIR VALVE
FIGURE 3

5
9 Assemble a spacer and a 1-5/8" flat washer onto the
end of the axle that has the large hole See figure 4
10 Place the drive wheel onto the axle (air valve to outside)
and secure with a 1/4" x 1-3/4" hex bolt and a 1/4" hex
lock nut See figure 4
FIGURE 4
11 Turn the spreader upright on its wheels
12 Assemble the hitch bracket to the top of the hitch tube
using two 3/8" x 1-1/4" hex bolts, 3/8" lock washers and
3/8" hex lock nuts See figure 5
13 Assemble the hitch pin through the hitch bracket and
the hitch tube and secure with the hair cotter pin See
figure 5
FIGURE 5
14 Assemble the flow control link (end with small hole) to
the flow control arm using a 1/4" x 3/4" hex bolt, a nylon
washer and a 1/4" hex lock nut as shown in figure 6
Tighten carefully. The flow control link should not be
loose but should pivot with no more than slight resis-
tance
FIGURE 6
1/4" HEX
LOCK NUT
1/4" x 1-3/4"
HEX BOLT
DRIVE WHEEL
AIR VALVE
SPACER
1-5/8" DIA.
FLAT WASHER
3/8" x 1-1/4"
HEX BOLT
3/8" LOCK
WASHER
3/8" HEX
LOCK NUT
HITCH PIN
HAIR COTTER PIN
FLOW CONTROL
LINK FLOW
CONTROL
ARM
1/4" HEX
LOCK NUT
1/4" x 3/4"
HEX BOLT
SMALLEST
HOLE
NYLON
WASHER

6
16 Place a 5/16" flat washer onto the end of the flow control
rod Insert the end of the rod through the slot in the flow
control mounting bracket and through the hole in the
flow control link Secure with a 3/32" x 3/4" cotter pin
See figure 8
FIGURE 8
17 Hook the free end of the flow control rod through the
hole in the slide gate bracket located near the bottom
of the hopper See figure 9
FIGURE 9
18 Assemble the flow control mounting bracket to the hitch
tube using two 1/4" x 1-3/4" hex bolts, six 5/16" flat
washers and two 1/4" hex lock nuts as shown in figure
10 Do not tighten at this time.
FIGURE 10
19 Place the adjustable stop into the "ON" end of the slot
in the top of the flow control mounting bracket Secure
with the 1/4" x 3/4" carriage bolt, a nylon washer, a 5/16"
flat washer and the nylon wing nut See figure 11
FLOW
CONTROL
ROD
FLOW
CONTROL
LINK
3/32"
COTTER
PIN
5/16" FLAT
WASHER
SLOT
FLOW CONTROL
MOUNTING BRACKET
1/4" x 1-3/4"
HEX BOLT
1/4" HEX
LOCK NUT
5/16" FLAT
WASHER
14 Assemble the flow control arm to the flow control
mounting bracket using a 1/4" x 3/4" hex bolt, two nylon
washers and a 1/4" hex lock nut as shown in figure 7
Tighten carefully. The flow control arm should be
snug, but should pivot with no more than a slight
resistance
15 Assemble the vinyl grip See figure 7
FIGURE 7
1/4" x 3/4"
HEX BOLT
1/4" HEX
LOCK NUT
FLOW CONTROL
MOUNTING
BRACKET
FLOW
CONTROL
ARM
(2) NYLON
WASHERS
VYNIL GRIP

7
FIGURE 11
20 Position the flow control mounting bracket (figure 12)
a Push on flow control arm until it locks in "OFF"
position
b Slide flow control mounting bracket along tube
until closure plate in bottom of hopper just closes
c Snug the 1/4" lock nuts just enough to hold flow
control mounting bracket in place
d Set adjustable stop at "5" Pull flow control arm
against stop Verify that closure plate has opened
about half way
e If closure plate does not open half way, it may be
closed too far at "OFF" Adjust position of flow
control mounting bracket until closure plate will
open about half way at "5" and still close when arm
is locked in "OFF" Tighten 1/4" lock nuts
FIGURE 12
5/16" FLAT
WASHER
NYLON
WASHER
1/4" x 3/4"
CARRIAGE BOLT
NYLON
WING NUT
ADJUSTABLE
STOP
OFF
ON
1
2
3
4
6
7
8
9
10
5
FLOW
CONTROL
ARM
ON
OFF
AJDUSTABLE
STOP
SETTING "5"

8
FIGURE 13
FERTILIZER
Powder 3 - 5 3' - 4'
Granular 3 - 5 8' - 10'
Pelleted 3 - 5 10' - 12'
Organic 6 - 8 6' - 8'
GRASS SEED
Fine 3 - 4 6' - 7'
Coarse 4 - 5 8' - 9'
ICE MELTER 6 - 8 10' - 12'
TYPE SPREAD
MATERIAL FLOW SETTING WIDTH
APPLICATION CHART (SHIELD UP)
OPERATING SPEED - 3 MPH (100 ft in 23 seconds)
IMPORTANT: Application rates shown in the chart are
affected by humidity and by the moisture content of
the material (granular and pellet) Some minor set-
ting adjustments may be necessary to compensate
for this condition
OVERLAP
REFER
TO
CHARTS
USING YOUR SPREADER
We do not recommend the use of any powdered lawn
chemicals, due to difficulty in obtaining a satisfactory or
consistent broadcast pattern
1 Determine approximate square footage of area to be
covered and estimate amount of material required
2 Before filling the hopper make sure the flow control arm
is in the off position and the closure plate is shut
3 Break up any lumpy fertilizer as you fill the hopper
4 Set the adjustable stop with the flow control arm still in
the off position Refer to the application chart on this
page and to the instructions on the fertilizer bag to
select the proper flow rate setting
5 The application chart is calculated for light to heavy
application at a vehicle speed of 3 mph, or 100 ft in 23
seconds A variation in speed will require an adjust-
ment of the flow rate to maintain the same coverage
The faster you drive, the wider the broadcast width
6 Always start the tractor in motion before opening clo-
sure plate
7 Always shut the closure plate before turning or stop-
ping the tractor
8 If fertilizer is accidentally deposited too heavily in a
small area, soak the area thoroughly with a garden
hose or sprinkler to prevent burning of the lawn
9 To insure uniform coverage, make each pass so that
the broadcast pattern slightly overlaps the pattern from
the previous pass as shown in figure 13 The approxi-
mate broadcast widths for different materials are shown
in the application chart on this page
10 When broadcasting weed control fertilizers, make sure
the broadcast pattern does not hit evergreen trees,
flowers or shrubs
11 Heavy moisture conditions may require a cover over
the hopper to keep contents dry The vinyl cover
(available as an accessory) acts as a wind and mois-
ture shield, but should not be used as a rain cover
Refer to the parts list on page 11
HOW TO USE YOUR SPREADER
SETTING THE FLOW CONTROL
(Refer to figure 12 on page 7 )
1 Loosen the nylon wing nut, set the adjustable stop to
the desired flow rate setting and retighten the wing nut
The higher the setting number, the wider the opening
in the bottom of the hopper
2 Refer to the application chart on page 8 and to the
instructions on the fertilizer bag to select the proper
flow rate setting
3 Pull the flow control arm against the adjustable stop for
the on position and toward the hopper for the off
position
OPERATION

9
CHECK FOR LOOSE FASTENERS
1 Before each use make a thorough visual check of the
sreader for any bolts and nuts which may have
loosened Retighten any loose bolts and nuts
CHECK FOR WORN OF DAMAGED PARTS
2 Check for worn or damaged parts before each use
Repair or replace parts if necessary
CHECK TIRE INFLATION
3 Check if tires are adequately inflated before each use
Do not inflate beyond maximum recommended pres-
sure
FIGURE 14
1 Rinse inside of hopper and exterior of spreader and dry
off before storing
2 Store in a clean, dry area
CAUTION: DO NOT inflate tires be-
yond the maximum recommended pres-
sure printed on side of tire
CLEANING
4 Rinse inside of hopper and exterior of spreader and dry
off before storing

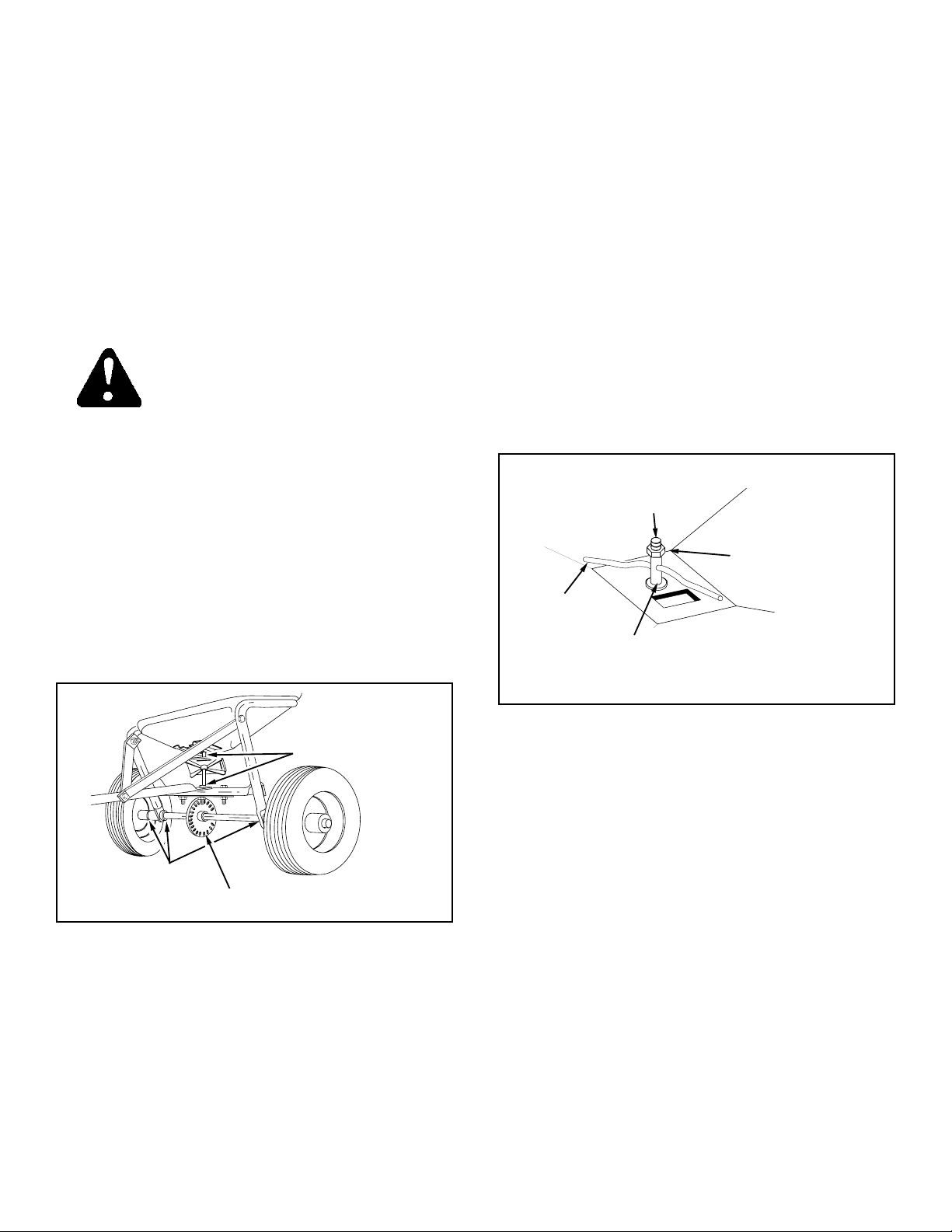

LUBRICATE (See figure 14 )
5 Lightly apply automotive grease as needed to the
sprocket and gear
6 Oil the nylon bushings on the vertical sprocket shaft
and on the axle at least once a year, or more often as
needed
7 Oil right hand (idler) wheel bearing at least once a year
or more often as needed
FIGURE 15
MAINTENANCE
GREASE
OIL
OIL
SPROCKET
SHAFT
AGITATOR
WIRE
3/8" HEX NUT
AGITATOR
SLEEVE
STORAGE
1 If the axle, slotted gear and sprocket assembly is
disassembled, mark down the positions of the parts as
they are removed The drive wheel and sprocket
positions in relation to the slotted gear determine which
direction the spreader plate will spin Be sure to reas-
semble them in their original positions (Refer to figure
4 on page 5 ) Use shim washers (Ref no 21 on pages
10 and 11) as needed for minimum backlash Add
grease to gear and sprocket
2 If the agitator wire becomes damaged or worn it can be
replaced Loosen the 3/8" hex nut on top of sprocket
shaft until agitator wire is free Remove old agitator
wire from hole in agitator sleeve and replace with new
agitator wire Position agitator wire so that sprocket
shaft turns freely, then tighten 3/8" hex nut on top of
sprocket shaft See figure 15
SERVICE AND ADJUSTMENTS

10

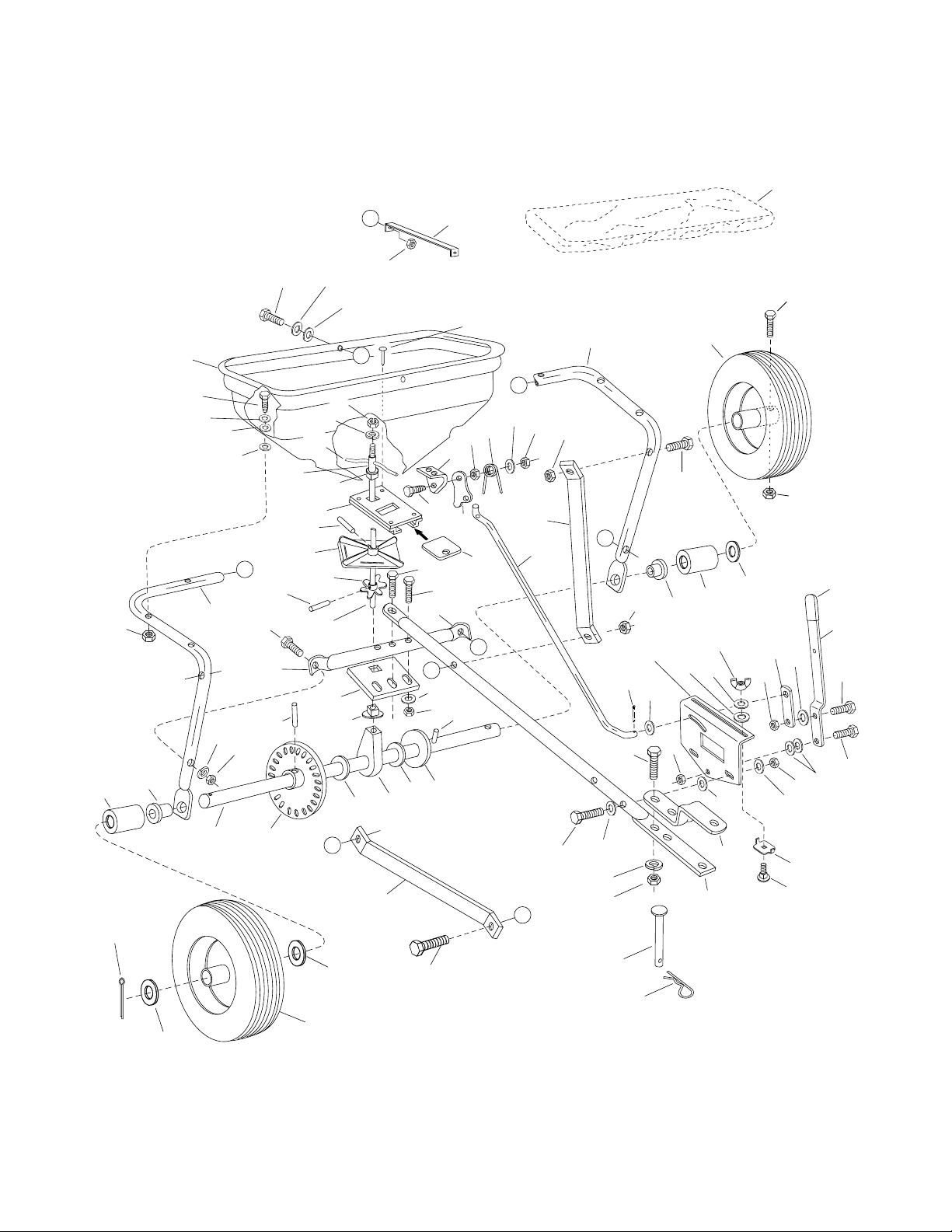

REPAIR PARTS FOR BROADCAST SPREADER MODEL 45-01872
11
24 23
43
50
21 20 21 22
19
18
4
D
E
35
50
15
37
37
39
23
A
A
33
59
27
26
28
3
19
36
34
9
46
957 9
40
16
14
7
17
37
24 50
12 13
E
9
29
30
5
9
54
9
4
9
35
B
6
52
44
47
58
58
8
42
32
7
D45 54
48
29
40
37
60
25
B
1
39
10
54
41
54
51
39
9
54
39
38
31
2
39
40
58
55
56
58
53
53
37
9
49
40
C
61
9
C
62

11
REPAIR PARTS FOR BROADCAST SPREADER MODEL 45-01872
REF. PART QTY. DESCRIPTION
NO. NO.
1 44480 1 Hopper
2 43882 4 Rivet, Stainless
3 62482 1 Ass'y, Guide Closure
4 44462 1 Tube, Frame
5 23753 1 Slide Gate Angle Bracket
6 23758 1 Slide Gate Bracket
7 43082 5 Nut, Hex Lock 3/8-16 Thd *
8 24857 1 Flow Control Link
9 43013 18 Nut, Hex Lock 1/4-20 Thd *
10 43808 1 Tube, Crossover
11 43084 2 Bolt, Hex 5/16-18 x 1-3/4" Lg
12 43086 2 Lock Washer, 5/16"
13 43064 2 Nut, Hex Lock, 5/16-18 Thd *
14 44487 1 Tube, Hitch
15 43008 1 Wheel, Idler
16 44459 1 Wheel, Drive
17 23687 1 Bracket, Hitch
18 23522 1 Shaft, Axle
19 43851 2 Pin, Spring 3/16" Dia x 1-1/4" Lg
20 43871 1 Bushing, Axle Shaft
21 1540-032 5 Washer, Flat 78 I D
22 1540-162 1 Washer, Flat 1/2"
23 47615 2 Bearing, Flange
24 44474 2 Tube, Spacer
25 23524 1 Shaft, Sprocket
26 04367 1 Spreader Plate
27 43850 1 Pin, Spring 1/8" Dia x 5/8"
28 44468 1 Sprocket, 6 Tooth
29 44285 2 Bushing, Delrin
30 23766 1 Sleeve, Agitator
31 43878 1 Wire, Agitator
REF. PART QTY. DESCRIPTION
NO. NO.
32 43070 5 Washer, Flat 3/8" *
33 41576 2 Bolt, Hex 3/8-16 x 1-3/4" Lg *
34 44469 1 Rod, Flow Control
35 23525 2 Brace, Hitch
36 23762 1 Shaft Support Plate
37 1509-069 12 Bolt, Hex 1/4-20 x 1-3/4"
38 43015 1 Nut, Hex 3/8-16
39 1543-069 12 Washer, Nylon
40 43088 15 Washer, Flat 1/4" Std
41 24858 1 Stop, Adjustable
42 24855 1 Bracket, Flow Control Mount
43 62474 1 Gear Assembly
44 24859 1 Flow Control Arm
45 44101 1 Cotter Pin 3/32" x 3/4" Lg *
46 23533 1 Plate, Closure
47 43848 1 Grip, Flow Control Arm
48 43087 2 Bolt, Hex 3/8-16 x 1-1/4" Lg *
49 43093 1 Pin, Cotter 1/8" x 1-1/2"
50 43009 4 Washer, Flat 1-5/8" O D
51 47141 1 Wing Nut, Nylon
52 43054 1 Bolt, Hex 3/8-16 x 2" Lg *
53 43003 3 Lock Washer, 3/8" *
54 R19111116 8 Washer, 5/16 SAE
55 47623 1 Hitch Pin
56 43343 1 Hair Cotter Pin, 1/8"
57 44566 1 Spring, Torsion
58 43012 5 Bolt, Hex 1/4-20 x 3/4" Lg *
59 46055 1 Pin, Spring 1/8" Dia x 1" Lg
60 44950 1 Bolt, Carriage 1/4-20 x 3/4"
61 23697 1 Strap, Hopper
62 43962 1 Vinyl Cover (Optional)
48315 1 Owner's Manual

REPAIR PARTS
303 West Raymond
Sullivan, IL 61951
217-728-8388
www agri-fab com
AGRI-FAB®LIMITED WARRANTY
WHO IS COVERED: This Warranty covers only the original retail purchaser of an AGRI-FAB® product or part It is
not transferable
HOW LONG DOES COVERAGE LAST: This Warranty remains in force for 1 year from the date of purchase
WHAT IS COVERED: Any defect in material or workmanship of your AGRI-FAB® product or part
WHAT IS NOT COVERED:
1 This warranty does not apply to the engine or components parts thereof Please refer to the applicable
manufacturer’s warranty on these items
2 Transportation charges for the movement of any power equipment unit or attachment are the responsibility of
the purchaser Transportation charges for any parts submitted for replacement under this warranty must be
paid by the purchaser unless such return is requested by AGRI-FAB®
3 This Warranty applies only to products, which have been properly assembled, adjusted, operated, and
maintained in accordance with the instructions furnished This Warranty does not apply to any product,
which has been subjected to alteration, misuse, abuse, improper assembly or installation, delivery damage,
or to normal wear of the product
4 Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments,
standard hardware and normal maintenance
5 AGRI-FAB® does not extend any warranty for products sold or exported outside of the United States of
America, its possessions and territories, except those sold through AGRI-FAB’s authorized channels of
export distribution
WHAT AGRI-FAB®WILL DO: Repair or replace your AGRI-FAB® product or part
HOW TO GET SERVICE: Deliver the AGRI-FAB® product or part to AGRI-FAB’s local authorized service dealer
or distributor If you do not know the dealer or distributor in your area, please write to the Customer Service
Department of AGRI-FAB, Inc at P O BOX 903, SULLIVAN, ILLINOIS 61951 The return of a product or part to
AGRI-FAB® will not be accepted unless prior written permission has been extended by AGRI-FAB®
THE DURATION OF ANY IMPLIED WARRANTY OF MERCHANTABILITY IS LIMITED TO THE DURATION OF
THE ABOVE EXPRESS WARRANTY. THE REMEDIES PROVIDED IN THIS LIMITED WARRANTY ARE THE
CUSTOMER’S SOLE AND EXCLUSIVE REMEDIES. EXCEPT FOR THE OBLIGATIONS SPECIFICALLY SET
FORTH IN THIS LIMITED WARRANTY, IN NO EVENT SHALL AGRI-FAB®BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so the above limitations may not apply to you
This Warranty gives you specific legal rights, and you may also have other rights, which vary from state to state
Agri-Fab, Inc , 303 West Raymond St , Sullivan, Illinois 61951 - [phone] - www Agri-Fab com
